The Weichai WP13 series engine is a large-displacement, inline 6-cylinder, four-stroke, turbocharged, intercooled diesel engine with a displacement of approximately 12.54 L and a power range of approximately 316–390 kW (≈430–530 hp). It features an electronically controlled high-pressure common rail fuel system, turbocharging and intercooling, good fuel economy, and high reliability. The WP13 series is used in heavy-duty trucks, wide-body dump trucks, and tractor units.
Dimension ( mm ) :
1560×820×1100mmEngine Power:
430HP-530HPRemark:

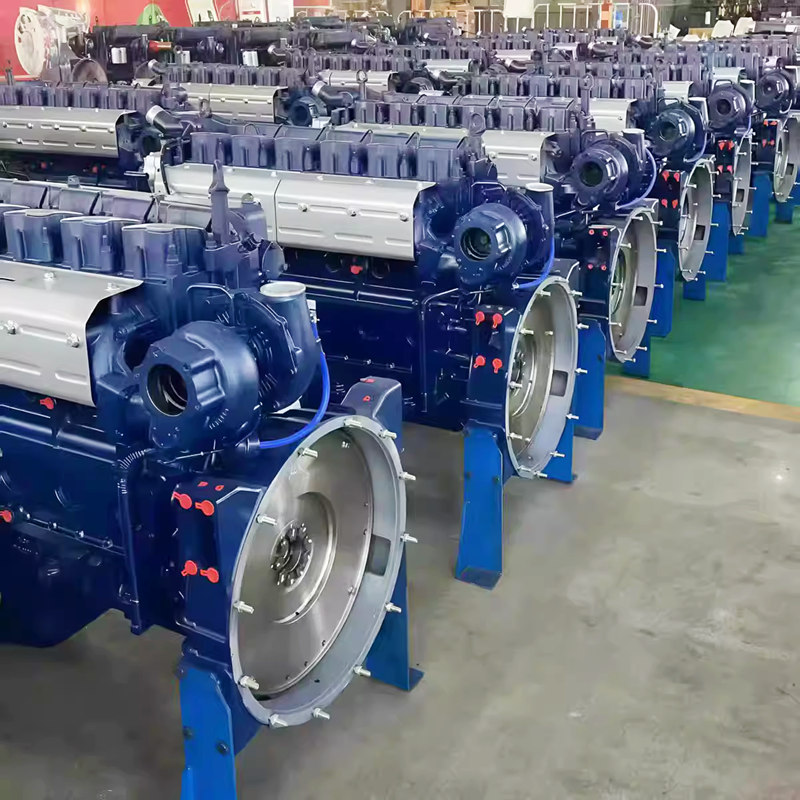

Brand new WP13 series enginesThe WP13.430E61 is a heavy-duty engine model in Weichai's WP13 series. It is an inline 6-cylinder, 4-stroke, turbocharged, intercooled engine with a displacement of approximately 12.54L. It produces 430 hp (316 kW) at approximately 1900 rpm and provides approximately 2000-2200 N·m of torque within the 1000-1400 rpm range.
The WP13.430E61 engine combines efficient combustion with an electronic control system, resulting in good fuel economy, strong low-speed torque, and reliability. It is suitable for the power needs of heavy-duty tractors, trucks, and other large vehicles.
» Ⅰ.Product Defination and Introduction:
Supplier: CEEC TRUCKS
▶ Engine Model: WP13.430E61
▶ Engine Brand: Weichai
▶ Engien Power: 316KW/430HP
▶ Displacement: 12.54L
» Ⅱ. Product Specifications:
|
Model NO. |
WP13.430E61 Engine |
|
Product Name |
Weicha Diesel Engine |
|
Cooling System |
Liquid-cooled |
|
Cylinder Configuration |
Inline 6-cylinder |
|
Emission Standard |
Euro 6 |
|
Engine Displacement |
12.54L |
|
Max output power |
316Kw |
|
Fuel Type |
Diesel |
|
Horsepower |
460 hp |
|
Rated Speed |
1900r/Min |
|
Max torque |
2200N.m |
|
Exhaust Gas Treatment |
EGR Technology |
|
Intake Method |
Turbocharged Intercooled |
|
Compatible Models |
Beiben,Sinotruk,Shacman |
|
Transport Package |
Export Wooden Box |
|
Specification |
1560×820×1100 mm |
|
Weight |
1050kg |
|
Trademark |
Weichai |

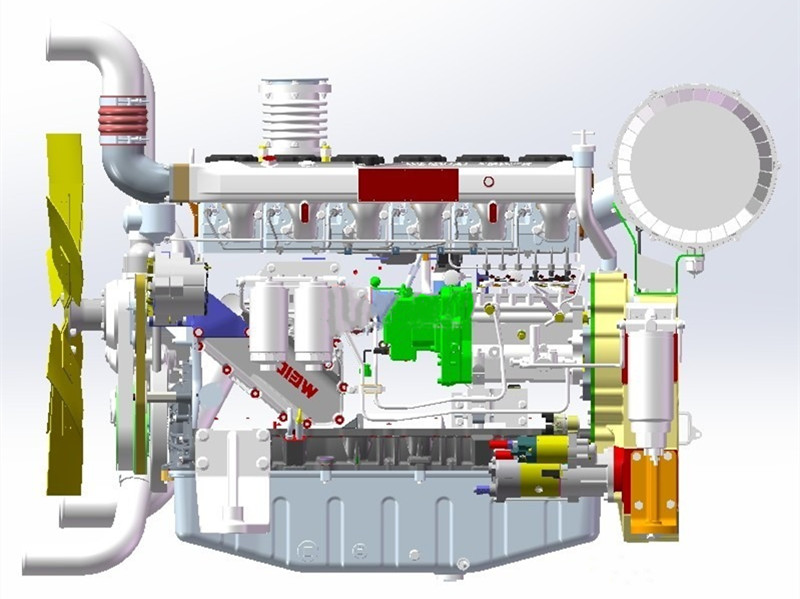

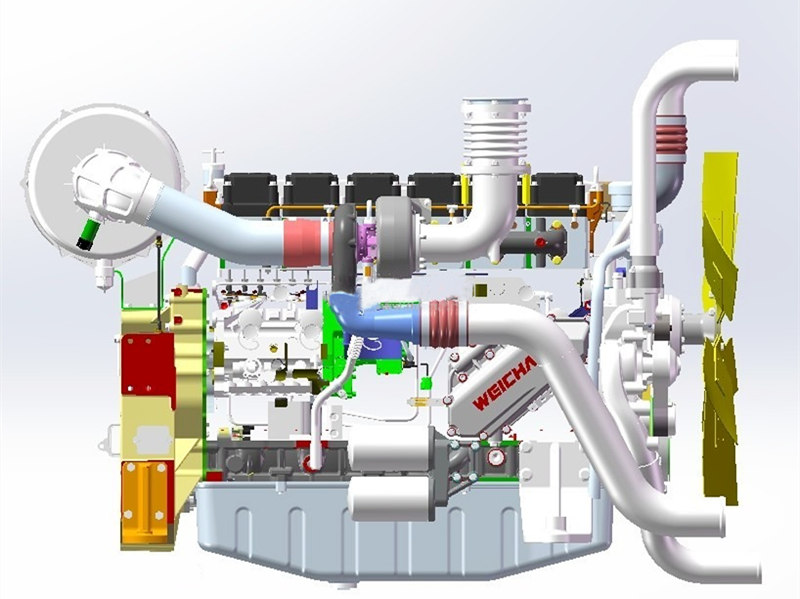

» Ⅲ. Schematic Diagram of WP13.430E61 Engine：:
 |
 |

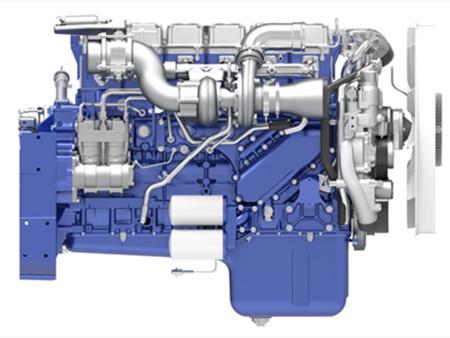

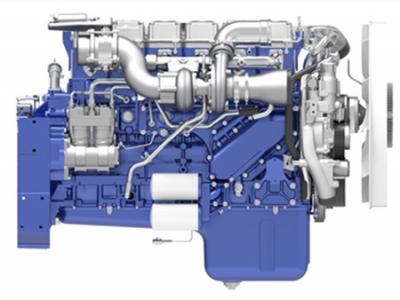

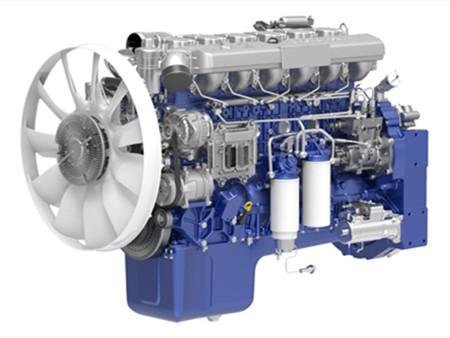

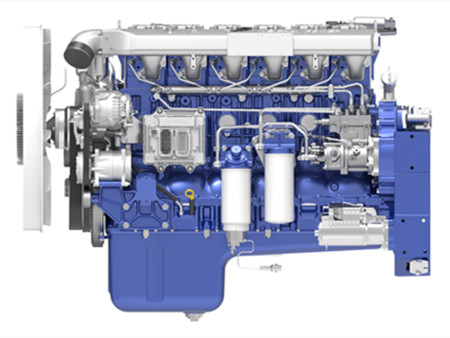

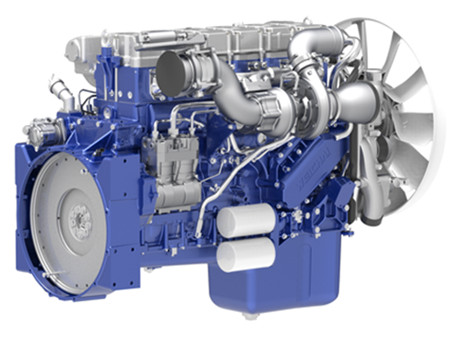

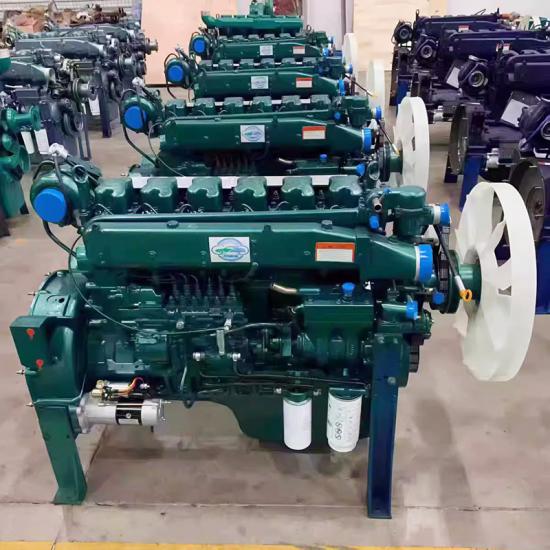

» Ⅳ. Product Details:
 |
 |
 |
 |
The Weichai WP10.380E32 engine is an in-line six-cylinder diesel engine with a displacement of 9.726 liters, a maximum power output of 380 horsepower, and a torque of 1600 N·m. It utilizes turbocharged intercooling and high-pressure common rail technology, featuring a compact structure and high reliability. It achieves an excellent balance between high-efficiency power and economical fuel consumption, making it one of the most commonly used engines in Beiben trucks.
The Weichai WP12.420E32 is a Weichai Power WP12 series inline six-cylinder, water-cooled four-stroke turbocharged intercooled diesel engine with a displacement of approximately 11.596 L, a maximum power of 420 HP (approximately 309 kW), and a maximum torque of approximately 1750 N·m. It features a compact and durable structure, good fuel economy, and is widely used in engineering transportation fields such as heavy-duty trucks and tractors.
