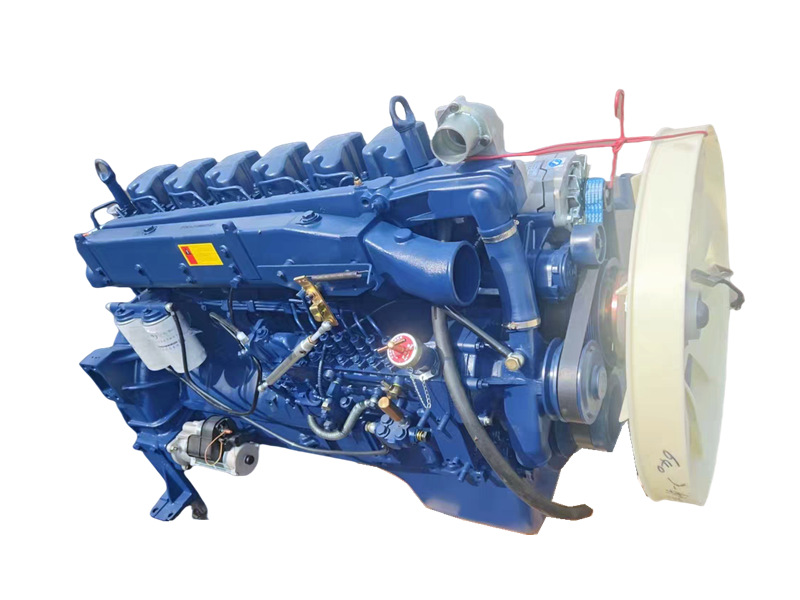

Weichai WP10.380E32 engine assembly

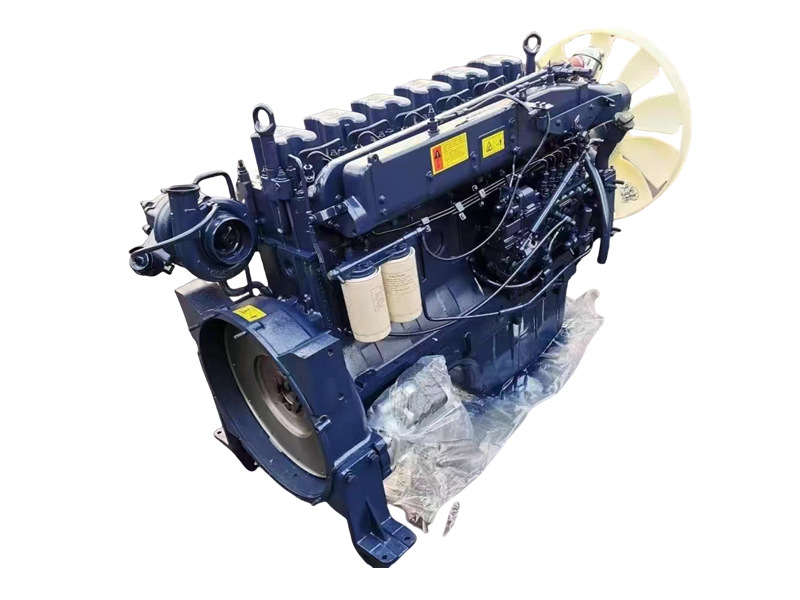

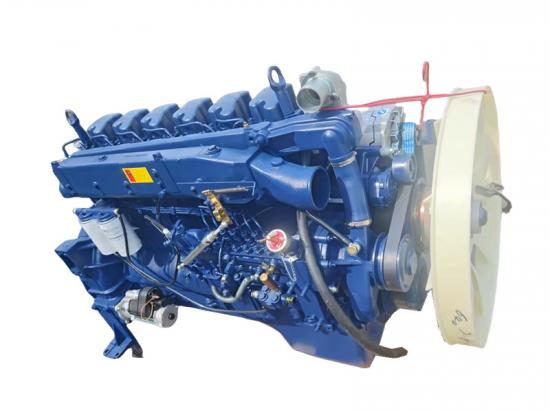

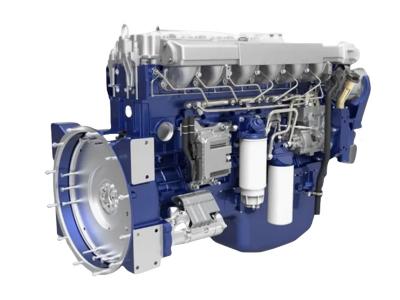

Brand new Weichai WP10.380E32 engine
Brand new Weichai WP10.380E32 engine
Brand new Weichai WP10.380E32 engine
Brand new Weichai WP10.380E32 engine
Brand new Weichai WP10.380E32 engine
Brand new Weichai WP10.380E32 engine

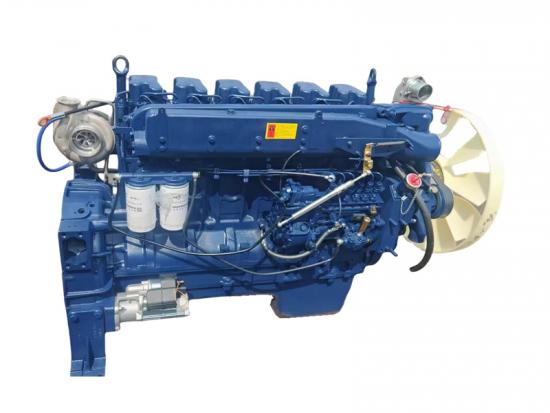

Weichai WP10.380E32 engine assembly

The Weichai WP10.380E32 engine is an in-line six-cylinder diesel engine with a displacement of 9.726 liters, a maximum power output of 380 horsepower, and a torque of 1600 N·m. It utilizes turbocharged intercooling and high-pressure common rail technology, featuring a compact structure and high reliability. It achieves an excellent balance between high-efficiency power and economical fuel consumption, making it one of the most commonly used engines in Beiben trucks.

  • Dimension ( mm ) :

    1525×730×1063mm
  • Engine Power:

    380HP
  • Remark:

    Brand new, genuine weichai engine
New Products

The WP10.380E32 engine is a mainstay model in Weichai's WP10 series and is widely used in Beiben trucks. This 6-cylinder, 9.7-liter diesel engine employs turbocharged intercooling technology, with a rated power of 280 kW (380 hp). It delivers a robust torque of 1600 N·m within the 1500-1800 rpm range, providing ample power reserves. Its full-load minimum fuel consumption rate is only 196 g/kW·h, demonstrating outstanding fuel economy. The engine boasts a compact overall structure, comes standard with an efficient exhaust brake, and offers extended oil change intervals to further reduce maintenance costs.



Brand new Weichai WP10.380E32 engine



» Ⅰ.Product Defination and Introduction:

Supplier: CEEC TRUCKS

▶ Engine Model: WP10.380E32

▶ Engine Brand: Weichai

▶ Engien Power: 280KW/380HP

▶ Displacement: 9726 ml



» Ⅱ. Product Specifications:



Engine Model

WP10.380E32

Engine Brand

Weichai

Engine Series

WP10 Series

Manufacturer

Weichai Power Co., Ltd.

Applicable Scope

Truck Use

Air Intake Form

Turbocharged Intercooled

Number of Cylinders

6

Fuel Type

Diesel

Cylinder Arrangement

In-line

Displacement

9.726L

Emission Standard

Euro III

Maximum Output Power

280kW

Rated Speed

2200rpm

Maximum Horsepower

380HP

Maximum Torque

1600N.m

Maximum Torque Speed Range

1500-1800rpm

Full Load Minimum Fuel Consumption Rate

196g/kW.h

Engine Type

Water-cooled, Four-stroke, with Exhaust Valve Brake, Direct Injection, Turbocharged Intercooled

Net Engine Weight

875kg

Engine Dimensions

1525×730×1063mm

Noise Level at One Meter

104dB

Bore × Stroke

126x130mm

Number of Valves per Cylinder

4

Firing Order

1-5-3-6-2-4



» Ⅲ. Product Advantages:

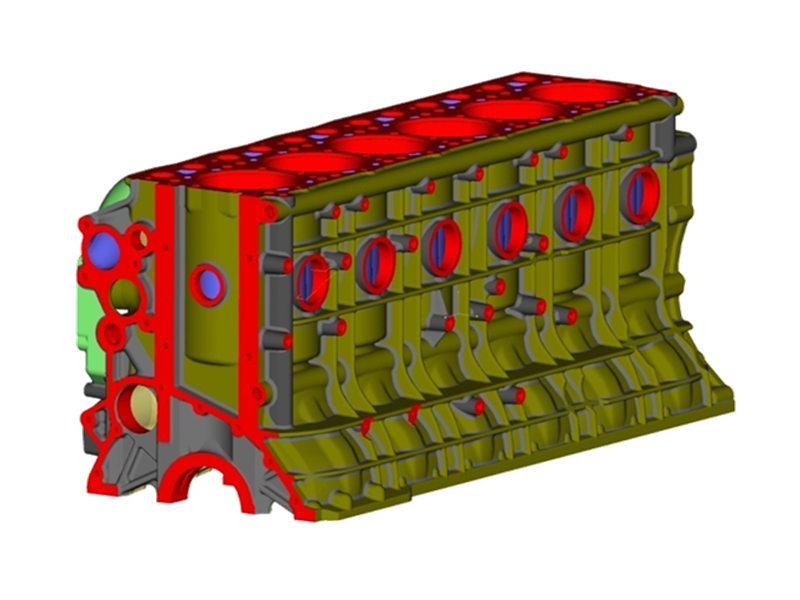

Cylinder Block of WP10.380E32 engine

Cylinder Block

The frame-type main bearing structure ensures high engine strength and low noise levels.

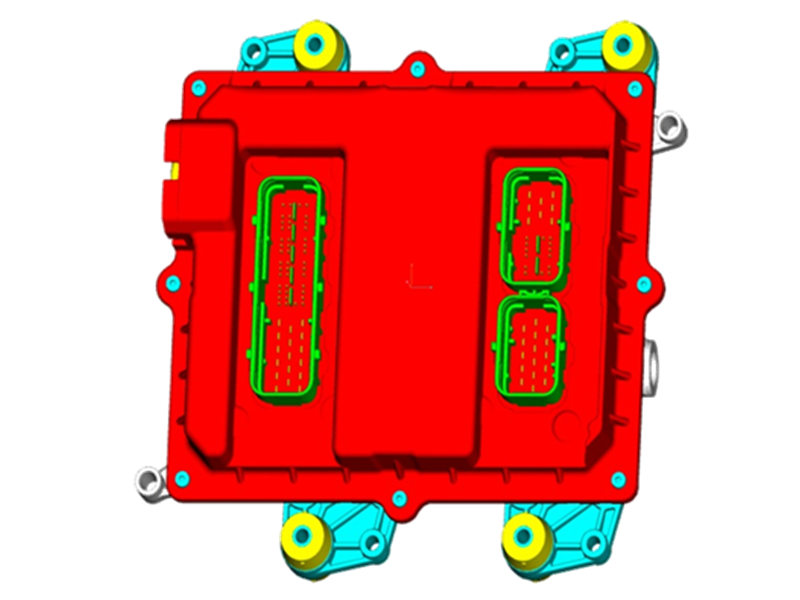

ECU of WP10.380E32 engine

Electronic Control Unit

Equipped with a Bosch electronic control unit, providing stable system processing capabilities. It features multi-level system protection and error correction measures, enabling free communication with the vehicle's electronic control unit.

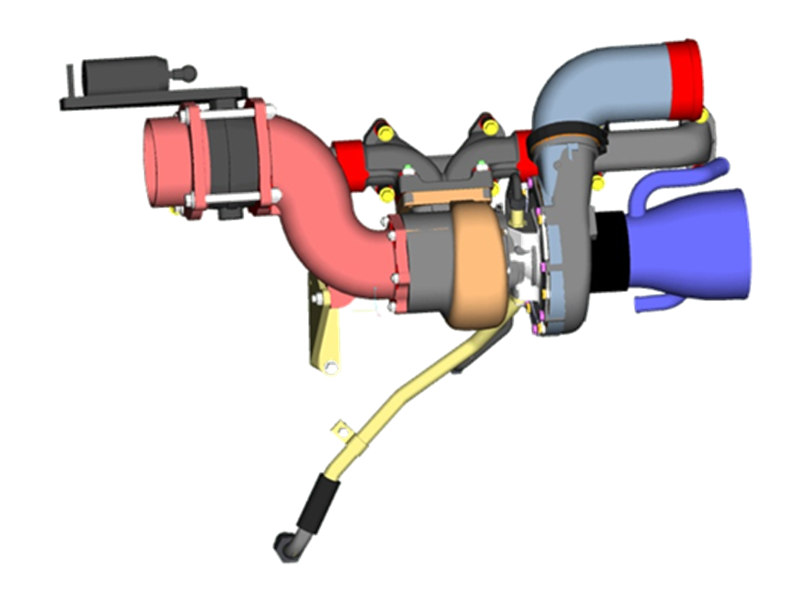

Weichai WP10.380E32 engine Intake and Exhaust System

Intake and Exhaust System

The turbocharger is centrally mounted. An electronically heated flange replaces the flame preheating starting device, effectively addressing the issue of white smoke emission during cold starts in winter.

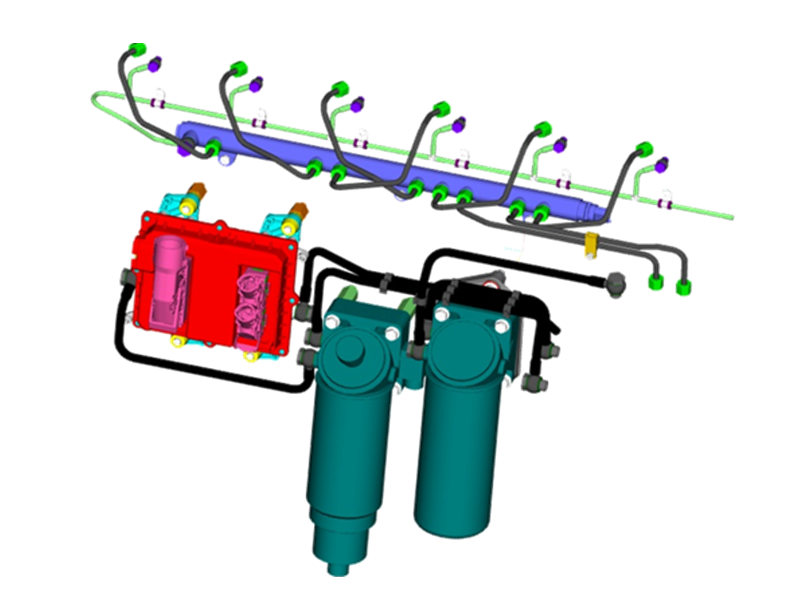

Fuel Injection and Supply System

Fuel Injection and Supply System

Utilizes a Bosch high-pressure common rail fuel pump capable of providing injection pressures up to 1600 bar. This enables flexible control over fuel quantity and timing, achieving low emissions and low fuel consumption.



» Ⅳ. Product Details:

WEICHAI WP10.380E32 engine Weichai WP10.380E32 engine assembly

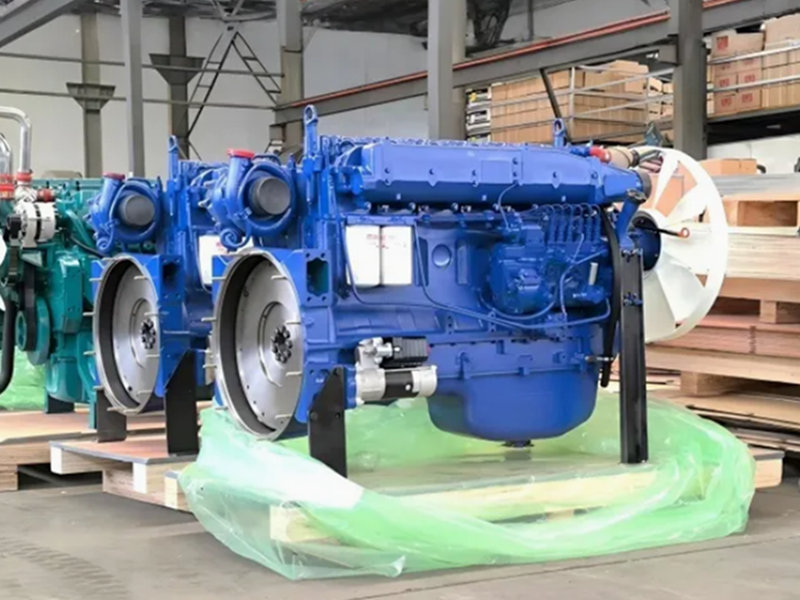

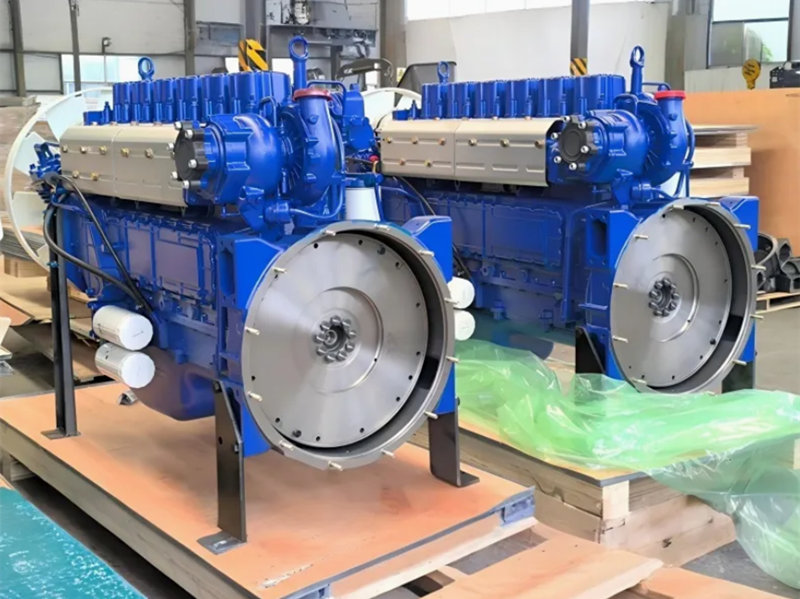

Weichai WP10.380E32 engine assembly for sale Brand new Weichai WP10.380E32 engine assembly







Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related Products

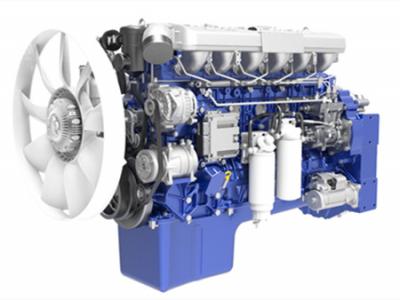

Brand new Weichai WP12 420E32 engine
