The Weichai WP12.420E32 is a Weichai Power WP12 series inline six-cylinder, water-cooled four-stroke turbocharged intercooled diesel engine with a displacement of approximately 11.596 L, a maximum power of 420 HP (approximately 309 kW), and a maximum torque of approximately 1750 N·m. It features a compact and durable structure, good fuel economy, and is widely used in engineering transportation fields such as heavy-duty trucks and tractors.
Dimension ( mm ) :
1650×820×1100mmEngine Power:
420HPRemark:
Brand new WP12 series enginesThe Weichai WP12.420E32 engine adopts an electronically controlled high-pressure common rail injection system and a turbocharged intercooled intake. It has a compact structure, good fuel economy, and strong adaptability. It is an inline 6-cylinder, water-cooled, four-stroke turbocharged intercooled diesel engine with a displacement of approximately 11.596 L and a power output of 420 horsepower (approximately 309 kW). It is commonly used in heavy-duty trucks, tractors, and other transport vehicles, and meets the China III/Euro III emission standards.

» Ⅰ.Product Defination and Introduction:
Supplier: CEEC TRUCKS
▶ Engine Model: WP12.420E32
▶ Engine Brand: Weichai
▶ Engien Power: 309KW/420HP
▶ Displacement: 11596 ml

» Ⅱ. Product Specifications:
|
Model NO. |
WP12.420E32 Engine |
|
Product Name |
Weichai Diesel Engine |
|
Cooling System |
Liquid-cooled |
|
Cylinder Configuration |
Inline 6-cylinder |
|
Emission Standard |
Euro 3 |
|
Engine Displacement |
11.596L |
|
Max output power |
309Kw |
|
Fuel Type |
Diesel |
|
Horsepower |
420 hp |
|
Total Displacement |
11.6L |
|
Rated Speed |
2100r/Min |
|
Max torque |
1750N.m |
|
Minimum fuel consumption rate at full load |
185g/kW.h |
|
Exhaust Gas Treatment |
EGR Technology |
|
Intake Method |
Turbocharged Intercooled |
|
Compatible Models |
Beiben,Sinotruk,Shacman |
|
Transport Package |
Export Wooden Box |
|
Specification |
1650x820x1100mm |
|
Weight |
1050kg |
|
Trademark |
Weichai |

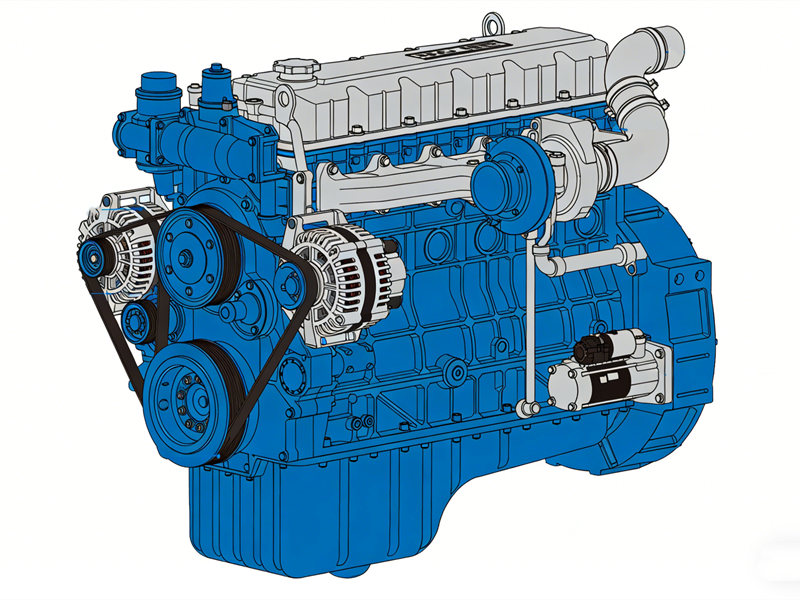

» Ⅲ. Schematic Diagram of WP12.420E32 Engine::
![]() |
![]() |

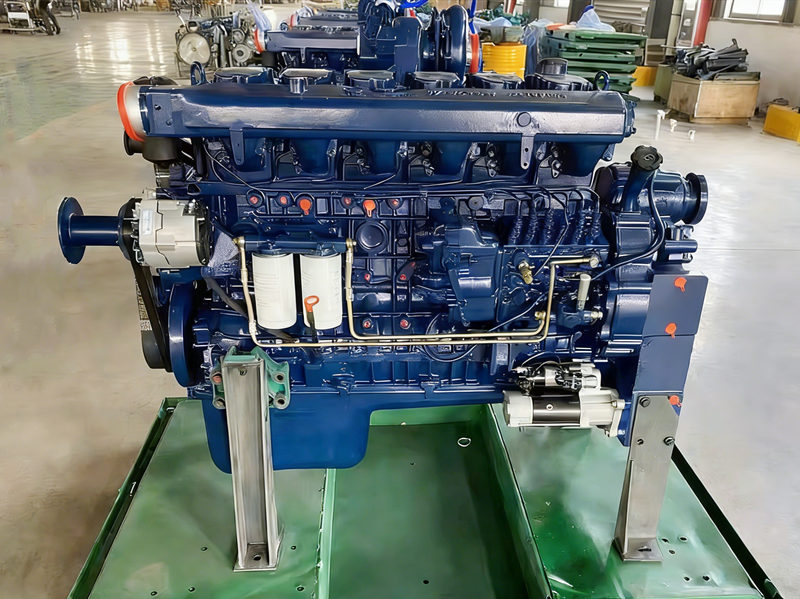

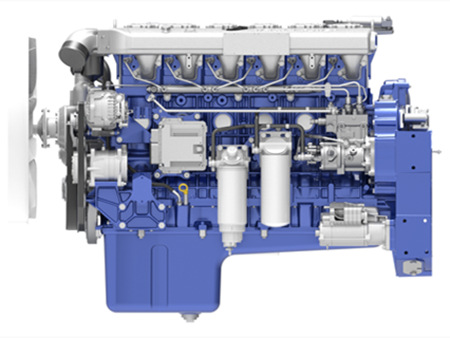

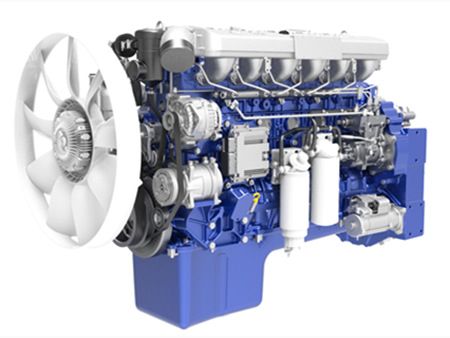

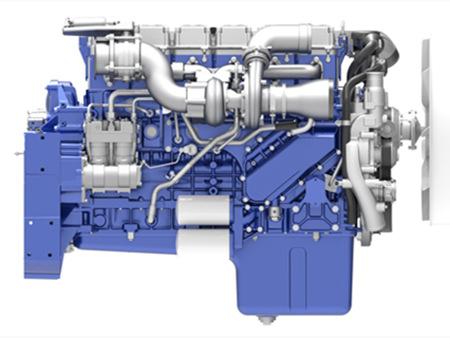

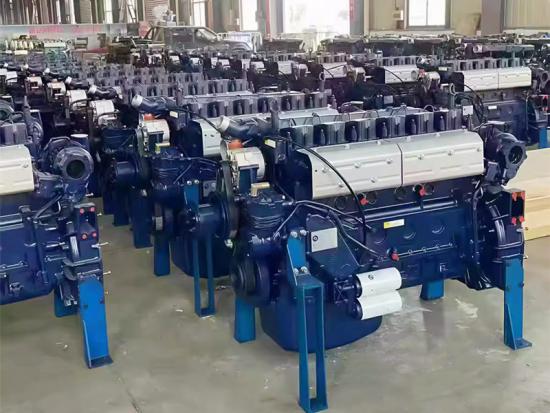

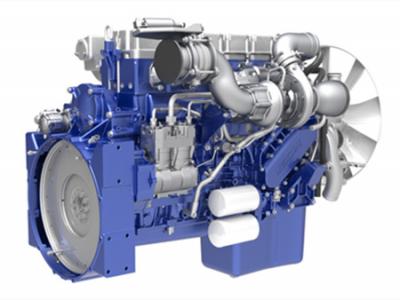

» Ⅳ. Product Details:
![]() |
![]() |
![]() |
![]() |
