The U-shaped tipper semi-trailer is specially designed for bulk materials such as sand, coal, and ore. The frame is made of high-strength manganese steel, with floor and side wall thicknesses of 8mm and 6mm respectively, ensuring reliable load capacity. The U-shaped box allows for complete unloading and resists material sticking. The hydraulic lifting system features a well-known brand cylinder, completing dumping within 25 seconds. Equipped with 13-ton FUWA axles, 28-ton JOST landing gear, and WABCO brake valves, this tipper trailer is durable and efficient, suitable for complex working conditions like mines and construction.
Working Capcity:
50 tonsDimension ( mm ) :
9800×2500×3800Axle Type:
FUWA, 13-ton, 3 pcsLand Gear:
JOST, 28 tonKingpin:
2' or 3.5'Suspension:
Leaf springTyres:
12.00R20, 10 pcsRemark:
Customized cargo box size, HYVA lifting system, BPM axles for option※ Ⅰ.Product Introduction:

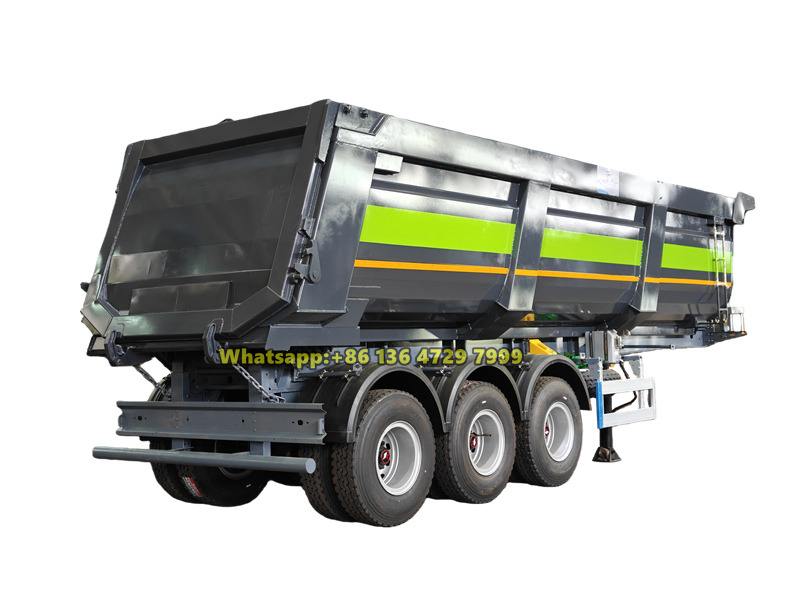

A tipper semi-trailer is a heavy-duty transport unit equipped with a hydraulic dumping system, specifically designed for efficient transportation and automatic unloading of bulk materials such as sand, coal, and ore. The 50-ton U-shaped tipper trailer features an integrated arc-shaped floor structure, which eliminates dead corners and resists material adhesion compared to traditional rectangular boxes. The box is made of Q345 manganese steel, with an 8mm floor and 6mm side walls, offering high strength and durability. Equipped with three 13-ton FUWA axles and a hydraulic lifting system with a 202mm cylinder diameter, it provides stable lifting and completes unloading within 25 seconds. This dumper semi-trailer features thorough unloading, light weight, and excellent wear resistance, making it ideal for medium and short-distance heavy-duty transportation of bulk materials.
CEEC factory is premium supplier of dump semi-trailers,
guarantee all tipper semi-trailers Brand-New and High-Quality.
※ Ⅱ. Product Specifications:
|
50 ton U-shaped Tipper Semi Trailer Specifications |
|
|
Application |
Transport all kinds of Mineral/Coal/Stone/Sand/Cargo |
|
Model |
3 axles tipper trailer |
|
Box capacity |
30 cubic meters |
|
Dimension (mm) |
9800x2500x3800 |
|
Rim and tires |
12.00R20 tires |
|
Lifting system |
China famous brand telescopic cylinders |
|
Cargo box material |
Q345, floor: 8mm; walls: 6mm |
|
Cargo box type |
U-shaped |
|
Main Beams |
Q345 double plate |
|
Height:500mm |
|
|
Upper Plate: 14mm |
|
|
Middle Plate: 8mm |
|
|
Lower Plate: 16mm |
|
|
Axle |
13T FUWA brand, 3 pcs |
|
King Pin |
JOST brand 2.0'' / 3.5'' bolt type king pin |
|

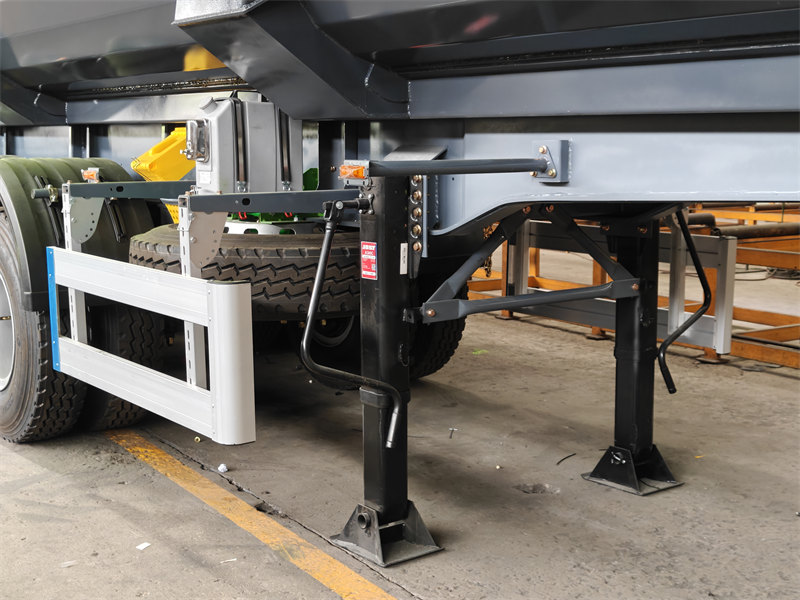

Landing Gear |
28T double speed, JOST brand |
|

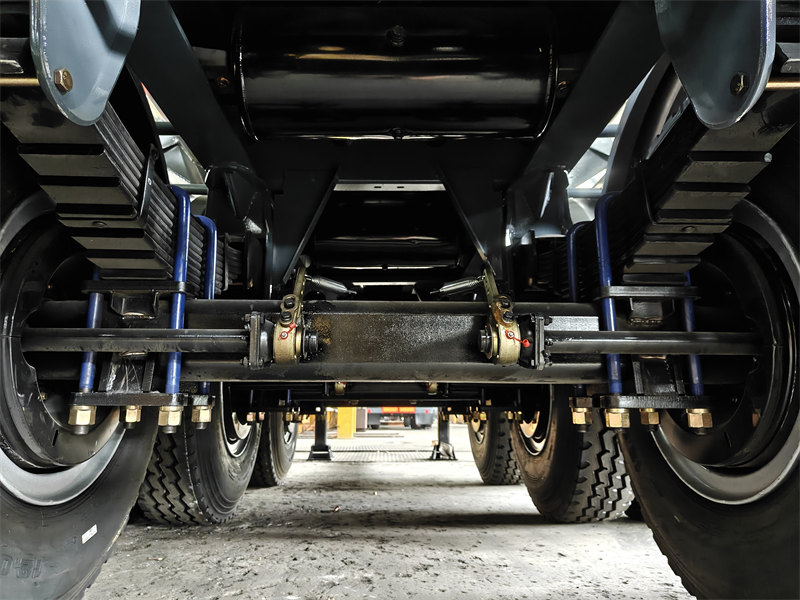

Suspension |
Heavy duty mechanical suspension |
|
Pneumatic Braking System |
WABCO RE 6 relay valve |
|
Leaf springs |
90(W)mm*13(Thickness)mm*10 Layer |
|
Light |
LED light,24V,7ways(7 wire harness) |
|
Tool Box |
Aluminum |
|
Painting |
1 coat of anticorrosive prime, 2coats of final paint |
※ Ⅲ. Product Structure Features:

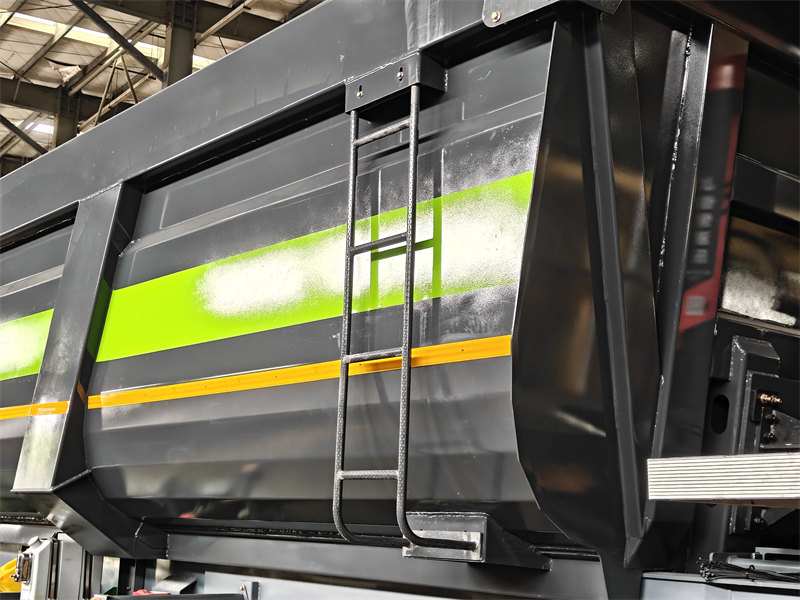

◆ U-shaped Cargo Box: Integrated arc bottom with no dead corners or exposed ribs, preventing material sticking, ensuring complete unloading, and reducing wind resistance and mud buildup.
◆ Frame Structure: Made of high-strength manganese steel.

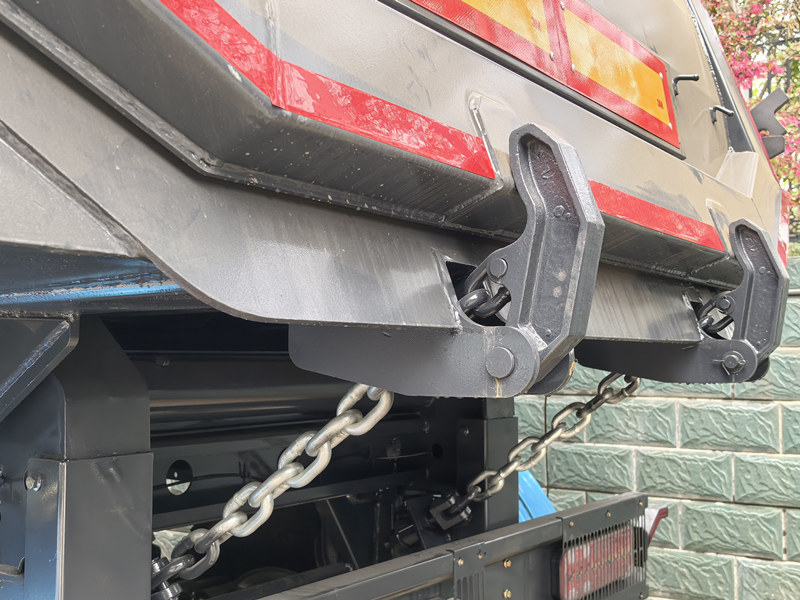

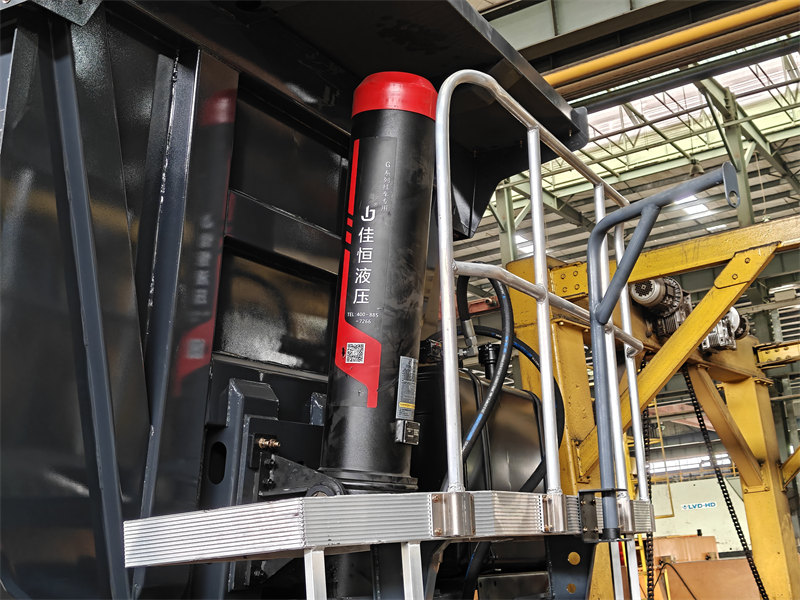

◆ Lifting System: Hydraulic cylinder-driven, reaching a lifting height of 3.8m, lifting time is no more than 25 seconds. The rear door unlocks automatically via a mechanical locking device for safe and easy operation.
※ Ⅳ. Product Advantages:
1. High-strength steel body, heavy-duty and durable
2. Stable hydraulic lifting, efficient and fast unloading
3. Reinforced chassis design, suitable for rough roads
4. U-shaped cargo box, allowing for more thorough unloading

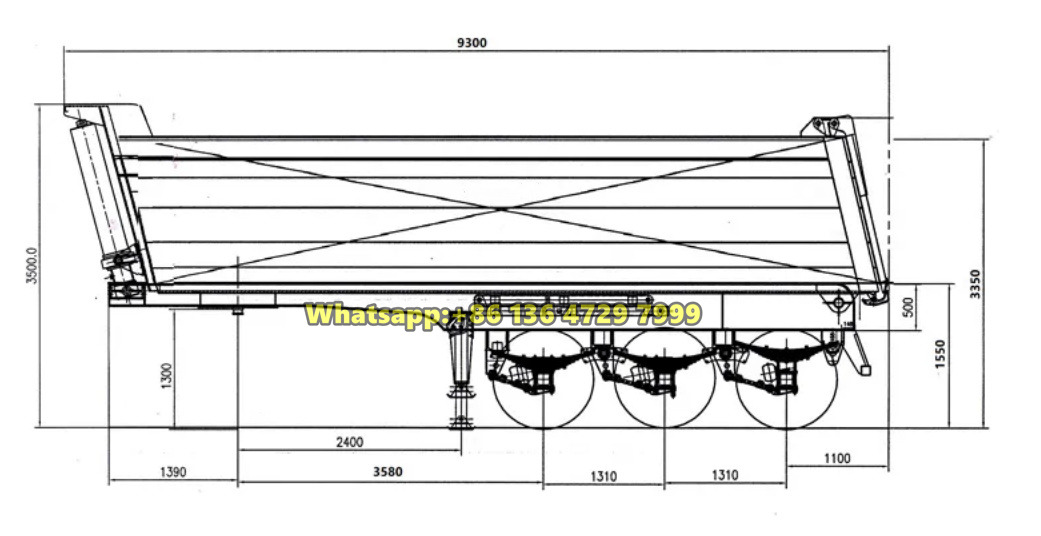

※ Ⅴ. Product Drawing:

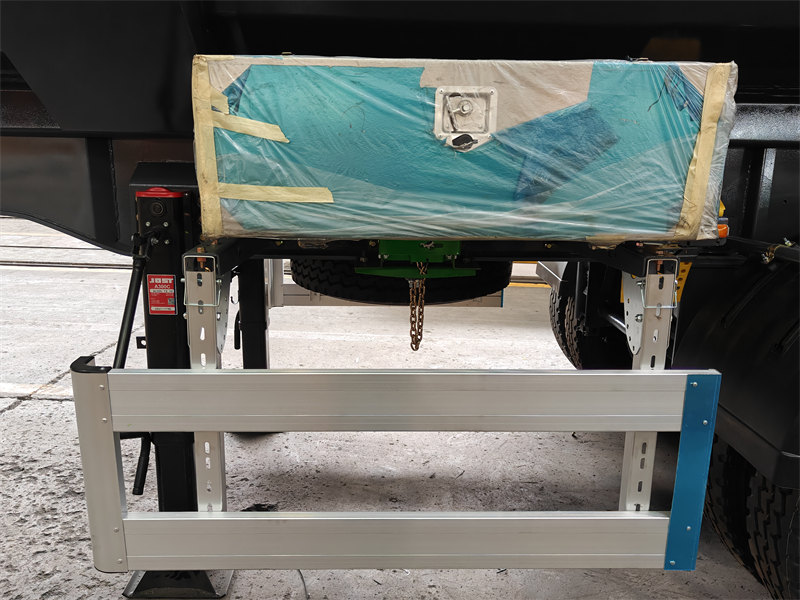

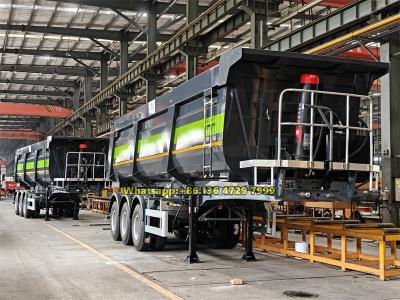

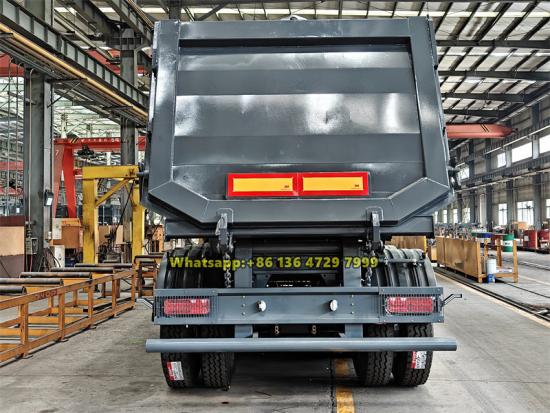

※ Ⅵ. Product Details:

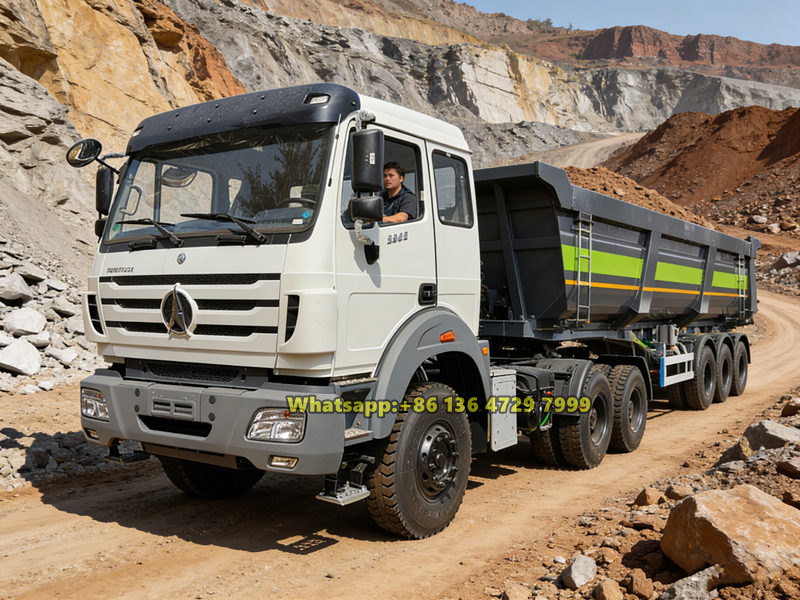

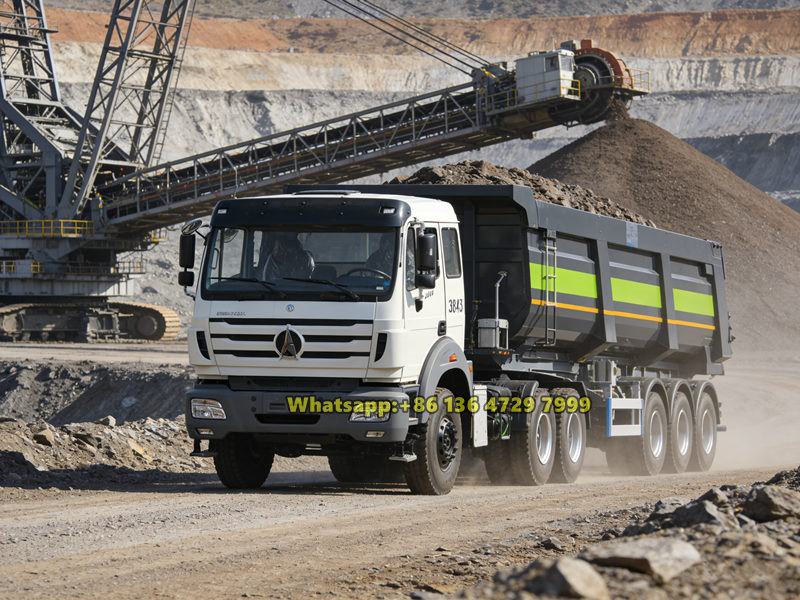

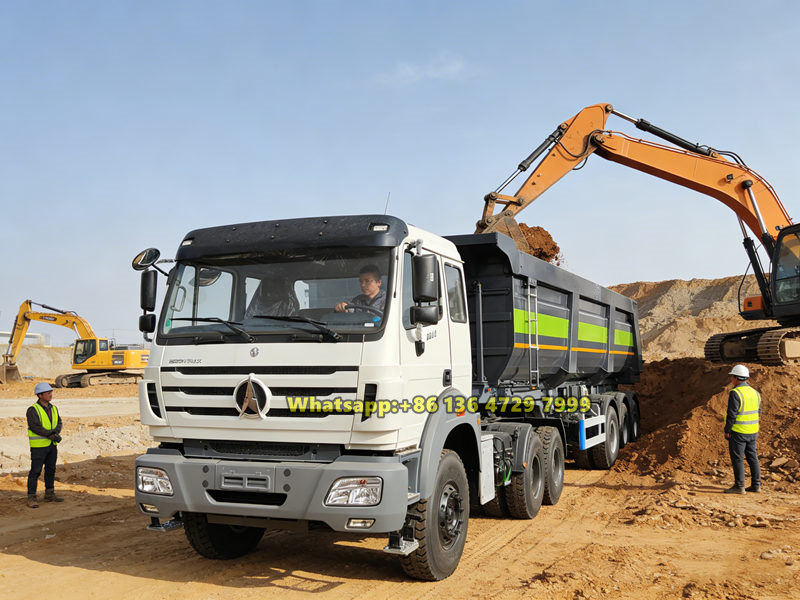

※ Ⅶ. Applications of Tipper Trailers:
Products --100% China tipper trailer factory!
Shipping --100% fast, Convenience, Efficient!
1. Customized 2 axles, 3 axles, 4 axles tipper semi-trailers
2. FUWA/BPM alxes and HYVA lifting system for option
3.Factory bottom price, strict quality control
4. Fast delivery, common models can be supplied within 15 days.
The 4-axle dumper semi-trailer, with its 50-70 ton load capacity and 12000mm×2500mm×3200mm body size, has become a powerful assistant for construction sites and logistics transportation. It is equipped with 16 12.00R20 tires and 13T FUWA/BPW axles to ensure stable driving. The cargo box is made of high-strength materials and has strong load-bearing capacity and durability.
The 3-axle heavy dump semi-trailer is a reliable solution for heavy-duty material transport. It is equipped with three 13-ton FUWA axles and a powerful, stable HYVA hydraulic system, ensuring efficient tipping operations. Combined with a robust cargo box featuring an 8mm thickened floor, it is specifically designed to handle harsh working conditions such as transporting ores and sand.
The 4-axle 80-ton heavy-duty dump semi-trailer adopts a front-mounted hydraulic lifting system for efficient and rapid unloading. The vehicle is equipped with four 13-ton FUWA axles, and the frame is welded with T700 high-strength steel, ensuring reliable load capacity. The box body has a volume of 36 cubic meters, making it suitable for the large-tonnage transportation of bulk materials such as sand, stone, and coal. It features efficient unloading and long-lasting durability.
