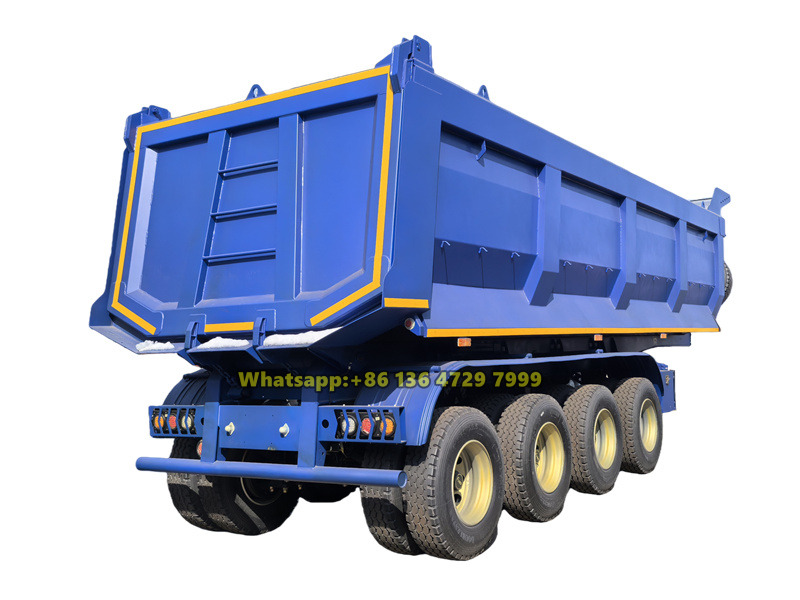

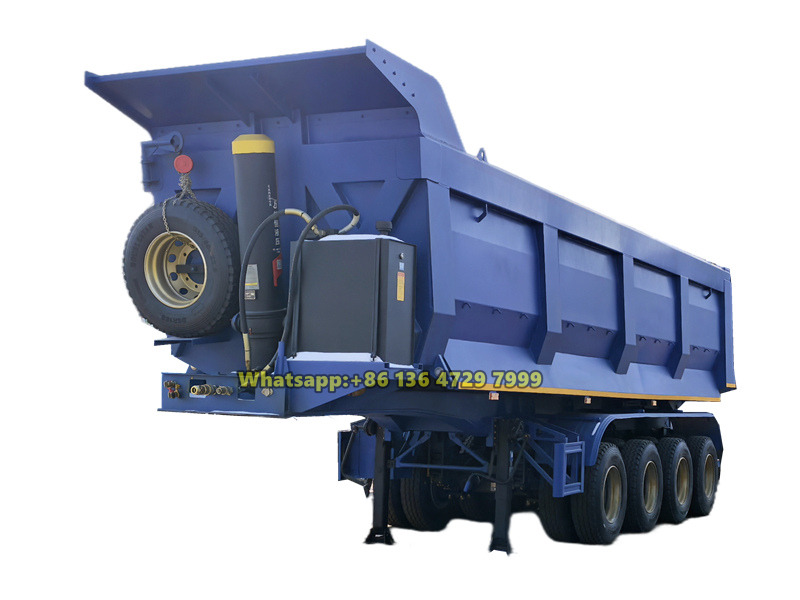

The 4-axle 80-ton heavy-duty dump semi-trailer adopts a front-mounted hydraulic lifting system for efficient and rapid unloading. The vehicle is equipped with four 13-ton FUWA axles, and the frame is welded with T700 high-strength steel, ensuring reliable load capacity. The box body has a volume of 36 cubic meters, making it suitable for the large-tonnage transportation of bulk materials such as sand, stone, and coal. It features efficient unloading and long-lasting durability.
Working Capcity:
80 tonsDimension ( mm ) :
10365×2700×3850Axle Type:
FUWA, 13-ton, 4 pcsLand Gear:
JOST, 28 tonKingpin:
2' or 3.5'Suspension:
Leaf springTyres:
315/80R22.5, 13 pcsRemark:
Customized cargo box size, HYVA lifting system, BPM axles for option※ Ⅰ.Product Introduction:
A dump semi-trailer is a special-purpose vehicle designed for efficient cargo transportation and rapid unloading. Its core feature is a hydraulic lifting system installed at the front of the carriage, which uses a hydraulic cylinder to raise the front end of the carriage, allowing the cargo to slide out automatically by gravity, achieving "one-touch unloading."
This 4-axle 80-ton heavy-duty tipper trailer utilizes a front-mounted hydraulic lifting system from a well-known Chinese brand. The vehicle is equipped with four 13-ton FUWA axles and FUWA 28-ton landing gear, providing a load capacity of 80 tons. The box body is robust and durable, making it suitable for the efficient transportation of bulk materials such as sand, stone, and coal.
CEEC factory is premium supplier of dump semi-trailers,
guarantee all tipper semi-trailers Brand-New and High-Quality.
※ Ⅱ. Product Specifications:
|
4 Axles Rear Dumping Tipper Truck Trailer Specifications |
|
|
Product Name |
4 Axles 80 Ton Tipper Trailer |
|
Tare weight |
16200 kg |
|
Gross weight |
96200 kg |
|
Max. payload |
80000 kg |
|
Overall dimensions |
10365mm *2700mm*3850mm |
|
Dump box size |
9800*2450*1500mm |
|
Box volume |
36 CBM |
|
Box thickness |
Side walls: 6mm; floor: 8mm |
|
Chassis |
Heavy duty and extra durability designed I beam; opting forT700, welded by automatic |
|
Submerged-Arc processes. |
|
|
Top plate: 14mm |
|
|
Axle |
4 axles, FUWA 13T |
|
Suspension |
Mechanical suspension |
|
Leaf spring |
Leaf spring 90mm*11mm*10pcs |
|
Cylinder |
China top brand |
|
Tire |
315/80R22.5, 13 pcs, Doublestar brand |
|
Wheel rim |
9.00-20 |
|
Kingpin |
3.5'' bolt-in king pin |
|
Landing gear |
FUWA brand two-speed, manual operating ,heavy duty landing gear 28T |
|
ABS |
4S/2M |
|
Braking system |
WABCO RE6 relay valve ; |
|
Spare trie carrier |
1pc |
|
Tool box |
1pc |
|
Painting |
Complete chassis sand blasting to clean rust , |
|
Accessories |
One shaft wrench |


※ Ⅲ. Product Features:

▶ Stable and torsionally rigid chassis
▶ High-quality front tilt cylinder
▶ Equipped with well-known brand axles and landing gear
▶ Reinforced cargo box with strong loading capacity
▶ Specifically designed chassis for heavy load and extended durability

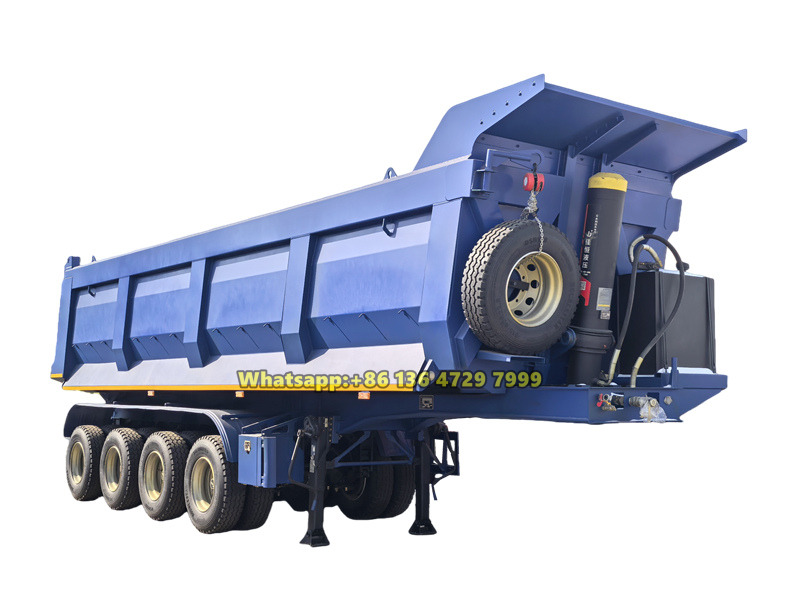

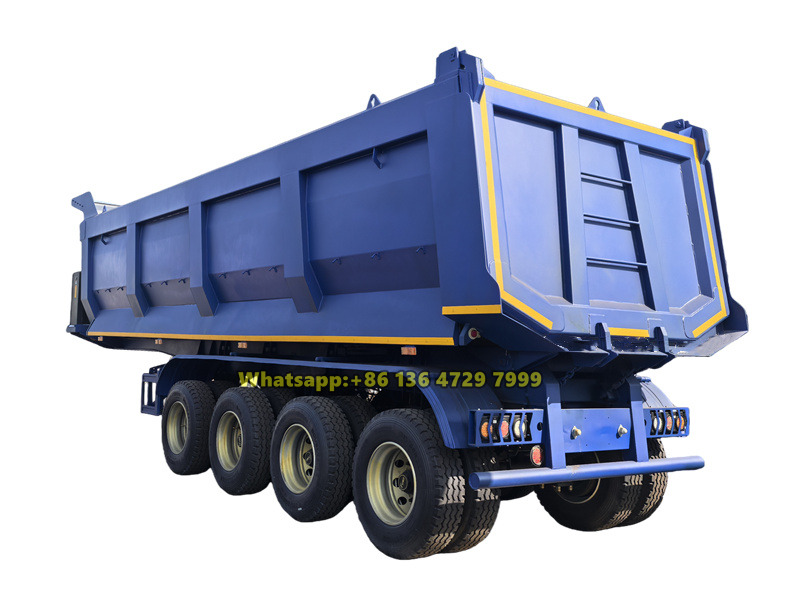

» Ⅳ. Product Details:
![]() |
![]() |

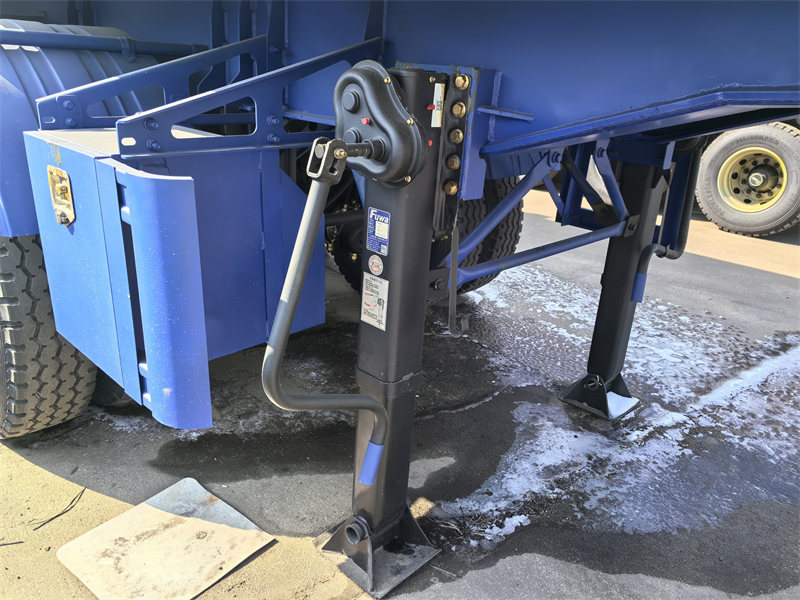

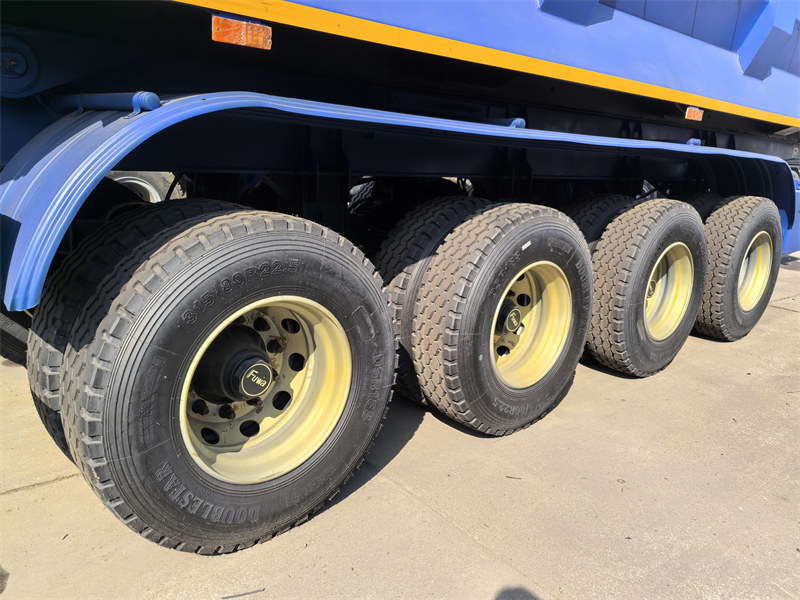

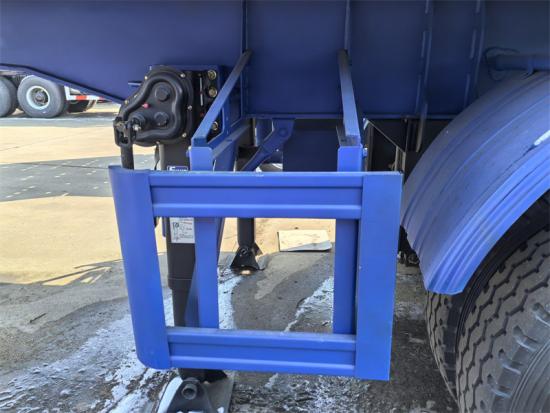

| 4 axle, FUWA brand, 13 ton capacity for each axle | Landing gear, FUWA brand, 28 ton loading capcity |
![]() |
![]() |

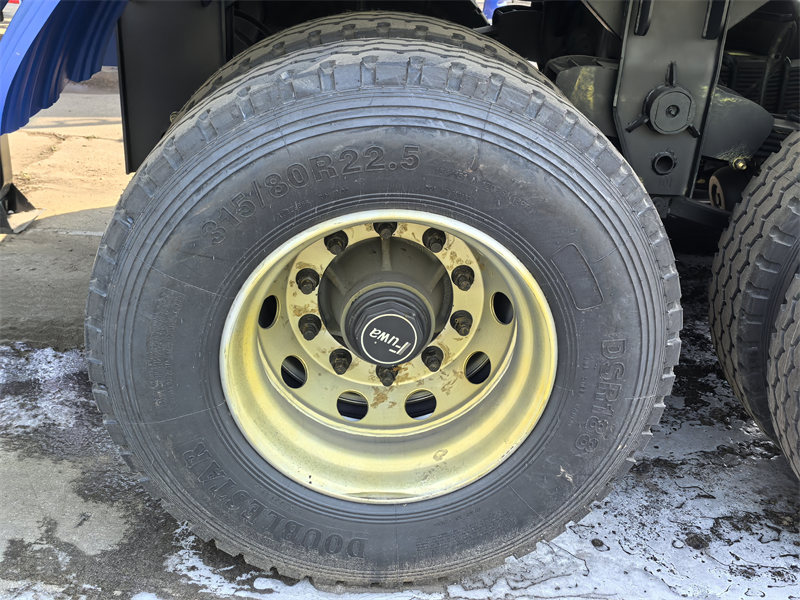

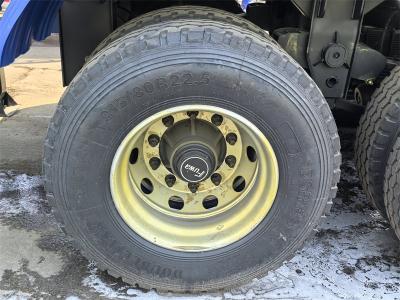

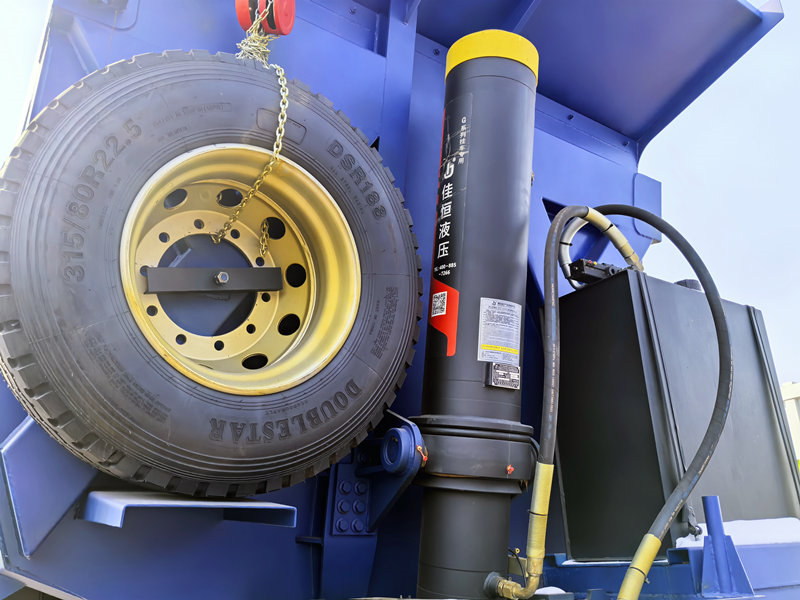

| 315/80R22.5 tubless tire, 13 pcs | China well-known brand lifting cylinder |

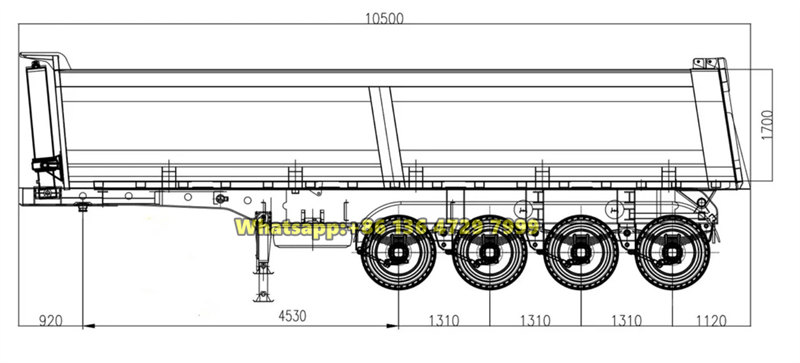

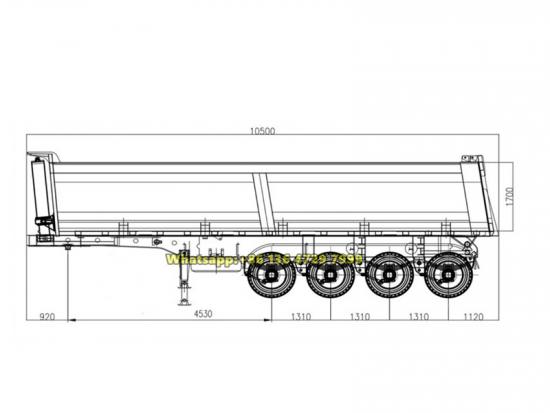

※ Ⅴ. Product Drawing:

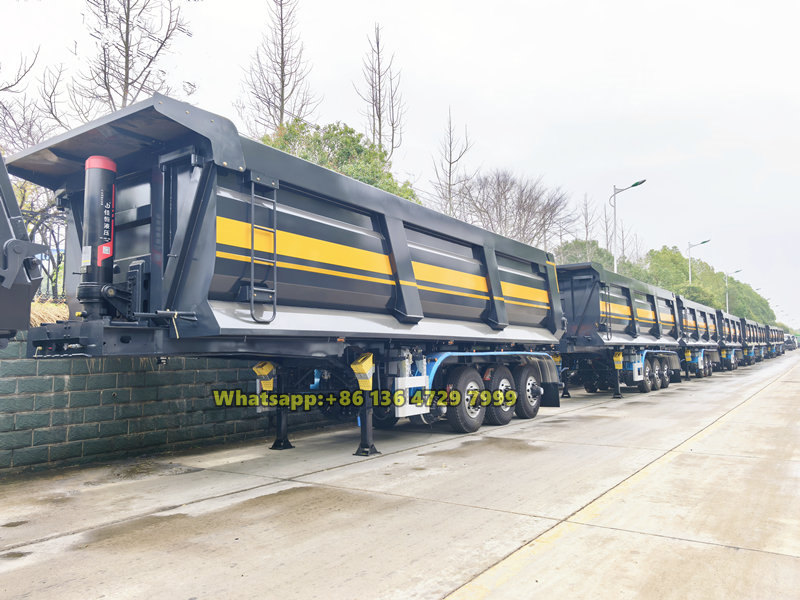

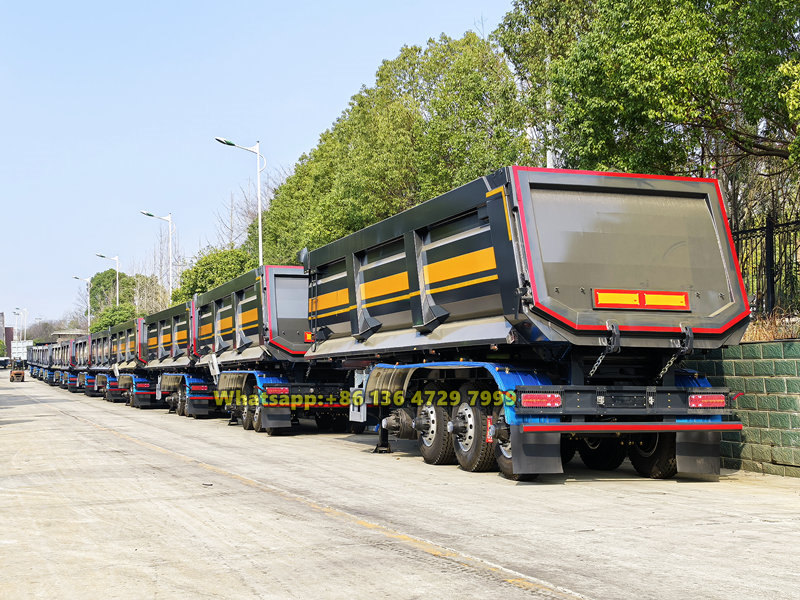

※ Ⅵ. Batch Delivery of Tipper Trailers:

30 units heavy-duty tipper trailer for Africa

Customized dumper semi-trailer for sale

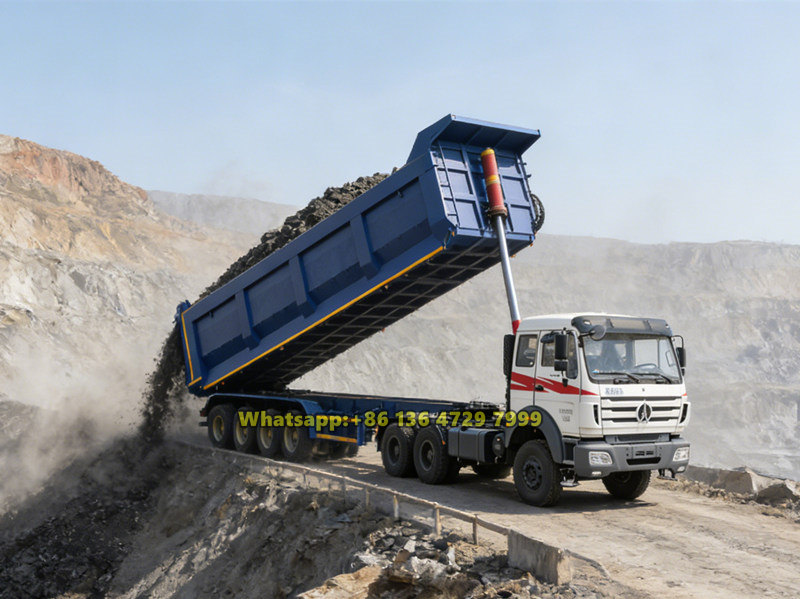

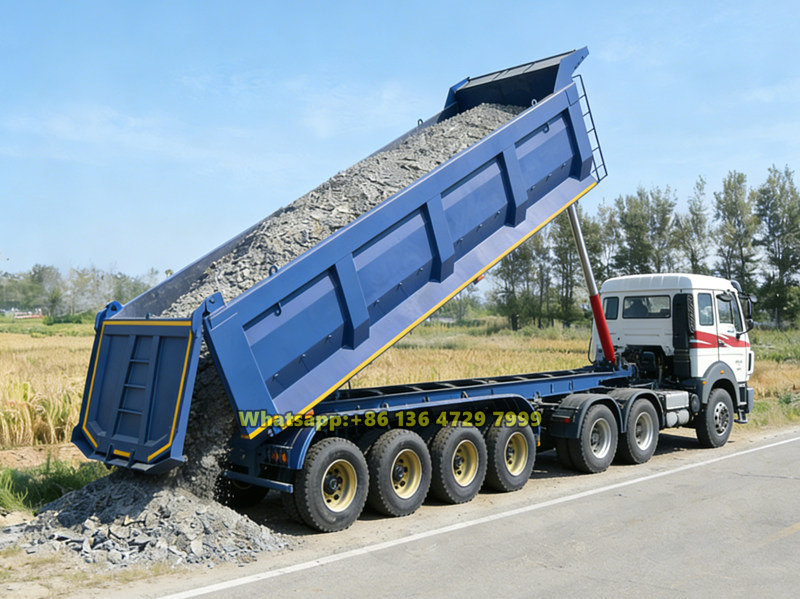

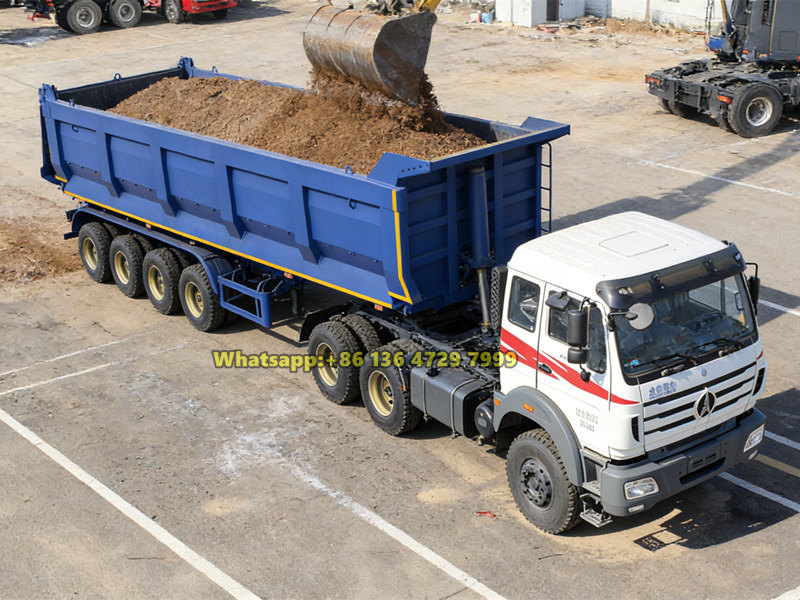

※ Ⅶ. Applications of Tipper Trailers:
Products --100% China tipper trailer factory!
Shipping --100% fast, Convenience, Efficient!
1. Customized 2 axles, 3 axles, 4 axles tipper semi-trailers
2. FUWA/BPM alxes and HYVA lifting system for option
3.Factory bottom price, strict quality control
4. Fast delivery, common models can be supplied within 15 days.
