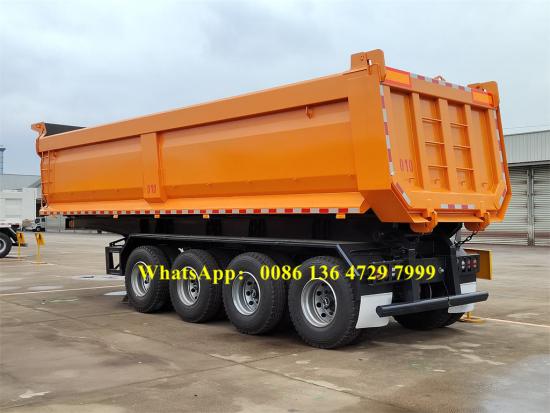

The 4-axle dumper semi-trailer, with its 50-70 ton load capacity and 12000mm×2500mm×3200mm body size, has become a powerful assistant for construction sites and logistics transportation. It is equipped with 16 12.00R20 tires and 13T FUWA/BPW axles to ensure stable driving. The cargo box is made of high-strength materials and has strong load-bearing capacity and durability.
Order(MOQ):
1Payment:
T/TProduct Origin:
ChinaColor:
As requiredShipping Port:
Shanghai, Lianyungang, Qingdao, etcLead Time:
25 daysProduct Description

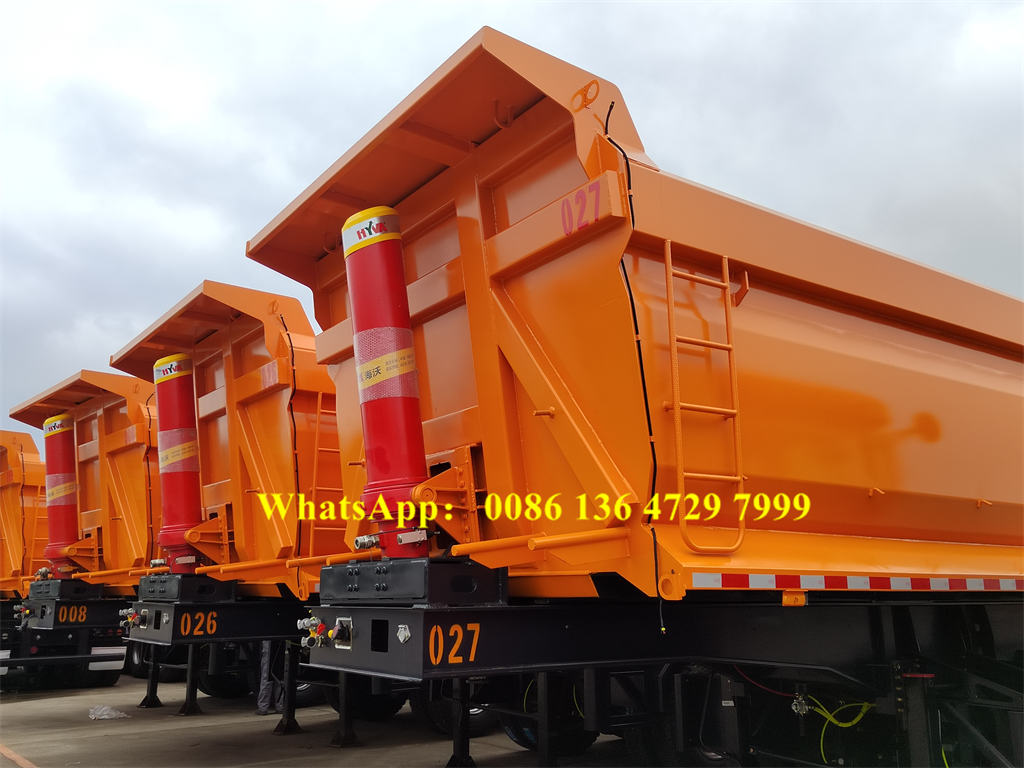

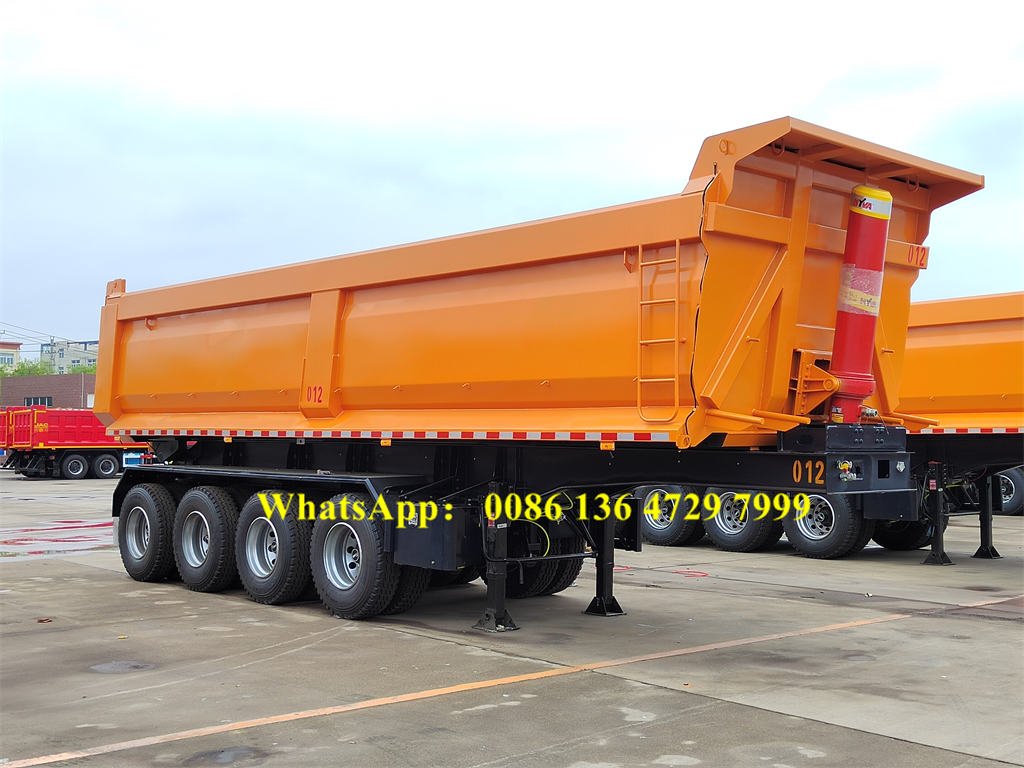

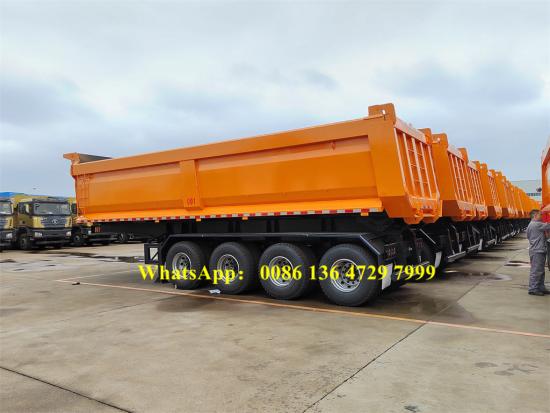

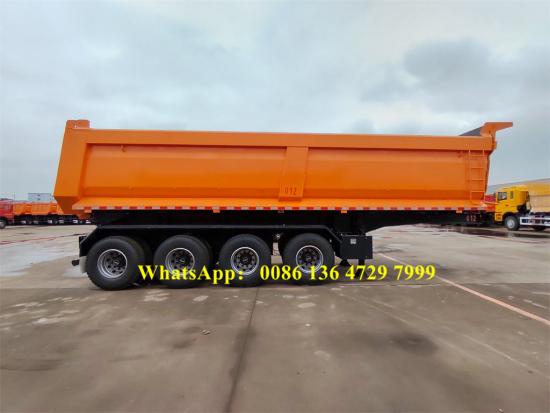

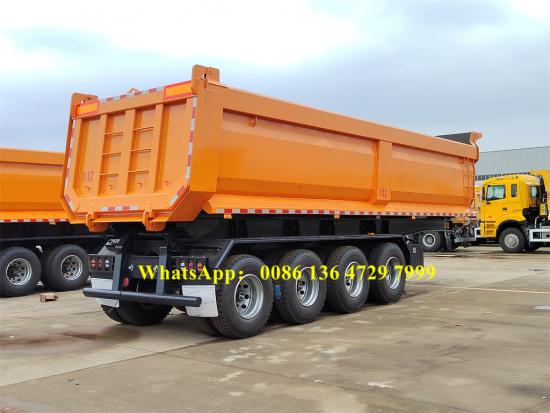

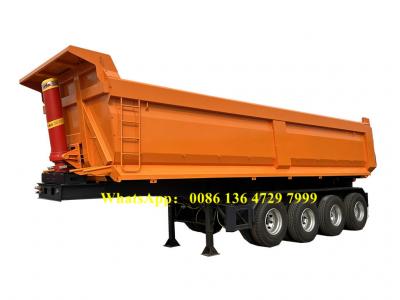

The 4-axle dumper semi-trailer is a heavy-duty vehicle designed for efficient transportation and unloading. It has a load capacity of 50 to 70 tons, and can easily handle construction materials, ore or other heavy goods. This powerful load capacity not only improves transportation efficiency, but also reduces transportation costs.

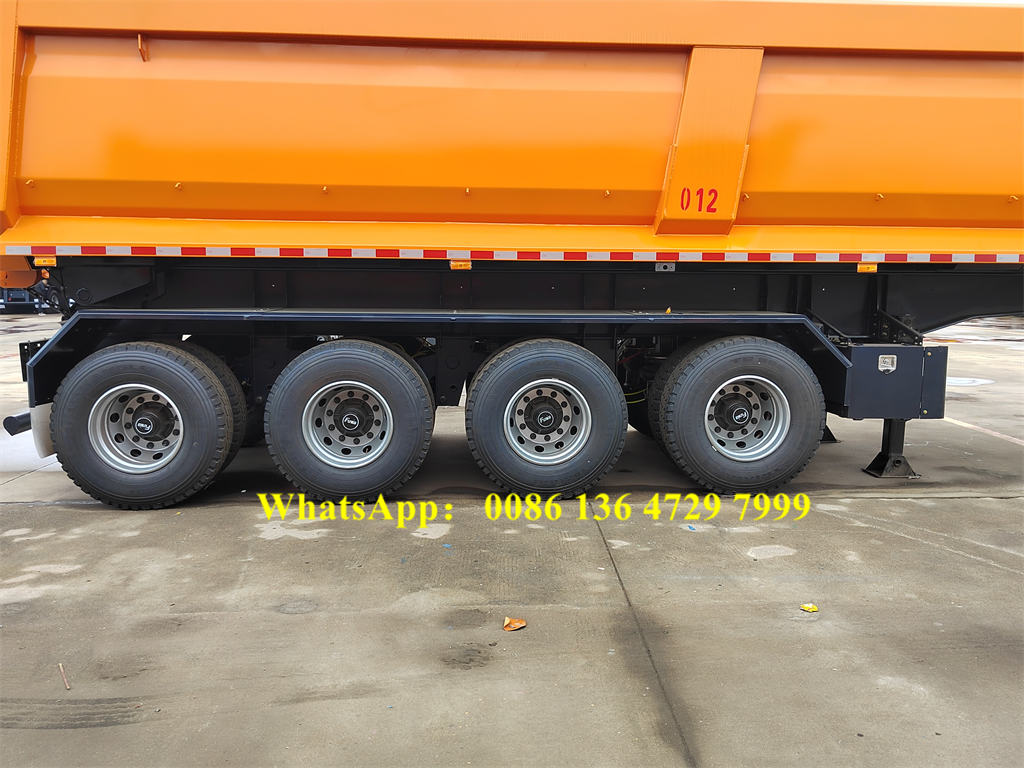

This dumper semi-trailer has a length of 12000mm, a width of 2500mm and a height of 3200mm. Such a body size not only adapts to various transportation environments, but also ensures that there is enough space inside the vehicle to load goods. It has 4 axles, each of which uses the 13T FUWA/BPW brand, ensuring the stability and safety of the vehicle's driving. At the same time, the vehicle is equipped with 16 tires with a specification of 12.00R20, which provides good grip and driving stability.

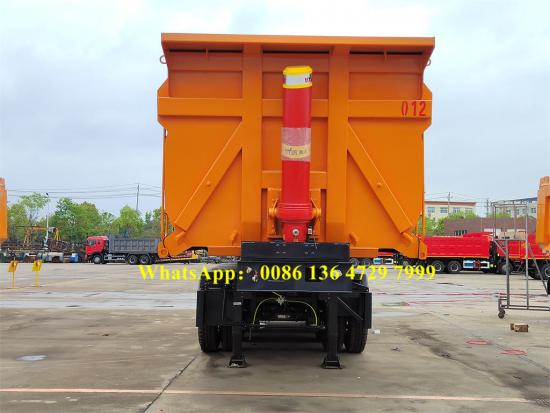

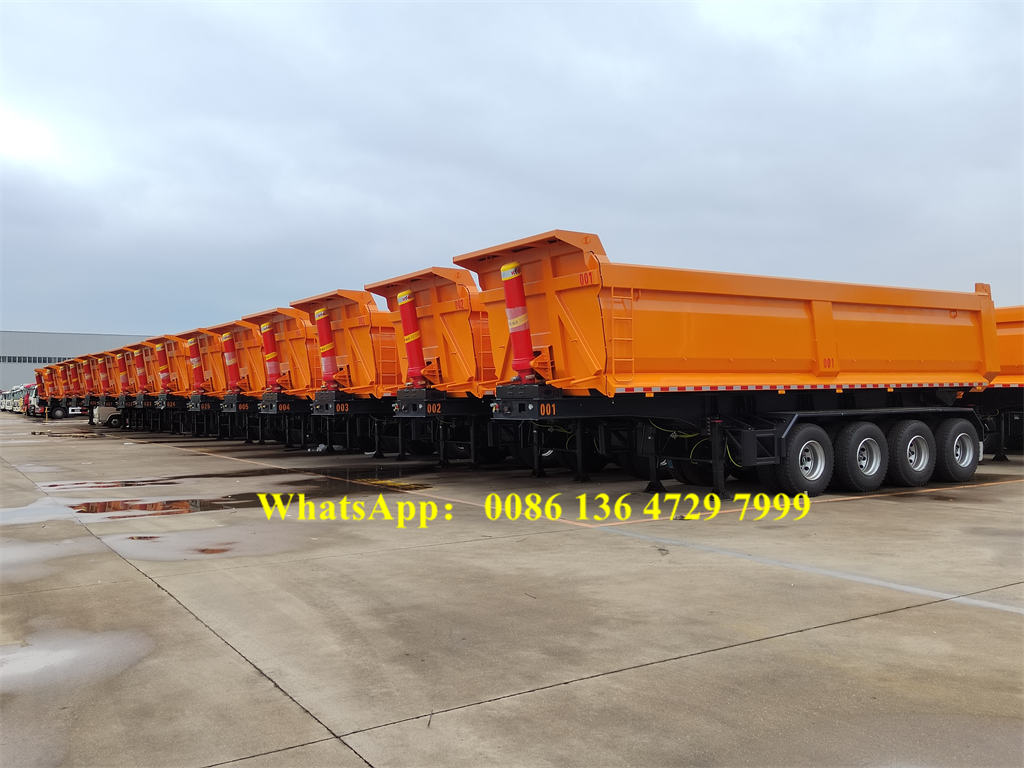

In terms of body structure, this tipper semi-trailer has a main beam and chassis made of high-strength materials to ensure the vehicle's carrying capacity and stability. The bottom of the cargo box uses 8mm thick steel plates, and the sides use 6mm thick steel plates to ensure the durability and carrying capacity of the cargo box. At the same time, the vehicle is also equipped with HYVA brand hydraulic cylinders, which provide powerful power support for the lifting and lowering of the cargo box.
Product Specifications
|
Loading Capacity |
50-70 tons |
|
Axle |
4 pieces, 13T FUWA/BPW axle |
|
Tyre |
16 pieces, 12.00R20 |
|
Dimensions(LxWxH) |
12000mm x 2500 x 3200mm |
|
Tare weight |
10 tons to 12 tons |
|
Axle spacing |
1310mm |
|
Rims |
8.5-20, 9.0-20 |
|
Suspension System |
Leaf spring suspension / air suspension |
|
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
|
Main Beam |
Height 500mm Q345 |
|
Chassis |
upper 14mm, lower 16mm. Mid web 12mm |
|
Dump Box Thickness |
Bottom 8mm；Side 6mm |
|

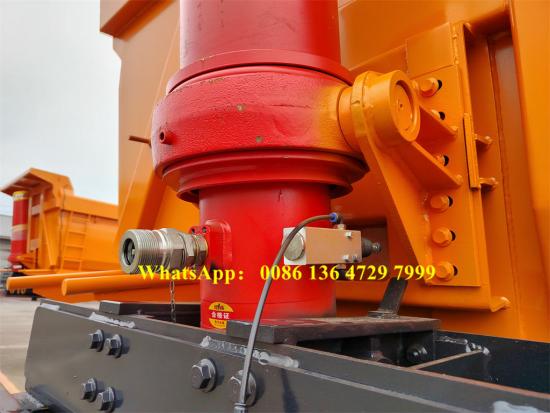

Hydraulic Cylinder |
HYVA |
|
Kingpin |
2' or 3.5' interchangeable |
|

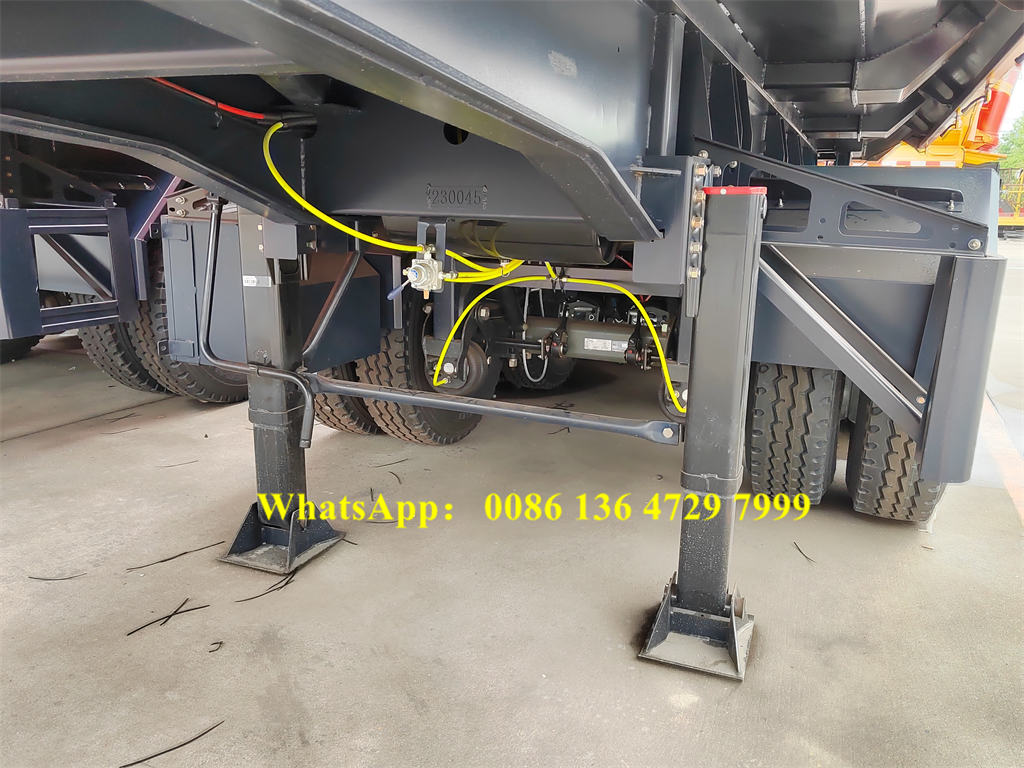

Landing Gear |
28 Tons, Two speed manual operation |
|
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
|
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Painting |
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available |
|

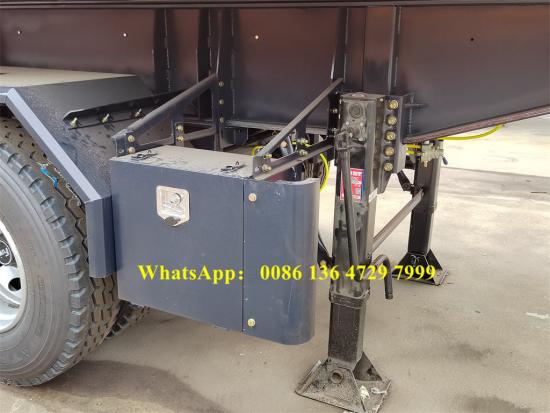

Tool Box |
One tool box with a set of standard trailer tools |
|
Spare Tyre Carrier |
One piece or two pieces |
Product Pictures

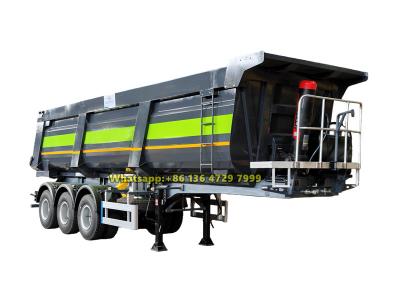

The 3-axle heavy dump semi-trailer is a reliable solution for heavy-duty material transport. It is equipped with three 13-ton FUWA axles and a powerful, stable HYVA hydraulic system, ensuring efficient tipping operations. Combined with a robust cargo box featuring an 8mm thickened floor, it is specifically designed to handle harsh working conditions such as transporting ores and sand.

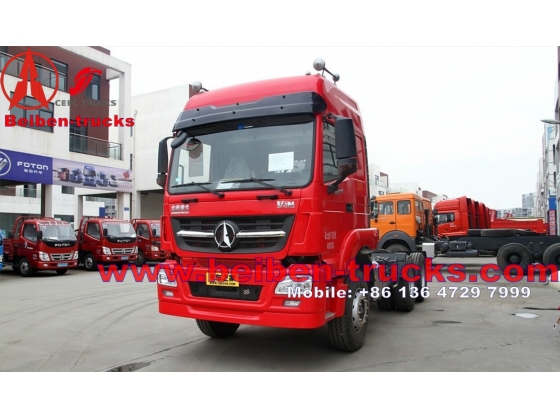

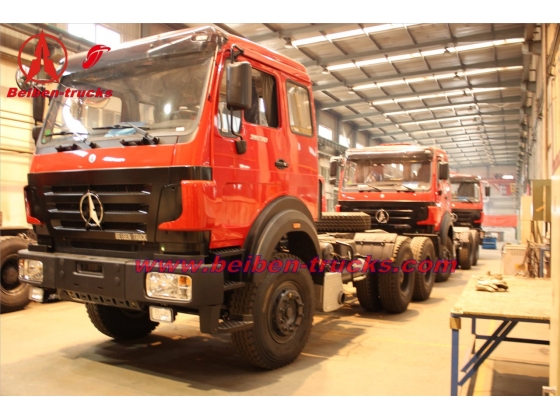

North benz beiben 6x4 tractor head/ trailer truck 480hp,1.BEIBEN 6x4 tractor truck 2.Mercedez-benz technology 3.480hp WEICHAI engine 4.FAST transmission 5.BENZ technology axles
China North Benz 340hp heavy truck 6x4 driving Weichai engine Manual transmission Professional in export of trucks
Beiben 2638 right hand drive tractor truck, we can supply right hand drive Beiben 2532S,2536S,2538S,2542S Beiben 2527S,2429S,2529S,2527S,2548S,2540S,2534S,2535S,2542S,2634,2638,2642

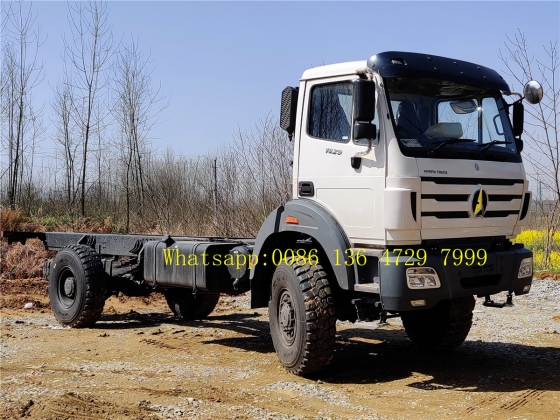

The Beiben 2642 NG80 6×6 chassis, integrating German Mercedes-Benz technology, features a fish-belly frame design and is equipped with a WP12.420E32 engine (309Kw/420HP), a 12JS200T transmission (12-speed), and a 6×6 all-wheel drive system. Its non-independent suspension and Mercedes-Benz axle technology ensure excellent off-road capability and load stability. With intelligent control, comfortable interiors, and a robust electrical system, it provides users with a durable, reliable, and comfortable heavy-duty transport solution, suitable for a variety of complex operating conditions.
