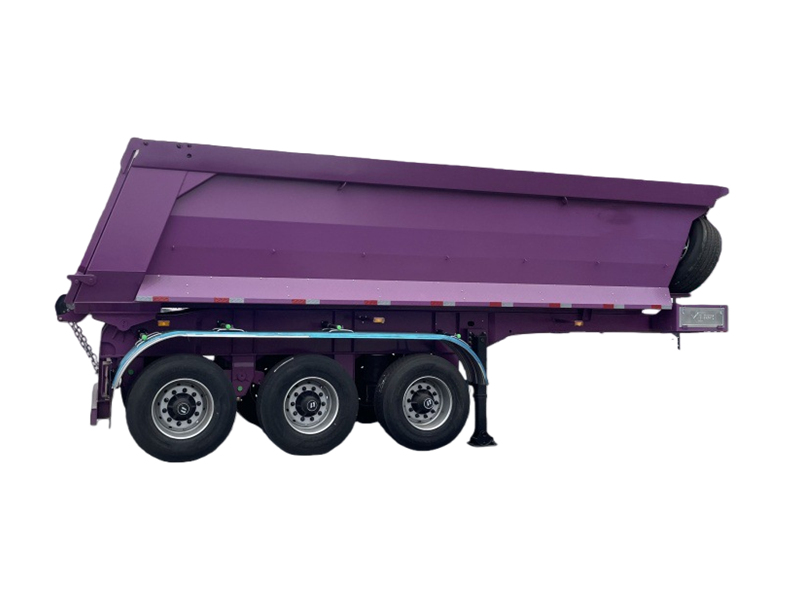

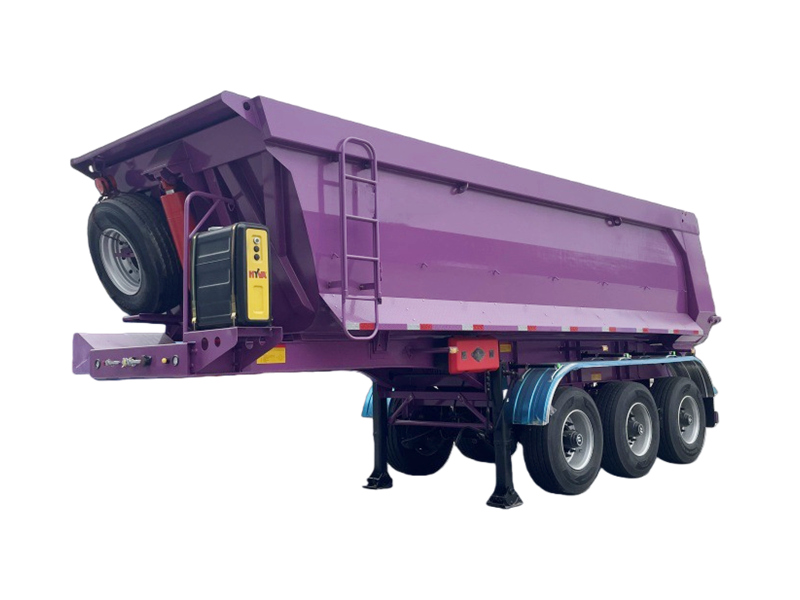

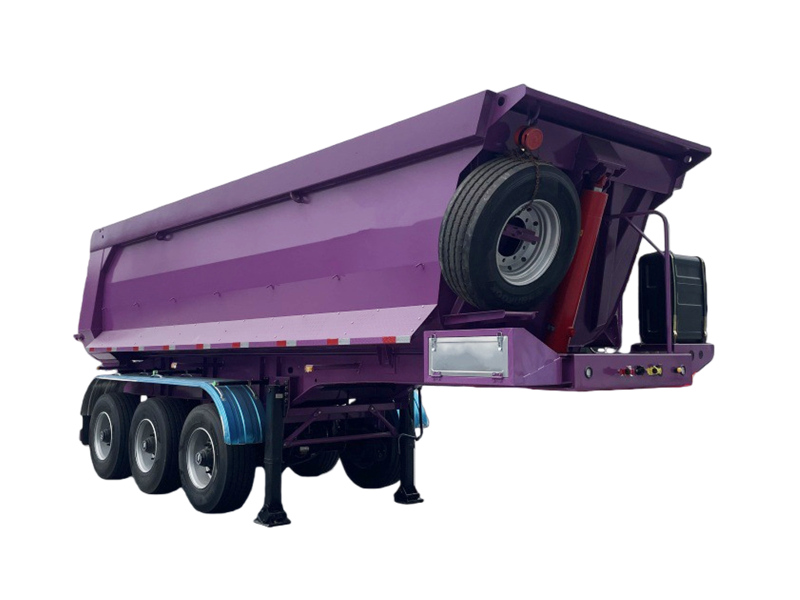

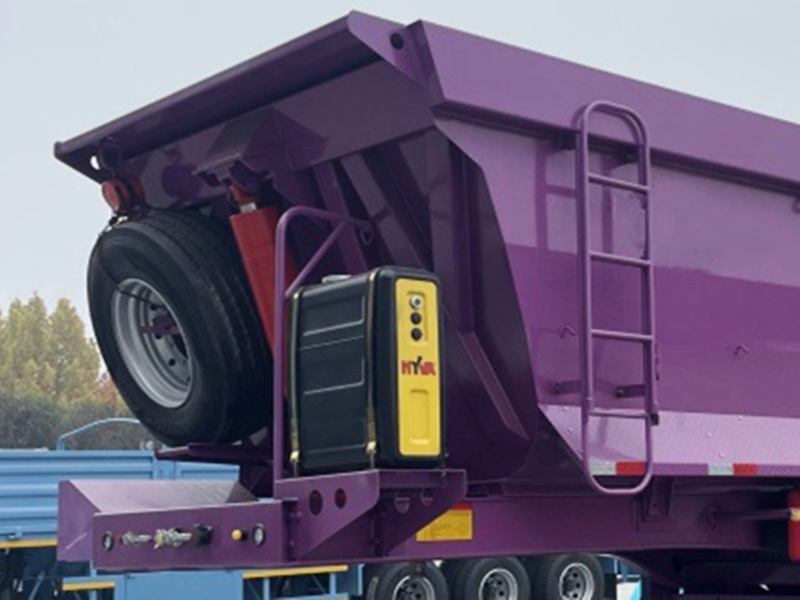

This U-shaped rear-tipping dump semi-trailer is specifically designed for high-frequency transportation of bulk materials such as sand, gravel, and coal, with a load capacity of 50 tons. It features a U-shaped cargo box structure for clean, residue-free unloading. Core configuration includes three FUWA 13-ton axles, FUWA 28-ton outriggers, and a HYVA hydraulic system, known for its strong lifting capacity and low failure rate. The robust structure and efficient, convenient unloading make it ideal for heavy-duty operations requiring frequent loading and unloading, such as in mines and construction sites.
Working Capcity:
50 tonsDimension ( mm ) :
9968×2500×3566Axle Type:
FUWA, 13-ton, 3 pcsLand Gear:
FUWA, 28 tonKingpin:
2' or 3.5'Suspension:
Leaf springTyres:
12R22.5, 12 pcsRemark:
Customized cargo box size, HYVA lifting system, BPM axles for option※ Ⅰ.Product Introduction:
This U-shaped rear tipper trailer is a heavy-duty dump semi-trailer designed for efficient transportation of bulk materials, particularly suitable for frequent unloading of sand, gravel, and coal. It has a 50-ton load capacity, equipped with three FUWA 13-ton axles, FUWA 28-ton outriggers, and a HYVA hydraulic system, known for its strong lifting capacity and low failure rate. Thanks to the U-shaped cargo box structure, the vehicle can effectively reduce cargo residue during unloading. Combined with the rearward tipping unloading method, the overall unloading efficiency is excellent.
CEEC factory is premium supplier of dump semi-trailers,
guarantee all tipper semi-trailers Brand-New and High-Quality.
※ Ⅱ. Product Specifications:
|
Product |
U-shaped rear dumping tipper trailer |
|
Size |
9968mm*2500mm*3566mm |
|
Payload |
50T |
|
Main beam |
Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 18mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm |
|
Floor |
8mm checkered plate |
|
Side wall |
Height 1600mm thickness 6mm |
|
Cylinder |
HYVA |
|

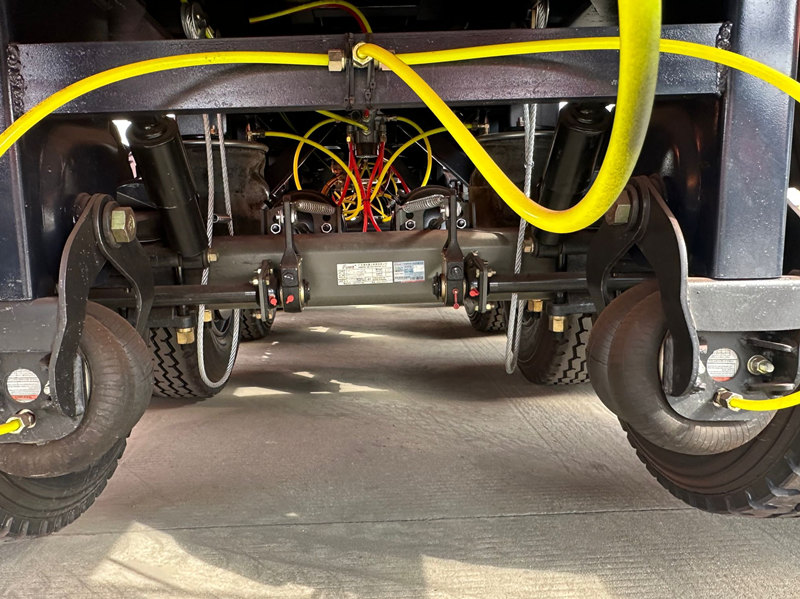

Axle |
3 axles, FUWA brand, 13T |
|

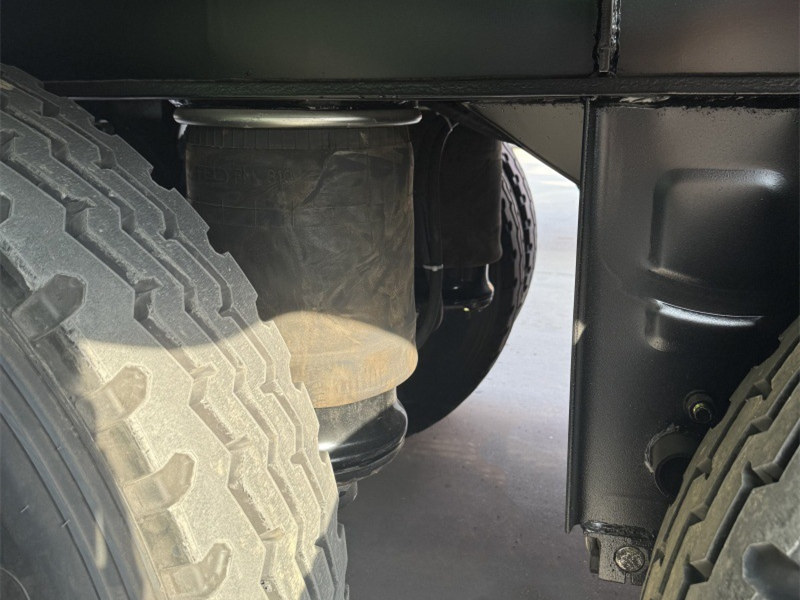

Suspension |
Air suspension, German type |
|
Leaf spring |
Leaf spring 10pcs*90*13mm |
|

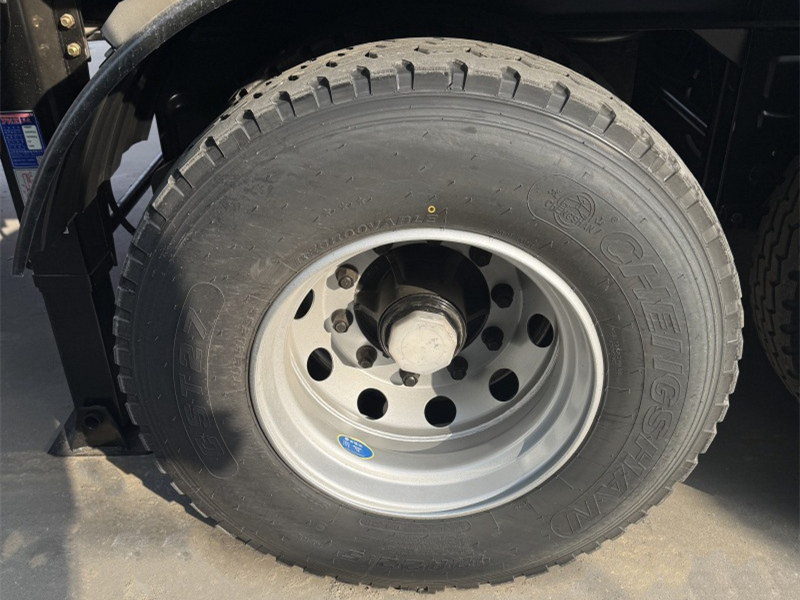

Tire |
12R22.5, 12pcs |
|
Wheel rim |
9.0-22.5, 12pcs |
|
Kingpin |
2"/3.5" bolt-in |
|

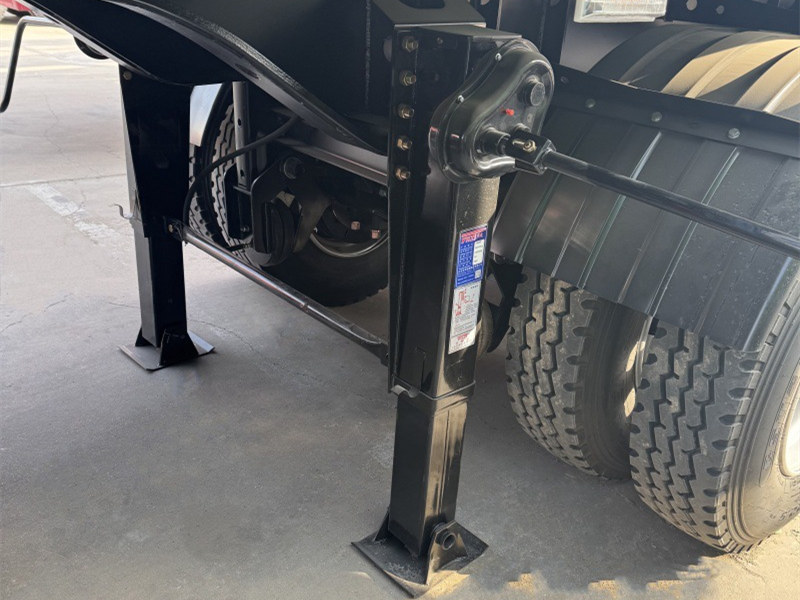

Landing gear |
Two-speed, manual operating, heavy duty landing gear, FUWA 28T |
|
Braking system |
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
ABS |
WABCO brand |
|
Light |
LED 8 side lights and 2 rear lights 2 width lamp |
|
Painting |
Complete chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint |
|
Accessories |

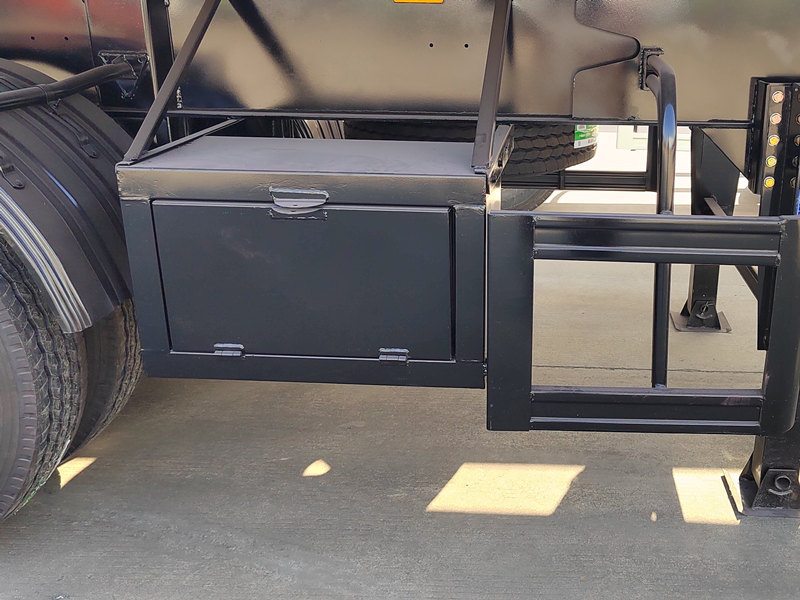

One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side light, two rear light |


※ Ⅲ. Product Structure Features:

1. Reasonable Design: The dump semi-trailer is designed through strength finite element analysis, featuring a rational structure, strong load capacity, and reliable performance.
2. Reliable Structure: Utilizing high-strength steel and a fully automatic submerged arc welding process, the frame is robust and highly resistant to deformation.
3. Simple Operation: Equipped with a HYVA hydraulic system, it offers strong lifting force, low failure rate, and easy operation.
4. Efficient Unloading: The U-type body design effectively reduces material residue and improves unloading efficiency.

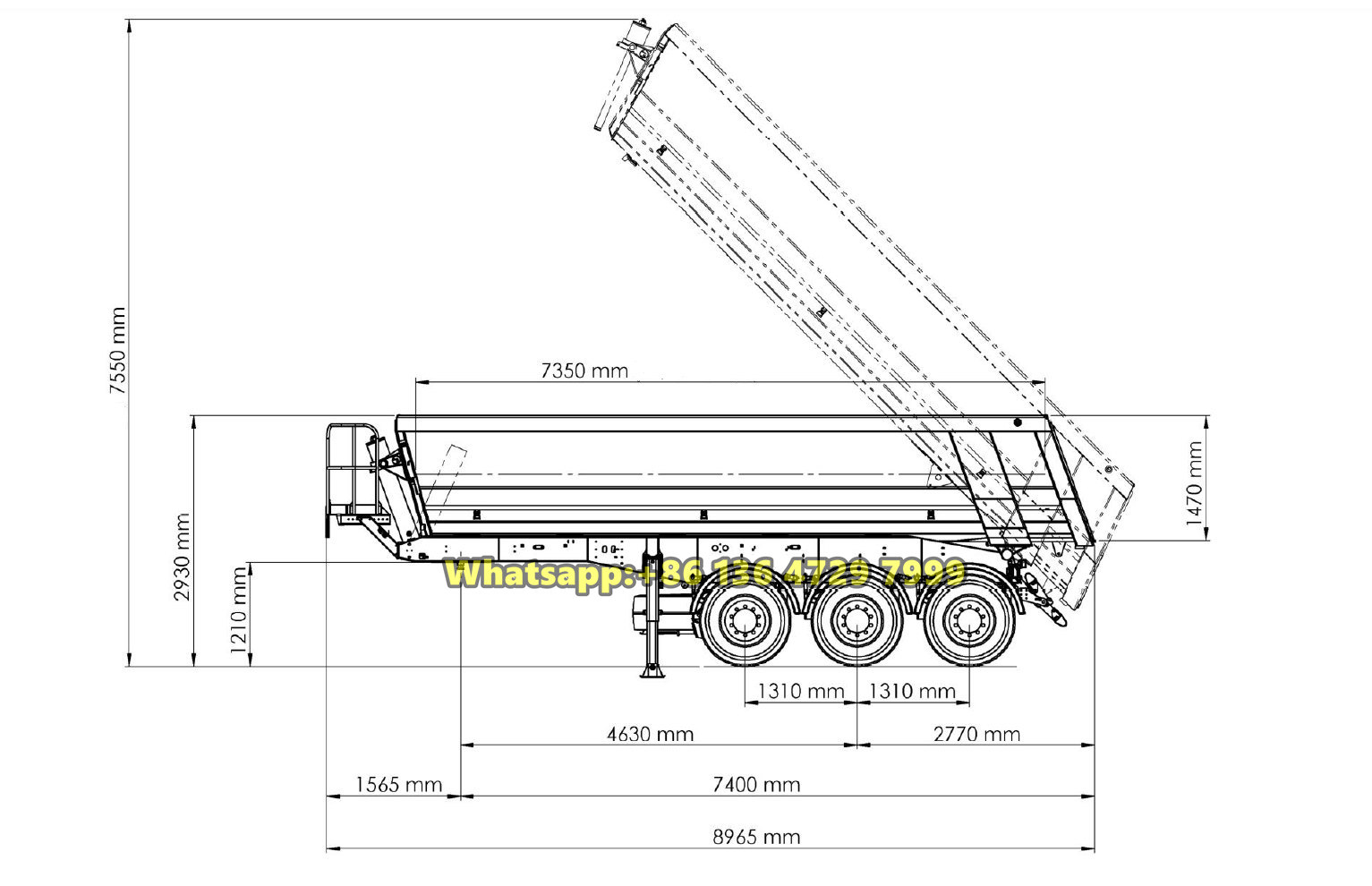

※ Ⅳ. Product Drawing:

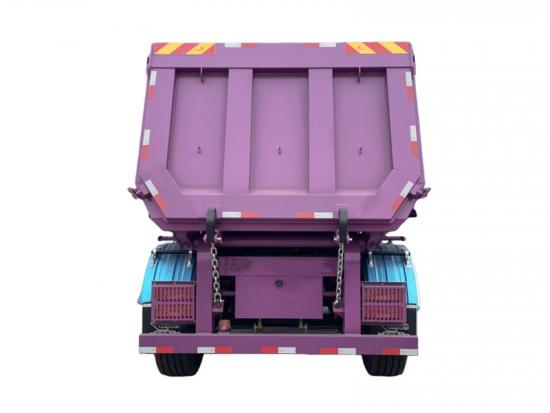

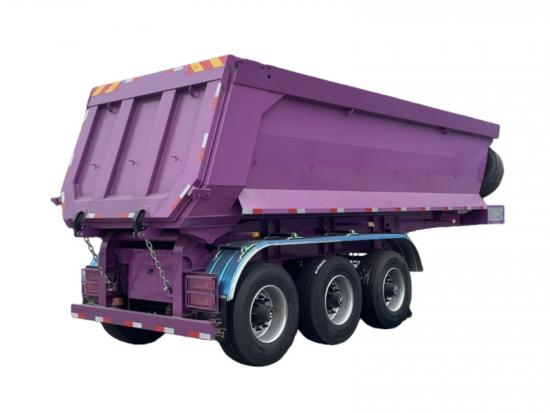

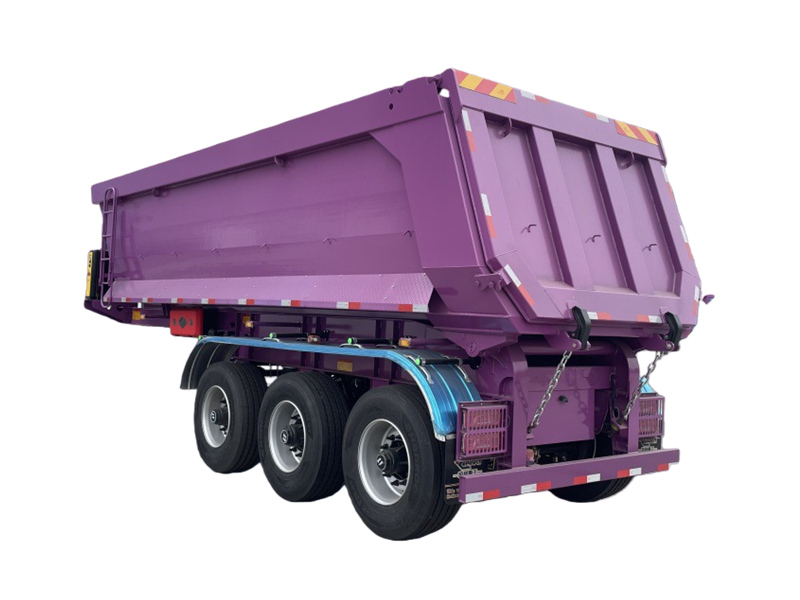

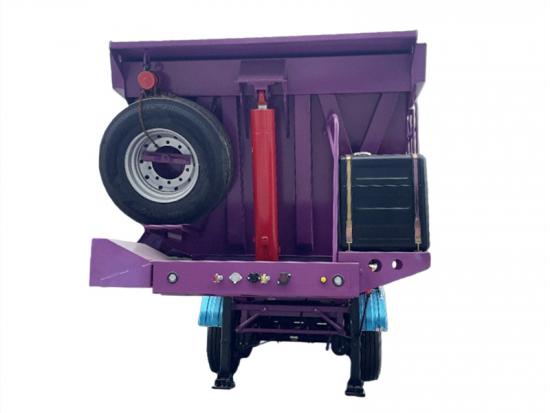

※ Ⅴ. Product Details:

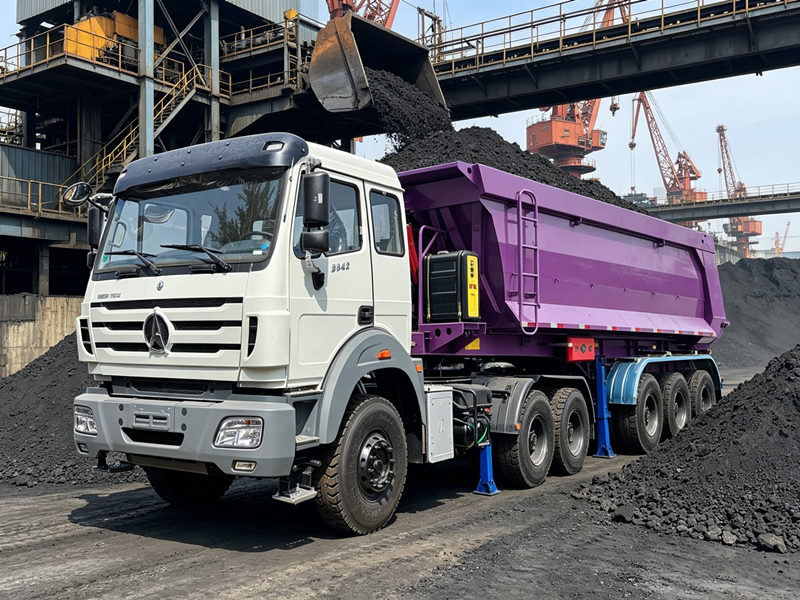

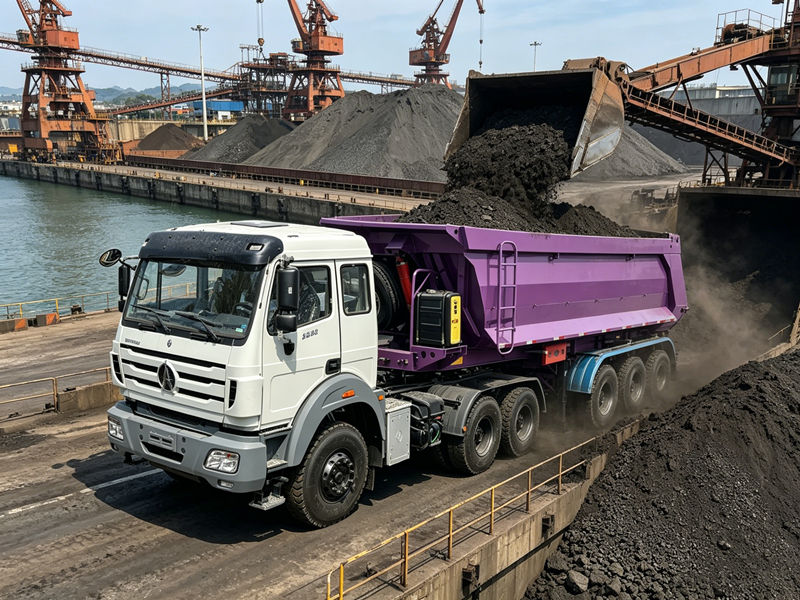

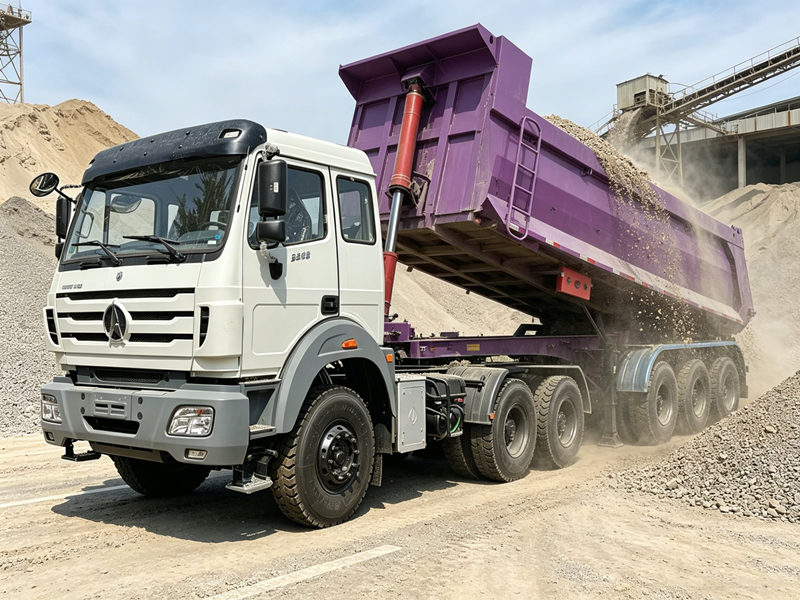

※ Ⅵ. Applications of Tipper Trailers:
Products --100% China tipper trailer factory!
Shipping --100% fast, Convenience, Efficient!
1. Customized 2 axles, 3 axles, 4 axles tipper semi-trailers
2. FUWA/BPM alxes and HYVA lifting system for option
3.Factory bottom price, strict quality control
4. Fast delivery, common models can be supplied within 15 days.
