Order(MOQ):
1Production time:
30 daysPayment terms:
T/T, West union
Function:
Construction, Mining
and quarries,
Heavy duty material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Advantage:
★ CEEC TRUCKS 20 years experience on beiben 2538 tractor trucks exporting.
Specification:
Similar key words congo beiben 2534 tracteur camions, beiben 2538 tracteur camions, north benz 2538 tracteur camions, china beiben tracteur camions supplier.

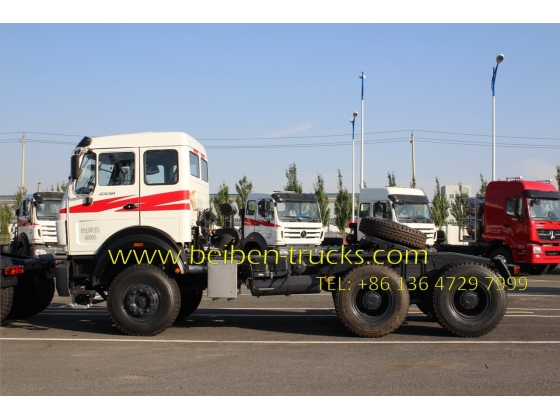

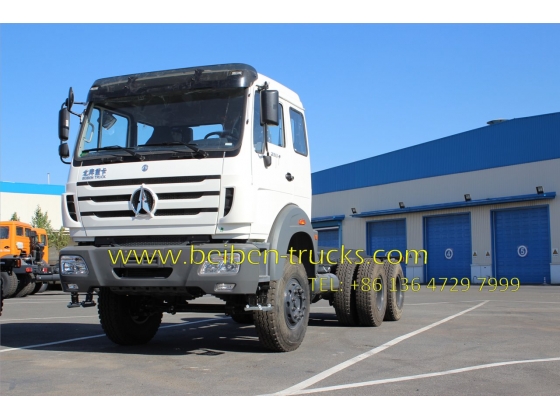

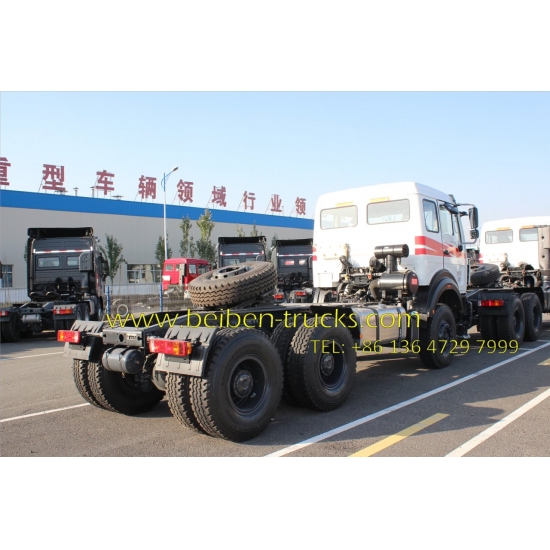

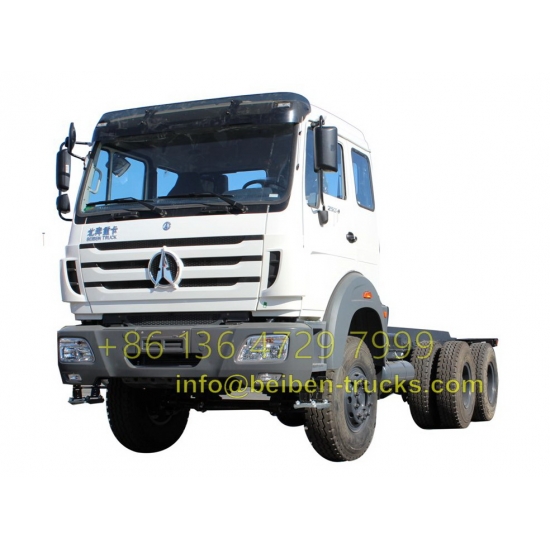

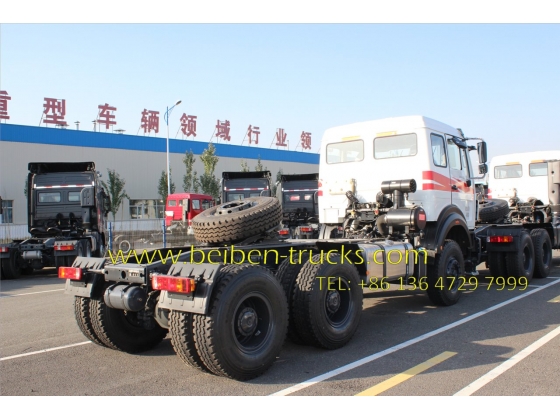

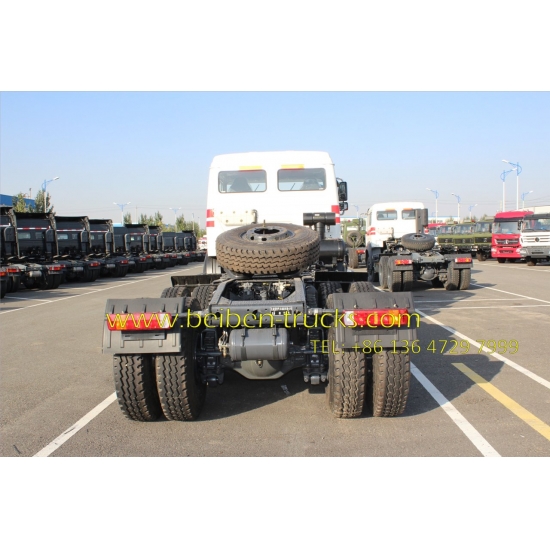

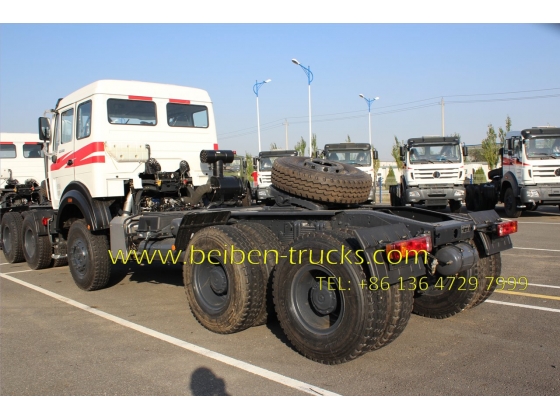

China famous brand beiben 2534 tractor truck,for using in logistic, seaport, airport, fuel transporation.

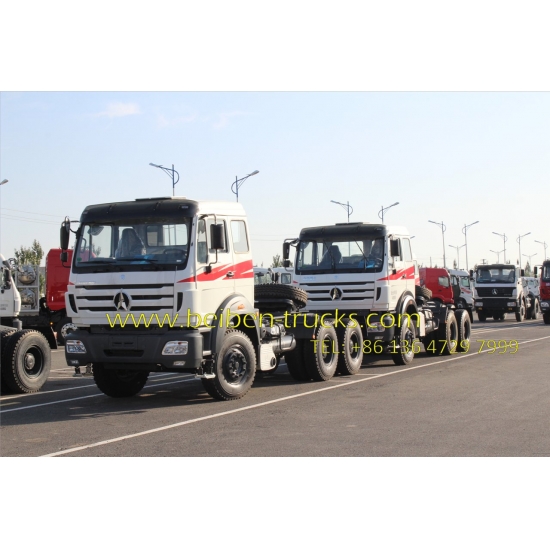

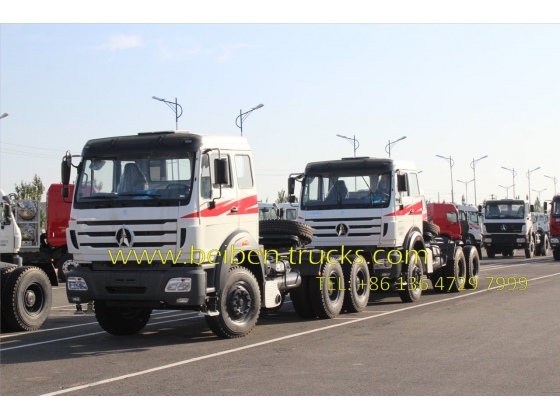

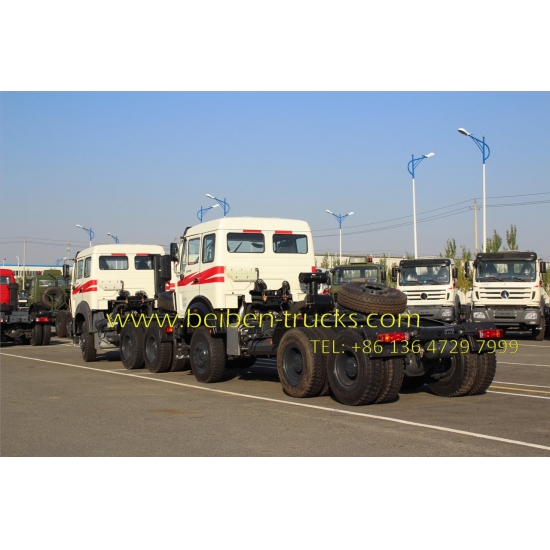

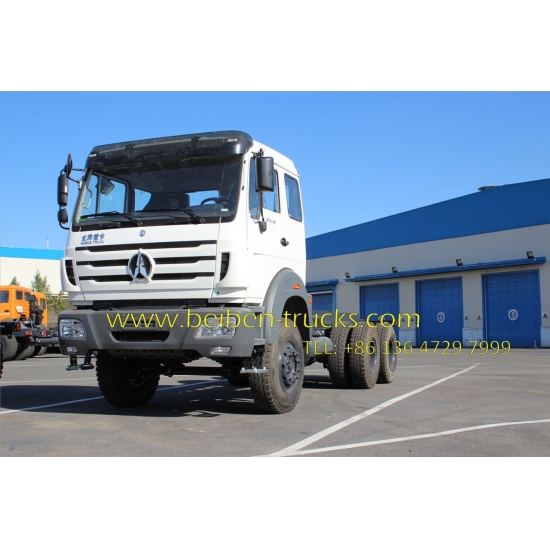

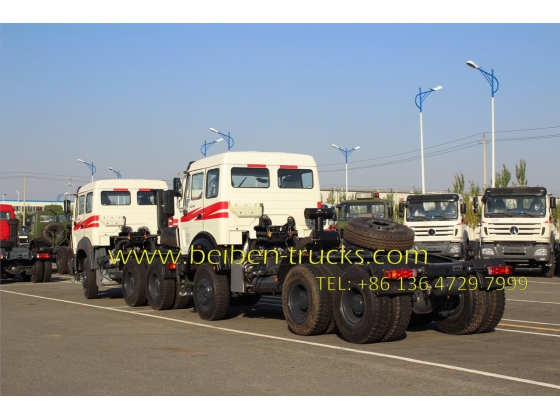

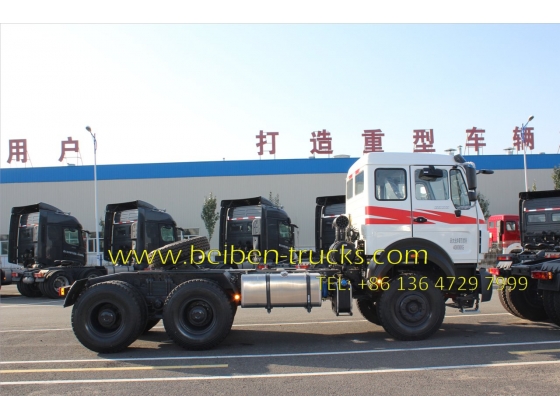

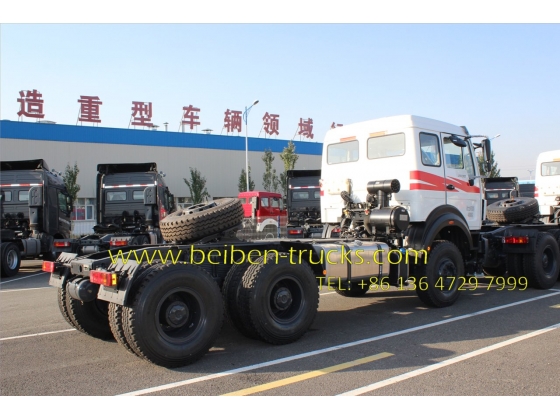

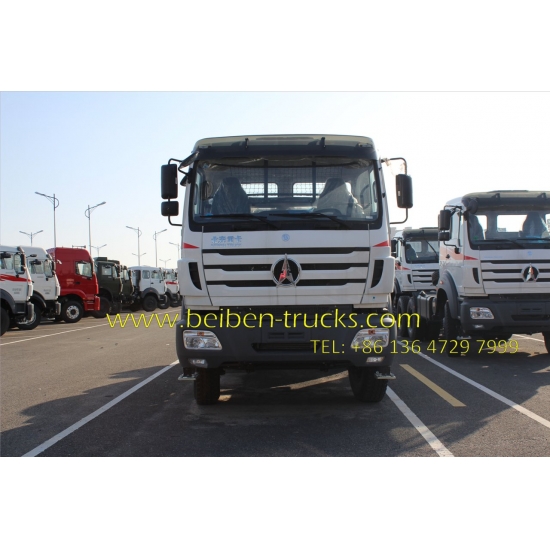

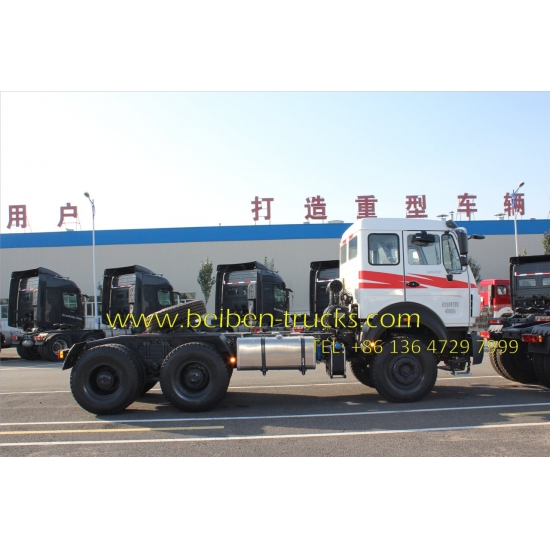

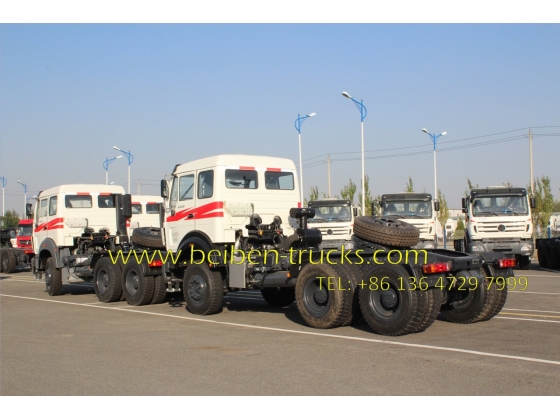

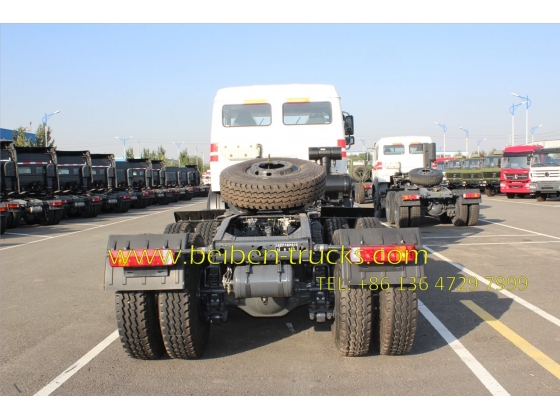

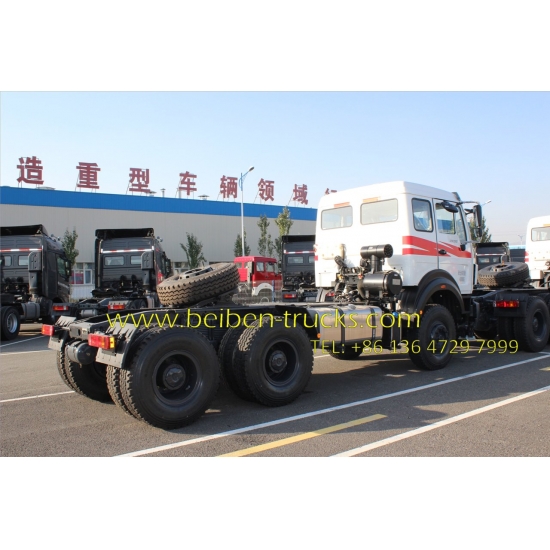

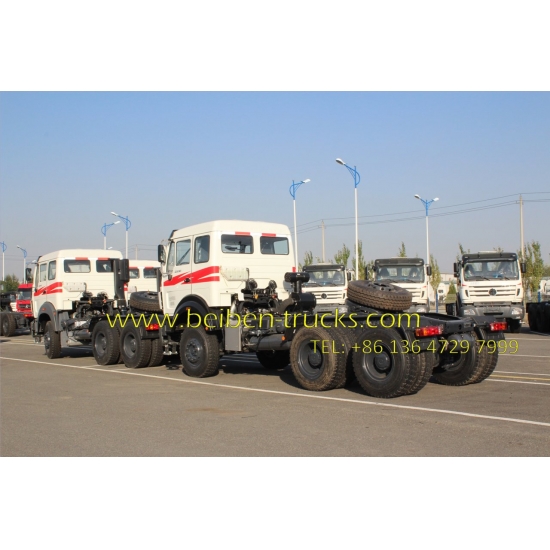

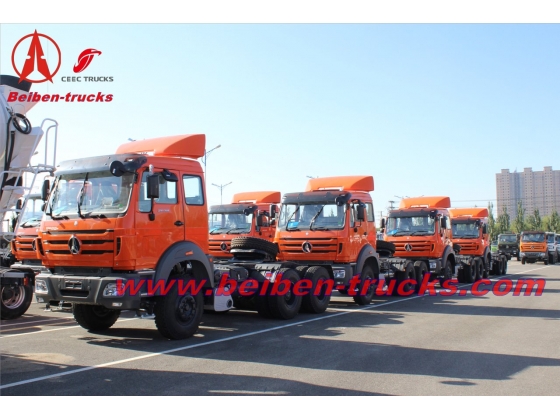

Baotou beiben 2538 tractor trucks are widely applied for high way , seaport, logistic, fuel oil project transportation. With reliable benz technology, benz 6*4 tractor truck are well accepted in congo, kenya, tanzania and nigeria.
Our prices are considerably lower than European, American and Asian competitors; including Mercedes Benz Actros 2538tractor trucks..

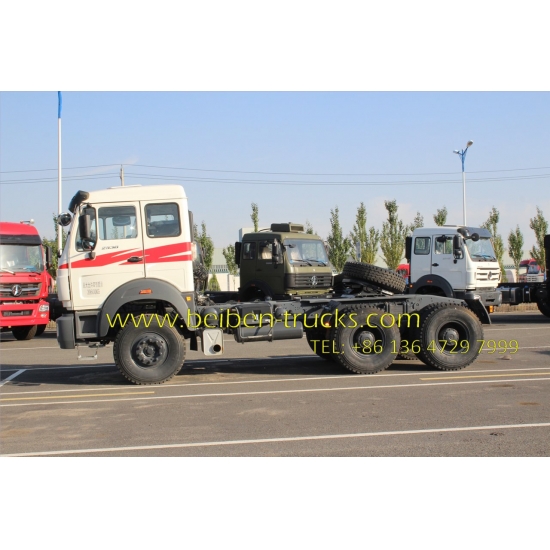

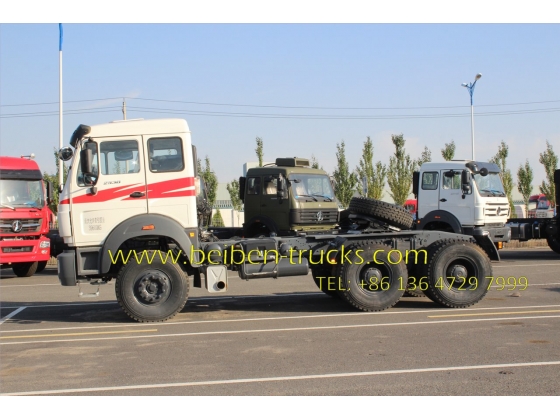

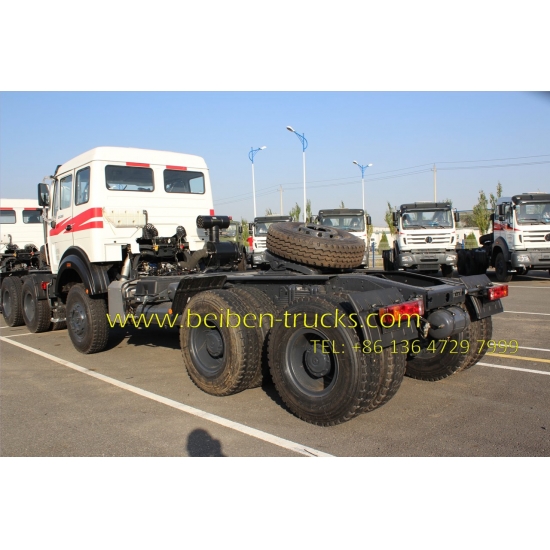

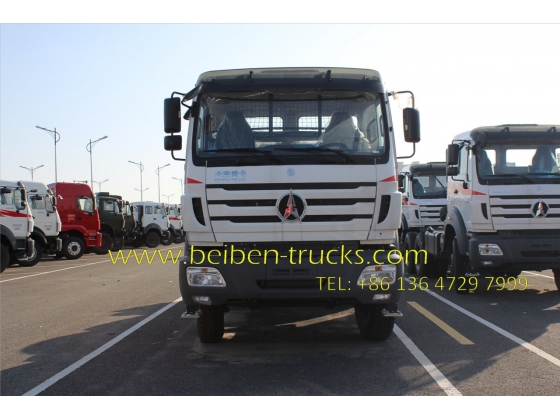

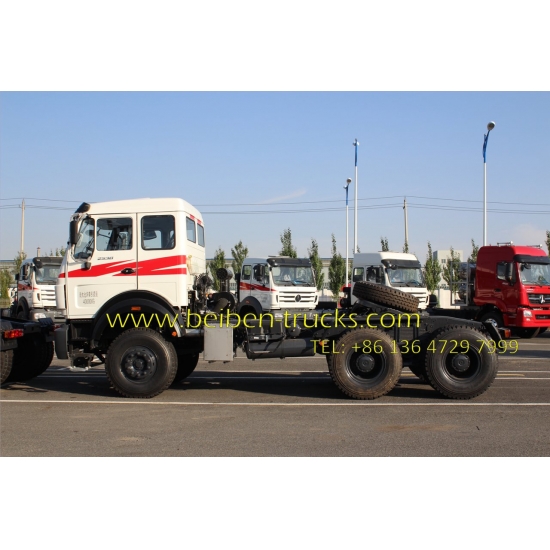

| Beiben 2638SZ tractor truck /6×4/3450+1450/Long Cab/LHD | ||||||
| Dimension | 7136*2495*3180mm | |||||
| Approaching angle/Departure angle | 26/64° | |||||
| Overhang(front/rear) | 1410/825mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 9200kg | |||||
| Max towing weight | 36900kg | |||||
|
Max loading on fifth wheel, Permitted(kg) |
15670kg |
|||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.380E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 280/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
|
Model |
JOST ∮90 single direction |
|||||
|
Height of fifth wheel(mm) (unload) |
1410 |
|||||
|
Radius of front gap (mm) |
2300 |
|||||
|
Radius of rear slew (mm) |
2600 |
|||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-R20 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |
NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
Beiben 40 T , 50 T, 60 T, 70 T tractor truck
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 1834S |
WD615.34 | 340Hp | 40Ton | 4x2 |
| Beiben 2538 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2634 | WP10.340 | 340 Hp | 40Ton | 6x4 |
| Beiben 2642 | WP12.420 | 420 Hp | 48 Ton | 6x4 |
| Beiben 2642 | WP10.420 | 420 Hp | 50 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 48 T | 6x4 |
| Beiben 2638 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 50 T | 6x4 |
| Beiben2642 | WP 10.420 | 420 Hp | 60 T | 6x4 |
| Beiben 2542S | WP12.420E32 | 420 Hp | 50 T | 6x4 |
| Beiben 1630A | WP10.300N | 300 Hp | 30 T | 4x4 |
| Beiben 2534 | WP 10.336 | 336 Hp | 50 Ton | 6x6 |
| Beiben 2638 | WP10.380 | 380 Hp | 50 Ton | 6x4 |
beiben 1927 tractor trucks, also called as beiben 1827 towing truck, with benz technology 270 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.
Beiben 2642 trailer truck , to be equipped with 60 T bogie suspesion container semitrailer , 420 hp strong diesel engine, fast 12 shift manual transmission, famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre.

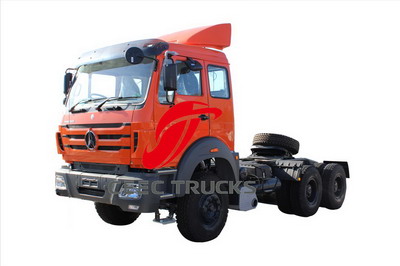

North benz 2538 tractor truck , applied germany benz technology , weichai 380 hp Euro 3 diesel engine, fast 12 shift manual transmission, famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre.
beiben 1834 tractor trucks, also called as beiben 1834 towing truck, with benz technology 340 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.
beiben 1834 tractor head, also called as beiben 1834 trailer truck, with benz technology 340 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.
China beiben 2638 tractor truck, with extremely weichai diesel 6 cylinder strong engine, ZF8098 steering system with fuller technology, front axle is benz technology with double wheel reducer, rear axle with wheel reducer.12.00R24 tyre.
Good quality Beiben 310hp 6X4 10 wheel dump truck for hot sale Advantages 1.The competitive price compared with similar products. 2.Good product quality since it is the famous brand in China. 3.we can arrange our engineers to provide repaire service on abroad. Packaging & Shipping Nude or container Product Description Model 2531KY Drive type 6X4 Weight Complete kerb mass(kg) 12200 GVW(kg) 25000 Dimensions Max.lengh(mm) 8290/8530 Max.width(mm) 2500 Max.height(mm) 3464 Front/Rear overhang(Chassis) 1410/1630,1410/1870 Wheel base (mm) 3800+1450 Track width(mm) 1995/1800/1800 Performance Max.speed(km/h) 80 Approach/Departure angle(°) 26/32 Engine Brand WEI CHAI Model WP10.290E32 Power(KW/HP) 228/310 Max.Torque(N.M)/rpm 1250N.M/1200-1600RPM Displacement(L) 9.726 Emission Standards Euro III Transmission Brand FAST Model 9JS150A Control type Manual Gear shift 9-forward and 1 reverse speeds Clutch Type Single plate,diaphragm spring Diameter(mm) φ430 Action Mechanical type,hydraulic and pneumatic operation Braking Service brake Bra Park brake Potential springs pressing on middle and rear wheels Auxiliary WEVB Option ABS Steering Type ZJ120D Chassis Type Fish belly, various width, various sections, side beam structure,Strengthened frame Dimensions(mm) 300X90X8+6+8 Suspension the number of leaf spring 10+13 Axles Front axle 7500kg Rear axle 13000kg double reduction driving axles Ratio 5.921 Tyres Type(Standard) 12.00R20 Option 12.00R20/12.00-20/11.00R20/12R22.5 Fueltank Tank capacity(L) 300 Material Iron Option 400L(iron) Cab NG80B shortcabin,2 persons. other Platform dimensions(mm) 5800X2300X1100

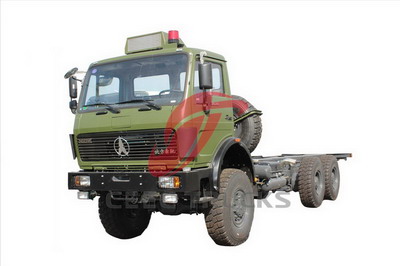

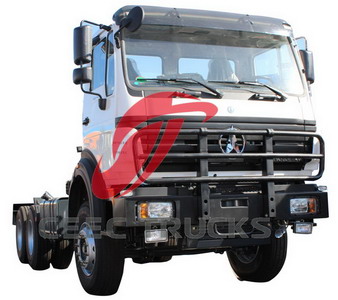

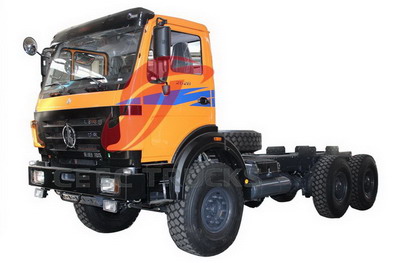

Beiben 2534 off road tractor truck, based on beiben 2534 off road tractor truck chassis, 6*6 driving system, with germany benz technology cabin and axle, this kind of north benz 6 wheel drive tractor can be used in extremely tough road situation.
New BEIBEN V3 420hp big truck tractor for Tanzania For HIGHLAND BEIBEN V3 Weichai 380hp,420hp Big Trailer Truck Head Engine: WEICHAI Driving type: 6x4
