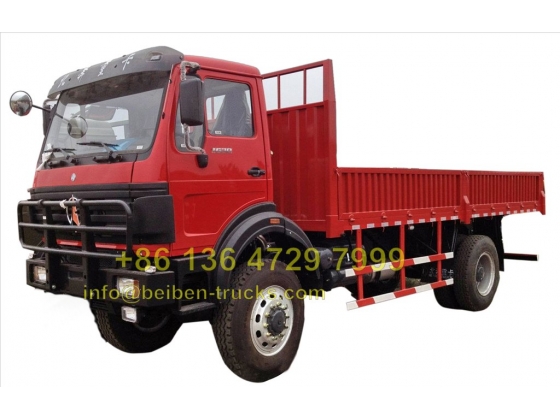

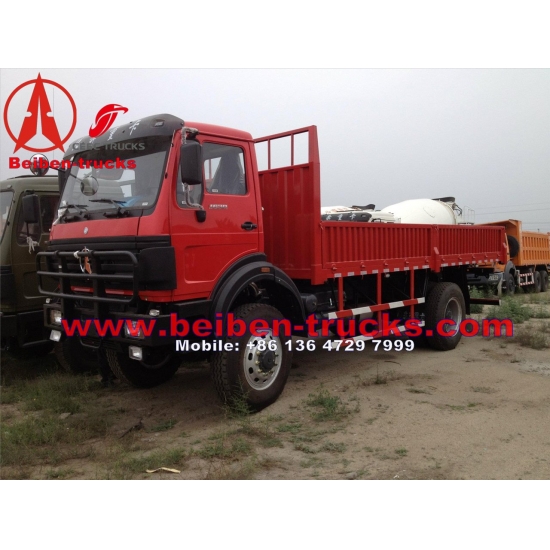

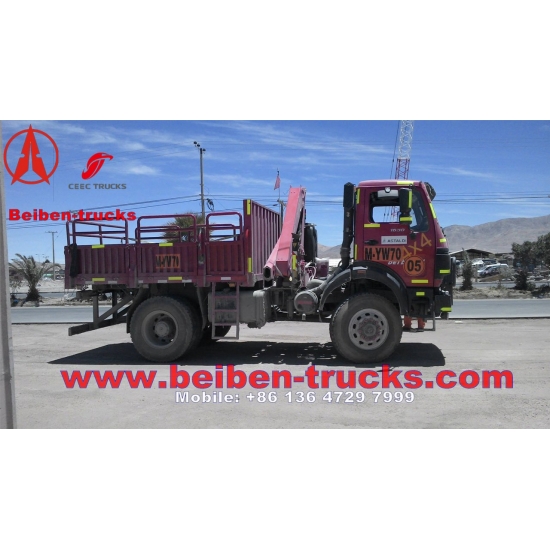

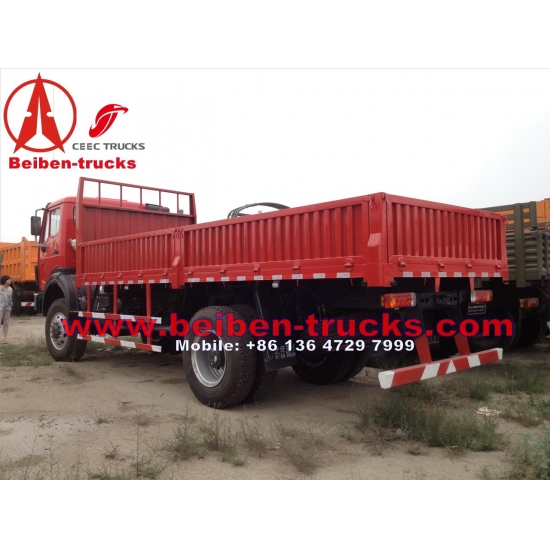

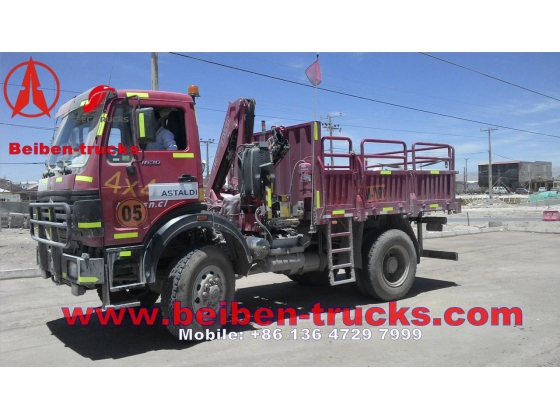

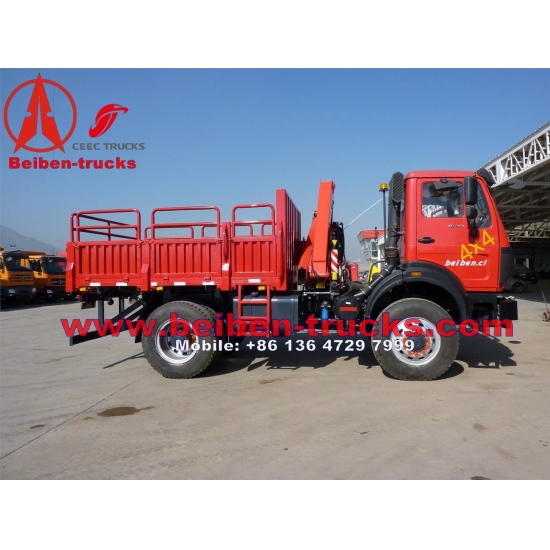

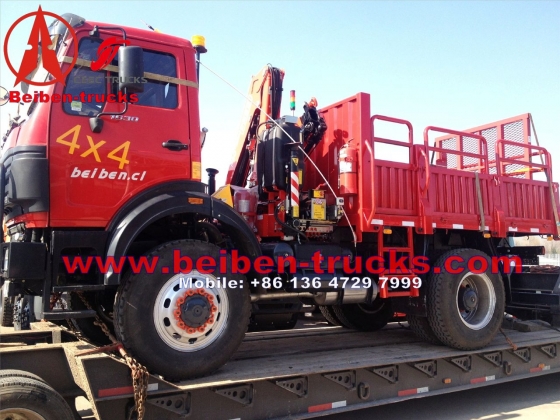

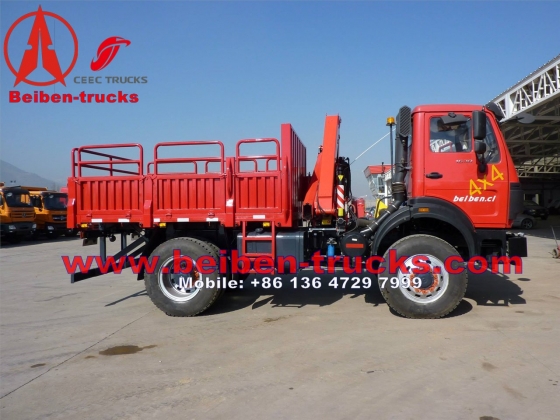

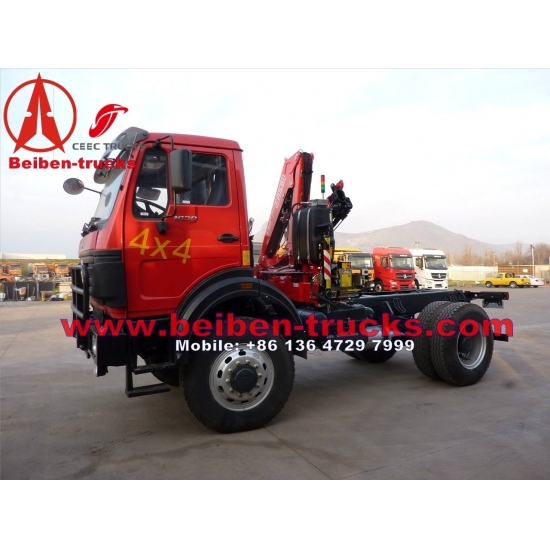

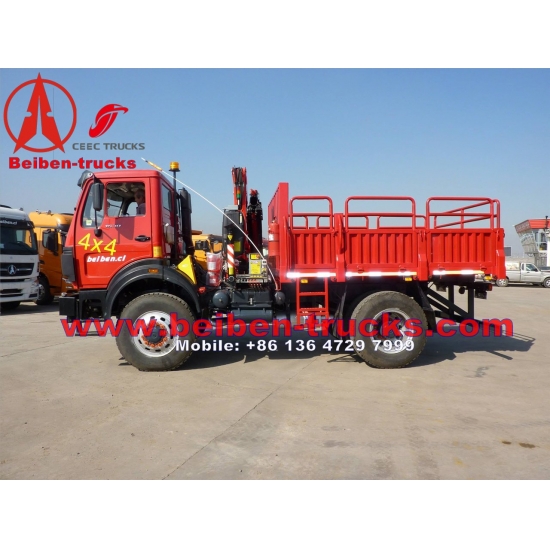

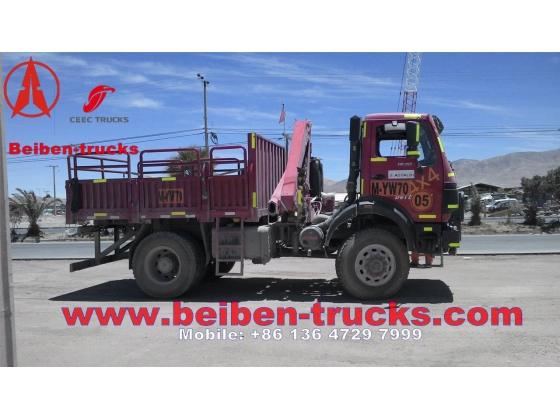

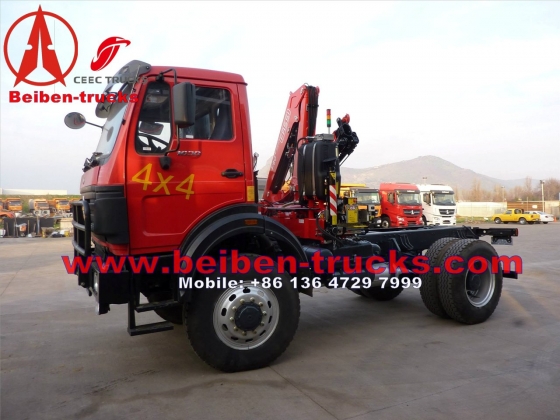

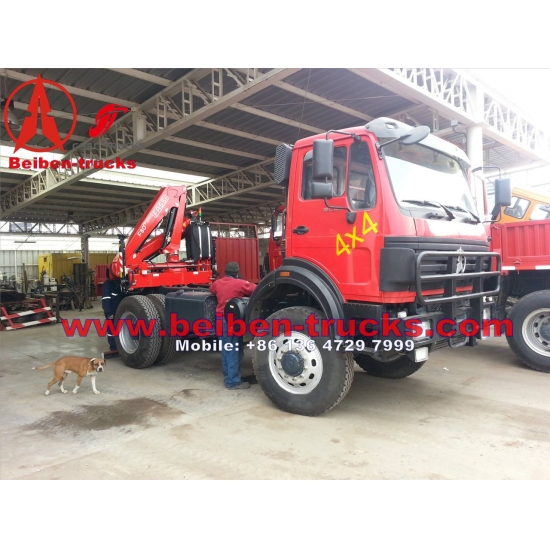

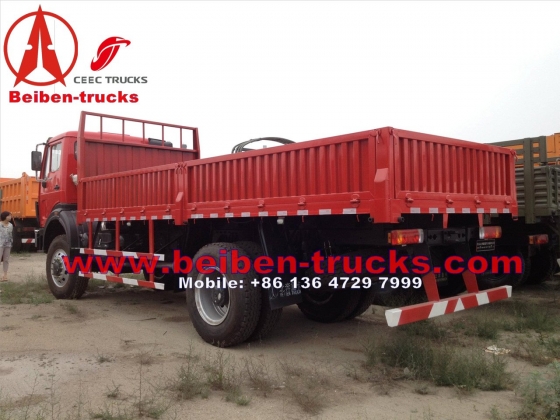

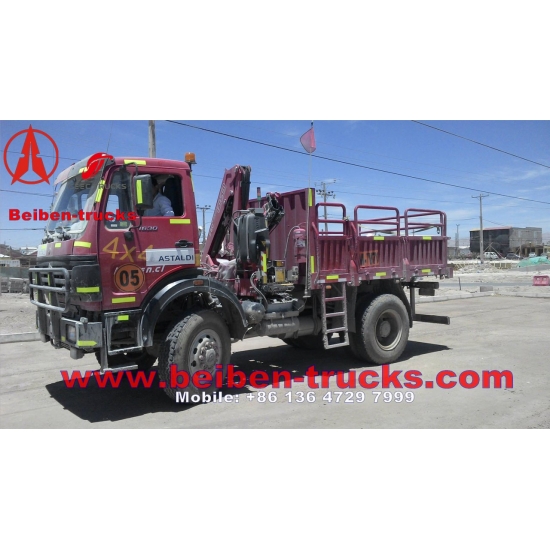

Beiben 4*4 drive cargo truck with crane

Product Details

China best quality beiben 4*4 cargo truck manufacturer.

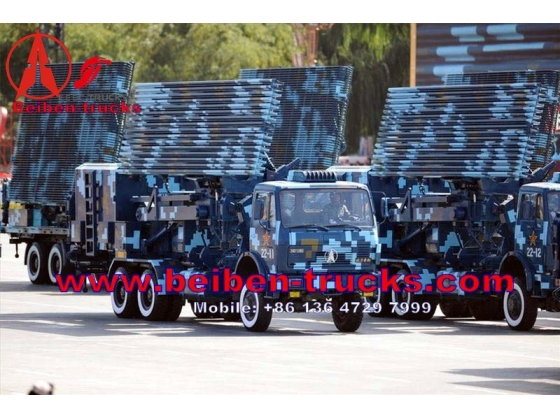

The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.


300 hP ENGINE, FAST 9 shift transmission. 12.00R20 tyre.




Beiben truck manufactured underthe license of Mercedes Benz technology, which has excellent performance withreasonable price.

Vehicle Name:

Beiben 4*4  truck chassis

Types of drive

Left hand drive (LHD )

Truck model number

1626S

Dimension (mm)

8665*2495*3145

Curb weight (kgs)

7440

Drive wheel

4×4

Engine model

WD10.300 Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Horsepower(hp)

300

Bore*stroke (MM)

126*155

Displacement (L)

9.726

Rated speed (R/min)

2200

Max torque (Nm)

1160

Max Torque speed( R/min)

1200-1600

Lowest fuel consumption (G/kw.h)

< 198

Net weight (KG)

870

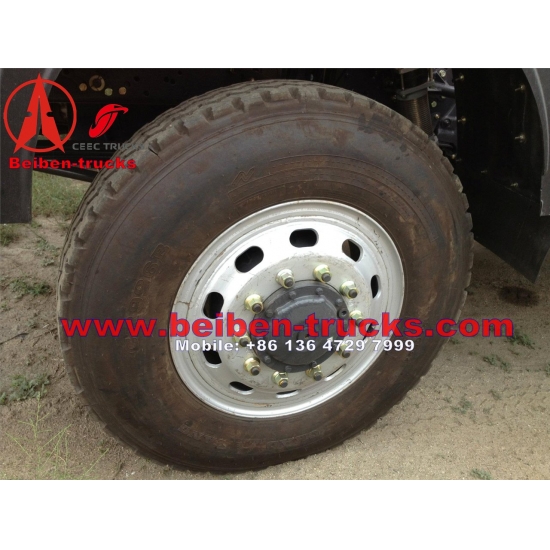

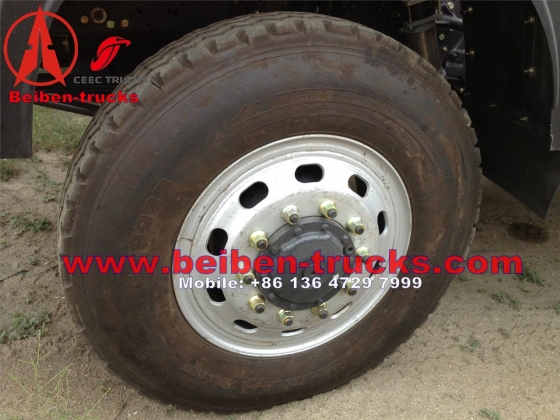

Meridian tire

12.00-20

Number of tires

6 + 1(spare wheel)

Saddle types

None

Transmission types :

RT11509C

Steering mechanism:

TAS85

Wheelbase (mm)

4800

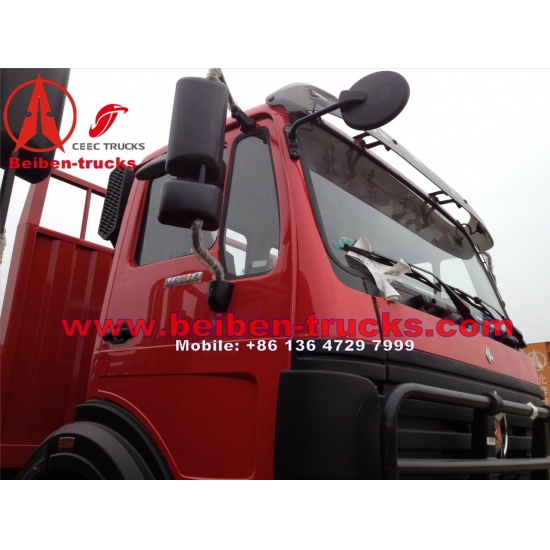

Cab style

Long cabin, Benz technology ,without bed

Air-condition

With air-condition

Cab body style

The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology.

Steering system

High safe and reliable, and flexible, ZF8098

Brake system

Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB

Electric system:

Stronger load ability, high reliability and easy maintenance

Truck frame style

Fish maw shape, inequilaterally section, equal intensity, Benz technology

Front axle

Benz 7.0T Transaxle

Rear axle

Benz Technology,double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Ratio=5.263

Electric system:

Stronger load ability, high reliability and easy maintenance,24 V

Emission standard

Eur 2 & EURO 3

Fuel tank capacity (L)

400

Optional equipment

Saddle , upper berth, ABS , squareness silencer.
