Beiben 6x6 water tank truck 10-20m3 tanker truck

  • FOB Price

    $56,000-$69,000

  • Production time

    60 days

  • Payment terms

    T/T

enquiry
Product Details

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck

1. beiben NG80B 2638 6X6 water tank truck

2. Flat roof cabin,single sleeper,  auto-air conditioner

3. High quality and competitive price

4. Quick delivery time

5. Best after-sales


The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.

Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.

Beiben truck features and advantages:

1: Driving room: the steel structure, high safety,lower wind resistance coefficient

2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient

3: The suspension system: Mercedes suspension, high intensity

4: Benz axle: double deceleration bridge, high efficiency, carrying large

5: Transmission system: high efficiency, bigger torque, climbing superior performance

6: Steering system:high safe and reliable, and flexible

7:Braking system, high security, brake with high efficiency

8: Electric system: stronger load ability, high reliability and easy maintenance

.

Vehicle Name:

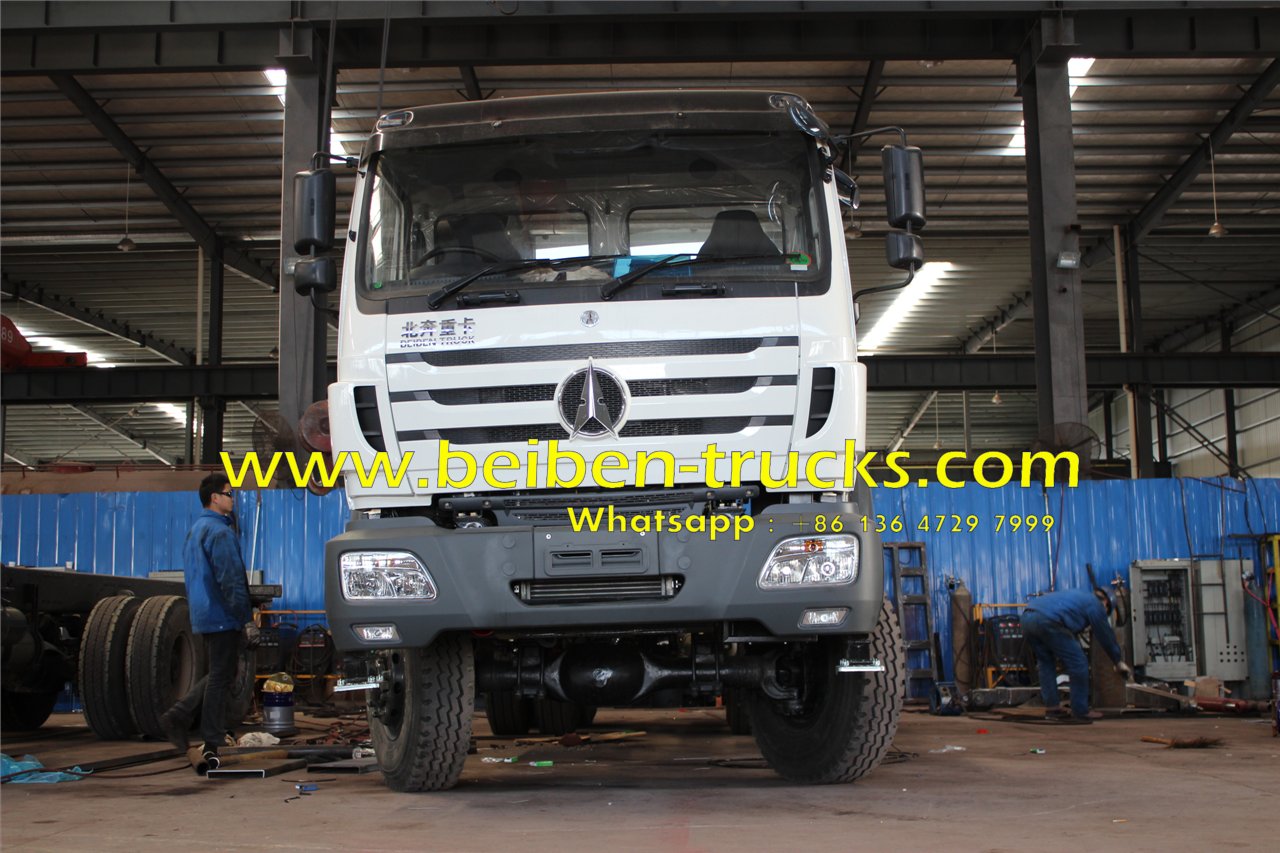

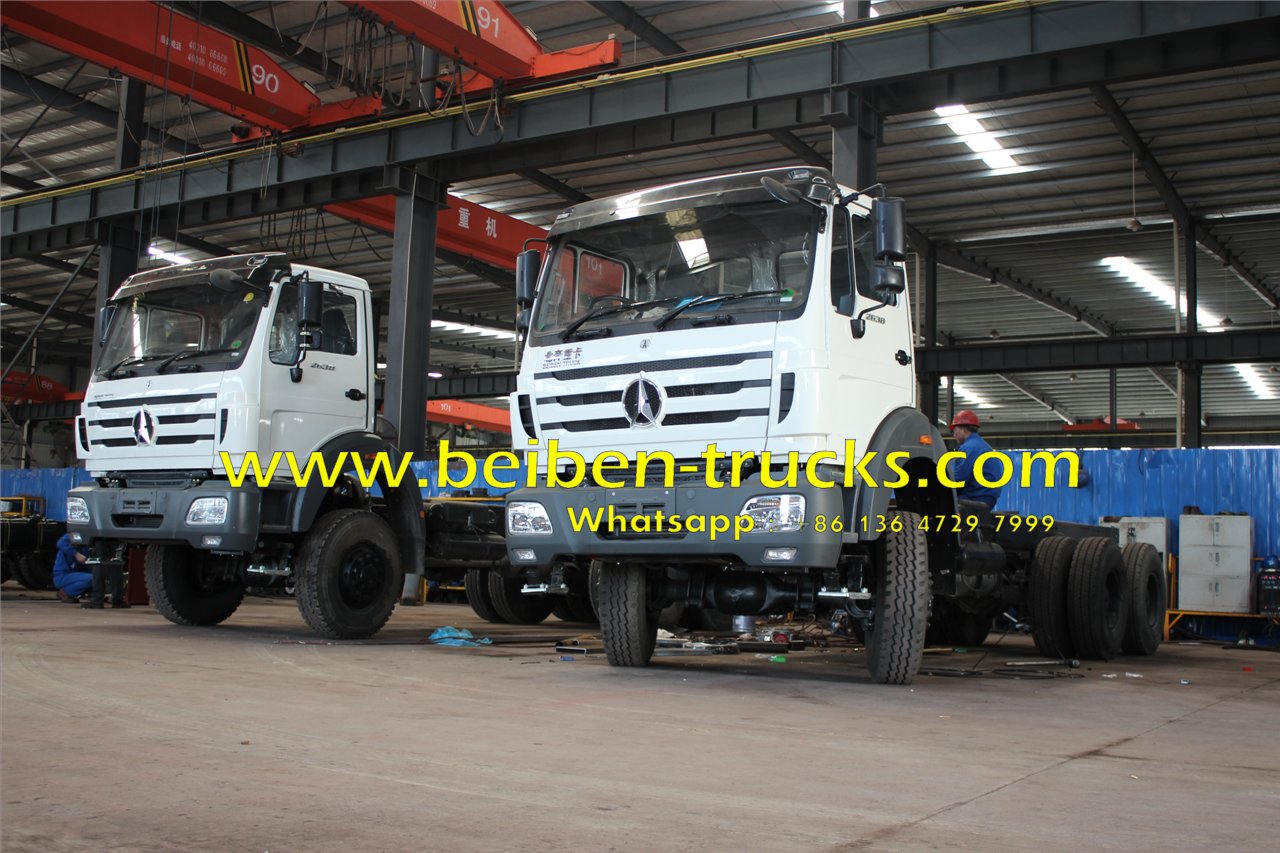

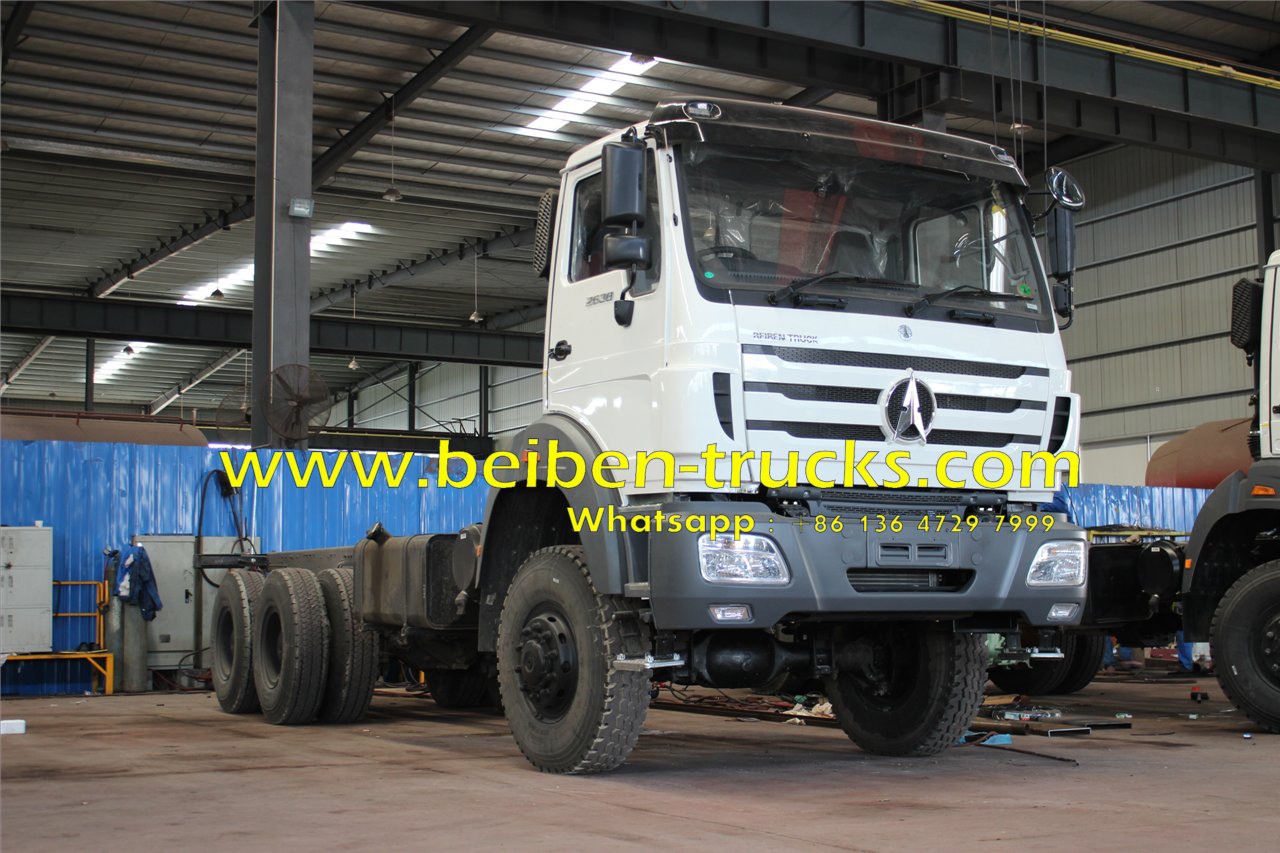

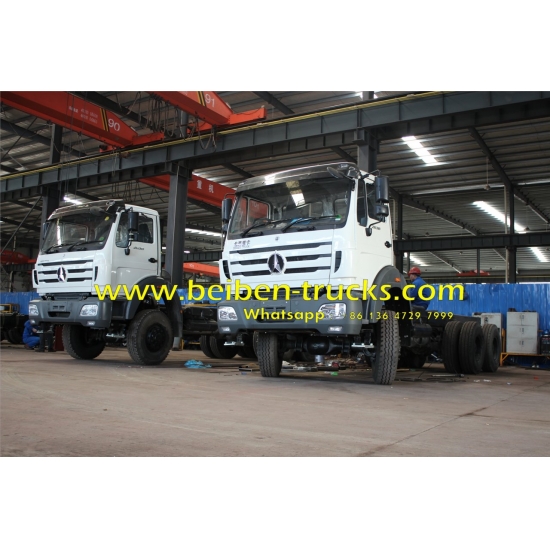

Beiben 6*6  truck chassis

Types of drive

Right hand drive (LHD & RHD )

Length*width*height (mm)

9400*2500*3260

Kerb weight (kg)

9100

Truck model number

2538S

Drive wheel

6×6

Engine model

WD615.38  Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Horsepower(hp)

380

Bore*stroke (MM)

138*155

Displacement (L)

11.596

Rated speed (R/min)

2200

Max torque (Nm)

1750

Max Torque speed( R/min)

1300-1600

Lowest fuel consumption (G/kw.h)

< 198

Net weight (KG)

905

Meridian tire

14.00R20

Number of tires

10 + 1(spare wheel)

Saddle types

None

Transmission types :

RT11509C , 9 shift transmission, FAST technology

Steering mechanism:

ZF8098

Wheelbase (mm)

4450+1450

Cab style

Long with 2 beds, Benz technology

Air-condition

With air-condition

Cab body style

The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology.

Steering system

High safe and reliable, and flexible, ZF8098

Brake system

Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB

Electric system:

Stronger load ability, high reliability and easy maintenance

Truck frame style

Fish maw shape, inequilaterally section, equal intensity, Benz technology

Front axle

Benz 7.0T Transaxle

Rear axle

Benz Technology,double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Ratio=5.263

Electric system:

Stronger load ability, high reliability and easy maintenance,24 V

Emission standard

Eur 2 & EURO 3

Fuel tank capacity (L)

400

Optional equipment

Saddle , upper berth, ABS , squareness silencer.

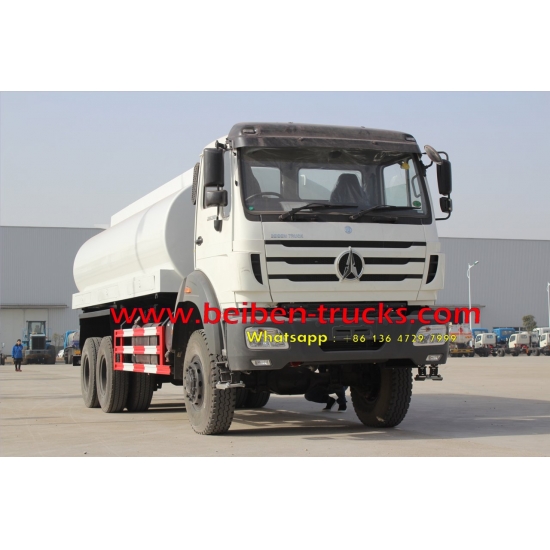

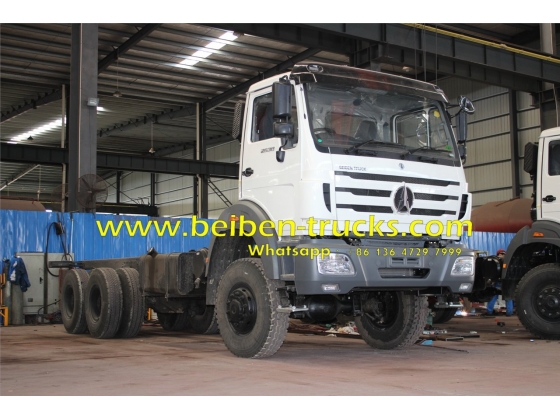

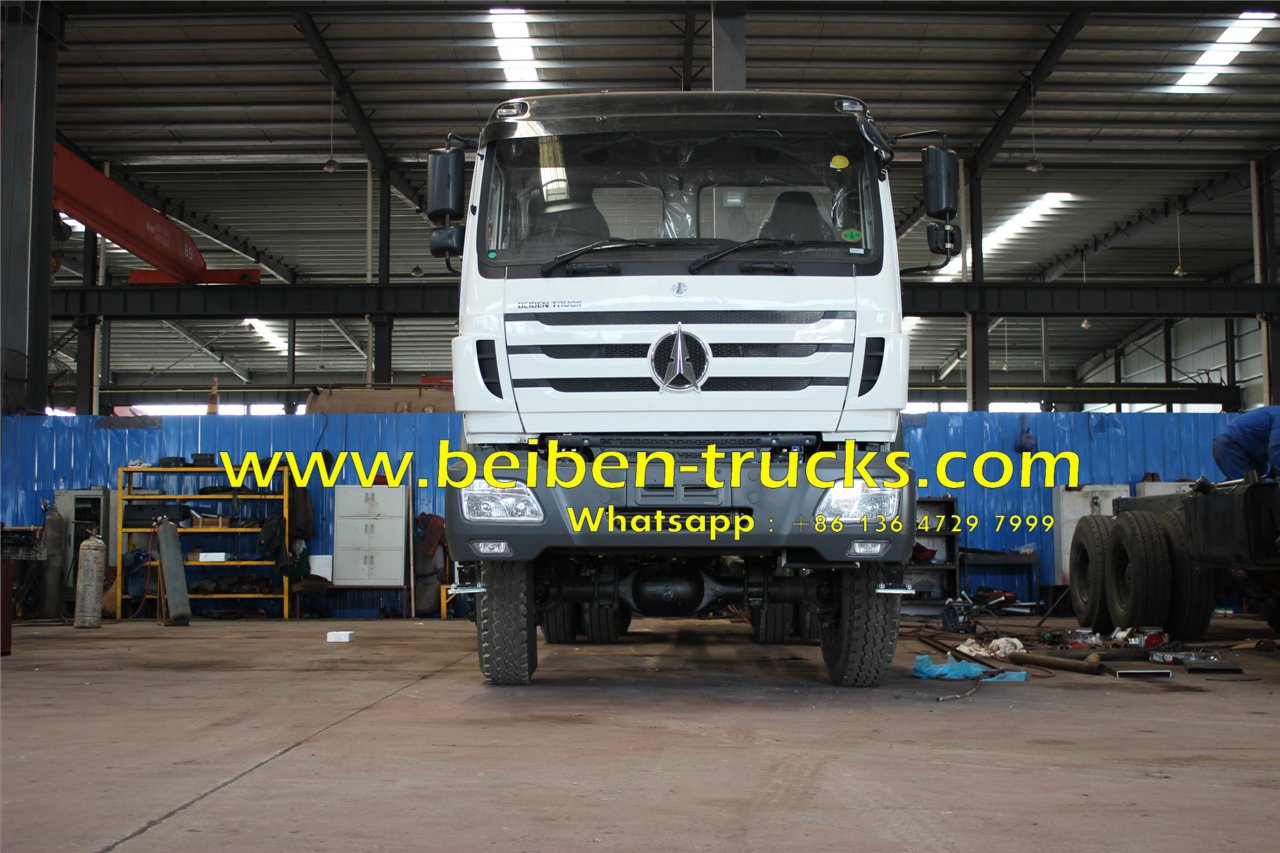

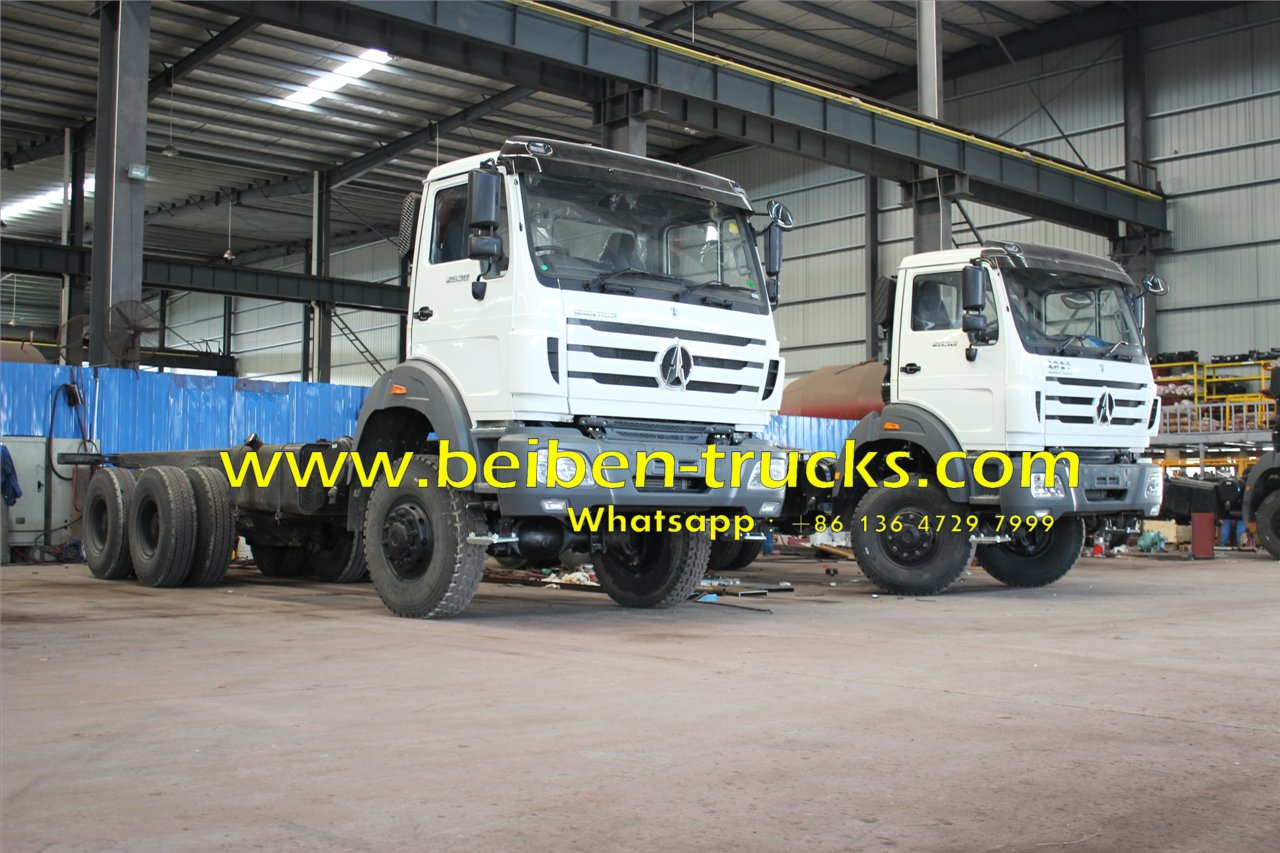

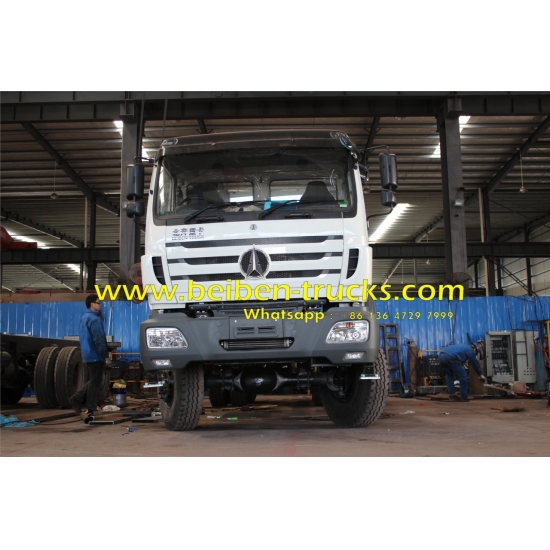

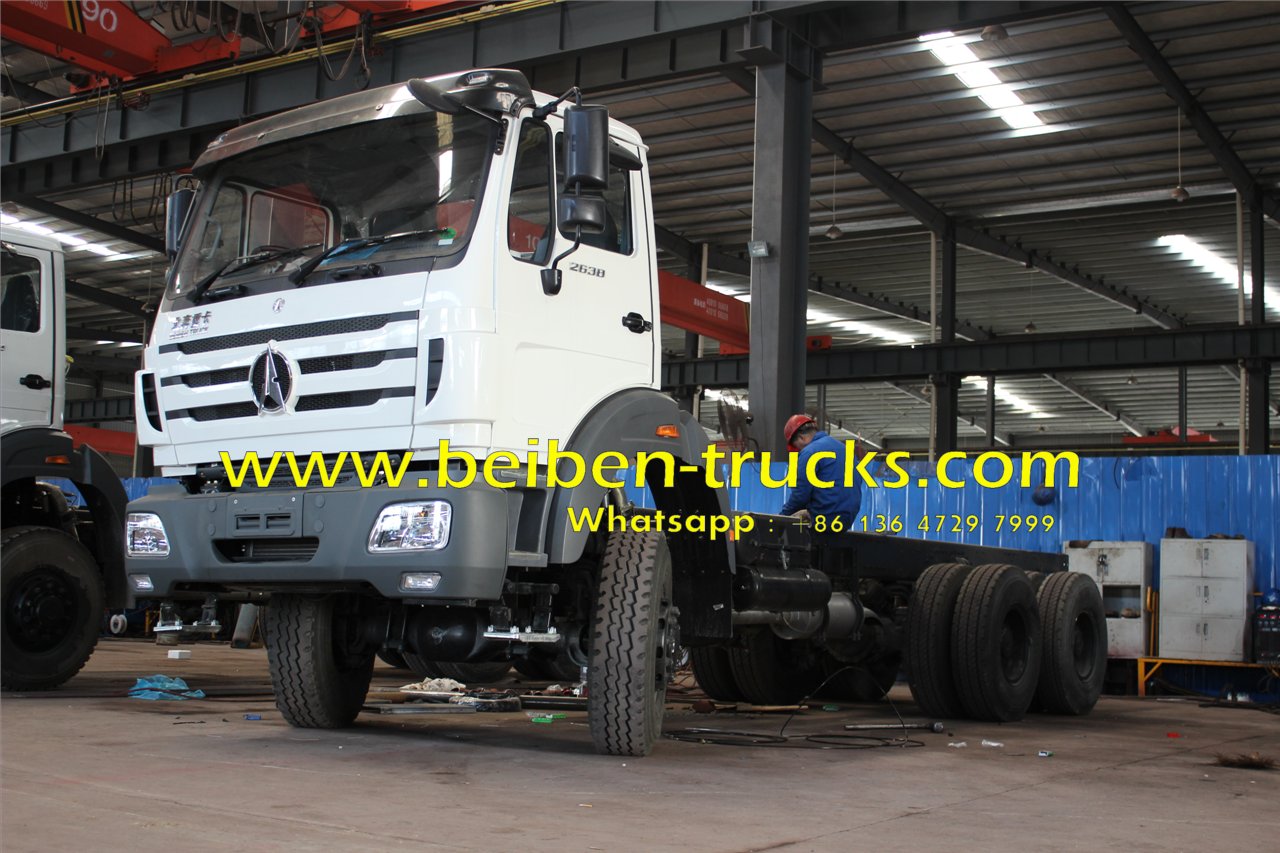

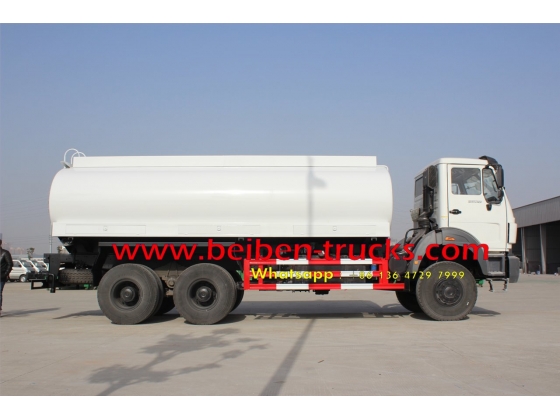

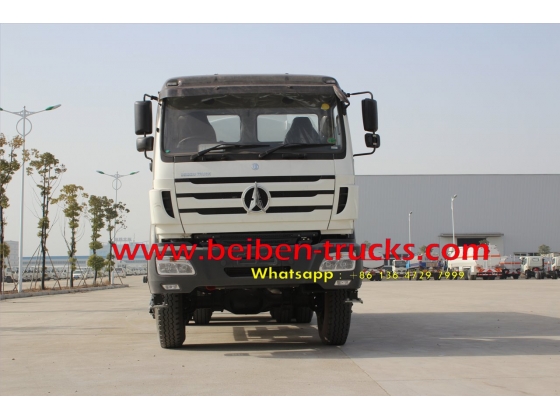

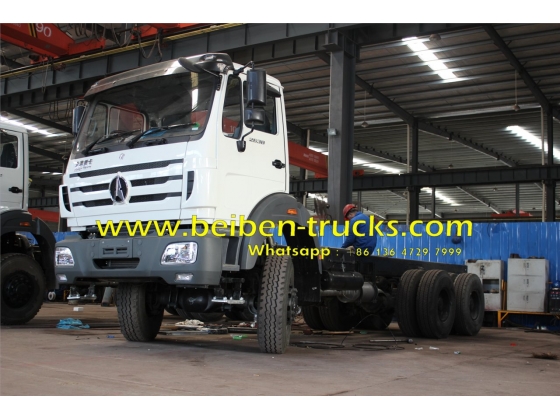

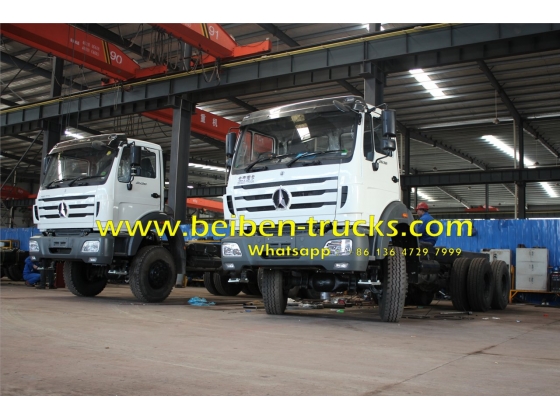

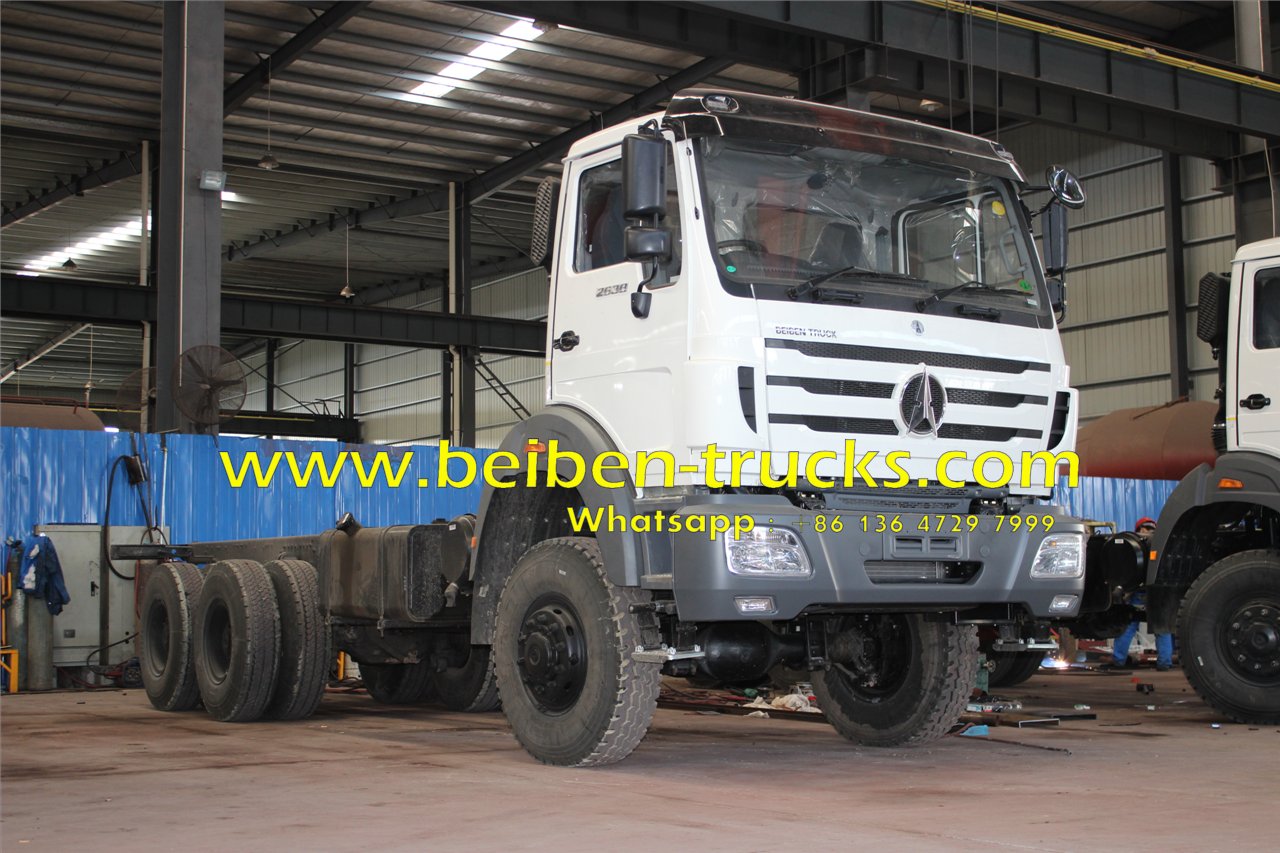

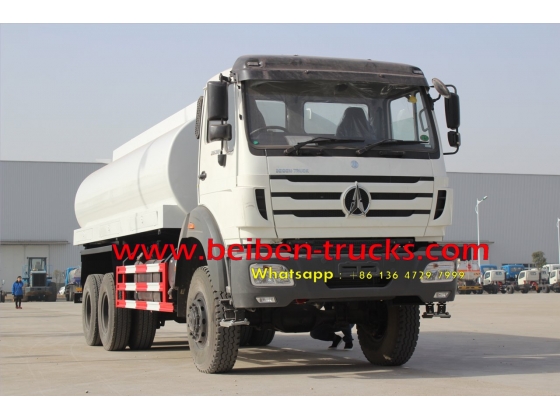

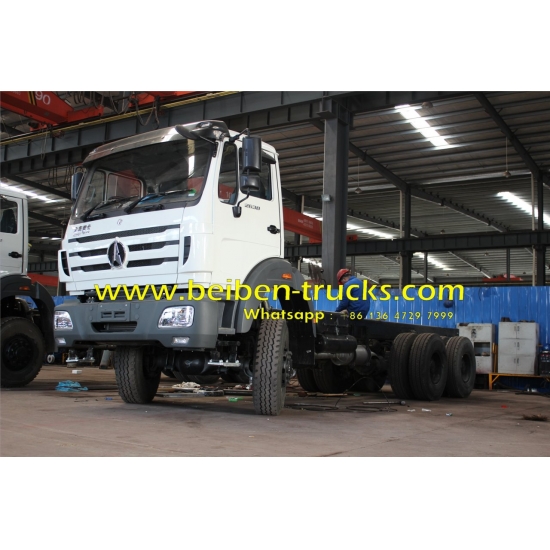

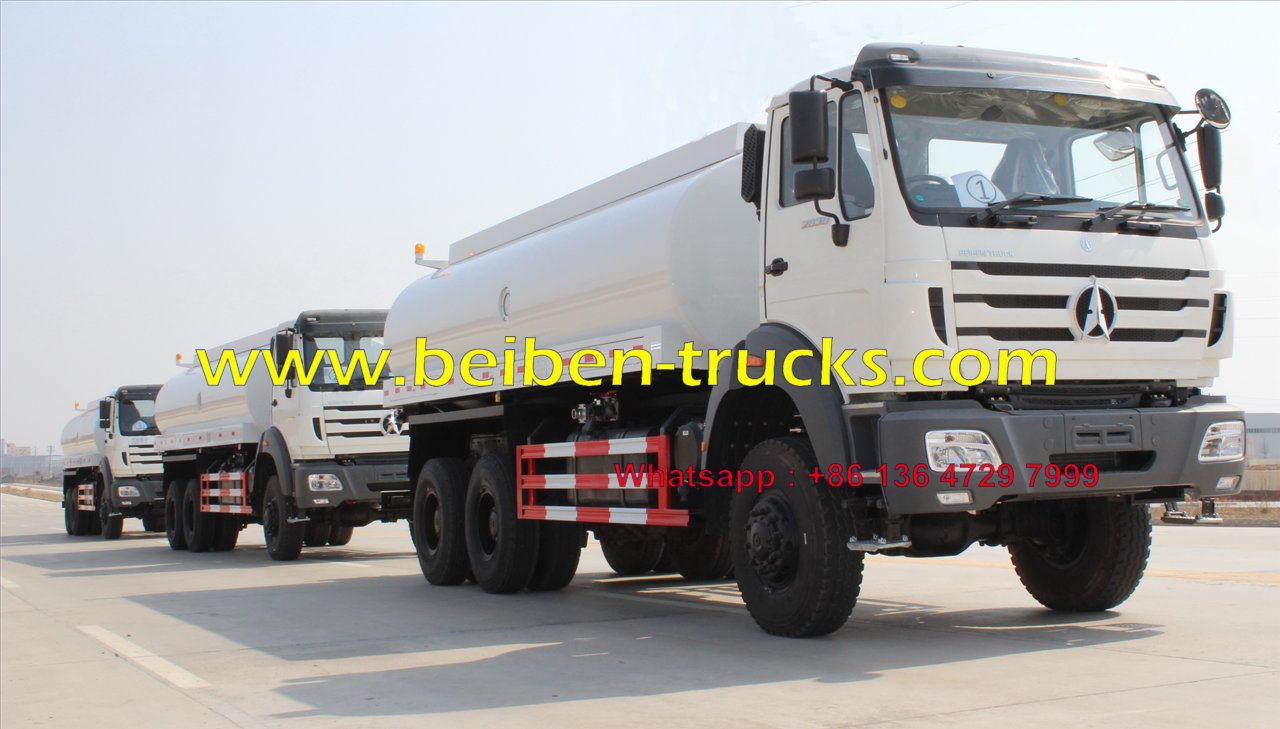

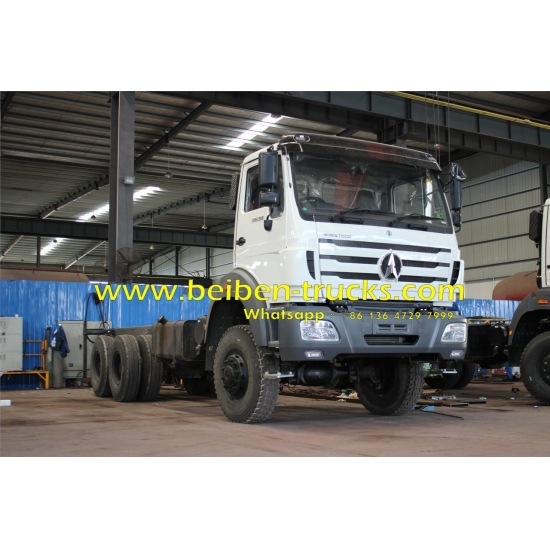

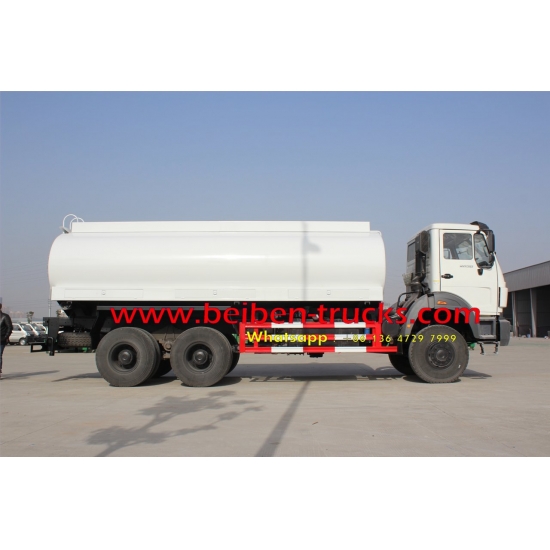

Beiben 2638 off road water tanker trucks

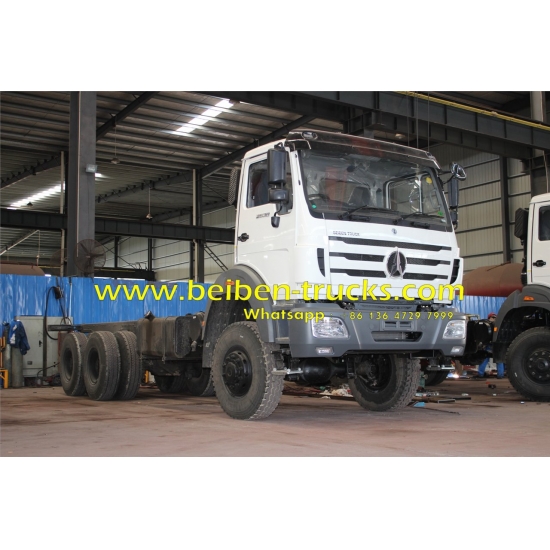

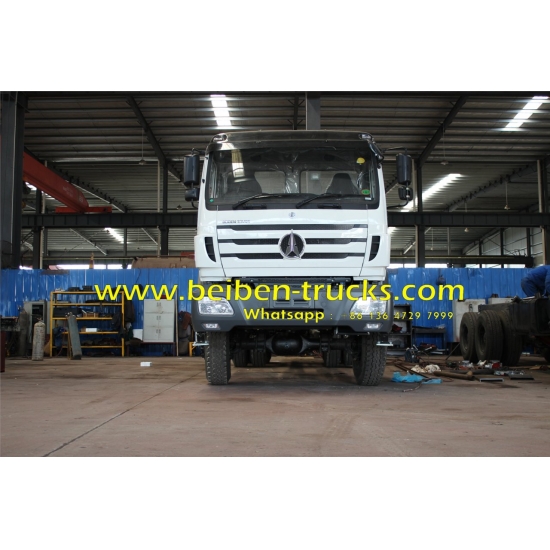

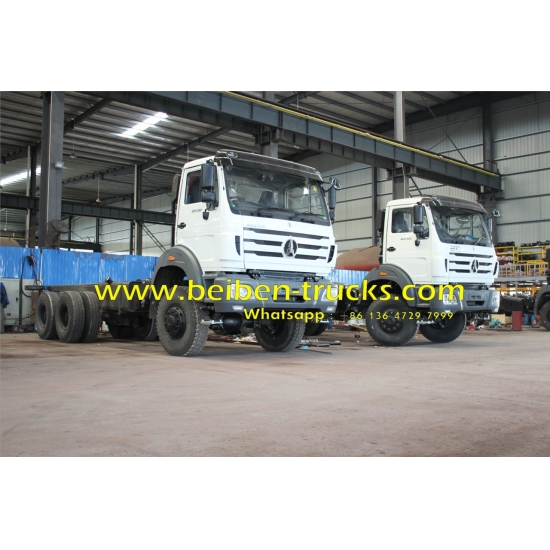

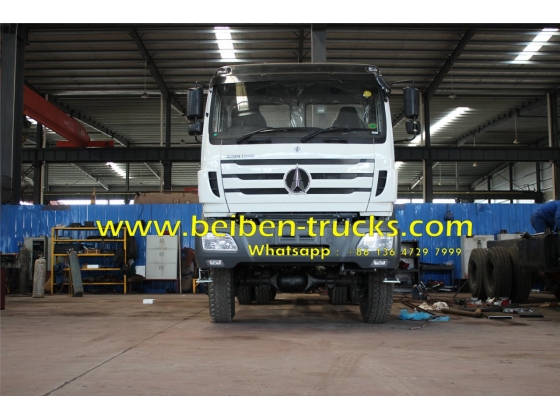

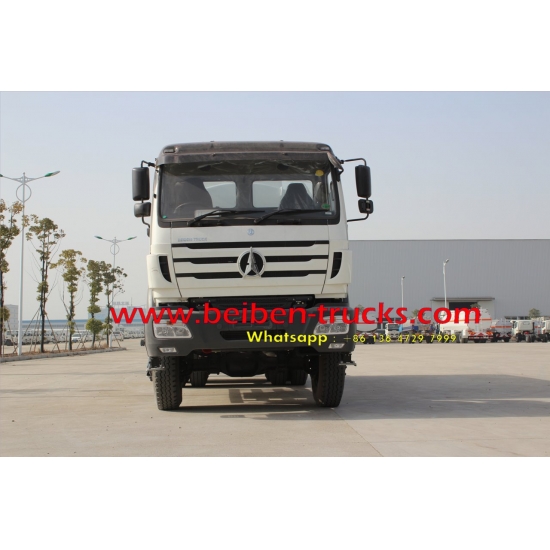

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck

Beiben 6x6 water tank truck 10-20m3 tanker truck
