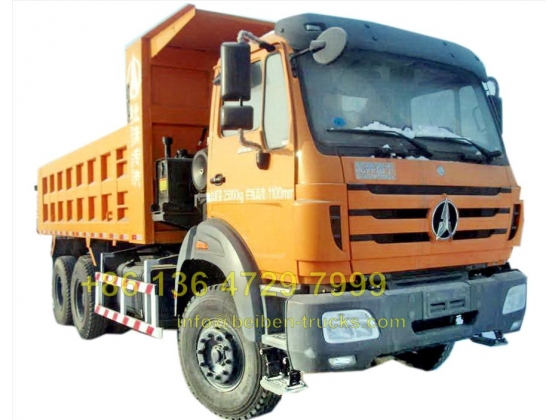

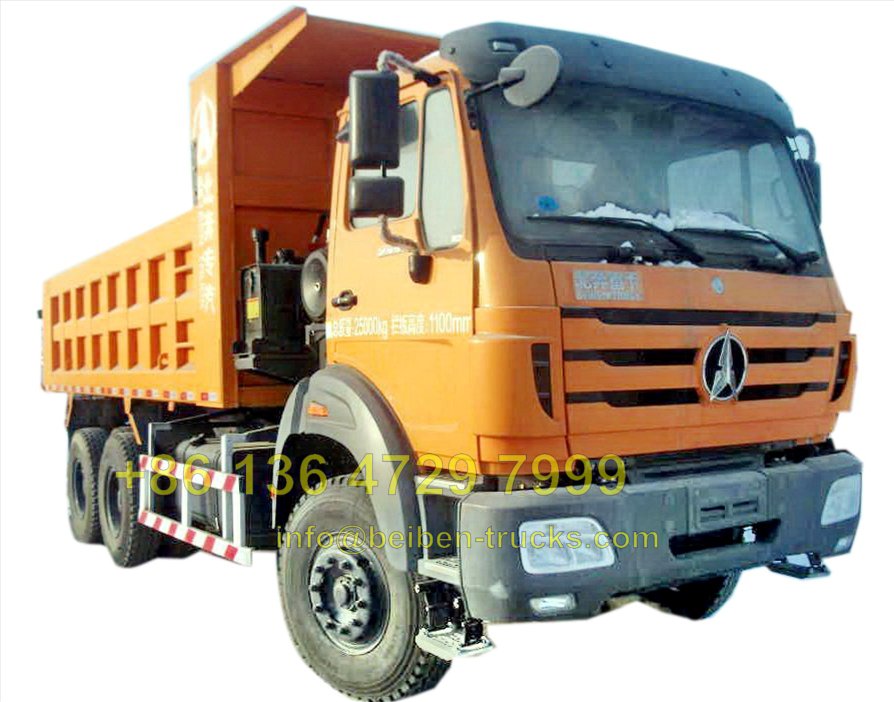

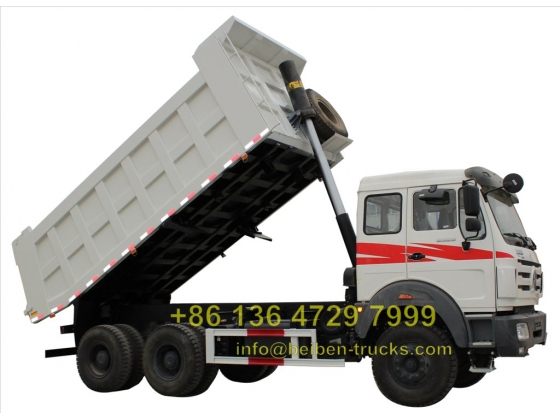

BEIBEN Tipper truck / dump truck 2634K 6x4 truck

Wheel base  (mm)

3800+1450 wheel

Model

BEIBEN --2534K

Curb weight kg

12160

Engine

Model

WP10.340E32  WEICHAI Engine

Power,

max  CV/rpm

340/2200

Emission standard

EUROIII

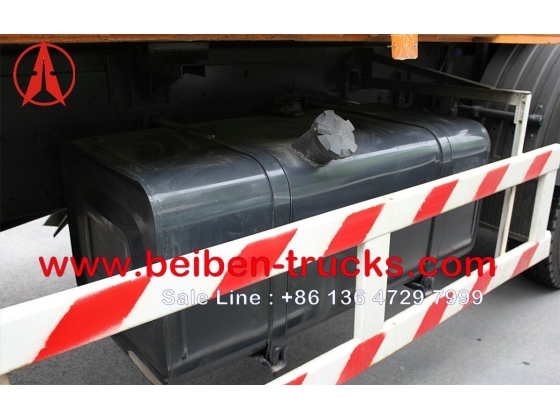

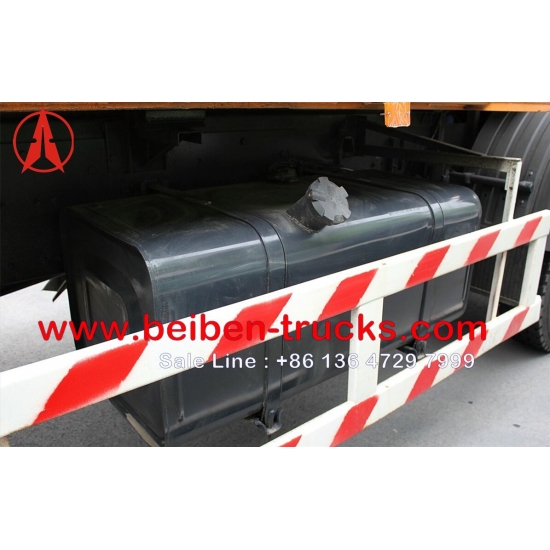

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,

Hydraulic boosting

Gearbox

Model

RT11509C (9+1 gear)    or

9JS150A

Brake system

Service brake

Brake gap can be adjusted automatically,

double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and

rear wheels.

Steering system

Model

TAS85

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle

Double-shoe pneumatic brake, non-driving steering axle

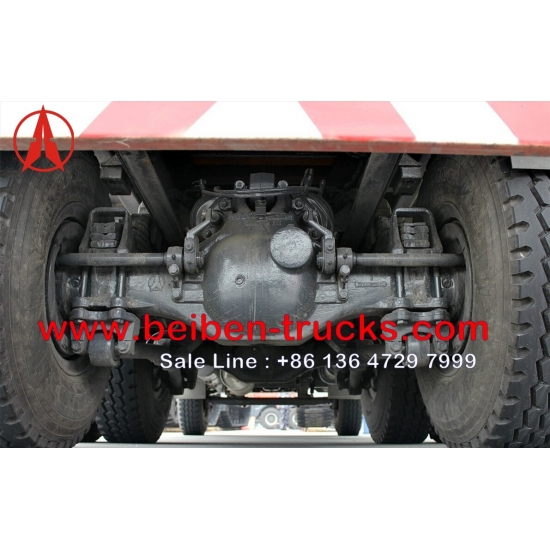

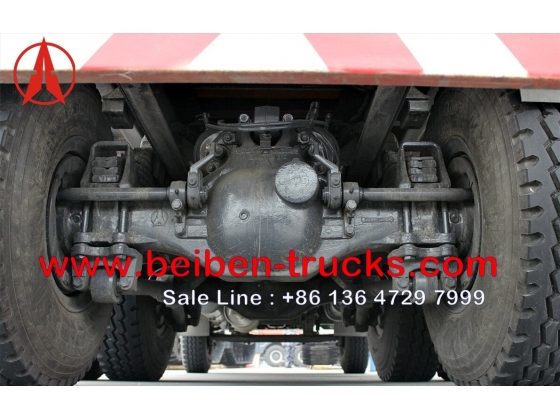

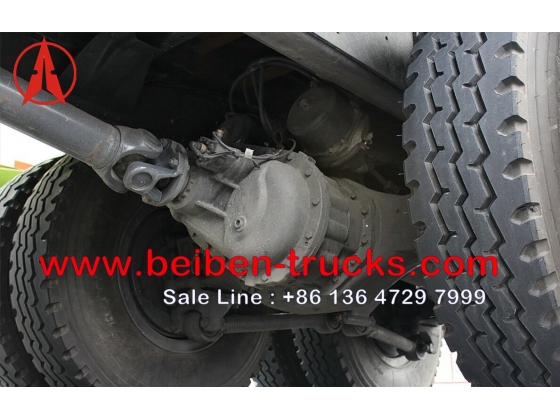

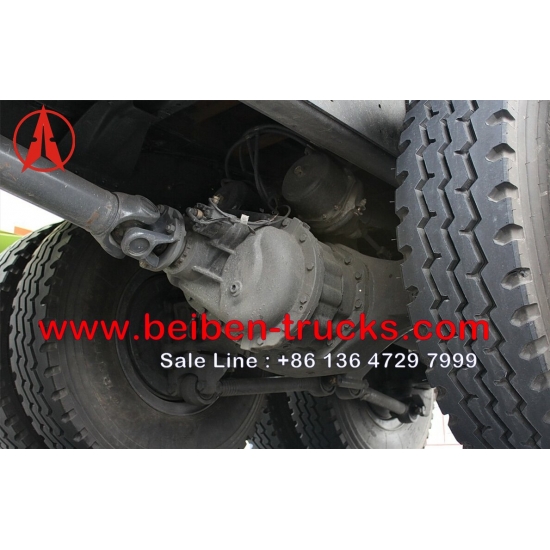

Middle and Rear axle

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double

reduction driving axle, ratio:5.921 or 5.2

Tyre

12.00-20 /1200R20/ 315/80R22.5 /1200R24

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

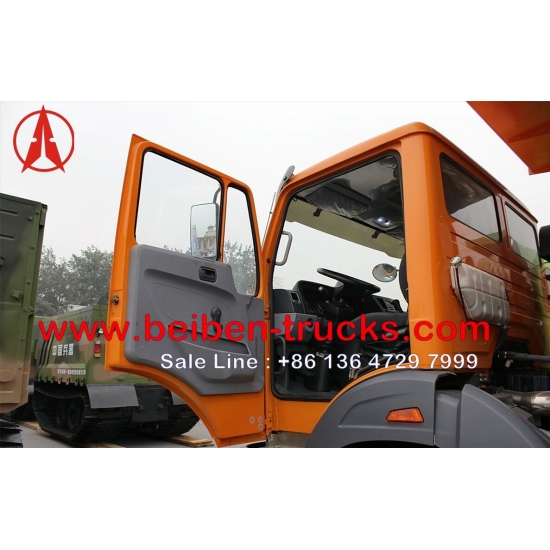

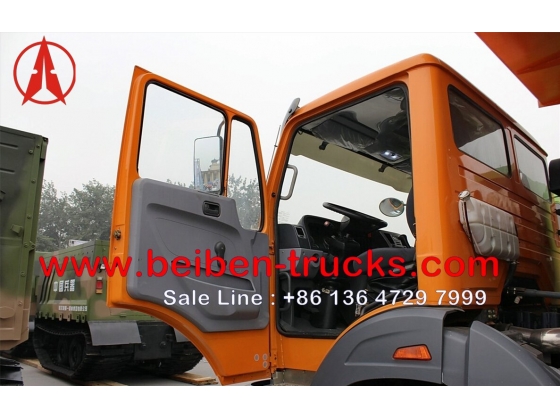

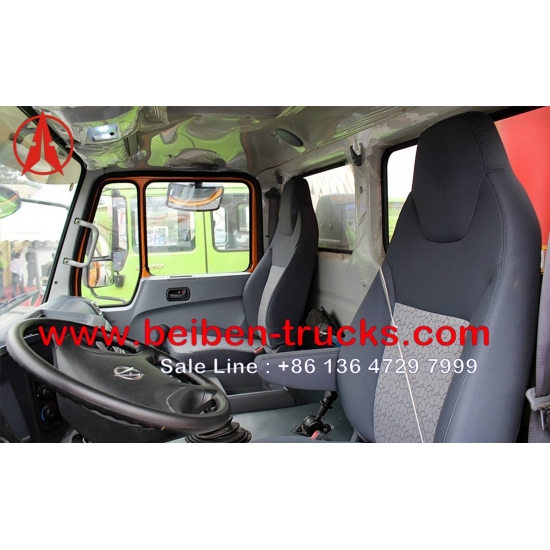

Cabin

Short cab without bed ,left handed, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.

Overall dimension

8530*2500*3410mm

Nominal loading

12710Kg

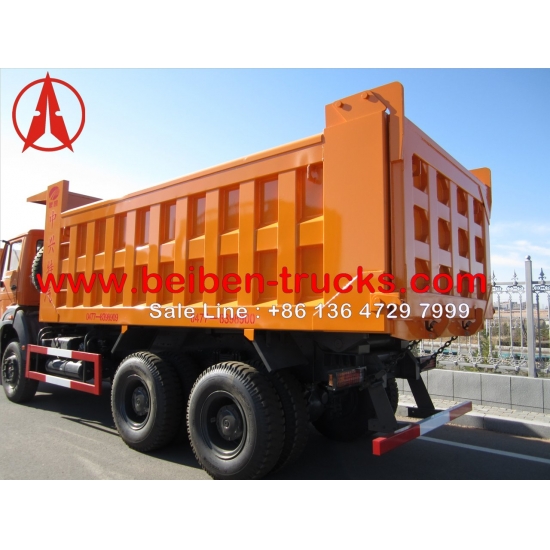

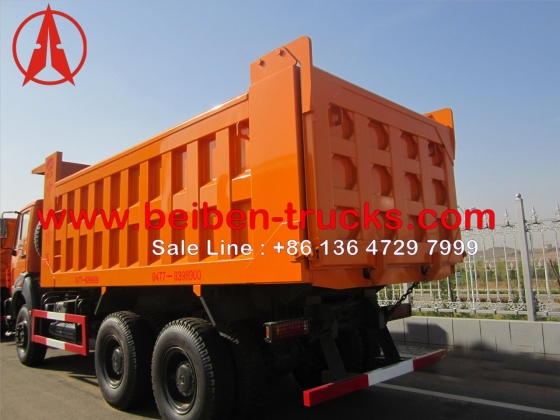

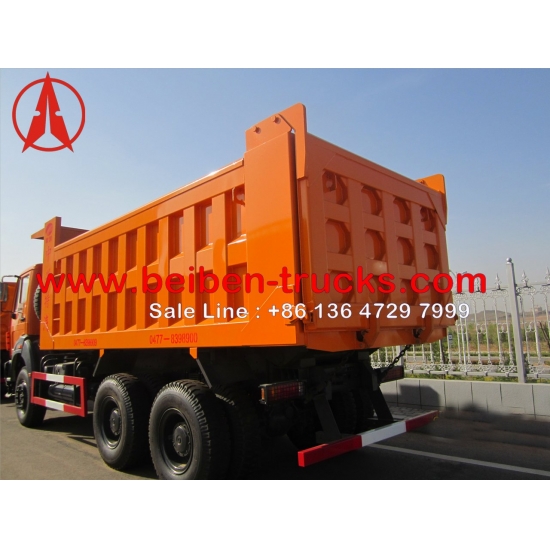

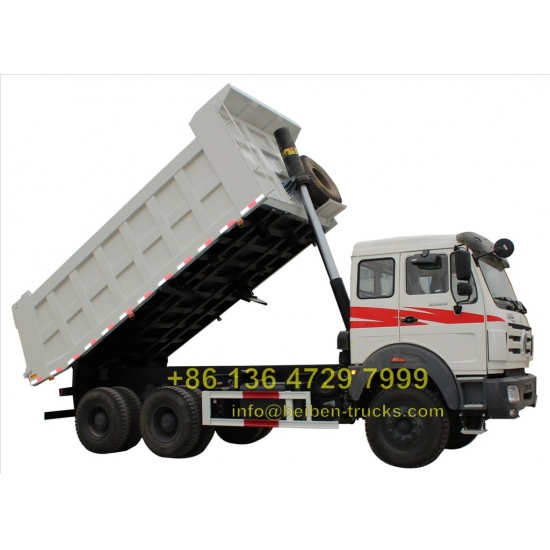

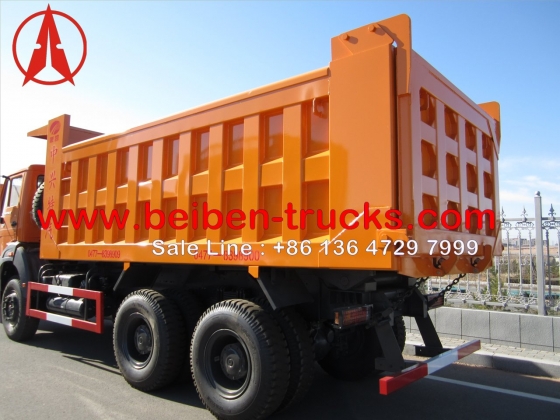

Truck Body

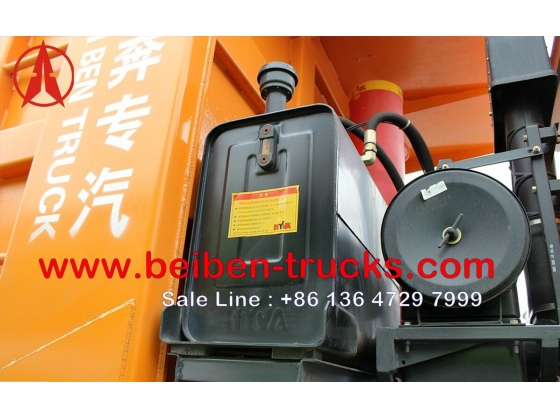

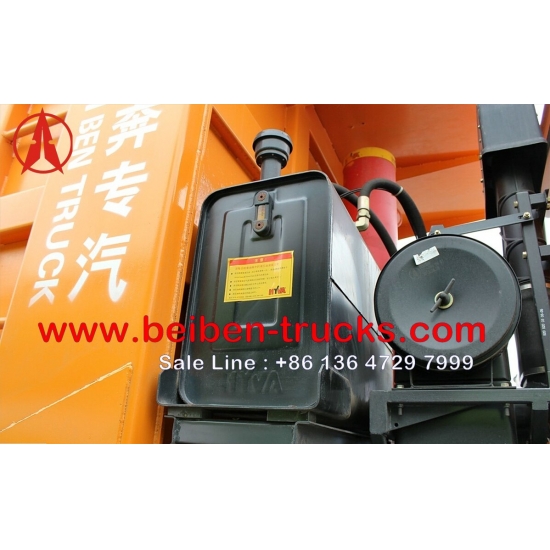

5600*2300*1500 (side 6mm, floor 8mm),  HYVA 149 front hoisting hoisting system.

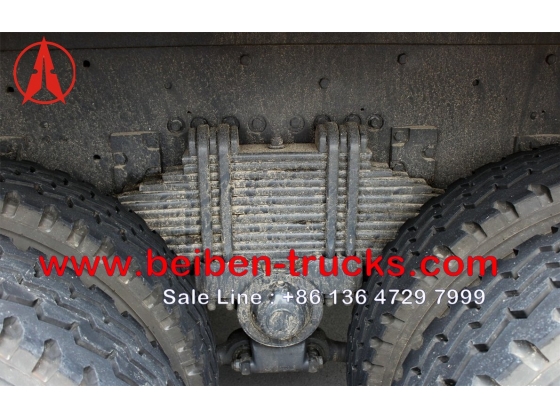

Suspension : Strength 13 pcs steel spring and 4 U bolt , desert air filter.

Color

Orange or white.
