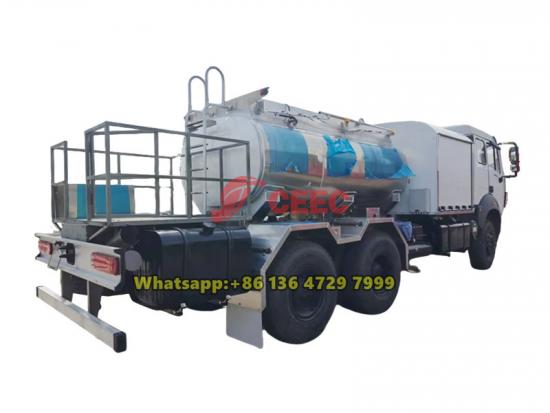

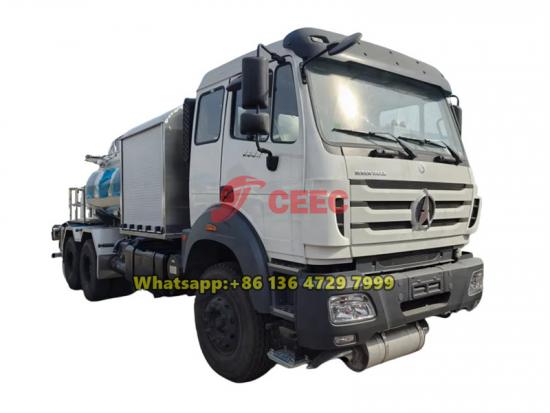

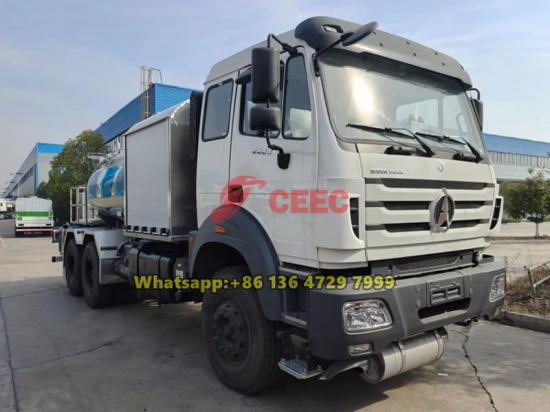

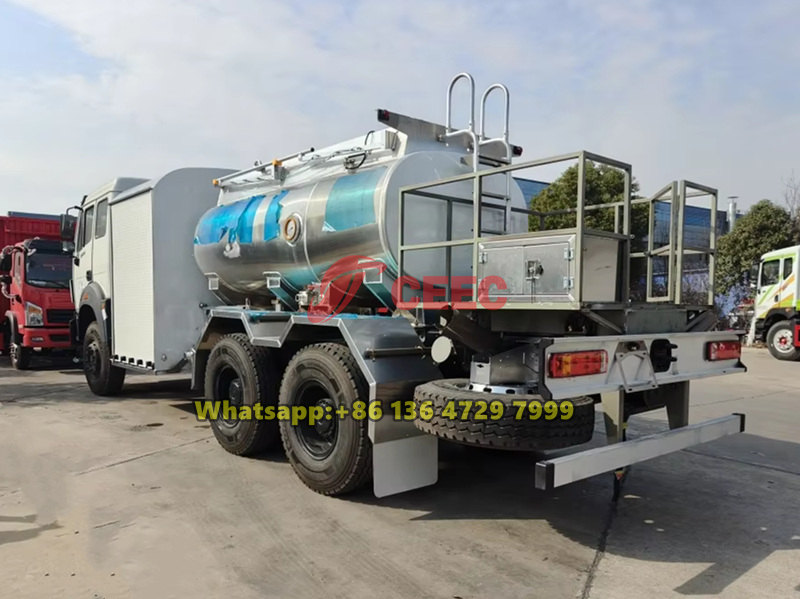

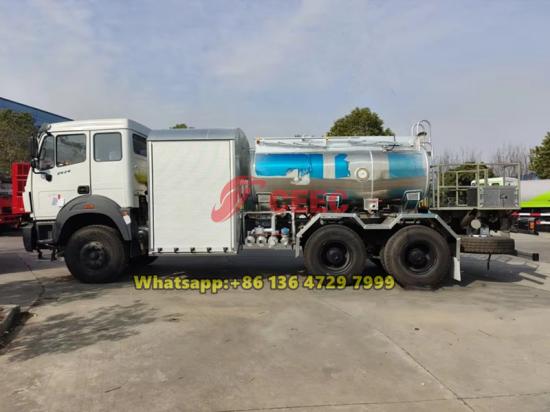

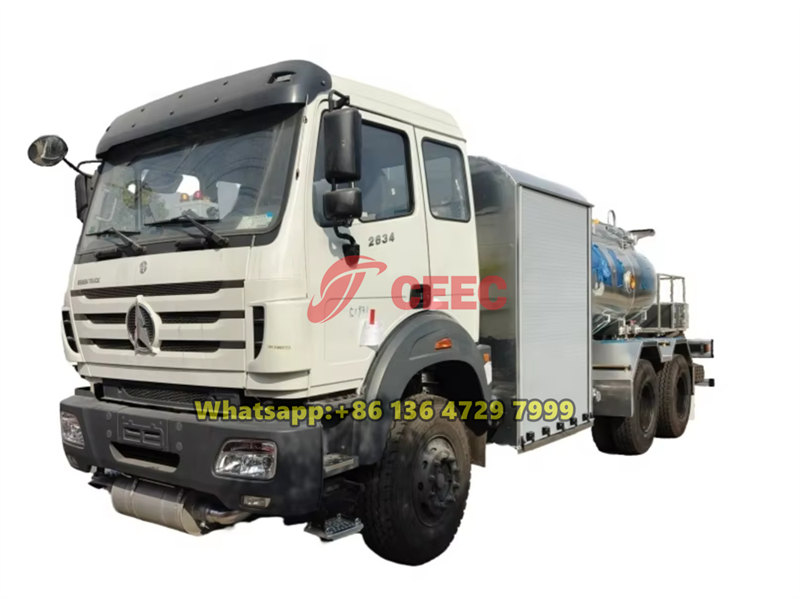

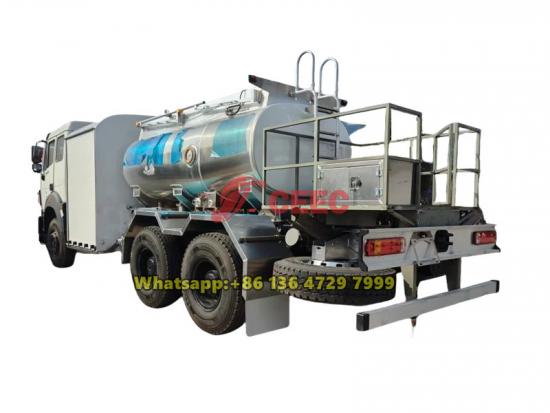

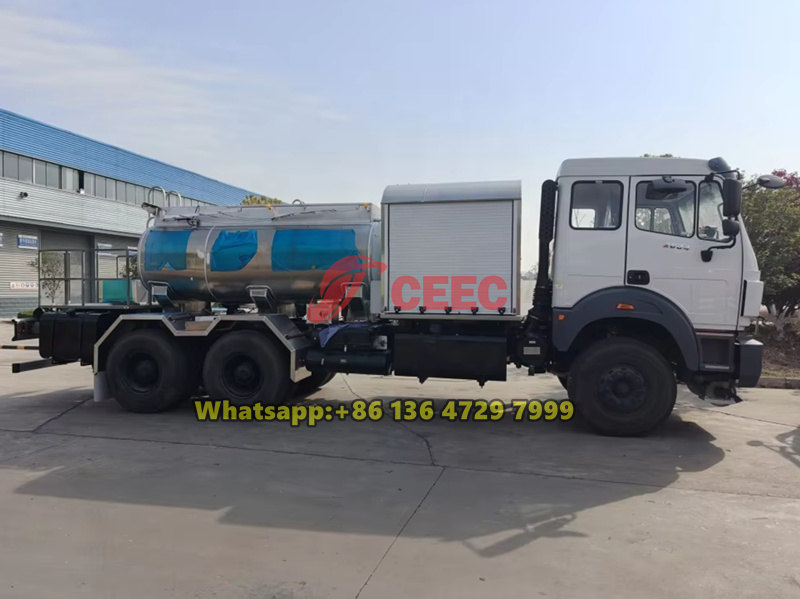

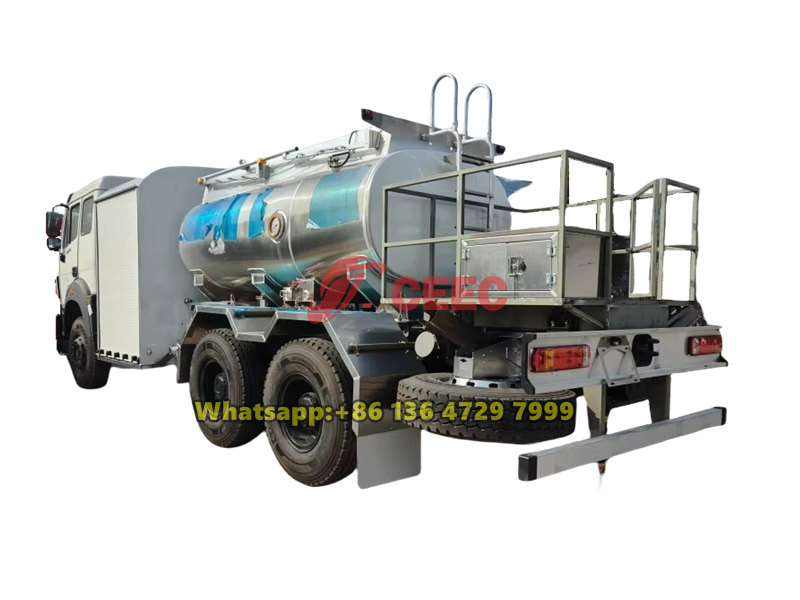

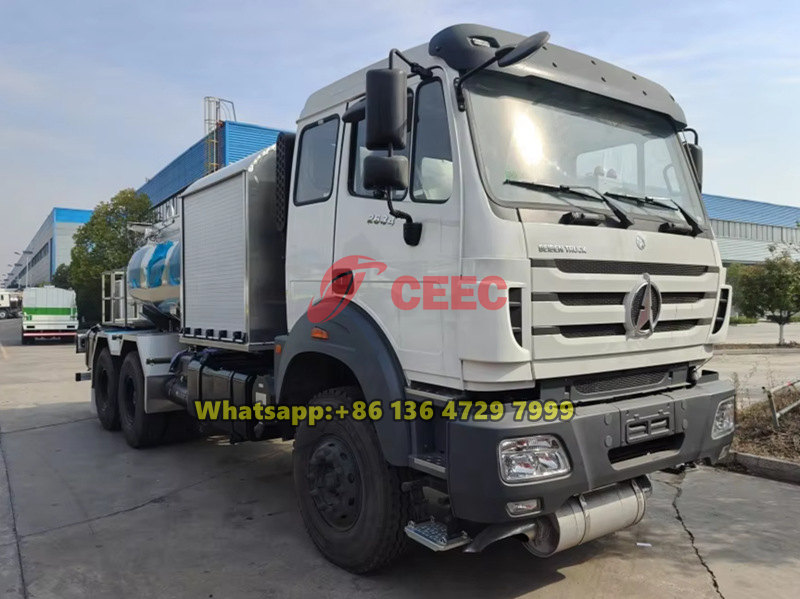

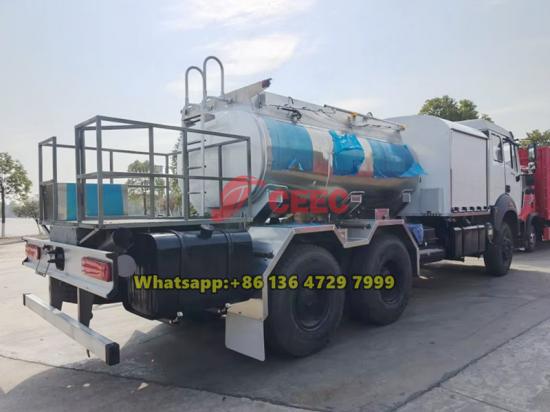

Beiben Aircraft Refueler is a ground support vehicle specifically designed for the aviation industry. Built on a robust Beiben heavy-duty chassis and powered by a high-horsepower Weichai engine, it offers excellent mobility. At its core is a 15,000-liter aluminum alloy tank equipped with a high-precision flow meter, a self-priming centrifugal pump, a DeadMan safety control system, and aviation pressure-stabilized couplings. It enables safe and efficient pressure and gravity refueling for various types of aircraft, making it an essential specialized vehicle in modern airports.
Working Capcity:
15000 litersCabin Type:

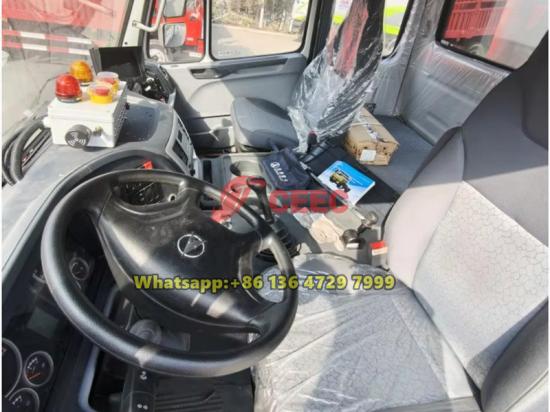

Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9000×2500×3950Drive System:
6×4, LHDWheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
9JS150ARemark:
6×6, RHD is optional※ Ⅰ Product Description
Beiben 15000L Aviation Refueling Truck is a high-efficiency specialized vehicle designed for ground refueling of aircraft. Its core structure includes an aluminum alloy tank, an explosion-proof operating system, and an oil-gas recovery device. Compared to ordinary fuel trucks, it offers higher safety standards, precise flow control, and an aviation-specific pressure-stabilized refueling system. The vehicle utilizes a Beiben heavy-duty chassis, equipped with a 380-horsepower Weichai Euro III engine, a 9-speed manual transmission, and a double-reduction drive axle, providing strong power performance and adaptability to complex terrain.
The Beiben Aircraft Refueler is equipped with a 15,000-liter aluminum tank, a self-priming centrifugal pump with flow rate 2500 L/min, a high-accuracy flow meter, and a filter separator. It supports DN65 hydraulic reel aviation pressure-stabilized quick-connect couplings and a DeadMan control system, enabling safe and efficient pressure and gravity refueling operations. This model is primarily used in civil airports, military bases, and other aviation sectors, serving as professional ground support equipment to meet the refueling needs of various aircraft.
※ Ⅱ Product Specifications
|
Beiben 15000L aviation jet refueler truck specifications |
||
|
Vehicle specification |
Chassis brand |
Beiben |
|
Overall dimensions (mm) |
9000×2500×3950 |
|
|
Wheelbase (mm) |
4450+1450 |
|
|
Wheel track (front/rear) (mm) |
1995/1800/1800 |
|
|
Max speed(km/h) |
88 |
|
|
G.V.W (kg) |
25000 |
|
|
Curb weight (kg) |
10200 |
|
|
Engine |
WP10.380E32 |
|
|
Engine type |
6 cylinders in line, 4 strokes, turbocharged, inter cooling, water cooled |
|
|
Engine power (kw/hp) |
280KW/380HP |
|
|
Rated speed (rpm) |
2200 |
|
|
Max torque (N.m) |
1600 |
|
|
Displacement (L) |
9.726L |
|
|
Emission standard |
Euro 3 |
|
|
Clutch |
Single dry frictional disc, Hydraulic control and compressed air assisted |
|
|
Gearbox |
mechanism, 9 forward gears, 1reverse gear, manual |
|
|
Front axle |
Double-shoe pneumatic brake, Non-drive steering axle |
|
|
Rear axle |
Double-shoe pneumatic brake, casting, double reduction driving axle, differential lock between wheels |
|
|
Steering |
Circulating ball power steering, hydraulic assisted |
|
|
Frame |
Fish belly shape, variable width, variable section, side beam structure, bilateral bend, cross section channel reinforced steel beam |
|
|
Front over suspension rack |
longitudinal laminated leaf-spring, hydraulic telescopic shock absorber, transverse stabilizer |
|
|
Rear over suspension rack |
longitudinal laminated leaf-spring, hydraulic telescopic shock absorber, transverse stabilizer |
|
|
Tire |
12.00R20, 10+1 pcs |
|
|
Superstructure specification |
||
|
Fuel Tank |
Capacity |
15000 liters |
|
Tank Material |
Aluminum alloy |
|
|
|

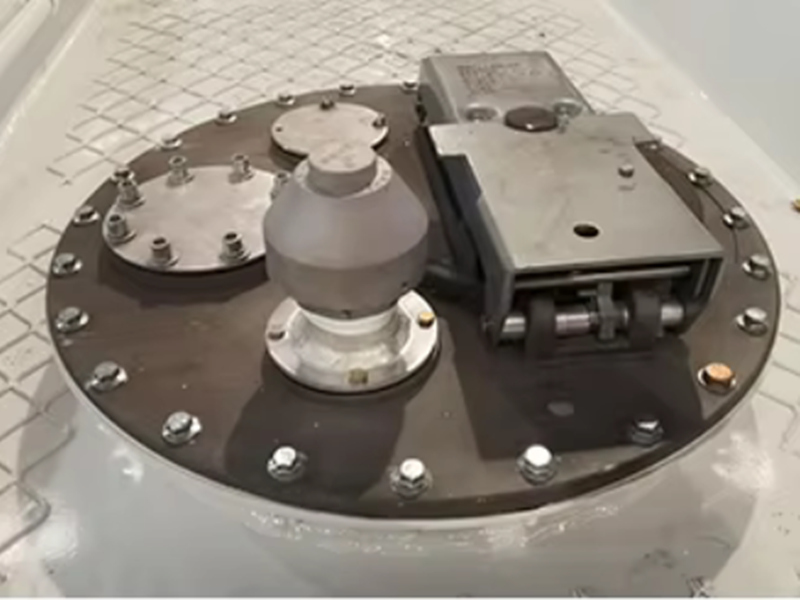

Manhole cover |
European standard aluminum alloy explosion-proof manhole, 2 pieces |
|
Special function |

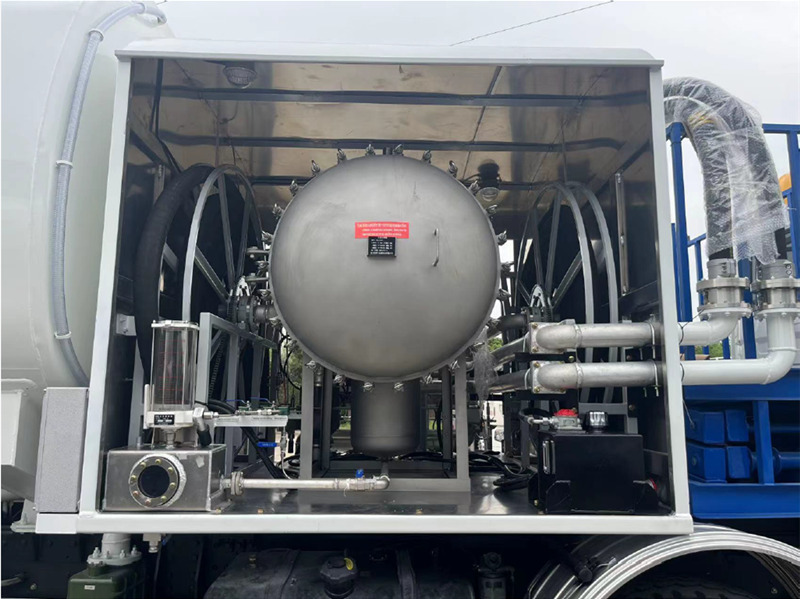

Flowmeter |
Grade 0.2 accuracy, diameter 50 |
|
Filter separator |
Rated flow 2500L/min |
|
|
Gravity refueling reel |
Automatic reset reel, DN38, |
|
|
Fuel pump |
Stainless steel self-priming centrifugal pump, flow rate 2500L/min |
|
|
Liquid level meter |
Stainless steel floating ball in the tank and the 10 inch aluminum alloy dial on the left side of the tank |
|
|
Control system |
DeadMan |
|
|
Differential pressure gauge |
Equipped |
|
|
Underwing refueling nozzle |
Equipped HEPCV nozzles |
|
|
Breathing valve |
Aluminum alloy, 4 sets |
|
|
Refueling hose |
DN63 |
|
|
Oil and gas recovery system |
Equipped |
|
|
Other fittings |
Guardrail, ladder, anti-static device, fire extinguishers, LED lights, etc |
|
※ Ⅲ Product Details
The Beiben aircraft refueling truck is equipped with a high-capacity fuel tank that can hold up to 20,000 liters of aviation fuel. This enables it to quickly refuel multiple aircrafts without the need for frequent refilling. The truck is also fitted with a powerful pump system that can deliver fuel at a rate of 1000 liters per minute, ensuring a rapid and seamless refueling process. It features a powerful WP10.340 diesel engine that delivers 340 horsepower to carry heavy loads of fuel. Its ergonomic design provides a comfortable and safe working environment for the operators. The truck is also equipped with advanced safety features, including fire suppression system, emergency stop buttons, and anti-skid surfaces.
