The Beiben aircraft refueling truck is equipped with a high-capacity fuel tank that can hold up to 20,000 liters of aviation fuel. This enables it to quickly refuel multiple aircrafts without the need for frequent refilling. The truck is also fitted with a powerful pump system that can deliver fuel at a rate of 1000 liters per minute, ensuring a rapid and seamless refueling process.
It features a powerful WP10.340 diesel engine that delivers 340 horsepower to carry heavy loads of fuel. Its ergonomic design provides a comfortable and safe working environment for the operators. The truck is also equipped with advanced safety features, including fire suppression system, emergency stop buttons, and anti-skid surfaces.
Working Capcity:
22,000 litersCabin Type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
10850×2550×3650Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
340 Hp, WP10.340Gear Box:
9JS150ARemark:
6×6 drive is optionalThe Beiben aircraft refueling truck is a specialized vehicle used for refueling aircraft on the runway. It is a vital component of airport operations, ensuring that planes have the necessary fuel to safely complete their journeys. This particular model, manufactured by Beiben, is known for its reliability, efficiency, and durability. the Beiben Aircraft Refueling Truck is highly customizable to meet the specific needs of different airports. It can be fitted with optional equipment such as digital fuel meters, GPS tracking systems, and automated fueling controls

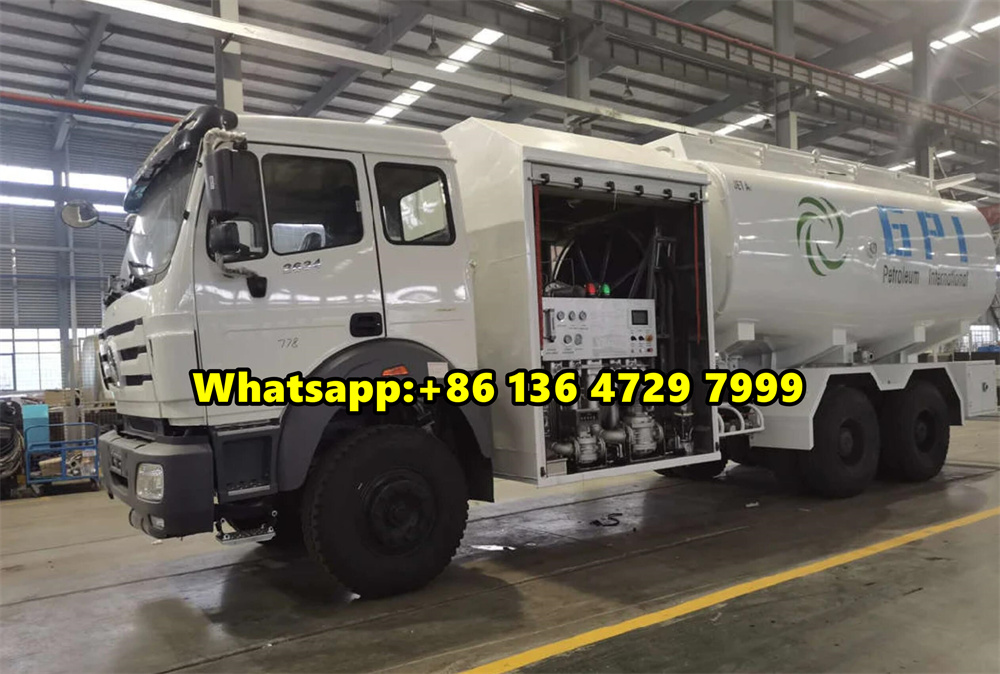

The Beiben aircraft refueling truck is equipped with a high-capacity fuel tank, pumping system, and control panel. It is designed to efficiently transfer fuel from the storage tanks to the aircraft's fuel tanks, ensuring a quick and seamless refueling process. The vehicle is also equipped with safety features to prevent spills and accidents during operation.
The Beiben aircraft refueling truck features a high-pressure refueling system that is designed to efficiently and safely refuel aircraft on the tarmac. This advanced system is crucial for ensuring that the refueling process is quick, accurate, and reliable.
The pressure refueling system on the Beiben aircraft refueling truck is capable of delivering fuel at a high rate under high pressure, allowing for rapid refueling of even large aircraft. The system includes a number of components, including pumps, hoses, and valves, that work together to safely and efficiently transfer fuel from the truck's tank to the aircraft's fuel tanks.
|
Chaasis |
Chassis brand |
Beiben truck |
|
Wheel base (mm) |
4450+1450 |
|
|
Wheel distance (front/rear) (mm) |
1995/1800/1800 |
|
|
Max speed(km/h) |
88 |
|
|
G.V.W(kg) |
25000 |
|
|
Complete vehicle kerb (kg) |
13800 |
|
|
Engine |
WP10.270E32 6 cylinders in line,4 strokes, turbocharged cool, water cooling |
|
|
Rated power (kw/rpm) |
250/2200 (340hp) |
|
|
Max torque (Nm/rpm) |
1100/1200-1600 |
|
|
Displacement (L) |
9.726L |
|
|
Emission |
Eueo3 |
|
|
Clutch |
Single dry frictional disc ,Hydraulic control and compressed air assisted |
|
|
Gearbox |
mechanism,9gears,1reverse gear, manual,gear-shifting with compressed air for auxiliary housing |
|
|
Front axle |
Double-shoe pneumatic brake, Non-drive steering axle |
|
|
Rear axle |
Double-shoe pneumatic brake,casting,double reduction driving axle,differential lock between wheels |
|
|
Steering |
Circulating ball power steering, hydraulic assisted |
|
|
Frame |
Fish belly shape, variable width, variable section, side beam structure,bilateral bend, cross section channel reinforced steel beam |
|
|
Front over suspension rack |
longitudinal laminated leaf-spring ,hydraulic telescopic shock absorber,transverse stabilizer |
|
|
Rear over suspension rack |
longitudinal laminated leaf-spring ,hydraulic telescopic shock absorber,transverse stabilizer |
|
|
Tire |
12.00R20 |
|
Upper body specification |
|
|
|
Fuel Tank |
Capacity |
16 M3 / 16000Liters /16CBM Aircraft refueling truck |
|
Tank Material |
Made of aluminum alloy |
|
|
Special function |
Flowmeter |
Grade 0.2 accuracy, diameter 50, flow rate of waist wheel |
|
Filter separator |
Rated flow is 400L/min, the rated working pressure is 1.0MPa, and the maximum allowable differential pressure is 0.15 Mpa. |
|
|
Gravity refueling reel |
Automatic reset reel |
|
|
Liquid level meter |
The stainless steel floating ball in the tank and the 10 inch aluminum alloy dial on the left side of the tank can clearly observe the current liquid volume in the tank |
|
|
Oil Pump |
Stainless steel self-priming centrifugal pump |
|
|
Operating system |
centralized control of independent control room. |
|
|
Instrument indication |
Includes pump inlet vacuum gauge, pump outlet pressure gauge, oil pump tachometer, filter differential pressure gauge, etc |
|
|
The valve operation |
Include the main power switch, lighting switch, emergency stop switch, oil pump speed regulating knob, refueling valve, circulating filter valve, sampling valve, and sea valve control combination switch |
|
The Beiben 2534aircraft refueling truck is an essential vehicle at the airport that plays a crucial role in ensuring the smooth operation of aircraft. There are four main purposes of the Beiben aircraft refueling truck at the airport:
1. Refueling aircraft: The primary function of the Beiben aircraft refueling truck is to refuel aircraft quickly and efficiently. It carries a large amount of aviation fuel and is equipped with specialized equipment to safely and accurately transfer the fuel to the aircraft.
2. Fuel quality control: The Beiben aircraft refueling truck is equipped with the necessary technology to test the quality of the fuel being transferred to the aircraft. This ensures that the fuel meets the required standards and does not contain any contaminants that could potentially harm the aircraft or compromise its performance.
3. Mobility and flexibility: The Beiben aircraft refueling truck is designed to be highly mobile and flexible, allowing it to access different areas of the airport where aircraft may be parked. This ensures that aircraft can be refueled quickly and efficiently, no matter where they are located on the airport grounds.
4. Emergency response: In the event of an emergency or unexpected situation, the Beiben aircraft refueling truck can also be used to provide fuel quickly to aircraft that may need to take off or land urgently. Its quick response capabilities make it an essential vehicle for ensuring the safety and security of aircraft operations at the airport.
The pressure refueling system of the Beiben aircraft refueling truck consists of several key components. The primary component is the high-pressure pump, which is responsible for generating the necessary pressure to transfer the fuel from the truck to the aircraft. This pump is capable of producing pressures up to 50 psi or more, depending on the requirements of the specific aircraft being refueled.
The system also includes a pressure regulator, which ensures that the fuel is transferred at a consistent pressure throughout the refueling process. This is important for maintaining the integrity of the aircraft's fuel systems and preventing any potential damage from fluctuations in pressure.
In addition, the Beiben aircraft refueling truck is equipped with a pressure gauge and monitoring system to keep track of the pressure levels during refueling. This allows the operators to ensure that the refueling process is proceeding smoothly and safely, and to make any necessary adjustments if needed.

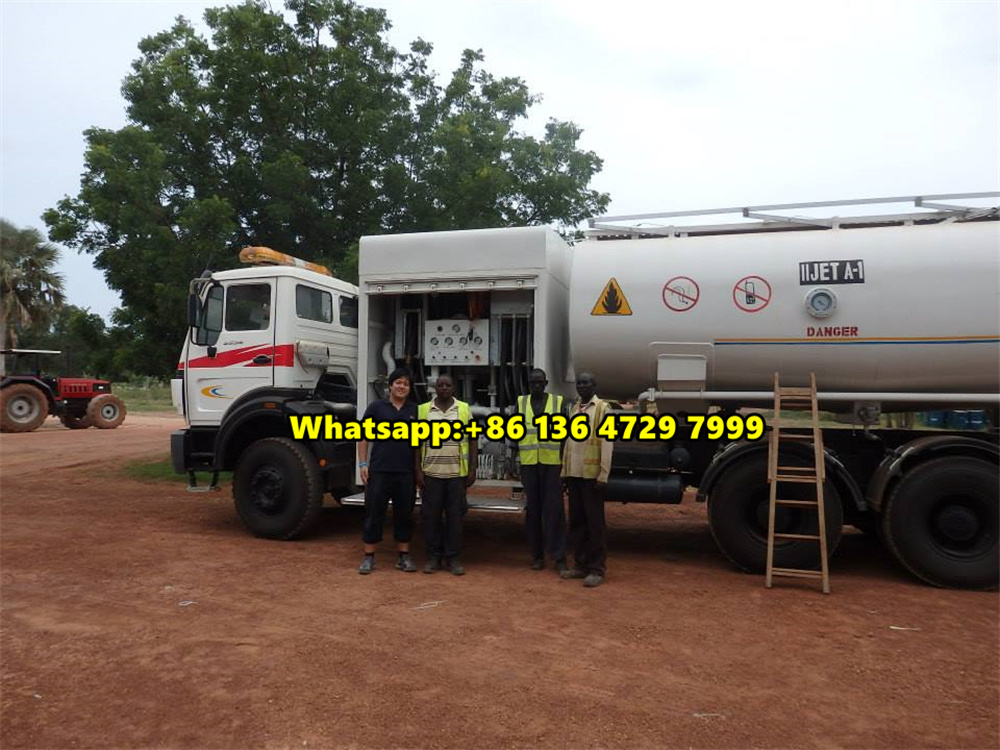

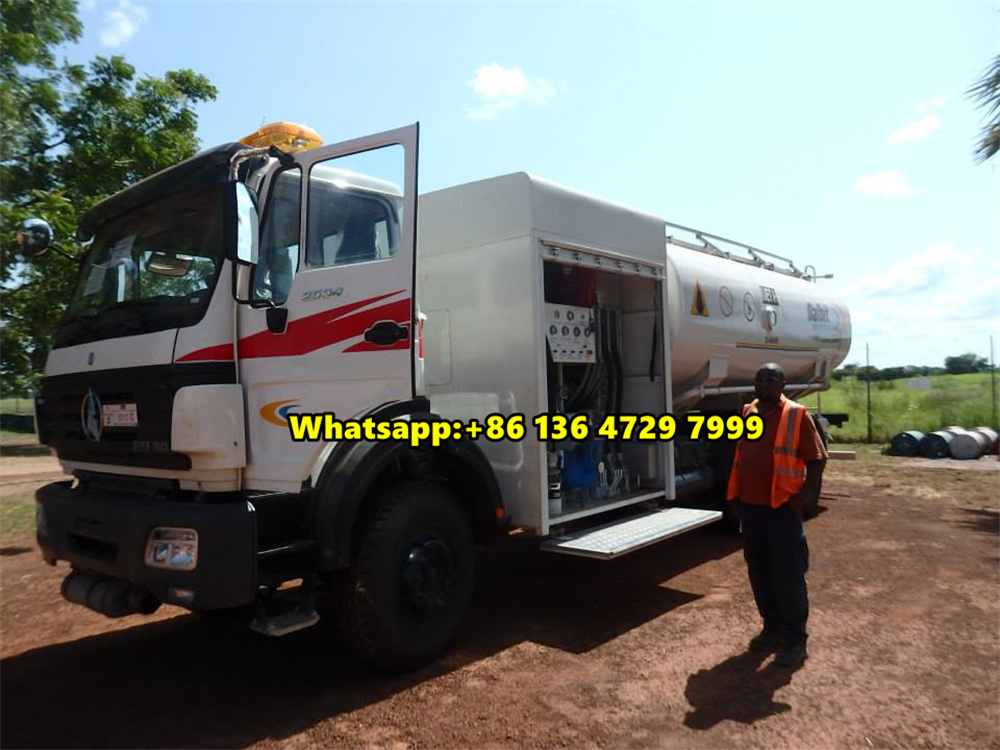

Beiben 6x4 aircraft refueling truck working in africa.

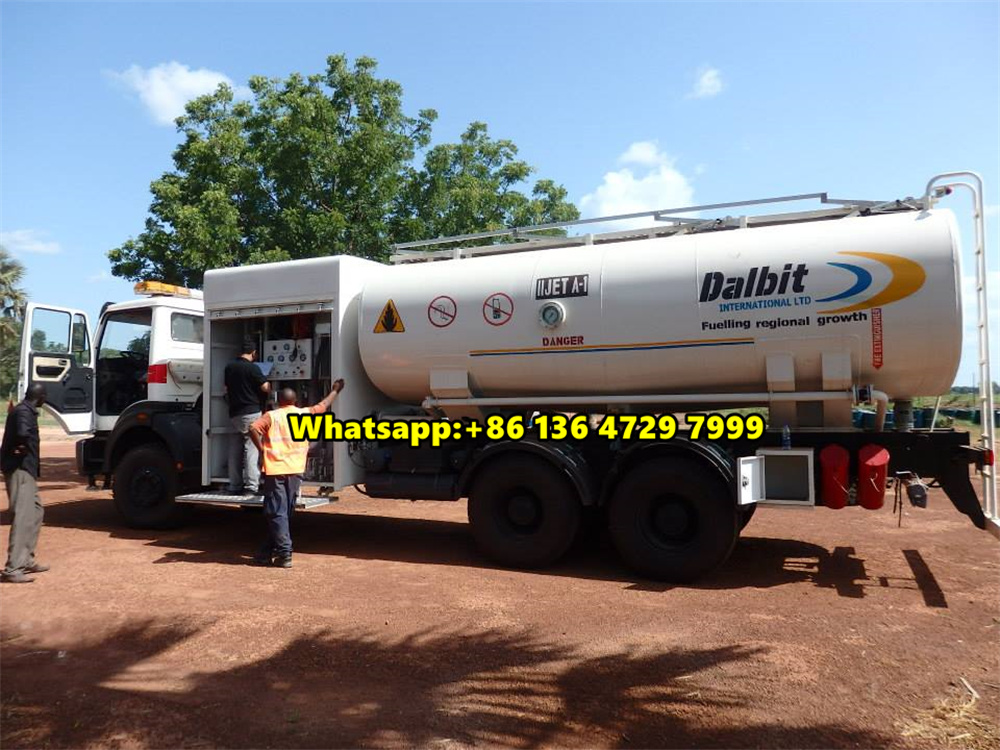

Preparing for refueling: The Beiben Aircraft Refueling Truck is first stationed in a designated area near the aircraft needing fuel. The truck driver inspects the aircraft to ensure it is ready for refueling and checks the fuel levels to determine the amount needed. The driver then connects the fuel hose from the truck to the aircraft's fuel tank in a secure manner to avoid any leakage during the refueling process.

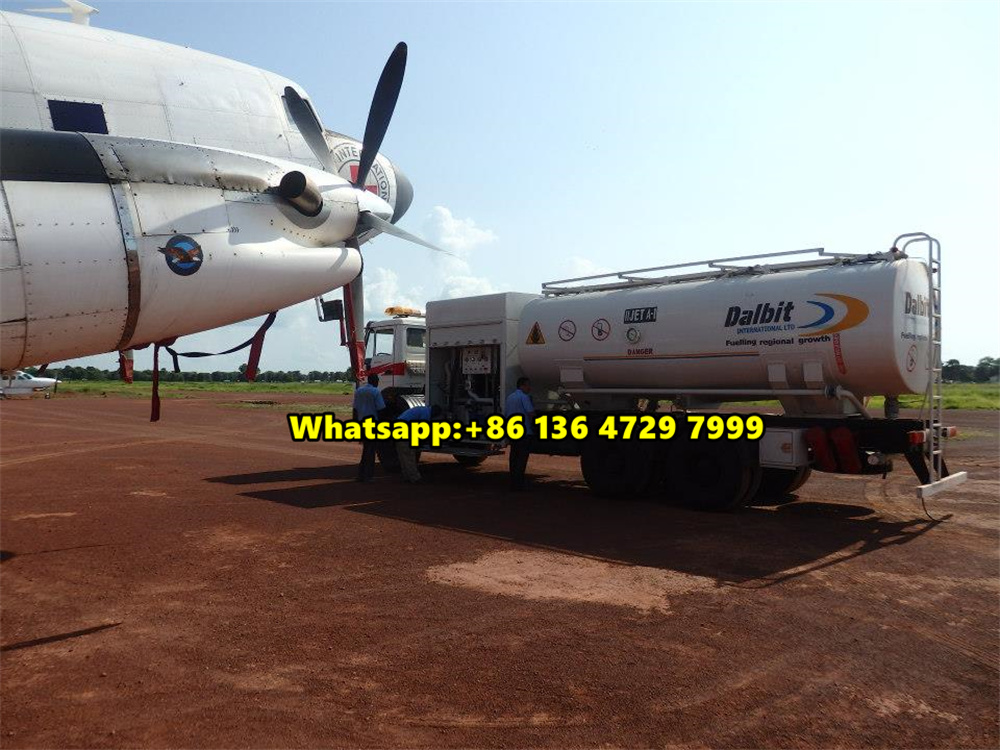

Refuel the aircraft
Refueling the aircraft: Once the preparations are complete, the driver starts the refueling process by operating the pump on the truck to begin transferring fuel to the aircraft. The driver monitors the fuel levels throughout the process to prevent overfilling and ensure the aircraft is fueled to the required amount. Safety measures are also followed to prevent any accidents or spills during the refueling
Beiben Aircraft Refueler is a ground support vehicle specifically designed for the aviation industry. Built on a robust Beiben heavy-duty chassis and powered by a high-horsepower Weichai engine, it offers excellent mobility. At its core is a 15,000-liter aluminum alloy tank equipped with a high-precision flow meter, a self-priming centrifugal pump, a DeadMan safety control system, and aviation pressure-stabilized couplings. It enables safe and efficient pressure and gravity refueling for various types of aircraft, making it an essential specialized vehicle in modern airports.

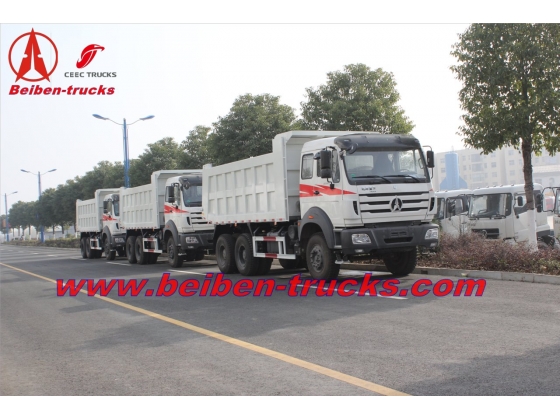

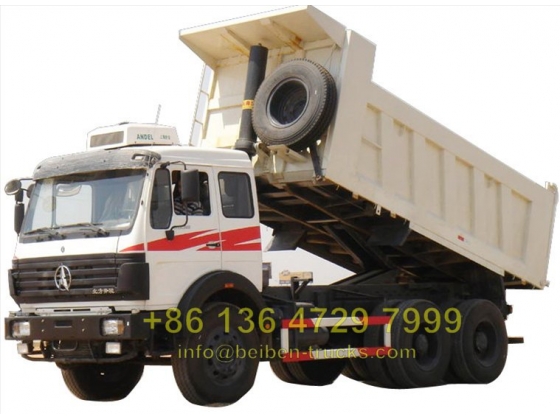

Beiben 10 tyres dump truck 6x4 driving Weichai engine Manual transmission Professional in export of trucks
Beiben 2538 type 6*6 drive water tanker truck, benz technology 6 wheel off road driving system, 7 T benz front axle, 16 T doubel rear axle, with 20 CBM water tanker capacity, right hand drive system , special for kenya , tanzania.
The Beiben 4x4 off road 1927 water tanker truck is a powerful and reliable vehicle equipped with a Beiben full steel NG80B cabin. It is powered by a WP10.290 diesel engine, providing plenty of torque and horsepower for any off-road situation. The Mercedes-Benz 4x4 all-wheel drive system ensures that this truck can tackle even the most challenging terrain with ease. With a spacious cabin and comfortable seating, the Beiben 4x4 off road 1927 water tanker truck is designed for long hours on the road. The water tanker has a large capacity, making it ideal for transporting water to remote locations or for firefighting purposes.
Beiben ND3254B38,Traction type: 6X4 Driving type: LHD (RHD is optioned), Weichai brand,WP10.340E32 Inline six-cylinder, water-cooled, four-stroke, turbocharged inter-cooled Direct injection With the exhaust brake

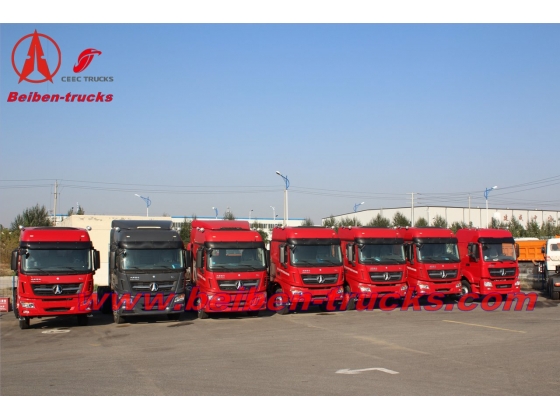

Beiben NG80 Series Euro 3 tractor truck manufacturer
