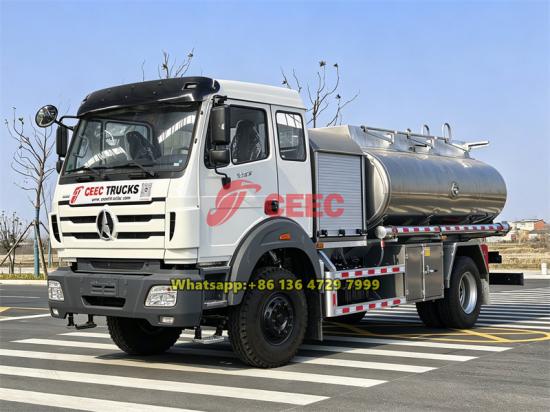

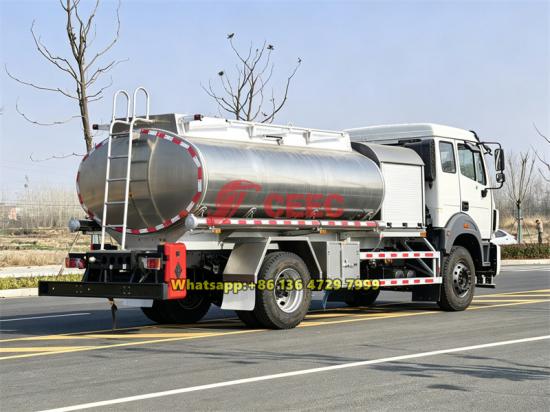

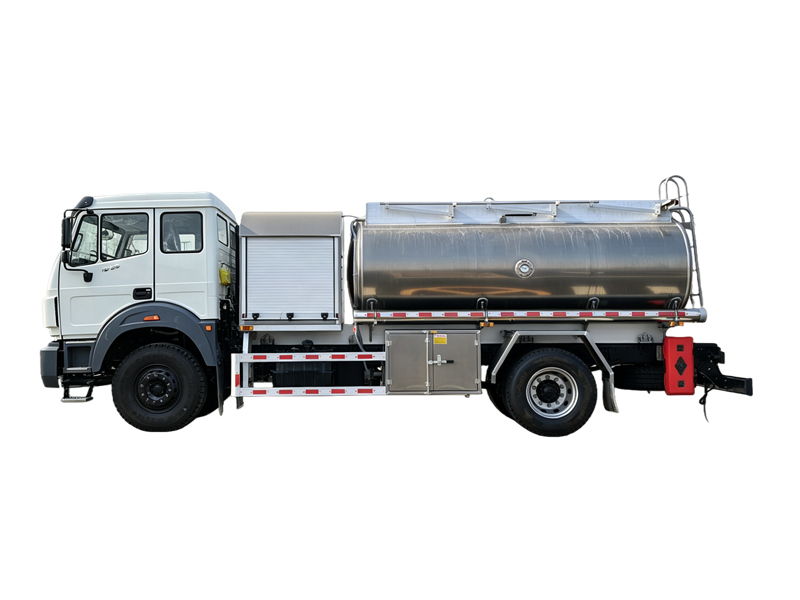

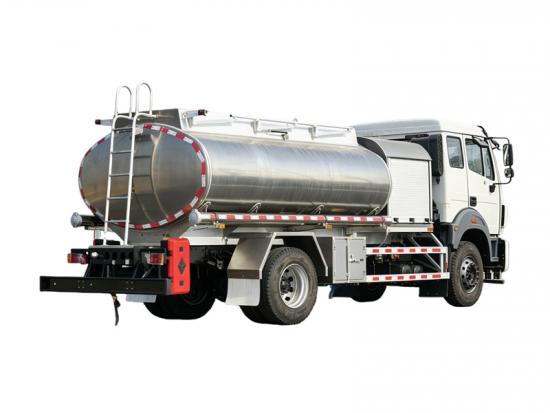

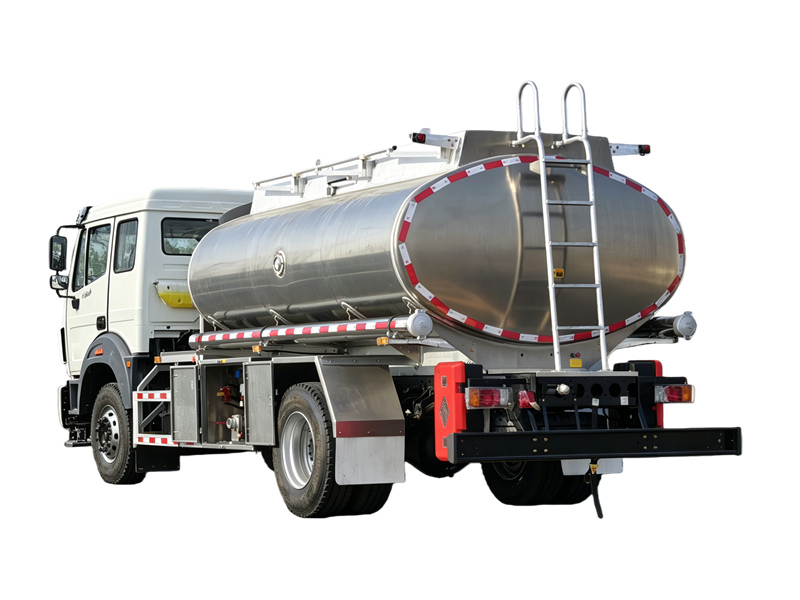

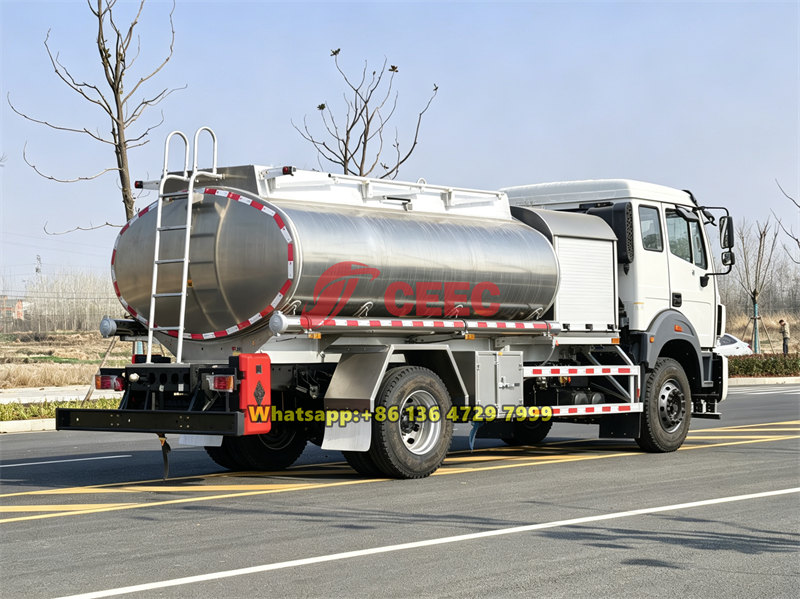

The Beiben 12,000L Aircraft Refueler Truck is a high-performance airport special-purpose vehicle. It is built on a proven and reliable Beiben heavy-duty chassis and features a 12,000L high-strength aluminum alloy fuel tank. Equipped with an efficient pump, filter/water separator, precision metering system, and pressure control system, it offers clean fuel supply, accurate metering, and stable operation. With multiple explosion-proof and overfill prevention safety devices and excellent mobility, it is primarily designed for refueling small and medium-sized aircraft and helicopters, and is widely applicable to various small and medium-sized airports and aviation training bases.
Working Capcity:
12000 litersCabin Type:
NG80B long cabin, 2 seats and one sleeperDimension ( mm ) :
8500×2550×3450Drive System:
4×2, LHDWheelbase (mm):
4800Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ATyres:
12.00R20, 6+1 pcsRemark:
10000~15000 liters available※ Product Introduction
※ Product Specification
|
Basic parameter |
Vehicle Model |
CEEC5190GJY |
|
Length×width×height(mm) |
8500×2550×3550 |
|
|
Wheel-base(mm) |
4800 |
|
|
Curb weight(kg) |
7200 |
|
|

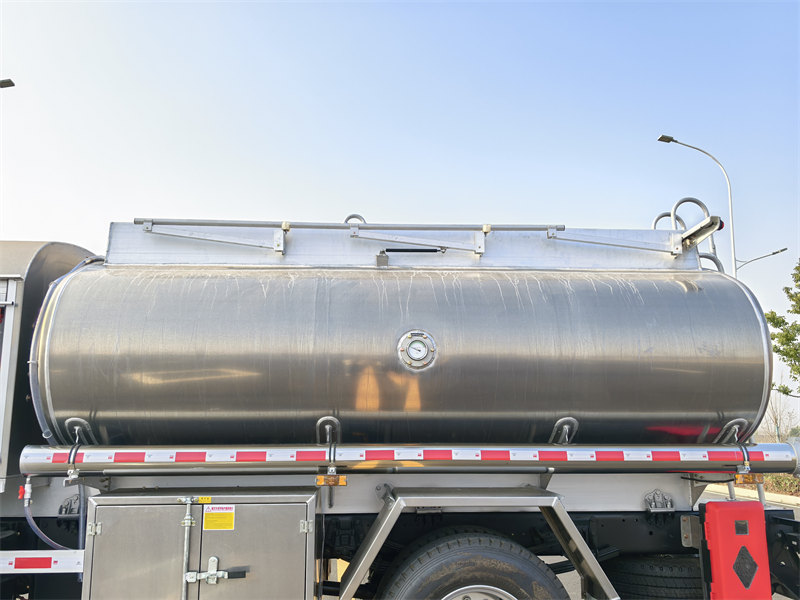

Tank system |
Tank capacity |
12000 L |
|
Tank material |
Aluminum alloy |
|
|
Thickness |
Tank body/baffles: 5.6mm; head cover: 5.8mm |
|
|
Loading medium |
Jet fuel, aviation gasoline |
|
|
Top guardrail |
Segmented lifting guardrail, anti-slip netting |
|
|
Ladder |
Internal and external ladders |
|
|
Painting |
Primer, mid-coat and top coat |
|
|
Refueling system |
Fuel pump |
Self-priming centrifugal pump, flow rate: 2500L/min |
|

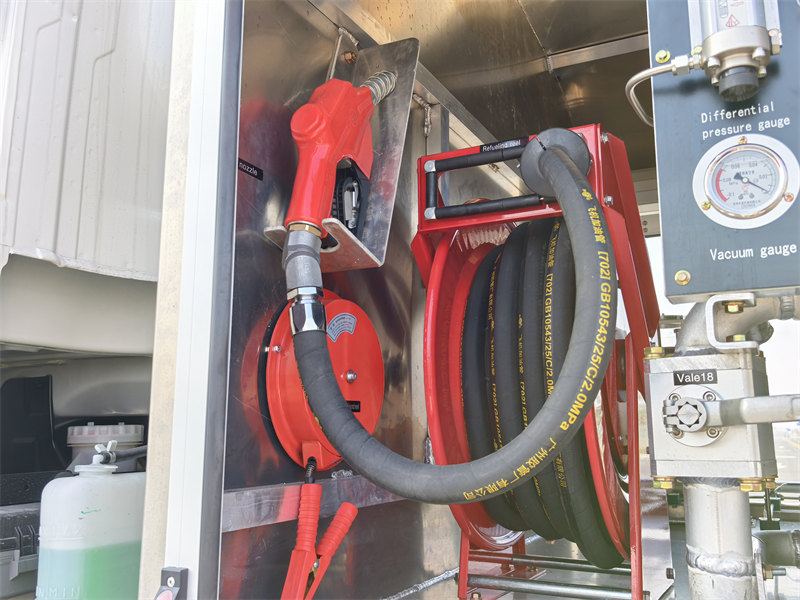

Hose reel |
DN65, 20 meters, flow rate: ≥1200L/min |
|
|

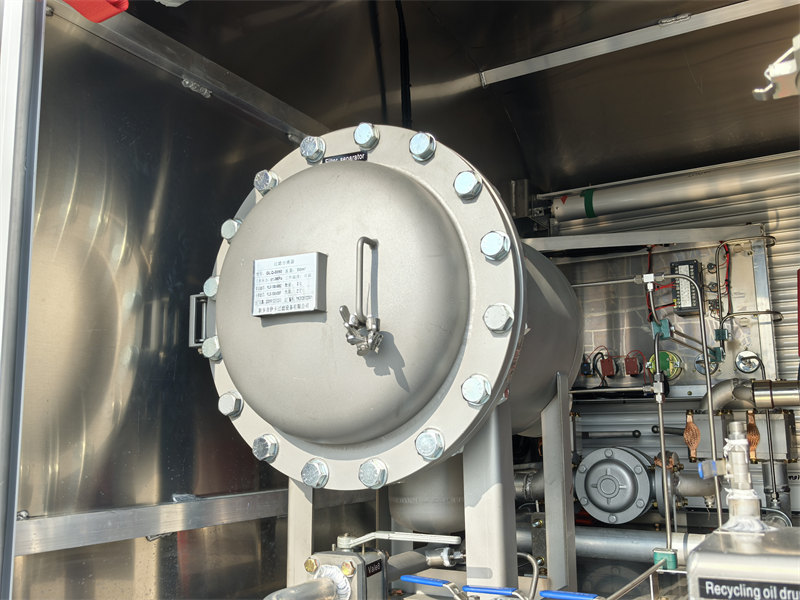

Filter Separator |
Flow rate: 2500L/min |
|
|
HEPCV underwing refueling nozzle |
Equipped, flow rate 1200L/min |
|
|
Flow Meter |
Equipped, flow rate: 2500L/min |
|
|
Others |

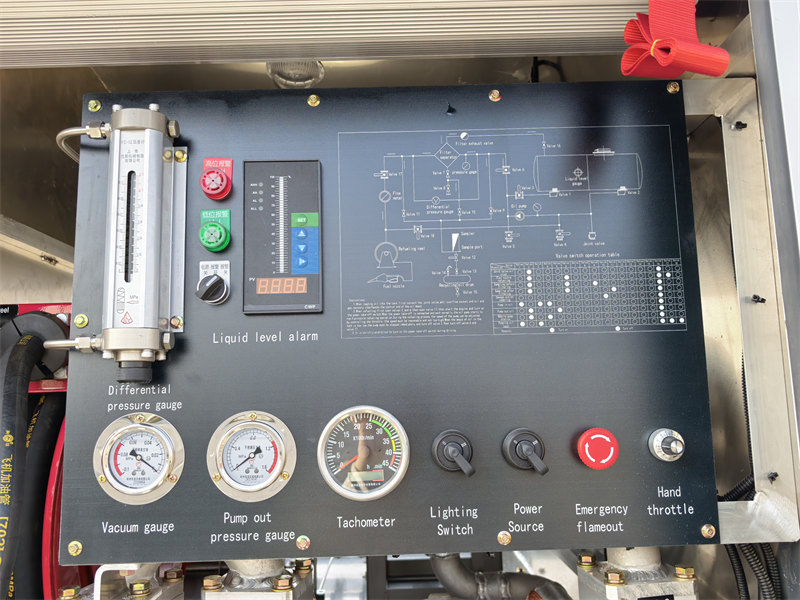

Equipped with differential pressure gauge, air eliminator, reel expansion joint, inline pressure control valve, DeadMan control system, bypass valve, pneumatic system, liquid level sensor |
|
|
Pipeline and accessories |
Manholes and quantity |
European standard aluminum alloy explosion-proof manholes, 2 pcs |
|
Breathing valve |
Aluminum alloy material, 4 sets |
|
|

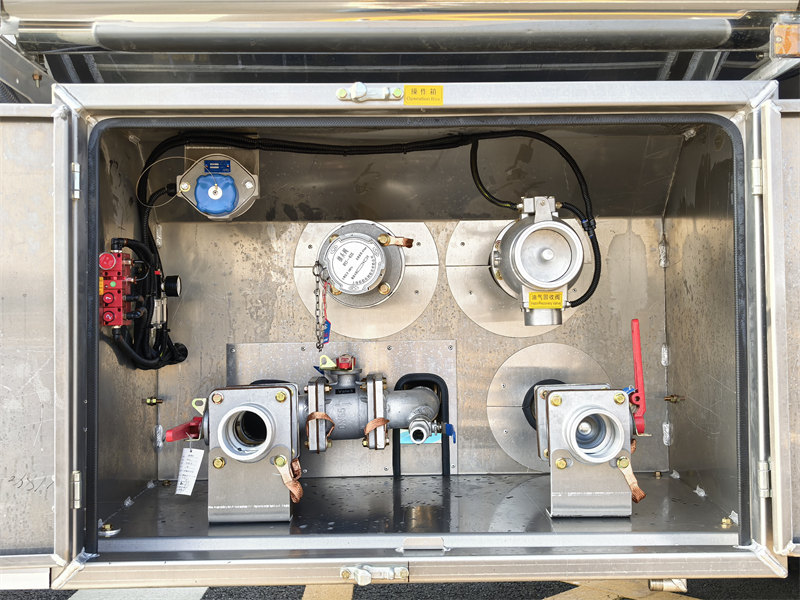

Bottom loading |
Aviation kerosene interface |
|
|
Oil and gas recovery |
With oil and gas recovery system |
|
|
Overflow prevention |
Equipped with an overflow prevention system |
|
|
Safety valve |
One 8-inch sea valve, one high liquid level valve |
|
|
Engine parameter |
Model (six cylinder in line) |
WP10.290E32 |
|
Max. Power (HP/rpm) |
290 |
|
|
Max. Torque(Nm/rpm) |
1160/1200～1600 |
|
|
Displacement(lit) |
9.726 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 9JS150A |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 13/9+8 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
※ Beiben Aircraft Refueling Truck Features
Beiben aircraft refueler trucks are generally similar to ordinary refueling trucks, but they have specific requirements in terms of performance and construction:
1. High refueling pressure stability: Pressure regulators, stabilizers, and pressure refueling gauges are installed on the fuel line.
2. High fuel cleanliness: High-performance filter/water separators must be used on the fuel line. The tank body and piping must be made of aluminum alloy.
3. Absolute refueling safety: Static elimination devices, interlock control systems, electrical explosion-proof devices, fire extinguishers, etc., must be installed.
4. High-precision, high-capacity meters are required.
5. Large fuel tank capacity to complete aircraft refueling in a single session. For example, the Beiben aircraft fuel tank trucks have capacities ranging from 10,000L to 45,000L.

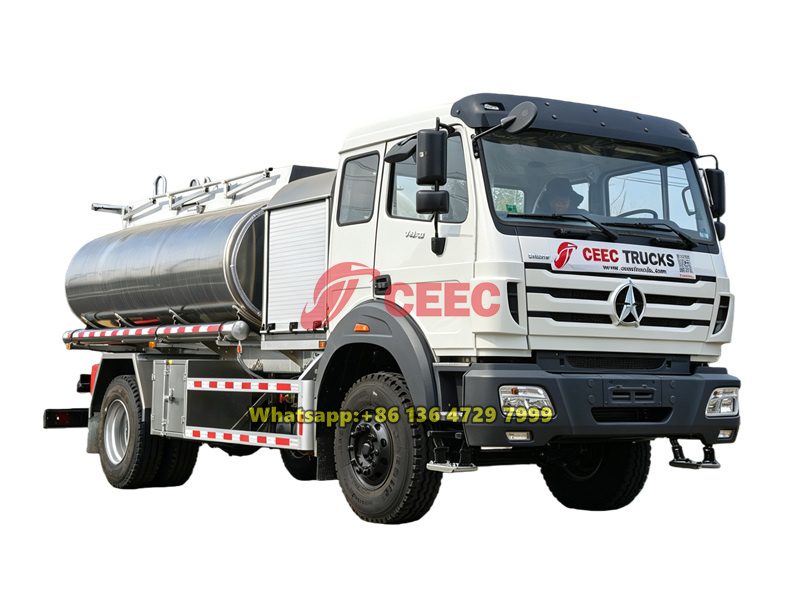

※ Beiben 1929 Aviation Fuel Tanker Truck Advantages

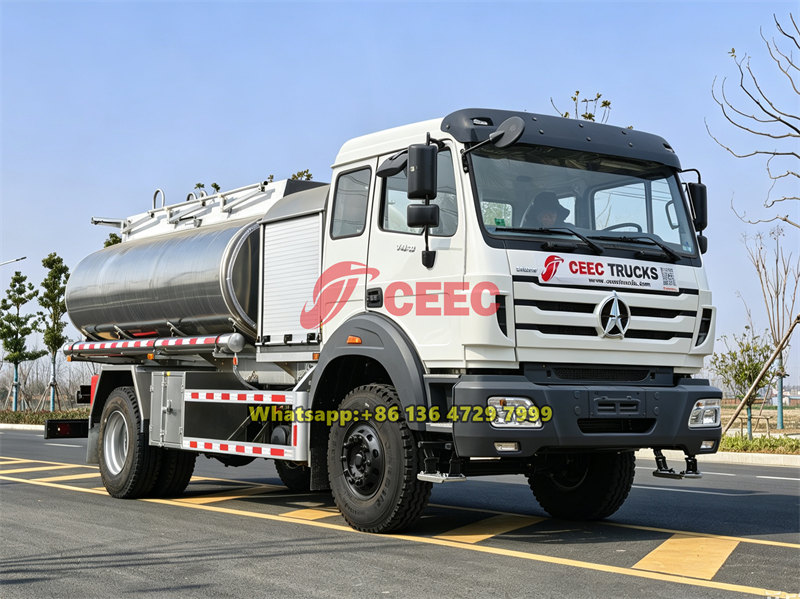

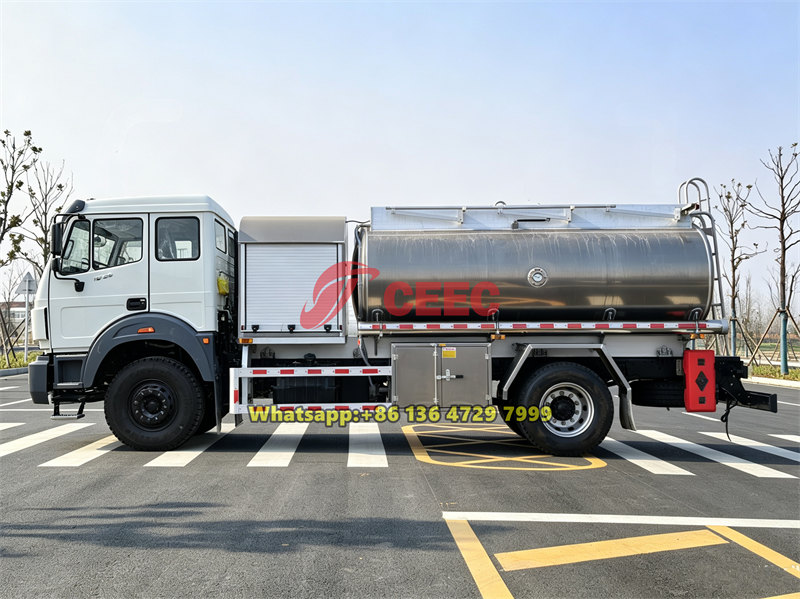

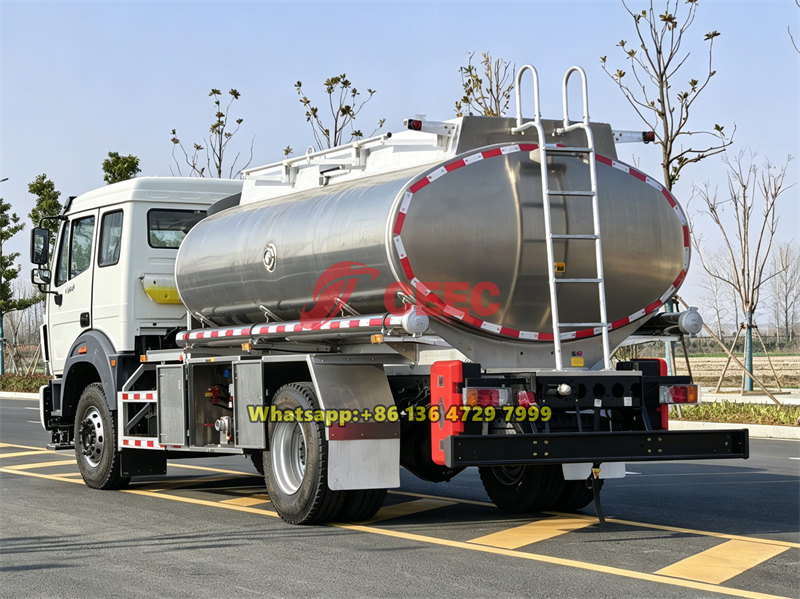

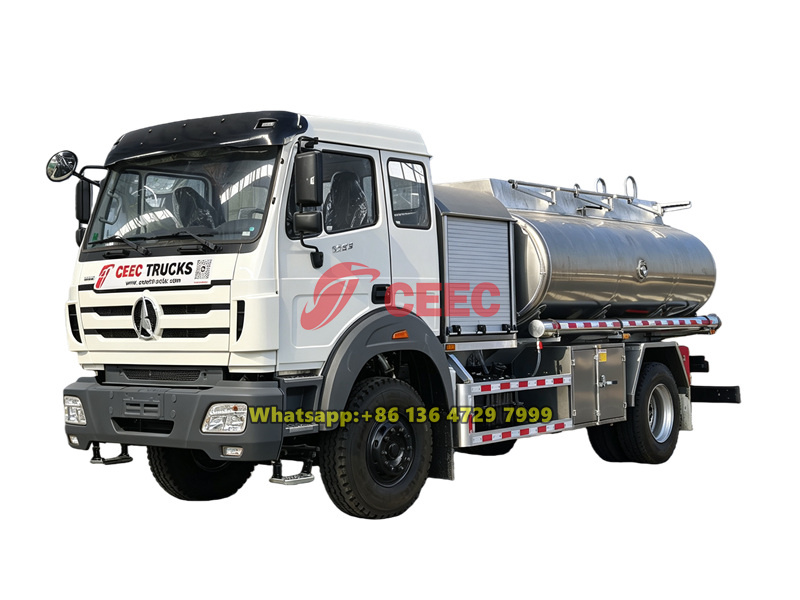

※ Beiben 4×2 Aircraft Refueler Truck Details
The Beiben aircraft refueling truck is equipped with a high-capacity fuel tank that can hold up to 20,000 liters of aviation fuel. This enables it to quickly refuel multiple aircrafts without the need for frequent refilling. The truck is also fitted with a powerful pump system that can deliver fuel at a rate of 1000 liters per minute, ensuring a rapid and seamless refueling process. It features a powerful WP10.340 diesel engine that delivers 340 horsepower to carry heavy loads of fuel. Its ergonomic design provides a comfortable and safe working environment for the operators. The truck is also equipped with advanced safety features, including fire suppression system, emergency stop buttons, and anti-skid surfaces.
Beiben Aircraft Refueler is a ground support vehicle specifically designed for the aviation industry. Built on a robust Beiben heavy-duty chassis and powered by a high-horsepower Weichai engine, it offers excellent mobility. At its core is a 15,000-liter aluminum alloy tank equipped with a high-precision flow meter, a self-priming centrifugal pump, a DeadMan safety control system, and aviation pressure-stabilized couplings. It enables safe and efficient pressure and gravity refueling for various types of aircraft, making it an essential specialized vehicle in modern airports.
