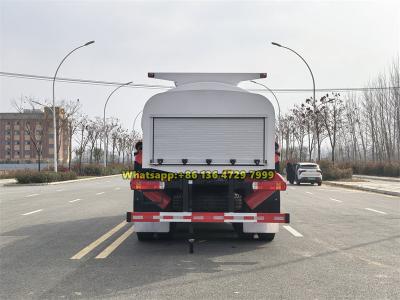

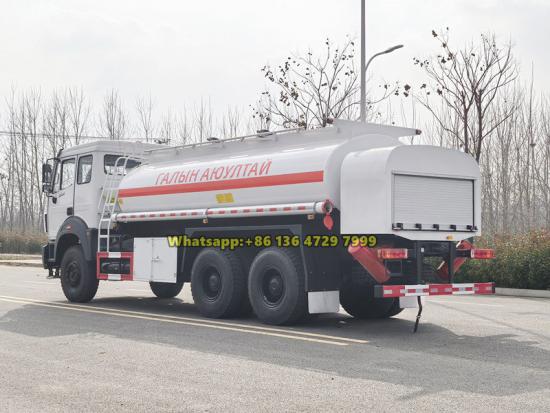

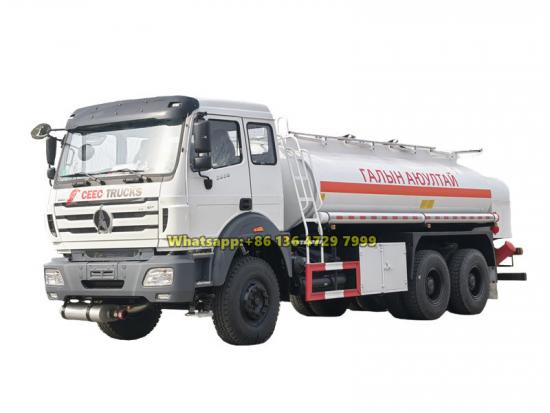

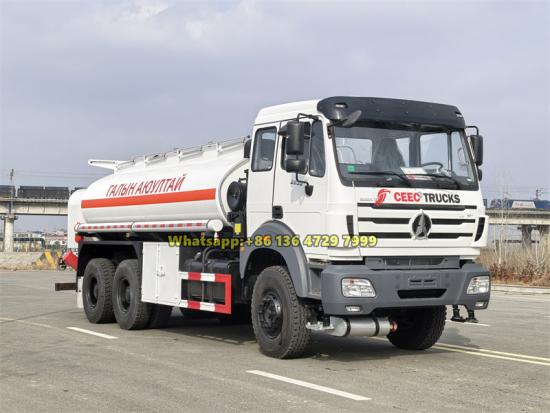

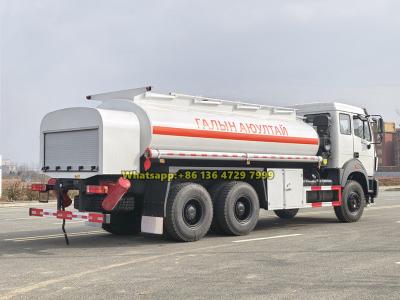

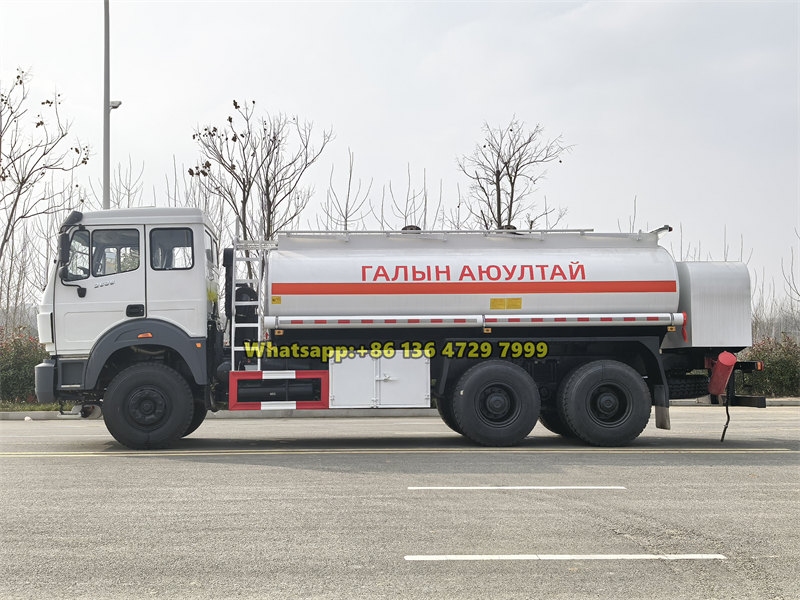

The Beiben 12000-liter refueling tanker is a professional mobile refueling equipment built on the Beiben 2638 heavy-duty chassis. It is powered by a 380-horsepower diesel engine paired with a 12-speed transmission. The tank is designed with a carbon steel compartmentalized structure, capable of transporting various types of fuel. The vehicle is equipped with two refueling dispensers, each with a flow rate of 80 liters per minute, along with bottom loading/unloading systems, vapor recovery units, and a full suite of safety devices, ensuring safe and efficient fuel transportation and on-site refueling operations.
price:
$54000Working Capcity:
12000 litersCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
8450×2550×3200Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS160TRemark:

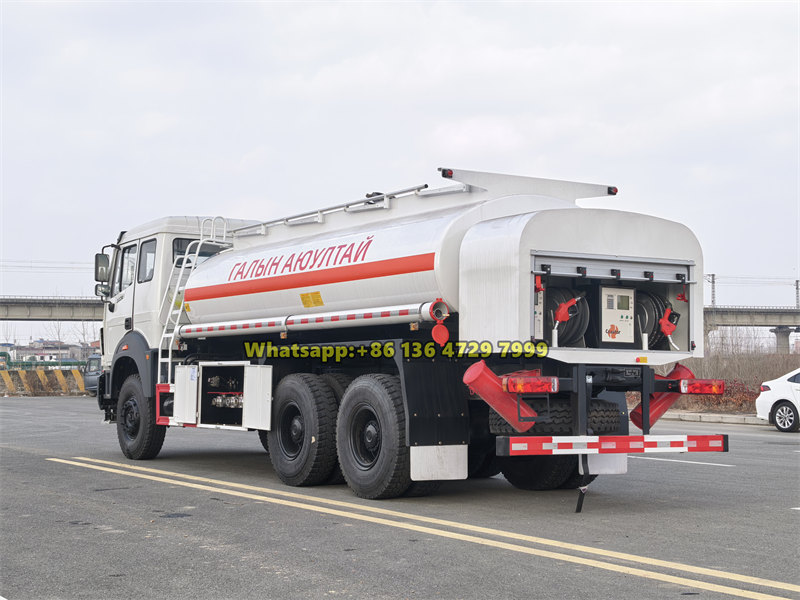

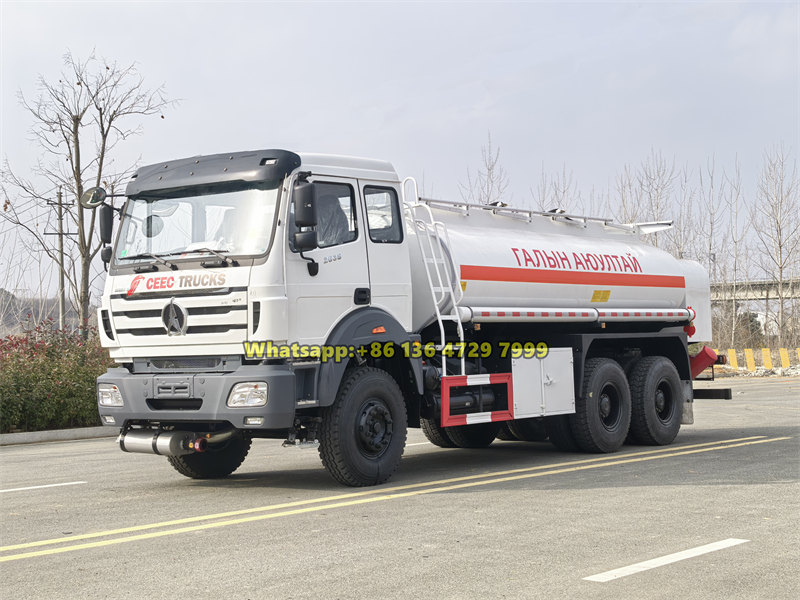

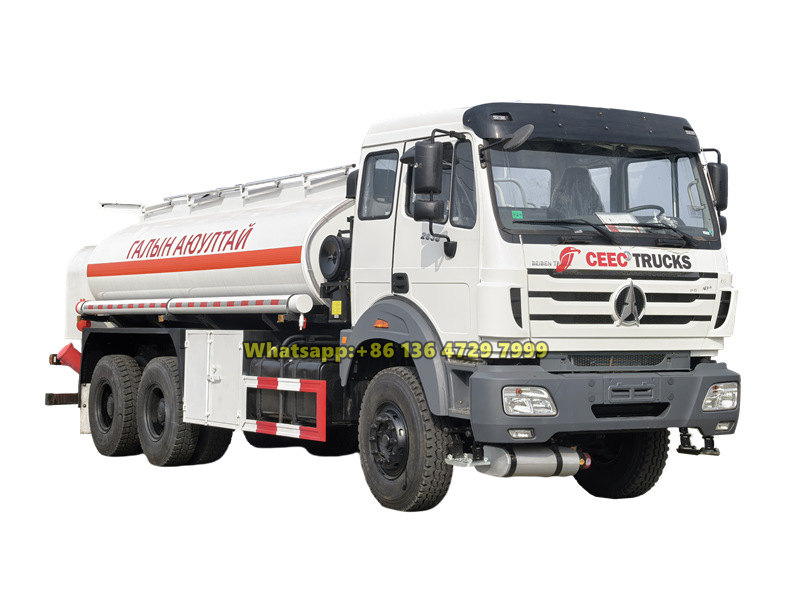

2 compartments, 2 fuel dispensers, stainless steel, aluminum alloy tanker is optionalThe Beiben 2638 mobile fuel bowser is a large-capacity mobile refueling unit based on a modified Beiben 6×4 truck chassis, specifically designed for fuel distribution and mobile refueling tasks. The vehicle features a Beiben NG80B extended cab, powered by a 380-horsepower Weichai engine, paired with a Fast 12-speed transmission and a 13-ton dual rear axle, providing reliable power and strong load-bearing capacity suitable for long-distance heavy-duty transport. The tank is constructed from 4mm carbon steel with a dual-compartment design, allowing for safe transportation of multiple fuels such as diesel and gasoline.
The Beiben 6×4 refueling truck integrates a modern refueling system, including two Censtar dispensers, each with a flow rate of 80 liters per minute, and a 15-meter retractable refueling hose. Safety features include European-standard manhole covers, API unloading valves, vapor recovery devices, and anti-overflow and anti-static systems, balancing operational efficiency with safety. The tank top is equipped with a walkway platform and ladder, along with professional accessories such as fuel pumps and piping boxes, making it suitable for various on-site refueling and distribution scenarios.
CEEC factory is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 2638 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox
▶ Fuel tanker: 120000 liters capacity, 2 compartments, carbon steel with 5mm thickness
▶ Fuel pump: China top brand, 60m3/h flow rate, 970 rpm speed

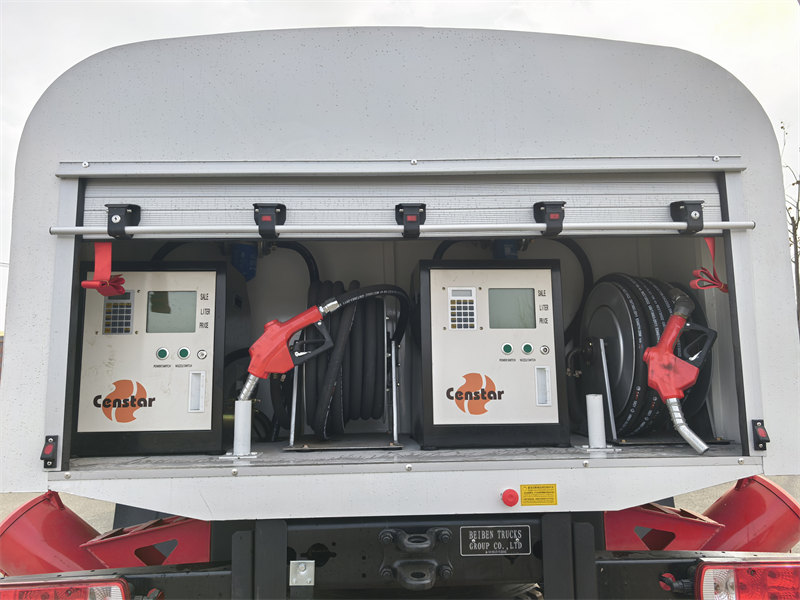

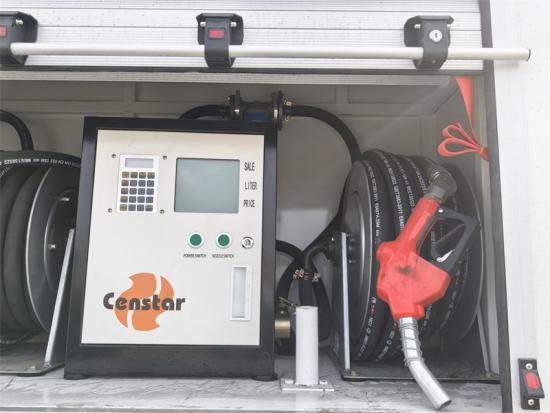

▶ Fuel dispenser: 2 units, Censtar CS20D digital-controoled dispenser, 80L/min flow rate

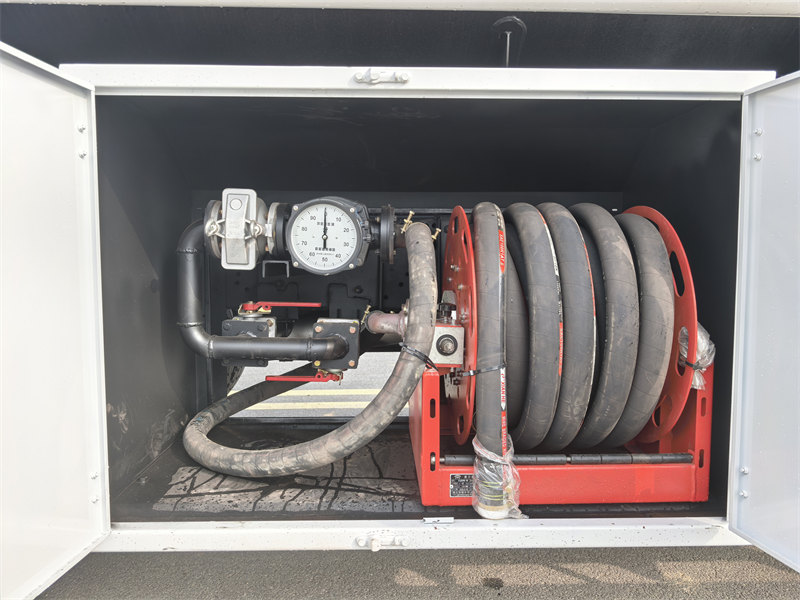

▶ Hose reel: 20 meters hose with 1'' diameter
» Ⅱ. Product Specifications:
|
Chassis Specification |
||
|
Cab |
Beiben NG80B long cabin, 2 seats and one sleeper bed, with A/C |
|
|
Driving Type |
6*4 Left hand driving |
|
|
Max Speed (km/h) |
90 |
|
|
Overall dimension (mm) |
8450×2550×3150 |
|
|
GVW (kg) |
26000 |
|
|
Mass in working order (kg) |
10800 |
|
|
Wheelbase (mm) |
4450+1450 |
|
|
F/R wheel track (mm) |
1995; 1800/1800 |
|
|
Approach/Departure Angel (°) |
26/19 |
|
|
Tire |
12.00R20, 10+1 pcs |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
FAST 12-speed |
|
|
Bridge |
Front axle |
7T |
|
Rear axle |
13T*2 |
|
|
Engine |
Fuel type |
Diesel fuel |
|
Model |
WP10.380E32 |
|
|
Engine type |
Water-cooled four-stroke, direct injection, turbocharged |
|
|
Displacement (ml) |
9726 |
|
|
Max output |
380HP/280KW |
|
|
Braking system |
Service Brake |
Air brake |
|
Park Brake |
Spring energy |
|
|
Electric system |
24v |
|
|
Superstructure Specification |
||
|
Fuel tank |
||
|
Volume of tank |
12000L |
|
|
Number of compartments |
2 |
|
|
Material of tanker |
High-quality carbon steel |
|
|
Thickness of tank |
4mm |
|
|
Transport medium |
Diesel, gasoline or others |
|
|
Fuel pump |
Brand |
China famous brand |
|
Model |
80YHCB-60 |
|
|
Flow |
60 m3/h |
|
|
Speed |
970 rpm |
|
|
Pressure |
0.6 Mpa |
|
|
Fuel dispenser |
Brand |
Censtar |
|
Model |
CS20D 1110F |
|
|
QTY |
2 |
|
|
Flow rate |
80L/min |
|
|
Power supply |
DC12V/24V |
|
|
Safety accessories |
||
|
Manhole cover |
European standard, aluminum alloy |
|
|
Anti-overflow probe |
||
|
Gas recovery joint |
||
|
Bottom Filling Device |
API discharge valve |
|
|
Pumping outlet & inlet |
||
|
Oil and gas recovery valve |
||
|
Anti-overflow anti-static socket |
||
|
Percolator |
||
|
Bottom of tank valve |
Emergency valve |
|
|
Refueling machine |
Portable machine with refueling reel & gun |
|
|
Length of refueling reel |
15m |
|
|
Fittings |

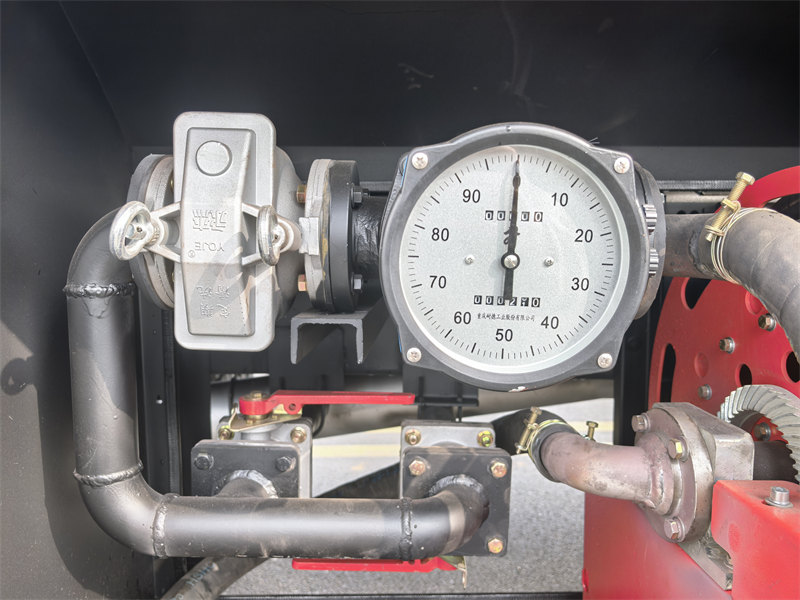

PTO oil pump |
|
|

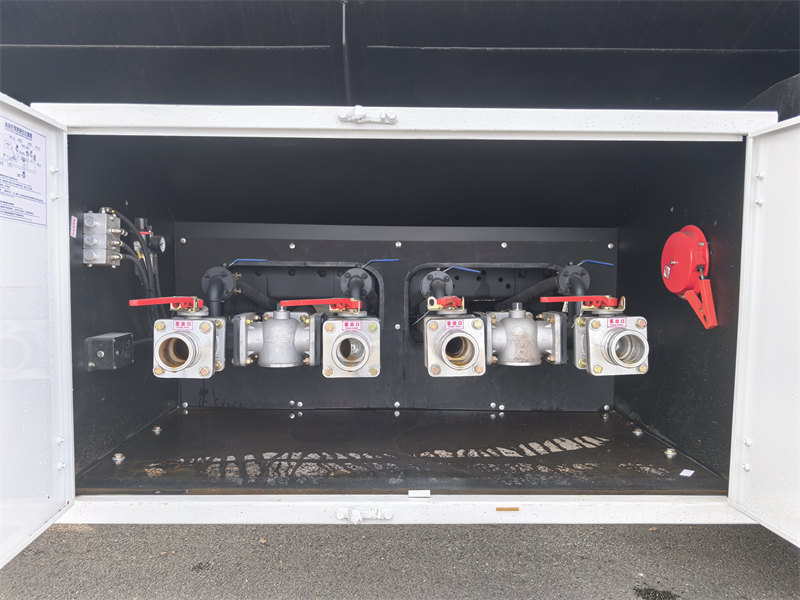

Discharging Pipe |
||
|
Discharging Pipe box fitted on both side of tank |
||
|
Fire extinguisher |
||
|
One spare tire |
||
|

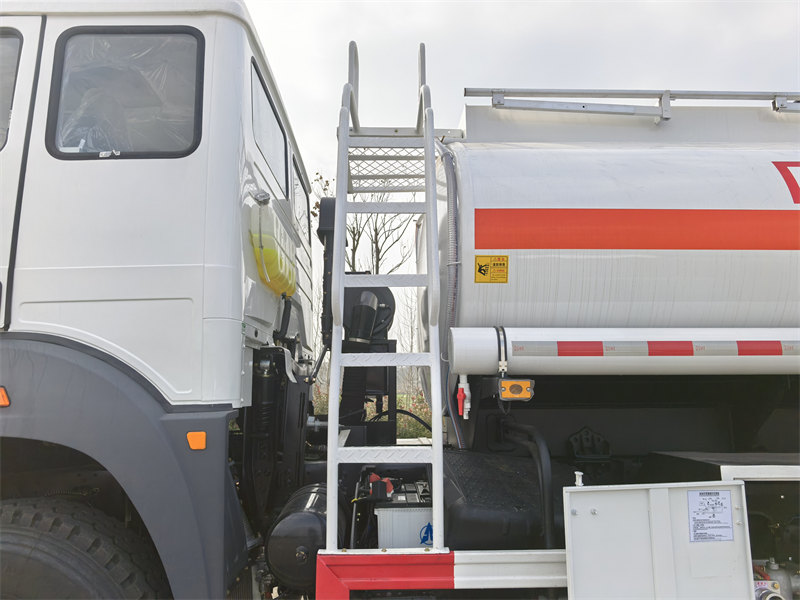

Ladder: For access to top of tank complete with cat walk on top of tank |
||
|
Heavy-duty rear bumper |
||
» Ⅲ. Beiben fuel tanker truck chassis:
 |
 |

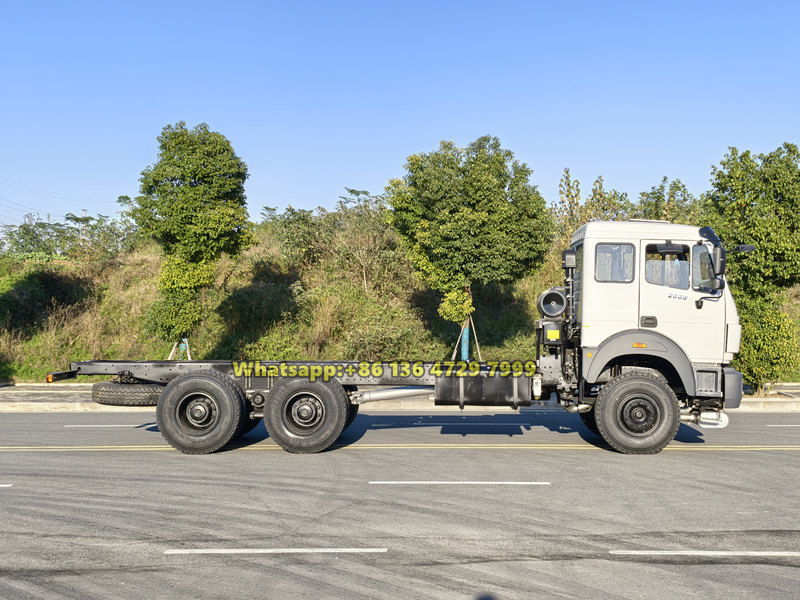

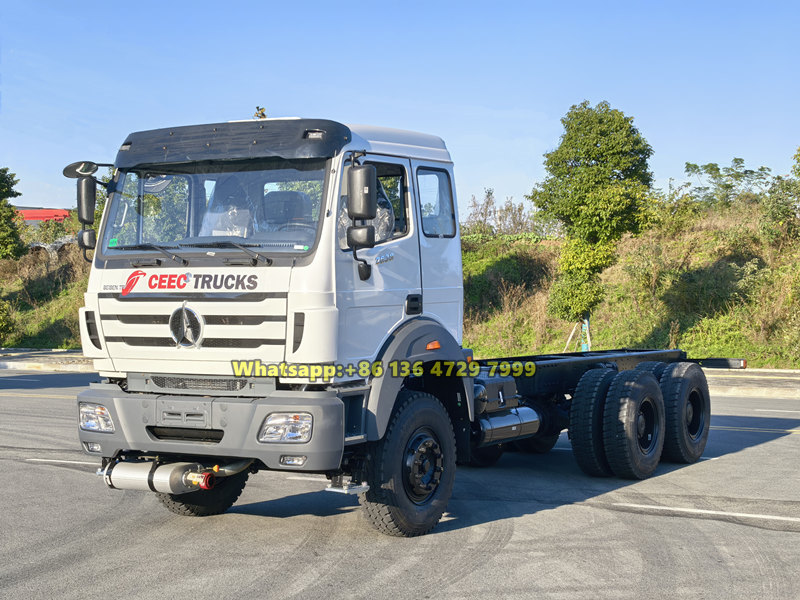

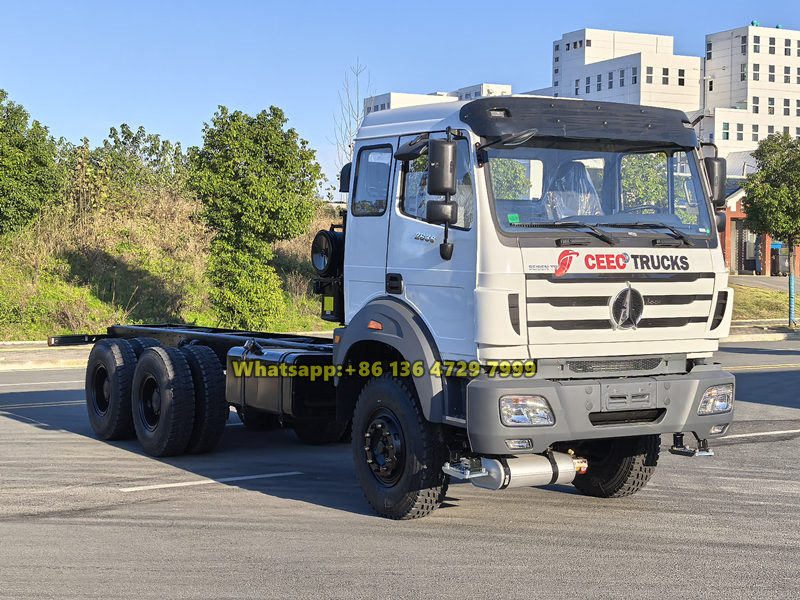

| Beiben 2638 fuel truck chassis | Beiben 2638 chassis for fuel bowser |
 |
 |

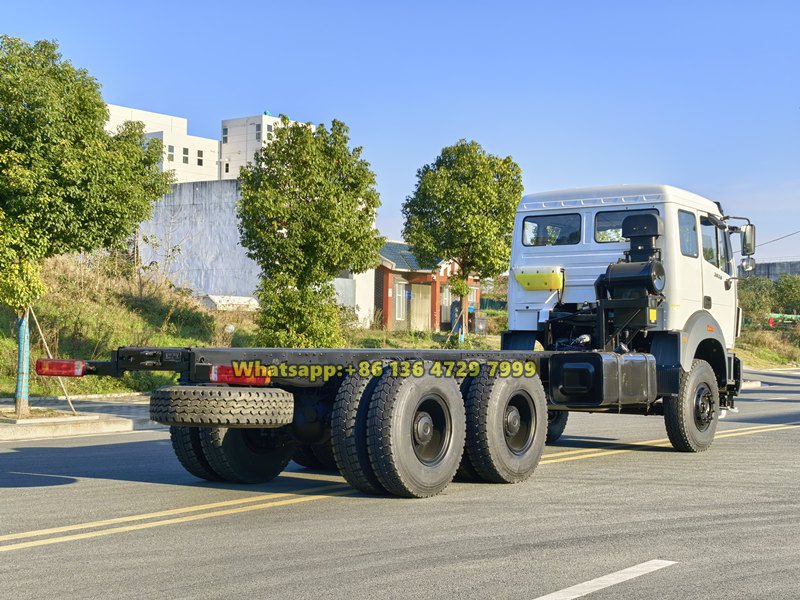

| Beiben 6×4 fuel bowser truck chassis | Beiben 10-wheeler refueler truck chassis |
» Ⅳ. Product Details:
» Ⅴ. Beiben Fuel Bowser Trucks Delivery:

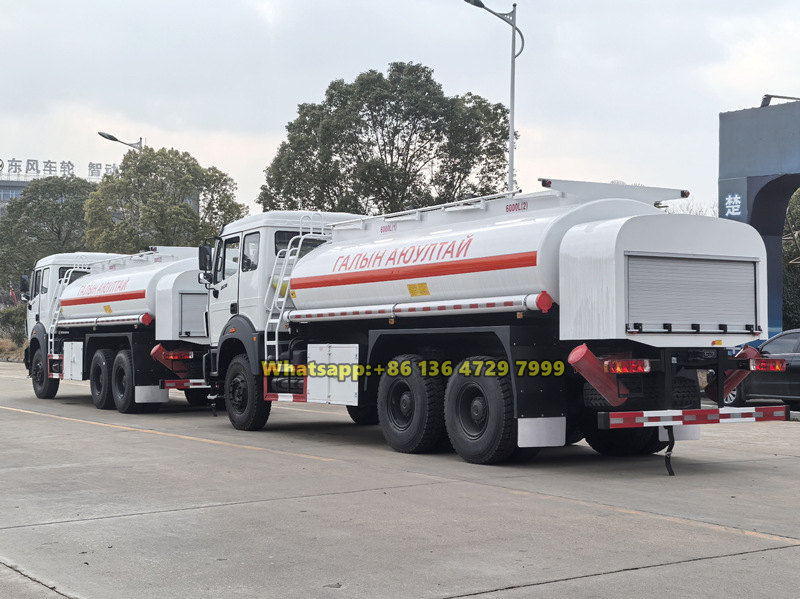

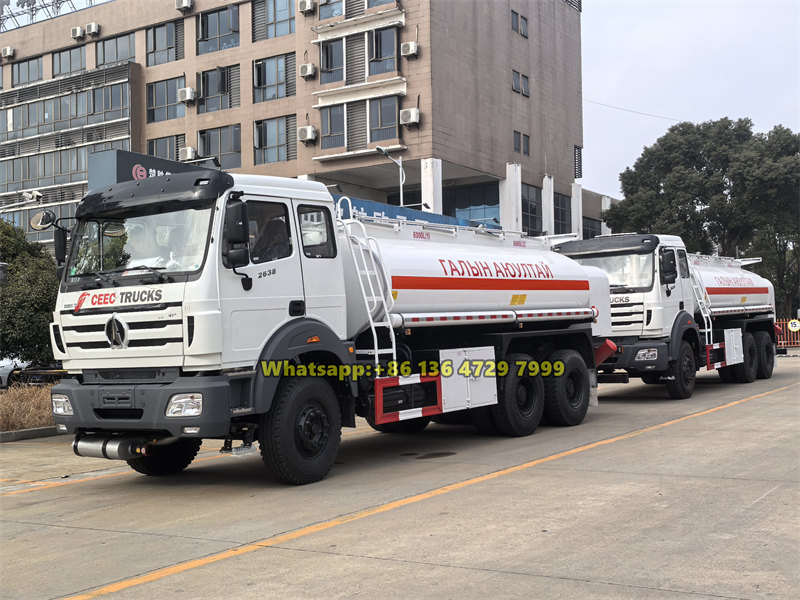

2 units Beiben mobile fuel bowsers delivered from factory

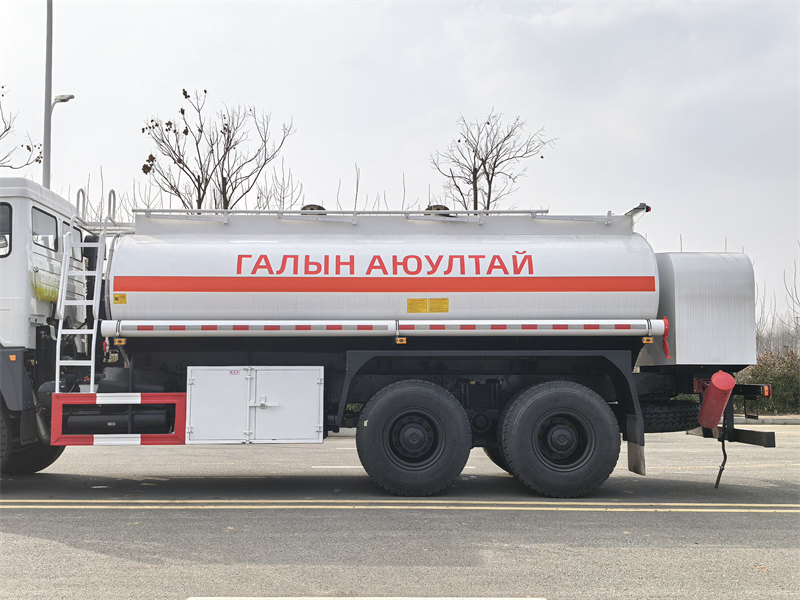

Beiben 12000 liters oil tanker truck delivery
» Ⅶ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks
3.Tanker body can be divided into multiple compartments for transporting different media..
4. Carbon steel, stainless steel, aluminum alloy material is optional.
Beiben 6*4 fuel tanker trucks are mostly produced on beiben 2527 fuel tanker truck chassis, this kind of beiben 10 wheeler fuel tanker truck can payload at least 15 cbm fuel , oil or gas.
China beiben 20 CBM fuel truck manufacturer is ceec trucks plant, we are 100% beiben 6*4 fuel tanker truck manufacturer, the most professional beiben 20 cbm fuel trucks supplier in china.
We are the best supplier of beiben fuel tanker trucks in congo. The most professional CONGO beiben fuel tanker trucks supplier, can supply the beiben 6*4 fuel tanker truck, beiben 8*4 fuel tanker. All the congo customer that buy the beiben oil trucks from us will have beiben spare parts for free of charage.
north benz NG80 truck chassis, 6*4 driving system, weichai 300 hp engine, 7 T benz front axle, 13 T double axle with reducer. 11.00R20 tyre. carbon steel fuel tanker capacity , 15,000 liters.
Beiben 2527 fuel tanker truck, with benz technology 2527 type fuel trucks chassis, china famous brand 270 hp diesel engine, fast 9 shift transmission, benz 7 T front axle, benz 13 T rear axles , with axle reducer, 12.00R20 tyre, with CEEC perfect 20 CBM fuel tanker
Beiben 2534 airport fuel tanker truck, widely used for refueling the airplane at the airport, based on beiben 340 Hp engine truck chassis, with Germnay technology upper structure system. very convenient and reliable for charge the air gas . 10 CBM fuel tanker capaicty .
Beiben 10 wheeler truck chassis, with famous germany benz technology, 4450+1350 mm wheelbase, china best brand weichai WP7.300 engine, 11.00R20 tyre. CEEC high technology on Beiben 20 CBM oil tanker truck manufacturing.
Beiben 20 CBM fuel truck supplier, china most professional beiben tanker truck manufacturer, supply benz technology 2530 fuel oil trucks, 4450+1350 mm wheelbase, 11.00R20 tyre.
north benz 2530 truck chassis, china best quality beiben fuel truck supplier, provide best beiben 6*4 drive truck , weichai 300 hp engine, fast 9 shift transmission, benz technology 7 T front axle and 16 T rear axle, 4450+1450 wheel base, 11.00R20 tyre.
