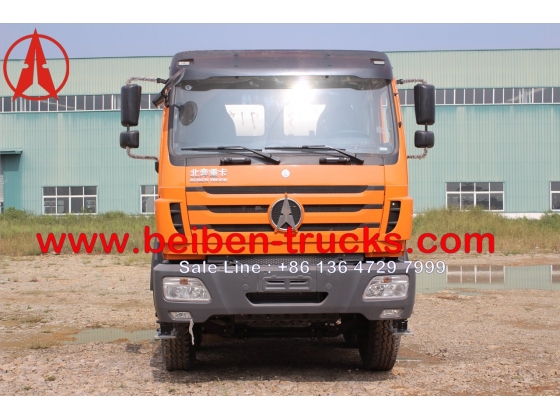

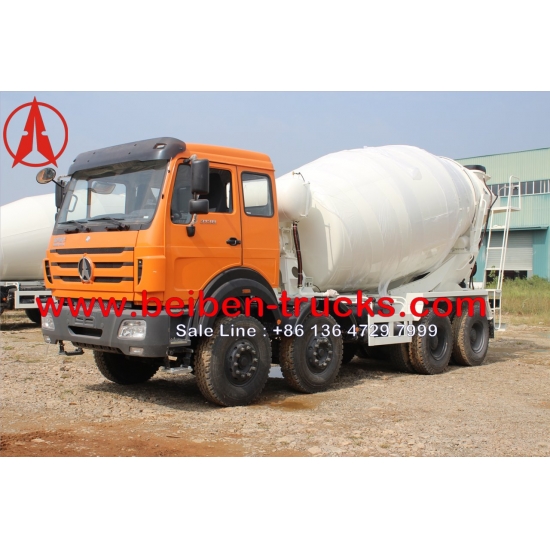

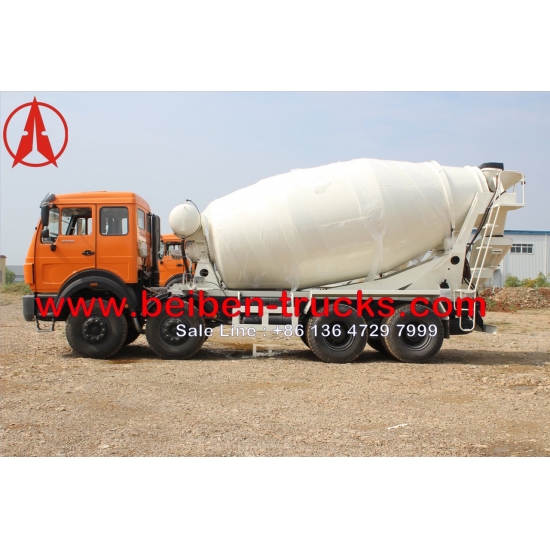

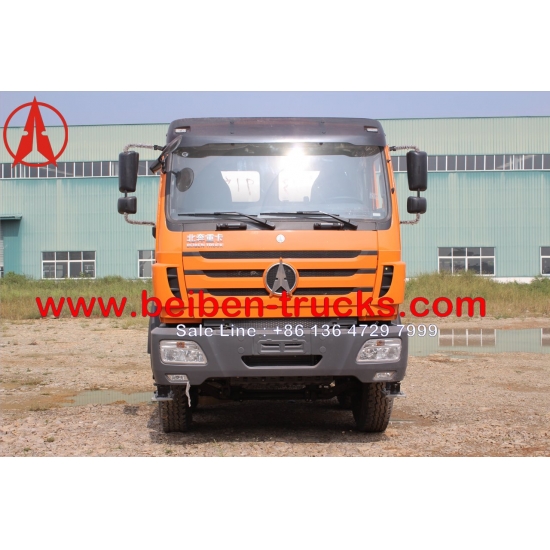

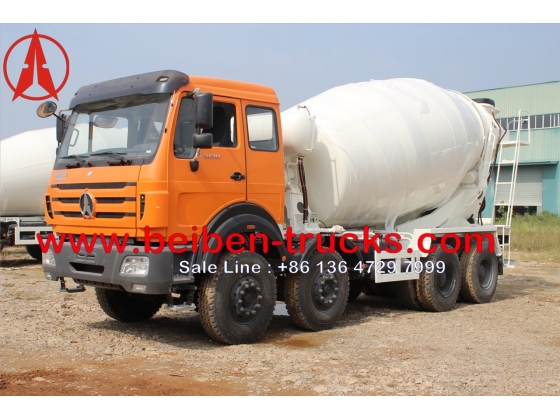

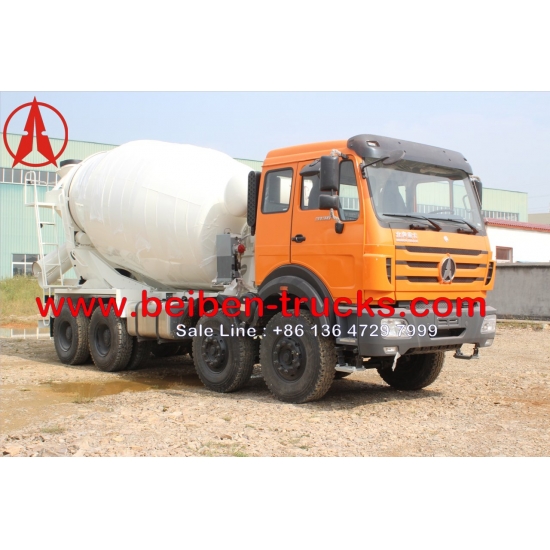

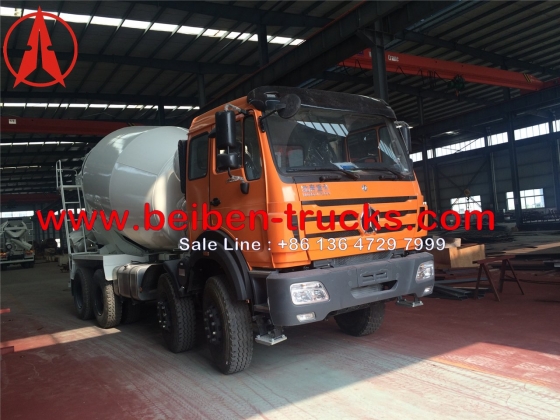

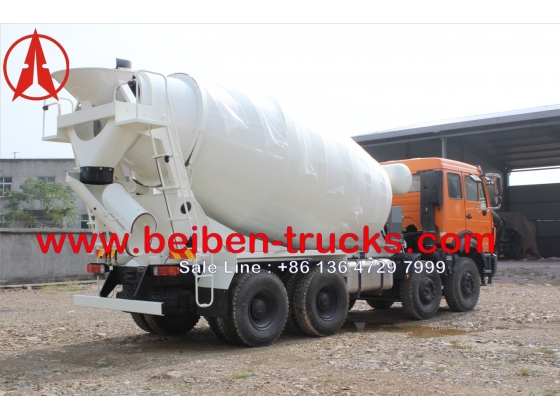

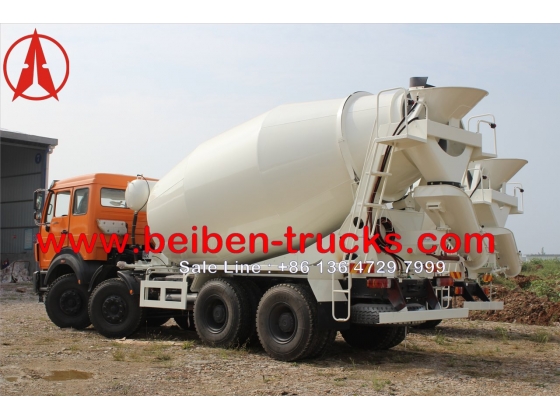

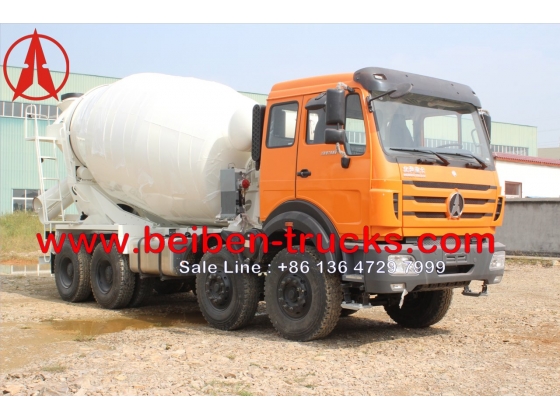

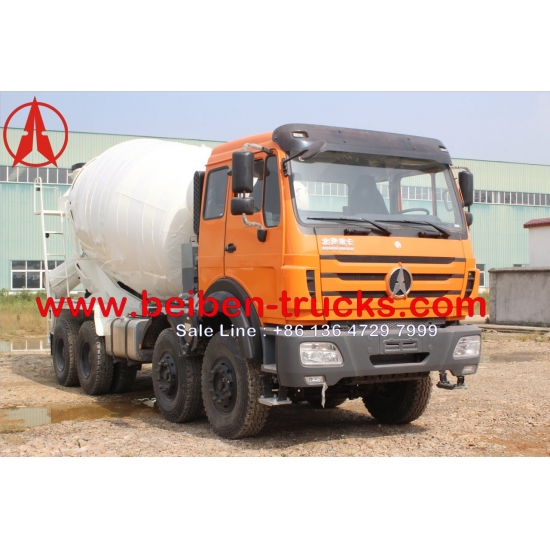

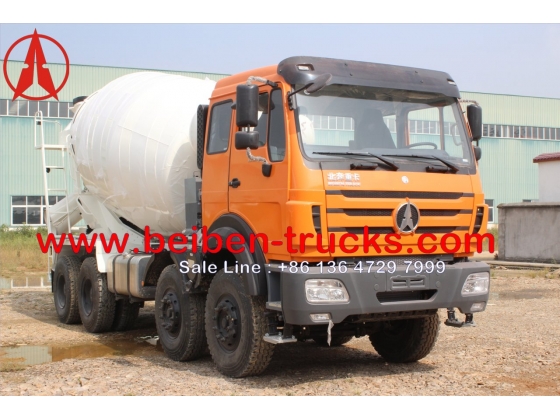

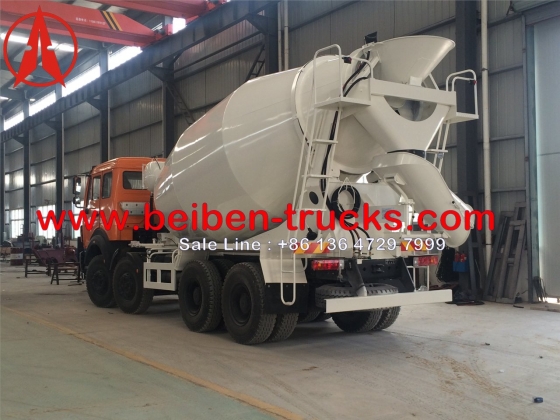

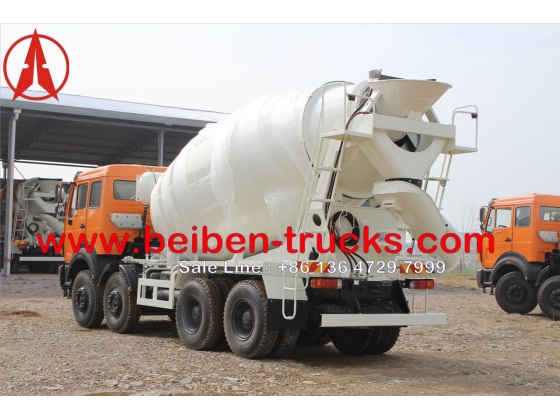

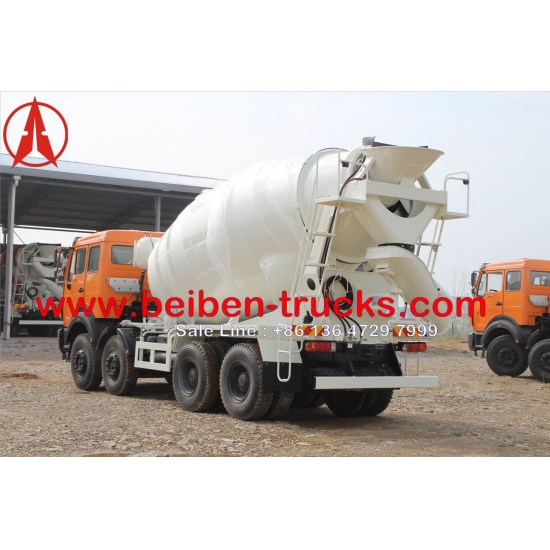

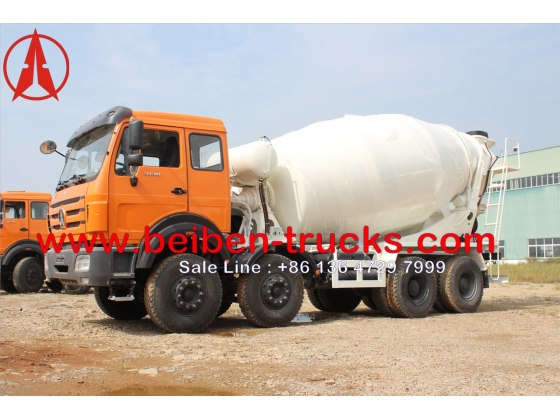

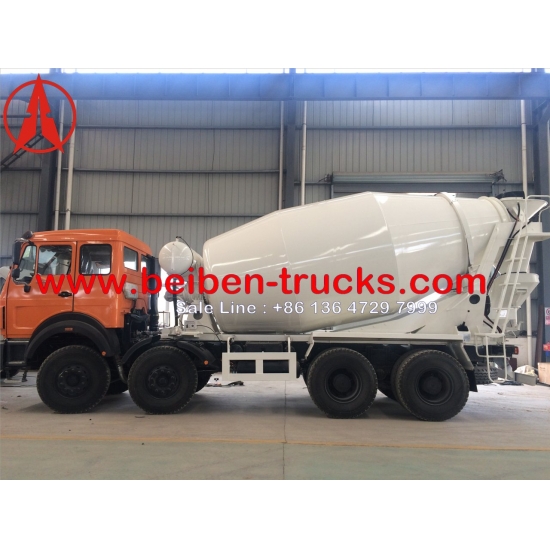

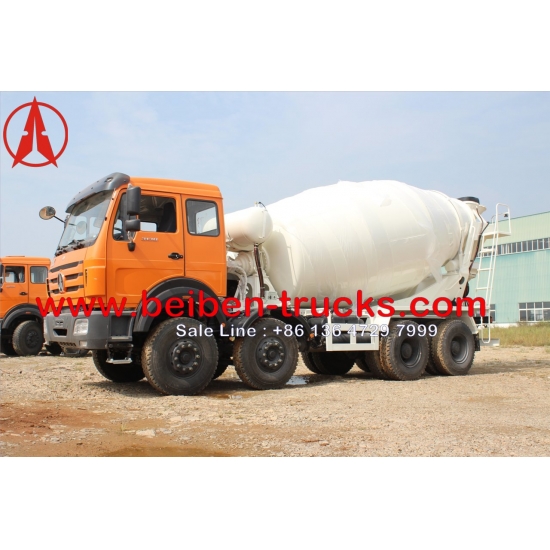

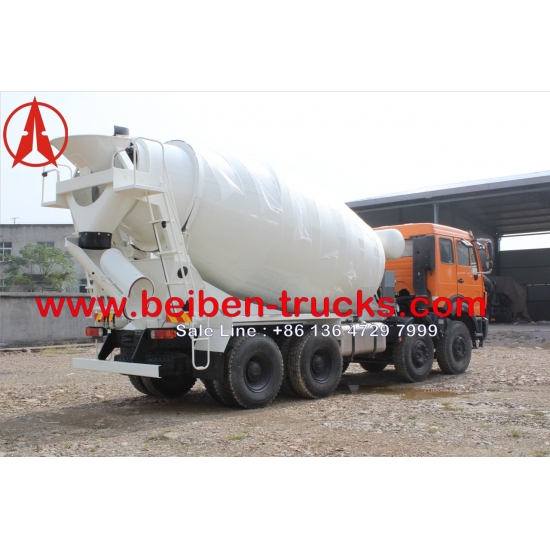

beiben 3138 concrete mixer truck 12 CBM capacity
Order(MOQ):
1We have exported lots of beiben 8 CBM, 9 CBM, 10 CBM, 12 CBM concrete mixer truck to overseas market. Great experience on manufacturer beiben 6*4 drive transit mixer truck and beiben 8*4 drive concrete mixer truck. Our experienced engineer can produce and design differernt kinds of beiben mixer trucks based on customer's requirement.
Beiben 3138 transit mixer truck /8×4/3450+1450/Short Cab/LHD |
||
Dimension 尺寸 |
11080*2500*3980mm |
|
Approaching angle/Departure angle |
26/20° |
|
Overhang(front/rear) |
1410/2640mm |
|
Wheel base |
1500+3550+1450 |
|
Max speed |
80km/h |
|
Curb weight |
13650kg |
|
Loading capacity |
11220kg |
|
Slope climbing capability |
Max.40% |
|
Engine |
Model |
WP10.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Displacement |
9.726L/Diesel |
|
Stroke |
126/130mm |
|
Max. power |
250/2200 (kw/rpm) |
|
Max.torque |
1350/1200-1600(Nm/rpm) |
|
Emission stantard |
EuroⅢ |
|
Fuel tanker capacity |
300L |
|
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
|
Gearbox |
ZF160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer |
|
Gear ratio of gear box |
12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 |
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
TAS85,whole circulation in ball, hydraulic booster |
|
Frame |
Fish belly shape, variable width, variable sections |
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
Tyre |
12.00R20 Radial |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cabin |
NG80B Long cabin with single sleeper; |
|
Main technical parameters of concrete mixer |
||
Drum performance parameter |
Geometric Volume m3 |
15.5 m3 |
Effective Volume m3 |
10 m3 |
|
Filling Ratio % |
64.5% |
|
Gradient of the Drum ° |
15° |
|
Filling speed m3/min |
≥3 |
|
Discharging Speed m3/min |
≥2 |
|
Surplus Ration % |
<1% |
|
Range of Slump mm |
20~300 |
|
Hydraulic System |
Pump |
Eaton 54 (ACA542337R) |
Motor |
Eaton 54 (HHD542337R) |
|
Gear Box |
PMB6sp |
|

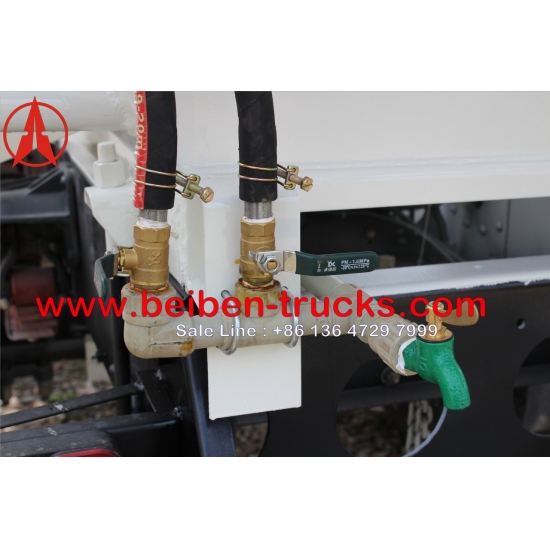

Water supply system |
Volume of water tank |
400L |
Water supply type |
Air pressure Type |
We supply super reilabe quality for beiben cement mixer truck and genuine spare parts for all beiben cement mixers from our plant.

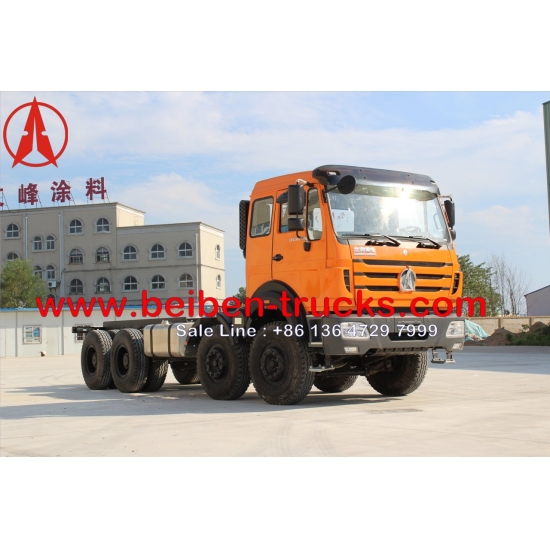

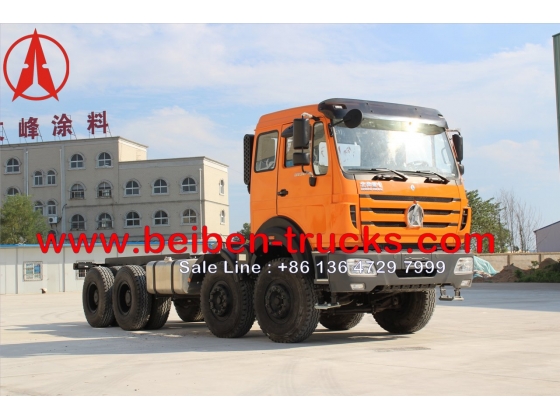

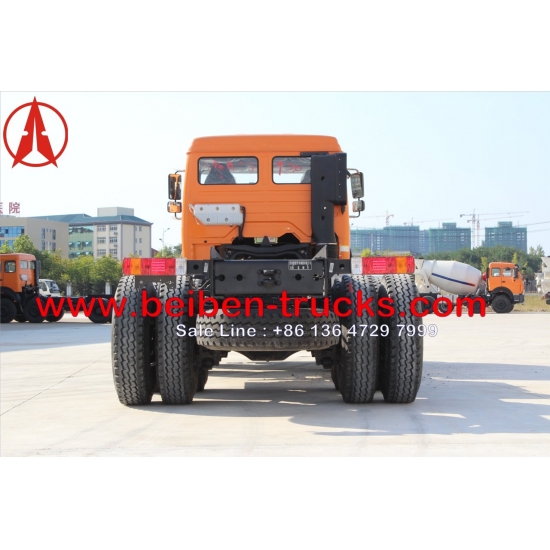

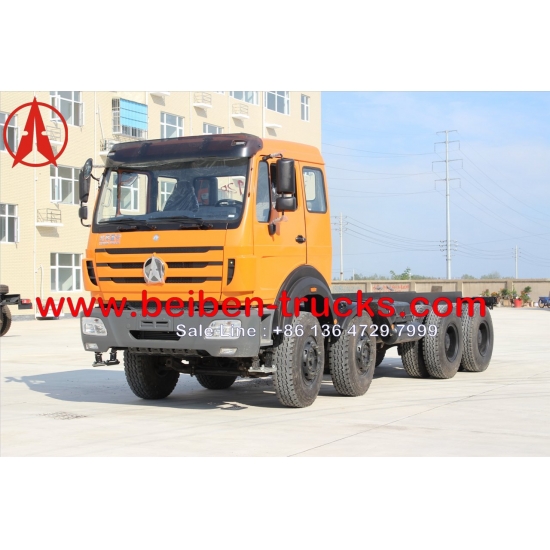

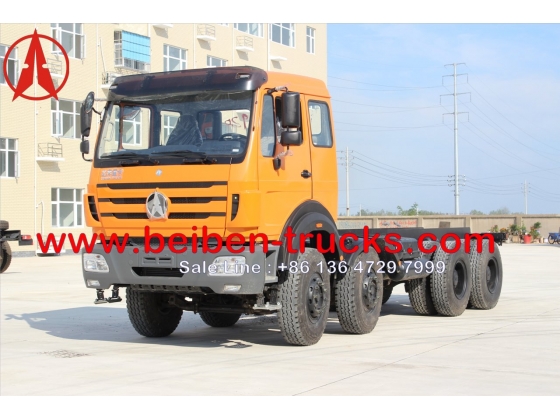

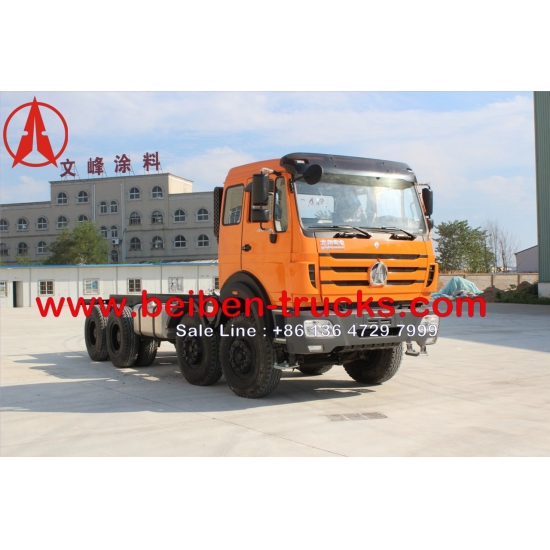

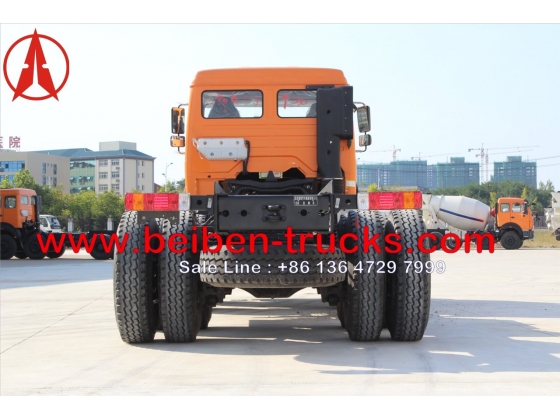

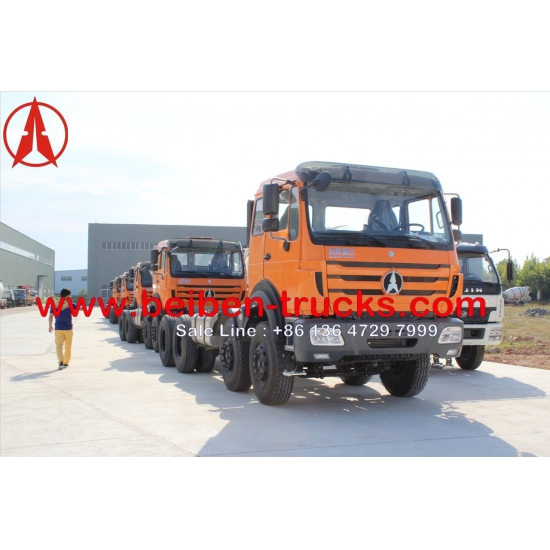

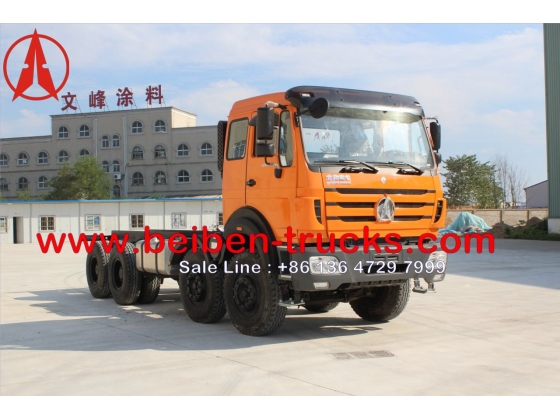

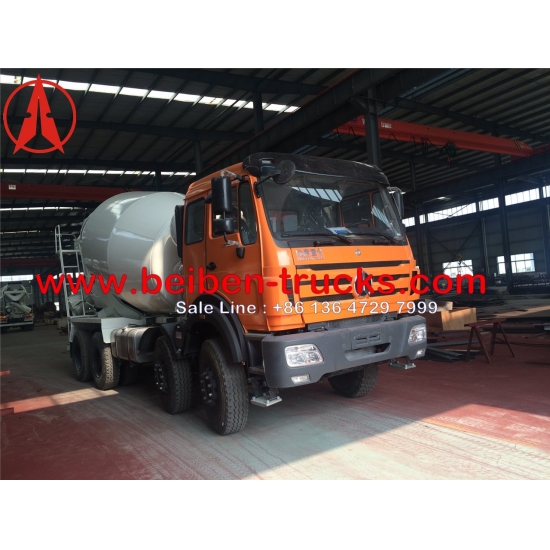

10 units beiben 3138 type concrete mixer truck chassis in our plant , preparing for mounting the beiben mixer truck drum .
