Beiben 4x4 off road truck is heavy duty vehicles with full wheel drive system. It is usually equipped with inter wheel differential lock on both front axle and rear axle, ensureing all wheel drive when it is in muddy road. Based on mercedes benz technology, Beiben 4x4 drive truck provide high torque at the wheels without low hanging differentials. Beiben 4 wheel drive truck is mainly used for deserts, mountains, jungles to carry specialized equippment like water tanker, fuel tankers, workshop body and other wildland equippments.
| Model | Engine | Front Axle / Rear axle | Wheelbase | Payload Capacity |
| 1929 (4x4) cargo truck | WP10.290E32/ 290HP | 7,000 Kgs / 13,000 Kgs | 4500 mm | 10 T |
| 1934 (4x4) water tank truck | WP10.340E32/ 340HP | 7,000 Kgs / 13,000 Kgs | 4800 mm | 10 T |
| 1638 (4x4) fuel truck | WP10.380E32/ 380HP | 7,000 Kgs / 13,000 Kgs | 4800 mm | 10000L |
| 1929 (4x4) vacuum truck | WP10.290E32/ 290HP | 7,000 Kgs / 13,000 Kgs | 4800 mm | 10000L |

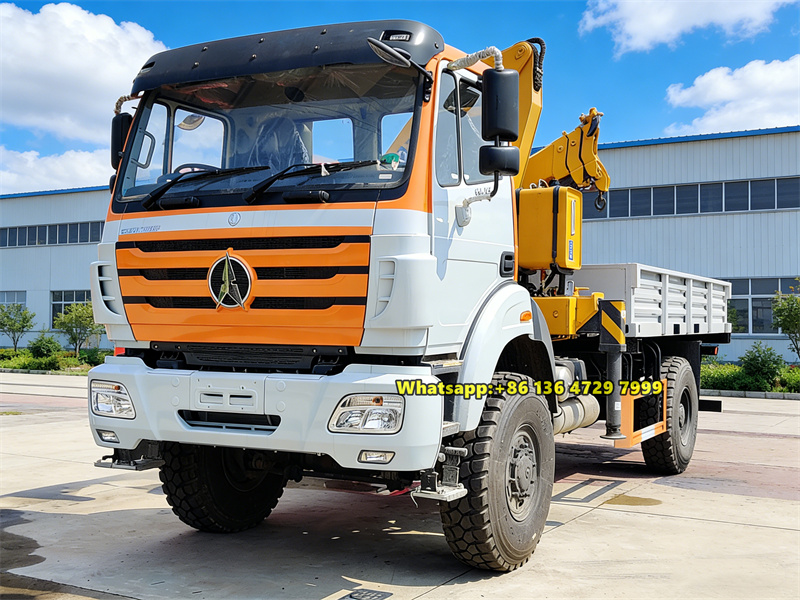

| 1929 (4x4) crane truck | WP10.290E32/ 290HP | 7,000 Kgs / 13,000 Kgs | 4800 mm | 8 T |
Normally Beiben 4x4 truck is with WEICHAI diesel WP10 engine, which is famous for low cost maintenance and high reliablity in remote area. The engine power can be 290HP, 340HP, 380HP. Thanks to the high-mounted bumper and fuel tank, together with 12.00R24 off‑road tyres, the Beiben 4x4 drive truck can climb in and out of steep ditches without scrapping.
IBeiben 4x4 carrier truck
Passenger transport for Beiben 1929 carrier truck
▶ Drive: NG80B Standard cabin ,with A/C
▶ Drive: 4X4 wheel
▶ Engine: WP10.290 290HP
▶ Gearbox: FAST 9-shift
▶ Capacity: 32 people
IBeiben 4x4 oil fuel truck
Mobile Refueling Beiben 1929 fuel truck
▶ Drive: NG80B Standard cabin with A/C
▶ Drive: 4X4 wheel
▶ Engine: WP10.290 290HP
▶ Gearbox: FAST 9-shift
▶ Capacity: 5,000 Liters - 10,000 Liters
IBeiben 4x4 water tanker truck
Water delivery of Beiben 1929 water trucks
▶ Drive: NG80B Standard cabin with sleeper
▶ Drive: 4X4 wheel
▶ Engine: WP10.290 290HP
▶ Gearbox: FAST 9-shift
▶ Capacity: 5,000 Liters - 10,000 Liters
IBeiben 4x4 drive truck application
The Beiben 4x4 off-road truck utilizes a mature Mercedes-Benz off-road chassis, and its four-wheel drive provides excellent off-road capability and the ability to navigate complex road conditions, making it suitable for harsh unpaved roads such as deserts, mud, and mountains. The vehicle is suitable for transporting personnel and supplies in the field, providing logistical support for field projects, emergency rescue and disaster relief, and delivering supplies to remote areas.
▶ Africa Terrain ( Congo,Senegal)
- Mainly in west africa, and east africa unpaved rural road and ming and agricultural regions
▶ Harsh Deserts (Sudan,Guinea)
- specially used for harsh desert and oilfield environments in north africa countries, like Sudan, guinea
▶ Muddy areas (Tanzania,kenya)
- With 450 mm high ground clearance , it can be easily applied in muddy road, flood zone
1. Front Axle ---- Mercedes benz technology
7 ton Mercedes-Benz-tech drive front axle with inter wheel differential lock. The ductile iron one piece housing delivers high strength and impact resistance for reliable steering and power transmission in tough off road conditions.
2. Truck Frame ---- Germany benz
Equal strength fish belly type frame welded of high strength variable section alloy steel with proven Mercedes Benz technology. Excellent bending and torsion resistance prevents deformation under heavy load bumpy off road driving.
3. Transfer Case ----- Military quality assurance
Mechanical full time 4WD system. High speed gear for highway & normal off road travel; low speed gear multiplies torque for steep slopes, mud and sand. Adjustable front rear torque distribution fits diverse off road scenarios.
4. NG80B Cabin ----- Daimler‑Benz technology
With NG80B cab inherited from Daimler‑Benz technology. Adopting a high‑strength metal frame plus steel‑skin structure, it features high rigidity and excellent impact‑resistance, delivering safety protection performance on par with European peer‑level vehicles and complying with European ECE R29 safety regulations.

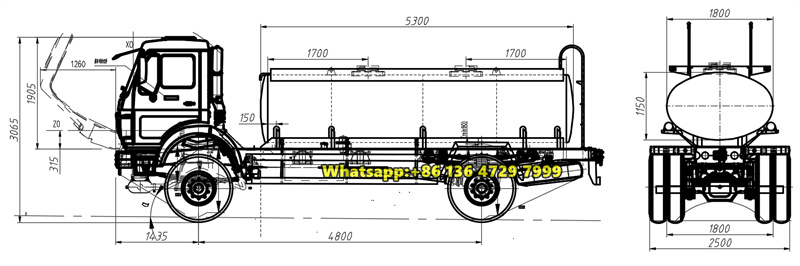

IBeiben 4x4 drive truck drawing
Beiben 4x4 drive truck can be customized in different special purpose trucks, we have more than 20 years experience engaged into beiben trucks upper body modification and production. 4500mm and 4800mm wheelbase are the most popular in the current market. Beiben 4x4 drive truck have series of 1929,1934,1938 cabin model.
Beiben 4x4 water truck
Beiben 4x4 fuel tanker
Beiben 4x4 vacuum truck
Beiben 4x4 military truck
Beiben 4x4 cargo truck
 |
 |
