Vechicle information list

Truck brand

North benz

Truck model

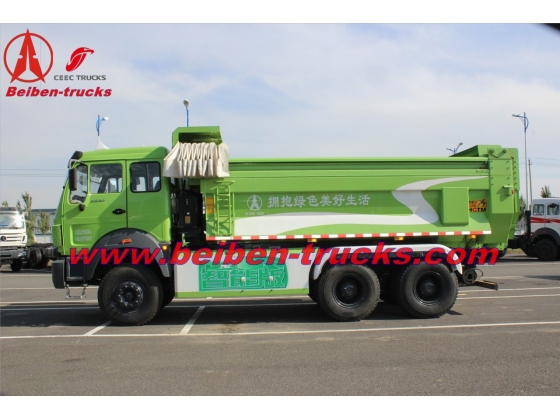

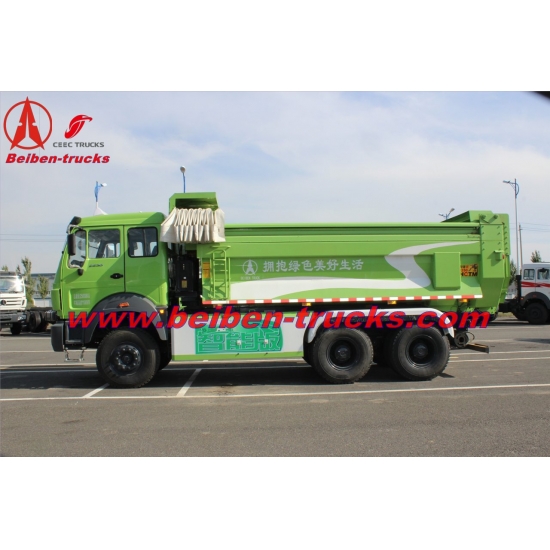

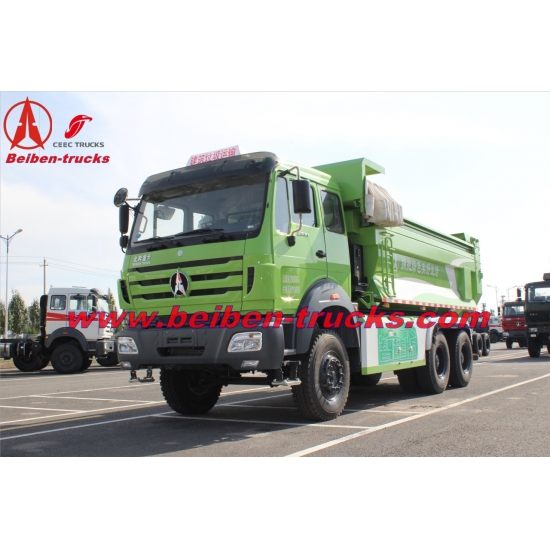

ND3253B38 dump truck

Total mass

25000

Rated mass

12700

Vechicle size

8250x2500x3690

Cyrb weight

12170

Box size

5600×2300×1150

Cabin seat

2

A/D angle

26/30

F/R hang

1410/1687

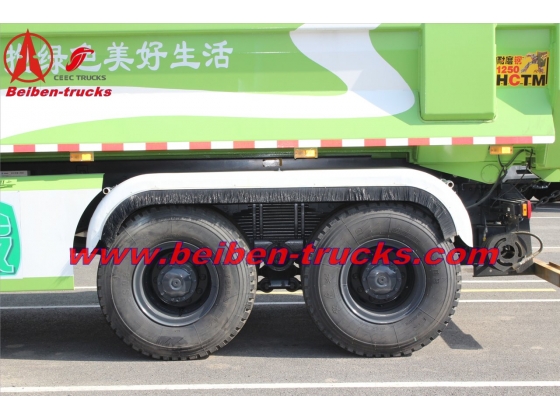

Axles

3

Wheel base

3800+1450

Axles loading

7000/18000(double rear axis )

Max speed

85

Dump body information

The 2638 dump truck .

The body size:5600x2300x1500mm

The body information : side thickness 10mm,the floor thickness 16mm,all steel use manganese steel.

side has 9pcs Vertical reinforcement support

5 Pcs Stringer plate.

Hayv tipping system .

Chassis information

Chassis model

ND1251B38

Tyre size

12.00-20 spare tyre

Tyre quantity

10

Leaf spring quantity

10/13

Front track

1995

Fuel type

Diesel

Rear track

1800/1800

Engine model

WP10.380E32

Water cooled

Inline

6-cylinder

4 stroke

Displacement/power

9726ml/213kw

Trasimission (gear box)

10-speed,high and low speed

Warranty

12months

Delivery time

20-30days

Price valid

3months
