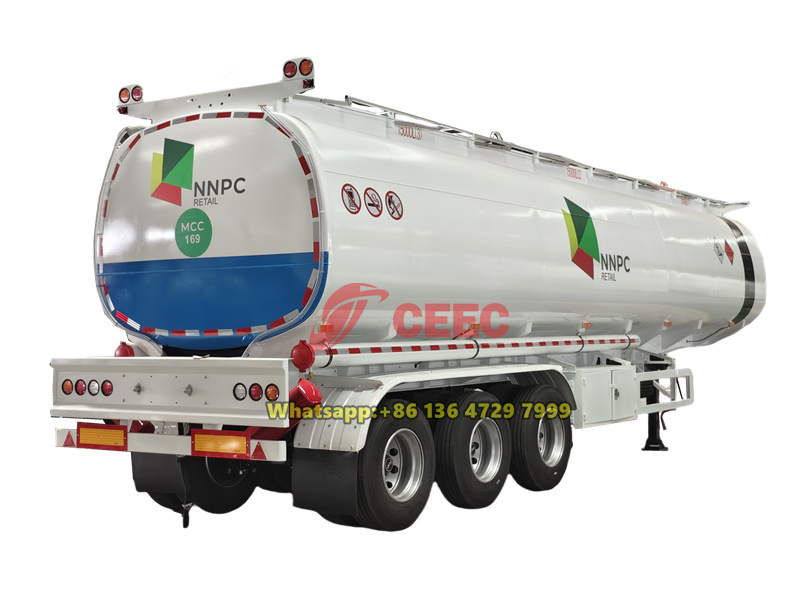

The tri-axle 45,000-liter tanker semi-trailer features a tank body made of Q235B carbon steel, divided into three independent compartments equipped with baffle plates, effectively ensuring transportation safety and stability. It is equipped with a Fuhua 13-ton axle, European-standard manholes, aluminum alloy breather valves, and anti-static grounding devices, making it an efficient and reliable solution for hazardous chemical transportation.
Working capcity:
45000 litersDimension ( mm ) :
12000×2500×3700Remark:
Stainless steel tank, aluminum alloy tank, BPM axles for option» Ⅰ.Product Defination and Introduction:
The fuel tanker semi-trailer is a specialized vehicle designed for transporting liquids such as fuel. This tri-axle 45,000-liter fuel tanker semi-trailer boasts a tank body constructed from Q235B carbon steel, divided into three independent 15,000-liter compartments capable of carrying different types of oil simultaneously. Each compartment is equipped with internal baffle plates to effectively suppress liquid sloshing during transit. The vehicle is fitted with robust components, including three 13-ton Fuwa axles, 12R22.5 tire sets, and a 28-ton JOST landing gear. Additional features such as an anti-slip walkway, European-standard manholes, aluminum alloy breather valves, and grounding devices ensure both transportation efficiency and comprehensive compliance with safety requirements for hazardous chemical transport.
CEEC factory is premium supplier of tanker semi-trailers,
guarantee all fuel tanker semi-trailers Brand-New and High-Quality.
» Ⅱ. Product Specifications:
|
45000 Liters Fuel Tanker semi-trailer specifications |
|||
|
1 |
Medium |
Petrol/diesel/oil |
|
|
2 |
Overall dimensions |
12000*2500*3700mm |
|
|
3 |
Curb weight |
9500kg |
|
|
4 |
The height of fifth wheel |
1350mm |
|
|
5 |
Axle |
13T FUWA Brand with ABS, 3 pcs |
|
|
6 |
Tire |
12R22.5 & 12 units, Triangle Brand |
|
|
7 |
Rim |
9.00 & 12 units, high strength iron |
|
|
8 |
King pin |
50#(2") or 90# (3.5") standard bolted type |
|
|
9 |
Landing gear |
28T, Jost Brand |
|
|
10 |
Suspension |
Leaf spring, 16mm*90mm*10pcs |
|
|
Tank body specification |
|||
|
11 |
Tank shape |
Square round and goose neck design |
|
|
12 |
Tank capacity |
45,000 liters |
|
|
13 |
Tank material |
Q235B carbon steel |
|
|
14 |
Tank thickness |
End cover |
5.5 mm |
|
Tank body |
5 mm |
||
|
Baffle |
5 mm |
||
|
Main parts specifications |
|||
|
15 |
Beam |
Heavy duty and extra durability designed T-type beam, opting for high tensile steel Q345, welded by automatic submerged-arc processes |
|
|
16 |
Compartment |
3 units, 15,000L+15,000L+15,000L for each compartment |
|
|
17 |
Manhole cover |
Aluminum alloy, European standard, 3 units |
|
|
18 |
Bottom valve |
4" aluminum alloy, 3 units |
|
|
19 |
Discharging valve |
4" API aluminum alloy, 3 units |
|
|
20 |
Discharging hose |
6 meters, 2 units |
|
|
21 |
Discharging hose |
5.7 meters, 2 units |
|
|
22 |
Handrail |
2 units on the top |
|
|
23 |
Walkway platform |
On the top with anti-slip punched design |
|
|
24 |
Ladder |
1 unit, on the rear or front |
|
|
25 |
Breath valve |
Aluminum alloy, 3 units |
|
|
26 |
Spare tire Carrier |
2 units |
|
|
27 |
Mud guard plate |
Integrated design plate |
|
|
28 |
Reverse buzzer |
1 unit |
|
|
29 |
Electric system |
24V, 7-pin socket |
|
|
30 |
Lights |
LED lights with protection |
|
|
31 |
Painting |
Painting as customer's requirements |
|
|
Other equipment |
|||
|
1.Single toolbox, carbon steel, aluminum alloy is optional |
|||
» Ⅲ. Product Features:

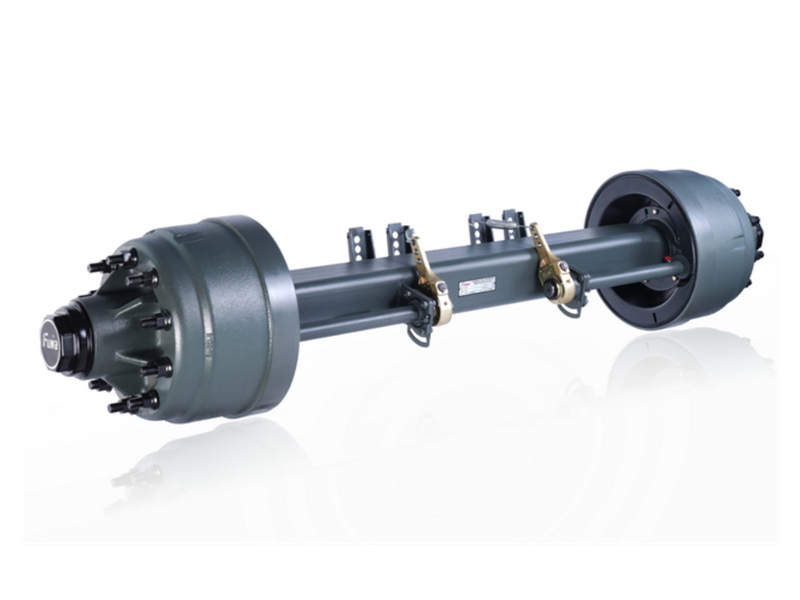

Fuwa 13-Ton Axle:
1. Specially treated one-piece high-quality low-alloy steel axle tube provides strong load-bearing capacity, long service life, light weight, and excellent performance.
2. "P" type integral straight or tapered axle head; the bearing journal is induction hardened for strong fatigue resistance.
3. High-precision machining of the braking system ensures more stable braking performance.
4. "Q" type heavy-duty brake, equipped with powerful return springs.
5. Utilizes high-performance non-asbestos brake linings, offering excellent braking performance and long wear life.

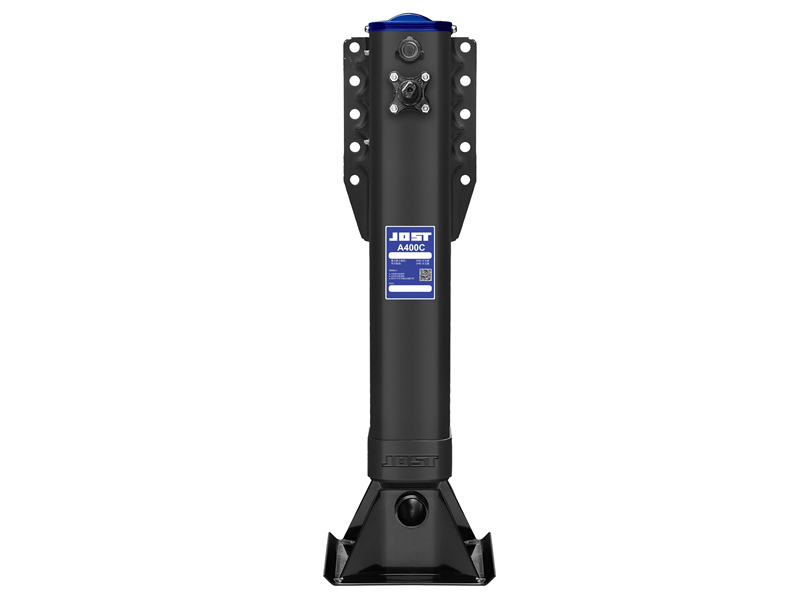

JOST Landing gear
Model: A400
Static Load Capacity: 80t
Lifting Capacity: 28t
High/Low Gear: 5.66mm / 0.60mm per revolution
Optional Support Feet: T / A / G / S
Optional Stroke: 14" / 17" / 19" / 21" (355mm / 430mm / 480mm / 533mm)

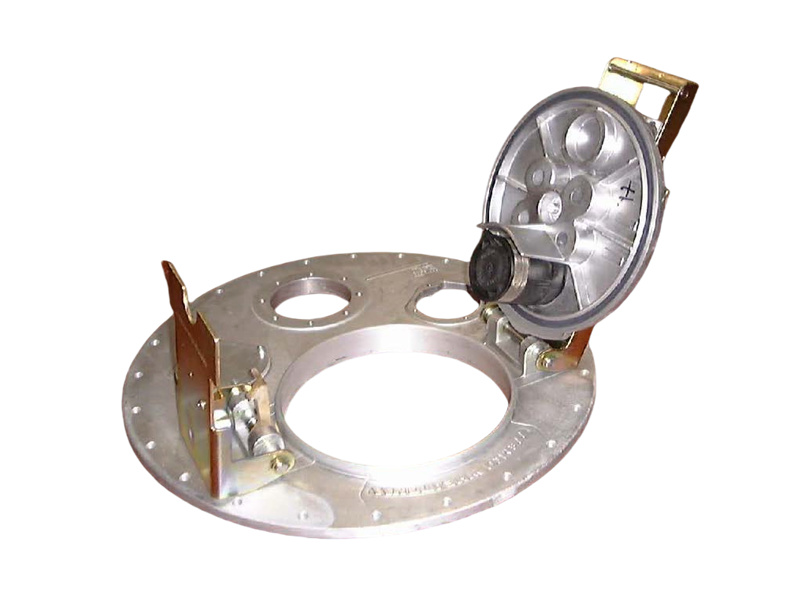

European standard manhole cover
Emergency Opening Pressure: 21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate: 7000 m³/h (at 34 kPa)
Material: Aluminum Alloy
Installation Method: Clamp-type
Temperature Range: -20℃ ~ +70℃

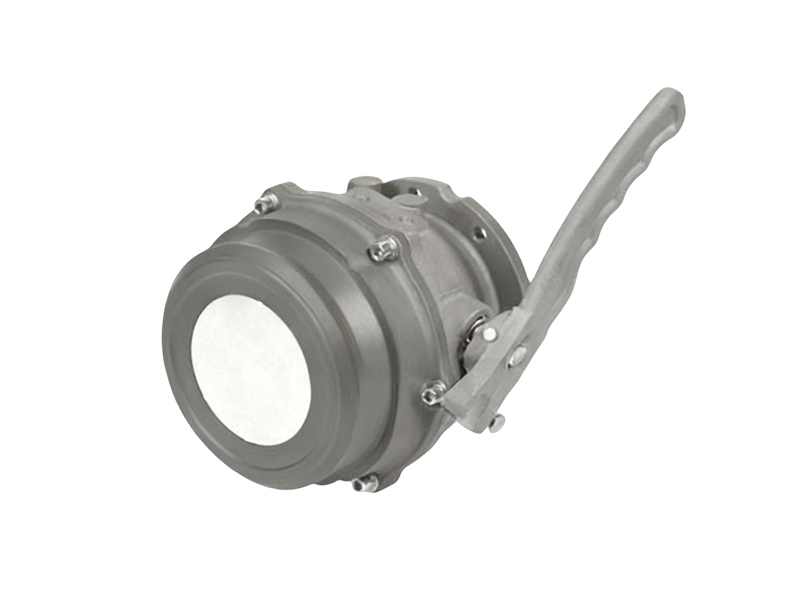

API Adaptor Valve
• Nominal Pressure: 0.6 MPa
• Maximum Flow Rate: 2500 L/min
• Main Body Material: Aluminum Alloy
• Operation Mode: Manual
• Design Temperature: -20℃ ~ +70℃

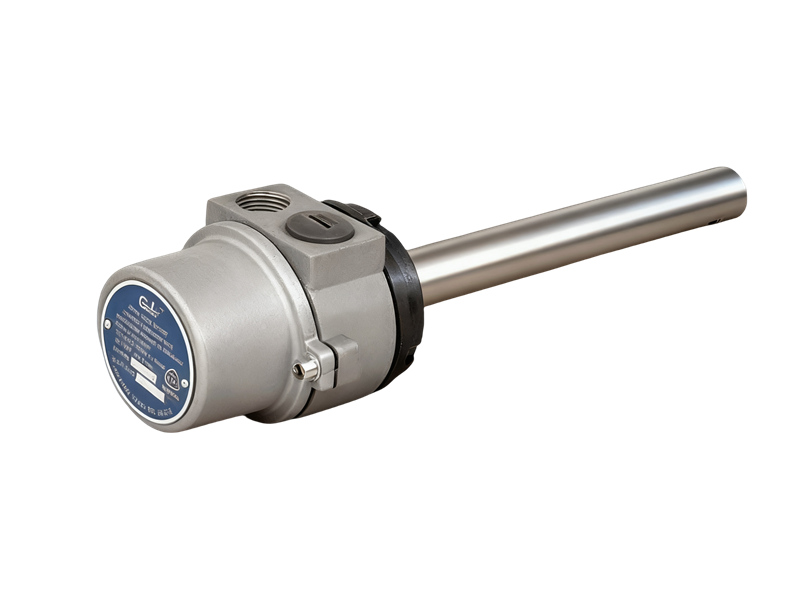

Overflow Prevention Probe
• Operating Voltage: 12 VDC
• Explosion-Proof Rating: Exia IIB T4
• Response Time: < 1 s
• Design Temperature: -40 ℃ ~ +60 ℃
• Operating Current: < 5 mA
• Operating Medium: Light fuel oil

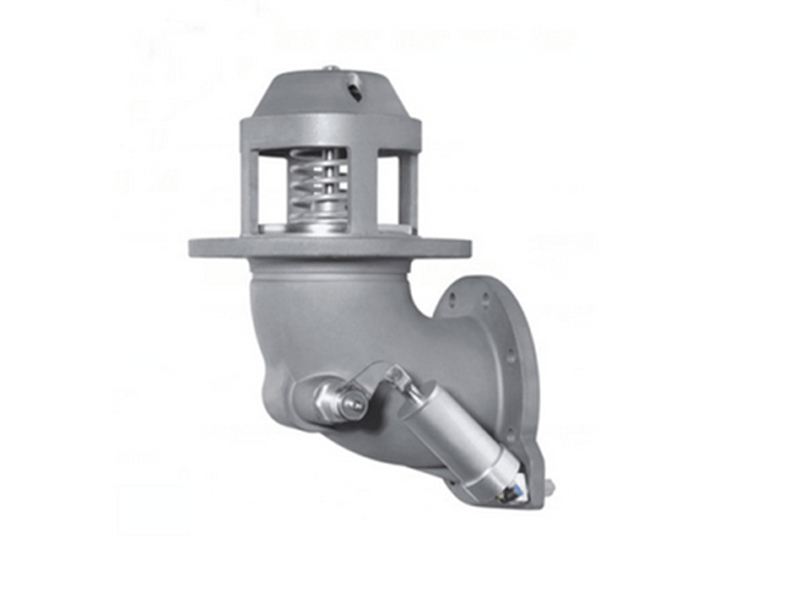

Pneumatic Emergency Shut-off Valve
• Nominal Pressure: 0.6 MPa
• Material: Aluminum Alloy
• Operation Mode: Pneumatic
• Temperature Range: -20℃ ~ +70℃
» Ⅳ. Product Details:
» Ⅴ. Product Structure:

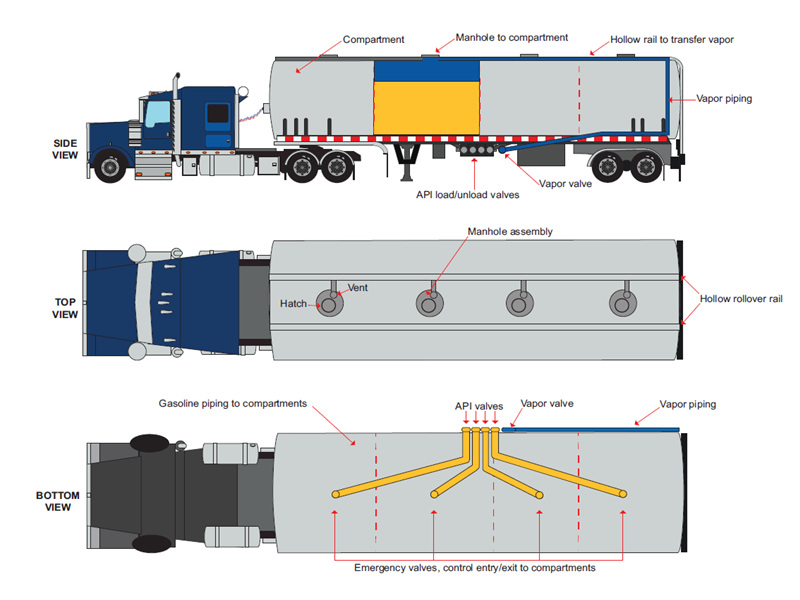

Fuel tanker semi-trailer structure

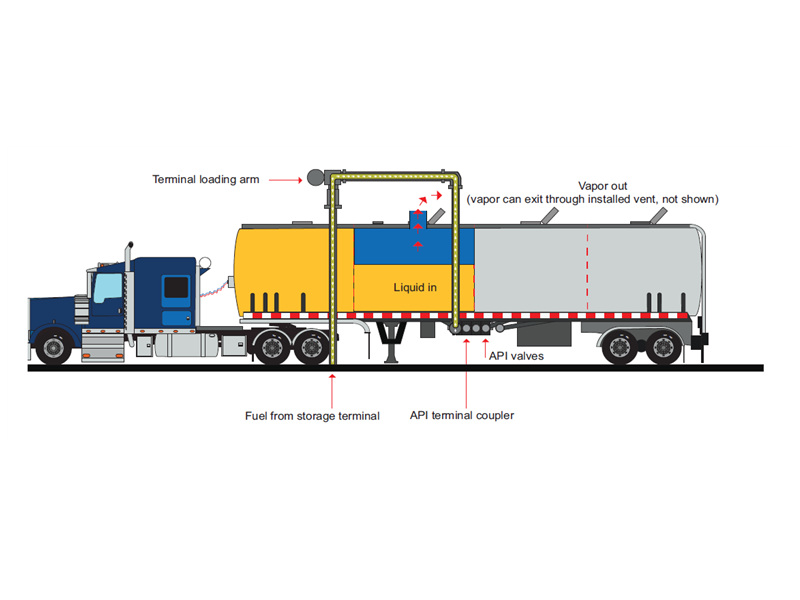

Bottom-loading system

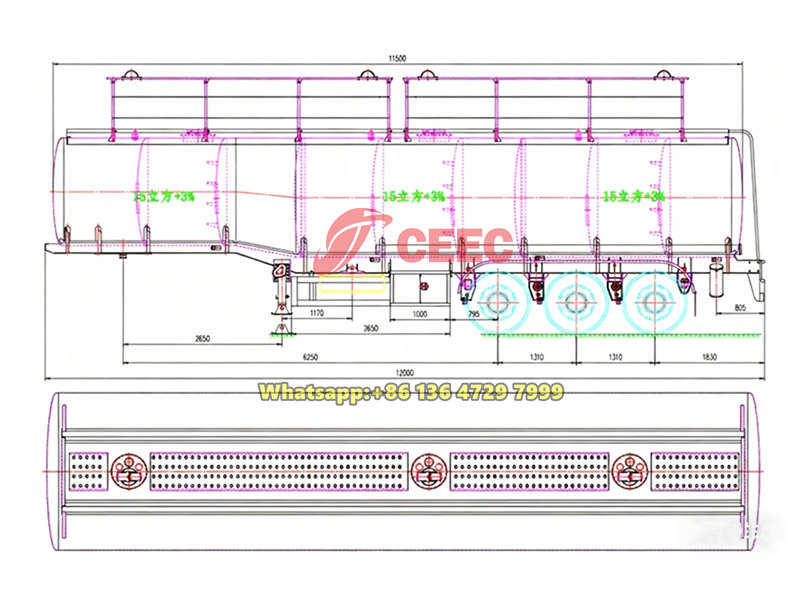

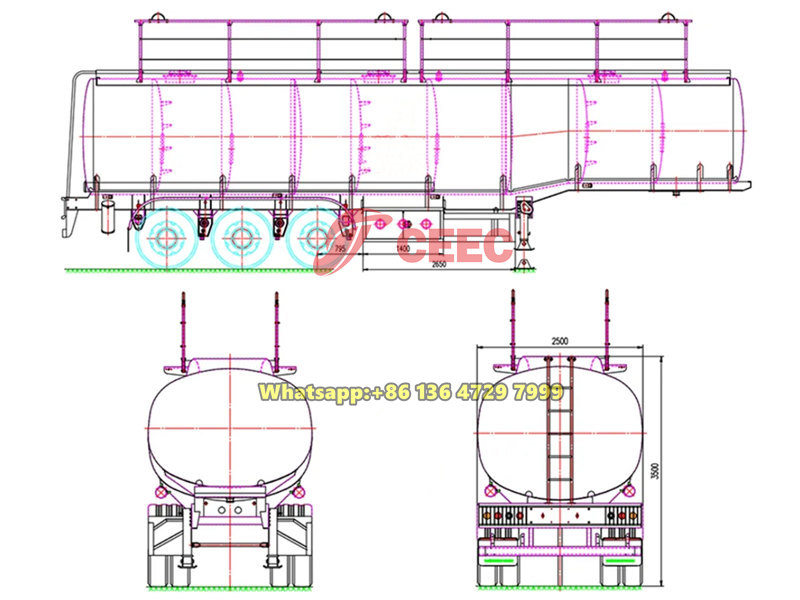

» Ⅵ. Product Drawing:

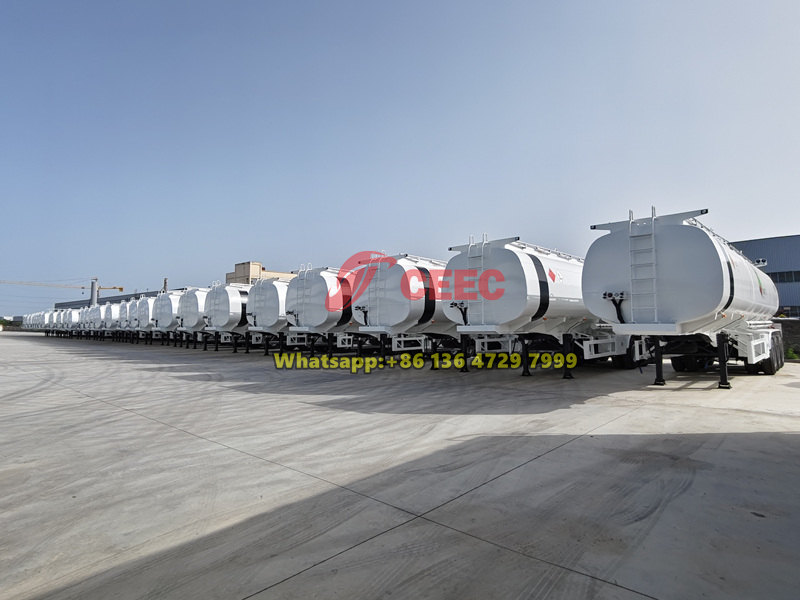

» Ⅶ. Batch delivery of Feul Tanker Semi-trailers:
Products--100% china tanker trailer factory!
Shipping --100% fast, Convenience, Efficient!
1. Customized 2 axles, 3 axles, 4 axles tanker semi-trailers
2. Carbon steel, stainless steel, aluminum alloy tank body for option
3.Factory bottom price, strict quality control
4. Fast delivery, common models can be supplied within 15 days.
Fuel tanks semi trailer is designed to carry any liquid oil items like fuel, crude oil, cooking oil, petrol, water, diesel and so on. china best flammable fuel tanker semitrailer manufacturer, can supply kinds of oil fuel tanker semitrailer for all foreign customers. We have different Tanker Trailer capacity starts from 30,000 Liter to 70,000 Liter capacity
Fuel Tanker Semi Trailers , 45000 Litres 5 compartments Diesel Fuel Oil Tanker Trailers As the Professional Fuel tanker semi trailer manufacturer, we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country.
As the Professional Fuel tanker semi trailer manufacturer, we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country. We are china best factory of petroleum tanker semitrailer manufacturer, can produce kind of oil tanker semitrailer, fuel tanker semitrailer and other fuel tanker semtirailers.
Oil Tanker Crude Oil Tank Trailer Fuel/petroleum 45000l Steel Fuel Tanker Semi Trailer Tri-axle Fuel tanker semi trailers are desinged to carry any liquid items like fuel, Petrol,Cooking Oil,water, diesel Jet A1 and else. We have different Tanker Trailers opportunity starts from 30.000 Liters to 60.000 liter capacity. with 1 to 10 compartments 1.We Exported Zimbabwe more Aluminium Tank trailer . and this country weight limit serious ,So only Aluminium Tank satisfied the request ; 2.Like Zimbia ,Rwanda ,Tanzania and so on , Other country have rough road condition , So we can provide Thicken Mechnical Suspension for these country; 3.The folding arm rest can be design hydraulic ,It's convenient for your operate ; 4.Axles brand can be choose by yourself ,Like BPW/FUWA/L1/FD Brand
Tri-axle Fuel tanker semi trailers are desinged to carry any liquid items like fuel, Petrol,Cooking Oil,water, diesel Jet A1 and else. We have different Tanker Trailers opportunity starts from 30.000 Liters to 60.000 liter capacity. with 1 to 10 compartments. CEEC factoryTrailer gives its customers wide range of Tanker Trailers assortment and find the best solution according to customer road regulations. All of our oil tanker semitrailer have long guarantee more than 12 months.
Premium 12 Wheeler 50000 Liters Oil/Fuel Tank Trailer ,can exporting best quality oil tanker semitrailer for africa customer , supply 30 T, 40 T, 50 T, 60T fuel wagon semitrailer , all of our oil wagon semitrailer can comply with ADR, DOT standard.
Premium africa fuel tanker semitrailer manufacturer,can exporting best quality oil tanker semitrailer for africa customer , supply 30 T, 40 T, 50 T, 60T fuel wagon semitrailer , all of our oil wagon semitrailer can comply with ADR, DOT standard.
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material 2 or 3 axles, BPW/FUWA/HUAJING brand JOST (D200T ) or CHINA BRAND 28T
Tri axle oil tanker trailers 50000 liters fuel tank semi trailer gasoline transport tank trailer,Fuel Tanker semi trailers optional: 36cbm fuel tank trailer, 38cbm oil tank trailer, 40m3 diesel tank trailer, 45cbm liquid tanker truck trailer, 48cbm crude tanker semi trailer, 50,000liters fuel tank trailer, 55,000 liters oil tanker truck trailer, 60,000 liters tank truck trailer
