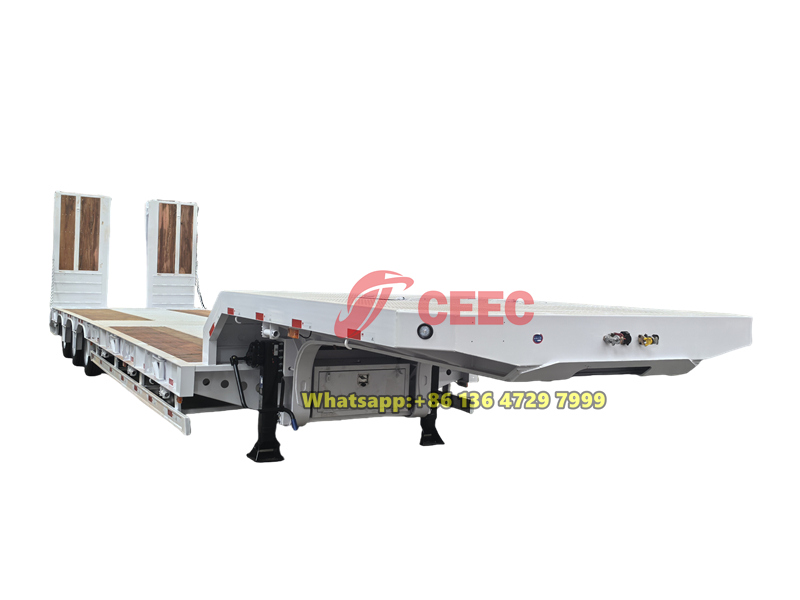

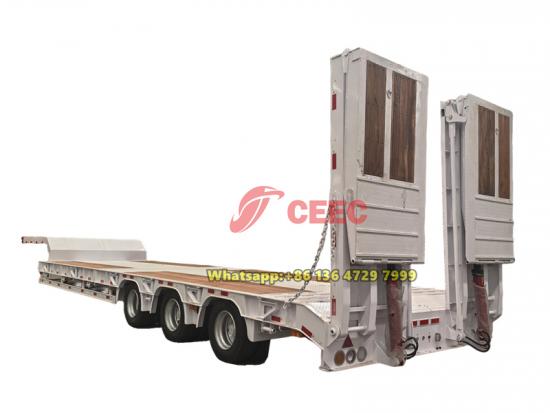

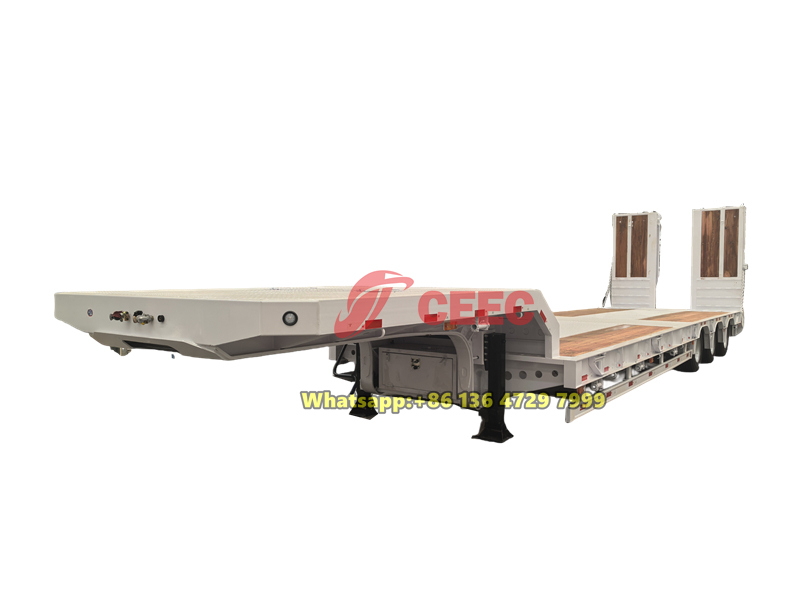

The 3-axle 45-ton low-bed semi-trailer is specifically designed for heavy equipment transportation. Its low-profile deck structure and hydraulic ramps facilitate easy loading and unloading. The chassis, constructed from high-strength steel, ensures a load capacity of 45 tons. Equipped with three 13-ton self-steering axles and an air suspension system, it provides excellent driving stability and safety, making it an ideal choice for transporting engineering machinery.
Working capcity:
45 tonDimension ( mm ) :
14100×3000×3410Remark:
Rim and tire size is optiona, BPM axles for option, JOST landing gear available» Ⅰ.Product Defination and Introduction:
Low-bed semi-trailers are specialized vehicles designed for transporting large, heavy, or irregularly shaped cargo. Their core feature is a low-profile deck structure, which greatly facilitates the loading and securing of oversized equipment. This 3-axle 45-ton low-bed semi-trailer fully embodies this design philosophy. Its main chassis is built with 500mm-high Q355 heavy-duty I-beams, welded using automatic submerged arc welding technology. Key structural parts utilize 18mm thick steel plates, ensuring exceptional structural strength and load-bearing capacity.
The trailer is equipped with three 13-ton self-steering axles and an air suspension system, which not only enhances driving stability but also allows the front axle to be lifted when the vehicle is unloaded, reducing tire wear. Combined with the WABCO braking system and 12 tires, it provides reliable safety assurance for heavy-duty transportation. The rear hydraulic ramp enables easy loading and unloading of engineering machinery, while the 3000mm wide bed makes it an ideal solution for transporting engineering equipment and large machinery.
CEEC factory is premium supplier of low-bed semi-trailers,
guarantee all fuel tanker semi-trailers Brand-New and High-Quality.
» Ⅱ. Product Specifications:
|
Product Name |
Lowbed semi-trailer |
|
Loading Capacity |
45 tons |
|
Dimensions (LxWxH) |
14100×3000×3410mm |
|
Groos vehicle weight |
50060 kg |
|
Tare weight |
10060 kg |
|
Rims |
6.75-17.5, 12pcs |
|
Tires |
245/70R17.5, 12 pcs |
|
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
|
Main Beam & Chassis |
Height 500mm, upper wing plate 16mm), lower wing plate 18 (mm), middle plate 10 (mm), material Q355 heavy-duty durable I-beam, welded by automatic Submerged-Arc processes |
|
Axles |
13-ton self-steering axles, 3 units |
|
Suspension |
Air suspension with front axle lifting |
|
Brake |
WABCO EBS |
|
Kingpin |
50#, JOST brand |
|
Landing Gear |
28 Tons, FUWA telescopic, manual operation |
|

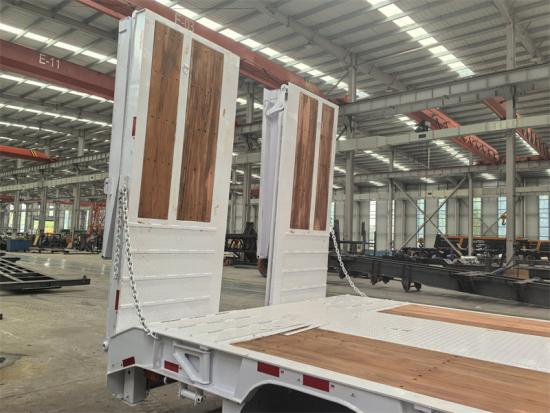

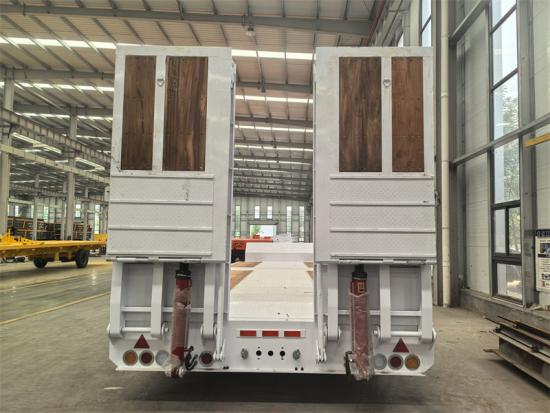

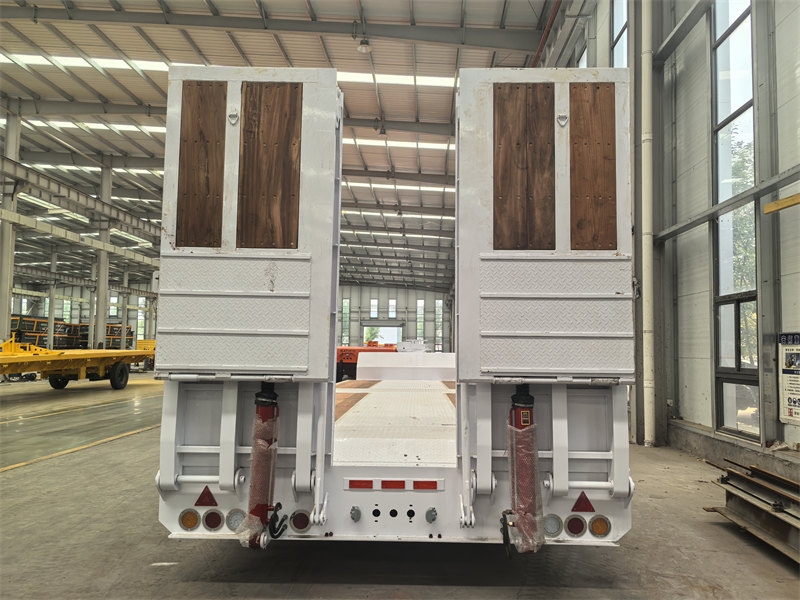

Ramps |

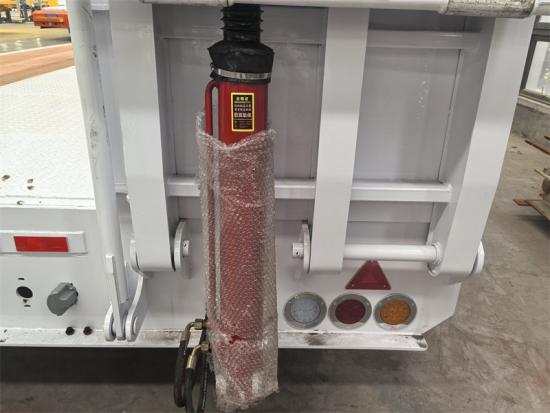

Hydraulic ramps, Hydraulic System, Wood Type Ramp Floor |
|
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
|
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Painting |
The entire low bed sprayed with antirust and epoxy painting |
|
Tool Box |
One tool box with a set of standard trailer tools |
|
Spare Tyre Carrier |
One piece |
» Ⅲ. Product Features:

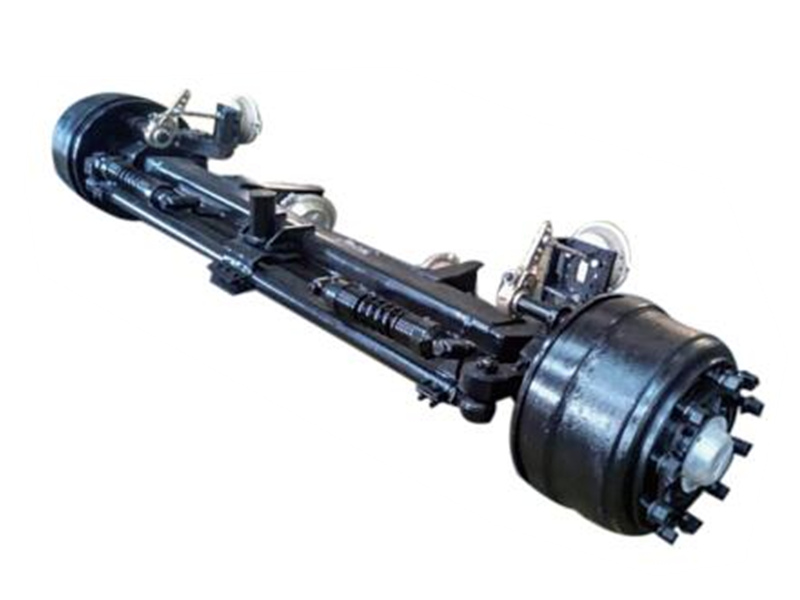

13-Ton Self-steering Axle:
Rated load: 13,000 kg
Wheel track: 2,570 mm
Brake size: φ420 × 180
Turning angle: 18°

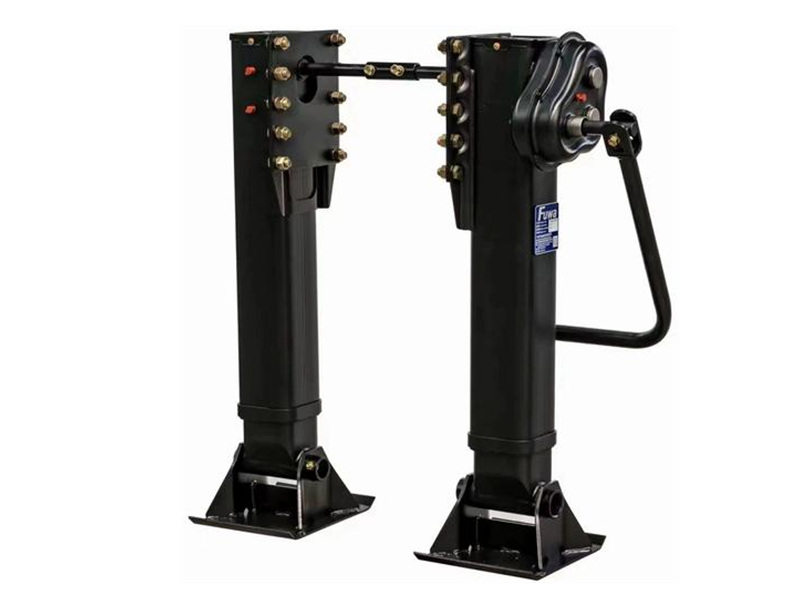

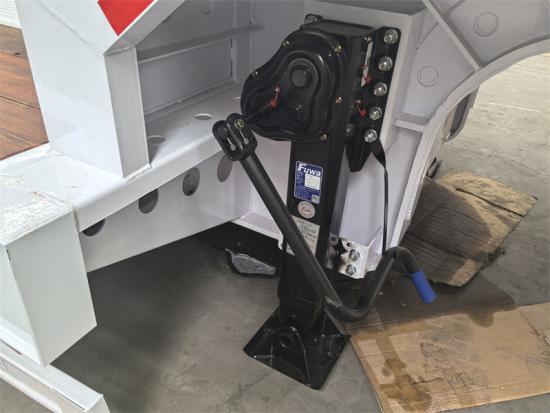

FUWA Landing gear
Model: FW28
Static Load Capacity: 80t
Lifting Capacity: 28t

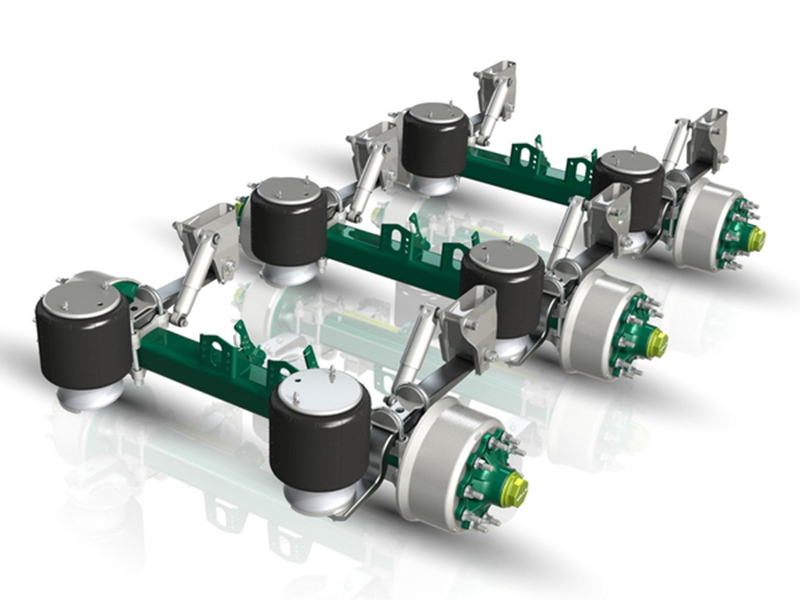

Air Suspension System
● Effectively absorbs vibrations generated during vehicle operation, safeguarding transported goods. Particularly suitable for vehicles carrying precision instruments and hazardous chemicals. The vehicle height is adjustable to meet the requirements of various loading platforms, facilitating cargo handling.
● Ensures even load distribution across all axles, promoting balanced tire-to-road contact. This enhances the vehicle's overall braking performance and stability during turns.
● Effectively protects the frame, axles, tires, and other components, reducing part wear and lowering vehicle maintenance costs.

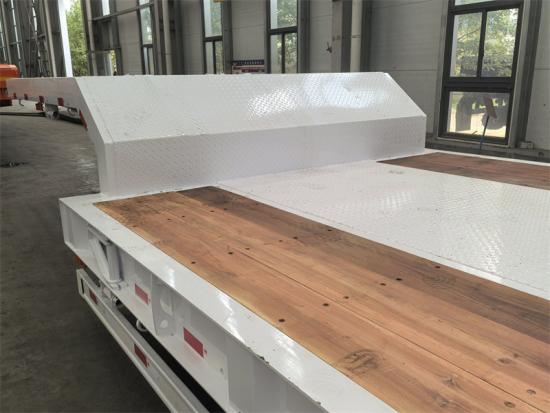

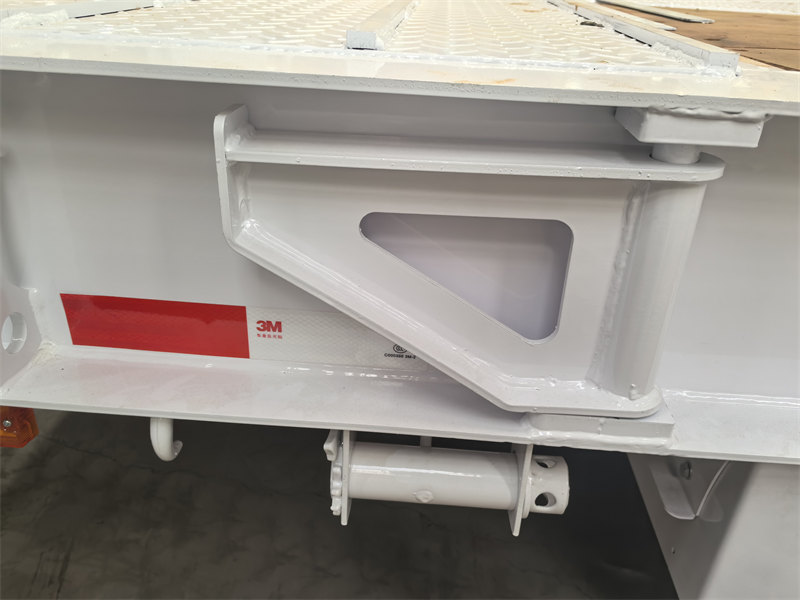

» Ⅳ. Product Details:

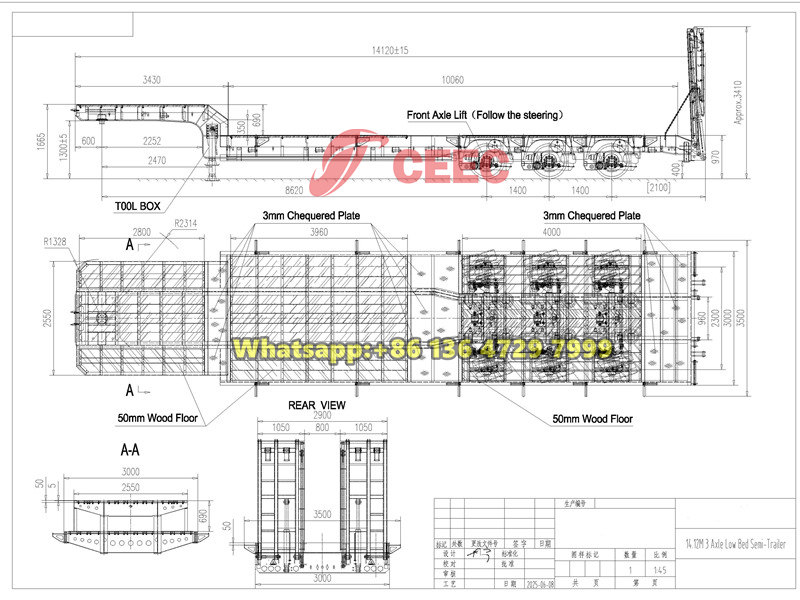

» Ⅴ. Product Drawing:
