Beiben 2643 trailer tractor truck with V3 cabin, 460 hp diesel strong engine , Good performance and more convenient, China beiben latest V3 cabin , with double bed inside , easily maintenance and repair, mercedes benz 7.5 T front axle and mercedes benz 13 T double rear axle,3450+1450 mm, 12.00R20 tyre.
Order(MOQ):
1Weight:
12000Working Capcity:
40 tonsCabin Type:
Beiben V3 cabinDimension ( mm ) :
7240×2500×3600Drive System:
6×4Wheelbase (mm):
3450+1450Engine Power:
460HP/WP12.460NGear Box:
12JS200TRemark:
6×6, RHD is optional
Applications:
Beiben prime mover chassis with V3 cabin, also called as beiben 2646 prime mover, Beiben 2646 towing head, beiben 2646 trailer tractor, beiben 2646 cabin tractor truck.
This beiben tractor truck is equipped with V3 long cabin, with 4450+1450 mm wheelbase , germany benz technology NG80B cabin .
The cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- Germany benz V3 cabin, safety and convenience
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- ZF8098 steering system
---- extremely heavy duty suspension, maximum payload 80 ton
---- Military Germany mercedes benz technology axle.
Specifications:
|
Dimension |
7240*2500*3600mm |
|
|
Approaching angle/Departure angle |
16/60° |
|
|
Overhang(front/rear) |
1515/825mm |
|
|
Wheel base |
3450+1450mm |
|
|
Max speed |
110km/h |
|
|
Curb weight |
8800kg |
|
|
Max towing weight |
40000kg |
|
|
Max loading on fifth wheel, Permitted(kg) |
16070kg |
|
|
Slope climbing capability |
Max.40% |
|
|

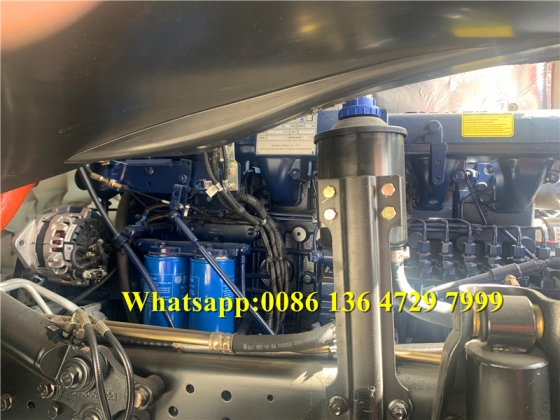

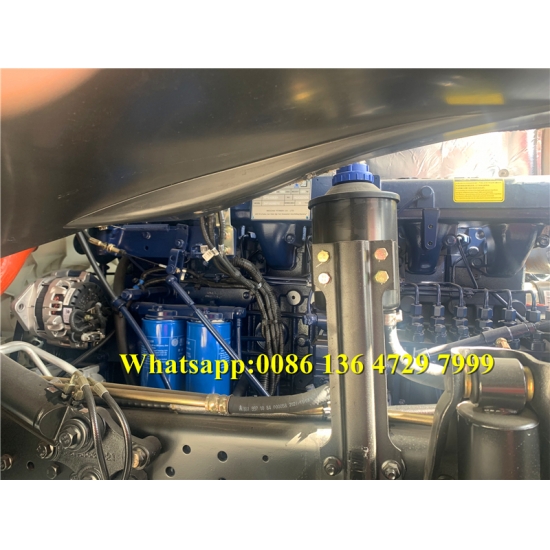

Engine |
Model |
WP12.460N，water-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU Common Rail |
|
Displacement |
11.596L/Diesel |
|
|
Stroke |
126/155mm |
|
|
Max. power |
338/1900 (kw/rpm) |
|
|
Max.torque |
2110/1000-1400（Nm/rpm） |
|
|
Emission stantard |
EuroIII |
|
|
Fuel tanker capacity |
400L |
|
|
Clutch |
∮430, Single dry frictional disc，Hydraulic boosting |
|
|
Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 |
|
|

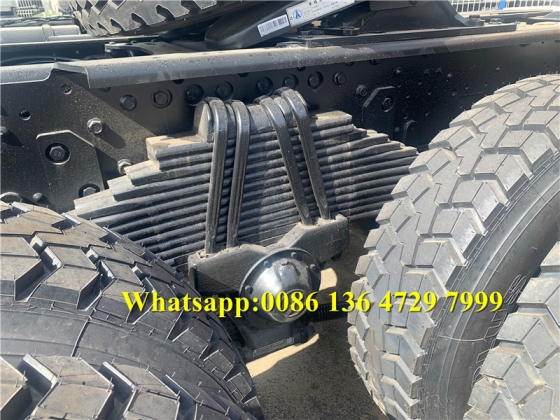

Suspension system |
Front |

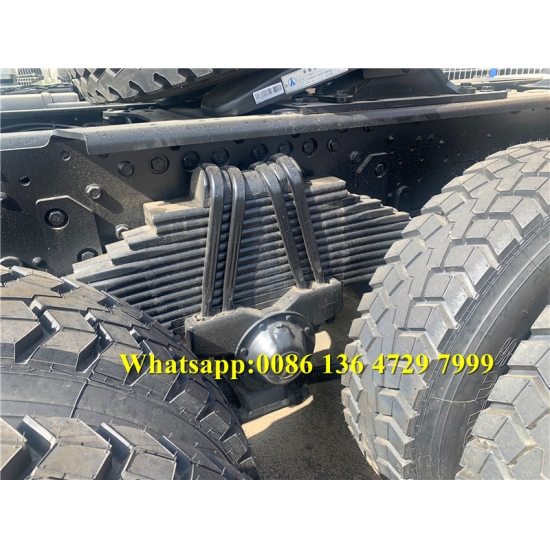

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |
|

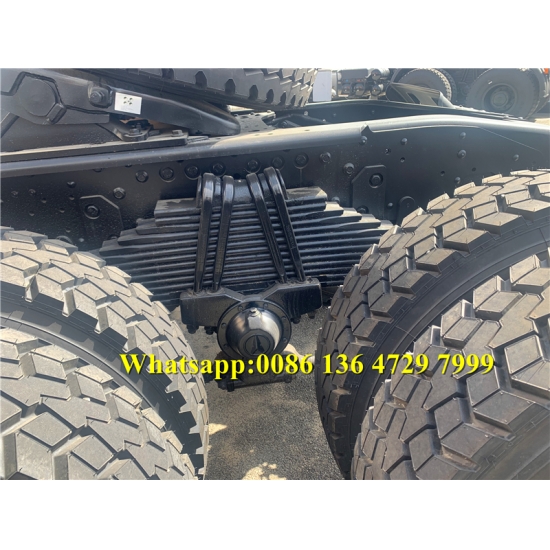

Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
TAS85,whole circulation in ball, hydraulic booster |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
The Fifth wheel |
Model |
JOST ∮90 single direction |
|
Height of fifth wheel(mm) (unload) |
1410 |
|
|
Radius of front gap (mm) |
2300 |
|
|
Radius of rear slew (mm) |
2600 |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|

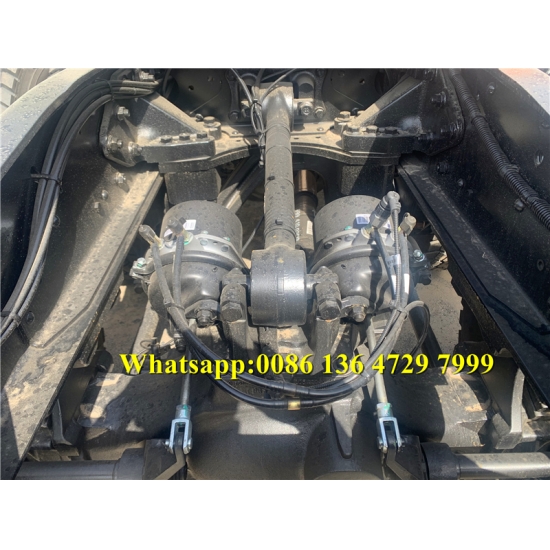

Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|

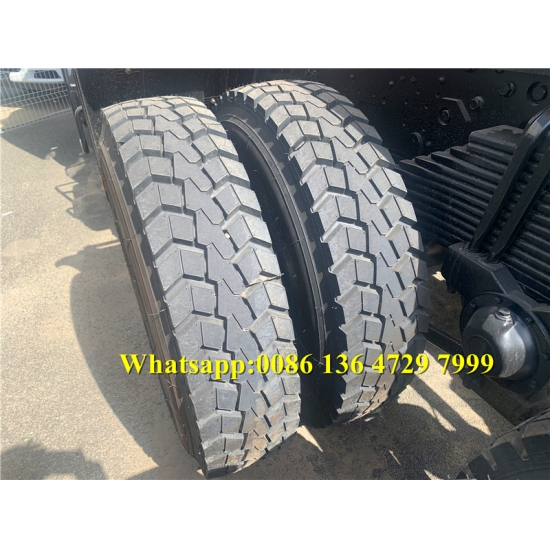

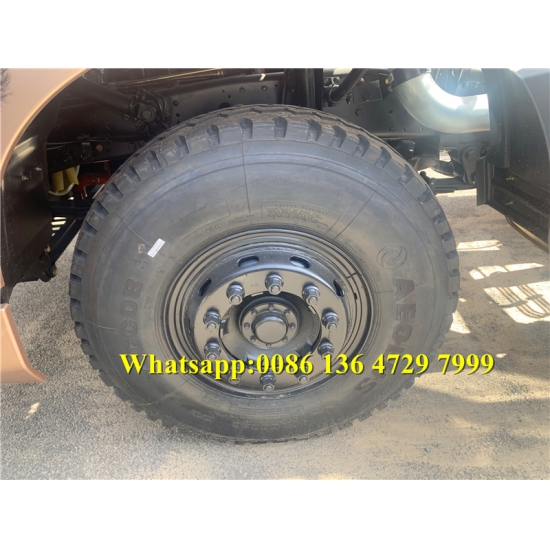

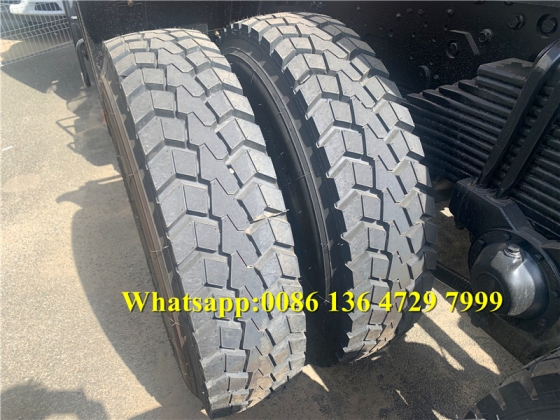

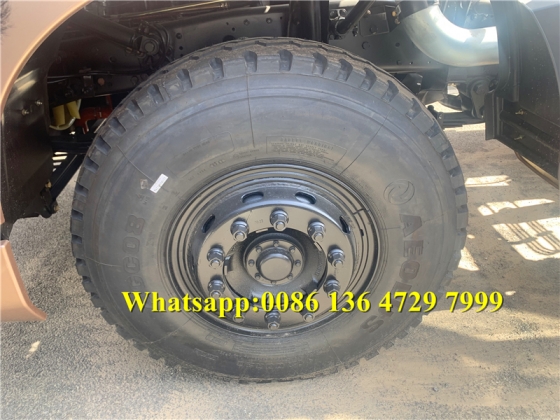

Tyre |
12.00-R20 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
V3 Long-high roof cabin with double sleepers |
|

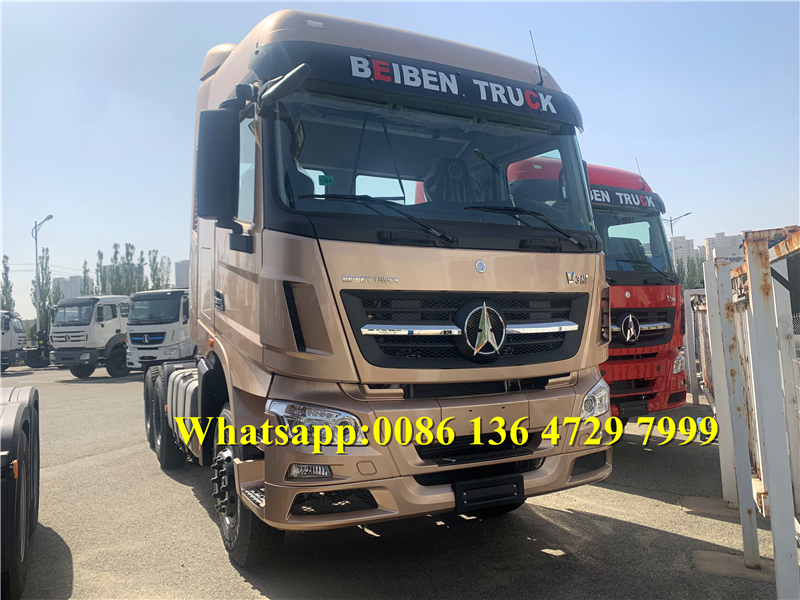

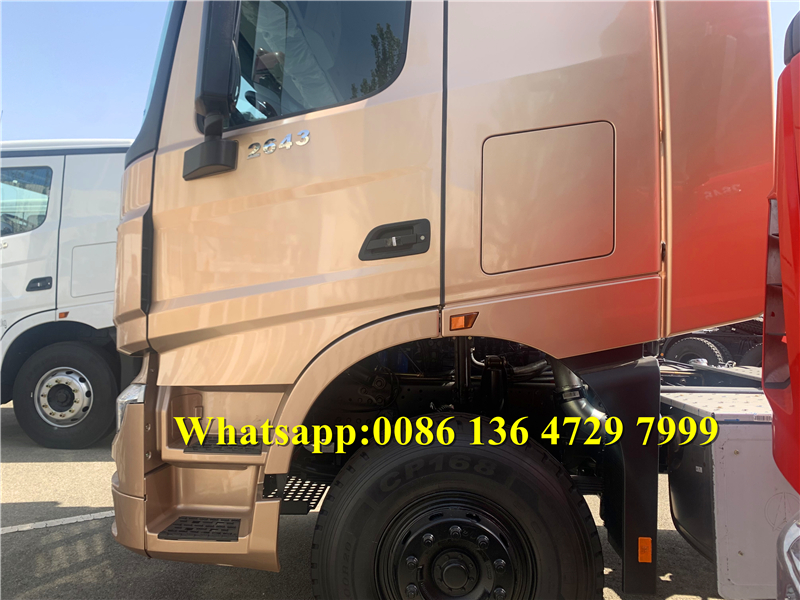

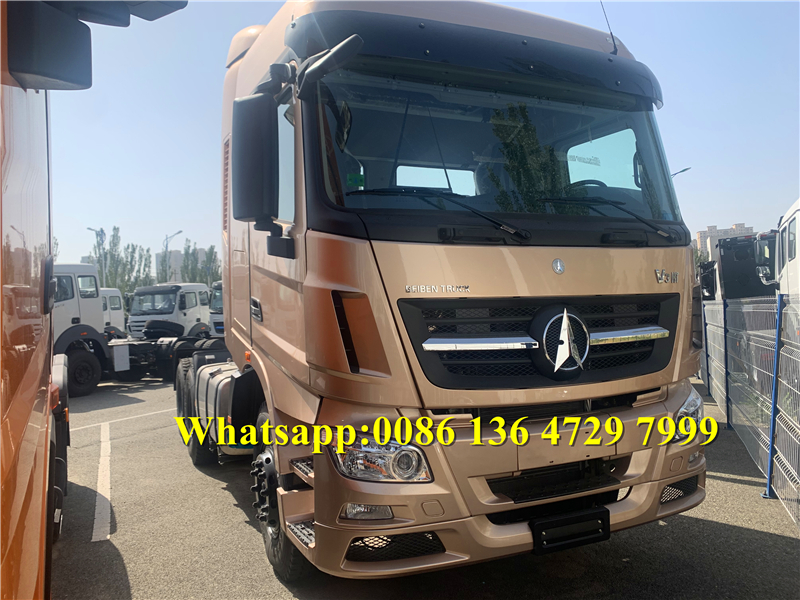

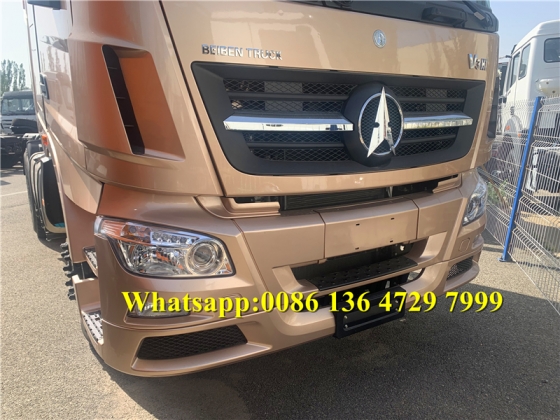

Beiben V3 cabin truck, with sleeper bed .

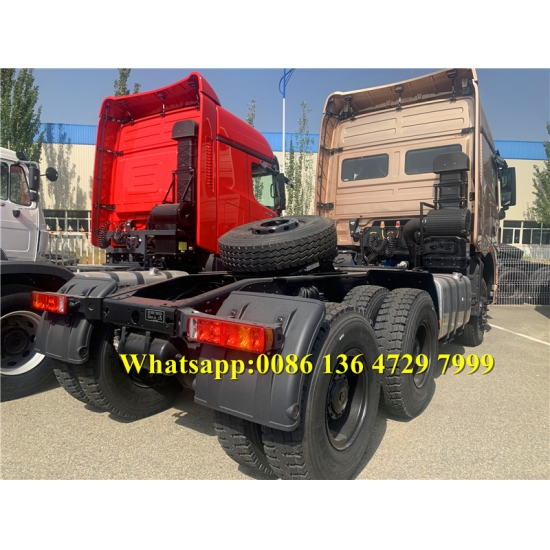

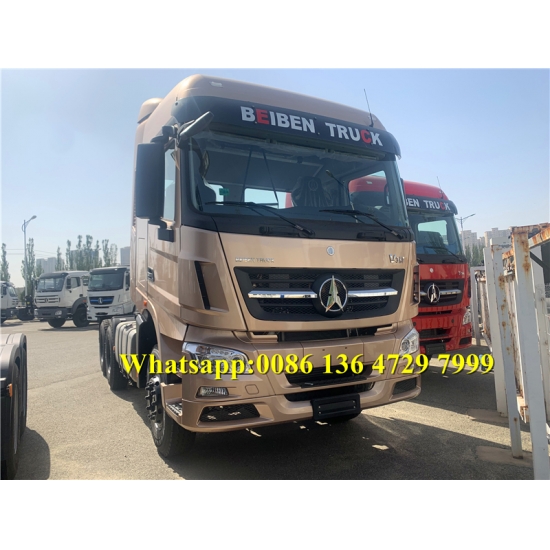

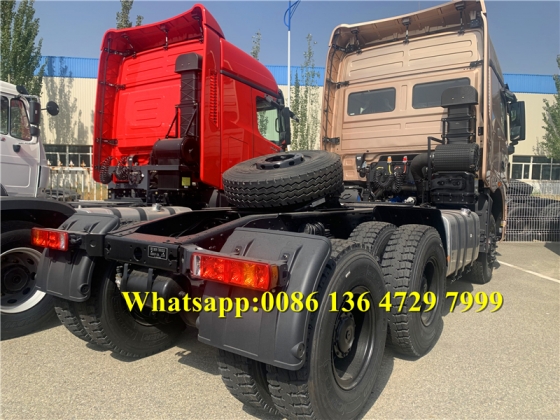

Beiben 2646 tractor truck chassis

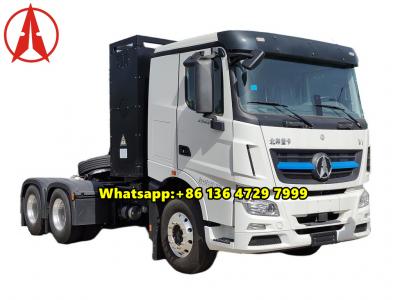

On previously Beijing 2021 International Auto Show, beiben heavy truck showed its own V3 power replacement version of pure electric tractor. As a new pure electric product put into the market by beiben heavy truck, this Beiben V3 electric tractor showed beiben heavy truck's full sincerity both in hardware strength and software strength. First of all, this car still uses the cab shape of cash V3 in appearance, which is generally consistent with the cab of dump truck displayed at the auto show, but it has made some changes in color. In fact, this is also related to the differences of each city. Of course, it does not rule out the possibility that the color can be customized. As an electric vehicle, it is a permanent magnet synchronous motor that provides power for the vehicle. It is matched with the wheel reducer using Mercedes Benz technology. In fact, the majority of card friends can regard it as the shape of fuel vehicle and the chassis configuration of electric vehicle.

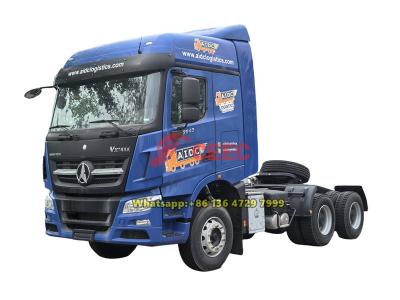

Beiben V3 2643 6x4 tractor is a high-performance heavy-duty truck, powered by a 430-horsepower Weichai Euro V engine that delivers a robust torque of 2060 N·m, paired with a 12-speed transmission. The vehicle features Mercedes-Benz technology wheel-edge reduction axles and a durable front and rear leaf spring suspension, offering a strong towing capacity of 40 tons. It is suitable for heavy-duty transport scenarios such as oil tank semi-trailers, balancing power, off-road capability, and durability.
