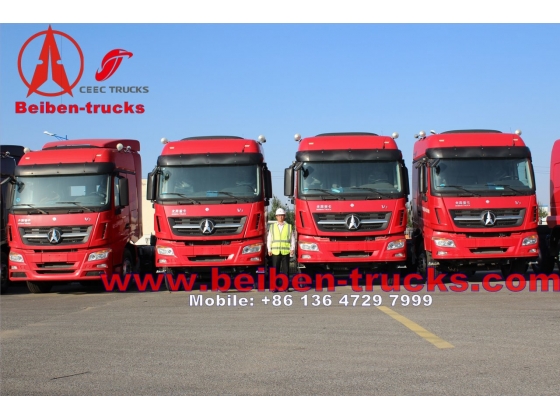

North Benz 6x4 beiben tractor truck 375hp 40ton tractor truck
1.North Benz BEIBEN tractor truck
2.Mercedez-benz technology
3.480hp WEICHAI engine
4.FAST transmission
5.Military axles
North Benz 6x4 beiben tractor truck 375hp 40ton tractor truck
We are the most professional supplier on beiben V3 tractor trucks, beiben V3 2534, 2538,2540,2542,2548 tractor trucks. The best full solution for customer logistic solutions on north benz V3 tractor trucks.
Our beiben V3 tractor trucks are ideal versions instead of imported benz actors. With outstanding performance and high quality, . Now our beiben V3 trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.
|
Dimension |
6100*2500*3600mm |
|
|
Approaching angle/Departure angle |
16/43° |
|
|
Overhang(front/rear) |
1515/1085mm |
|
|
Wheel base |
3500mm |
|
|
Max speed |
110km/h |
|
|
Curb weight |
5800kg |
|
|
Standard towing weight |
34260kg |
|
|
Max loading on fifth wheel, Permitted(kg) |
12070kg |
|
|
Slope climbing capability |
Max.40% |
|
|
Engine |
Model |
WP12.375E50，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
|
Displacement |
11.596L/Diesel |
|
|
Stroke |
126/155mm |
|
|
Max. power |
276/1900 (kw/rpm)(375 HP) |
|
|
Max.torque |
1800/1000-1400（Nm/rpm） |
|
|
Emission stantard |
EuroV with OBD |
|
|
Fuel tanker capacity |
300L |
|
|
Clutch |
∮430, Single dry frictional disc，Hydraulic boosting.WABCO Clutch |
|
|
Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 |
|
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension |
|
Rear |
Non-free standing stablization spring, balance suspension system |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
D50,whole circulation in ball, hydraulic booster |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
The Fifth wheel |
Model |
JOST ∮90 single direction |
|
Height of fifth wheel(mm) (unload) |
1410 |
|
|
Radius of front gap (mm) |
2300 |
|
|
Radius of rear slew (mm) |
2600 |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tyre |
315/80R22.5 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
V3 Long-high roof cabin with double
sleepers |
|
The most professinal supplier on Beiben V3 tractor trucks, CEEC TRUCKS , For your Success.
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 2542 | WP10.420 | 420 Hp | 50 Ton | 6*4 |
| Beiben 2548 | WP12.480 | 480 Hp | 80 Ton | 6*4 |
| Beiben 2534 | WP10.340E32 | 340 Hp | 40 Ton | 6*4 |
| Beiben 2542 | WP12.420E32 | 420 Hp | 55 Ton | 6*4 |
| Beiben 2538 | WP10.380E32 | 380 Hp | 45 Ton | 6*4 |
