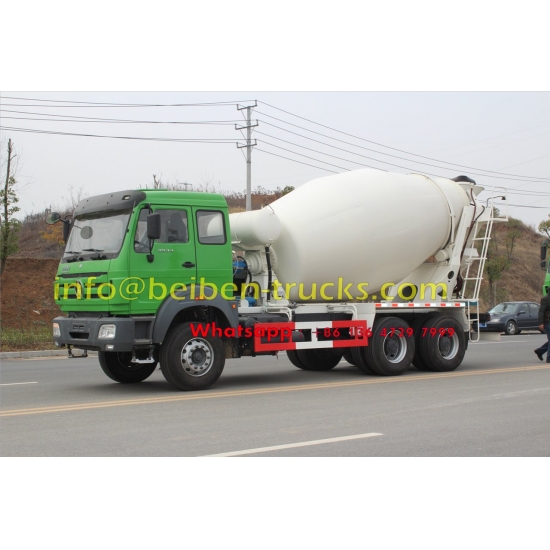

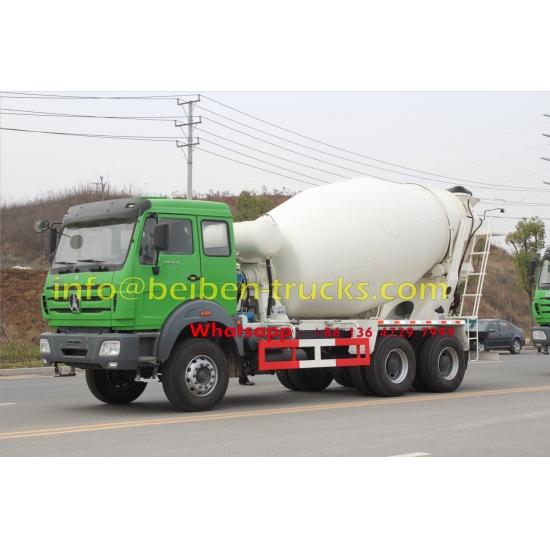

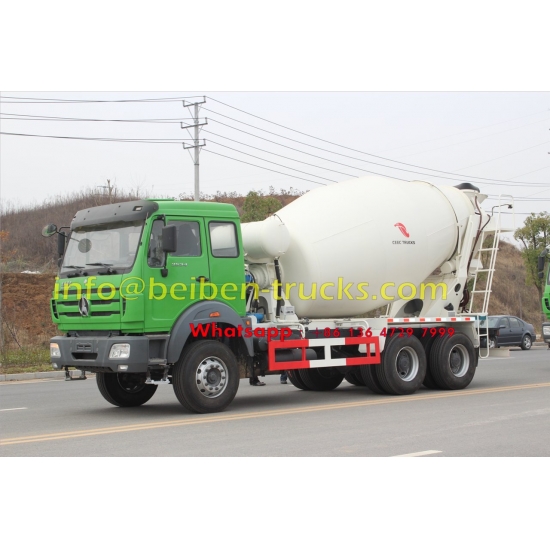

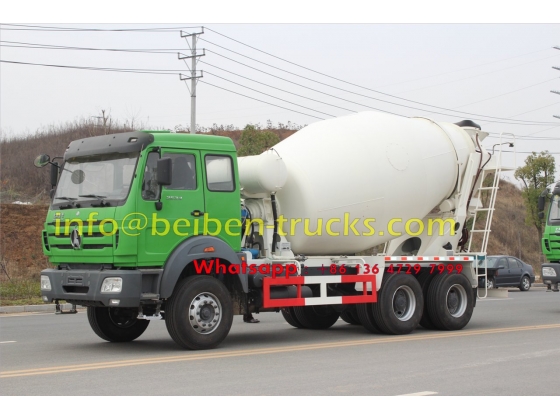

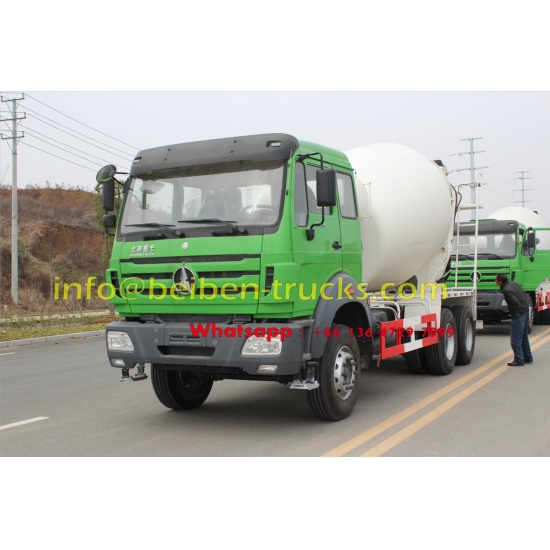

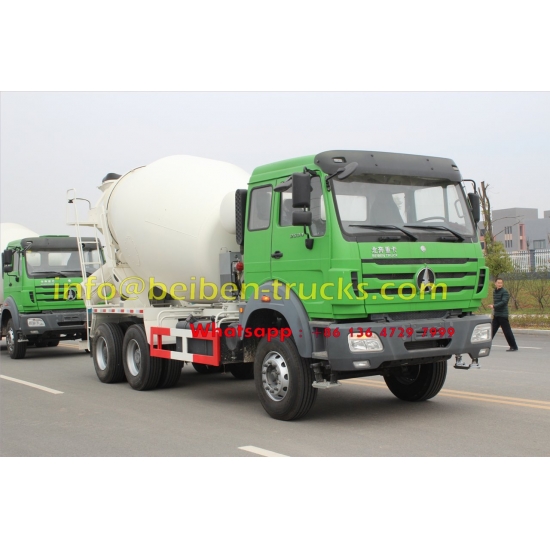

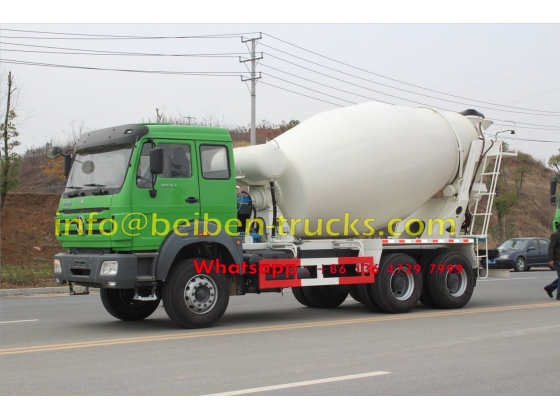

NORTH BENZ 6X4 CONCRETE MIXER Truck

Model

Driving type

LHD (Right Hand Drive is optional)

Driver's cab

Long cabin, single sleeper

Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter-cooling

Engine model: WP10.380E32

EUROIII emission standard

Maximum output: 380HP@2200 rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

FULLER Brand transmission.

Front Axle

 Using Mercedes Benz technology front axle 7.5 tons

Rear Axle

 Using Mercedes Benz technology  13T double reduction drive axle

Steering

TAS85

Option: ZF8098, hydraulic steering with power assistance

Wheel & Types

Tyres: 12.00R20

Optional: 12R22.5,12R20

Radial tire and tubeless tire is optional

Electrics

Operating voltage: 24V, negative grounded

Dimensions in mm

Wheel base:                            3800+1450

Overall size:                       8715×2495×4000

Weight in kg

Kerb weight                             8700

Permissible trailing capacity               25000

Performance

Maximum driving speed(km/h)             85

Body mm

9CBM Mixer body

The manufacture reserves the right of technical alteration/change for better improvement prior notice
