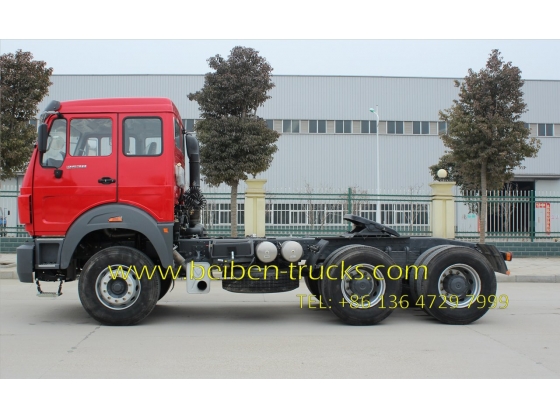

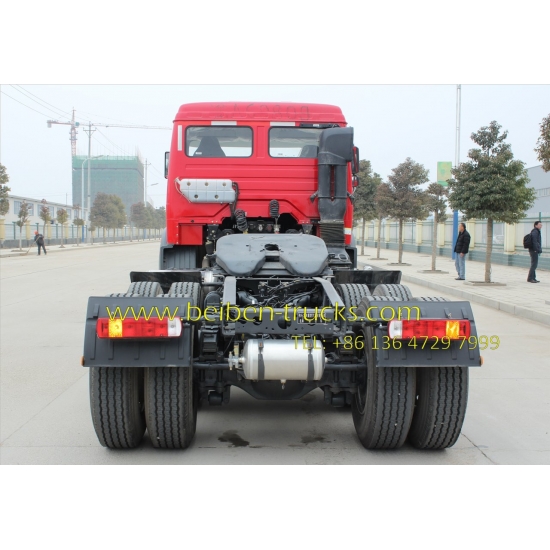

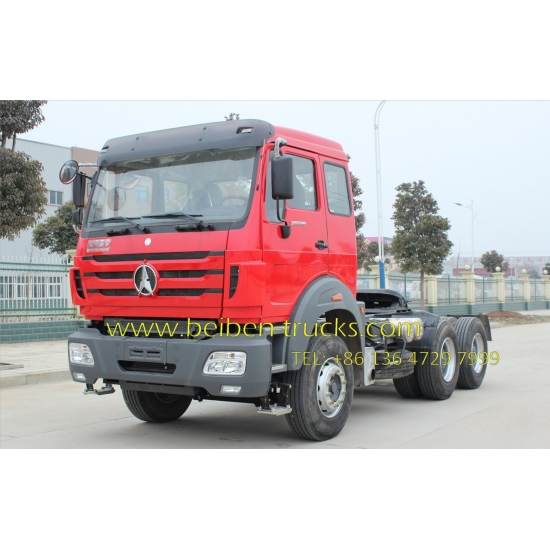

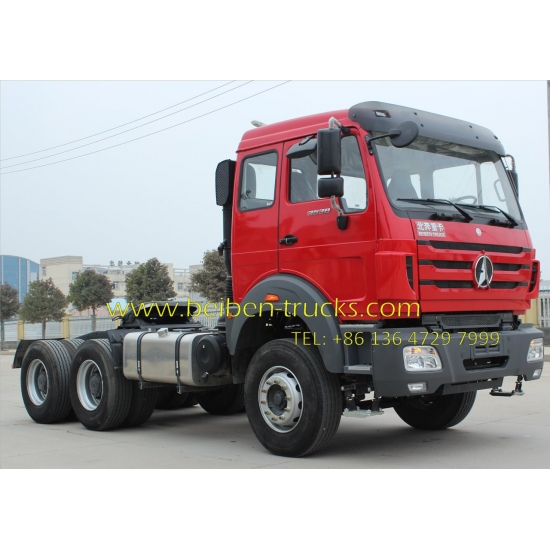

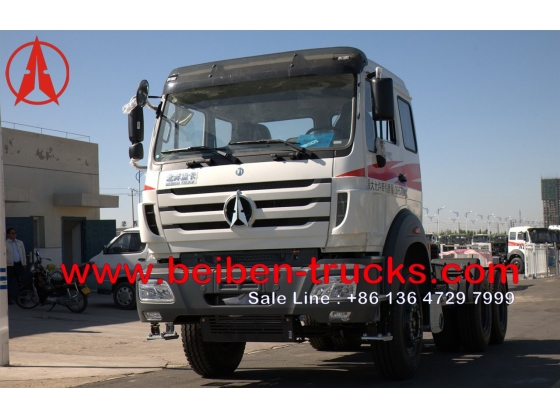

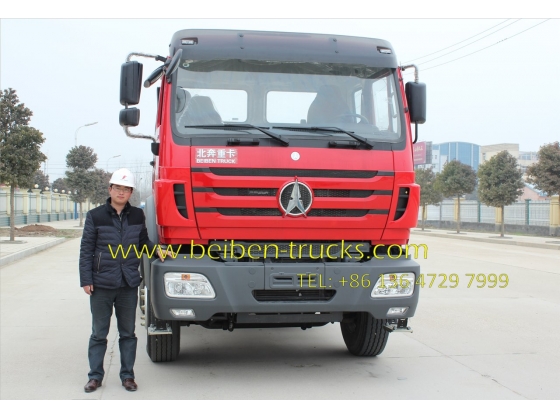

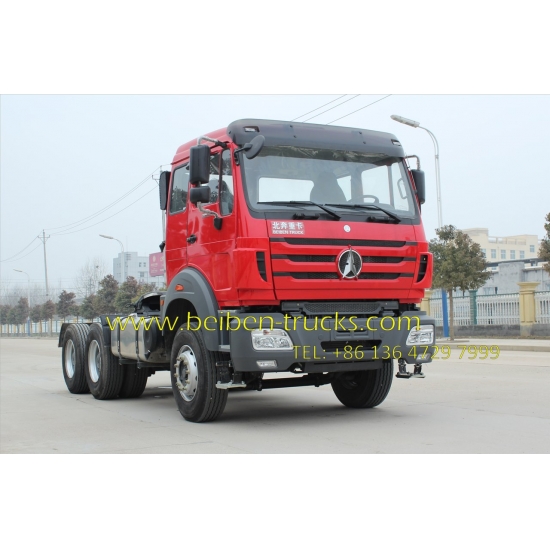

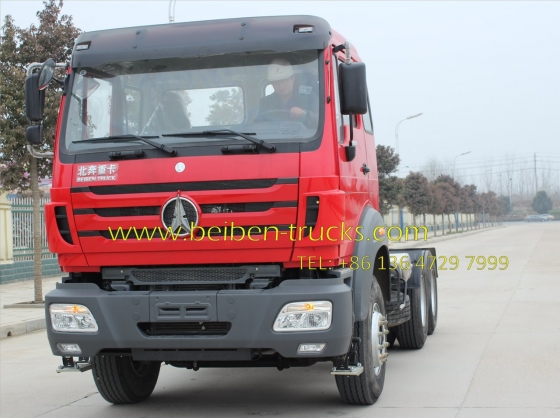

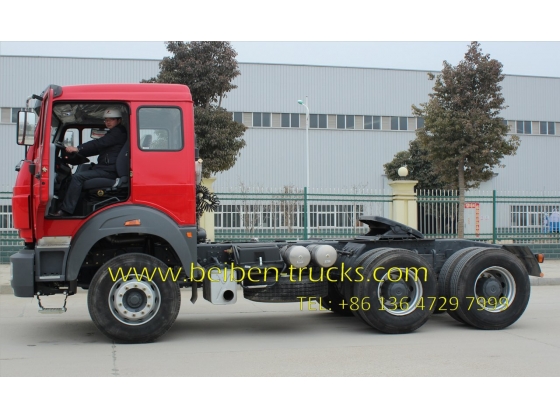

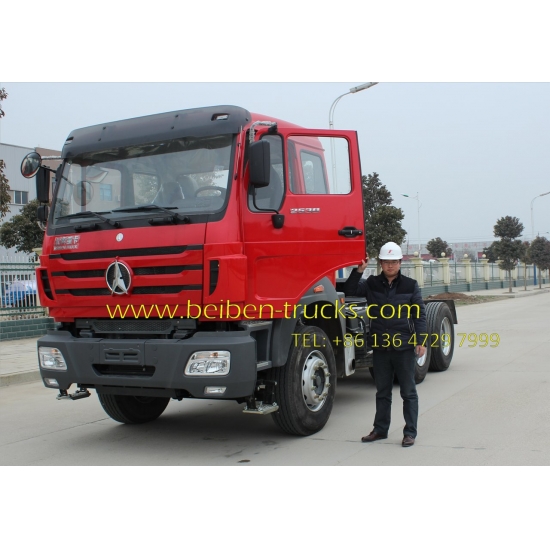

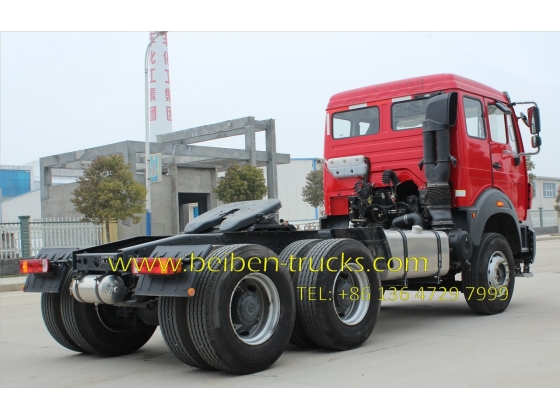

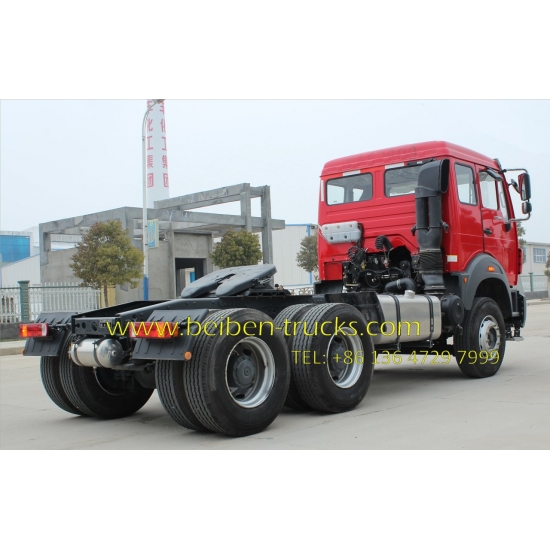

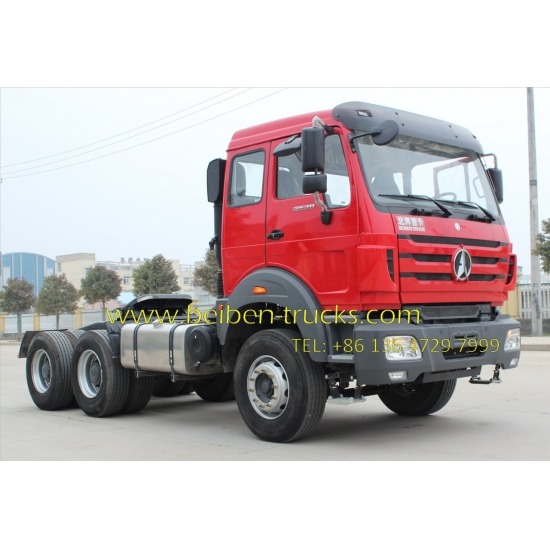

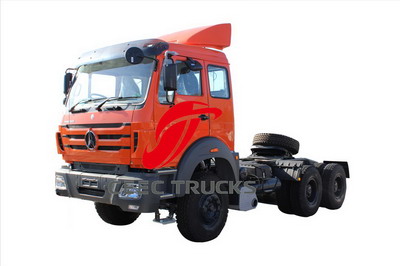

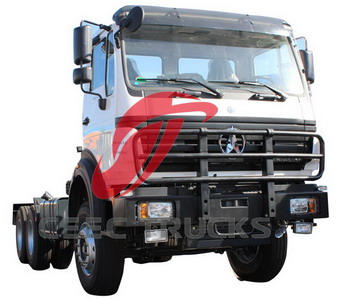

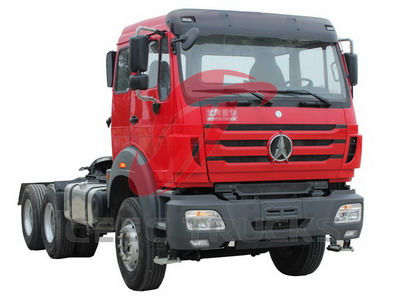

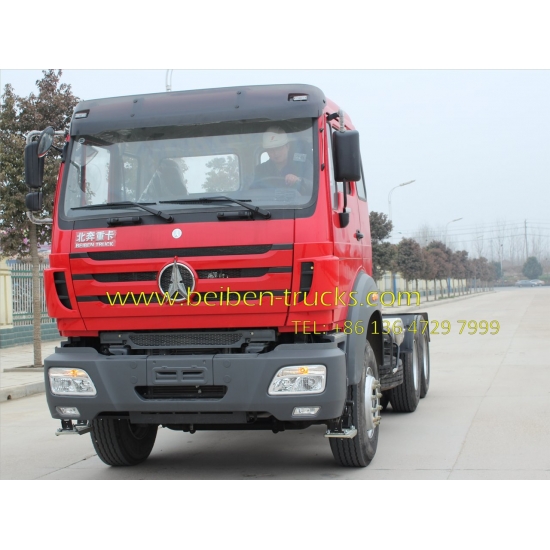

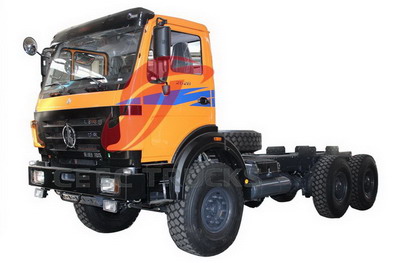

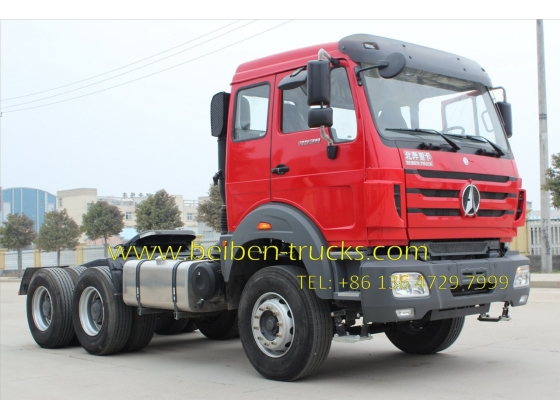

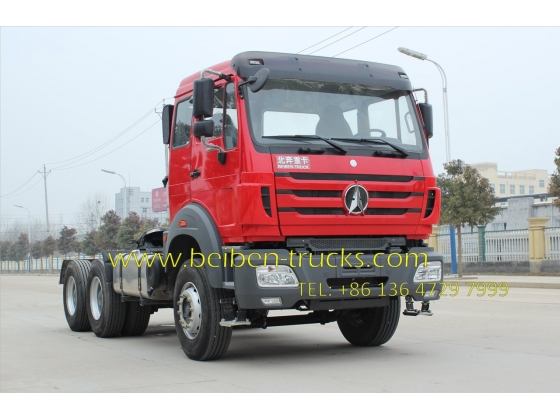

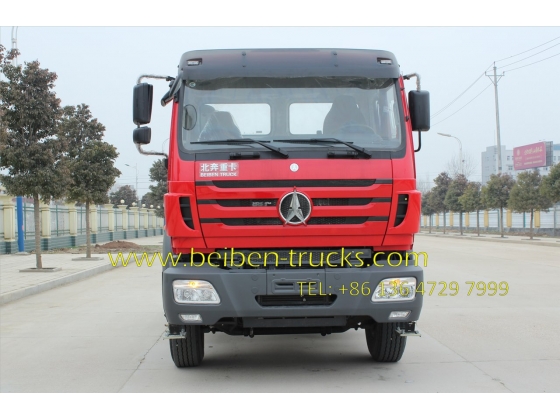

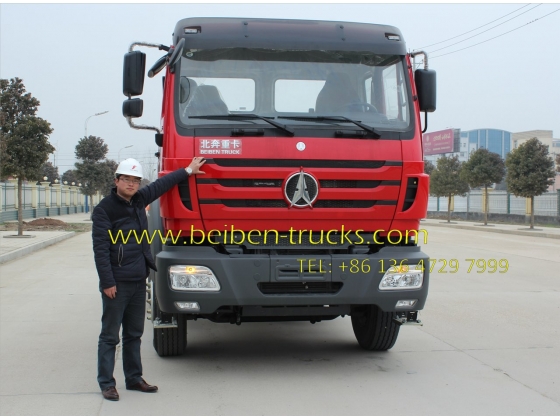

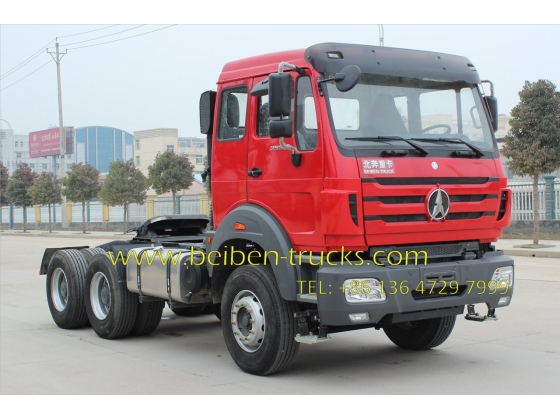

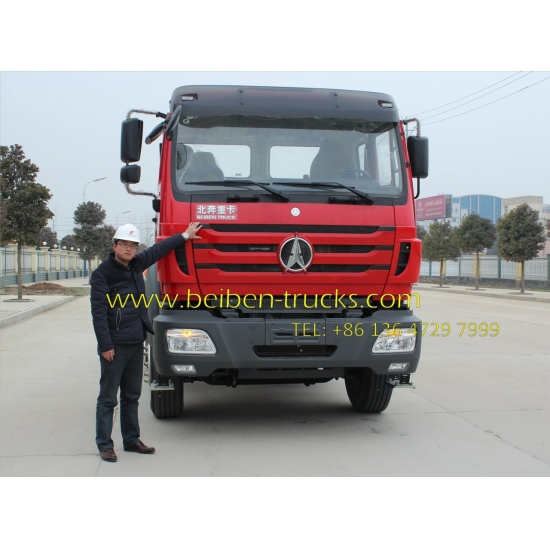

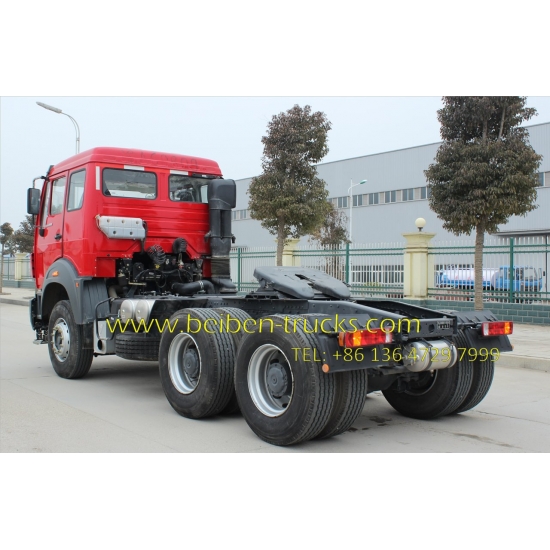

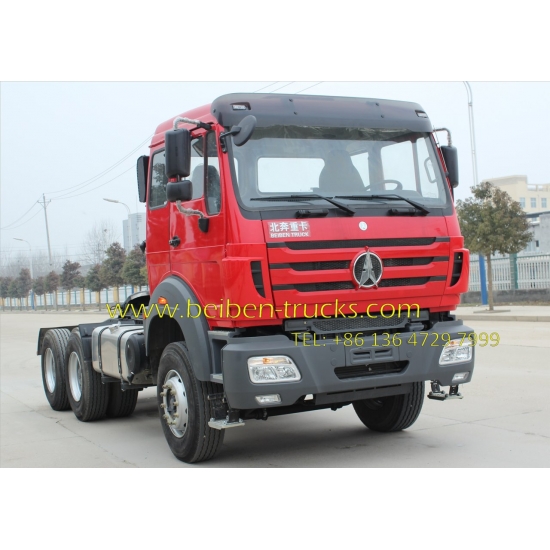

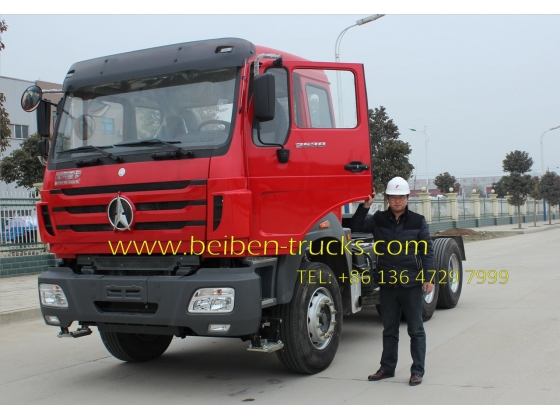

North benz 2538 tractor truck
-
FOB Price
$39,800-45,800
-
Production time
30 days
-
Payment terms
T/T, West union

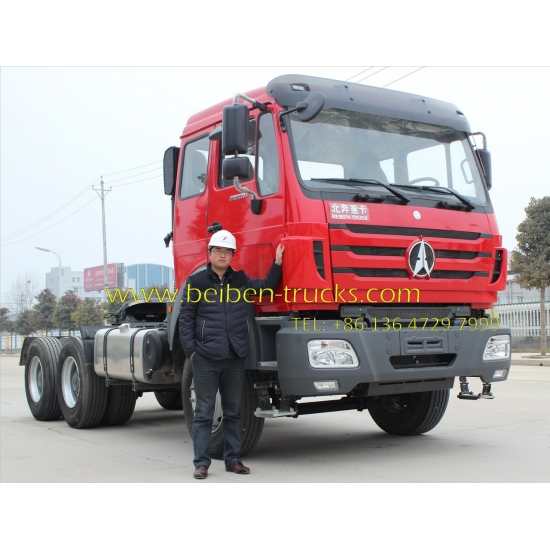

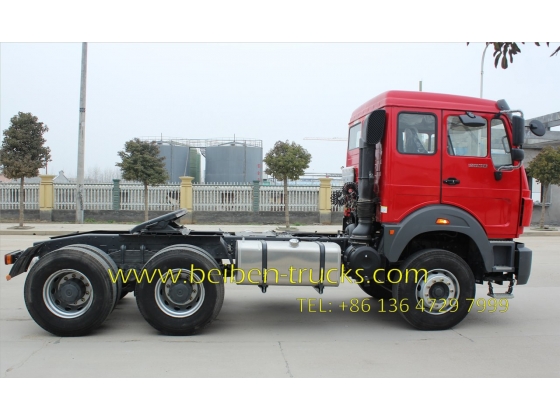

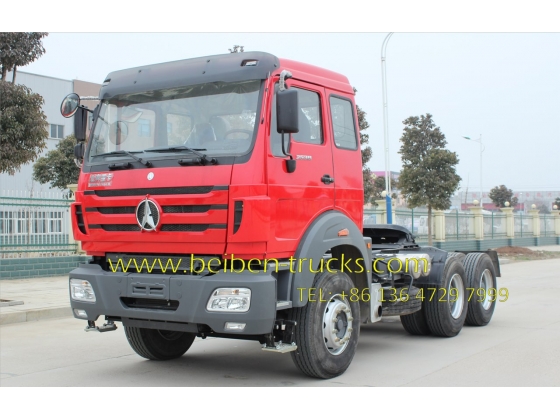

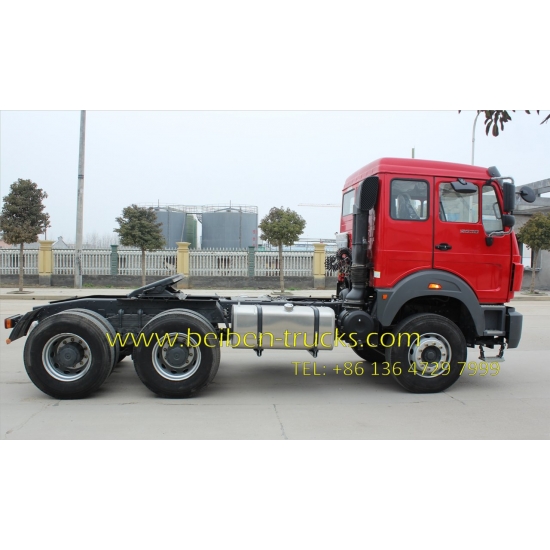

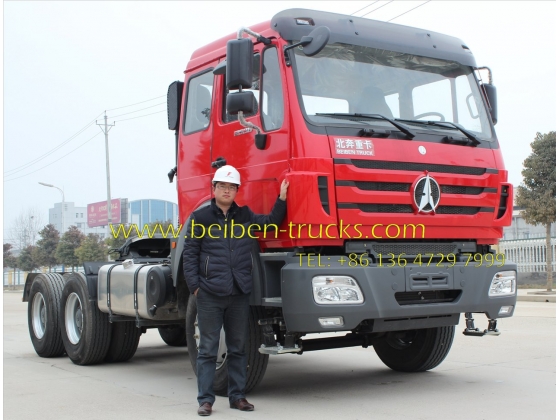

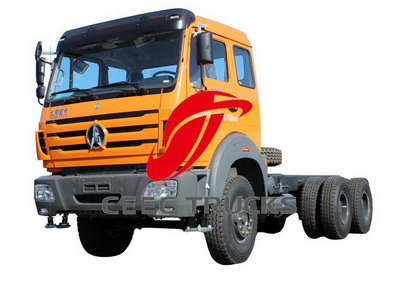

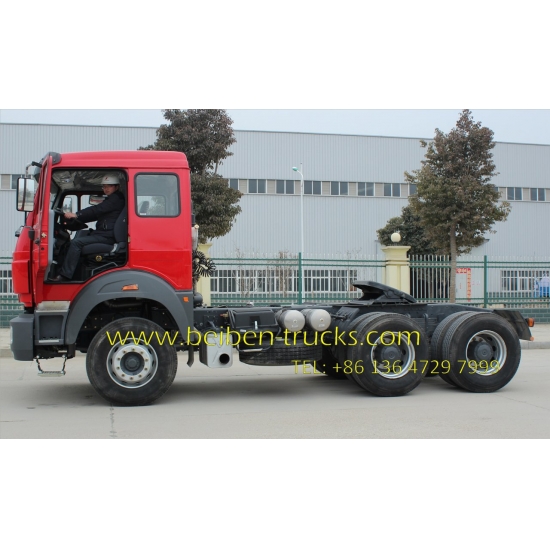

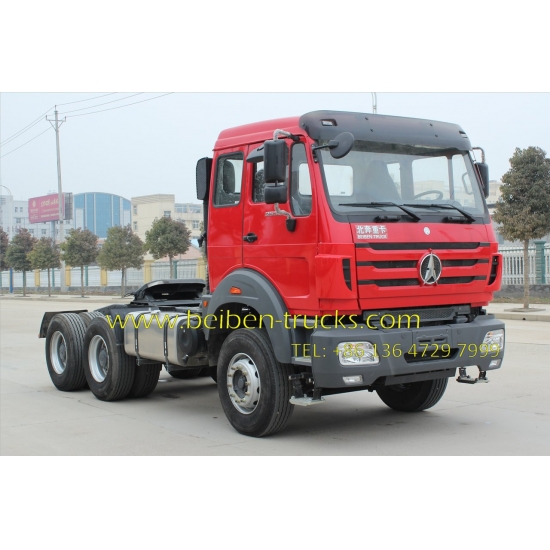

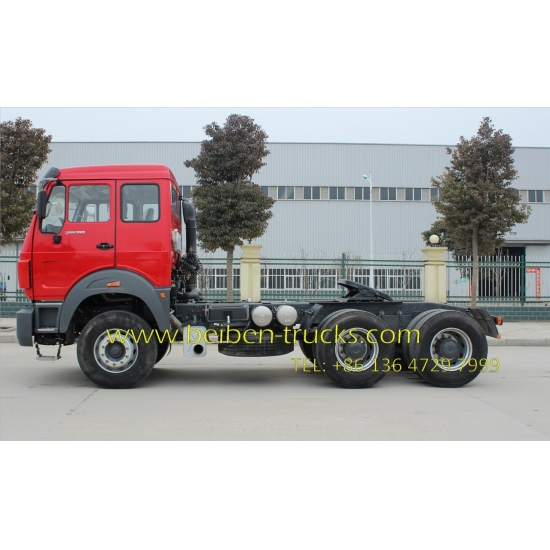

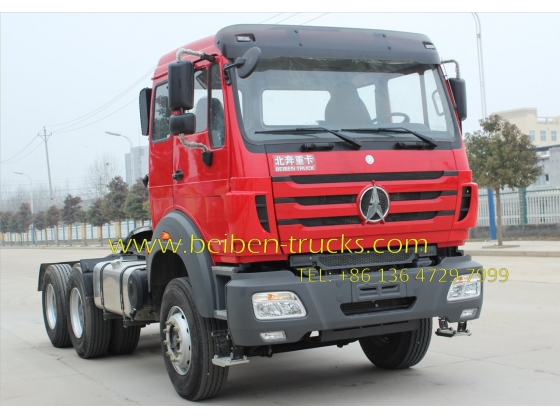

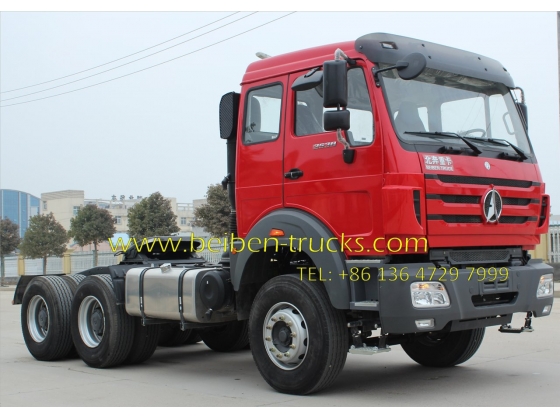

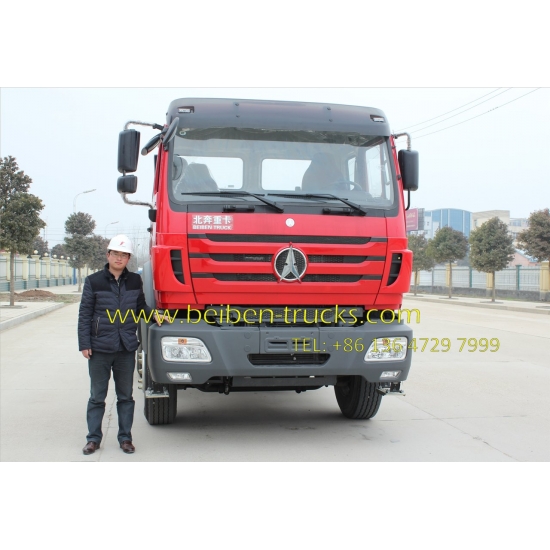

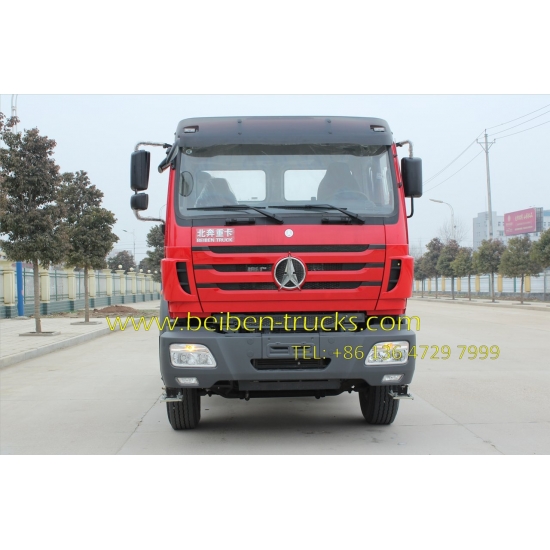

North benz 2538 tractor truck
Function:
Heavy duty Construction, Mining
and quarries,
Heavy duty material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Advantage:
★Original Germany Mercedes Benz technology
★30% price lower than BENZ trucks
★More than 15 years in beiben tractor truck exporting
★12 months free beiben genuine spare parts serivce.
★Training service for north benz tractor trucks
★ CEEC TRUCKS, FOR YOUR SUCCESS.
Axles from Mercedes Benz technology
heavy usage applications, equipped with double-layer reinforced frames
Ease of use, simple and reliable
Specification:
Similar key words congo beiben 2538 tracteur camions, north benz 2538 tracteur camions, north benz 2542 tracteur camions, china beiben tracteur 380 hp engine camions supplier.
China famous brand beiben 2534 tractor truck,for using in logistic, seaport, airport, fuel transporation.
Baotou NORTH BENZ tractor trucks are widely applied for high way , seaport, logistic, fuel oil project transportation. With reliable benz technology, benz 420 hp engine tractor truck are well accepted in congo, kenya, tanzania and nigeria.
Our prices are considerably lower than European, American and
Asian competitors; including Mercedes Benz Actros 2542tractor trucks.. Congo best beiben tractor truck supplier, supply the best quality beiben 6*4 tractor truck, beiben 4*2 tractor trucks.
| 2538SZ /6×4/3450+1450/Long Cab/LHD | ||||||
| Dimension | 7136*2495*3180mm | |||||
| Approaching angle/Departure angle | 26/64° | |||||
| Overhang(front/rear) | 1410/825mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 9200kg | |||||
| Max towing weight | 36900kg | |||||
|
Max loading on fifth wheel, Permitted(kg) |
15670kg |
|||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.380E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 280/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||

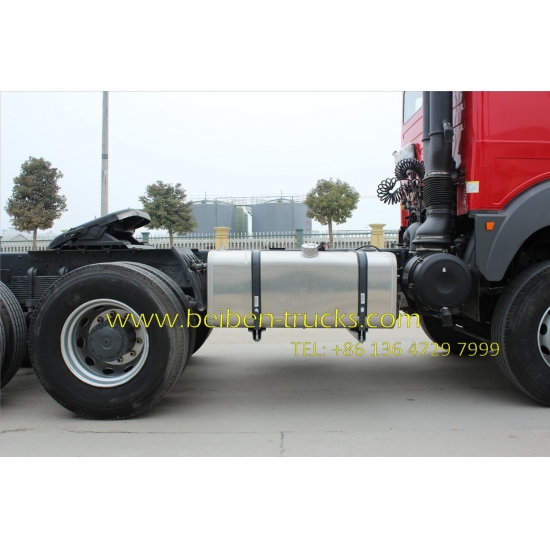

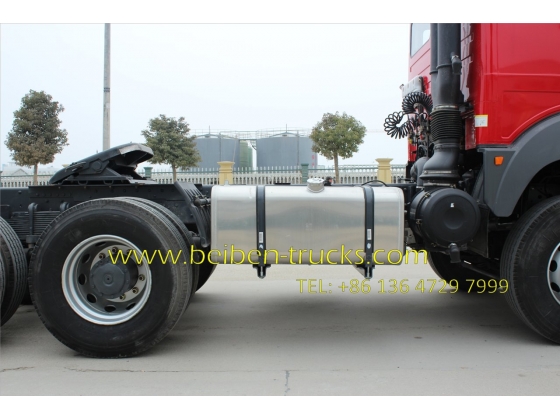

| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
|

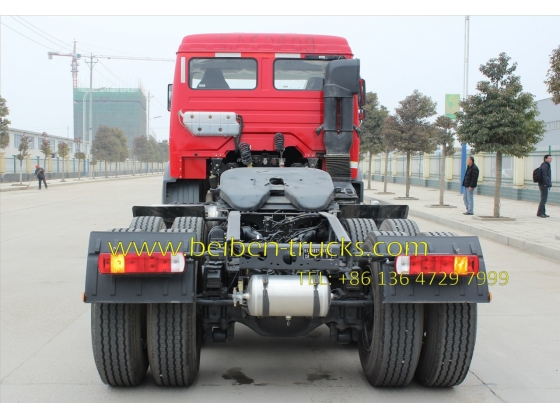

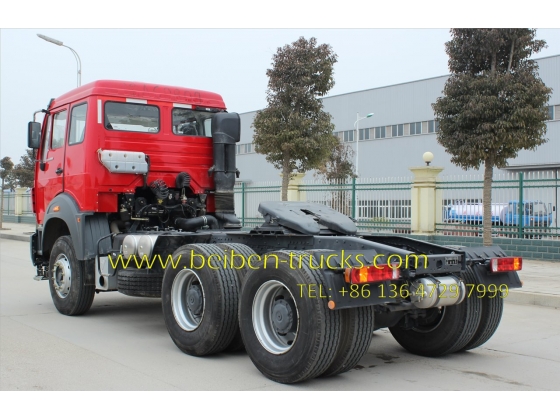

Model |
JOST ∮90 single direction |
|||||
|
Height of fifth wheel(mm) (unload) |
1410 |
|||||
|
Radius of front gap (mm) |
2300 |
|||||
|
Radius of rear slew (mm) |
2600 |
|||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-R20 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||

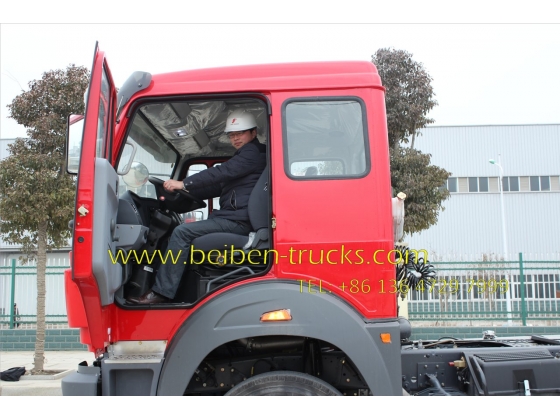

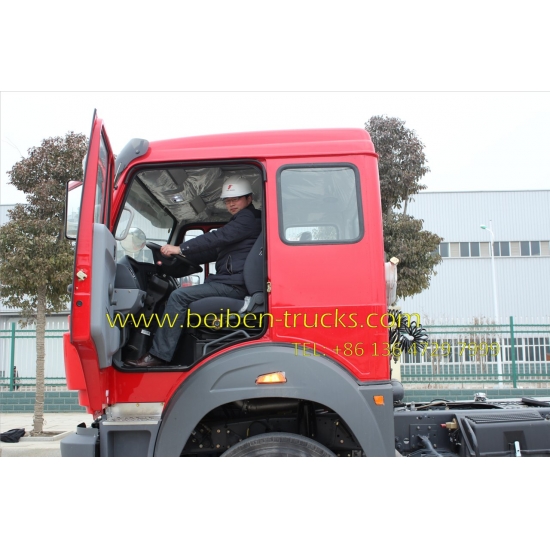

| Cabin |
NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
Beiben 40 T , 50 T, 60 T, 70 T tractor truck
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 1834S |
WD615.34 | 340Hp | 40Ton | 4x2 |
| Beiben 2538 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2634 | WP10.340 | 340 Hp | 40Ton | 6x4 |
| Beiben 2642 | WP12.420 | 420 Hp | 48 Ton | 6x4 |
| Beiben 2642 | WP10.420 | 420 Hp | 50 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 48 T | 6x4 |
| Beiben 2638 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 50 T | 6x4 |
| Beiben2642 | WP 10.420 | 420 Hp | 60 T | 6x4 |
| Beiben 2542S | WP12.420E32 | 420 Hp | 50 T | 6x4 |
| Beiben 1630A | WP10.300N | 300 Hp | 30 T | 4x4 |
| Beiben 2534 | WP 10.336 | 336 Hp | 50 Ton | 6x6 |
| Beiben 2638 | WP10.380 | 380 Hp | 50 Ton | 6x4 |

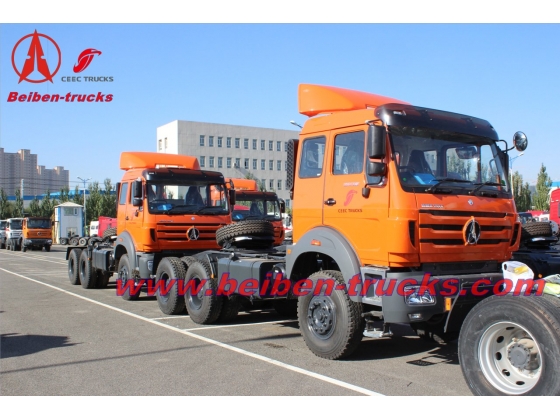

Beiben tractor truck and semitrailer
Beiben Construction trucks

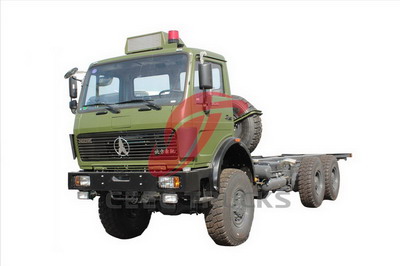

Beiben all wheel drive trucks
