2529BY /6×4/3450+1450/Short Cab/LHD

Dimension 尺寸

9300*2500*3900mm

Approaching angle/Departure angle

26/20°

Overhang(front/rear)

1410/2640mm

Wheel base

3800+1450mm

Max speed

80km/h

Curb weight

13650kg

Loading capacity

11220kg

Slope climbing capability

Max.40%

Engine

Model

WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

250/2200 (kw/rpm)

Max.torque

1350/1200-1600（Nm/rpm）

Emission stantard

EuroⅢ

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc，Hydraulic boosting

Gearbox

9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer

Gear ratio of gear box

12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

TAS85,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long cabin with single sleeper;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

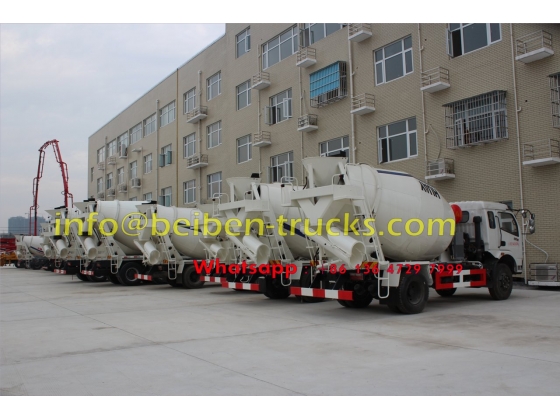

Main technical parameters of concrete mixer

Drum performance parameter

Geometric Volume m3

15.5 m3

Effective Volume m3

10 m3

Filling Ratio %

64.5%

Gradient of the Drum °

15°

Filling speed m3/min

≥3

Discharging Speed m3/min

≥2

Surplus Ration %

<1%

Range of Slump mm

20～300

Hydraulic System

Pump

Eaton 54 (ACA542337R)

Motor

Eaton 54 (HHD542337R)

Gear Box

PMB6sp

Water supply system

Volume of water tank

400L

Water supply type

Air pressure Type
