Order(MOQ):
1Production time:
30 daysPayment terms:
T/T, West union
Function:
Heavy duty Construction, Mining
and quarries,
Heavy duty material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Advantage:
Axles from Mercedes Benz technology
heavy usage applications, equipped with double-layer reinforced frames
Ease of use, simple and reliable
Specification:
Similar key words : algeira beiben beiben tractor truck and beiben dump truck supplier, supply best quality beiben 2534,2538,2542 prime omver for algeria customer. As the most professional north benz tractor truck dealer in algeria. CUrrently we can supply beiben 6*4 tractor truck, beiben 6*6 tractor truck, beiben 10 wheeler, 12 wheeler dump truck , beiben concrete mixer truck.
Algeria top beiben trucks supplier, for supplying beiben 4*4,4*4,6*4,6*6,8*4,8*8 trucks in algeria.
Our prices are considerably lower than European, American and
Asian competitors; including Mercedes Benz Actros 2542tractor trucks.. Congo best beiben tractor truck supplier, supply the best quality beiben 6*4 tractor truck, beiben 4*2 tractor trucks.

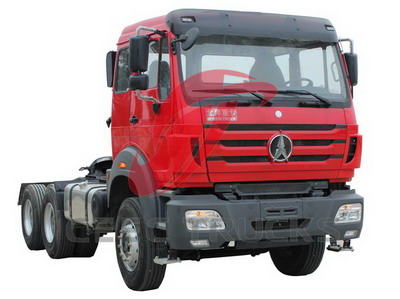

| 2538SZ /6×4/3450+1450/Long Cab/LHD | ||||||
| Dimension | 7136*2495*3180mm | |||||
| Approaching angle/Departure angle | 26/64° | |||||
| Overhang(front/rear) | 1410/825mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 9200kg | |||||
| Max towing weight | 36900kg | |||||
|
Max loading on fifth wheel, Permitted(kg) |
15670kg |
|||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.380E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 280/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||

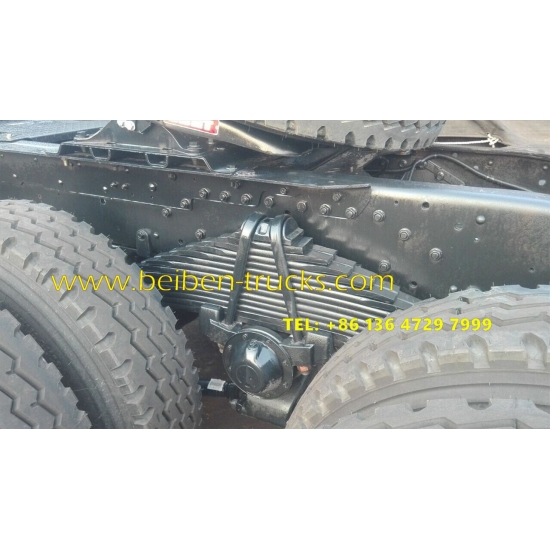

| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||

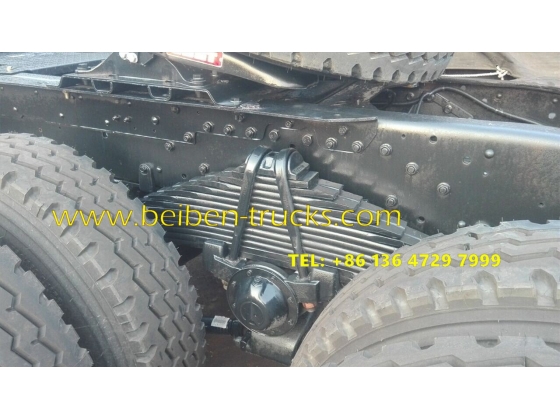

| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||

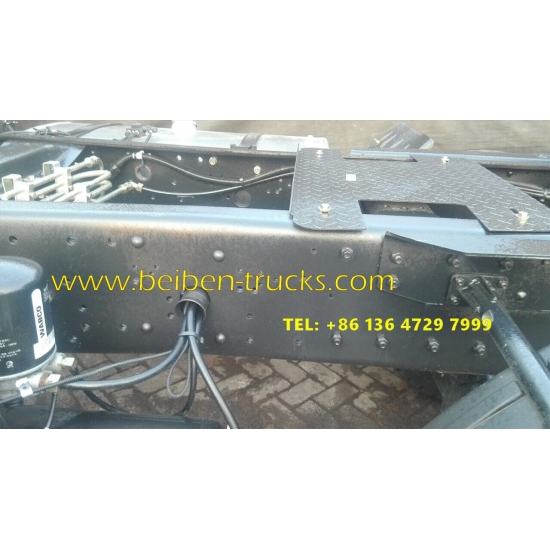

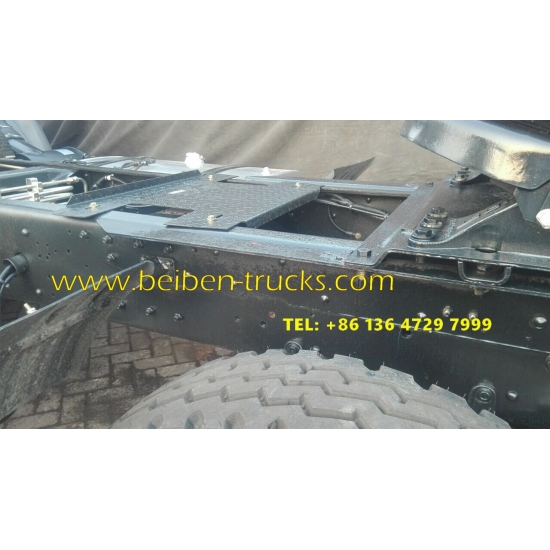

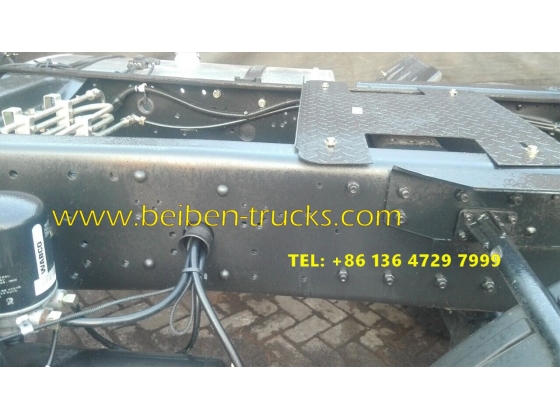

| Frame | Fish belly shape, variable width, variable sections | |||||
|

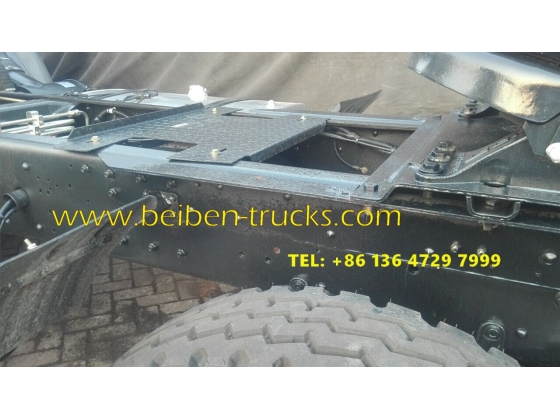

Model |
JOST ∮90 single direction |
|||||
|
Height of fifth wheel(mm) (unload) |
1410 |
|||||
|
Radius of front gap (mm) |
2300 |
|||||
|
Radius of rear slew (mm) |
2600 |
|||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||

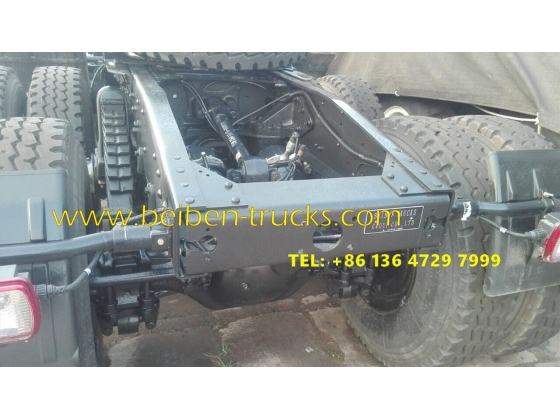

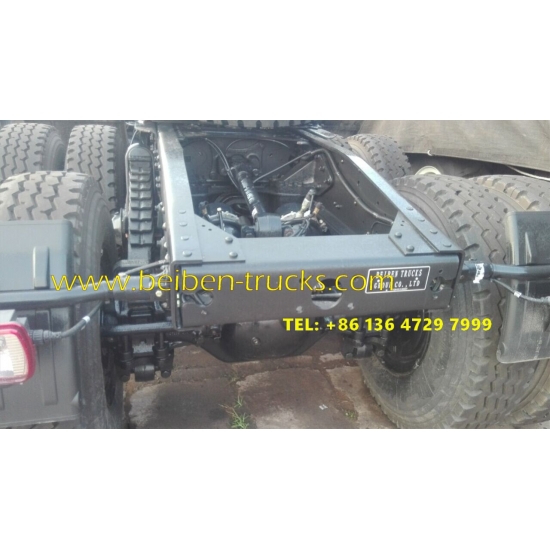

| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-R20 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |

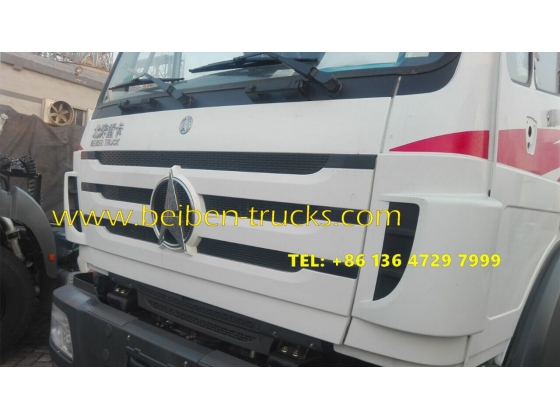

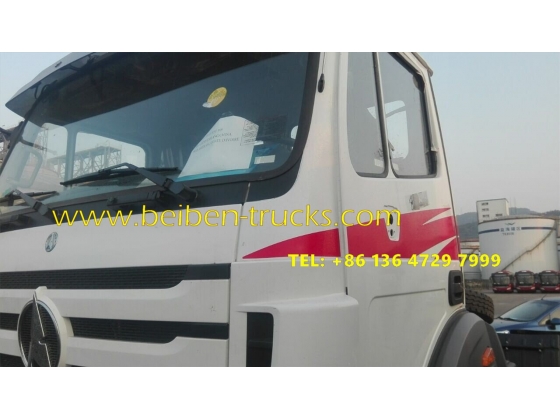

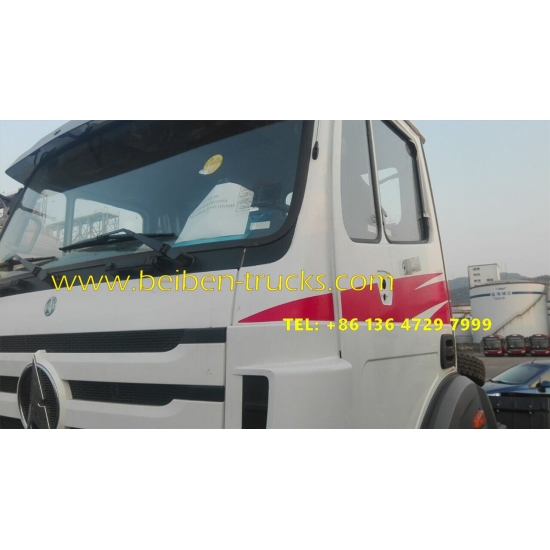

NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
Beiben 40 T , 50 T, 60 T, 70 T tractor truck
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 1834S |
WD615.34 | 340Hp | 40Ton | 4x2 |
| Beiben 2538 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2634 | WP10.340 | 340 Hp | 40Ton | 6x4 |
| Beiben 2642 | WP12.420 | 420 Hp | 48 Ton | 6x4 |
| Beiben 2642 | WP10.420 | 420 Hp | 50 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 48 T | 6x4 |
| Beiben 2638 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 50 T | 6x4 |
| Beiben2642 | WP 10.420 | 420 Hp | 60 T | 6x4 |
| Beiben 2542S | WP12.420E32 | 420 Hp | 50 T | 6x4 |
| Beiben 1630A | WP10.300N | 300 Hp | 30 T | 4x4 |
| Beiben 2534 | WP 10.336 | 336 Hp | 50 Ton | 6x6 |
| Beiben 2638 | WP10.380 | 380 Hp | 50 Ton | 6x4 |
Beiben crane trucks and Beiben garbage trucks

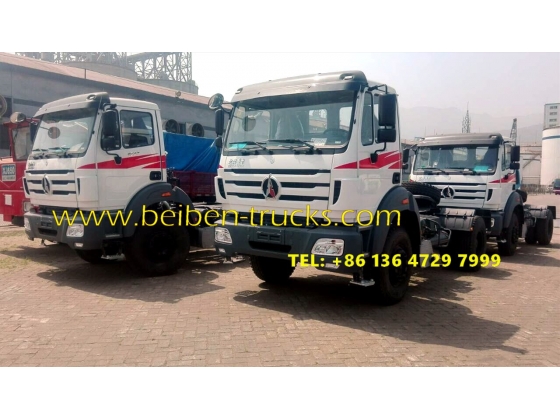

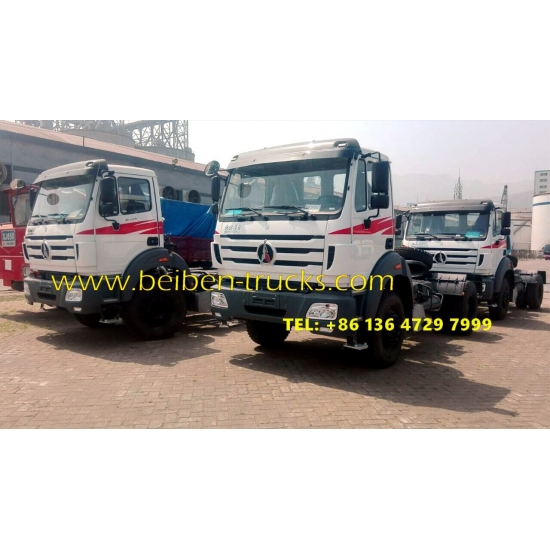

Beiben 2538 tractor trucks is the lastest beiben tractor trucks cabin, with Beiben NG80B tractor trucks, africa customer prefer china beiben trucks because its perfect performance and reliable benz quality. We have more than 10 years experience on manufacturing beiben 2538 6*4 tractor trucks and beiben 10 wheeler tractor truck.
North Benz Tractor Head 6x4 420hp EuroII 30ton Tractor Head , dumper, lorry truck truck & prime mover 3.480hp WEICHAI engine 4.FAST transmission 5.Military axles
North Benz 6x4 336hp 40t-60t EURO III tractor truck(Mercedes Benz technology),North Benz 6x4 336hp 40t-60t EURO III tractor truck(Mercedes Benz technology) Engine model: WP10.336 336HP Euro III North Benz 6x4 336hp 40t-60t EURO III tractor truck(Mercedes Benz technology) Traction type: 6X4 Driving type: LHD (RHD is option) Cabin: North Benz (One Sleeper)
China beiben 2538 CNG tractor truck , 6*4 driving system, CNG engine, fast 12 shift transimission, 3450+1450 mm wheelbase, 12.00R20 tyre. benz technology NG80B cabin, 7 T front axle with benz quality, 13 T double rear axle with double reducer.
beiben 6*2 drive tractor truck, 380 hp engine, fast 12 shift transmission, benz 7 T front axle, 16 T doubel rear axle with wheel reducer, 12.00R20 tyre.
Beiben 2538 prime mover , weichai EURO 2 type 380 hp diesel engine, fast 12 shift manual transmission, famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre. Africa best Beiben 2638 tractor truck supplier, for supply congo brazzaville, pointe noire customer.
china beiben 2638 trucks, based on north benz 2638 truck chassis, weichai 380 hp euro 2 engine, fast 9 shift transmission, 5050+1450 mm wheelbase, 12.00R20 tyre, benz 7 ton heavy duty front axle, benz 16 T double rear axle, heavy duty type cargo box with 40 T capacity, suitable for congo country.
Camion 420HP 6x4 10 Wheel High Quality NG80b 2642 Beiben Cargo Truck DRC Congo, Which with Reinforced chassis for heavy duty towing load, and engine WP12.420E32, 420HP,Euro 3, Gearbox FAST 12JSD200TA, manual,12 forward gears and 2 reverse. Tire 12.00R24 with 10+1 spare tire. Stable performance, fashion design,mature technique and competitive priceFront axle:7Ton driving and steering BENZ axle. Rear axle:13Ton BENZ driving axle, hub redactor,double reduction. Brake system:Service brake Double circuit pneumatic (air) brake Parking brake, Spring-Power drum brake
This congo beiben 2642 truck cargo truck chassis is for congo DRC customer,equipped with china beiben 420 hp diesel engine, mercedes benz technology cabin,. mercedes benz technology 7 T front axle, mercedes benz technology 13 T double rear axle. This beiben 2642 truck chassis can be produce beiben 2642 cargo truck, beiben 2642 van truck, beiben 2642 fuel tanker truck, beiben 2642 water tanker truck , and beiben 2642 dump trucks.
