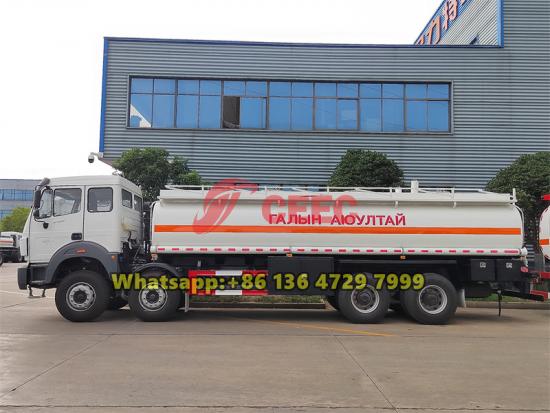

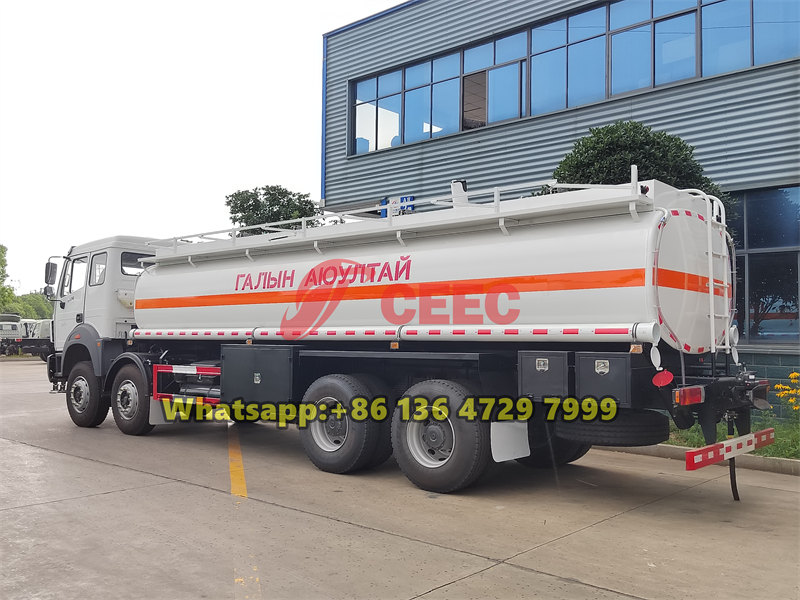

The Beiben 8×4 fuel tanker truck, as the elite choice for logistics transportation, combines a sturdy chassis, a comfortable cab, and powerful engines. Equipped with the WEICHAI WP10.380E32 engine, it boasts an output of 380 horsepower, effortlessly handling various road conditions. With a large 30,000-liter fuel tank and an efficient fuel pump capable of a flow rate of 60 cubic meters per hour, it ensures highly efficient transportation. Widely applied in the petroleum, chemical, and other industries, it demonstrates exceptional value.
Working capcity:
30000 litersCabin type:
Beiben NG80 cabin, with sleeperDimension ( mm ) :
11900×2550×3850Drive system:
8×4Wheelbase (mm):
1500+4750+1450Engine power / Model:
380 HPGear Box:
12JS200TARemark:
Fuel tanker with 4 compartmentsProduct Descriptions

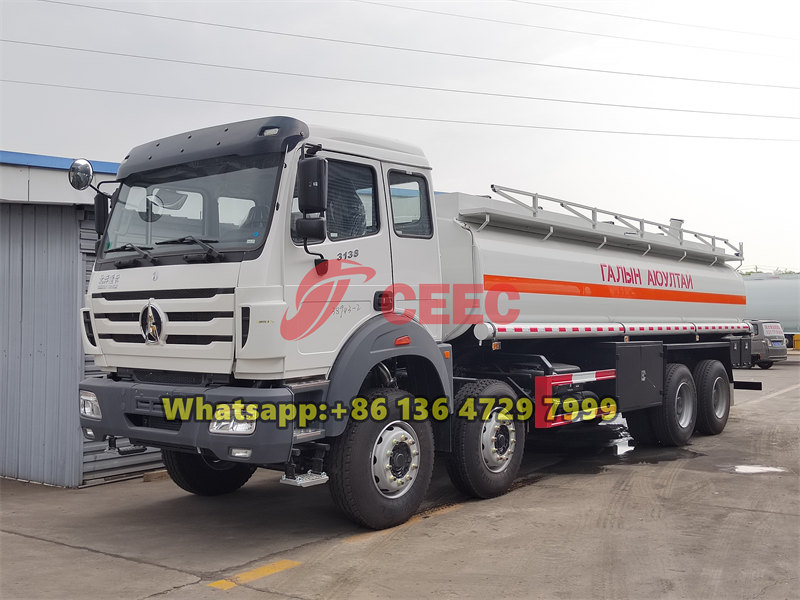

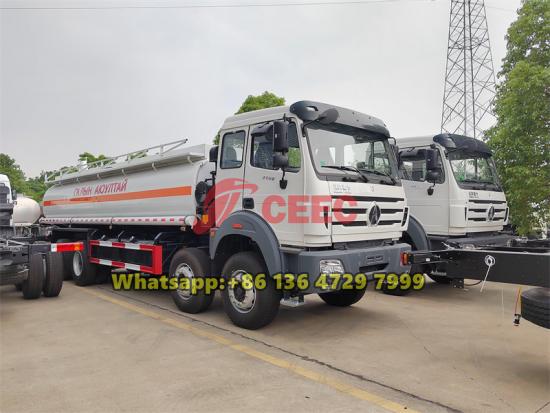

The Beiben 8×4 fuel tanker truck, with its powerful carrying capacity and exceptional performance, has become the ideal choice for long-distance transportation, oilfield operations, chemical logistics, and other fields. Equipped with the classic Beiben NG80 cab, it not only boasts a stylish exterior and sleek lines but also excels in interior configuration, ensuring driver comfort and safety. Its core power comes from the renowned Chinese brand WEICHAI WP10.380E32 engine, which provides continuous and reliable power support with its efficiency and dependability.
The Beiben 12 wheeler fuel truck features a North Benz (Beiben) brand chassis, renowned for its excellent carrying capacity and stable driving performance. With a front/rear axle weight configuration of 7.5T/7.5T or 16T (combined for both axles), it ensures stability and safety under various road conditions. The extra-long wheelbase design not only enhances the vehicle's smooth driving but also provides ample space for the fuel tank layout, making the overall vehicle structure more reasonable and compact.
Powered by the WEICHAI WP10.380E32 engine, the Beiben 8×4 fuel bowser possesses a robust power source. With an output power of 380 horsepower and a maximum power of 280 kilowatts, it can easily handle various road conditions. The engine employs advanced technologies such as a 6-cylinder inline configuration, 4-stroke operation, water cooling, turbocharged intercooling, and direct injection, which not only improve fuel economy but also reduce environmental pollution. Furthermore, the engine meets the Euro III emission standards, complying with national environmental requirements.

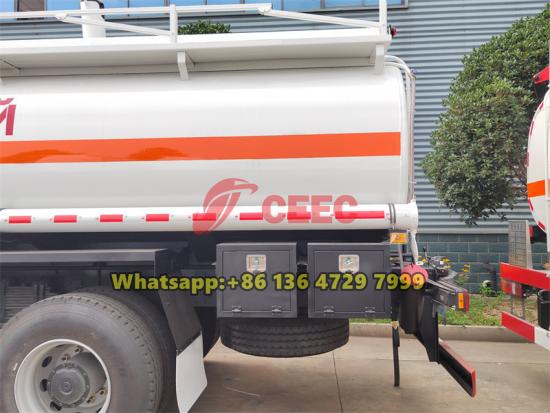

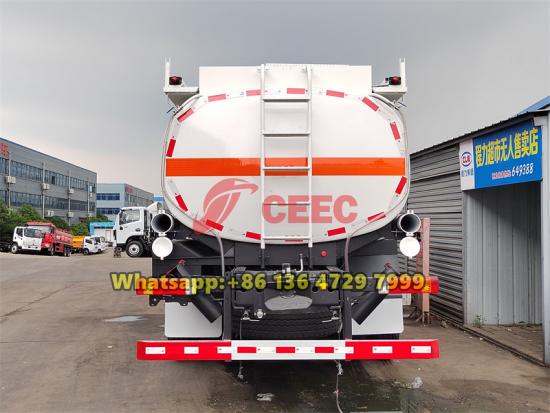

The fuel tank of this Beiben tanker truck has a capacity of up to 30,000 liters, divided into four independent compartments. Each compartment is equipped with a European standard tank opening with a breathing valve, facilitating loading and unloading operations while ensuring safe storage and transportation of oil products. The tank body is made of high-quality carbon steel with a thickness of 5 millimeters (6 millimeters at the ends) and has undergone professional corrosion protection treatment to extend its service life. The tank body also contains baffle plates, effectively reducing the sloshing and impact of oil products during transportation, thereby ensuring transportation safety and stability.
The fuel pump of the Beiben 12 wheeler fuel delivery truck is selected from a reputable brand, with a model of 80YHCB-60 and a flow rate of up to 60 cubic meters per hour, meeting the demands of efficient loading and unloading. The pump has a self-priming height of 6 meters and is equipped with various advanced valves and accessories, such as manholes, breathing valves, bottom valves, and drain valves, ensuring the safety, convenience, and efficiency of the entire loading and unloading process. Additionally, the vehicle is equipped with safety devices such as antistatic straps, emergency shutdown devices, oil and gas recovery systems, and overflow sensors, further enhancing transportation safety.
Product Specifications
|
Truck Chassis |
||||
|
Chassis Brand |
North Benz (Beiben) |
F/R Axle |
7.5T,7.5T/ 16T(2 axle combined) |
|
|
Wheelbase |
1500+4750+1450 mm |
Gearbox |
FAST 12JS200T, 12 forward,2 reverse |
|
|
Tire |
12.00R20, 12+1pcs |
Brake |
Air brake type |
|
|
Cabin |
NG80, one and a half cabin, with A/C, hydraulic driver's seat, manual reversal, etc |
|||
|
Engine |
Model |
Weichai WP10.380E32 |
||
|
Horsepower |
380 HP |
|||
|
Max. output power |
280 KW |
|||
|
Displacement |
9.726L |
|||
|
Emission |
Diesel, Euro 3 |
|||
|
Type |
6 cylinders in-line, 4 strokes, water-cooled, turbo-charged intercooling, direct injection |
|||
|
Fuel Tank |
||||
|
Tank |
Volume |
30000L, 4 compartments |
||
|
Material & Thick |
steel Q235A; end 6mm, body 5mm |
|||
|
Color & Logo |
Customized |
|||
|
Fuel pump |
Model |
80YHCB-60 |
||
|
Fuel flow rate |
60m3/h |
|||
|
Working pressure |
0.6 Mpa |
|||
|
Speed |
900 rpm |
|||
|
Self-suction height |
6 m |
|||
|
Fittings |
Manhole |

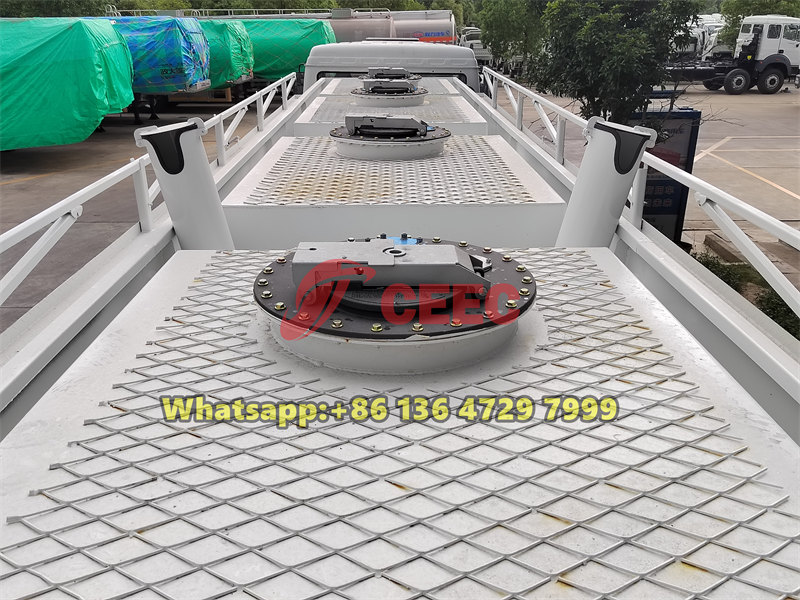

DN500, 4 units, with European standard manhole cover |
||
|
Breather Valve |
Equipped |
|||
|

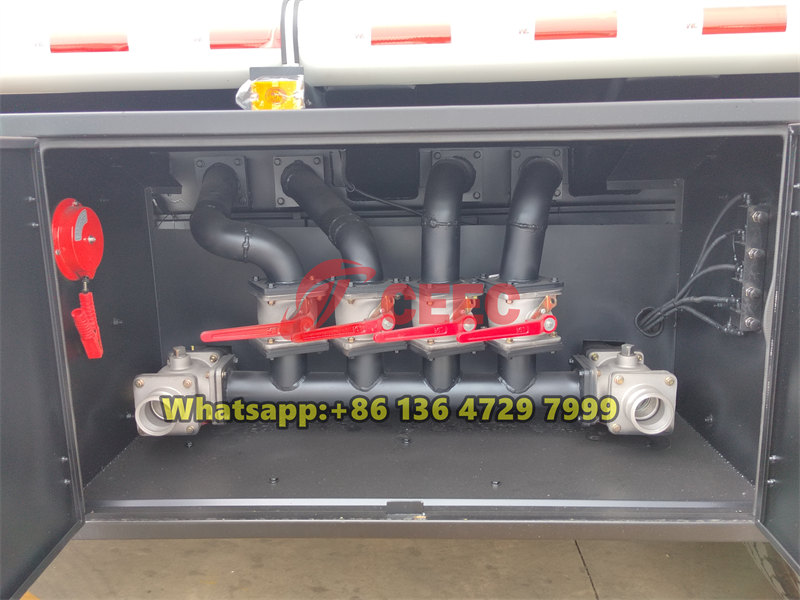

Bottom Valve |
Equipped |
|||
|
Discharge Valve |
Equipped |
|||
|
Flowmeter |
Equipped |
|||
|
Anti-static belt |
Equipped |
|||
|
Emergency Cutoff Device |
Equipped |
|||
|
Vapor Recovery System |
Equipped |
|||
|
Overfill sensor |
Equipped |
|||
|
Tool Box |
1pcs |
|||
|
Fire extinguisher |
1 pcs |
|||
