Order(MOQ):
1Production time:
40 daysPayment terms:

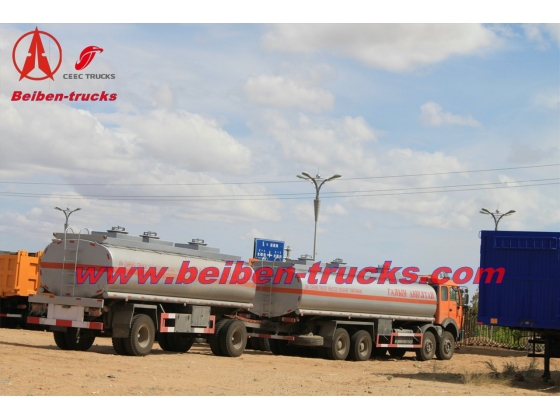

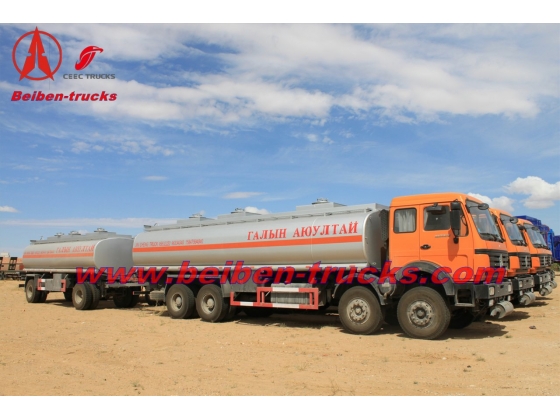

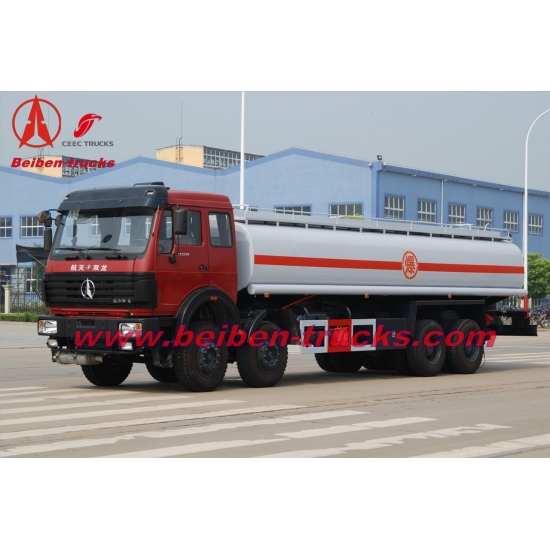

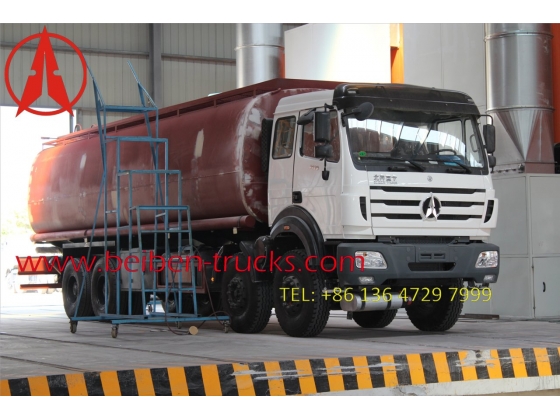

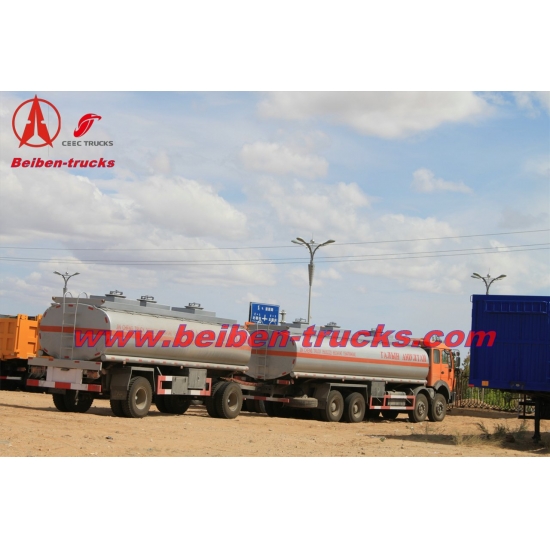

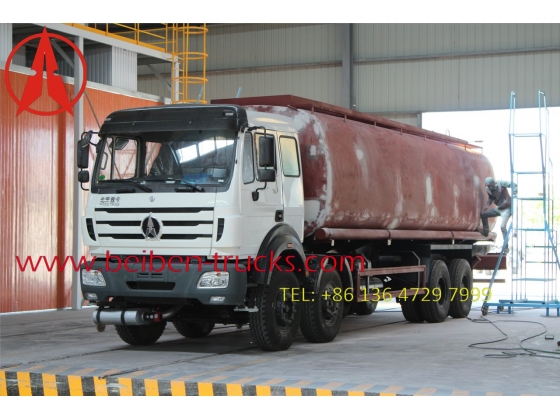

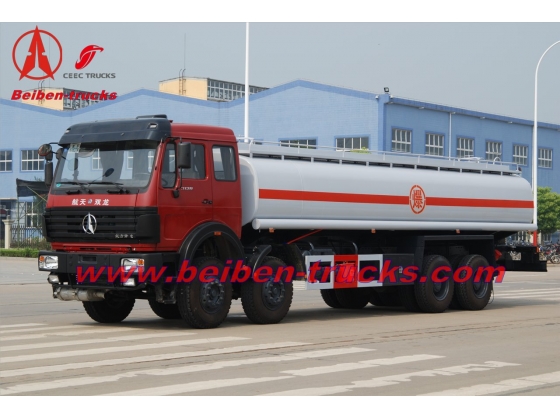

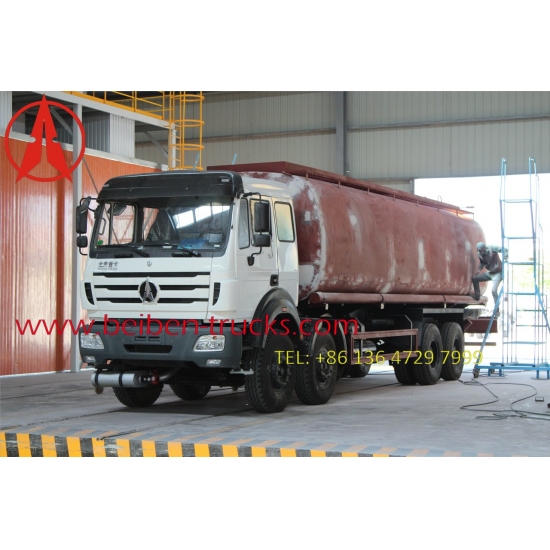

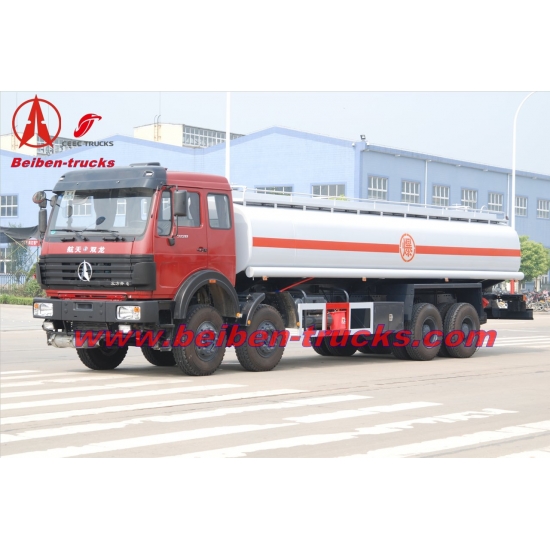

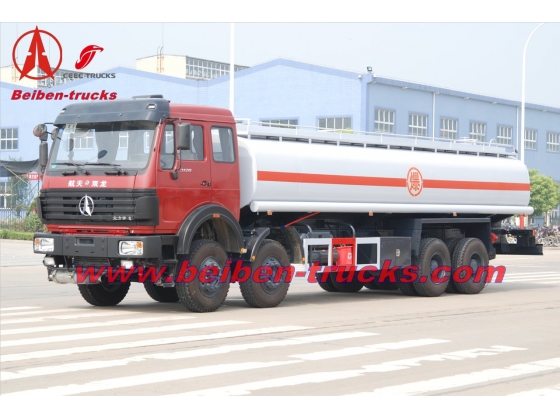

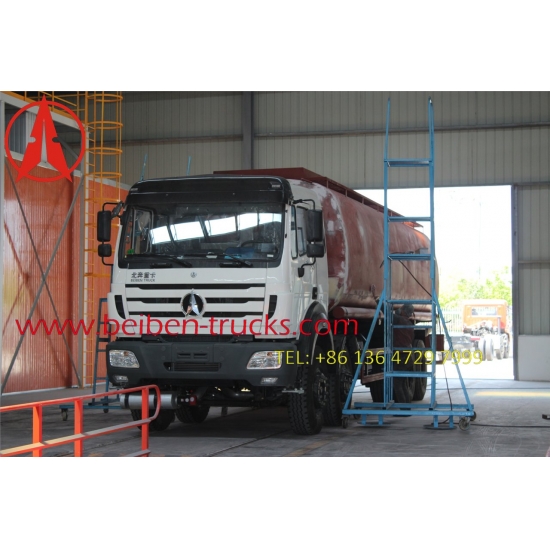

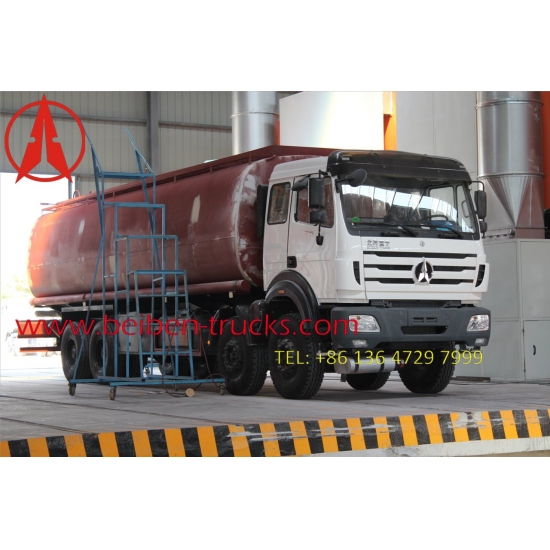

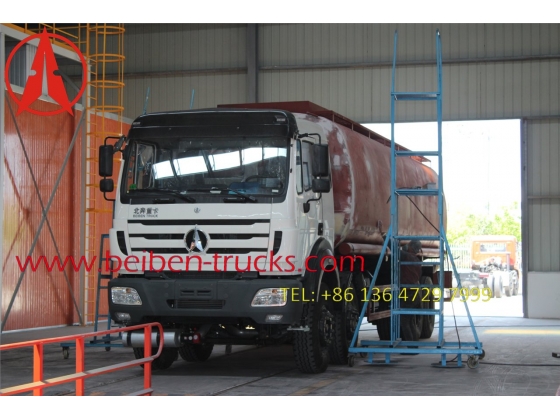

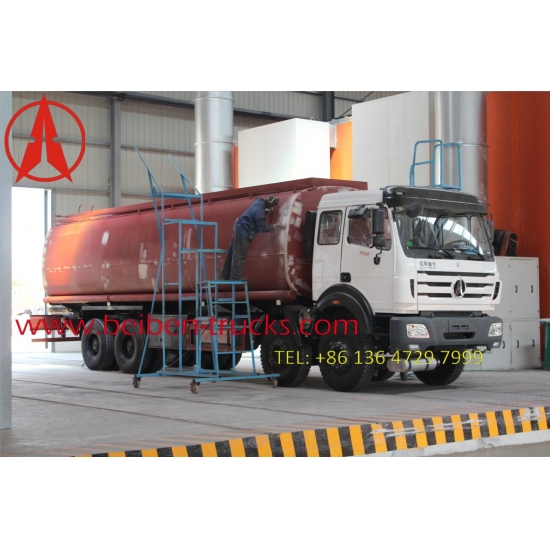

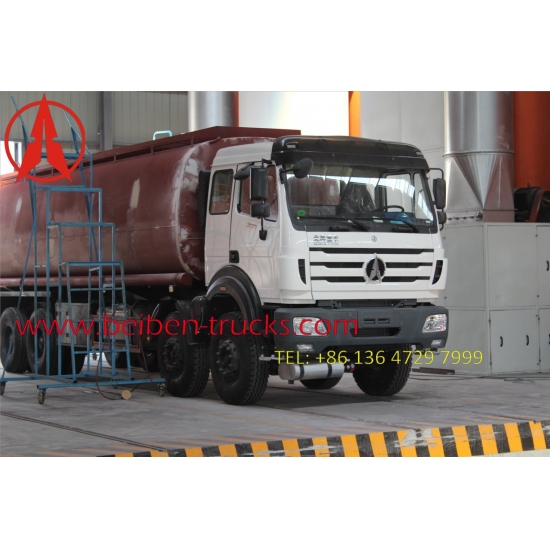

T/T, west unionNorth benz 30 CBM oil tanker truck
The beiben 8*4 Fuel oil Tank Truck Series is normally transport the gasoline, diesel, kerosene etc. and some other liquid fuel materials which do not corrode the oil pump and fiscal ECR.
North benz 12 wheeler oil tanker is produced upon on beiben 8*4 drive fuel tanker truck chassis, we can produce beiben 8*4 drive 3129,3134,3138 oil fuel trucks. model results the equipment with few positive points as: good performance, good structure, also operates simply.
Areas of Application and Use:
◆ Gasoline transport and delivery
◆ Diesel transport and delivery
◆ Kerosene transport and delivery
◆ Other liquid fuel material
◆ Mobile refueling vehicle of Filling stations
Key Features:
◆ Carbon Steel, Stainless Steel, and Aluminum Tanks Available
◆ Tanks can be Mounted to Any Customer Desired Truck Chassis
◆ We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
◆ Effective tank volume from 3m3, 5m3, 10m3 to 30m3, to suit customers varied demands.
◆ Mobile refueling suit for such remote area, also convenient supply for those heavy duty construction equipment.
Technical Parameters:
1.0 Main Chassis Spec:
|
Name |
Standard configuration |
|
|
♦ Model: |
CEEC5350GJY |
|
|
♦ Chassis |
BEIBEN 8*4 truck |
|
|
♦ Drive type: |
8x4 left hand drive |
|
|
♦ Wheel base |
1350+4450+1450 mm |
|
|
♦ Dimension size (LxWxH) |
11105×2480×3465mm |
|
|
♦ Cabin Structure: |
The all-steel stamping parts welded structure, install double-row seat to rollover the double-cab hydraulic oil tanks overturned, can be moved overturned forward |
|
|
♦ Inside cabin equipment |
automatic temperature control air conditioning system of environmental protection (R134A refrigerant, without Freon), Radio + MP3. In addition to the car equipment, the installation of P.O.T. controlled switches, siren, alarms lights, indicator lights, sign lights, profile signal controlled switches |
|
|
♦ Number Of Seats |
3+4 seats with Four-door |
|
|
♦ Air condition |
Yes |
|
|
♦ Engine |
Model |
WP10.340E30 |
|
Power |
280 Kw (340Ps) |
|
|
Torque |
1600/1450 N.m/r/min |
|
|
Advantage |
Beiben brand new engine,4 stork,6 cylinder, New ultra high pressure common rail fuel injection system, strength of electronically controlled cooled EGR system, electronically controlled variable geometry turbocharger systems (VGS) |
|
|
Fuel |
Diesel |
|
|
Displacement |
9760 ml |
|
|
♦ Transmission gear: |
Fast 9-speed gearbox, suitable to all kinds of roads, more fuel-efficient |
|
|
♦ Front axle: |
Reverse Elliot, I-Beam, Benz Technology |
|
|
♦ Rear axle: |
Single Reduction Banjo Design Full Floating, Benz technology |
|
|
♦ Clutch |
Single-plate dry coil-spring clutch, hydraulically operating with air assistance |
|
|
♦ Fuel tank |
400 L |
|
|
♦ Tyres: |
12.00R20 |
|
|
♦ Curb Weight |
11305 kg |
|
|
♦ Brakes |
Service brake: dual circuit compressed air brake Parking brake: Spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
|
|
♦ Electrics |
Operating voltage: 24V 120 AH Battery, negative grounded |
|
|
♦ Maximum Speed: |
95 km/h |
|
|
♦ Maximum gradeability: |
37 % |
|
Beiben V3 fuel tanker trucks is the latest design of beiben V3 truck chassis, the same design of Germany BENZ actros cabin. we are the top beiben V3 fuel tanker supplier.
Beiben V3 fuel tanker truck, 40 CBM fuel tanker capacity, 8*4 driving system, weichai 380 hp engine, fast 12 shift transmission, 12.00R20 tyre. 100% BEIBEN v3 FUEL truck supplier from china baotou beiben heavy duty truck co.,limited
This beiben 30 cbm fuel tanker truck is for Kazakhstan customer, WP10.380E32 diesel engine, fast 9 shift transmission, 12.00R20 tyre. the beiben 3138 truck chassis is with NG80B Long cabin with single sleeper. Beiben 3138 oil tanker truck has a well-designed tank compartment made of high-quality materials to prevent leakage and ensure safe transportation of oil. It is equipped with advanced safety measures to prevent accidents and ensure protection of the environment.
China best beiben 2642 tractor trucks supplier is ceec trucks plant, we supply the best quality 6*4 2642 tractor for sale, and original beiben 2642 tractor truck parts , more than 12 months for north benz 2642 tractor trucks.
Beiben 10 wheeler truck chassis, with famous germany benz technology, 4450+1350 mm wheelbase, china best brand weichai WP7.300 engine, 11.00R20 tyre. CEEC high technology on Beiben 20 CBM oil tanker truck manufacturing.
Beiben truck head 6x4 tractor truck 10 wheels tow truck 2638 , china best beiben 2638 tractor trucks supplier, supply the best quality beiben 10 wheeler tractor truck for congo customer and other africa customer.
beiben 16 Ton roll on roll off truck manufacturer, china best beiben hook loader supplier, beiben 4*2 hook loader and beiben 6*4 hook loader trucks .
North benz 8cbm 6x4 concrete mixer truck sale in Africa PRODUCTS ADVANTAGE * Original Price: FOB, CNF/CFR, CIF * Certificates: CCC, ISO, BV, GJB, CQC * Promptly Delivery: 15-30 days * Excellent After-sale Service and Customization Service. Product Description 2529BY /6×4/3450+1450/Short Cab/LHD Dimension 尺寸 9300*2500*3900mm Approaching angle/Departure angle 26/20° Overhang(front/rear) 1410/2640mm Wheel base 3800+1450mm Max speed 80km/h Curb weight 13650kg Loading capacity 11220kg Slope climbing capability Max.40% Engine Model WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection Displacement 9.726L/Diesel Stroke 126/130mm Max. power 250/2200 (kw/rpm) Max.torque 1350/1200-1600（Nm/rpm） Emission stantard EuroⅢ Fuel tanker capacity 300L Clutch ∮430, Single dry frictional disc，Hydraulic boosting Gearbox 9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer Gear ratio of gear box 12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs Rear Non-free standing stablization spring, balance suspension system, 13pcs Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system Assistant brake Engine exhaust brake Park brake Potential springs pressing on middle and rear wheels Steering system TAS85,whole circulation in ball, hydraulic booster Frame Fish belly shape, variable width, variable sections Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Tyre 12.00R20 Radial Electrical system Battery 2X12V/135Ah Generator 28V-35A Starter 5.4Kw/24V Cabin NG80B Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C Main technical parameters of concrete mixer Drum performance parameter Geometric Volume m3 15.5 m3 Effective Volume m3 10 m3 Filling Ratio % 64.5% Gradient of the Drum ° 15° Filling speed m3/min ≥3 Discharging Speed m3/min ≥2 Surplus Ration % <1% Range of Slump mm 20～300 Hydraulic System Pump Eaton 54 (ACA542337R) Motor Eaton 54 (HHD542337R) Gear Box PMB6sp Water supply system Volume of water tank 400L Water supply type Air pressure Type
beiben north benz NG80 30 CBM cargo box 8*4 tipper trucks , best quality china 50 T heavy duty dump truck supplier for congo country. Benz unique axle technique High EFFICIENCY
