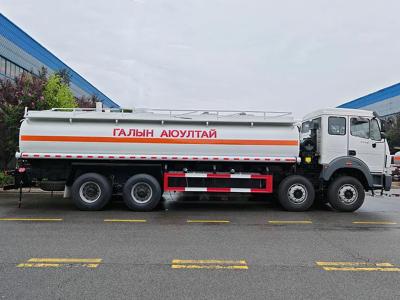

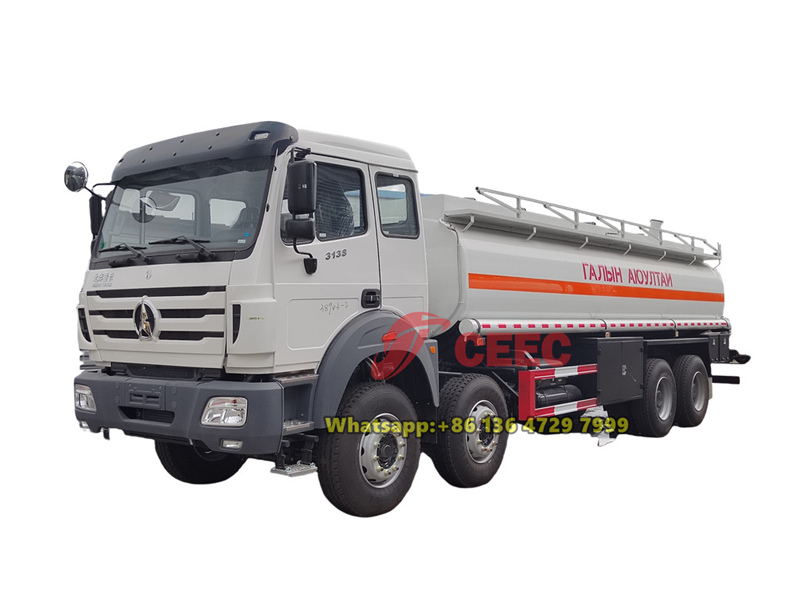

The Beiben 8×4 fuel tanker is a heavy-duty specialized vehicle designed for fuel transportation. Powered by a Weichai 380 hp engine, it features a 30,000-liter carbon steel tank and European-standard manhole covers, integrating bottom loading and unloading as well as vapor recovery functions. With robust manufacturing craftsmanship and high-standard safety configurations, the vehicle ensures efficient and reliable fuel transport.
Working capcity:
30000 litersCabin type:
NG80B short cabinDimension ( mm ) :
11500×2500×3450Drive system:
8×4Wheelbase (mm):
1500+4450+1450Engine power / Model:
380 HP/WP10.380E32Gear Box:
12JS200TRemark:
6×6, 8×8, RHD drive is optional» Ⅰ.Product Defination and Introduction:
The Beiben 8×4 fuel tanker is a heavy-duty specialized vehicle built on the Beiben NG80B long cab chassis. With an 8×4 drive configuration, it is equipped with a powerful Weichai 380 hp Euro III engine and a Fast 12-speed gearbox, delivering dependable power. Its core component is a 30,000-liter square tank made of 5mm carbon steel, featuring European-standard manhole covers, bottom loading and unloading valves, and a vapor recovery system to ensure safe and efficient operations. The vehicle boasts excellent welding craftsmanship, reinforced anti-surge plates, and a heavy-duty rear bumper that complies with high safety standards. The Beiben 8×4 oil tanker truck is a reliable choice for medium to long-distance transportation of fuels such as diesel and gasoline.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅱ. Product Specifications:
|
Chassis Specification |
||
|
Cab |
Beiben NG80B long cab, 2 seats, one sleeper berth, with A/C |
|
|
Driving Type |
8*4 Left hand driving |
|
|
Max Speed (km/h) |
80 |
|
|
Overall dimension (mm) |
11500×2500×3450 |
|
|
GVW (kg) |
31000 |
|
|
Mass in working order (kg) |
14300 |
|
|
Wheelbase (mm) |
1500+4450+1450 |
|
|
F/R track base (mm) |
2042/2042; 1904/1904 |
|
|
F/R overhang (mm) |
1435/2300 |
|
|
Approach/Departure Angel |
17/46 |
|
|
Tire |
12.00R20 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
FAST, 12JS200T, 12-speed |
|
|
Axles |
Front axle |
7500kg+7500kg |
|
Rear axle |
13000kg+13000kg |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP10.380E32 |
|
|
Fuel Type |
Diesel fuel |
|
|
Type |
Water-cooled four-stroke, 6 cylinders, direct injection, turbocharged |
|
|
Exhaust (ml) |
9726 |
|
|
Emission standard |
Euro 3 |
|
|
Max output power |
280KW/380HP |
|
|
Rated speed |
2200 rpm |
|
|
Max. torque |
1600N.m |
|
|
Braking system |
Service Brake |
Air brake |
|
Park Brake |
Spring energy |
|
|
Electric system |
24v |
|
|
Superstructure Specification |
||
|
Fuel tank |
||
|
Volume of tank |
30000L |
|
|
Compartment |
4 |
|
|
Tank shape |
Quadrate |
|
|
Material of tanker |
High Quality Carbon Steel |
|
|
Thickness of tank |
5mm |
|
|
Color of the tanker |
According to customer requirments |
|
|
Transport medium |
Diesel oil, gasoil or others |
|
|

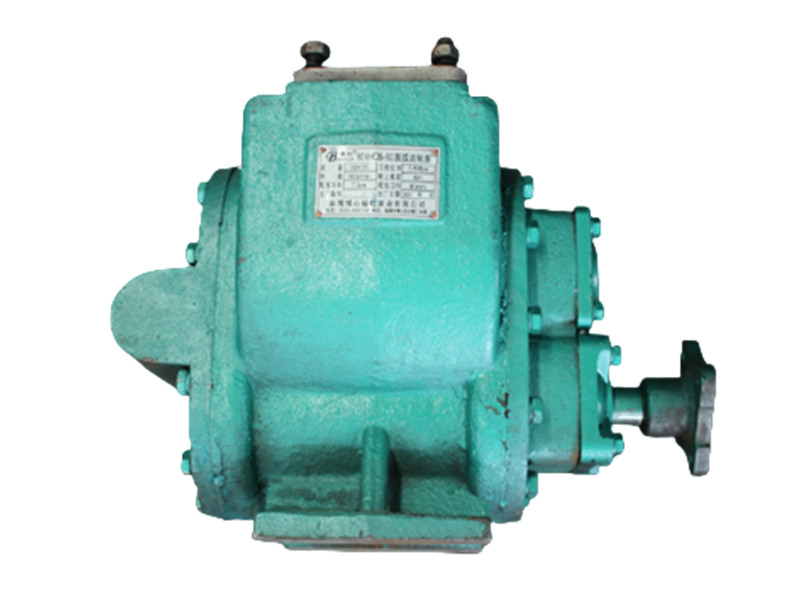

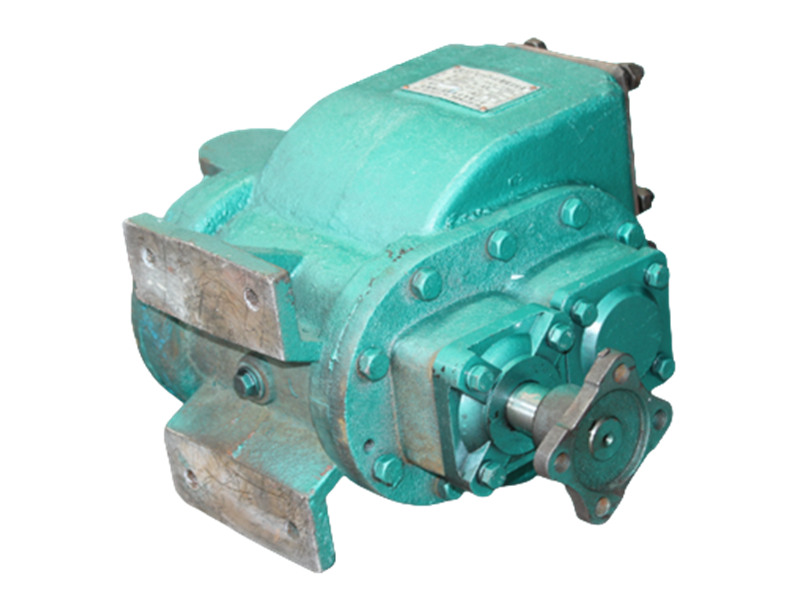

Fuel pump |
||
|
Model |
80YHCB-60 |
|
|
Fuel Flow Rate (m³/h) |
60 |
|
|
Working Pressure (MPa) |
0.6 |
|
|
Revolving Speed (r/min) |
900 |
|
|
Self-Suction Height (m) |
6 |
|
|
Rated Power (kw) |
7.5 |
|
|
Safety accessories |
||
|

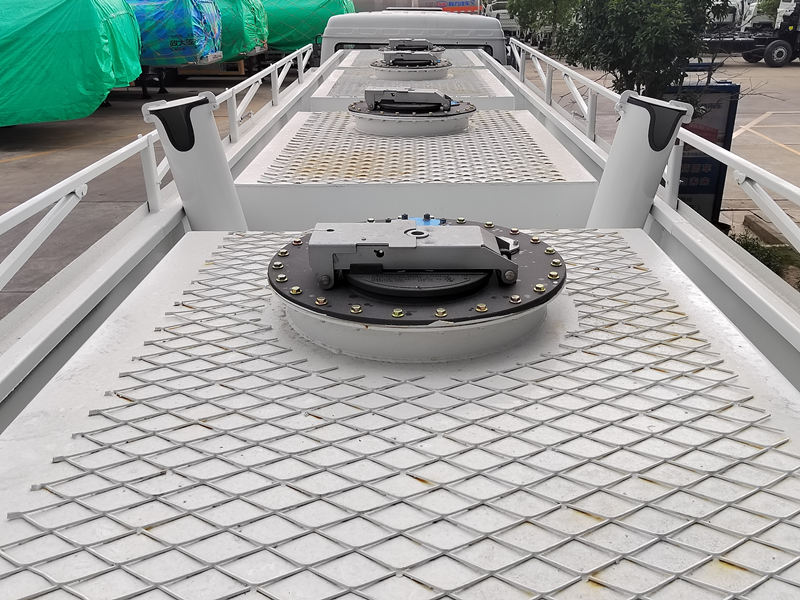

Manhole cover |
European standard cover |
|
|
Anti-overflow probe |
||
|
Gas recovery joint |
||
|
Bottom Filling Device |

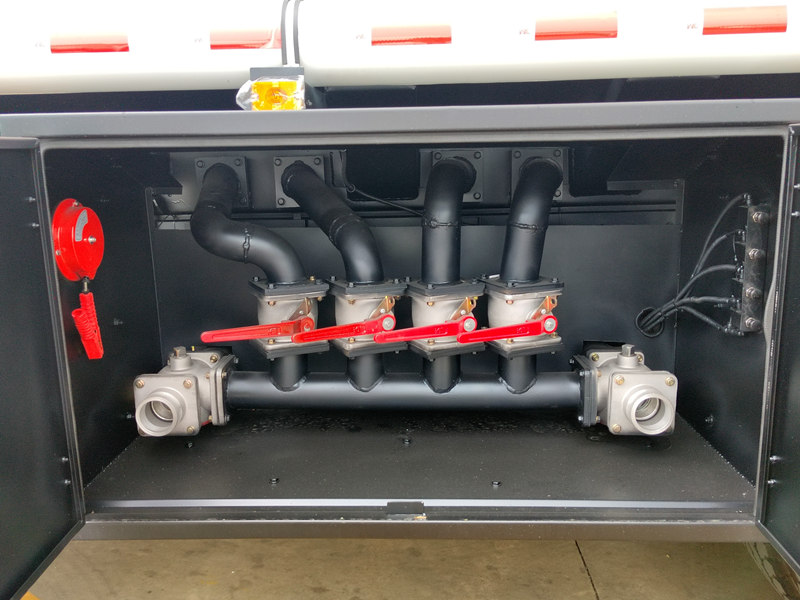

API discharge valve |
|
|
Pumping outlet & inlet |
||
|
Oil and gas recovery valve |
||
|
Anti-overflow anti-static socket |
||
|
Percolator |
||
|
Bottom of tank valve |
Emergency valve |
|
|
Fittings |
PTO oil pump |
|
|
Discharging Pipe |
||
|

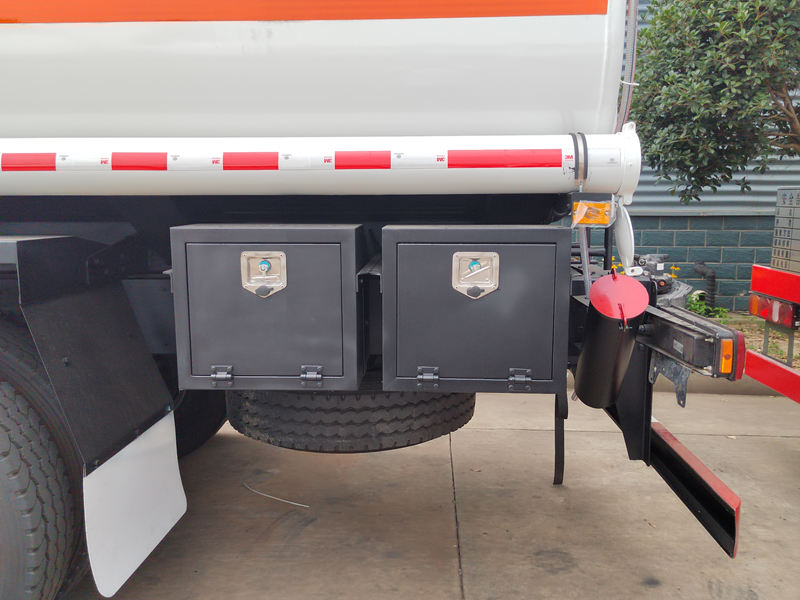

Discharging Pipe box fitted on both side of tank |
||
|
Fire extinguisher |
||
|
One spare tire |
||
|
Ladder: For access to top of tank complete with cat walk on top of tank |
||
|
Heavy-duty rear bumper |
||
» Ⅲ. Product Features:

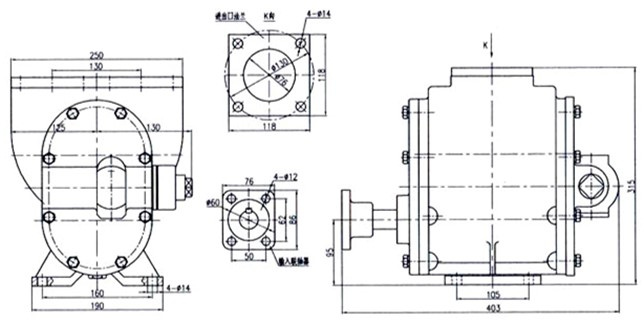

» Ⅳ. Fuel Pump Specifications:
![]() |
![]() |
Parameters for common used fuel pumps
|
Pump model |
flow (m3/h) |
Work pressure (MPa) |
Rotating speed (r/min) |
Effectiveness (%) |
Allow suction height (m) |
Equipped with motor |
|
|
Shaft power |
Power (kw) |
||||||
|
50YHCB-4 |
4 |
0.6 |
960 |
60 |
5 |
1.1 |
1.5 |
|
50YHCB-8 |
8 |
0.6 |
960 |
60 |
5 |
2.2 |
3 |
|
50YHCB-12 |
12 |
0.6 |
960 |
60 |
5 |
2.4 |
3 |
|
50YHCB-15F |
15 |
0.6 |
970 |
60 |
5 |
3.8 |
2.2 |
|
50YHCB-1 |
15 |
1.6 |
970 |
60 |
5 |
3.8 |
4 |
|
65YHCB-15 |
15 |
0.6 |
960 |
60 |
5 |
3.9 |
4 |
|
65YHCB-20 |
20 |
0.6 |
960 |
62 |
5 |
5.0 |
5.5 |
|
65YHCB-25 |
25 |
0.6 |
960 |
65 |
5 |
5.0 |
5.5 |
|
65YHCB-30 |
30 |
0.6 |
960 |
65 |
5 |
7.1 |
5.5 |
|
65YHCB-35F |
35 |
0.6 |
970 |
66 |
5 |
7.1 |
5.5 |
|
65YHCB-40 |
40 |
0.6 |
960 |
65 |
5 |
7.4 |
7.5 |
|
65YHCB-45 |
45 |
0.6 |
800 |
72 |
5 |
7.4 |
7.5 |
|
76YHCB-40 |
40 |
0.6 |
960 |
70 |
5 |
7.4 |
7.5 |
|
76YHCB-50 |
50 |
0.6 |
960 |
70 |
5 |
10.3 |
7.5 |
|
80YHCB-60 |
60 |
0.6 |
960 |
70 |
5 |
14.2 |
11 |
|
80YHCB-60A |
60 |
0.6 |
960 |
70 |
5 |
14.2 |
11 |
|
80YHCB-80 |
80 |
0.6 |
960 |
70 |
5 |
16.3 |
18.5 |
|
80YHCB-80A |
80 |
0.6 |
960 |
70 |
5 |
16.3 |
18.5 |
|
100YHCB-100 |
100 |
1.6 |
960 |
72 |
5 |
22.3 |
22 |
|
100YHCB-150 |
150 |
1.6 |
960 |
60 |
5 |
24.5 |
24 |
|
125YHCB-200 |
200 |
1.6 |
960 |
60 |
5 |
32.7 |
32 |
|
125YHCB-250 |
250 |
1.6 |
960 |
60 |
5 |
40.8 |
40 |
|
150YHCB-300 |
300 |
1.6 |
960 |
60 |
5 |
49 |
50 |

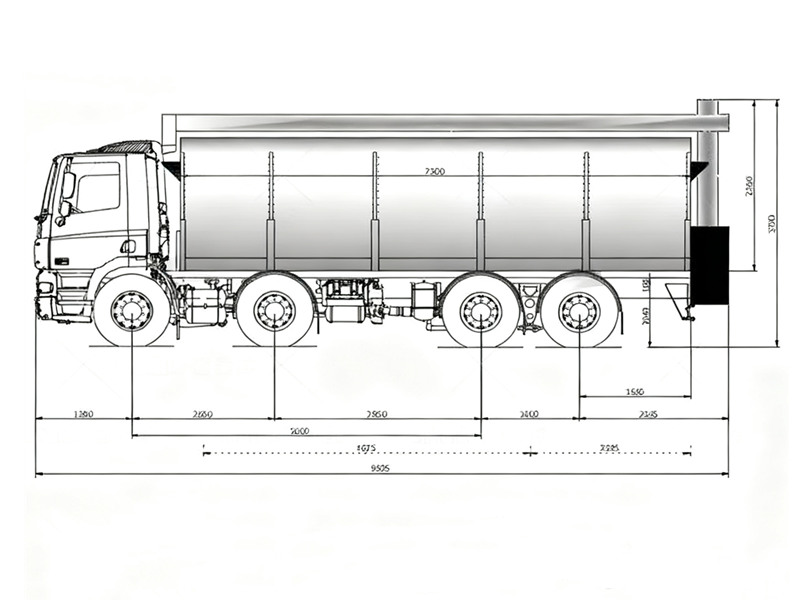

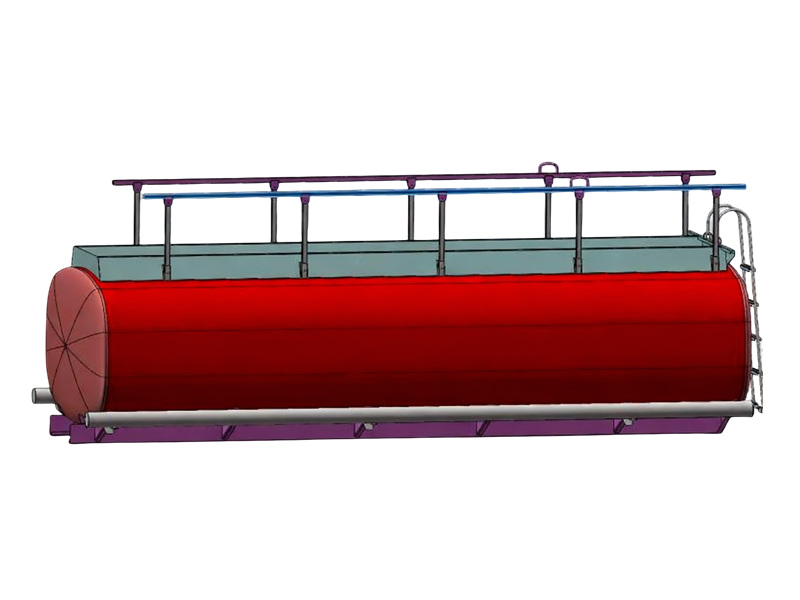

» Ⅴ. Product Drawing:

Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x6, 8x8 drive fuel tanker truck, customized based on your needs!
2. Carbon steel, stainless steel, aluminum alloy tanker for option.
3.Tank capacity from 3000 to 30000 liters, can be designed with multi-compartment.
4. Factory direct sale, supply Beiben fuel trucks at best price.
