Guinea Beiben 25000L oil tanker truck

The Beiben 8×4 oil tanker truck is a specialized vehicle designed for the transportation of liquid fuels. Built on an 8×4 heavy-duty chassis, it is equipped with a 380-horsepower engine and features a total weight capacity of 31,000 kilograms and a 25,000-liter carbon steel tank. The tank is divided into six independent compartments, allowing for the safe and separate storage of different oil products simultaneously. The vehicle is outfitted with a bottom loading/unloading system and a high-flow oil pump, prioritizing efficient and safe loading, unloading, and point-to-point transport operations. It is well-suited for energy logistics tasks, such as transporting fuels from oil depots to terminals like gas stations and ports.

  • Working Capcity:

    25000 liters
  • Cabin Type:

    NG80B long cabin, with sleeper
  • Dimension ( mm ) :

    11000×2500×3300
  • Drive System:

    6×4
  • Wheelbase (mm):

    1500+4450+1450
  • Engine Power:

    380HP/WP10.380E32
  • Gear Box:

    12JS200T
  • Remark:

    6 compartments, stainless steel, aluminum alloy tanker is optional
New Products

The Beiben 8×4 oil tanker truck is a specialized tanker vehicle built on a heavy-duty chassis, primarily used for the storage and transportation of liquid fuels such as gasoline and diesel. Built on Beiben 8×4 chassis, it is powered by a Weichai 380-horsepower engine paired with a Fast 12-speed transmission, offering excellent load-bearing capacity and off-road performance. Its core tank has a capacity of 25,000 liters, constructed from carbon steel and divided into six independent compartments, enabling the safe, separate, and simultaneous transport of different oil products.

The vehicle is equipped with European-standard manhole covers, a bottom loading/unloading system, and a high-flow oil pump, emphasizing efficient and safe loading and unloading operations. The tank top includes a non-slip walkway and is fitted with comprehensive safety protection devices. As a professional oil transport vehicle, this Beiben fuel tanker truck is suitable for long-distance point-to-point transportation of fuels from storage centers to end terminals such as gas stations, construction sites, and ports, playing a vital role in the energy logistics sector.

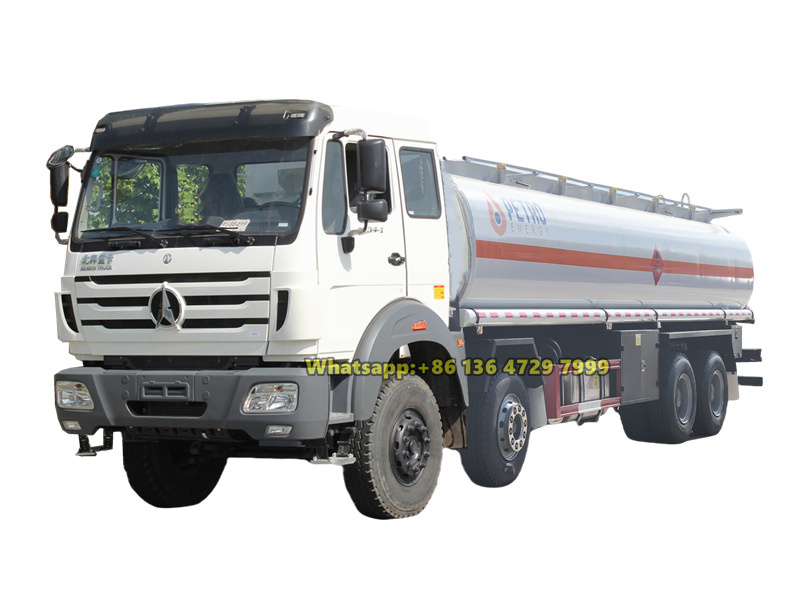

beiben 8x4 heavy-duy fuel truck

*Beiben 8×4 25000L fuel tanker truck

CEEC factory is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

Beiben 8×4 chassis: NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox

Large fuel capacity: Made of high quality carbon steel, with 25000 liters capacity

Six compartments: Divided into 6 compartments for transportation of different media

Reliable fuel pump: China top brand fuel pump, with flow rate 60 m3/h

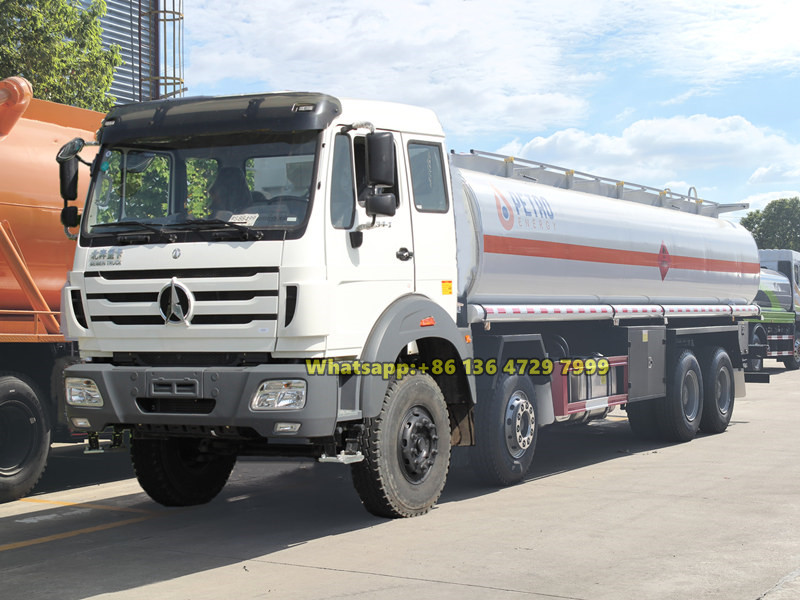

Beiben 12 wheels oil bowser truck



» Ⅱ. Product Specifications:



Beiben 25000L fuel tanker truck specifications

 Cabin

Driving type

8x4 left hand drive

Cabin model

Beiben NG80B

Number of seats

2 seats, one sleeper bed

Air-conditioning

Equipped

Vehicle Main Dimensions

Overall dimensions (L x W x H):

11000*2500*3300 mm

Wheel base

1500+4450+1450 mm

Overhang (front/rear)

1435/2300 mm

Front track

1995/1995 mm

Rear track

1800/1800 mm

Weight

Gross vehicle weight

31000 kg

Curb weight

13500 kg

Max. driving speed

90 km/h

Engine

Brand

WEICHAI

Model

WP10.380E32

Number of cylinders

6

Power (HP)

380HP (280KW)

Emission

Euro 3

Displacement

9726 ml

Rated speed

2200 rpm

Max. torque

1600 N.m

Speed at max. torque

1500-1800 rpm

Gearbox

FAST 12JS200T, 12 forwards gear and 2 rear gear

Axle

Front axle 2×7.5T, rear axle 2×13T

Tire

12.00R20, 12 tires+1 spare tire

Steering Gear

ZF 8098, power steering, hydraulic steering with power assistance

Leaf spring

Front 12pcs×2, rear 13 pcs hard parabolic spring

Accessory

One tool box, two fire extinguisher

ABS

Optional

Exhaust pipe

In the front

Color and logo

Depends on customer's requirement

Upper parameters

Fuel tank

Tank capacity

25000 liters

Tank material

Carbon steel

Thickness of the fuel tank

6mm

Compartment

6

Fuel pump

Model

80YHCB60

Flow rate

60 m3/h

Working pressure

0.6 Mpa

Speed

970 rpm

Self-suction height

7 m

Manhole cover

Aluminum alloy European standard with breath valve, oil-gas recycle valve, dip hatch, anti-overflow valve, 6 pcs

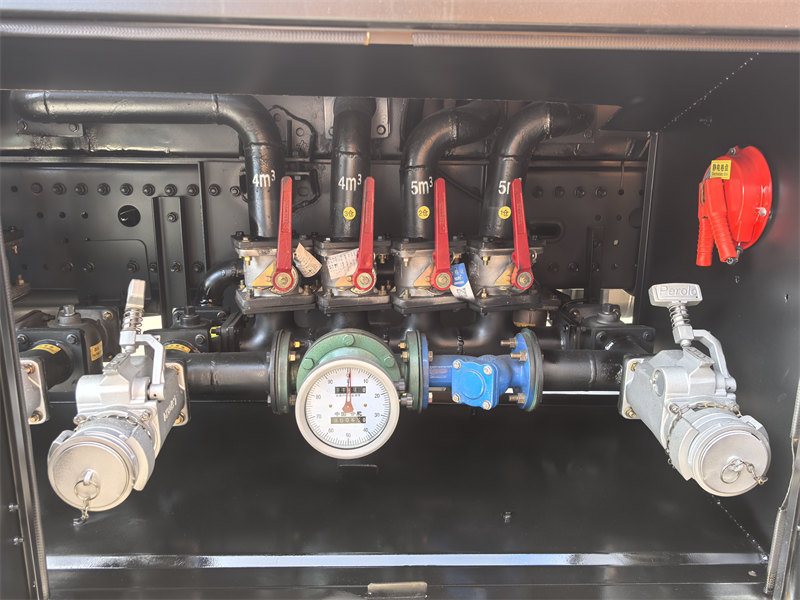

Bottom valve

Aluminum alloy material, 6 pieces

Discharge valve

6 set (every compartment has one set discharge valve)

Discharging Pipe

4" rubber hose,2 pcs,6m/each

Walkway in the top

Aluminum diamond plate walkway

Loading system

Bottom loading system

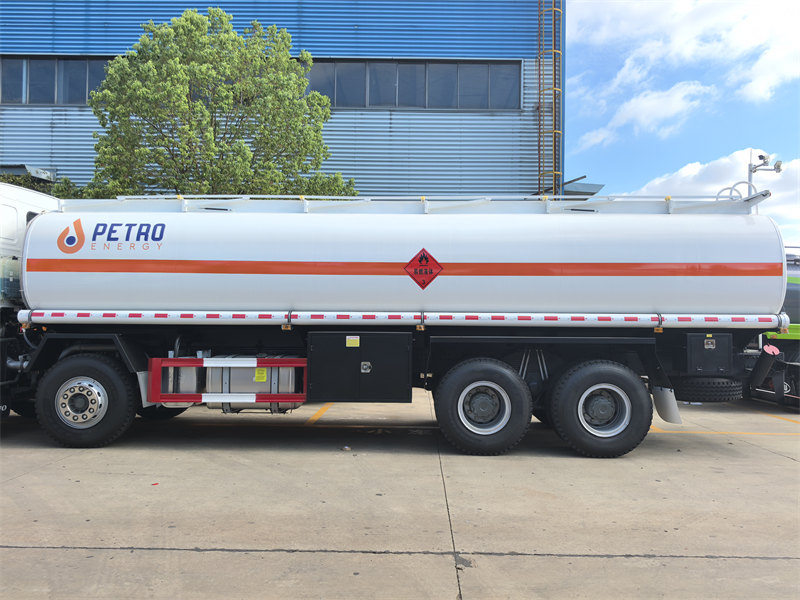

Beiben 8×4 fuel bowser truck



» Ⅲ. Chassis Advantages:



Beiben 25CBM oil tanker truck

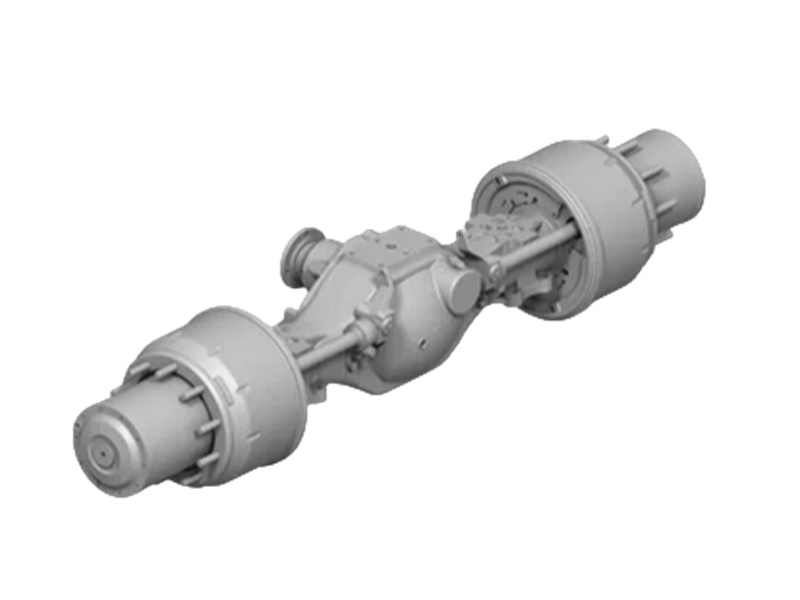

Beiben Axles

Front axle: Beiben 2×7.5 T driving axle
Rear axle: Beiben 2×13T dual reduction driving axle
Rear axle ratio: 5.263



Beiben heavy fuel tanker truck

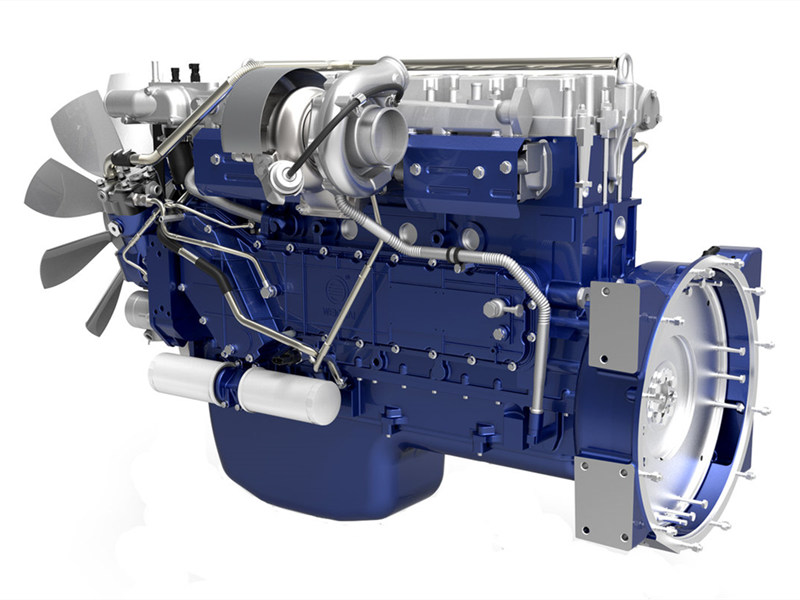

Weichai Engine

Model: WP10.380E32

Number of cylinders: 6

Power: 380HP/280KW

Displacement: 9726ml

Rated speed: 2200 rpm

Max. torque: 1600 N.m



Beiben 8×4 diesel tanker truck

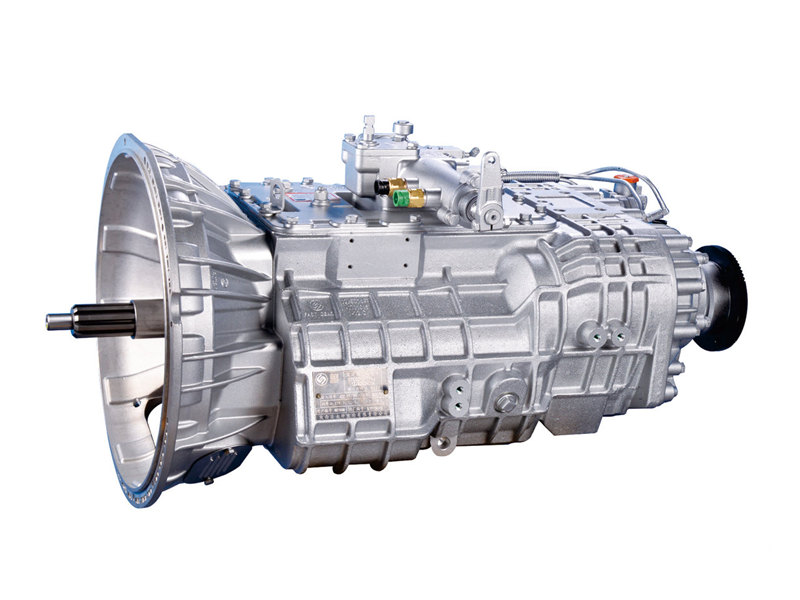

FAST Gearbox

Model: 12JS200T

Gear: 12-speed forwards and 2 reverse

Rated input power: 355 kw

Rated input torque: 2000 N.m







Beiben 12 wheels fuel bowser truck

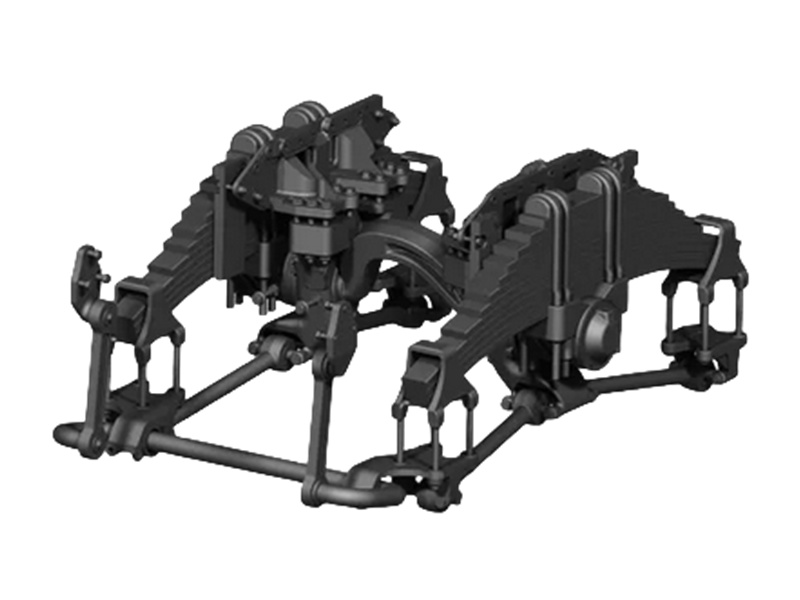

Suspension system

Equipped with integrated balance suspension system developed based on Benz technology.

Front leaf spring: 12 pcs

Rear leaft spring: 13 pcs

U-shape bolts: 4 pcs





» Ⅳ. Feul Tanker Features:


Beiben fuel tanker truck

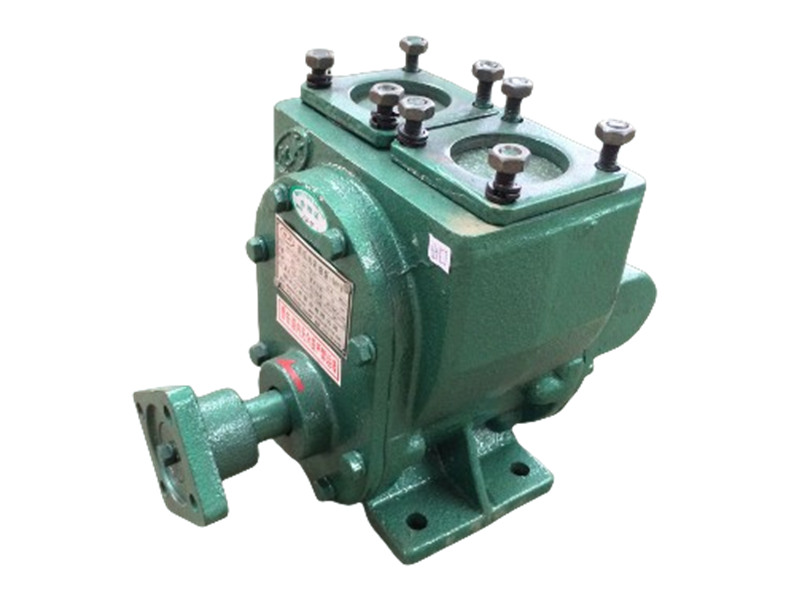

Fuel pump

Model: 80YHCB60
Flow Rate : 60 m³/h
Working Pressure: 0.6 MPa
Rated Power: 11 kW
Rotational Speed: 970 r/min
Inlet/Outlet Diameter: 80 mm
Allowable Suction Lift: 7 m
Efficiency: Approx. 72%



Beiben oil tanker truck for sale

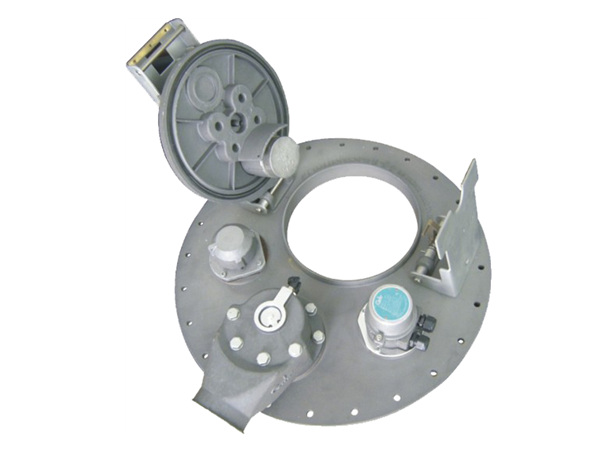

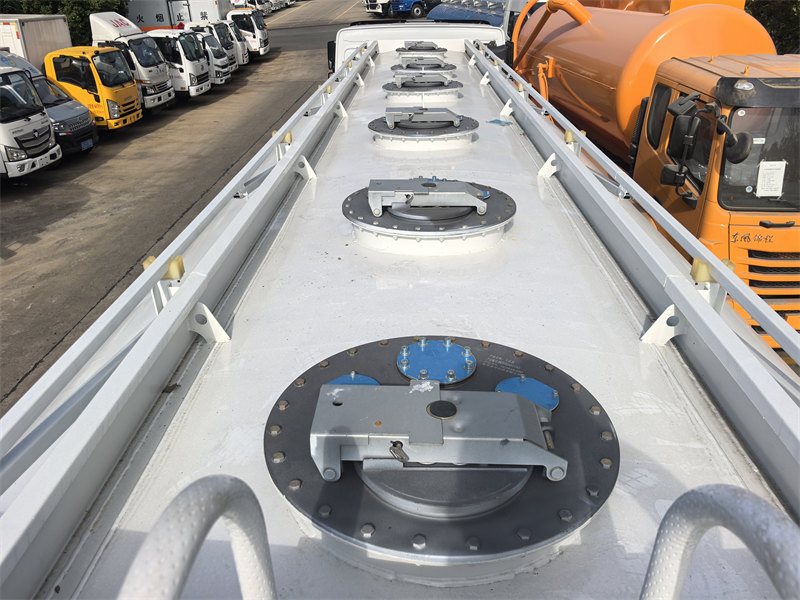

Manhole cover

Emergency Opening Pressure: 21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate: 7000 m³/h (at 34 kPa)
Material: Aluminum Alloy
Installation Method: Clamp-type
Temperature Range: -20℃ ~ +70℃



Beiben 8×4 fuel tanker truck

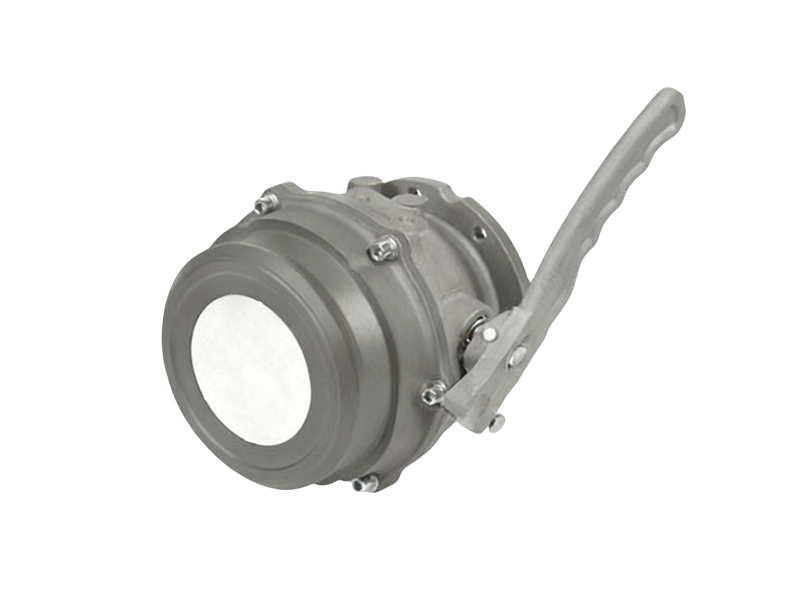

API adaptor valve

Nominal Pressure: 0.6 MPa
Maximum Flow Rate: 2500 L/min
Main Body Material: Aluminum Alloy
Operation Mode: Manual
Design Temperature: -20℃ ~ +70℃



Beiben heavy duty oil tanker truck

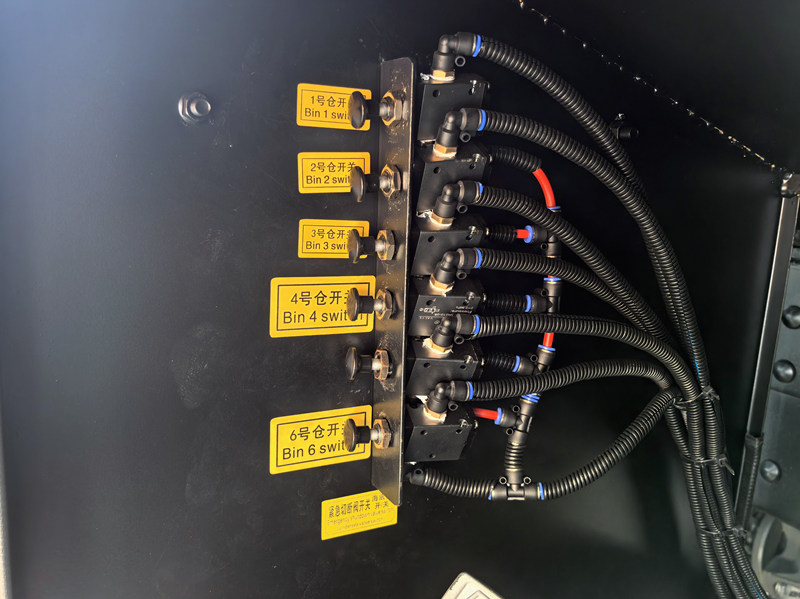

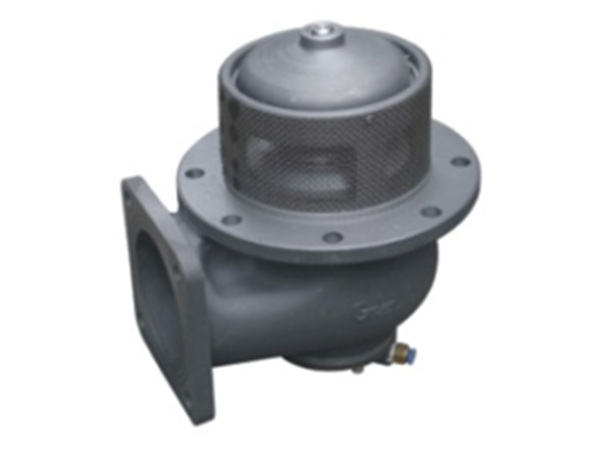

Emergency shutt-off valve

Nominal Pressure: 0.6 MPa
Material: Aluminum Alloy
Operation Mode: Pneumatic
Temperature Range: -20℃ ~ +70℃



Beiben 12 wheeler oil bowser truck

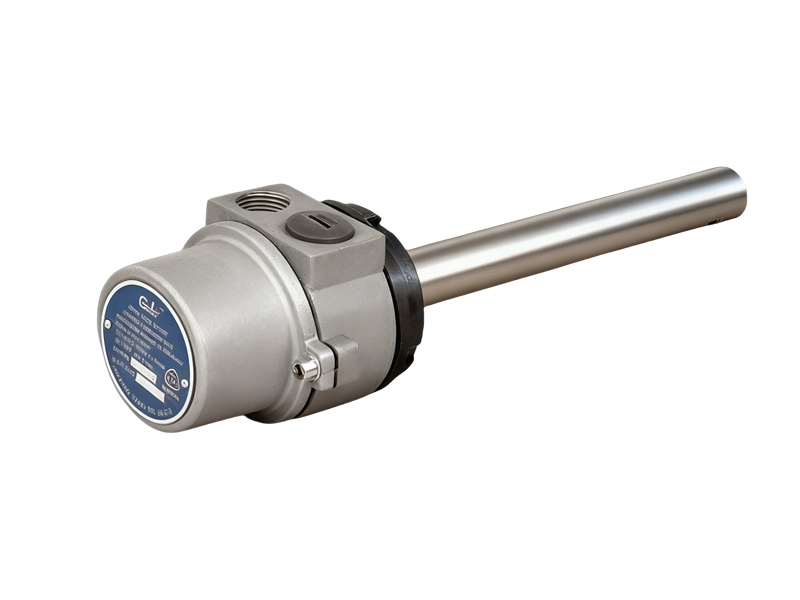

Overflow prevention probe

Operating Voltage: 12 VDC
Explosion-Proof Rating: Exia IIB T4
Response Time: < 1 s
Design Temperature: -40 ℃ ~ +60 ℃
Operating Current: < 5 mA
Operating Medium: Light fuel oil

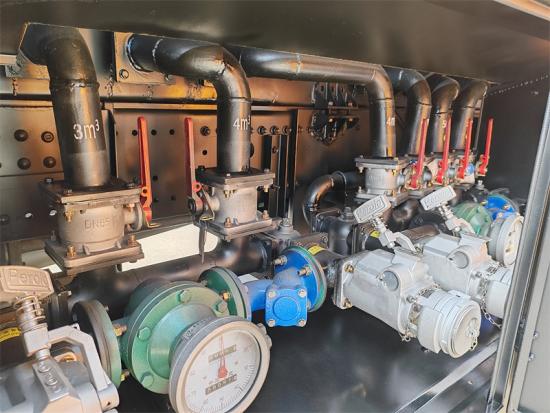

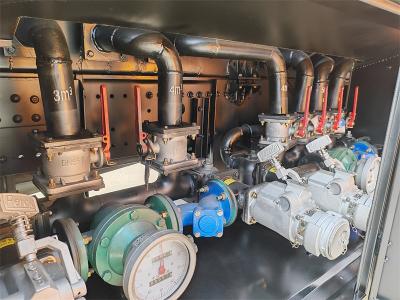

  • » Ⅴ. Product Details:

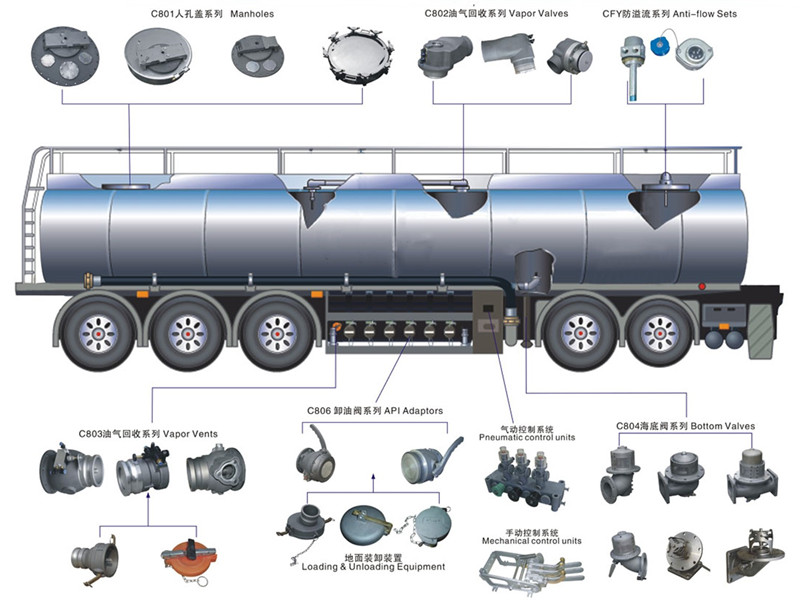

» Ⅵ. Tanker Body Structure:



Beiben fuel tanker structure

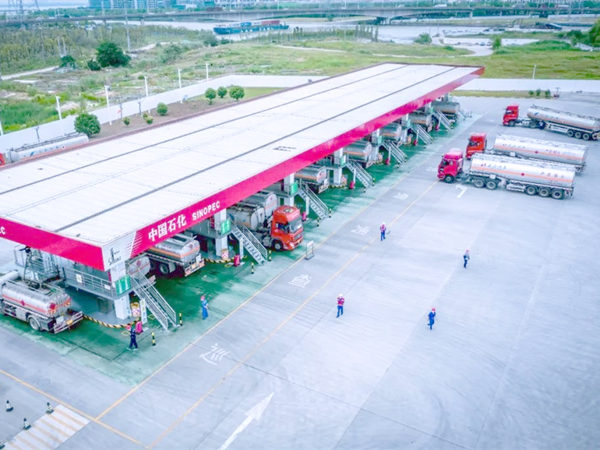

» . Product Applications:



  • Beiben 25CBM fuel tanker truck
  • Beiben heavy duty fuel tanker truck
  • Beiben heavy duty fuel tanker truck





Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option



2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks



3.Tanker body can be divided into multiple compartments for transporting different media..



4. Carbon steel, stainless steel, aluminum alloy material is optional.
