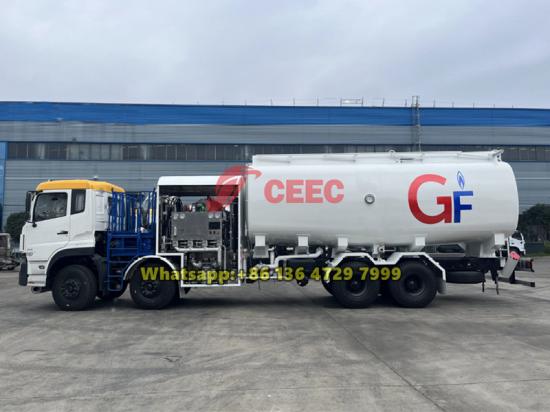

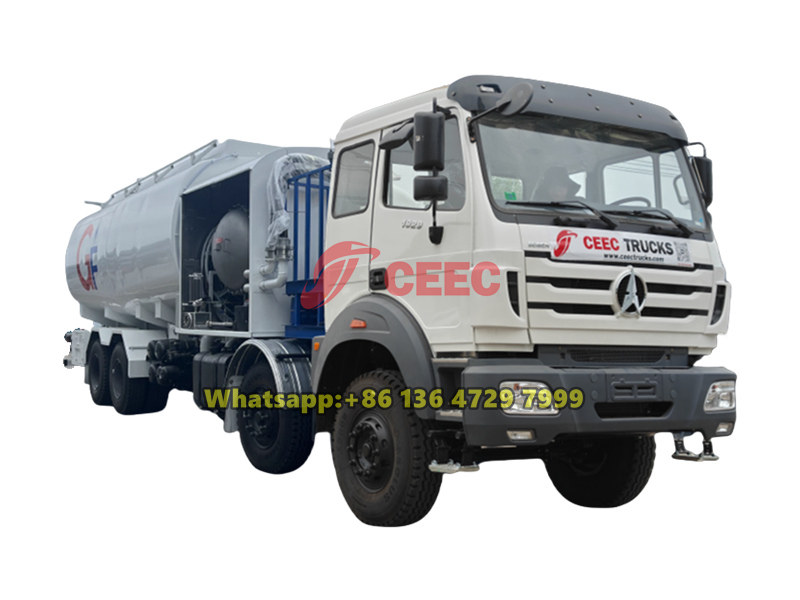

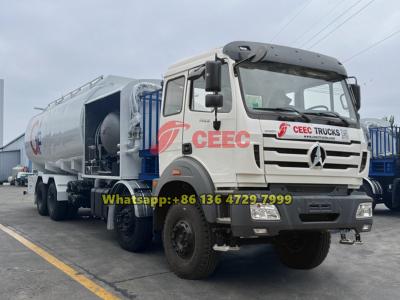

The Beiben 30,000L Aircraft Refueling Truck is a specialized vehicle designed for the aviation industry, primarily used to refuel various types of aircraft with jet fuel and aviation gasoline. The truck features an aluminum alloy tank with an effective capacity of 30 cubic meters, equipped with an advanced pumping system and filter-separator to ensure safe and efficient refueling, meeting airports' demands for fast and accurate fuel replenishment. The vehicle is equipped with a DeadMan control system, high-level sensors, and multiple safety valves to ensure operational safety. Additionally, it includes a hydraulic hose reel, pressure-stabilizing couplings, and a large-digit flow meter, further enhancing refueling convenience and precision.
Working capcity:
30000 litersCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
12500×2550×3950Drive system:
8×4, LHDWheelbase (mm):
1500+4450+1450Engine power / Model:
380HP/WP10.380E32Gear Box:
12JS200TRemark:
6×6, RHD is optionalProduct Description
Beiben 30,000L Aviation Refueler Truck is a high-performance refueling vehicle specifically designed for the aviation sector. With an effective capacity of 30 cubic meters, it can carry jet fuel or aviation gasoline to meet the refueling needs of different aircraft models. The tank is constructed from lightweight and corrosion-resistant aluminum alloy and is equipped with an advanced pumping system and filter-separator to ensure fast and safe refueling operations. Compliant with the GB18564.1-2006 standard, it is specifically designed for transporting and refueling hazardous materials such as aviation fuel and aviation gasoline, enabling efficient loading and unloading through bottom loading/unloading and top direct-fill methods.
The Beiben Aircraft Refueling Truck is widely used in civilian and military airports to provide efficient and safe pressure refueling services for various aircraft. The vehicle is fitted with high-precision flow meters, explosion-proof lights, self-priming centrifugal pumps, and a DeadMan control system, ensuring accurate measurement and operational safety during refueling. Additionally, it is equipped with a vapor recovery system and an overfill prevention system, further enhancing environmental sustainability and safety. It is an indispensable piece of equipment in the aviation industry.
Product Specifications
|
Beiben 30000L aviation refueler truck specifications |
||
|
Vehicle specification |
Chassis brand |
Beiben |
|
Overall dimensions (mm) |
12500×2550×3950 |
|
|
Wheelbase (mm) |
1500+4450+1450 |
|
|
Wheel track (front/rear) (mm) |
1990/1990; 1800/1800 |
|
|
Max speed(km/h) |
88 |
|
|
G.V.W (kg) |
31000 |
|
|
Curb weight (kg) |
10800 |
|
|
Engine |
WP10.380E32 |
|
|
Engine type |
6 cylinders in line, 4 strokes, turbocharged, inter cooling, water cooled |
|
|
Engine power (kw/hp) |
280KW/380HP |
|
|
Rated speed (rpm) |
2200 |
|
|
Max torque (N.m) |
1600 |
|
|
Displacement (L) |
9.726L |
|
|
Emission standard |
Euro 3 |
|
|
Clutch |
Single dry frictional disc, Hydraulic control and compressed air assisted |
|
|
Gearbox |
mechanism, 9 forward gears, 1reverse gear, manual |
|
|
Front axle |
Double-shoe pneumatic brake, Non-drive steering axle |
|
|
Rear axle |
Double-shoe pneumatic brake, casting, double reduction driving axle, differential lock between wheels |
|
|
Steering |
Circulating ball power steering, hydraulic assisted |
|
|
Frame |
Fish belly shape, variable width, variable section, side beam structure, bilateral bend, cross section channel reinforced steel beam |
|
|
Front over suspension rack |
longitudinal laminated leaf-spring, hydraulic telescopic shock absorber, transverse stabilizer |
|
|
Rear over suspension rack |
longitudinal laminated leaf-spring, hydraulic telescopic shock absorber, transverse stabilizer |
|
|
Tire |
12.00R20, 12+1 pcs |
|
|
Superstructure specification |
||
|
Fuel Tank |
Capacity |
30000 liters |
|
Tank Material |
Aluminum alloy |
|
|
|
Manhole cover |
European standard aluminum alloy explosion-proof manhole, 2 pieces |
|
Special function |
Flowmeter |
Grade 0.2 accuracy, diameter 50 |
|

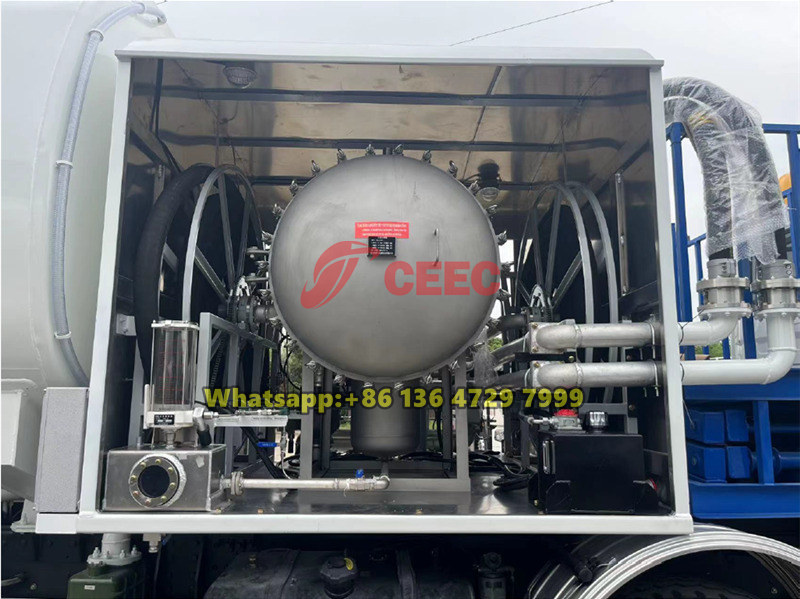

Filter separator |
Rated flow 2500L/min |
|
|
Gravity refueling reel |
Automatic reset reel, DN38, |
|
|
Fuel pump |

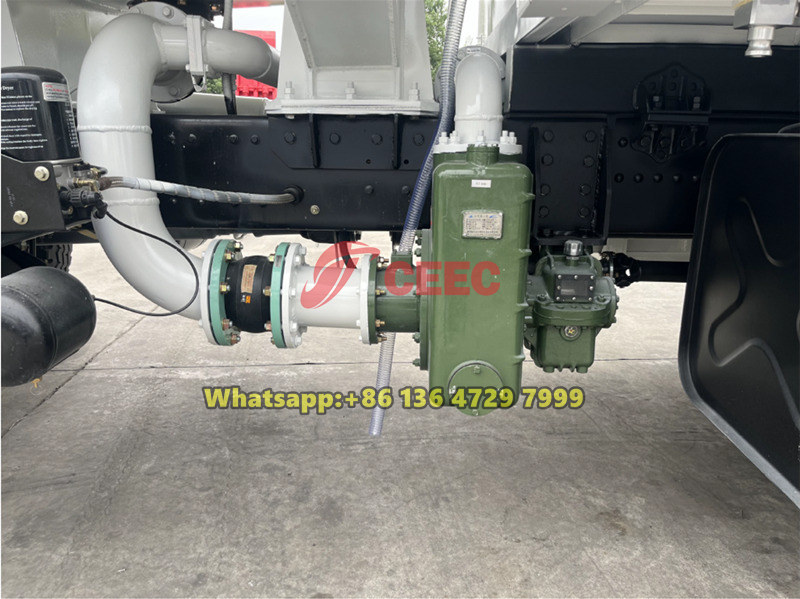

Stainless steel self-priming centrifugal pump, flow rate 2500L/min |
|
|
Liquid level meter |
Stainless steel floating ball in the tank and the 10 inch aluminum alloy dial on the left side of the tank |
|
|

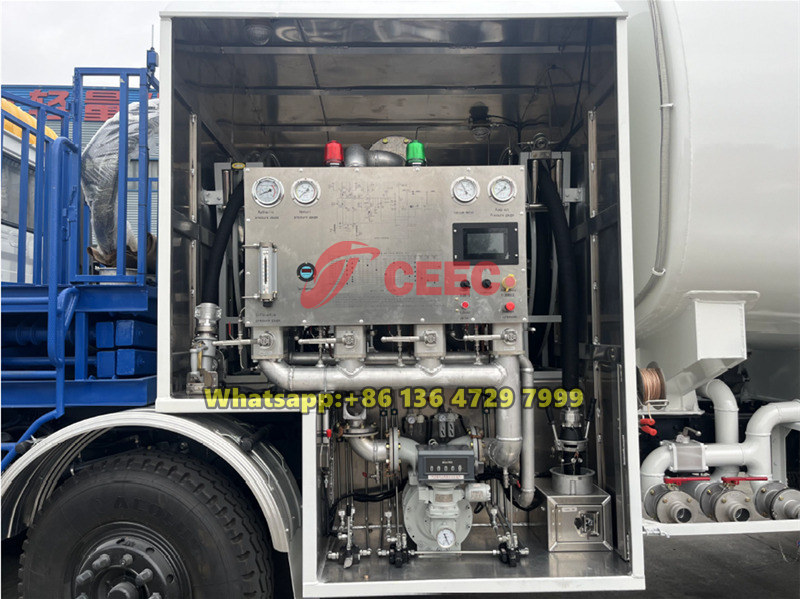

Control system |
DeadMan |
|
|
Differential pressure gauge |
Equipped |
|
|
Underwing refueling nozzle |
Equipped HEPCV nozzles |
|
|
Breathing valve |
Aluminum alloy, 4 sets |
|
|
Refueling hose |
DN63 |
|
|
Oil and gas recovery system |
Equipped |
|
|
Other fittings |
Guardrail, ladder, anti-static device, fire extinguishers, LED lights, etc |
|
Product Details
