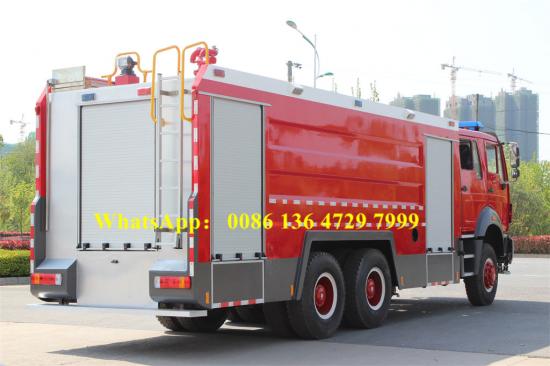

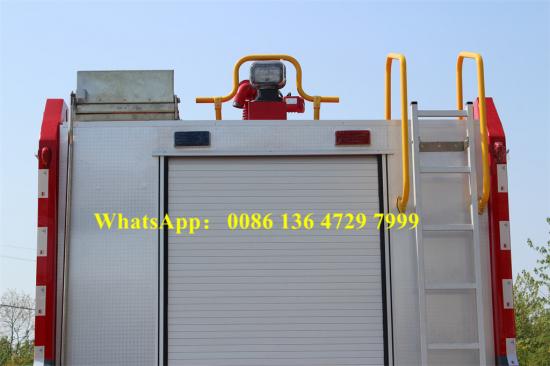

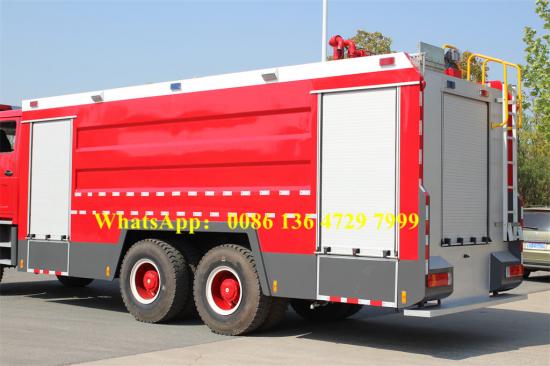

Beiben 2634 RHD foam unit fire truck

Beiben 2634 RHD foam fire truck is a fire truck designed for countries and regions with left-hand lanes such as Tanzania. Its powerful power system and advanced firefighting equipment make it a powerful assistant in fire rescue.

  • Order(MOQ):

    1
  • Payment:

    30% deposit + 70% balance before delivery
  • Product Origin:

    China
  • Color:

    Red
  • Shipping Port:

    Shanghai, Qingdao, Dalian
  • Lead Time:

    35 days
  • Working Capcity:

    12000 liters
  • Cabin Type:

    Beiben NG80 cabin, double-row cabin
  • Dimension ( mm ) :

    9365*2500*3500
  • Drive System:

    6×4
  • Wheelbase (mm):

    4450+1450
  • Engine Power:

    340 HP/WP10.340E32
  • Gear Box:

    12JS160T
  • Remark:

    6×6, RHD is optional
New Products

Product Description

Beiben 2634 RHD foam fire truck adopts a tough exterior design and smooth body lines, showing the stability and strength of the vehicle. Its body size is 9365mm×2500mm×3500mm, ensuring flexibility and stability in complex environments. The vehicle adopts a 6×4 drive configuration, providing strong driving force and traction, suitable for firefighting and rescue work under various road conditions. The cab adopts NG80 double-row design, with spacious and comfortable interior space, providing a good working environment for the driver. The operating console is reasonably laid out, and various control switches and instrument panels are clear at a glance, which is convenient for the driver to operate the vehicle and firefighting equipment quickly and accurately.

Beiben 2634 RHD foam fire truck is equipped with a WP10.340E32 direct-injection 4-stroke turbocharged intercooled diesel engine with a displacement of 9.726 liters, a maximum power of 250 kW/2200 rpm, and a maximum torque of 1250 Nm/1400-1600 rpm. This engine has the characteristics of strong power and good fuel economy, which can meet the needs of fire trucks for rapid response and long working hours in emergency situations.



The Beiben fire engine is equipped with a water-foam tank system, in which the water tank capacity is 10,000 liters and the foam tank capacity is 2,000 liters. This design allows the vehicle to carry a large amount of fire extinguishing agent and foam agent at the same time to adapt to different types of fire situations. The fire pump system adopts CB20.10/30.60 low-medium pressure fire pump, which can provide low-pressure 1.0Mpa/60L/s and high-pressure 2.0Mpa/30L/s fire extinguishing flow to meet the fire extinguishing needs of various fire scenes. In addition, the vehicle is also equipped with a foam mixer, which can mix foam agent and water at a ratio of 6% to improve the fire extinguishing effect.



Product Specifications

Dimension(Lx Wx H)(mm)

9365*2500*3500 (360 degree fire gun)

Track(front/rear) (mm)

1990/1800,1800

Wheel distance(mm)

4450+1450

Configuration

6×4

Curb weight(kg)

13,450

Max speed (km/h)

85

Engine

WP10.340E32, direct injection 4strokes,6 cylinder in line, turbo-charge inter cooler diesel engine

Displacement (L)

9.726

Max. power (kw/rpm)

250/2200

Max torque (n.m/rpm)

1250/1400-1600

Emission stardard

Euro 3

Clutch

Valeo 430

Dry single plate, hydraulic control booster

Gear box

12JS160T

mechanism,12 gears,2 reverse gear, manual, synchronization, with PTO interface

Braking

Service Brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Spring loaded press on middle and rear wheels

Steering

Whole circulation in ball, hydraulic booster

Vehicle Frame
( Mercedes Benz Technology)

Fish belly shape, variable width, variable section, side beam trapezium structure

Tire and number

12.00R20 10+1 spare wheel


Electrical system


Battery

2x12V/135Ah

Generator

28V-35A

Starter

5.4KW/24V

Cab (Mercedes Benz Technology)

NG80 double row cab, made by full steel material forming empty body inside

Water - foam tank
Fire truck of water and fire foam with alarms and row-style lights and lights and light, and outline marker light control switch etc.

Water tank volume

10000L

Foam tank volume

2000L

Material

Water tank: High quality carbon steel plate

Foam tank: Stainless steel

Structure

The whole welded structure

Equipment

2-Entrance holies, With quick locking and opening device, 1-Vacuum valve device, 2-Level indication sensors, 2-drain outlet with ball valve, 4-Gathering points, Both sides of the tank from the vehicle injection,

Fire pump system

Model

CB20.10/30.60 Low and medium-pressure fire pump

Low pressure/flow volume

1.0Mpa/60L/s

medium-pressure/flow volume

2.0Mpa/30L/s

Foam mixer

mixing ratio 6%

Assembly

rear-mounted type pump

Priming pump

piston type

Effective suction head

≥7m

Diversion

≤35s

Fire gun

Model

PLKD48 fire gun (Dual-use foam and water)

Pressure

1.0Mpa

Water flow

50L/s

Spray water range

≥65m

Foam flow

48/s

Spray foam range

≥60m

Power take-off

Type

Sandwich

Operation mode

Gas Control

Equipment room and pump room

Material

Skeleton made of high quality carbon steel sections, the exposed skin of high quality aluminum plate bonding

Structure

Equipment, tanks and pumping stations within the framework of the use of welded structures

Foot flap

Material

Frame quality carbon steel sections, foot-slip surface pattern for the high-quality aluminum

Structure

Supported by gas springs and locking

Electrical system

Structure

Long row of red and blue cab roof mount style lights, sirens hosts power 100W, sirens, lights and control switch installed in the cab. Room is equipped with power take off switch, located inside the upper side lights, side marker lamps fitted with the lower part, the rear compartment with lights.

Painting

Color

High quality paint (Fire Red)





Product Details

  • #
  • #
  • #
