The Beiben 12CBM foam fire truck is a highly efficient and versatile special firefighting vehicle designed for extinguishing oil, chemical, and urban fires. Powered by the WP10.340E32 engine, it delivers strong and eco-friendly performance, equipped with a 10,000-liter water tank and a 2,000-liter foam tank to support prolonged firefighting operations. The CB20.10/30.60 fire pump and PL48 fire monitor provide high-efficiency firefighting capabilities with long-range coverage. Featuring a robust chassis and a comfortable, intelligent cab, it is suitable for various fire scenarios, including petrochemical plants, airports, and forests, making it an ideal choice for modern firefighting and emergency rescue operations.
Working capcity:
12000 litersCabin type:
Beiben NG80 cabin, double-row cabinDimension ( mm ) :
10500×2550×3500Drive system:
6×4Wheelbase (mm):
4450+1450Engine power / Model:
340 HPGear Box:
12JS200TARemark:
Tanker capacity is optionalProduct Description
In the modern firefighting and emergency rescue field, efficiency, reliability, and versatility are core requirements. The Beiben foam fire truck, with its advanced technology, exceptional performance, and comprehensive functions, has become an ideal solution for tackling fires and emergencies. Whether it's urban fires, industrial accidents, or forest fires, this fire truck can complete tasks efficiently and precisely, meeting diverse firefighting needs.
The Beiben foam firefighting truck is built on the Beiben NG80 chassis, equipped with a WP10.340E32 engine that delivers a maximum power of 250 kW and a maximum torque of 1250 N·m, providing strong and eco-friendly performance that meets Euro III emission standards. The chassis features a 6x4 drive configuration and a 12JS160T manual transmission with 12 forward gears and 2 reverse gears, ensuring smooth shifting and easy operation. It also includes a dual-circuit pneumatic braking system and a spring-loaded parking brake system, guaranteeing safety during high-speed driving and emergency braking.
The tank body of the Beiben 6×4 foam fire engine is one of the core components of its upper structure, constructed from high-quality carbon steel plates with a sturdy and well-sealed design. The water tank has a capacity of 10,000 liters, storing a large amount of firefighting water to meet the demands of prolonged operations. The foam tank, with a capacity of 2,000 liters, stores foam to support efficient foam firefighting.
The Beiben 12CBM foam firefighting truck is equipped with a CB20.10/30.60 medium-low pressure fire pump, offering a low-pressure flow rate of 60 liters per second and a medium-pressure flow rate of 30 liters per second, catering to various firefighting scenarios. The fire pump is rear-mounted and features a piston-type priming pump with an effective suction head of ≥7 meters and a priming time of ≤35 seconds, ensuring efficient firefighting operations. The vehicle also includes a PL48 fire monitor, supporting dual-mode foam and water firefighting. The water range is ≥65 meters, and the foam range is ≥60 meters, covering large fire areas effectively. With a foam mixing ratio of 6%, it can efficiently extinguish oil and chemical fires.
Product Specifications
|
Overall Dimension (mm) |
10500*2550*3500 |
|
|
Wheel Track(front/rear) (mm) |
1990/1800,1800 |
|
|
Wheel distance(mm) |
4450+1450 |
|
|
Configuration |
6x4 |
|
|
Curb weight(kg) |
13,450 |
|
|
Max speed (km/h) |
85 |
|
|
Engine |
WP10.340E32, direct injection 4 strokes, 6 cylinder in line, turbo-charge inter cooler diesel engine |
|
|
Displacement (L) |
9.726 |
|
|
Max.power (kw/rpm) |
250/2200 |
|
|
Max torque (n.m/rpm) |
1250/1400-1600 |
|
|
Emission stardard |
Euro 3 |
|
|
Clutch |
φ430 |
|
|
Dry single plate, hydraulic control booster |
||
|
Gear box |
12JS160T |
|
|
Mechanism, 12 gears, 2 reverse gear, manual, synchronization, with PTO interface |
||
|
Braking |
Service Brake |
Brake gap can be adjusted automatically,double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Spring loaded press on middle and rear wheels |
|
|
Steering |
Whole circulation in ball, hydraulic booster |
|
|
Chassis Frame |
Fish belly shape, variable width, variable section, side beam trapezium structure |
|
|
Tire and number |
12.00R20 10+1 spare wheel |
|
|
Electrical system |
Battery |
2x12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4KW/24V |
|
|
Cabin |
NG80 double row cab, made by full steel material forming empty body inside |
|
|
Water and foam tanks |
||
|
Water tank volume |
10000 liters （Carbon steel） |
|
|
Foam tank volume |
2000 liters (Stainless steel) |
|
|
Structure |
Whole welded structure |
|
|
Water pump system |
||
|
Model |
CB20.10/30.60 Low and medium-pressure fire pump |
|
|
Low pressure/flow volume |
1.0Mpa/60L/s |
|
|
medium-pressure/flow volume |
2.0Mpa/30L/s |
|
|
Foam mixer |
mixing ratio 6% |
|
|
Assembly |
rear-mounted type pump |
|
|
Priming pump |
Piston type |
|
|
Effective suction head |
≥7m |
|
|
Diversion |
≤35s |
|
|
Fire monitor |
||
|
Model |
PL48 fire monitor (Dual-use foam and water) |
|
|
Pressure |
1.0Mpa |
|
|
Water flow |
50L/s |
|
|
Water range |
≥65m |
|
|
Foam flow |
48/s |
|
|
Foam range |
≥60m |
|
|
Power takeoff |
||
|
Type |
Sandwich |
|
|
Operation mode |
Gas Control |
|
|
Equipment room and pump room |
||
|
Material |
Skeleton made of high quality carbon steel sections, the exposed skin of high quality aluminum plate bonding |
|
|
Structure |
Equipment, tanks and pumping stations within the framework of the use of welded structures |
|

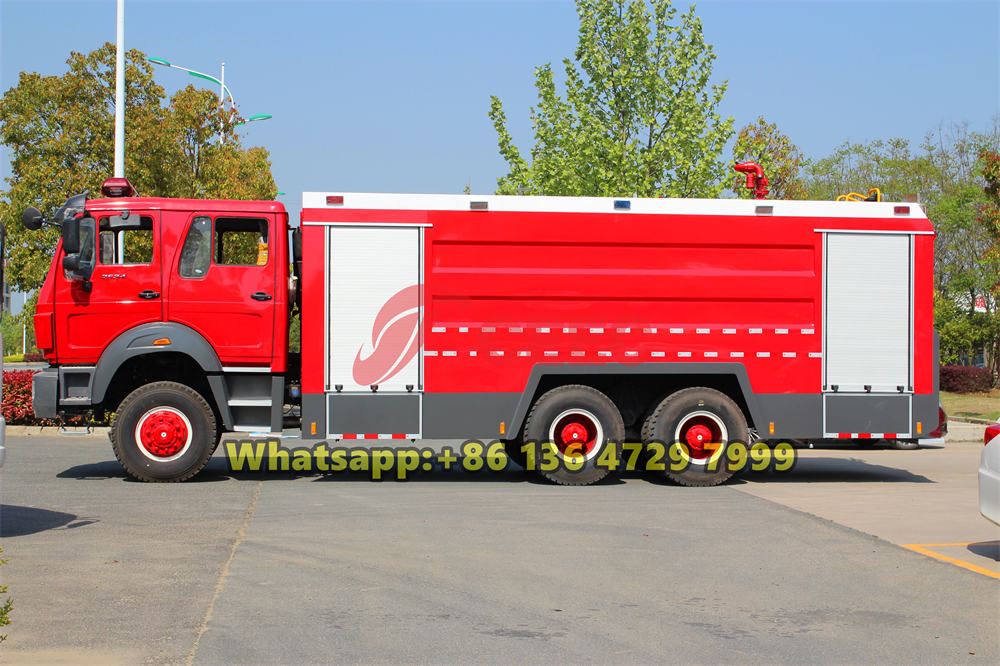

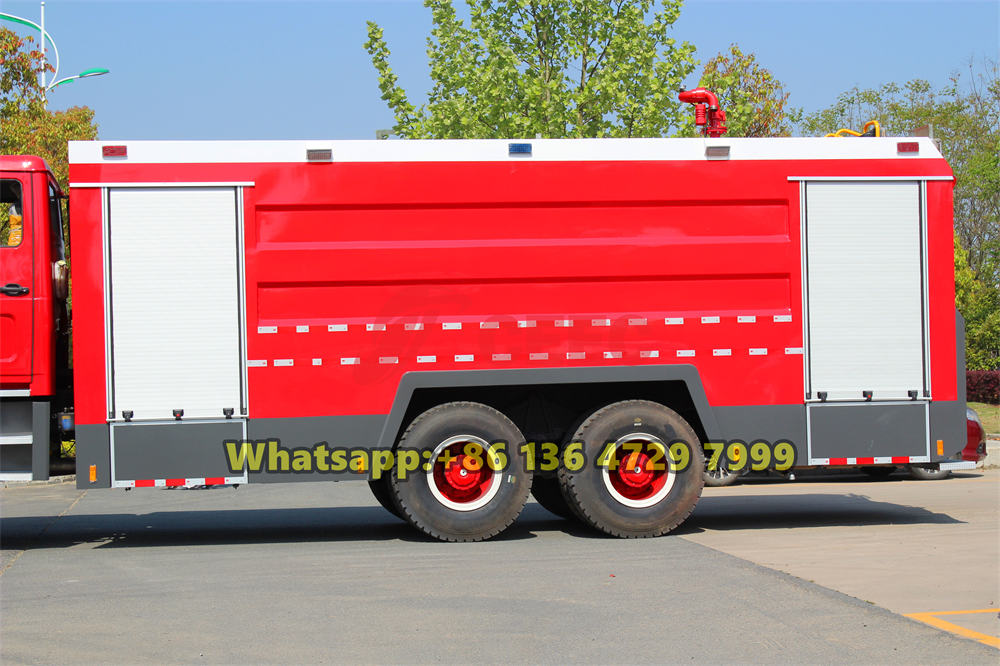

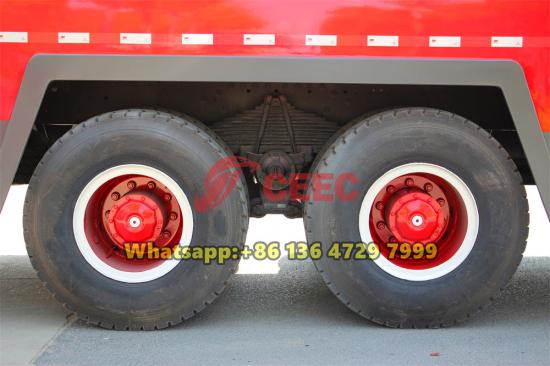

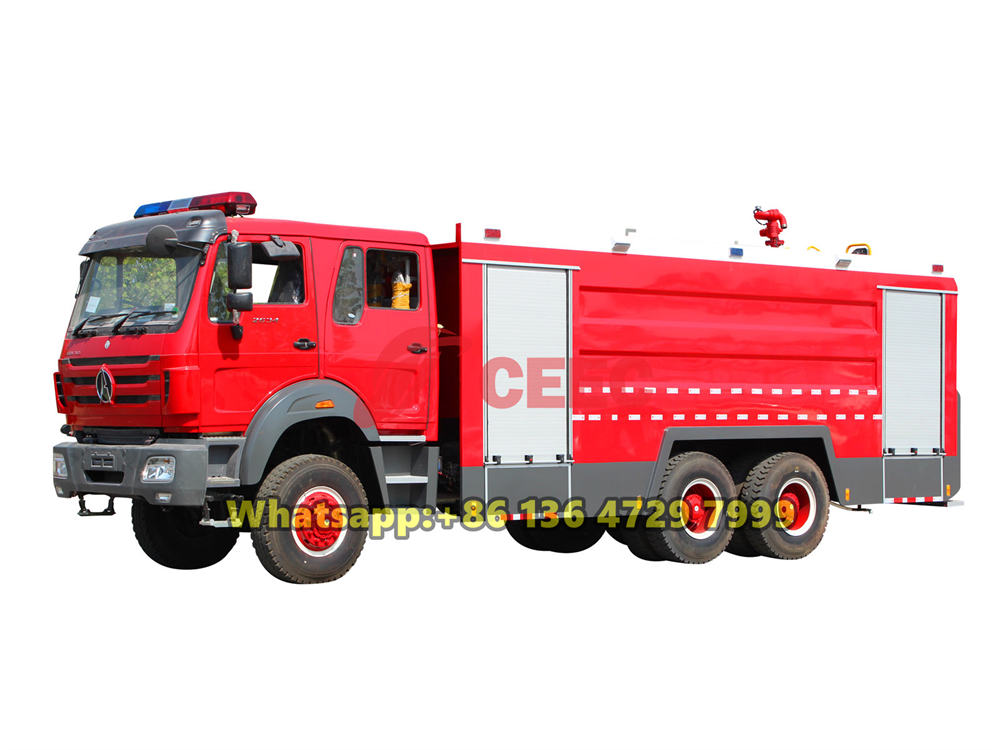

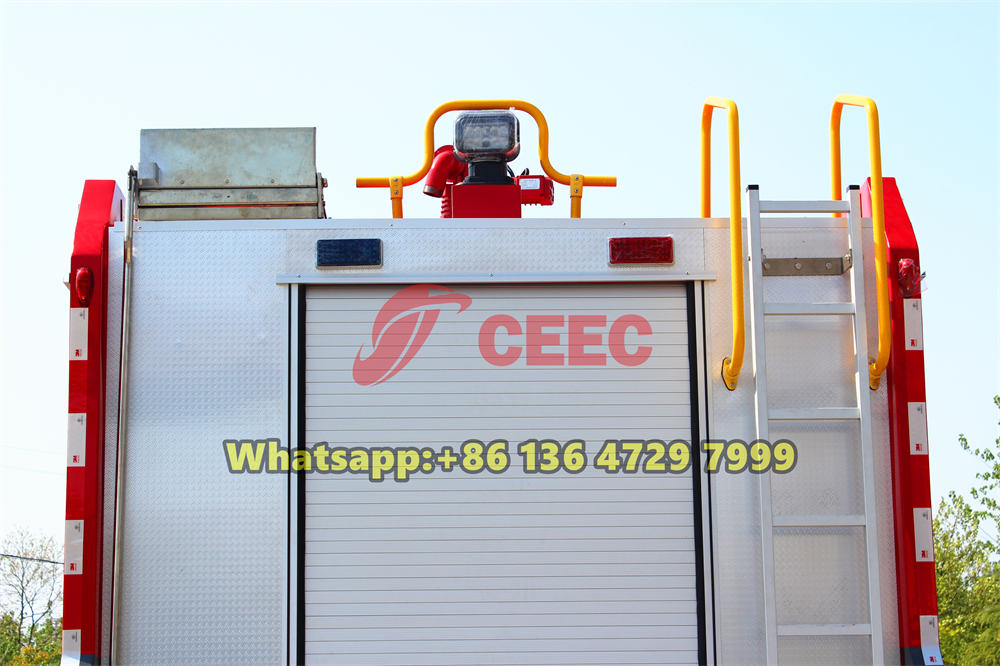

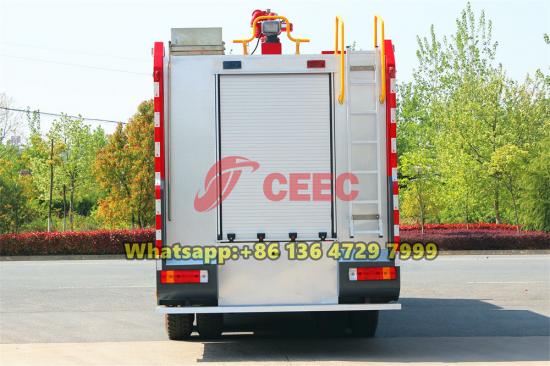

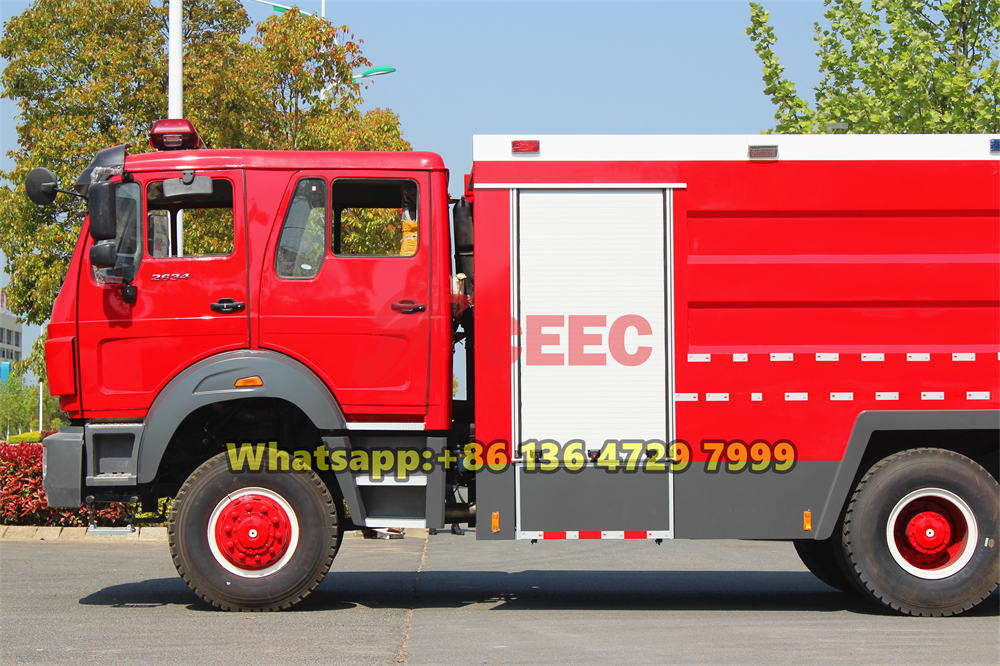

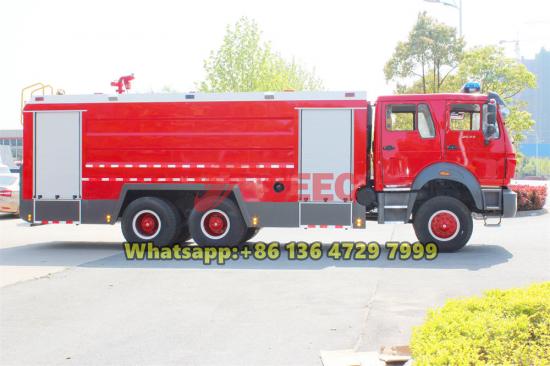

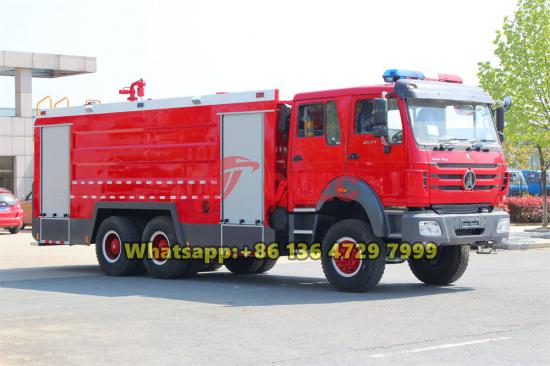

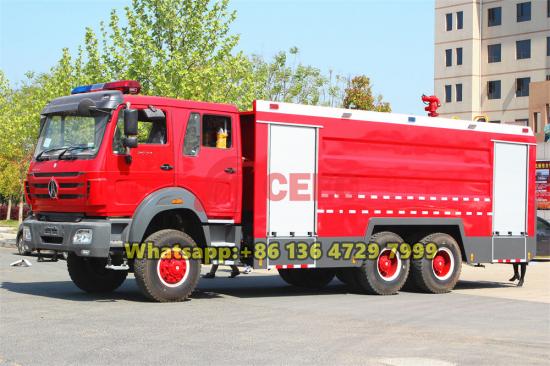

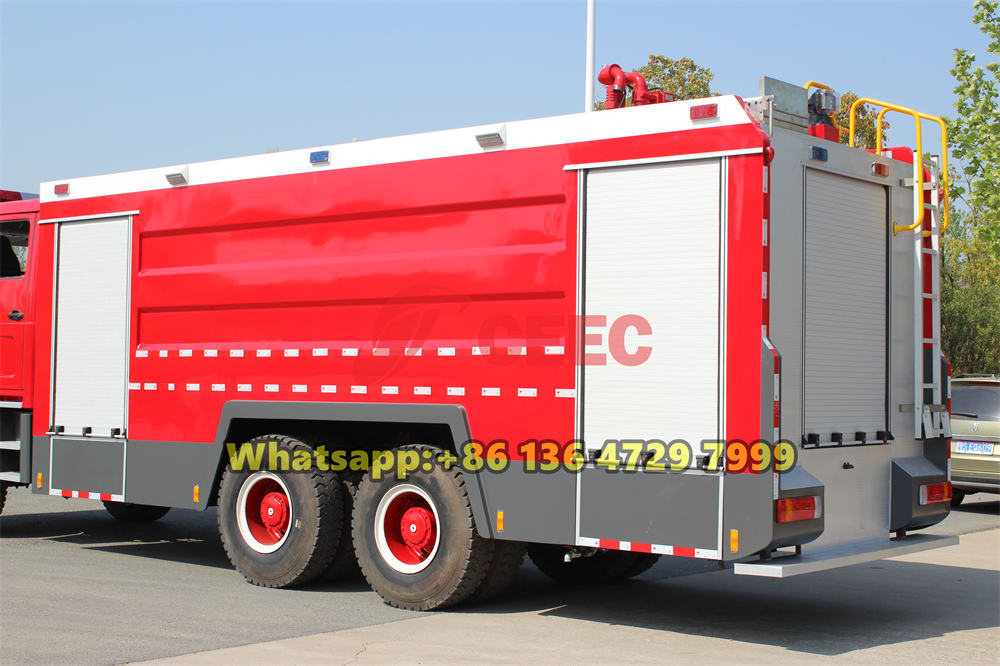

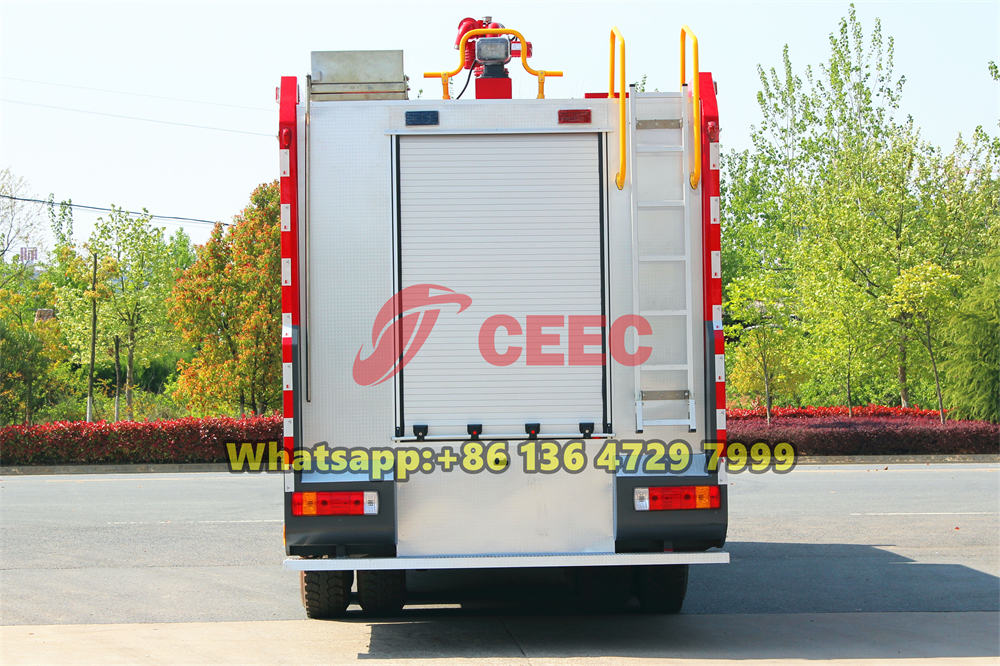

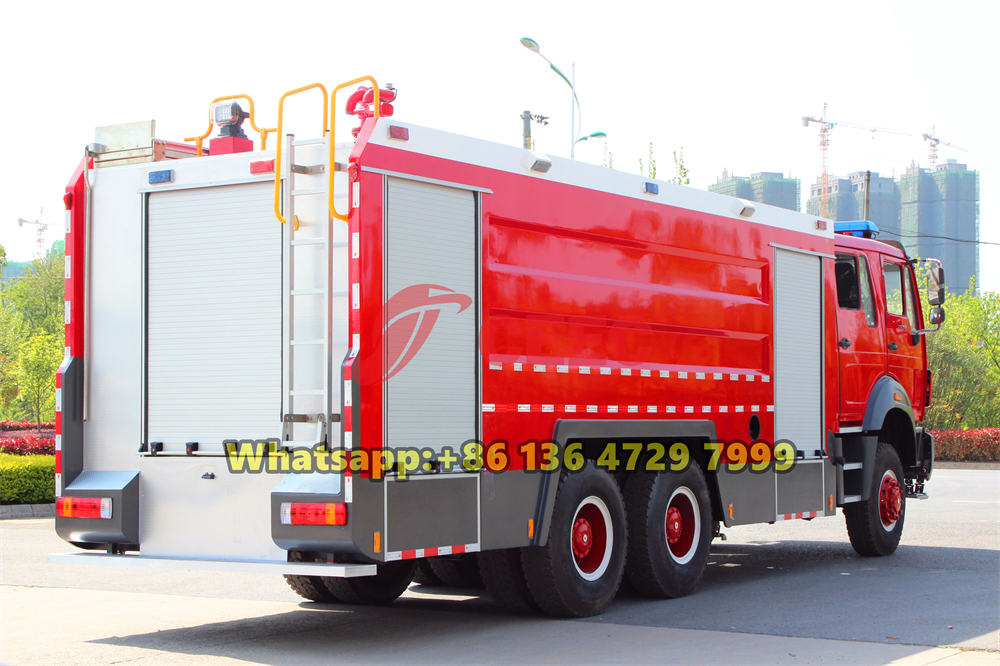

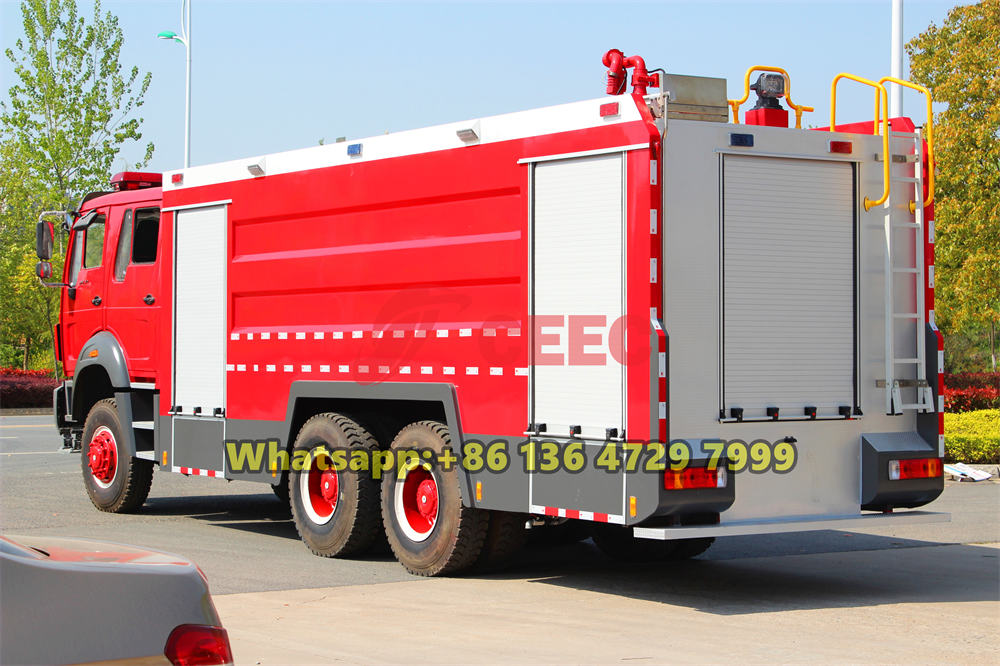

Product Pictures
