The Beiben 6×4 Water Foam Fire Truck is a specialized rescue vehicle built on the Beiben ND1260 heavy-duty chassis, featuring a substantial fire suppressant capacity of 12,000 liters (10,000 liters of water and 2,000 liters of foam). Equipped with a 380-horsepower engine and a professional firefighting system, it includes a constant-pressure fire pump and a dual-purpose fire monitor, enabling rapid response and continuous fire suppression while on the move. With a robust structure and well-designed operational layout, this vehicle serves as an efficient heavy-duty firefighting asset suitable for various fire scenarios.
Working Capcity:
12000 litersCabin Type:
NG80B double cabinDimension ( mm ) :
9830×2540×3630Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TTyres:
12.00R20Remark:
6×6 drive, stainless steel water tank, PP tank is optionalThe Beiben 6×4 Water Foam Fire Engine is a professional firefighting vehicle built on the Beiben ND1260 heavy-duty chassis, featuring a 6×4 drive configuration that provides exceptional off-road capability and load-bearing capacity. Integrating both a water tank and a foam tank, it offers a total capacity of 12,000 liters—comprising 10,000 liters of water and 2,000 liters of foam—enabling flexible responses to various solid and liquid fuel fires. The vehicle is powered by a WP10.380E32 380-horsepower diesel engine, paired with a 12-speed transmission and a dual-circuit pneumatic braking system, ensuring swift response and driving safety in complex road conditions.
In terms of firefighting performance, the Beiben Fire Tender Truck is equipped with a CB10/60 constant-pressure fire pump and a PL48 dual-purpose water/foam monitor. The fire pump delivers a flow rate of 60 liters per second, while the monitor provides long-range, stable pressure coverage, effectively addressing large-scale fire incidents. The vehicle’s design emphasizes both practicality and user-friendliness, with a logically arranged pump compartment and intuitive instrument controls. The rear equipment compartment features double-layer partitions and aluminum alloy roll-up doors, facilitating easy access and maintenance of gear. Compliant with Chinese fire truck technical standards such as GB7956, this vehicle is a highly efficient firefighting and rescue asset suitable for urban areas, industrial zones, highways, and various other scenarios.
CEEC factory is authorized supplier on beiben firefighting trucks,
guarantee all beiben fire resuce trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Based on Beiben 6×4 heavy-duty chassis, with 380HP diesel engine
▶ Tank Volume: Water tank capacity 10000 liters, foam tank capacity 2000 liters
▶ Tank construction: Water tank made of high-strength carbon steel, foam tank made of stainless steel
▶ Fire pump: Intalled at rear of the vehicle, model CB10/60, flow rate 60L/s

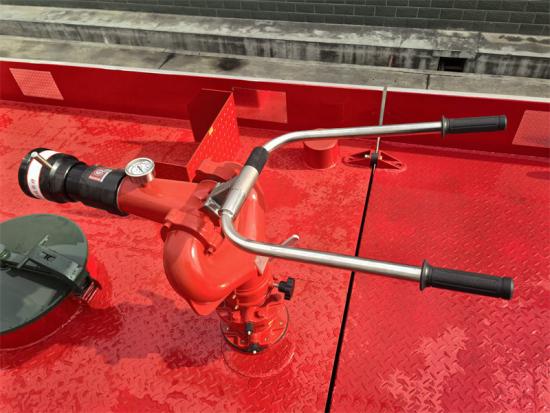

▶ Fire monitor: Installed at top of the tank, model PL8/48, water range up to 70m, foam range up to 60m
» Ⅱ. Product Specifications:
|
Description |
Beiben 6x4 12000L foam tender fire truck |
||
|
Drive model |
6×4 |
||
|
Chassis model |
ND1260 |
||
|
Vehicle Main Dimensions |
Overall Dimensions (mm) |
9830x2540x3630 |
|
|
Wheelbase (mm) |
4450+1450 |
||
|
Overhang (front/rear) (mm) |
1410/2395 |
||
|
Wheel track (front/rear) (mm) |
1860/1860 |
||
|
Approach/Departure angle (°) |
19/10 |
||
|
Weight in KGS |
Curb Weight |
14500 |
|
|
GVW. |
26000 |
||
|
Max. driving speed(km/h) |
95 |
||
|
Passenger |
Double row, 2+4 people |
||
|
Engine |
Model |
WP10.380E32 |
|
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Horse Power (HP) |
380HP |
||
|
Displacement (L) |
9.726 |
||
|
Emission standard |
Euro III |
||
|
Gearbox |
FAST, 12JS160T, 12 forwards & 2 reverse |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Fuel tank (L) |
400L |
||
|
Tire |
12.00R20 ,10+1 spare |
||
|
Brakes |
Dual circuit compressed air brake |
||
|
FIRE TRUCK Upper Body |
|||
|
Tank |
Structure |
Welded |
|
|
Material |
Water Tank |
High quality carbon steel plate, anti-rust treatment |
|
|
Foam tank |
Stainless steel plate |
||
|
Capacity |
Total |
12000L |
|
|
Water Tank |
10000L |
||
|
Foam tank |
2000L |
||
|
Special |
Fire Pump |
Type |
Normal pressure fire pump |
|
Model |
CB10/60 |
||
|
Flow |
60L/S |
||
|
Pressure |
1.0Mpa |
||
|
Fire Monitor |
Type |
For water and foam |
|
|
Model |
PL8/48 |
||
|
Flow |
48L/S |
||
|
Pressure |
0.8 Mpa |
||
|
Pitch angle |
-45～+70° |
||
|
Horizontal angle |
0～360° |
||
|
Range |
Water≥70; Foam≥60 |
||
|
PTO |
Use sandwich PTO, splashing type lubricate, can put out fire when driving. |
||
|
Carriage |
Carriage is made of high-quality steel and Aluminum embossed sheet |
||
|
Pump room |
or on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. |
||
|
Equipment box |
Equipment box: at the back of carriage, there are two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. |
||
|
Rolling shutter door |
Light and high-quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. |
||
|
Color |
The whole vehicle is red for firefighting; there are white in the middle of truck in accordance with the whole truck. |
||
|
Technical Standard |
1.Fire fighting vehicle is manufactured based on GB7965 Performance requirements and test methods for fire fighting vehicle. |
||

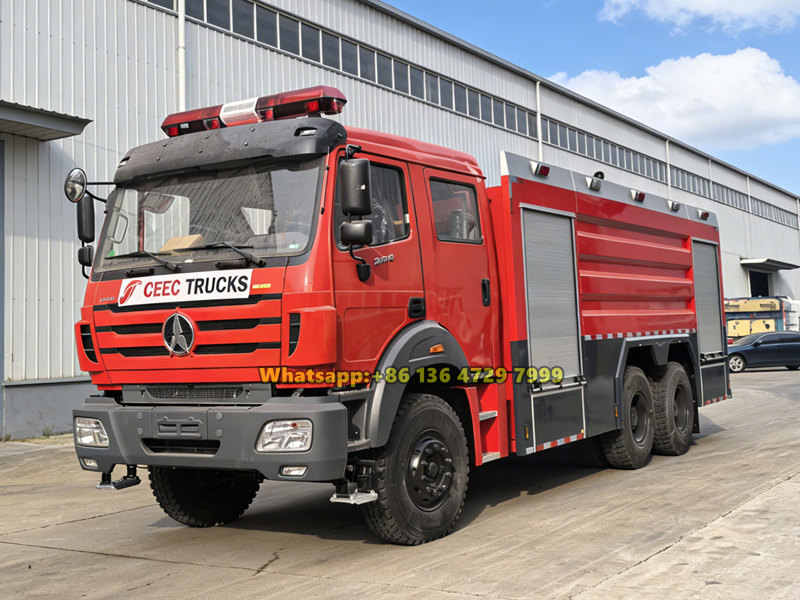

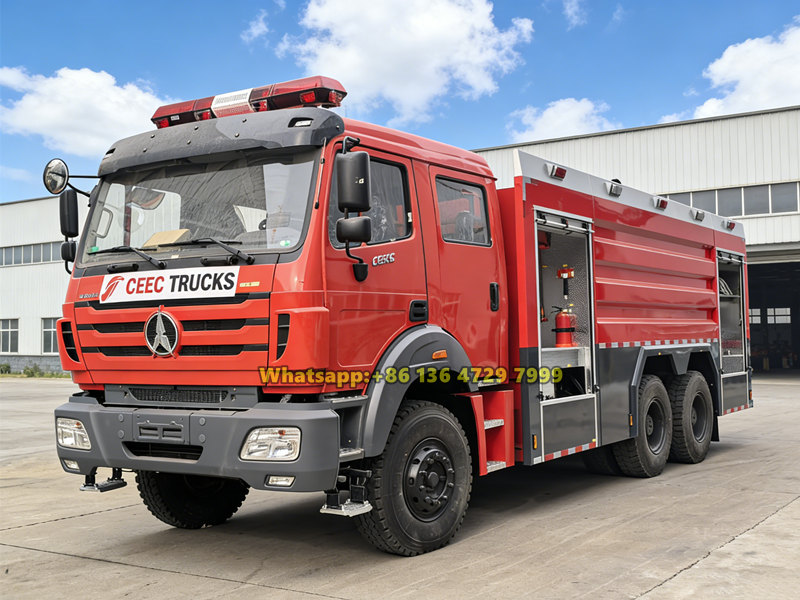

» Ⅲ. Overall views of Beiben firefighting truck:
 |
 |

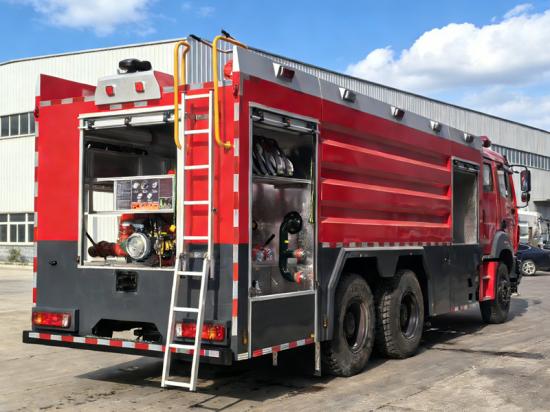

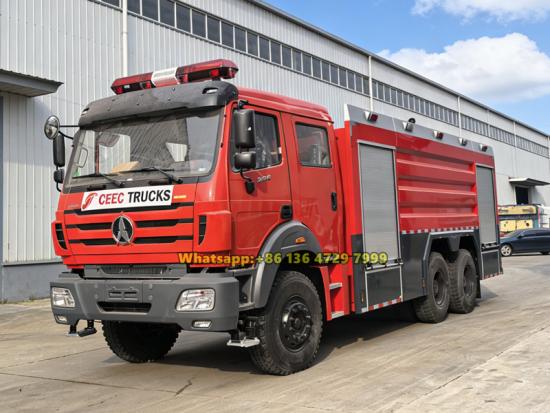

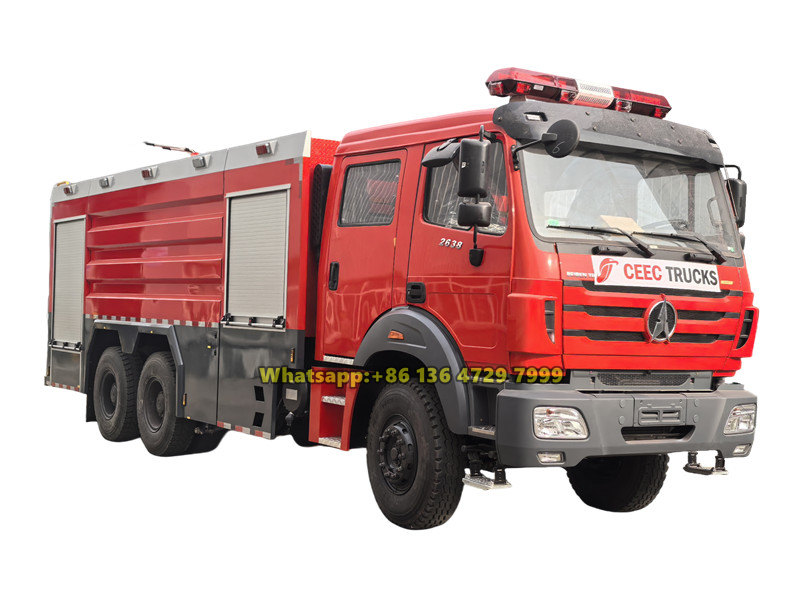

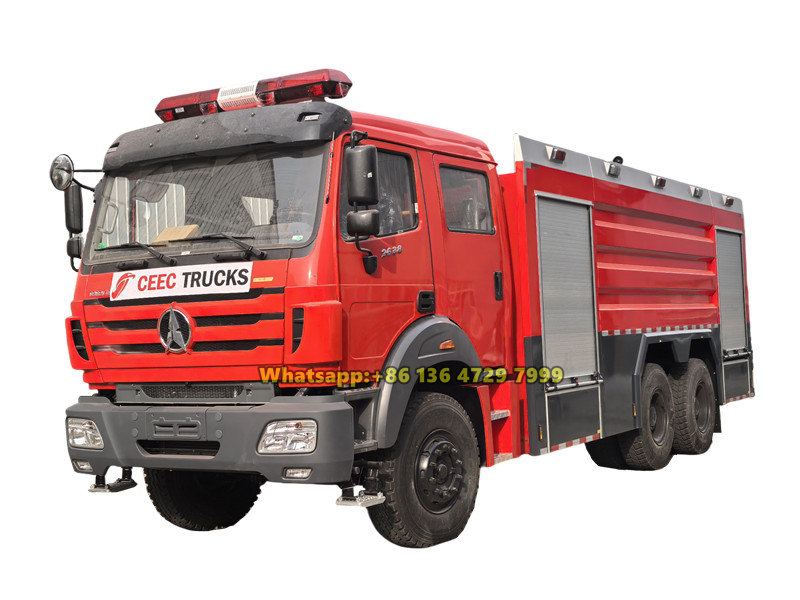

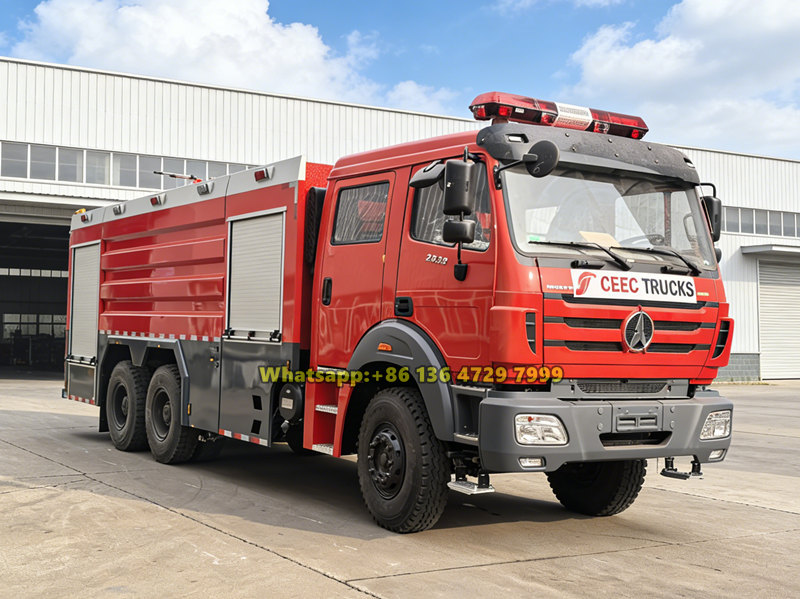

| Beiben foam fire engine | Beiben tanker fire truck |
 |
 |

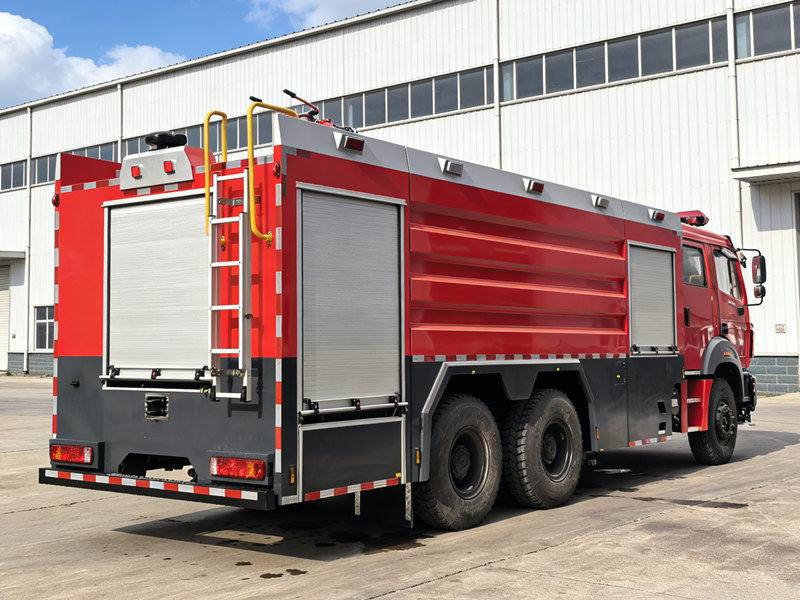

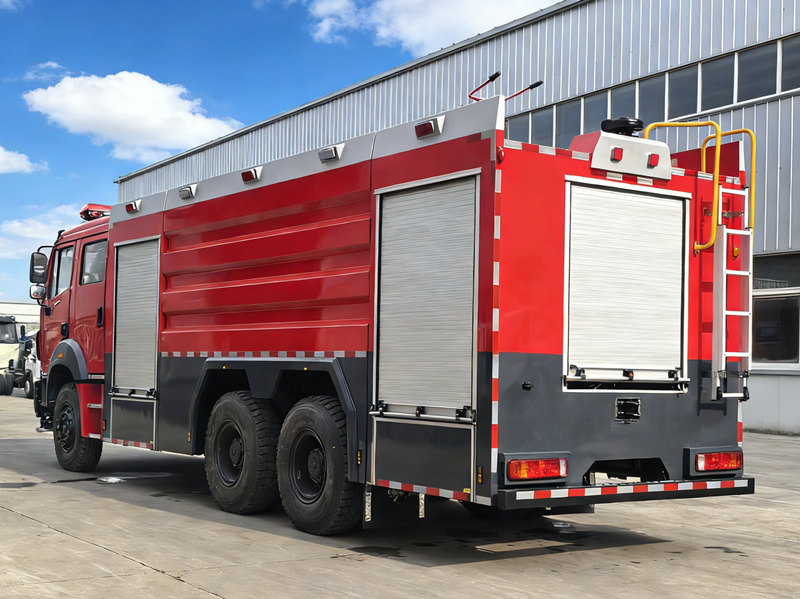

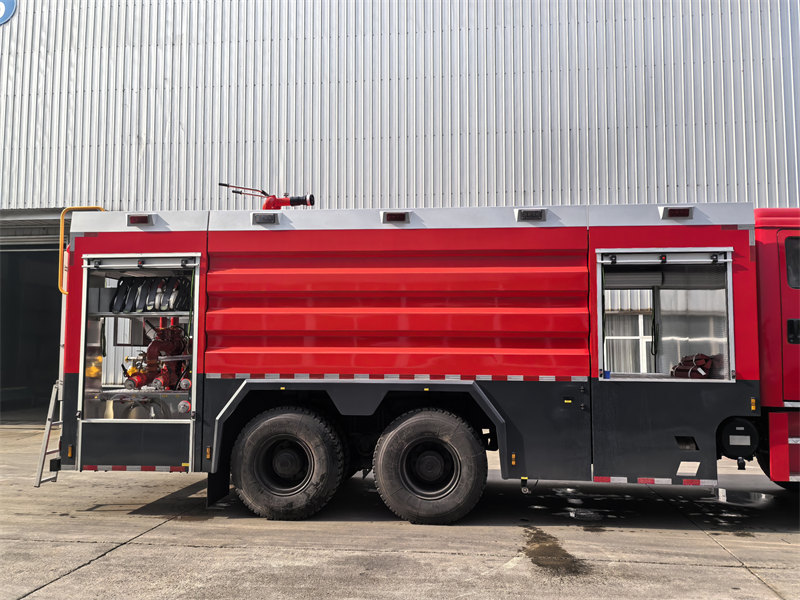

| Beiben 6×4 firefighting vehicle | Beiben 6×4 pumper fire truck |
» Ⅳ. Beiben fire engine function and structure:
1. Cabin
Structure: A double-row integrated welded structure with a dedicated hydraulic flipping mechanism.

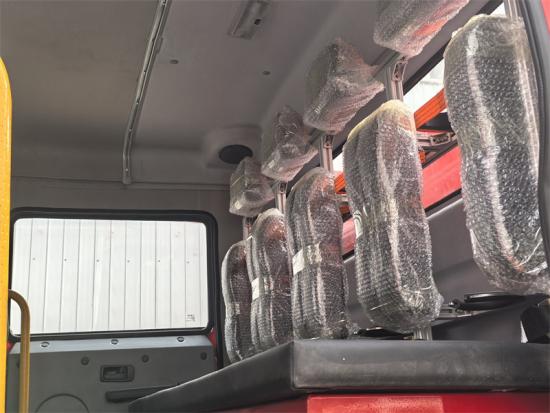

Seating arrangement: 2+4 configuration, with 2 seats in the front row and 4 seats in the rear row. Four air respirator racks are installed at the backrest of the rear row.
Equipment: The driver's cab is equipped with a power take-off switch for the water pump, as well as switches for the siren and warning lights.

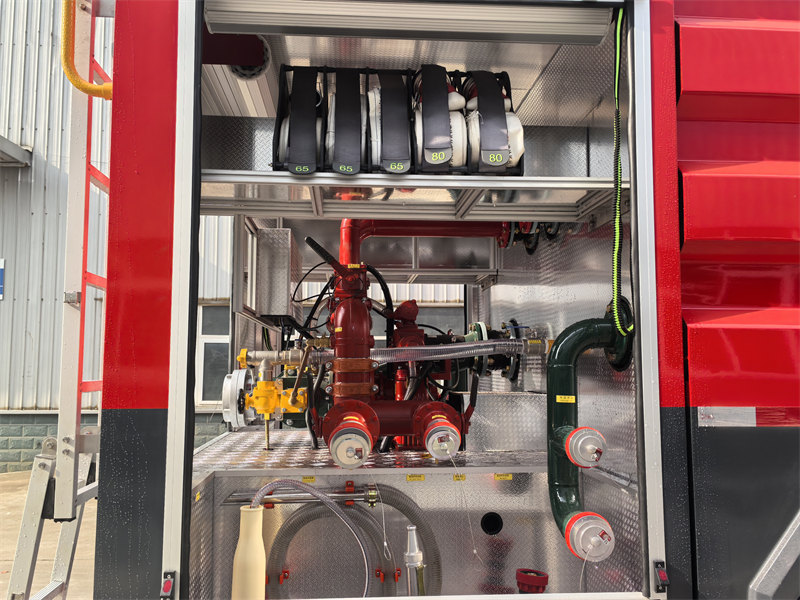

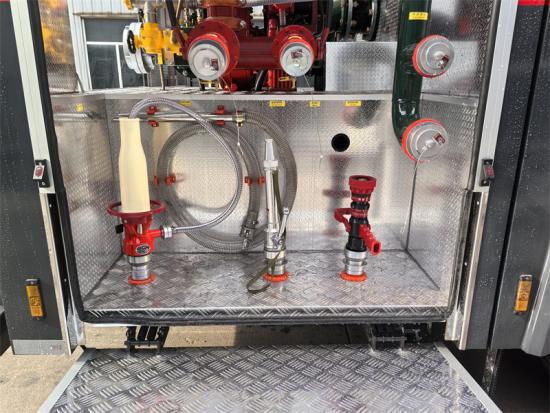

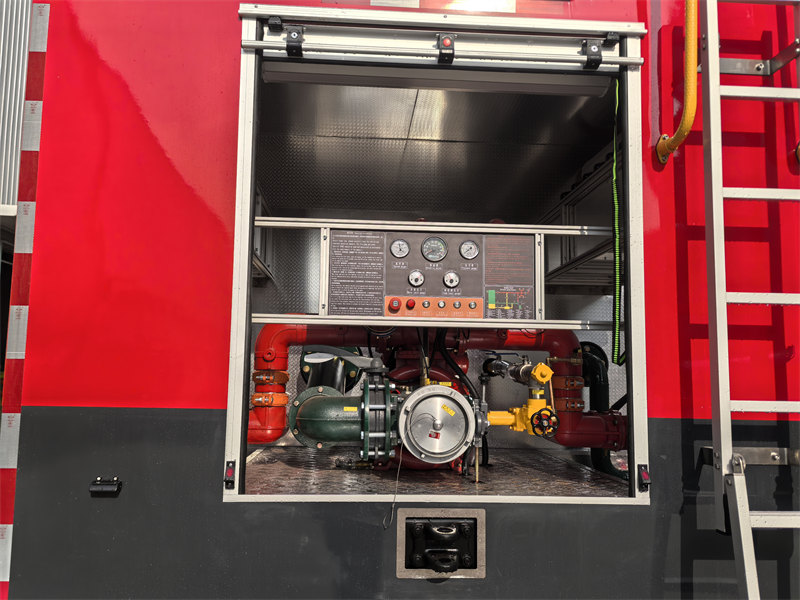

2. Pump Room
Installation Type: Rear-mounted
Configuration: The pump room houses the water pump and piping system, characterized by a compact design and scientifically arranged layout. All instruments, indicator lights, and control switches are positioned for convenient operation by firefighters, with clear text labels provided for each component.
3. Piping System
Inlet Ports: The rear of the pump room is equipped with one Ø125mm suction inlet and one Ø125mm water inlet pipe, which connects the liquid tank to the water pump.
Filling Ports: One Ø80mm external tank filling interface is provided on each side of the pump room.
Outlet Ports: One Ø80mm outlet with a valve and one Ø65mm outlet with a valve are installed on each side of the pump room.
Residual Water Drainage Line: To protect the water pump and various ball valves, a residual water drainage ball valve is incorporated into the piping system.
Cooling Water Line: An auxiliary cooling device is integrated into the piping system to ensure the proper operation of the power take-off (PTO) unit.

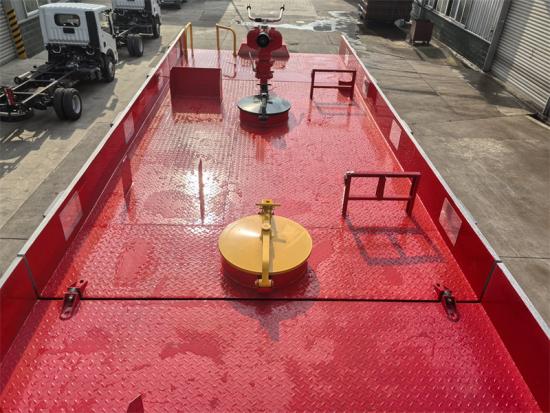

4. Tanks
Capacity: Water 10000 liters, foam 2000 liters
Material: Carbon steel water tank, stainless steel foam tank
Structure: Tooling and mold forming and welding, with internal longitudinal and transverse anti-sway baffles.
Fittings: 2 Ø450mm manhole cover, with quick-opening locking device

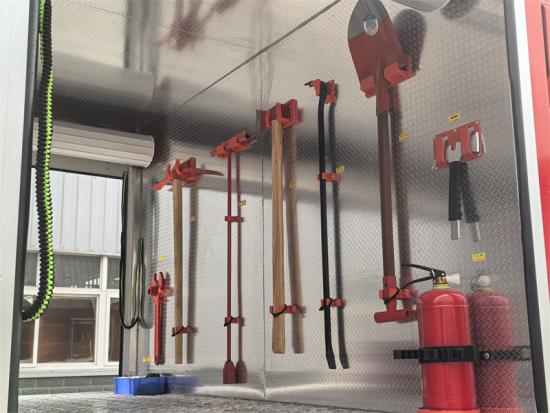

5. Equipment Compartment
Material: High-quality steel and aluminum alloy profiles.
Structure: The external frame and outer skin are made of premium Q235A steel, while the internal framework consists of high-strength aluminum alloy profiles. The floor is constructed from aluminum alloy plates with an anodized surface treatment.
Compartment Doors: Made of lightweight, high-quality aluminum alloy and equipped with large aluminum alloy roll-up doors.
Internal Structure: The interior framework utilizes aluminum profile overlap technology, maximizing space utilization and adaptability.
Footstep Plate: The frame is made of high-quality steel, and the surface is covered with anti-skid patterned sheet metal.
» Ⅴ. Product Testing:
|
|

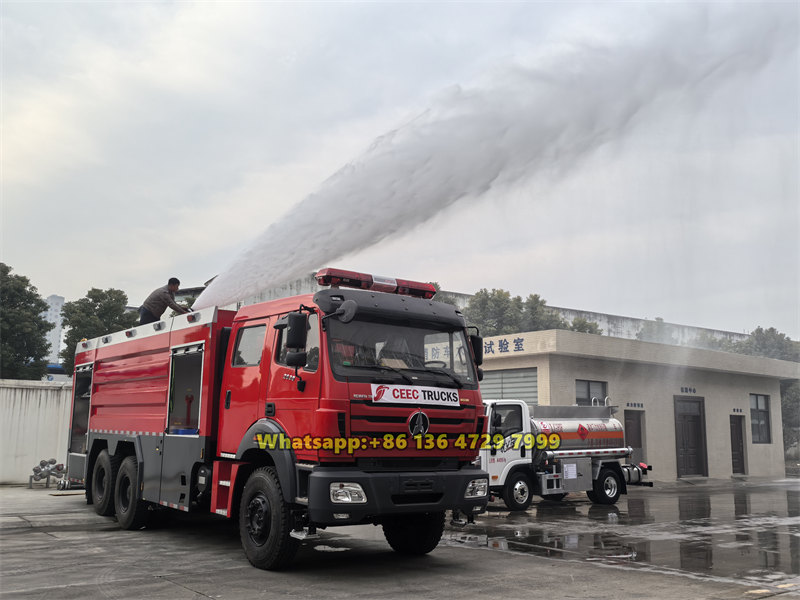

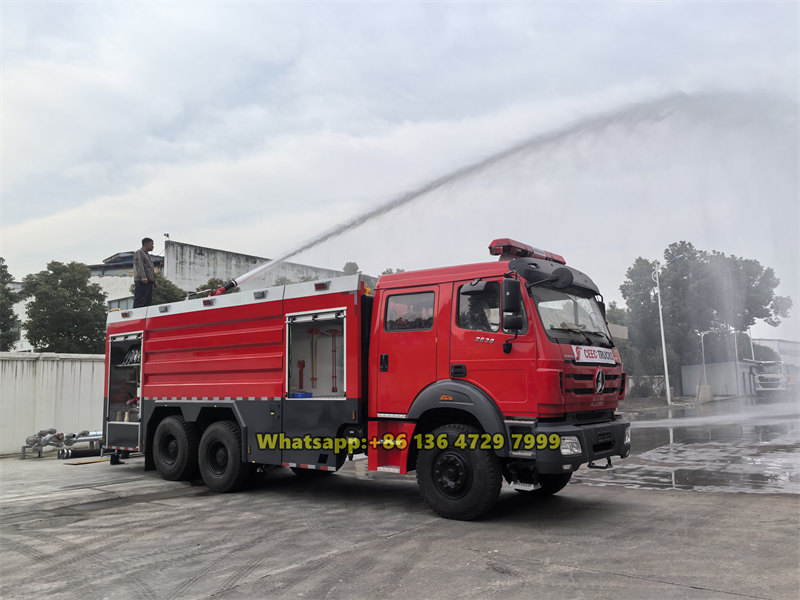

| Beiben water foam fire truck testing at factory | Beiben tanker pumper fire truck testing |

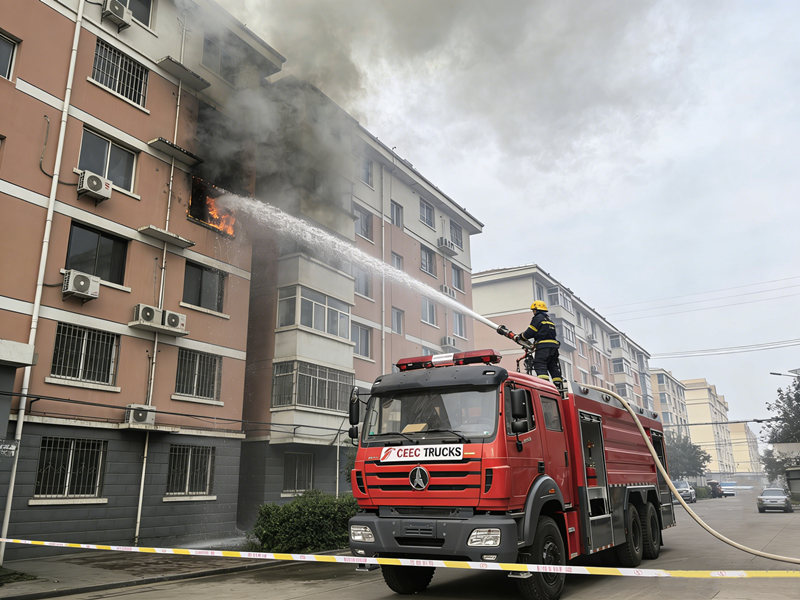

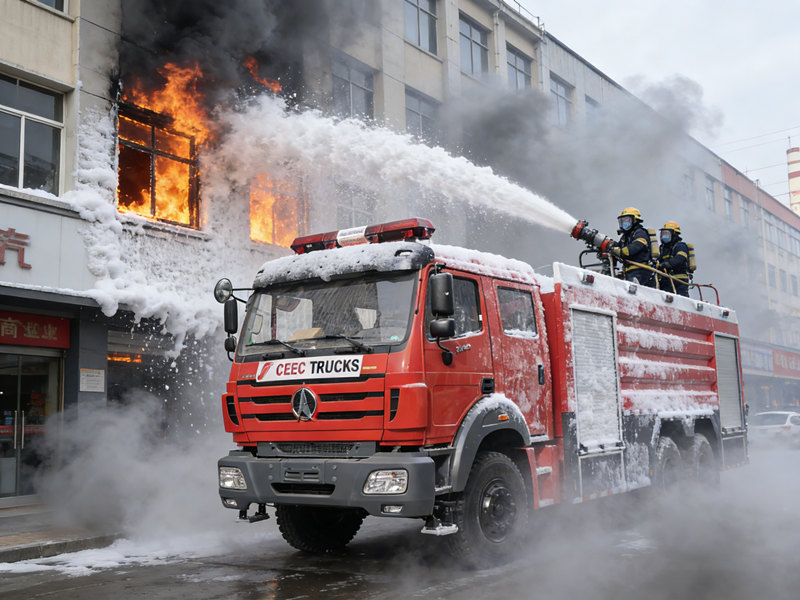

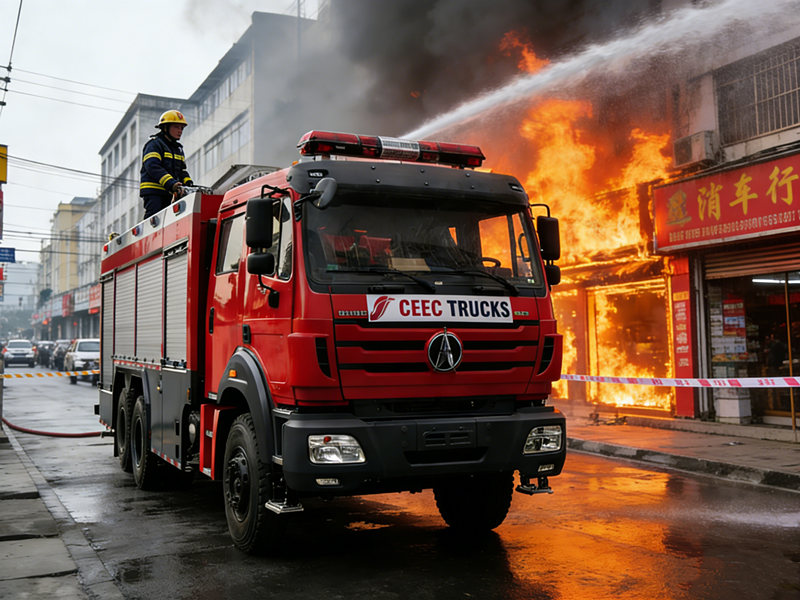

» Ⅵ. Beiben Fire Engine Application:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive firefighting trucks for option
2. Factory direct sale, supply Beiben tanker fire trucks with capacity 5000~20000 liters
3. Foam system, dry powder system can be customzied for different type of fires
4. Carbon steel, stainless steel, PP tank material is optional.
The Beiben 12CBM foam fire truck is a highly efficient and versatile special firefighting vehicle designed for extinguishing oil, chemical, and urban fires. Powered by the WP10.340E32 engine, it delivers strong and eco-friendly performance, equipped with a 10,000-liter water tank and a 2,000-liter foam tank to support prolonged firefighting operations. The CB20.10/30.60 fire pump and PL48 fire monitor provide high-efficiency firefighting capabilities with long-range coverage. Featuring a robust chassis and a comfortable, intelligent cab, it is suitable for various fire scenarios, including petrochemical plants, airports, and forests, making it an ideal choice for modern firefighting and emergency rescue operations.
Beiben 2634 RHD foam fire truck is a fire truck designed for countries and regions with left-hand lanes such as Tanzania. Its powerful power system and advanced firefighting equipment make it a powerful assistant in fire rescue.

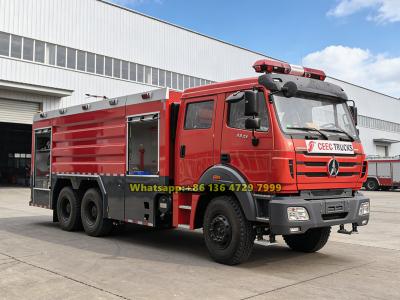

The Beiben 6×4 Foam Fire Truck is built on a 6×4 heavy-duty chassis, powered by a 340-horsepower Weichai engine. It features a 12,000L carbon steel water tank and a 2,000L stainless steel foam tank. Equipped with a CB10/60 fire pump (60L/s flow rate) and a PL8/48 fire monitor (water range ≥70m, foam ≥60m), it delivers 360° omnidirectional firefighting capabilities. Its professional-grade chassis design (26°/27° approach/departure angles) and 12.00R20 tires ensure excellent mobility in complex terrains. The cab accommodates six personnel, making it an ideal firefighting solution for petrochemical plants, ports, docks, and other high-risk environments.
