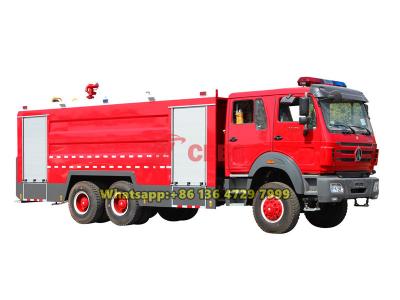

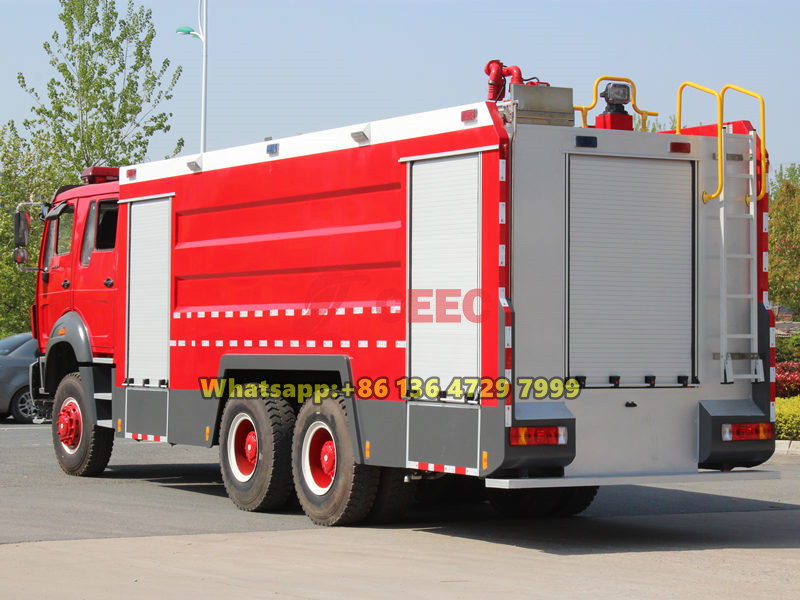

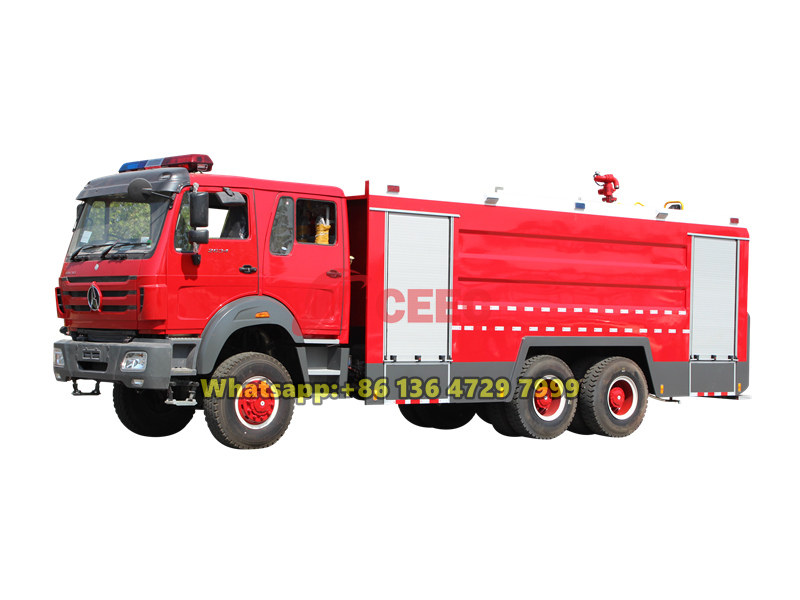

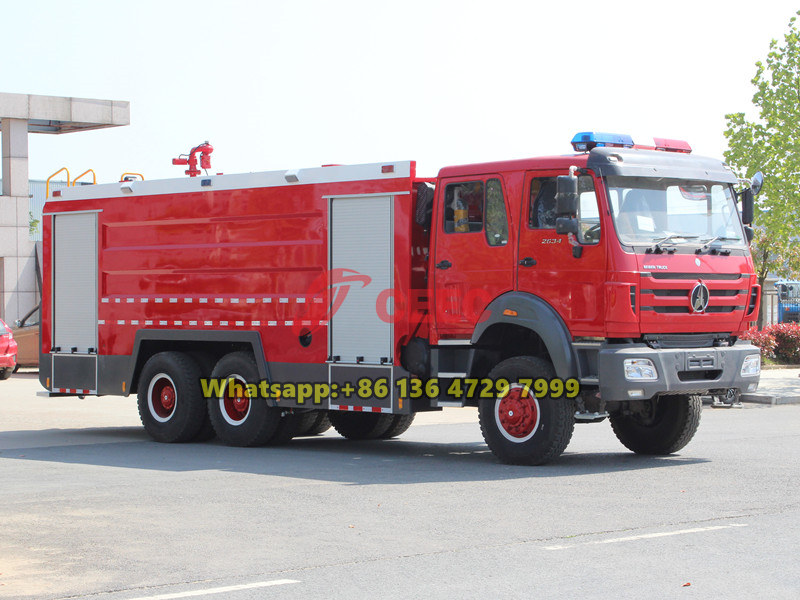

The Beiben 6×4 Foam Fire Truck is built on a 6×4 heavy-duty chassis, powered by a 340-horsepower Weichai engine. It features a 12,000L carbon steel water tank and a 2,000L stainless steel foam tank. Equipped with a CB10/60 fire pump (60L/s flow rate) and a PL8/48 fire monitor (water range ≥70m, foam ≥60m), it delivers 360° omnidirectional firefighting capabilities. Its professional-grade chassis design (26°/27° approach/departure angles) and 12.00R20 tires ensure excellent mobility in complex terrains. The cab accommodates six personnel, making it an ideal firefighting solution for petrochemical plants, ports, docks, and other high-risk environments.
Working capcity:
14000 litersCabin type:
Beiben NG80 cabinDimension ( mm ) :
10110×2550×3800Drive system:
6×4Wheelbase (mm):
4450+1450Engine power / Model:
340 HP/WP10.340E32Gear Box:
12JS200TARemark:
6×6 is optionalIn the field of firefighting, where scenarios are complex and unpredictable, a high-performance, multifunctional fire truck is crucial for safeguarding lives and property. The Beiben 14,000L Water Foam Fire Truck stands out as a powerful weapon against large-scale fires, widely deployed by public fire brigades, industrial plants, communities, and port facilities.

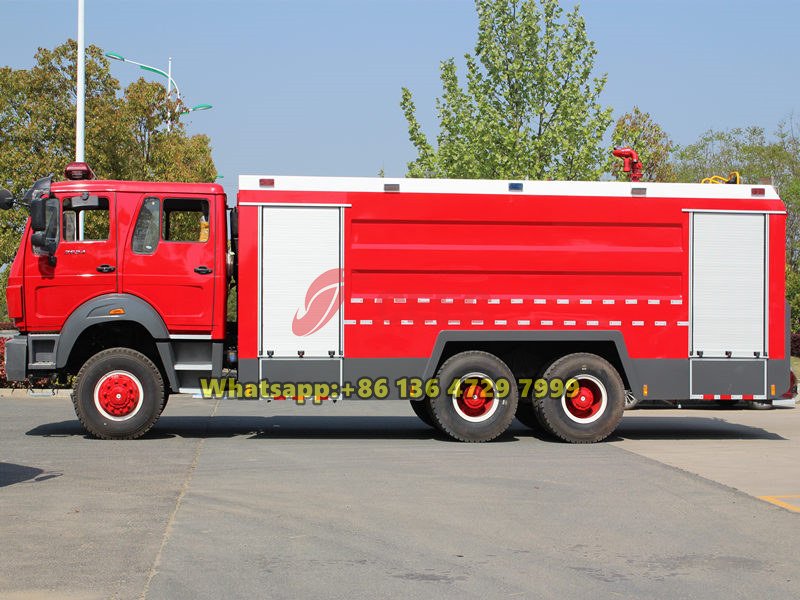

This Beiben fire truck is built on the Beiben 6×4 heavy-duty chassis, renowned for its durability and high load-bearing capacity, providing a stable and reliable foundation. The vehicle measures 10,110 × 2,550 × 3,800mm, offering ample space for crew and equipment. With a gross weight of 26,000kg and a curb weight of 14,800kg, its weight distribution ensures stability and maneuverability. The front axle carries 7.5T, while the rear axle supports 26T, enabling steady operation even when fully loaded. Its 26° approach angle and 27° departure angle allow smooth navigation through challenging terrains.

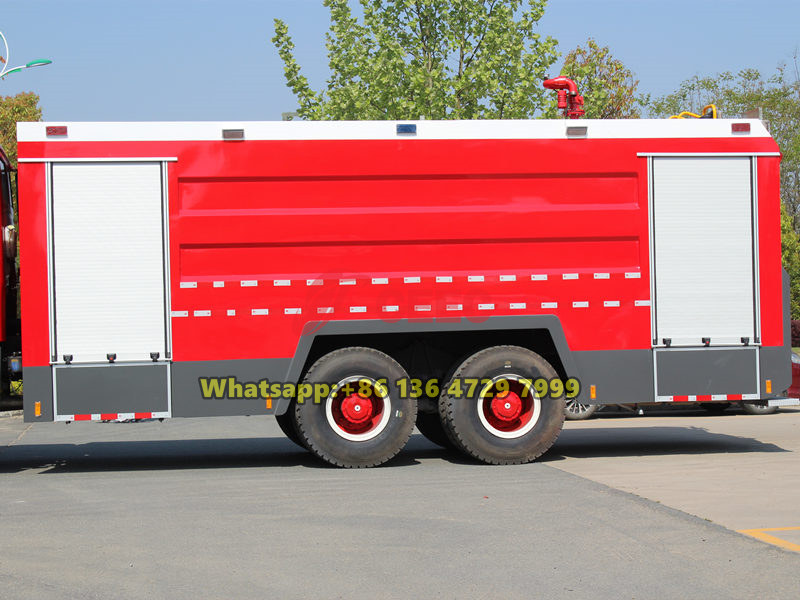

The 12,000-liter carbon steel water tank and the 2,000-liter stainless steel foam tank constitute the core fire-extinguishing system of this Beiben fire truck. The water tank is constructed from 4mm-thick carbon steel plates with internal anti-corrosion treatment, while the foam tank is made of 304 stainless steel for long-term durability. A 500mm quick-access manhole facilitates maintenance, and a specialized securing system keeps the tanks firmly mounted even on rough roads. With a total liquid capacity of 14,000L, the Beiben tanker fire truck truck is ideal for combating large industrial fires, particularly in high-risk locations such as oil depots and chemical plants.

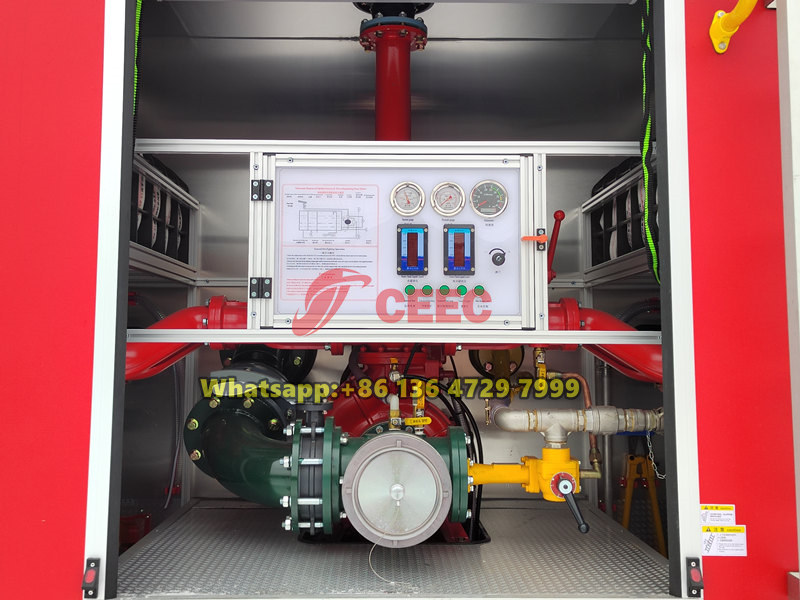

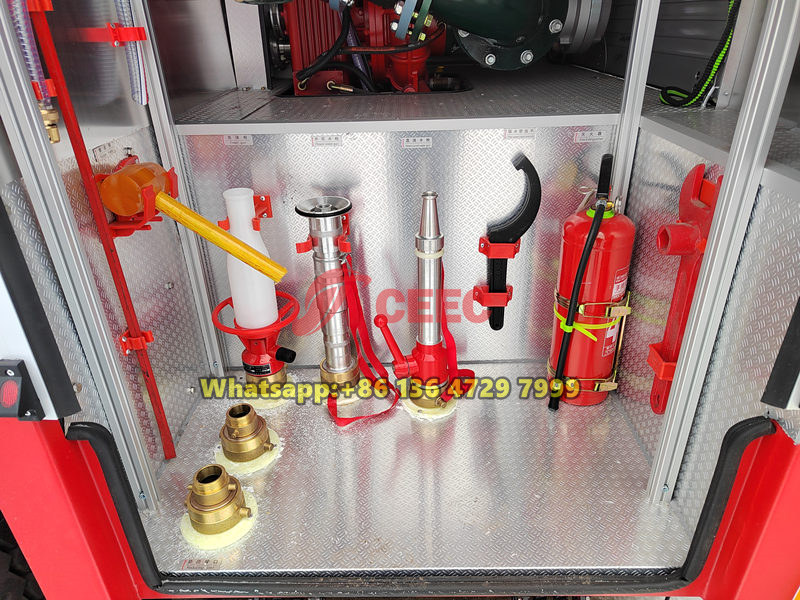

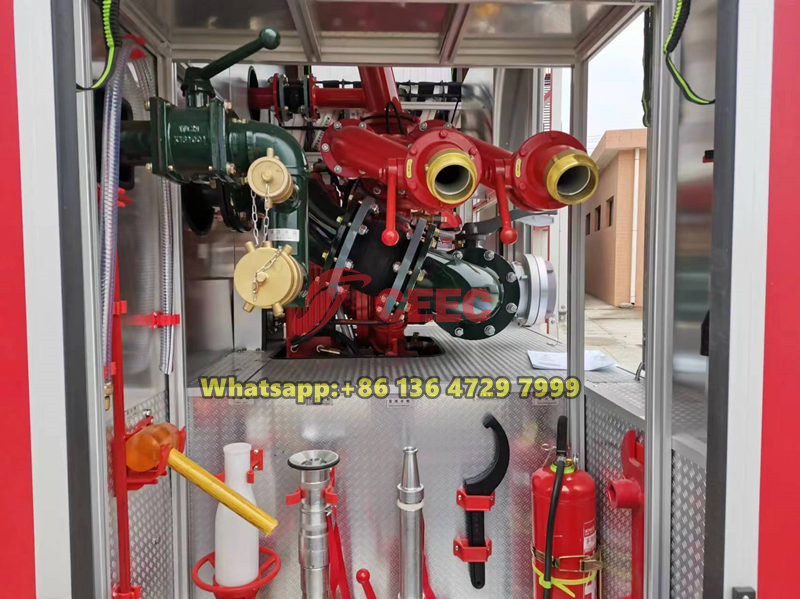

The CB10/60 fire pump serves as the "heart" of the Beiben fire tender truck, delivering a rated flow of 60L/s at 1.0MPa working pressure. It can achieve a maximum suction depth of 7 meters with a priming time under 50 seconds. The roof-mounted PL8/48 fire monitor boasts a range exceeding 70m (water) or 60m (foam), with 360° horizontal rotation and -45° to 70° vertical adjustment for full-coverage firefighting. The professional-grade aluminum alloy equipment compartments feature anodized aluminum panels, flip-down steps, and deformable fender steps, significantly enhancing operational efficiency.
Product Specifications
|
Vehicle basic specifications |
|
|
Gross Vehicle Weight |
26000 kg |
|
Curb Weight |
14800 kg |
|
Overall Dimension |
10110x2550x3800mm |
|
Tank Capacity |
Water 12000L, foam 2000L |
|
Engine Output |
340Hp |
|
Max Speed |
98km/h |
|
Front / Rear Axle Load |
7.5T / 26T |
|
Approach / Departure Angle |
26/ 27° |
|
Allowable Cab Passengers |
2+4 |
|
Chassis Specification |
|
|
Model |
Beiben ND1250 |
|
Manufacture |
Beiben |
|
Engine brand |
Weichai |
|
Engine Model |
WP10.340E32 |
|
Engine Output |
340Hp |
|
Displacement |
9726 ml |
|
Emission standard |
Euro 3 |
|
Wheelbase |
4450+1450 mm |
|
Transmission |
FAST，12 forward and 2 reverse |
|
Tire specifications |
12.00R20, 10+1 pcs |
|
Front wheel track |
1995 mm |
|
Rear wheel track |
1800/1800 mm |
|
Driving Cab |
|
|
Model |
NG80 long cabin |
|
Passenger |
2 |
|
Steering Wheel |
Right Hand Drive |
|
Equipment |
Control box for alarm and alarm lamp PTO switch and indicator Additional power source and air course indicator Jacklight and strong flashing light indicator |
|
Body |
|
|
Equipment Room |
Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate. |
|
Crew room |
Crew cabin is in the middle of truck |
|
Equipment room |
Aluminum alloy structure |
|
Pedal |
Every shutter door has an overturn pedal. |
|

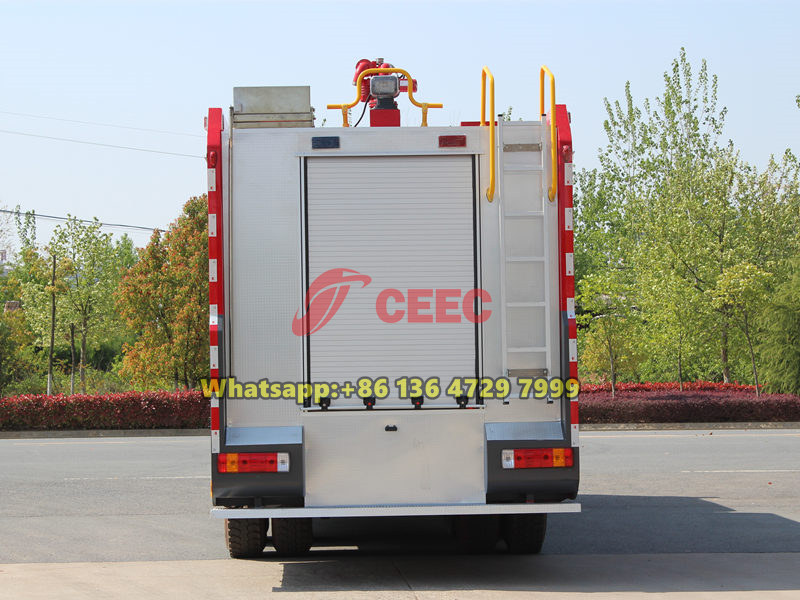

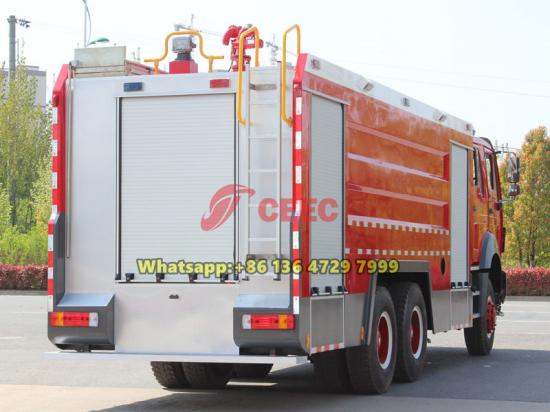

Ladder |
At rear of the body |
|
Water and foam Tank |
|
|
Tank capacity |
Water: 12000L, foam: 2000L |
|
Material |
Water tank: Carbon steel with 4mm thickness. Foam tank: Stainless steel 304 material. |
|
Tank fixing |
Fixed on chassis frame |
|
Manhole |
One manhole with diameter of 500 mm, with quick locking/opening device |
|
Fire Pump |
|
|
Fire pump model |
CB10/60 |
|
Water flow rate |
60L/S, 1.0MPa |
|
Maximum suction depth |
7m |
|
Diversion device |
Self-contained slide pump |
|
Diversion time |
Maximum depth of suction < 50s |
|
Fire Monitor (water & foam) |
|
|
Fire monitor model |
PL8/48 |
|
Flow rate |
48L/s, 1MPa |
|
Covering range |
water≥70m, foam≥60m |
|
Rotating Angle |
360°Horizontal Rotation |
|
Max. pitch angle |
-45°~+70° |
Product Pictures
