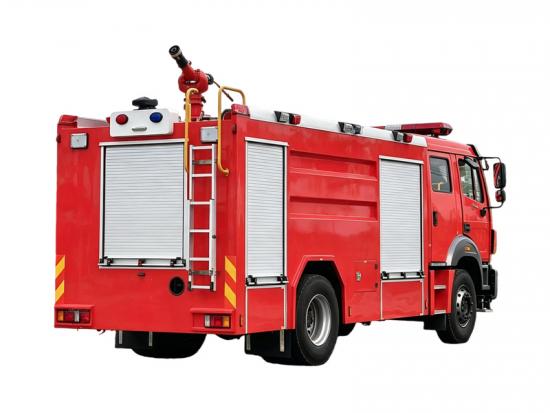

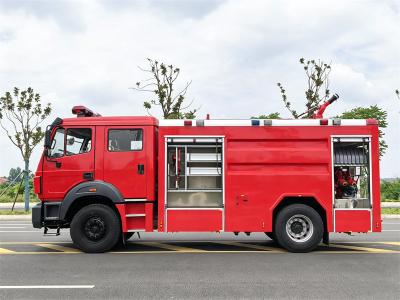

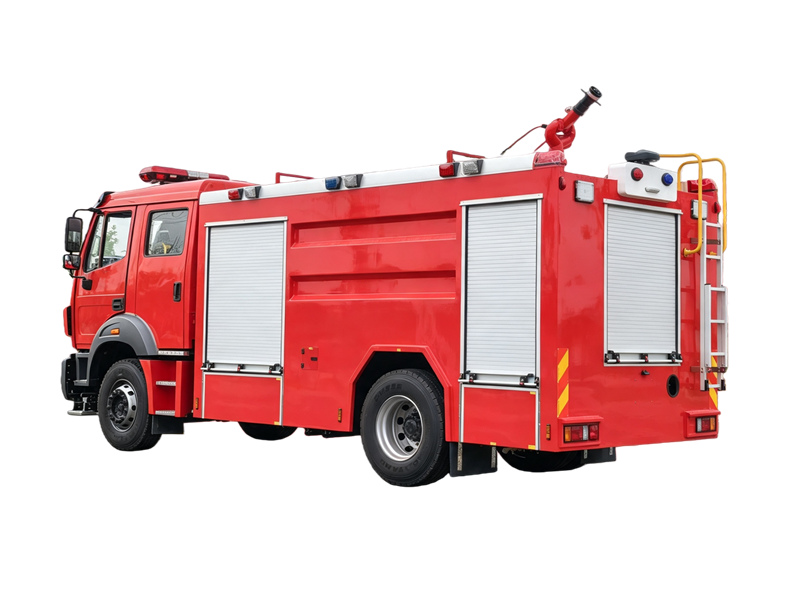

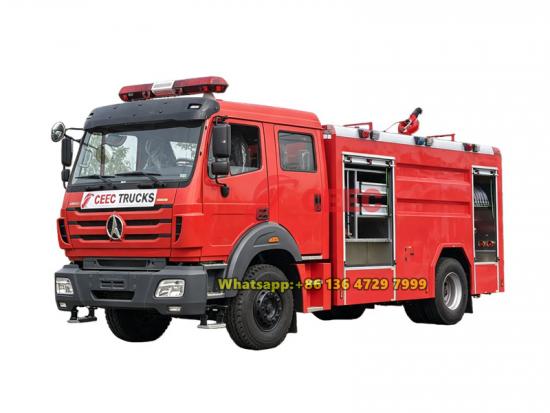

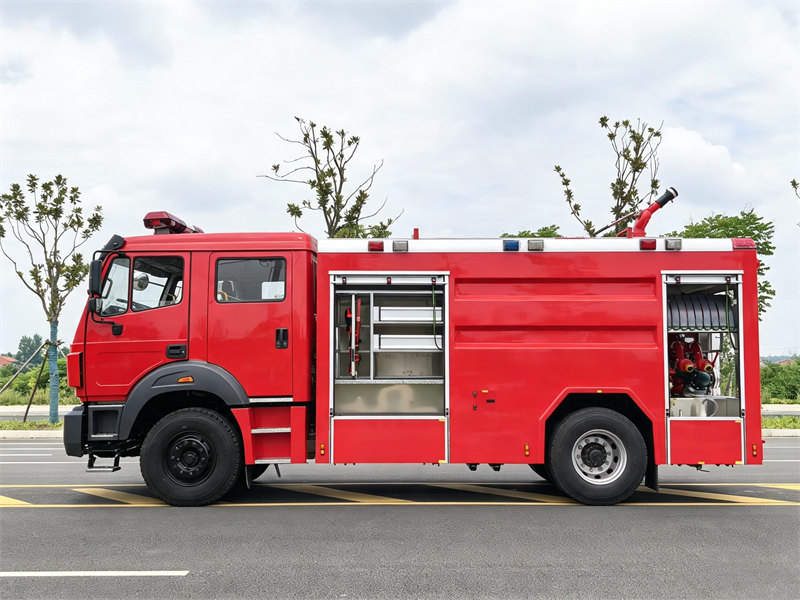

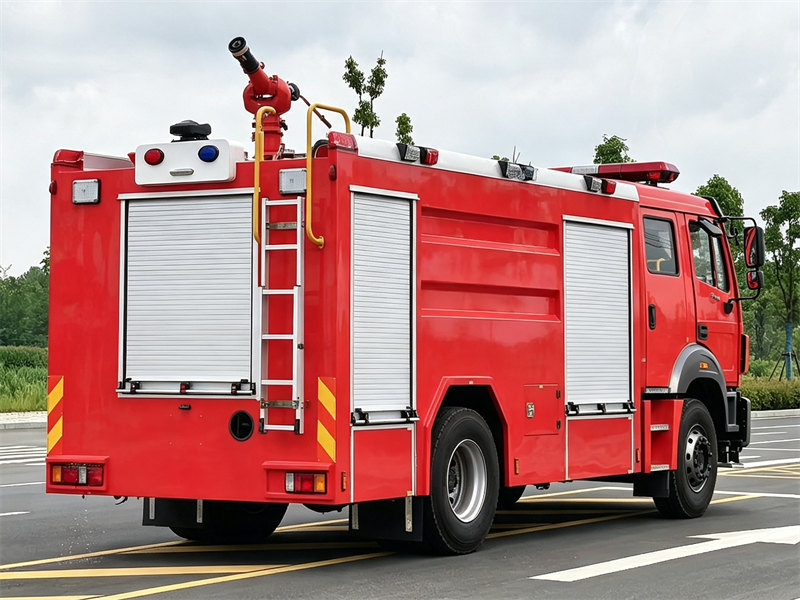

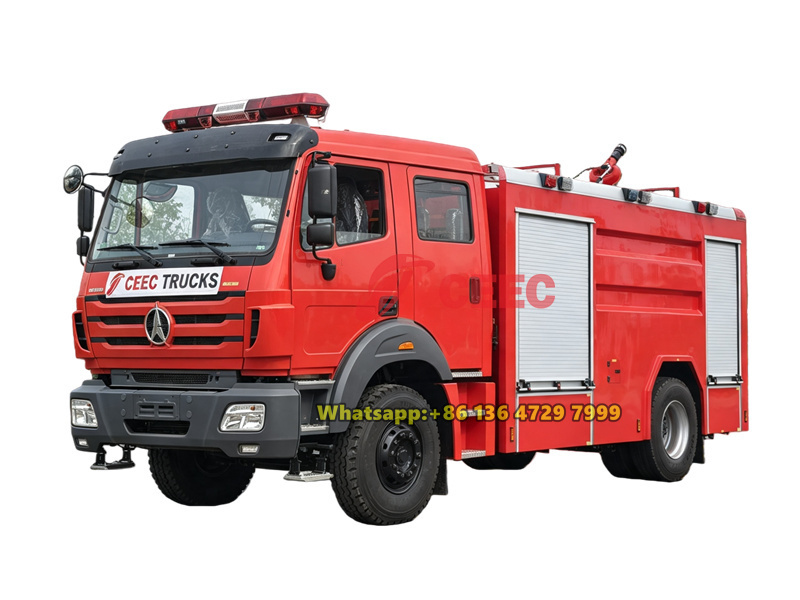

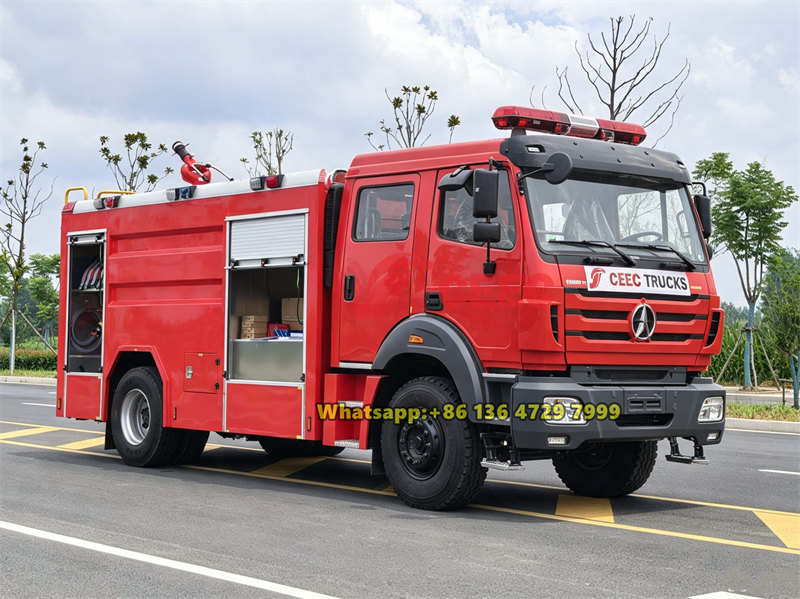

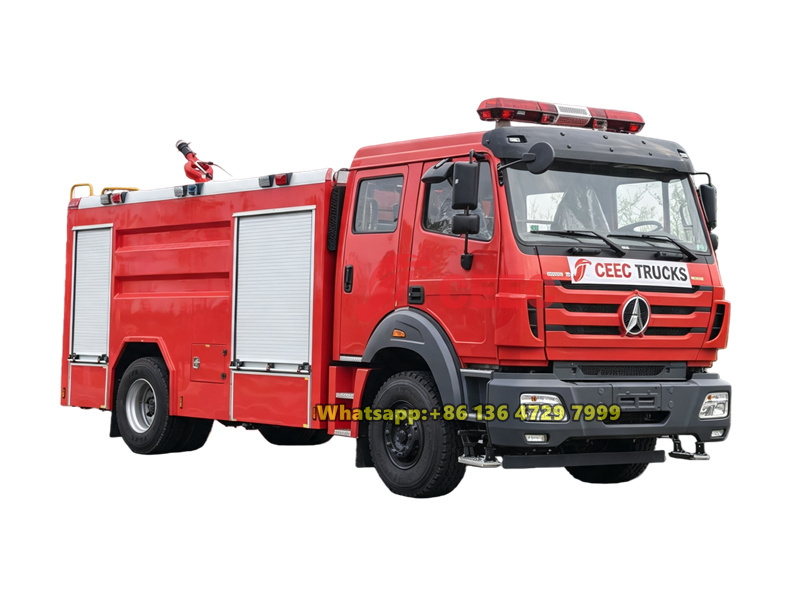

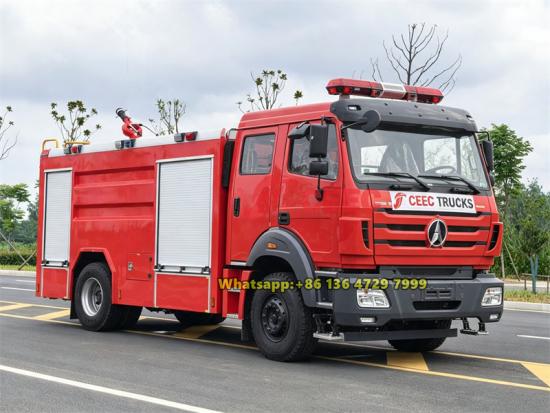

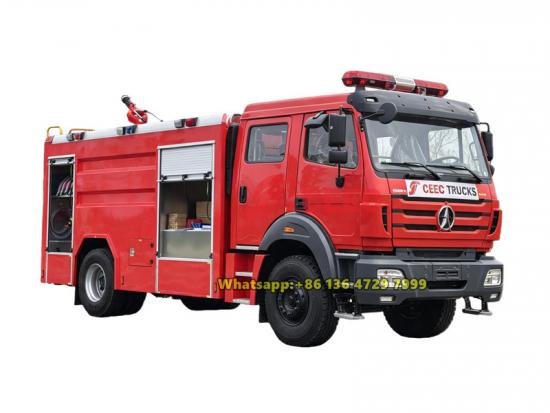

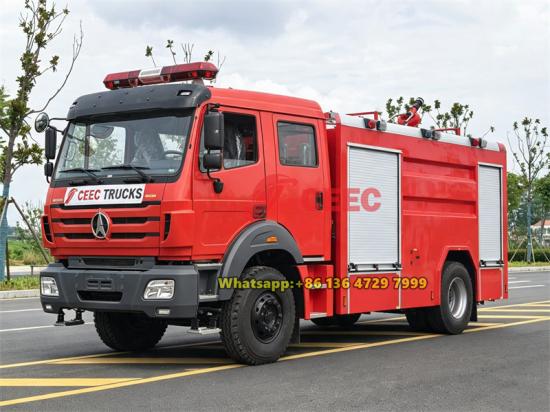

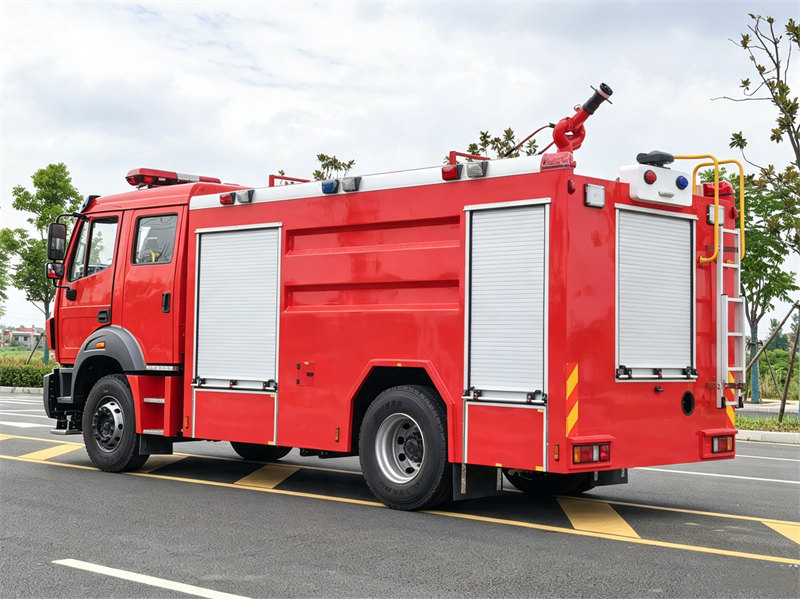

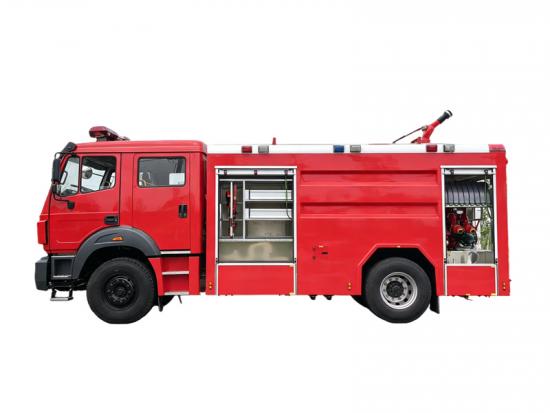

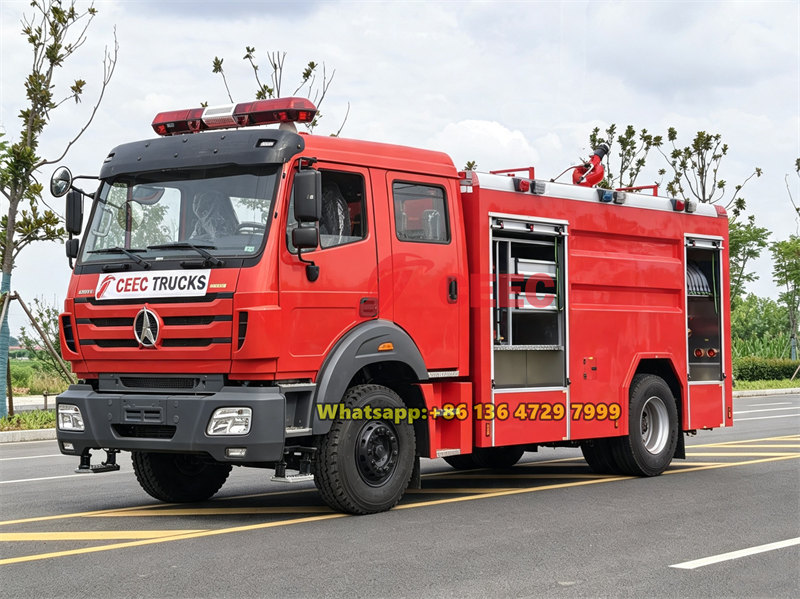

The Beiben 4×2 8,000-liter Water Foam Fire Truck is built on the Beiben 1929 special chassis and powered by a Weichai high-power engine, delivering strong performance and stable driving. It is equipped with a 6,000-liter water tank and a 2,000-liter stainless steel foam tank, along with a high-efficiency fire pump and a long-range fire monitor, offering excellent water discharge and foam proportioning performance. With a rugged structure and well-arranged equipment layout, it enables rapid response to various ordinary and oil fires, and is widely used in urban, industrial, and emergency firefighting scenarios.
Working Capcity:
8000 litersCabin Type:
NG80B long cabin, 2+4 seatsDimension ( mm ) :
8600×2550×3450Drive System:
4×2, LHDWheelbase (mm):
4800Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ATyres:
12.00R20, 6+1 pcsRemark:
Tank material and capacity is optional※ Product Introduction

※ Product Specification
|
Beiben 4×2 8000 liters water foam fire engine |
|||
|
Main specification |
Vehicle name |
Beiben water foam fire truck |
|
|
Chassis brand |
Beiben |
||
|
Chassis model |
Beiben 1929 |
||
|
GVW |
19000 kg |
||
|
Overall dimension(L*W*H) |
8500x2550x3450mm |
||
|
Max. driving speed |
95 km/h |
||
|

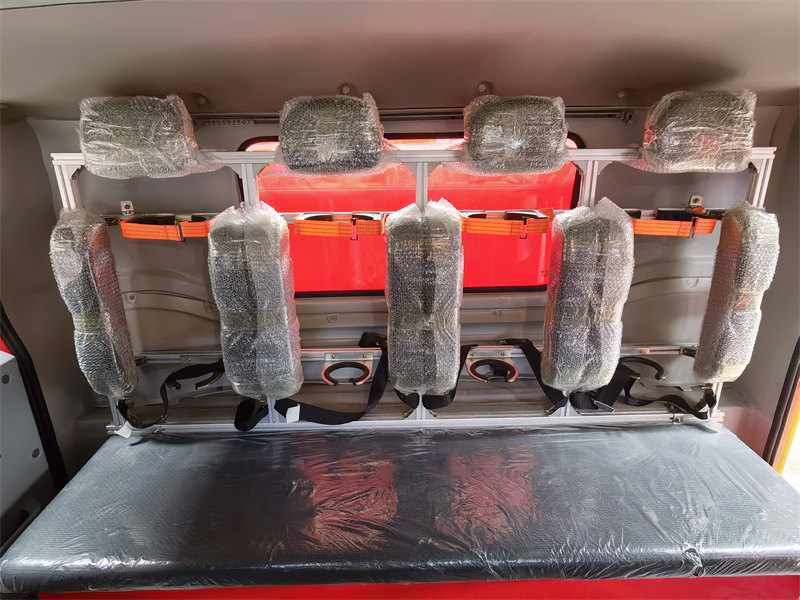

Cabin |
Double cabin, two rows, 2+4 seats, with Air conditioner, electronic windows, central lock |
||
|
Chassis |
Drive model |
4x2, left hand drive |
|
|
Frame |
Variable width and section 317×70×8.5+7+8.5 mm |
||
|
Front axle |
7.5 T, non-driving steering axle, drum brake |
||
|
Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock |
||
|
Wheel Base |
4800 mm |
||
|
Tyre size & number |
12.00R20, 6 pcs with one spare tyre |
||
|
Clutch |
430 Single disc, dry type, friction clutch |
||
|
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
||
|
Gearbox |
Mechanical, FAST 9JS150A |
||
|
Engine |
Brand |
WEICHAI |
|
|
Model |
WP10.290E32 |
||
|
Number of cylinders |
6 |
||
|
Fuel type |
Diesel |
||
|
Max. output power |
213 kW |
||
|
Max. hose power |
290 HP |
||
|
Displacement |
9726 ml |
||
|
Emission standard |
Euro 3 |
||
|
Rated speed |
2200 rpm |
||
|
Max. torque |
1160 N.m |
||
|
Max. torque speed |
1200-1600 rpm |
||
|
Superstructure Specifications |
|||
|
Water tank |
Capacity |
6000 liters |
|
|
Material |
Carbon steel |
||
|
Foam tank |
Capacity |
2000 liters |
|
|
Material |
Stainless steel |
||
|

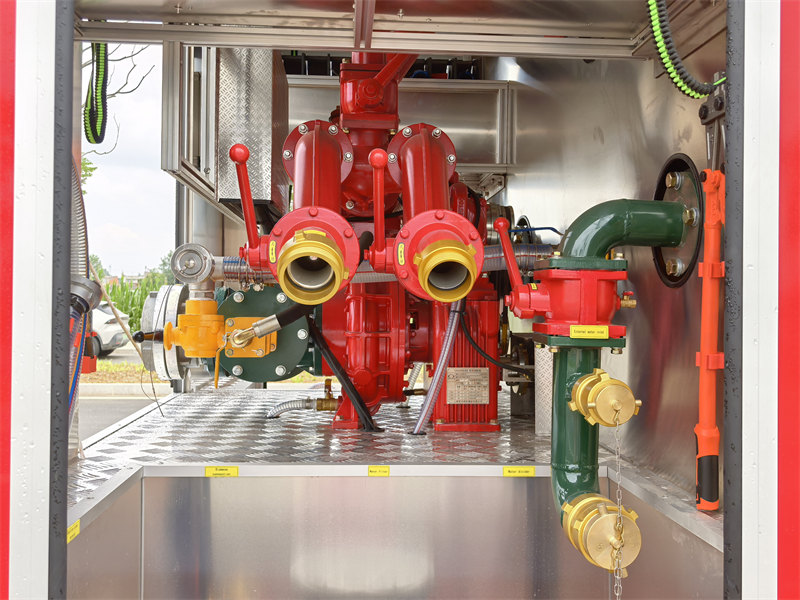

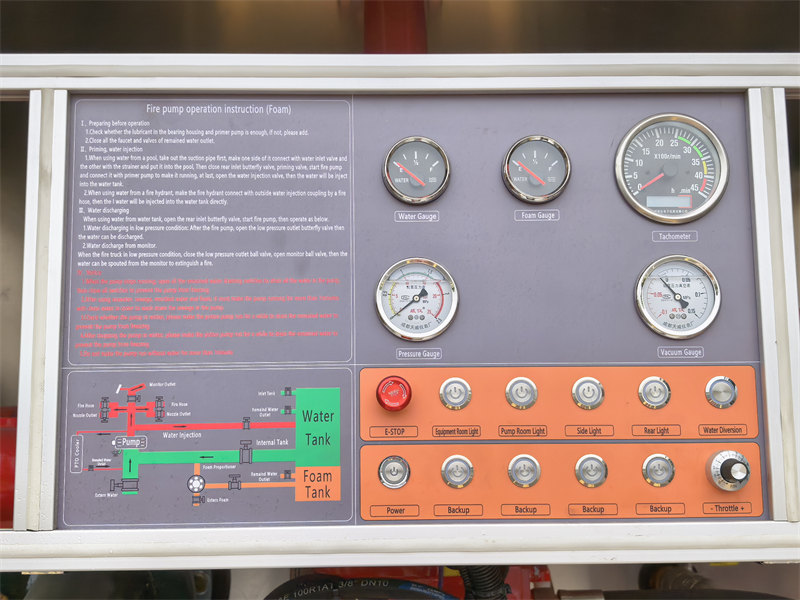

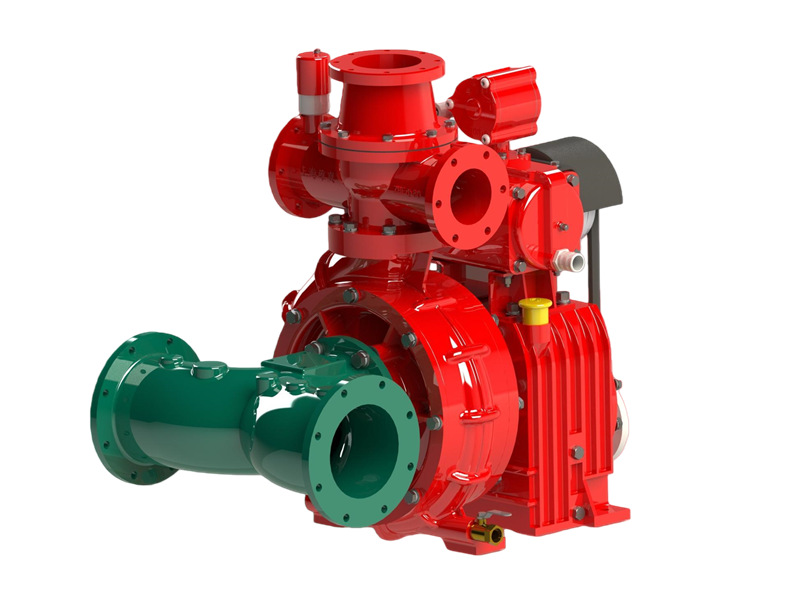

Fire pump |
Model |
/ |
CB10/40, Normal pressure pump |
|
Rated pressure |
MPa |
1.0 |
|
|
Max suction height |
m |
7 |
|
|
Rated flow |
L/S |
40 |
|
|
Time of drawing water (s) |
s |
≤50 |
|
|
Fire monitor |
Model |
/ |
PL8/48 |
|
Rated working pressure |
MPa |
0.8 |
|
|
Working pressure range |
MPa |
0.8~1.0 |
|
|
Range |
Water (m) |
≥70 |
|
|
Foam (m) |
≥60 |
||
|
Flow |
L/S |
48 |
|
|
Rotation angle |
(°) |
360 |
|
|
Pitch angle |
(°) |
-45~+70 |
|

※ Beiben 8000L Foam Fire Truck Performance
※ Beiben 1929 Foam Firefighting Truck Features

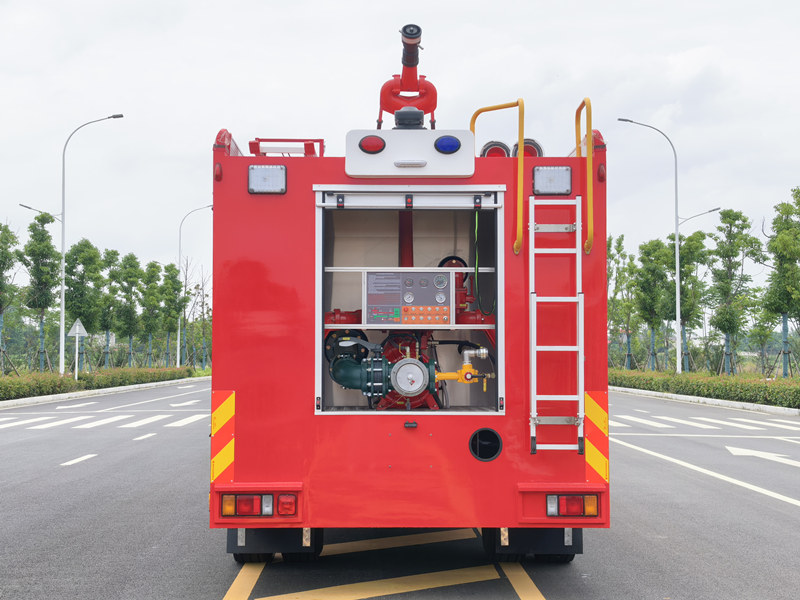

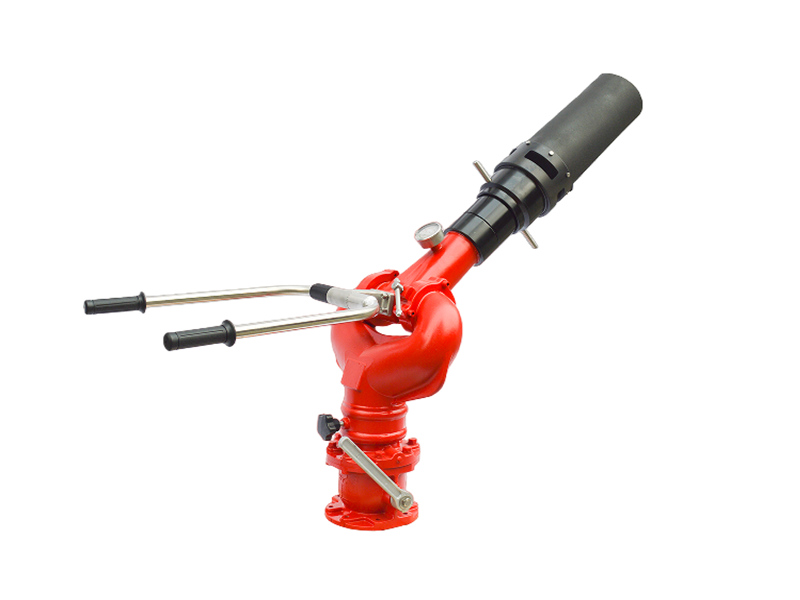

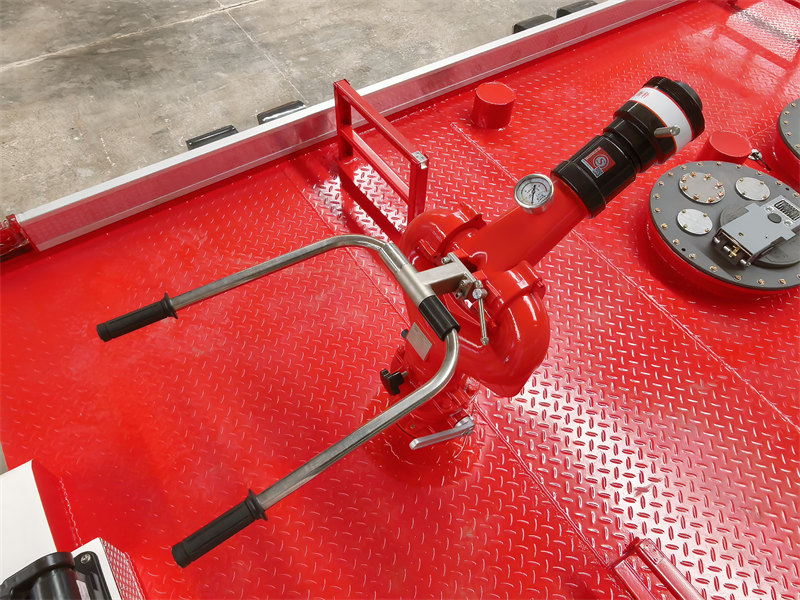

3. Fire Monitor
Fitted with a renowned Chinese brand fire monitor, capable of discharging water or foam concentrate. It features long range, concentrated stream, high foam expansion ratio, large protection area, stable performance, and flexible, convenient operation.

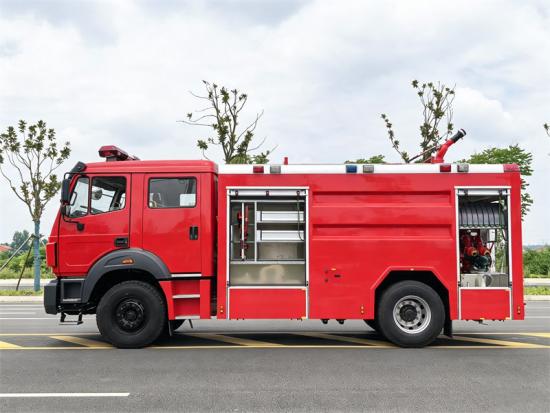

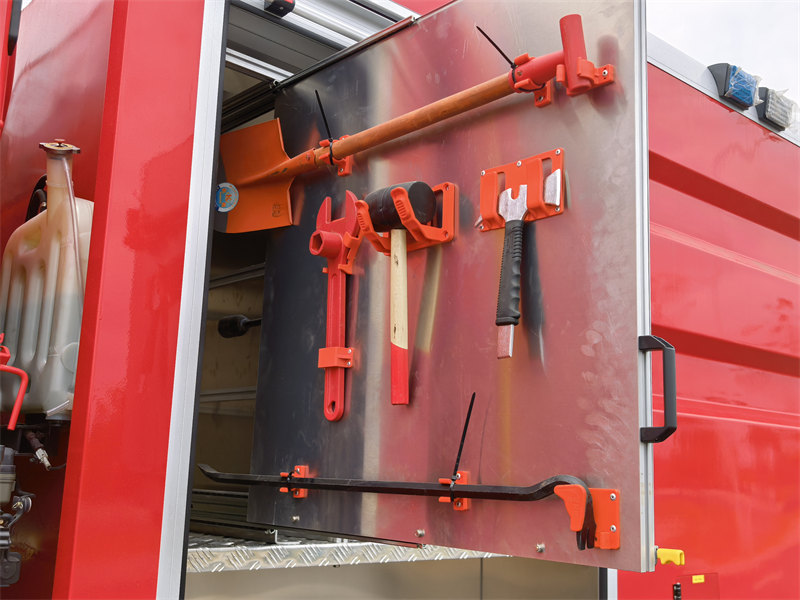

4. Equipment Compartment
Fully stocked with equipment, all secured by dedicated clamps, logically arranged for easy access. The compartment uses high-strength aluminum alloy profiles for the main frame and is surfaced with aluminum checkered plate, offering both aesthetic appeal and rugged durability.
※ Beiben 8000 Liters Foam Tanker Fire Truck Details
