» Ⅵ. Beiben Fire Engine Application:

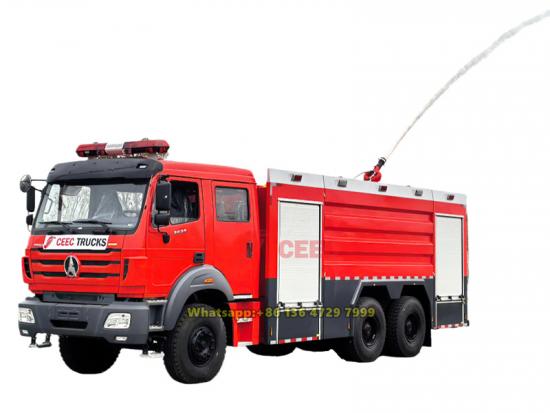

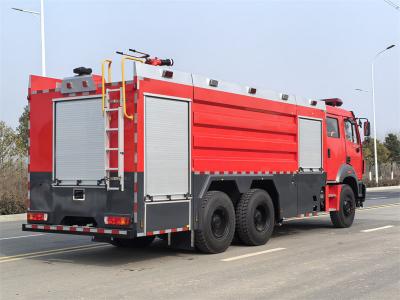

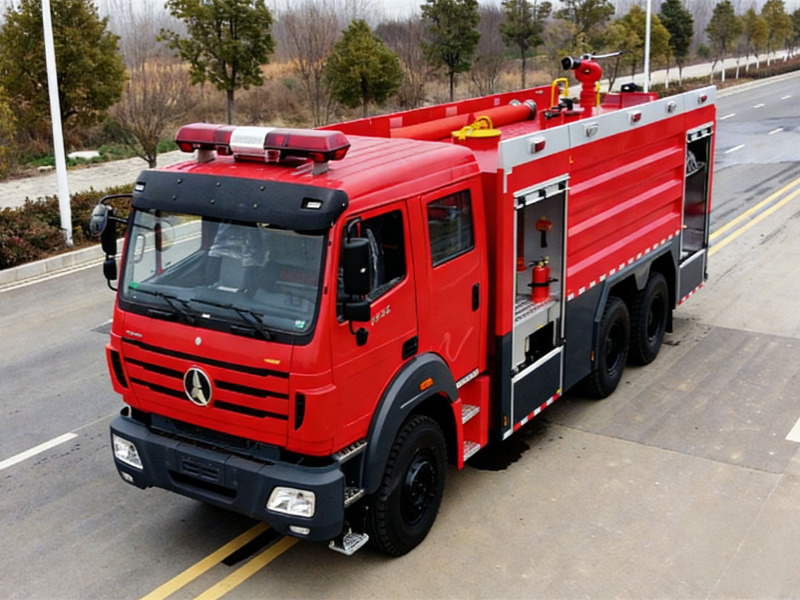

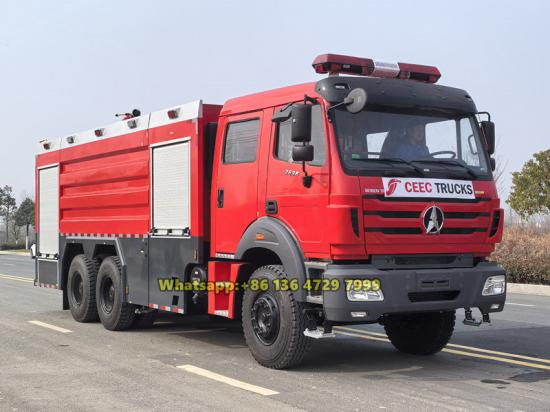

The Beiben Water Foam Tanker Fire Truck is a heavy-duty professional firefighting vehicle built on a Beiben 6×4 chassis. It boasts excellent load-bearing stability and integrates a 10,000-liter water tank and a 2,000-liter foam tank. Equipped with a high-flow normal-pressure fire pump and a multi-functional fire monitor, it is capable of delivering long-range, high-volume water and foam firefighting operations. This modern and efficient equipment is suitable for tackling various major fires.
Working Capcity:
12000 litersCabin Type:
NG80B double cabinDimension ( mm ) :
9830×2540×3630Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TTyres:
12.00R20Remark:

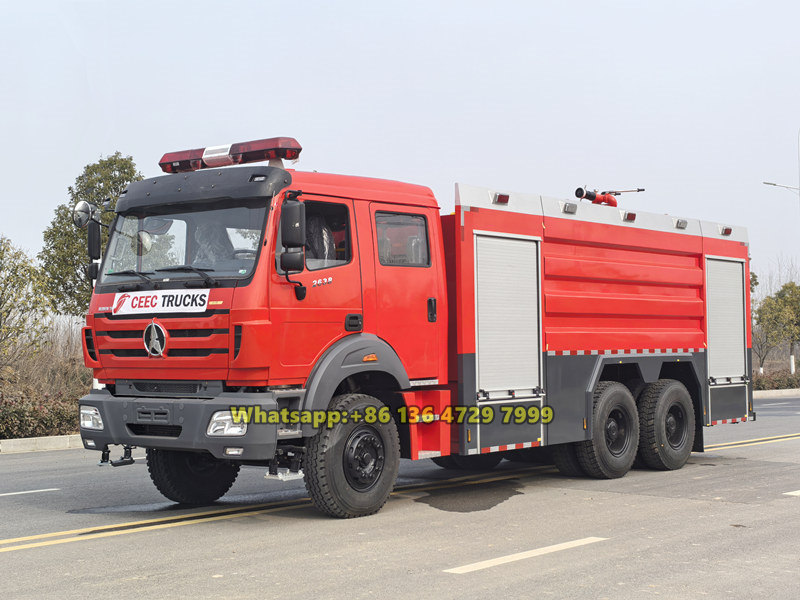

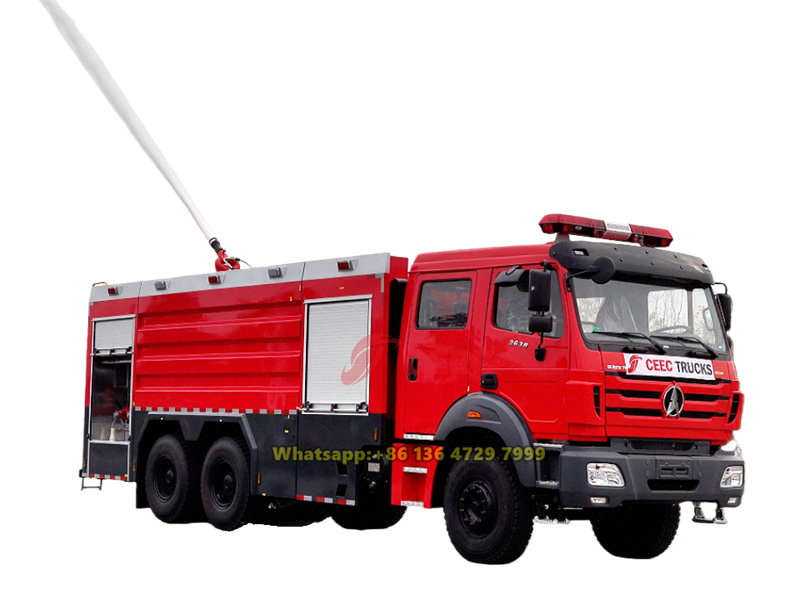

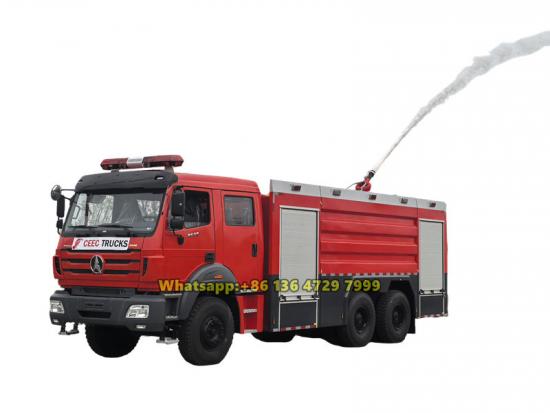

6×6 drive, stainless steel water tank, PP tank is optionalThe Beiben Water Foam Fire Pumper Truck is a professional firefighting apparatus built on a Beiben 2638 heavy-duty chassis. Featuring a 6×4 drive configuration and powered by a Weichai 380HP high-power diesel engine paired with a FAST 12-speed transmission, it offers outstanding dynamic performance and off-road capability. The vehicle's robust structure, including a fish-belly variable-section frame and an all-steel double-row cab, ensures high load capacity and operational safety during emergency rescue missions.
The superstructure of this Beiben firefighting truck integrates a 10,000-liter water tank and a 2,000-liter stainless steel foam tank. It is equipped with a CB10/60 normal-pressure fire pump and a PL48 fire monitor. The firefighting system excels in performance, providing a water flow rate of 60 liters per second and a range exceeding 70 meters, with integrated foam mixing capabilities for rapid, high-volume fire suppression. The equipment compartments and pump room utilize aluminum alloy cladding with a steel frame structure, featuring a rational layout for quick access to tools. The overall design fully meets the demands of firefighting in diverse scenarios such as petrochemical facilities and urban areas.
CEEC factory is authorized supplier on beiben firefighting trucks,
guarantee all beiben fire resuce trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×4 heavy-duty chassis, NG80B cabin, with 380HP diesel engine
▶ Tank capacity: Water tank capacity 10000 liters, foam tank capacity 2000 liters
▶ Tank material: Water tank made of high-strength carbon steel, foam tank made of stainless steel
▶ Fire pump: China famous brand, model CB10/60, normal-pressure pump, flow rate 60L/s

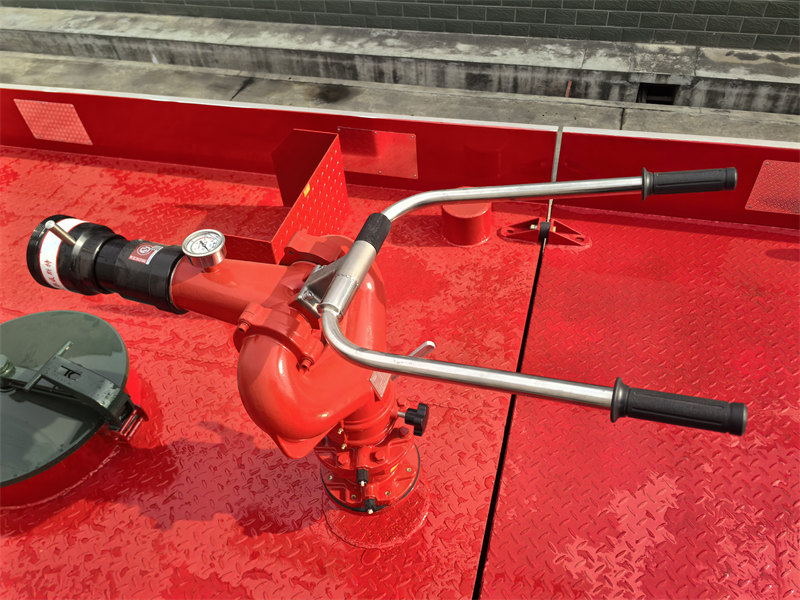

▶ Fire monitor: China famous brand, model PL8/48, water range up to 70m, foam range up to 60m
» Ⅱ. Product Specifications:
|
Beiben water foam fire pumper truck specifications |
||
|
Dimension(Lx Wx H) (mm) |
9830*2540*3630mm |
|
|
Wheel Track(front/rear) (mm) |
1990/1800,1800 |
|
|
Wheel distance (mm) |
4450+1450 |
|
|
Driving type |
6×4 |
|
|
Curb weight(kg) |
14500 |
|
|
Max speed (km/h) |
85 |
|
|
Engine model |
WP10.380E32 |
|
|
Engine type |
Direct injection 4 strokes, 6 cylinder in line, turbo-charge inter cooler diesel engine |
|
|
Displacement (L) |
9.726 |
|
|
Max. power (kw/rpm) |
280/2200 |
|
|
Max torque (n.m/rpm) |
1600/1500-1800 |
|
|
Emission standard |
EuroⅢ |
|
|
Clutch |
Valeo 430 |
|
|
Dry single plate, hydraulic control booster |
||
|
Gear box |
12JS160T |
|
|
Mechanism, 12 gears, 2 reverse gear, manual, synchronization, with PTO interface |
||
|
Braking |
Service Brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Spring loaded press on middle and rear wheels |
|
|
Steering |
Whole circulation in ball, hydraulic booster |
|
|
Vehicle Frame |
Fish belly shape, variable width, variable section, side beam trapezium structure |
|
|
Tire and number |
12.00R20 10+1 spare wheel |
|
|
Electrical system |
Battery |
2x12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4KW/24V |
|
|
Cab (Mercedes Benz Technology) |

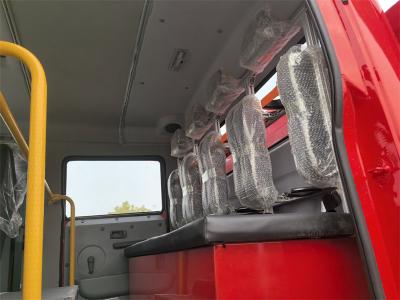

NG80 double row cab, made by full steel material forming empty body inside |
|
|
Upper-body specifications |
||
|
Water tank volume |
10000 liters |
|
|
Foam tank volume |
2000 liters |
|
|
Water tank material |
High quality carbon steel |
|
|
Foam tank material |
Stainless steel |
|
|
Structure |
Whole welded structure |
|
|
Equipment |
2-Entrance holies, With quick locking and opening device, 1-Vacuum valve device, 2-Level indication sensors, 2-drain outlet with ball valve,4-Gathering points, Both sides of the tank from the vehicle injection, |
|
|

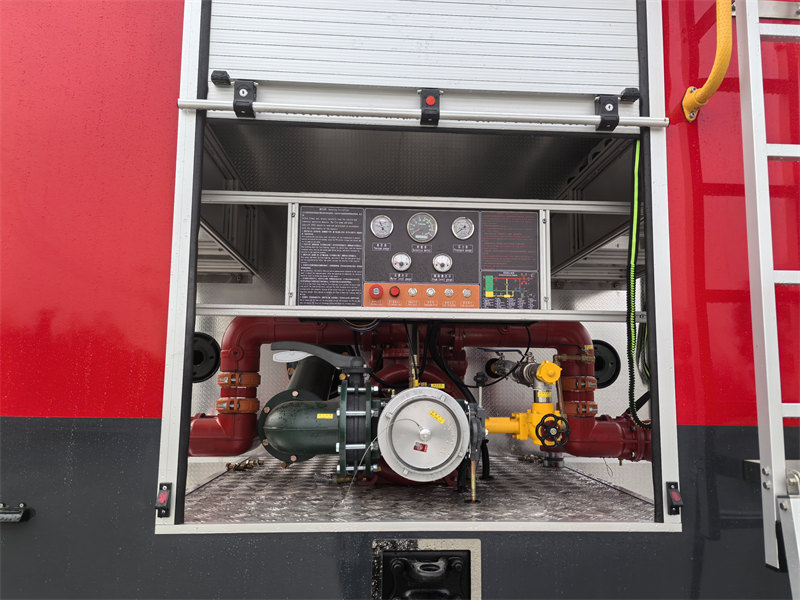

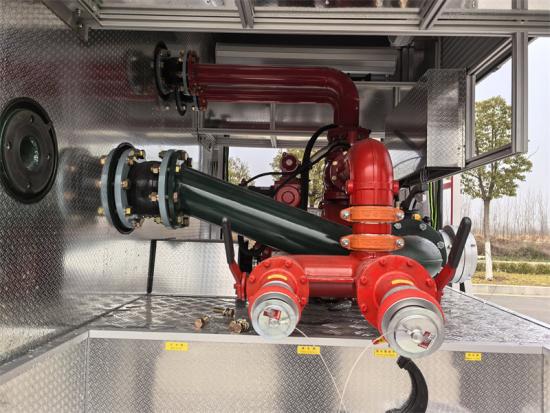

Fire pump system |
||
|
Model |
CB10/60, normal pressure fire pump |
|
|
Flow rate |
60L/s |
|
|
Pressure |
1.0Mpa |
|
|
Foam mixer |
Mixing ratio 6% |
|
|
Priming pump |
piston type |
|
|
Effective suction head |
≥7m |
|
|
Diversion time |
≤35s |
|
|
Fire monitor |
||
|
Model |
PL48 (Dual-use foam and water) |
|
|
Pressure |
0.8 Mpa |
|
|
Flow rate |
48 L/s |
|
|
Water range |
≥70m |
|
|
Foam range |
≥60m |
|
|
Power takeoff |
||
|
Type |
Sandwich |
|
|

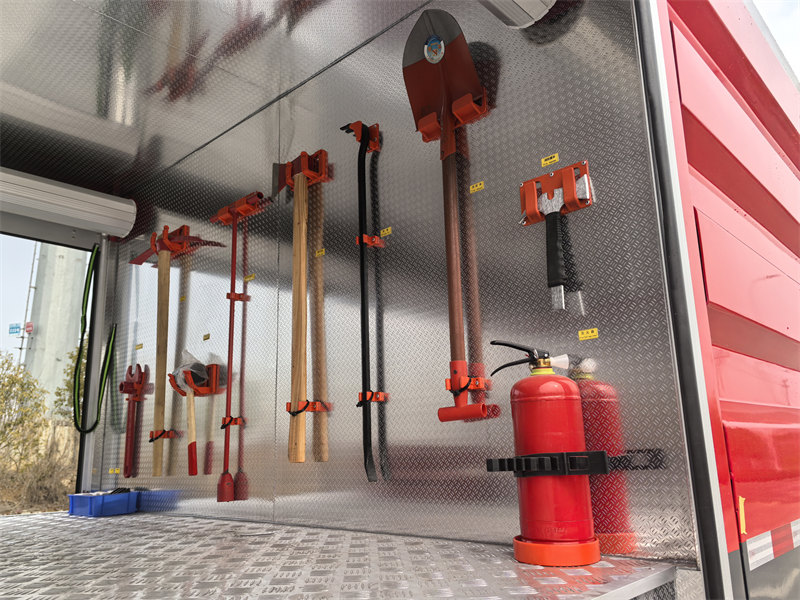

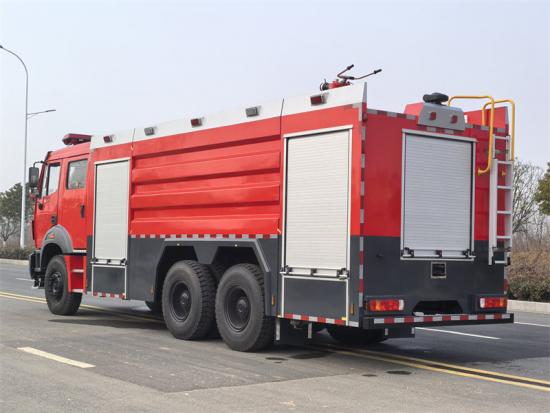

Equipment box and pump room |
||
|
Material |
Skeleton made of high quality carbon steel sections, the exposed skin of high quality aluminum plate bonding |
|
|
Structure |
Equipment, tanks and pumping stations within the framework of the use of welded structures |
|
|
Foot flap |
||
|
Material |
Frame quality carbon steel sections, foot-slip surface pattern for the high-quality aluminum |
|
|
Structure |
Supported by gas springs and locking |
|

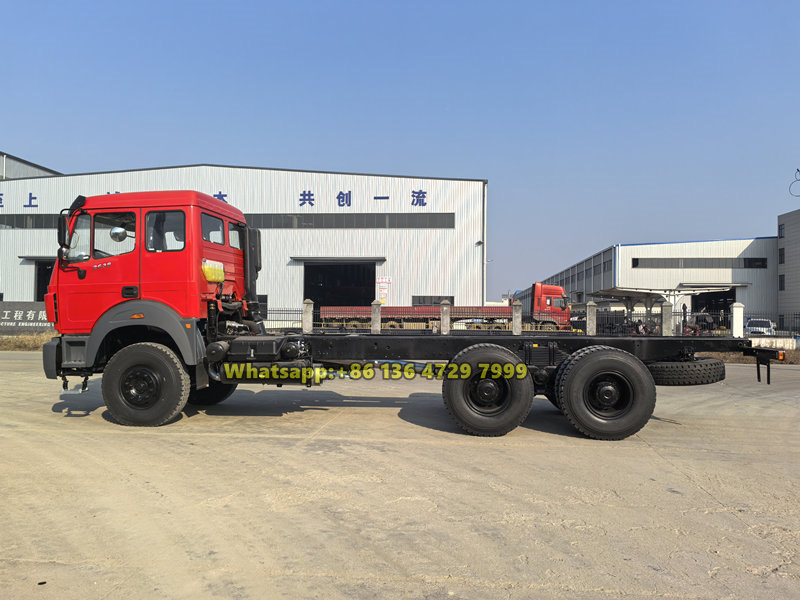

» Ⅲ. Beiben firefighting truck chassis:
 |
 |

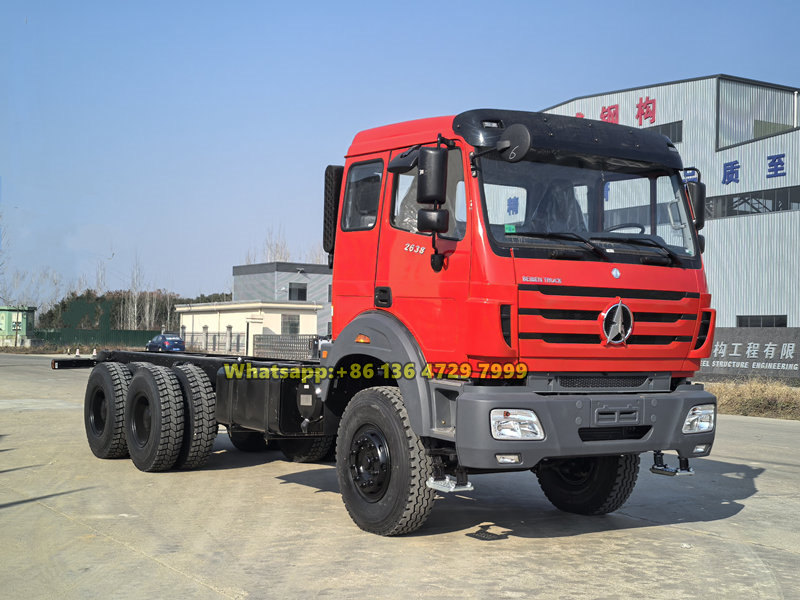

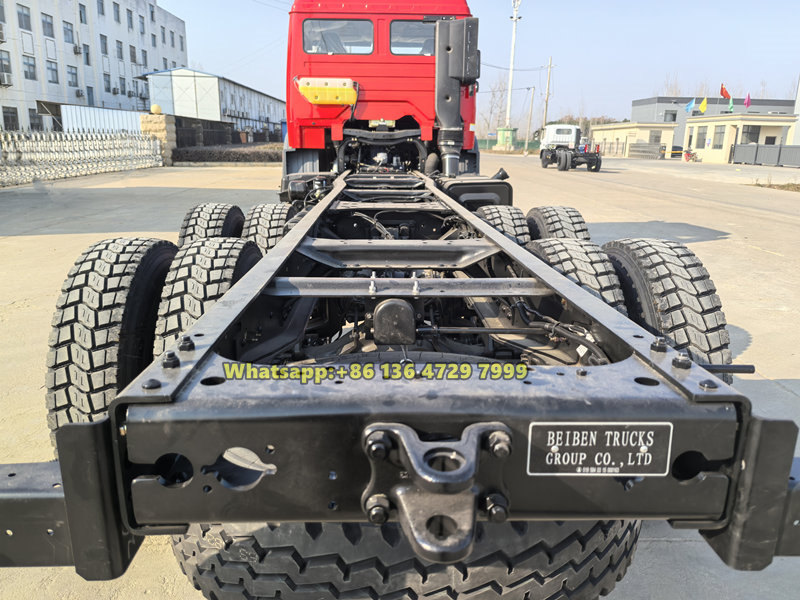

| Beiben 2638 fire truck chassis | Beiben 2638 chassis for fire truck |
 |
 |

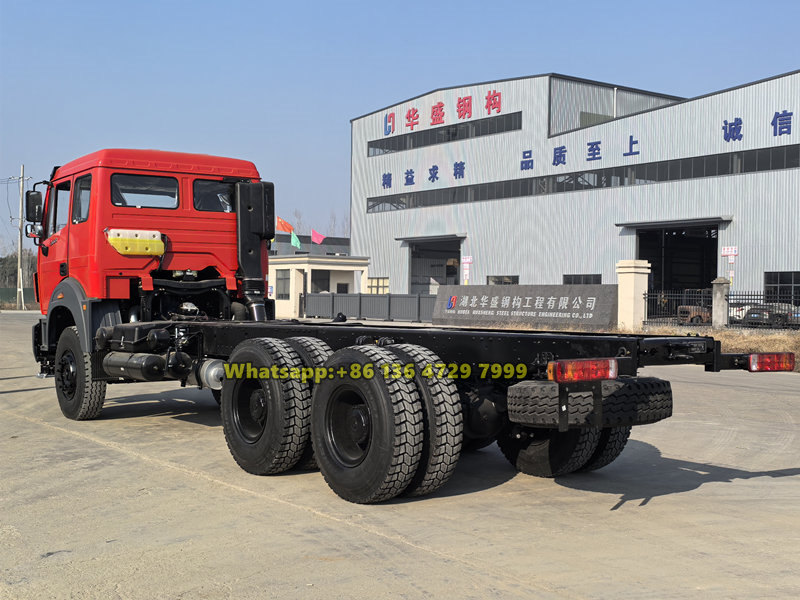

| Beiben 6×4 firefighting truck chassis | Beiben 6×4 fire truck chassis |

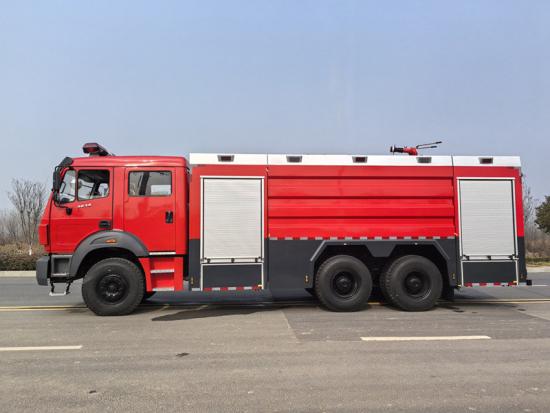

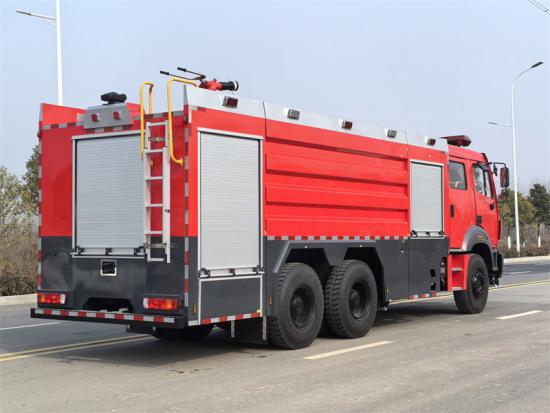

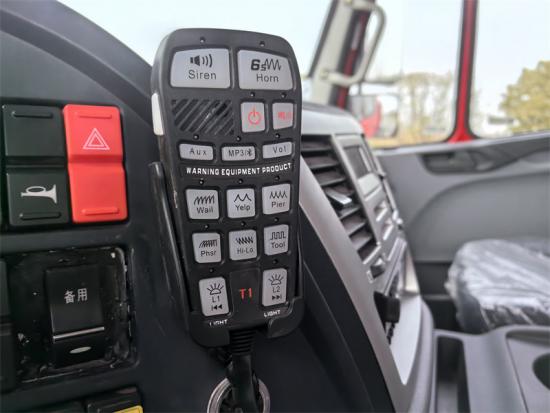

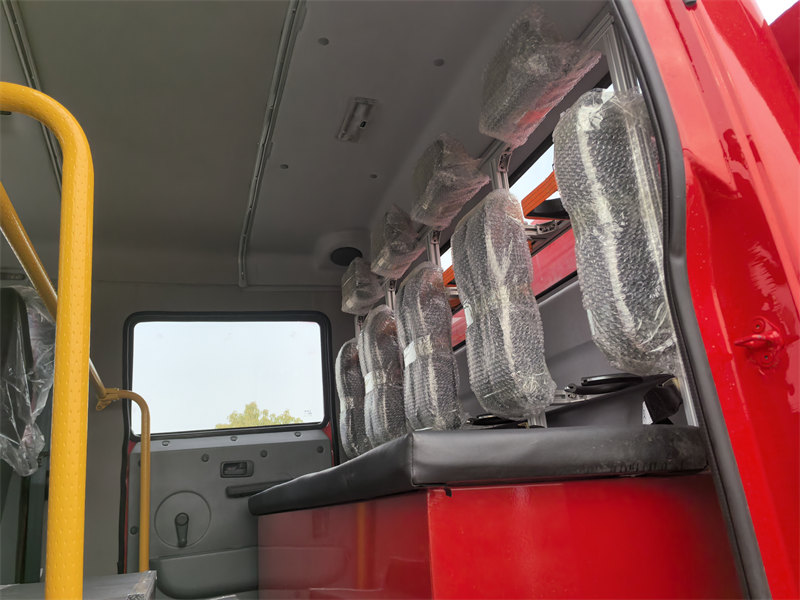

» Ⅳ. Beiben 2638 fire engine details:

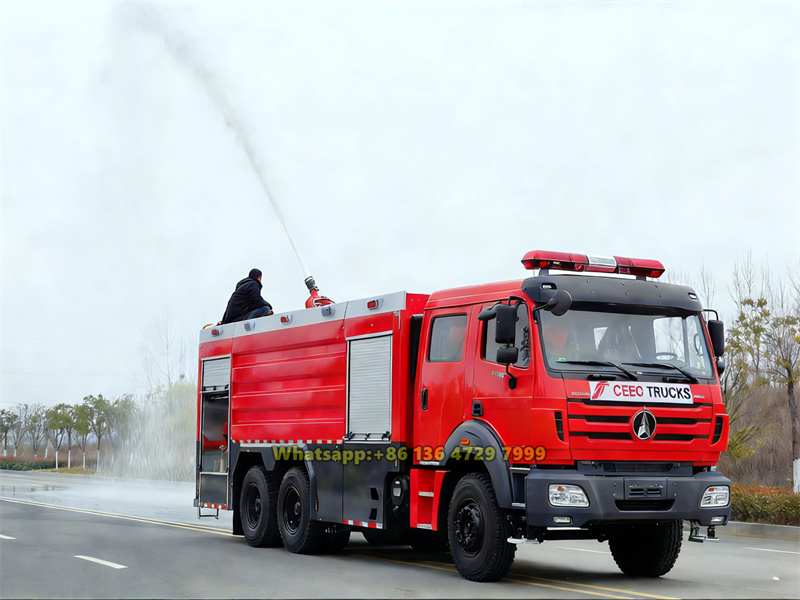

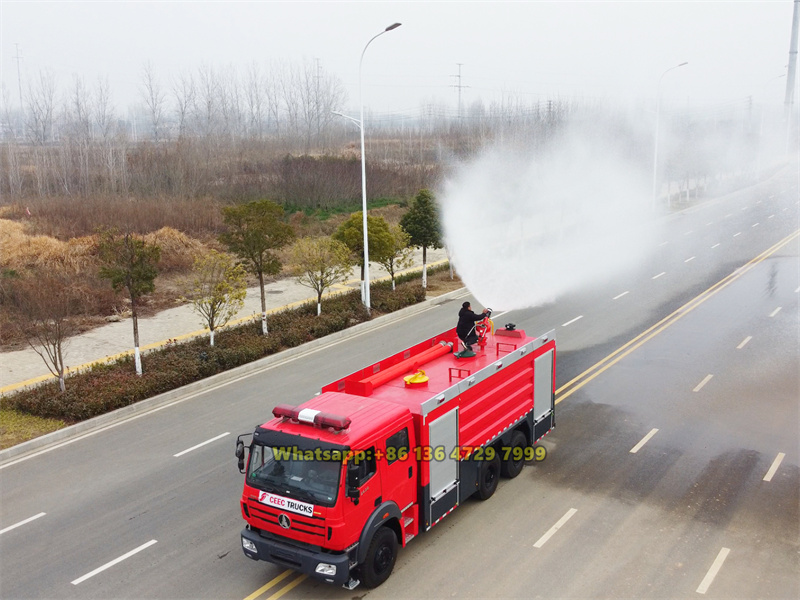

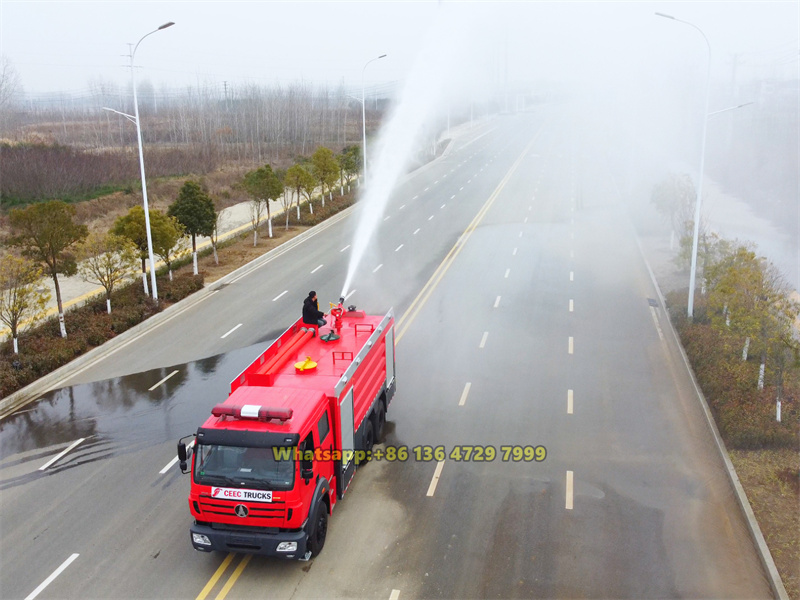

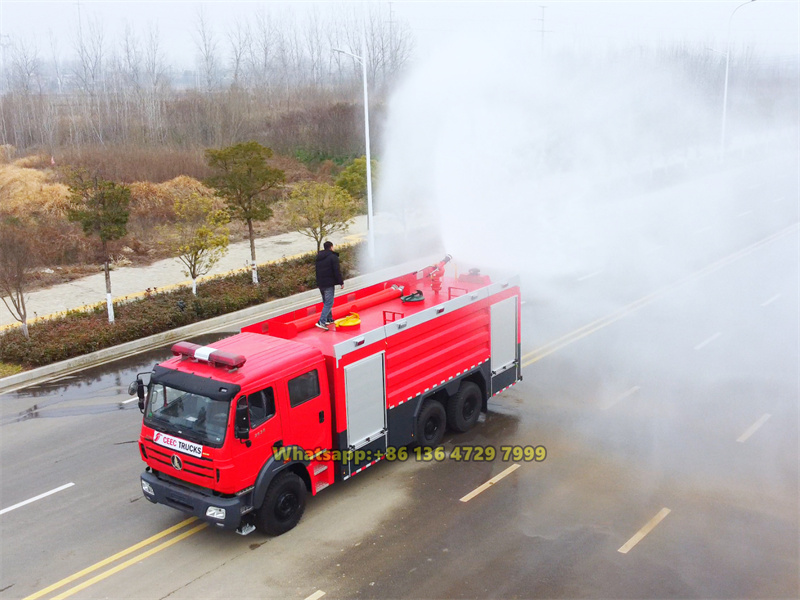

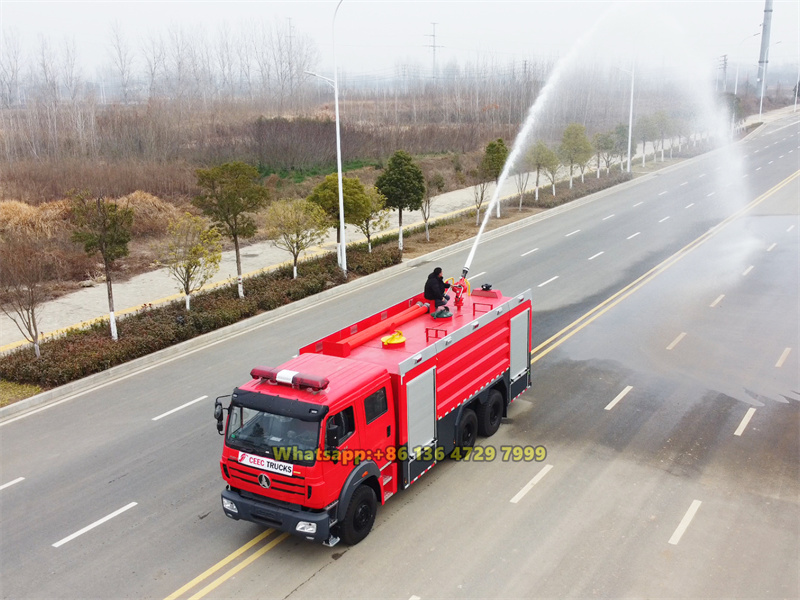

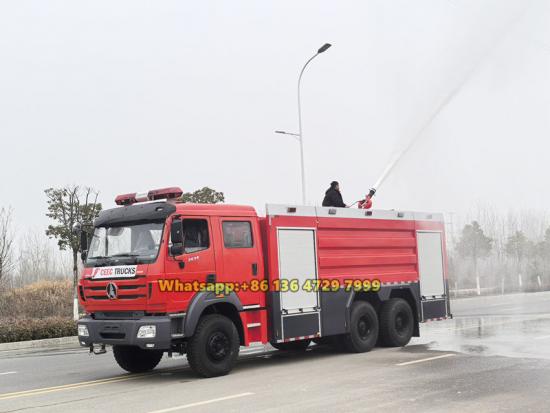

» Ⅴ. Beiben firefighting truck testing:

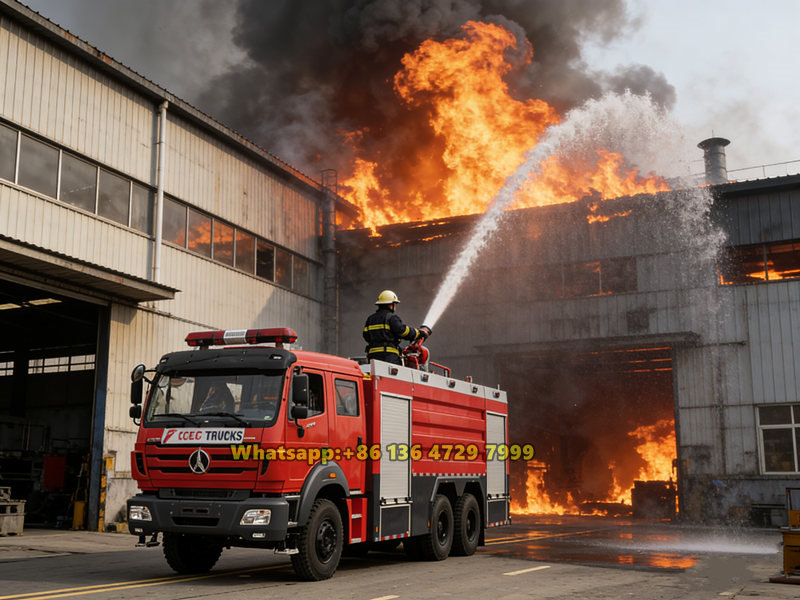

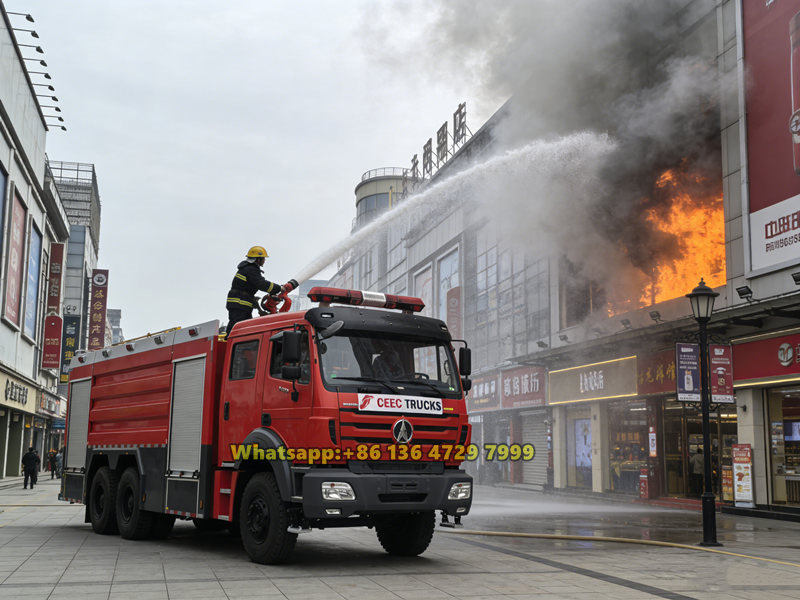

» Ⅵ. Beiben Fire Engine Application:
