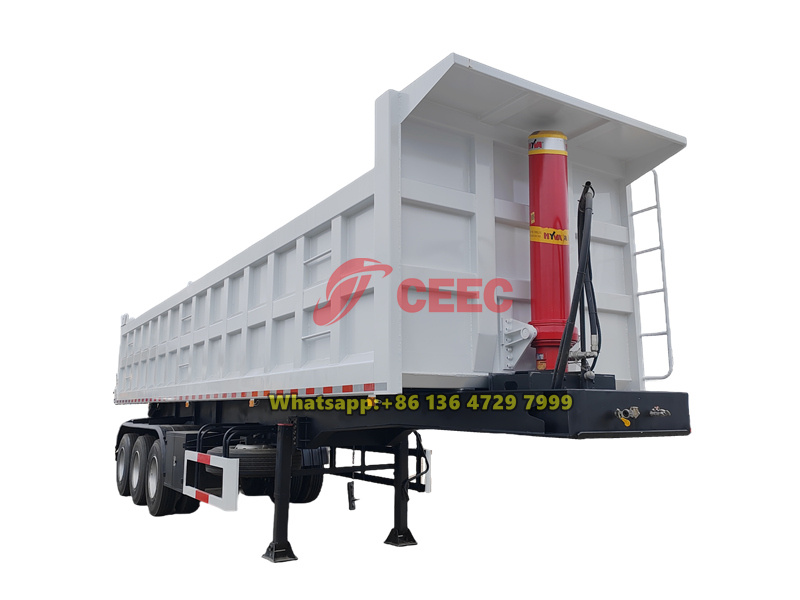

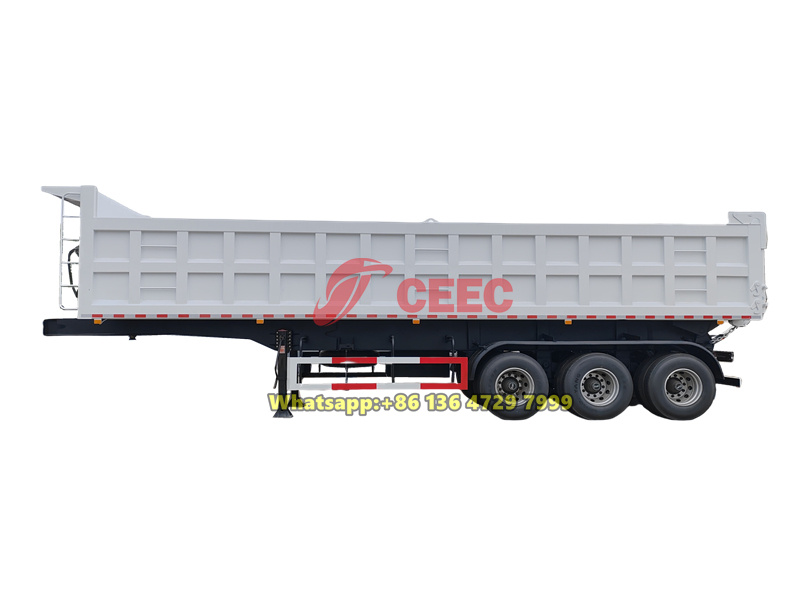

The 3-axle heavy dump semi-trailer is a reliable solution for heavy-duty material transport. It is equipped with three 13-ton FUWA axles and a powerful, stable HYVA hydraulic system, ensuring efficient tipping operations. Combined with a robust cargo box featuring an 8mm thickened floor, it is specifically designed to handle harsh working conditions such as transporting ores and sand. With its reliable load-bearing performance, this trailer is a strong and capable player in the field of engineering transport.
Working capcity:
50 tonsDimension ( mm ) :
9800×2550×3200Remark:
Customized cargo box size, HYVA lifting system, BPM axles for option» Ⅰ.Product Defination and Introduction:

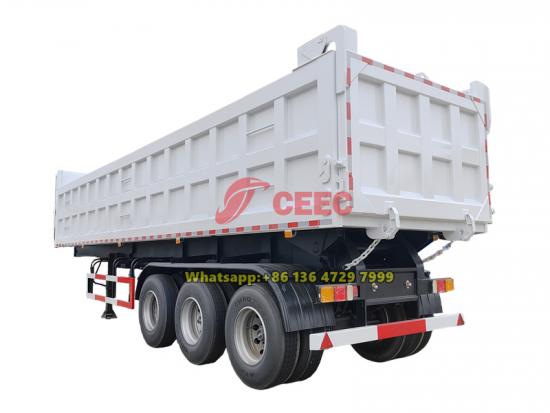

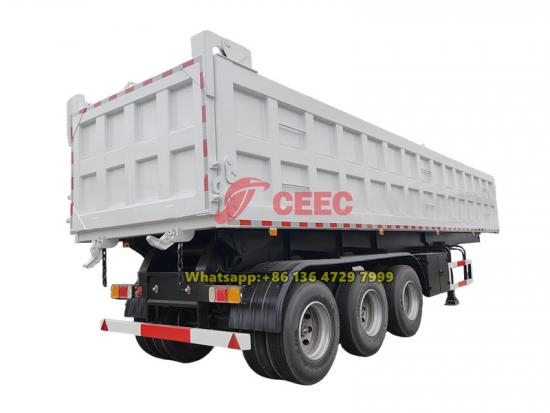

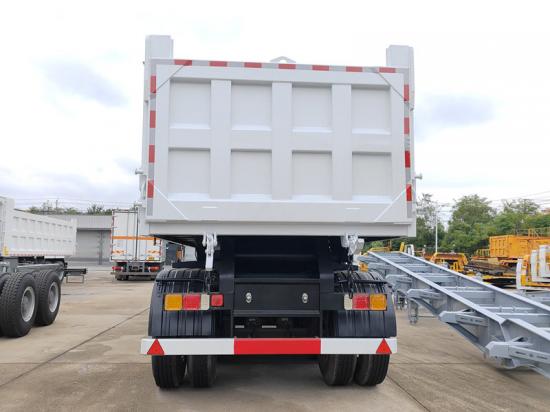

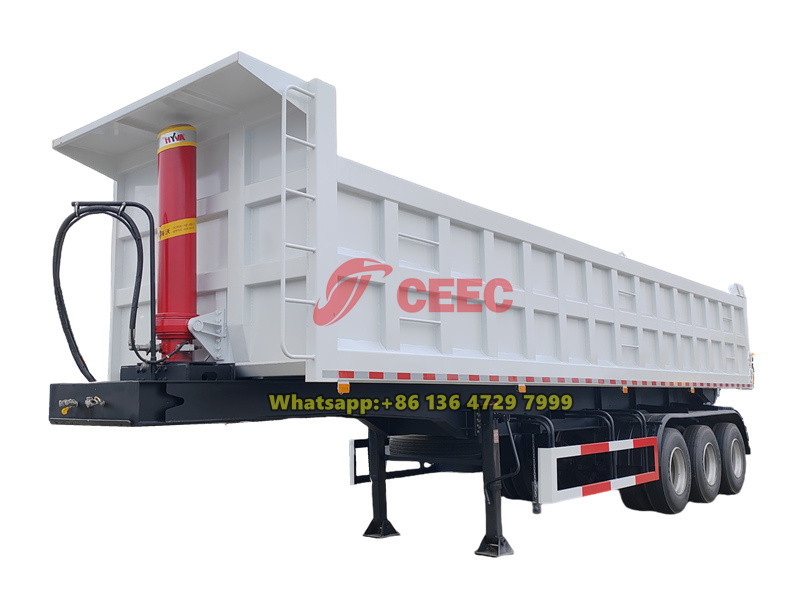

The 3-axle 50-ton dump semi-trailer is built for heavy-duty bulk cargo transportation, offering exceptional load-bearing capacity. It features three 13-ton FUWA axles and 12 pieces of 12.00R20 tires, providing reliable support. Its core highlight is the mature-performance HYVA hydraulic lifting system. This cylinder is renowned for their strong lifting force, smooth operation, and excellent sealing, enabling fast and powerful dumping operations. The cargo box is exceptionally sturdy, with standardized dimensions of 8900×2300×1500mm, an 8mm thickened floor, and 6mm side plates. It offers high impact resistance and wear resistance, making it well-suited for harsh working conditions such as transporting ores and sand.
CEEC factory is premium supplier of dump semi-trailers,
guarantee all fuel tanker semi-trailers Brand-New and High-Quality.
» Ⅱ. Product Specifications:
|
Product name |
Tri-axle dumper truck semi-trailer |
|
Loading Capacity |
40-50 tons |
|
Axle |
3 pieces, 13T FUWA axle |
|
Tyre |
12 pieces, 12.00R20 |
|
Overall Dimensions |
9800mm×2550×3200mm |
|
Dump body size |
8900×2300×1500mm |
|
Tare weight |
12800 kg |
|
Axle spacing |
1310mm |
|
Rims |
9.0-20 |
|
Suspension System |
Leaf spring suspension |
|
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
|
Main Beam |
Height 500mm Q345 |
|
Chassis |
Upper 14mm, lower 16mm. Mid web 12mm |
|
Dump Box Thickness |
Walls: 6mm; Floor: 8mm |
|
Hydraulic Cylinder |
HYVA |
|
Kingpin |
2' or 3.5' interchangeable |
|
Landing Gear |
JOST, 28 Tons, Two speed manual operation |
|
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
|
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Painting |
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm; Any color will be available |
|
Tool Box |
One toolbox with a set of standard trailer tools |
|
Spare Tyre Carrier |
One piece |
» Ⅲ. Product Features:
1. Robust Load Capacity: Equipped with three 13-ton FUWA axles and 12 pieces of 12.00R20 tires, providing a solid and reliable load-bearing structure.

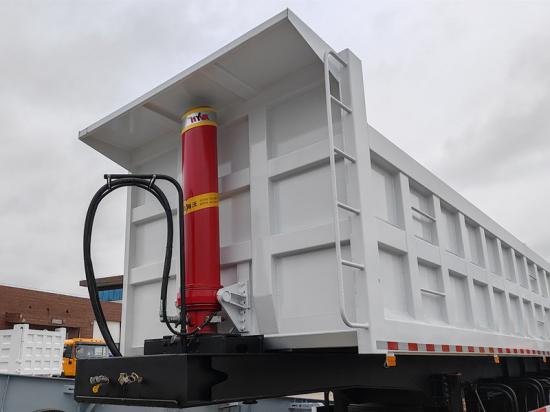

2. Efficient Self-Dumping: Features a reliable HYVA hydraulic lifting system, ensuring powerful lifting and smooth, efficient material discharge.
3. Durable Construction: The cargo box boasts an 8mm thick floor, with high-strength steel used in key areas, delivering exceptional impact resistance and wear durability.
4. Stable & Reliable: Designed with robust leaf spring suspension and a heavy-duty chassis, ensuring operational stability and reliable performance even under complex road conditions.
» Ⅳ. Product Advantages:

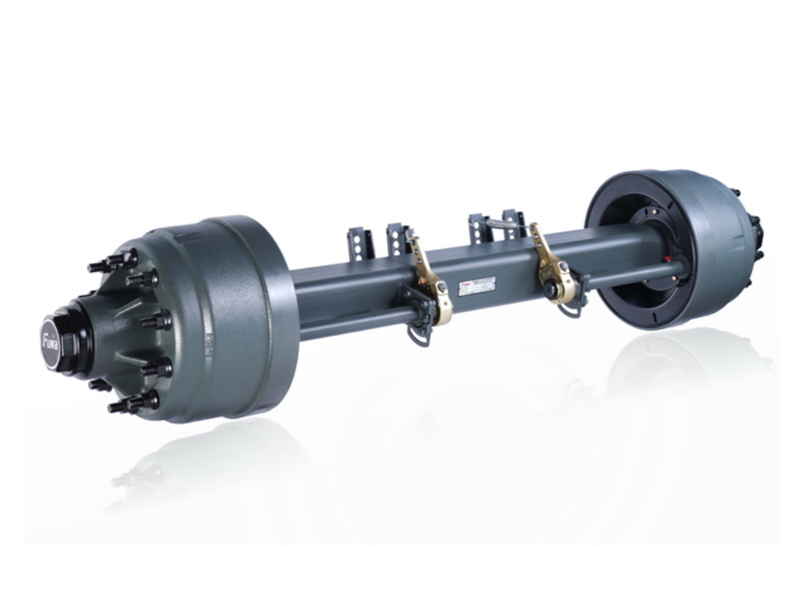

FUWA 13-ton Axles
1. Made of high-quality low-alloy steel with a one-piece axle body, heat-treated for enhanced mechanical properties, high load-bearing capacity, and strong resistance to bending.
2. Equipped with asbestos-free brake pads, extending service life and ensuring excellent and reliable braking performance.
3. Brake assembly complies with American standards and is interchangeable. The S-camshaft is machined for high precision, long service life, and flexible, reliable braking.
4. Features a uniquely designed steel wheel hub cover.
5. Utilizes heavy-duty specialized bearings to extend the axle's service life.

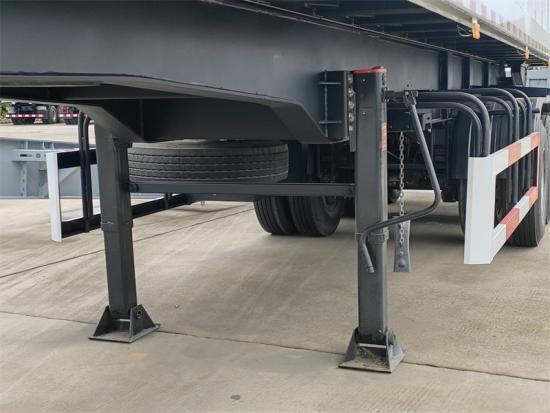

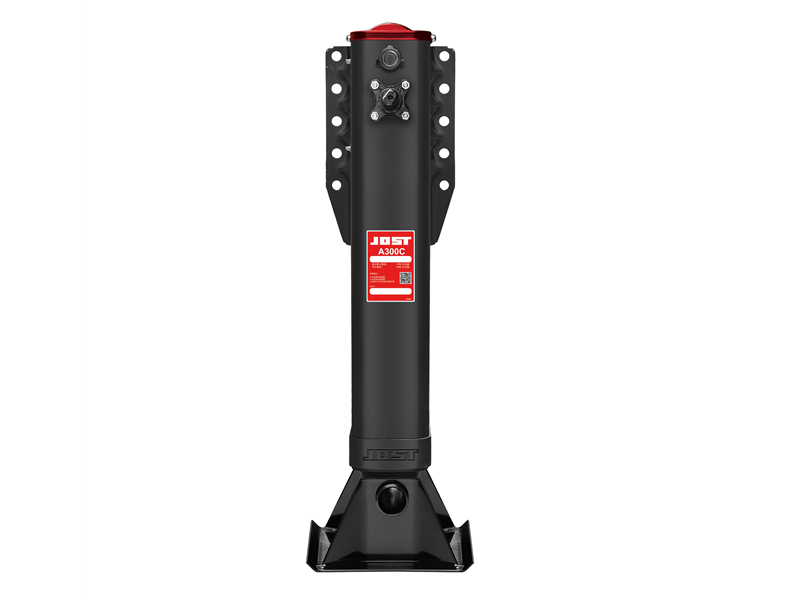

JOST Landing Gear
Model: A300C
Static Load Capacity: 75t
Lifting Capacity: 28t
High/Low Gear: 5.66mm/0.60mm per revolution
Optional Stroke: 14"/17"/19" (355mm/430mm/480mm)

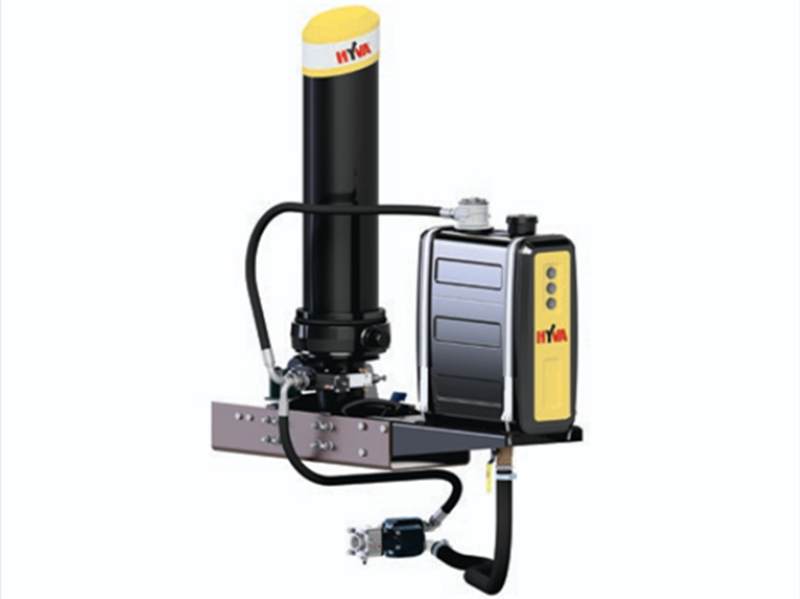

HYVA Hydraulic Lifting System
Model: FC A191
Stroke: 6725mm
Maximum Working Pressure: 250 bar
Maximum Lifting Capacity: 84 tons
Minimum Lifting Capacity: 64 tons
Effective Diameter: 191mm
Number of Sections: 5

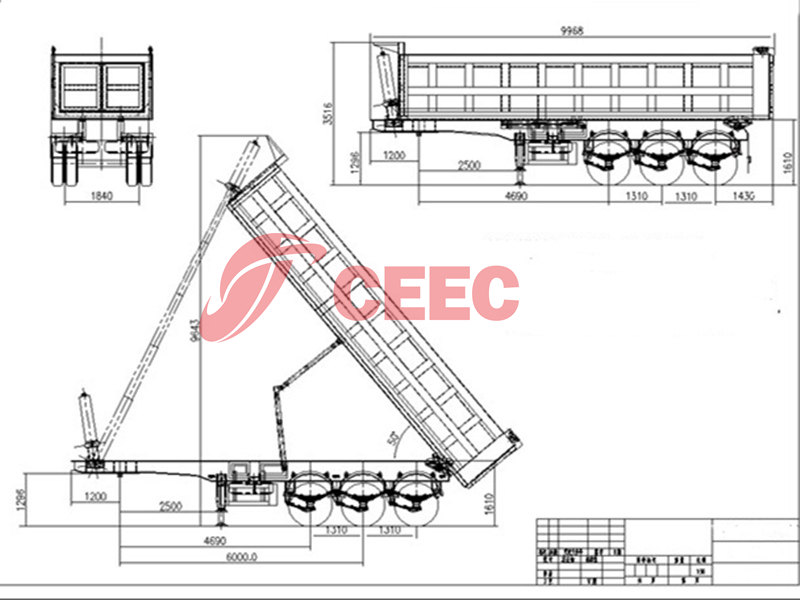

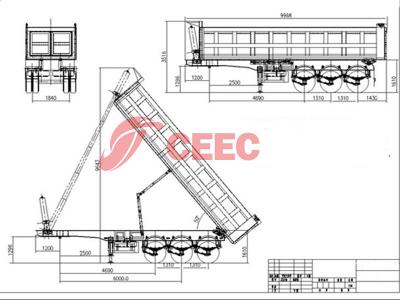

» Ⅴ. Product Drawing:

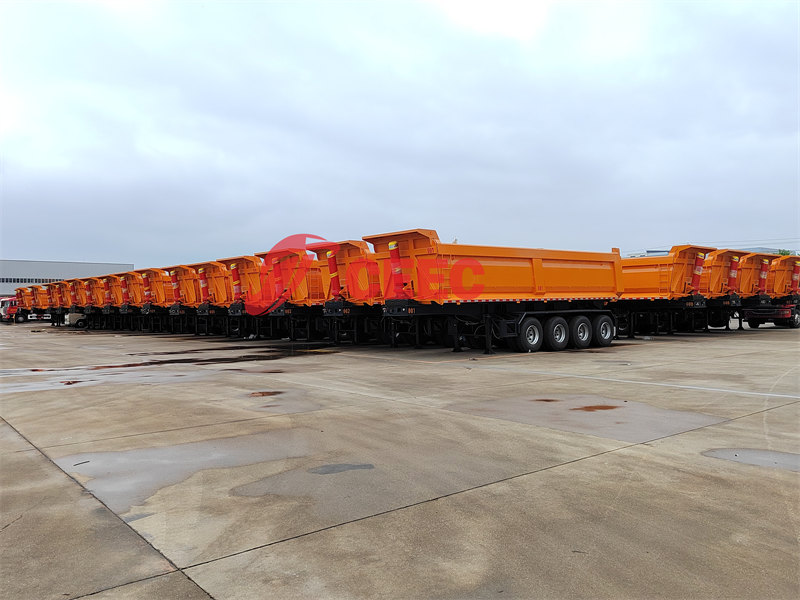

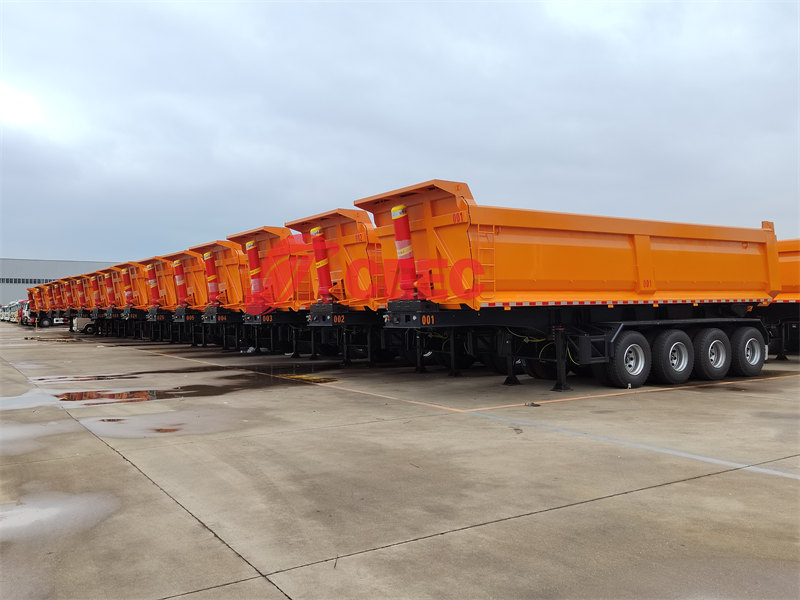

» Ⅵ. Batch delivery of Tipper Semi-trailers:
Products --100% China tipper trailer factory!
Shipping --100% fast, Convenience, Efficient!
1. Customized 2 axles, 3 axles, 4 axles tipper semi-trailers
2. FUWA/BPM alxes and HYVA lifting system for option
3.Factory bottom price, strict quality control
4. Fast delivery, common models can be supplied within 15 days.
The 4-axle dumper semi-trailer, with its 50-70 ton load capacity and 12000mm×2500mm×3200mm body size, has become a powerful assistant for construction sites and logistics transportation. It is equipped with 16 12.00R20 tires and 13T FUWA/BPW axles to ensure stable driving. The cargo box is made of high-strength materials and has strong load-bearing capacity and durability.
