Famous beiben trucks factory, 20 years on beiben trucks production & Exporting

Beiben 8x4 Fuel truck

Home Beiben Fuel Truck Beiben 8x4 Fuel truck

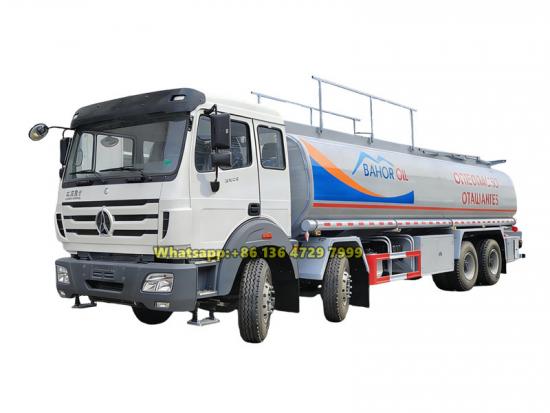

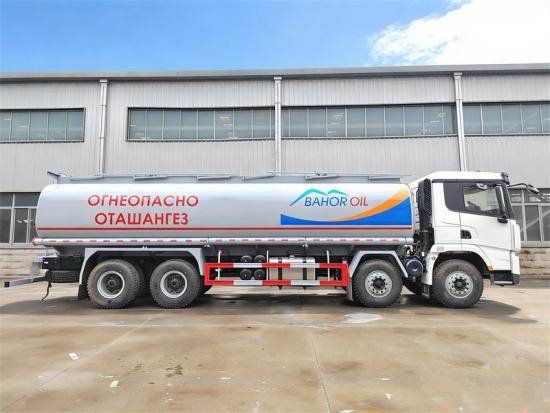

Beiben 8x4 28CBM fuel delivery truck

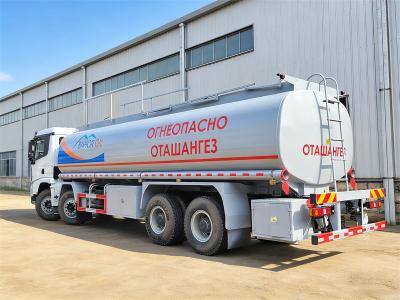

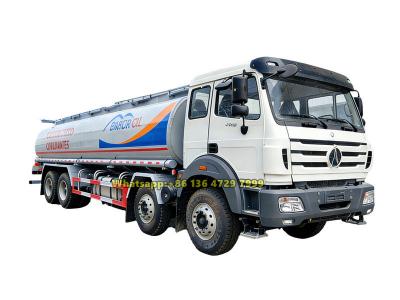

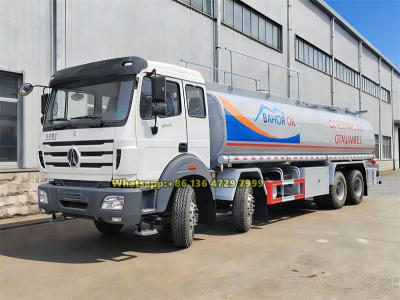

Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck
Beiben 8x4 28000 liters fuel tanker truck

Beiben 8x4 28CBM fuel delivery truck

The Beiben 8×4 fuel tanker truck is a professional large-capacity liquid transport vehicle built on a heavy-duty Beiben 8×4 chassis. It is equipped with a 380-horsepower engine and a 12-speed transmission, providing reliable power. At its core is a 28,000-liter four-compartment carbon steel tank, complete with a full set of safety systems such as vapor recovery and overflow prevention alarms. Designed specifically for hazardous materials like diesel and gasoline, it is suitable for scenarios such as petroleum and chemical distribution on main routes and fuel supply for engineering projects.

  • Market Price:

    $49500
  • Working Capcity:

    28000 liters
  • Cabin Type:

    NG80B long cabin, with sleeper
  • Dimension ( mm ) :

    11800×2500×3360
  • Drive System:

    8×4
  • Wheelbase (mm):

    1500+4450+1450
  • Engine Power:

    380HP/WP10.380E32
  • Gear Box:

    12JS200T
  • Remark:

    4 compartments, stainless steel, aluminum alloy tanker is optional
New Products

The Beiben 8×4 fuel bowser is a large-capacity liquid hazardous material transport vehicle developed on a Beiben heavy-duty chassis, primarily used for the safe and efficient highway transportation of refined oil products such as diesel and gasoline. Its chassis adopts the Beiben 8×4 drive configuration, powered by a high-displacement Weichai WP10 series diesel engine capable of delivering a robust 380 horsepower. It is paired with a Fast 12-speed manual transmission, ensuring high transmission efficiency and reliable durability.

The tank of this Beiben fuel tanker truck is constructed from high-strength carbon steel plates, with a total volume of 28,000 liters. The interior is designed with four independent compartments, enabling the simultaneous transportation of different types of oil. The tank wall is 6mm thick, providing a solid structure, and features European-standard manhole covers and a vapor recovery system. In terms of safety features, it comes standard with overflow prevention sensors, static grounding straps, and emergency shut-off valves. Combined with a high-flow self-priming oil pump rated at 60m3/h, it achieves efficient and safe closed-loop loading and unloading operations. This specialized design makes it well-suited for fuel storage and distribution tasks undertaken by petroleum companies, logistics enterprises, and large-scale engineering projects.



beiben 12-wheeler fuel truck

*Beiben 8×4 heavy fuel tanker truck

CEEC factory is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

Chassis: Beiben 8×4 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox

Tank material: High quality carbon steel, with 6mm thickness

Tank capacity: 28000 liters, 4 independent compartments

Fuel pump: China well-known brand fuel pump, with flow rate 60 m3/h

Manhole cover: Aluminum alloy European standard, 4 pcs



Beiben 12-wheeler diesel bowser truck



» Ⅱ. Product Specifications:



Beiben 28,000 Liters fuel bowser truck

Vehicle Model

 CEEC5310GYY

Chassis brand

 Beiben

Chassis model

 ND1310

Driving Type

 8x4

Dimensions

Wheelbase(mm)

 1500+4450+1450

Overall Dimension(mm)

 11,800x2,500x3,360

Fuel tanker size(mm)

 9,200x2,480x1,800

Weights

GVW(kg)

 31,000

Rated payload weight(kg)

 18,200

Curb weight(kg)

 12,800

Front axle/Middle axle
(Mercedes Benz technology)

7.5 Ton load capacity, Double shoe disc air break system

Rear/middle axle
(Mercedes Benz technology)

13Ton/axle (2 axle combined)
Dual-circuit air braking system, driving axle, duct alloy axle cover, with wheel side reducer

Front /middle wheel track (mm)

1,995/1,995

Rear wheel track(mm)

1,800/1,800

Front/rear overhang(mm)

1515/2960

Max driving speed(km/h)

 80

Fuel tank

400L

Engine

Brand

WEICHAI

Engine model

WP10.380E32

Engine type

6 cylinders, 4 stroke, water-cool, direct injection, turbo-charge with Inter-cooling diesel engine

No. of cylinders

straight-6 cylinders

Displacement

9.726L

Max. output

280kw(380ps)

Rated speed

2200 rpm

Max torque

1600 N.m

Drive Line

Clutch description

 ¢430, dry single plate, hydraulic control, mechanical operation with hydraulic assistance

Transmission

 Model: FAST 12JS200T, 12 forwarder,1 reverse gear, manual operation

Braking system

Service brake

Brake gap can be adjusted automatically
double circulation air brake system

Assistant brake

WEVB (Engine exhaust brake)

Park brake

Spring brake effect to middle and rear tires

Suspension

Front/rear

Front 13 pcs / rear 13 pcs hard parabolic spring

Tire specification

Tire

12.00R20, total 12 pcs tire and 1 spare tire

Electrical Equipment

Voltage

24V

Batteries

2X12V/135Ah

Starter

5.5Kw/24V

Cab description

1. Beiben NG80B long cab, full steel skeleton structure
2. The cab can tipple forward
3. 2 seats and one sleeper bed, with air-conditioner
4. Air- damping driver's seat
5. MP3 player AM/FM radio, USB interface

The Parameters of Superstructure

Tank Capacity

28000 liters

Tanker Material

Carbon steel

Material Thickness

6mm

Compartment

4

Transport medium

Diesel oil, gasoil or others

Fuel pump

Model:   80YHCB60

Flow rate:      60 m3/h

Working pressure: 0.6 Mpa

Rated speed:  970 rpm

Manhole cover

European standard, 4 pcs

Safety fittings

Oil Vapor Recovery System

Anti-overflow probe

Electrostatic wire reel

Emergency cut-off valve

API discharging valve





Beiben 8×4 fuel bowser truck



» Ⅲ. Chassis Advantages:

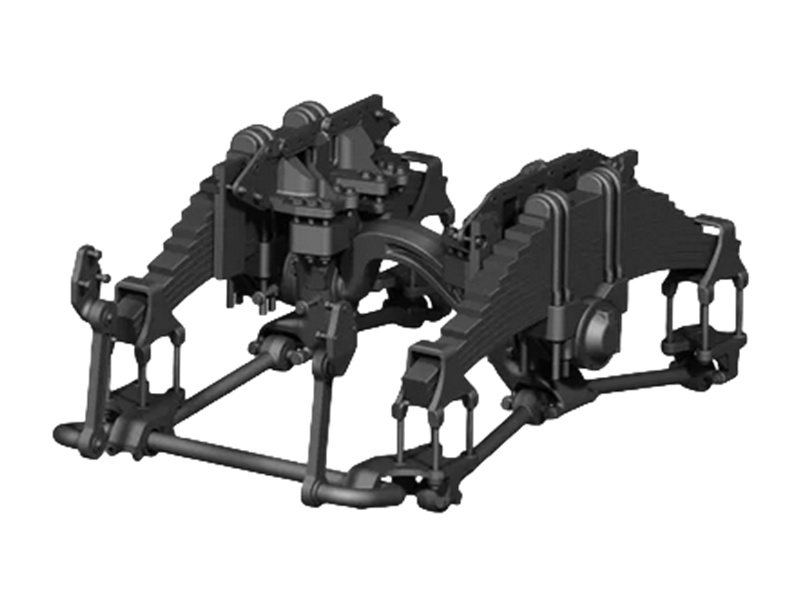

Beiben drive axle Beiben truck suspension system
Mercedes-Benz technical axle Reinforced suspension system

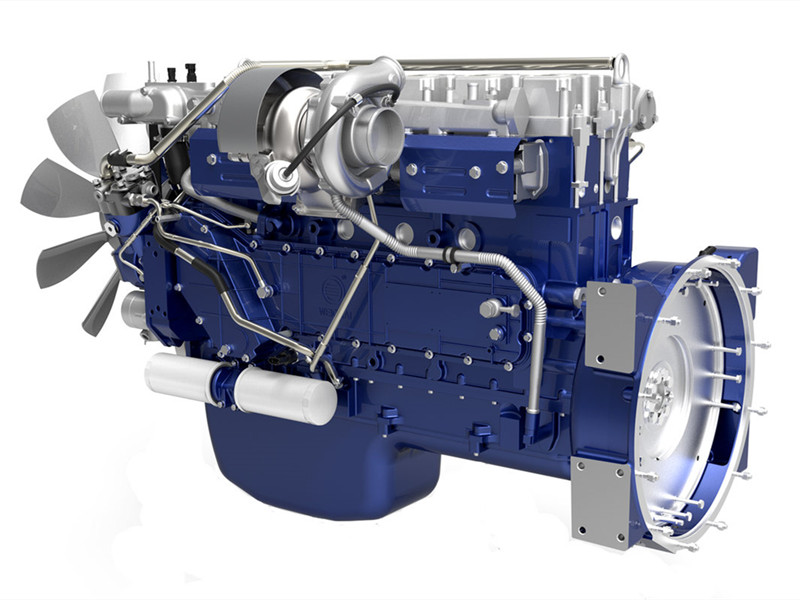

FAST gearbox WEICHAI diesel engine
FAST 12JS200T transmission WEICHAI WP10.380E32 engine



» Ⅳ. Fuel Tanker Features:


Beiben fuel tanker truck

Fuel pump

Model: 80YHCB60
Flow Rate : 60 m³/h
Working Pressure: 0.6 MPa
Rated Power: 11 kW
Rotational Speed: 970 r/min
Inlet/Outlet Diameter: 80 mm
Allowable Suction Lift: 7 m
Efficiency: Approx. 72%



Beiben oil tanker truck for sale

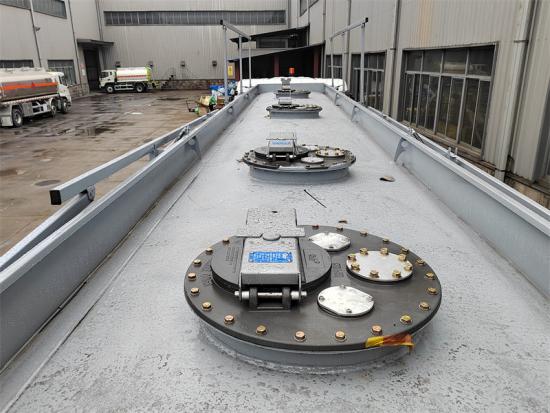

Manhole cover

Emergency Opening Pressure: 21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate: 7000 m³/h (at 34 kPa)
Material: Aluminum Alloy
Installation Method: Clamp-type
Temperature Range: -20℃ ~ +70℃



Beiben 8×4 fuel tanker truck

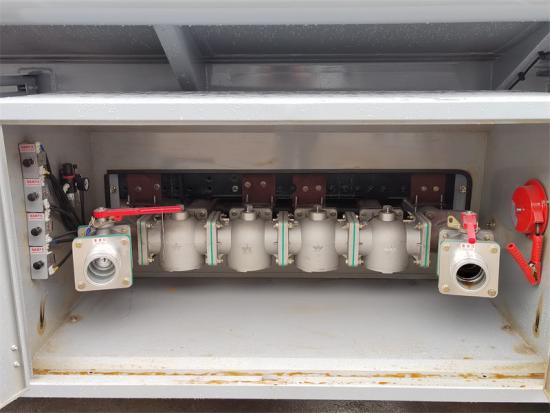

API adaptor valve

Nominal Pressure: 0.6 MPa
Maximum Flow Rate: 2500 L/min
Main Body Material: Aluminum Alloy
Operation Mode: Manual
Design Temperature: -20℃ ~ +70℃



Beiben heavy duty oil tanker truck

Emergency shutt-off valve

Nominal Pressure: 0.6 MPa
Material: Aluminum Alloy
Operation Mode: Pneumatic
Temperature Range: -20℃ ~ +70℃



Beiben 12 wheeler oil bowser truck

Overflow prevention probe

Operating Voltage: 12 VDC
Explosion-Proof Rating: Exia IIB T4
Response Time: < 1 s
Design Temperature: -40 ℃ ~ +60 ℃
Operating Current: < 5 mA
Operating Medium: Light fuel oil

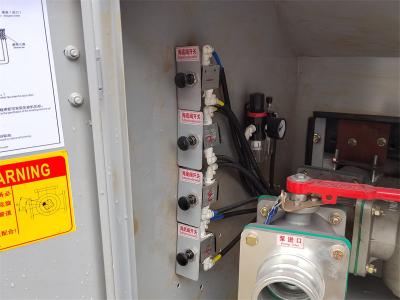

Emergency shuf-off valve switch

Emergency shut-off valve switch

Pipe Specification: 6mm
Working Pressure: 0-0.8 MPa
Operation Method: Manual
Temperature Range: 5 °C to +60 °C
Material: Aluminum alloy
Medium: Air

» Ⅴ. Product Details:

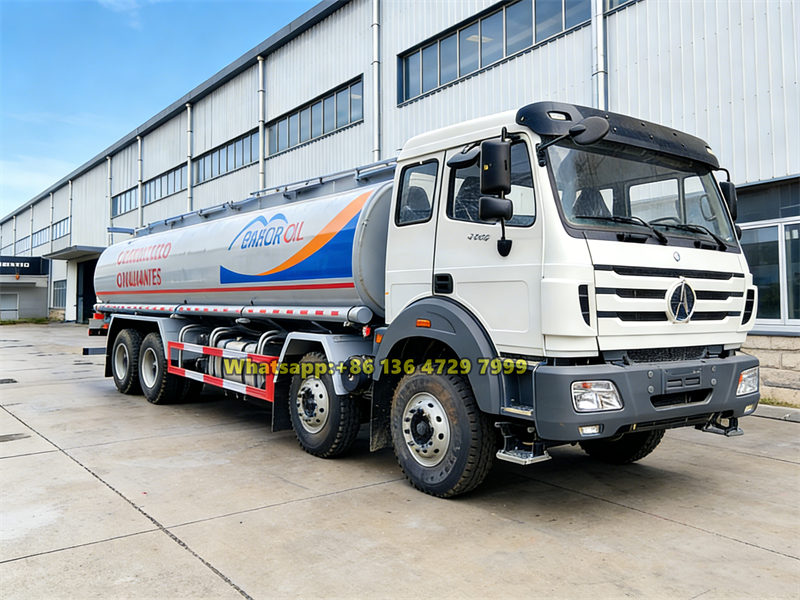

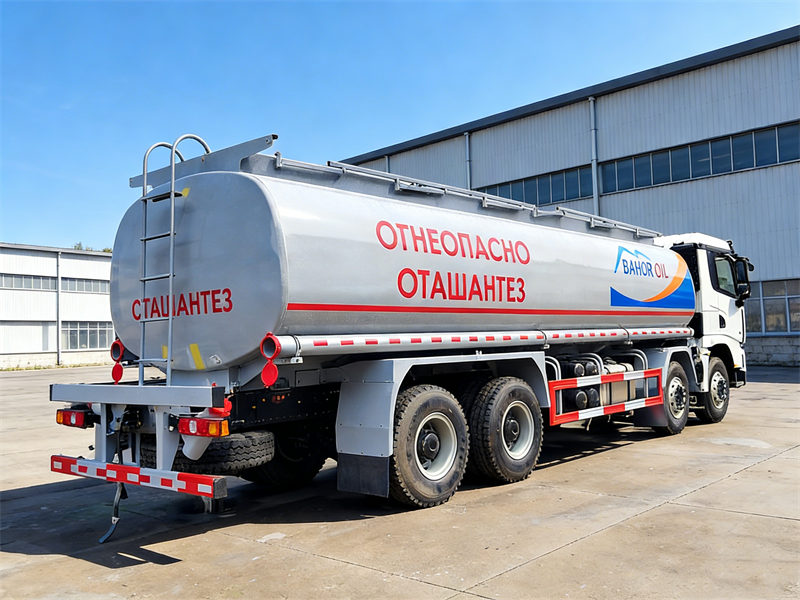

Beiben 8x4 gasoline tanker truck Beiben 12 wheeler diesel bowser truck

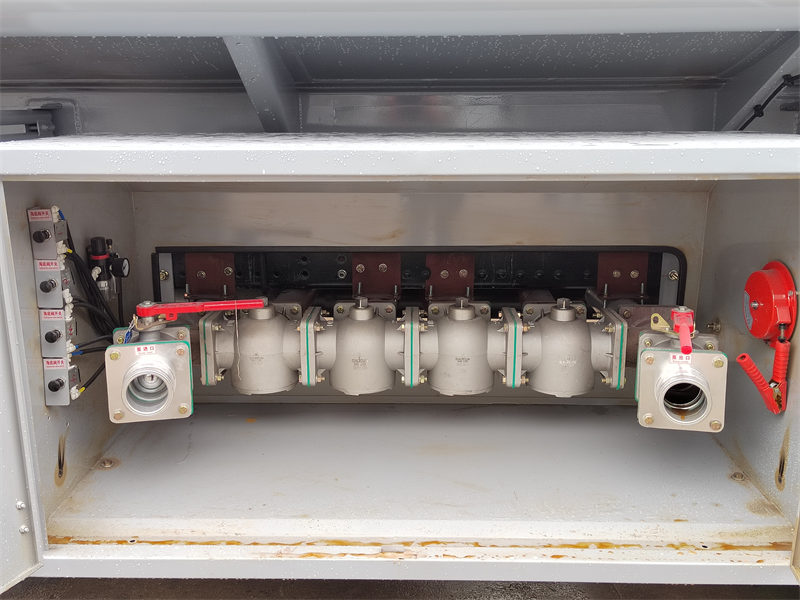

Beiben 28000 liters oil tanker truck Beiben 20CBM oil/fuel delivery truck

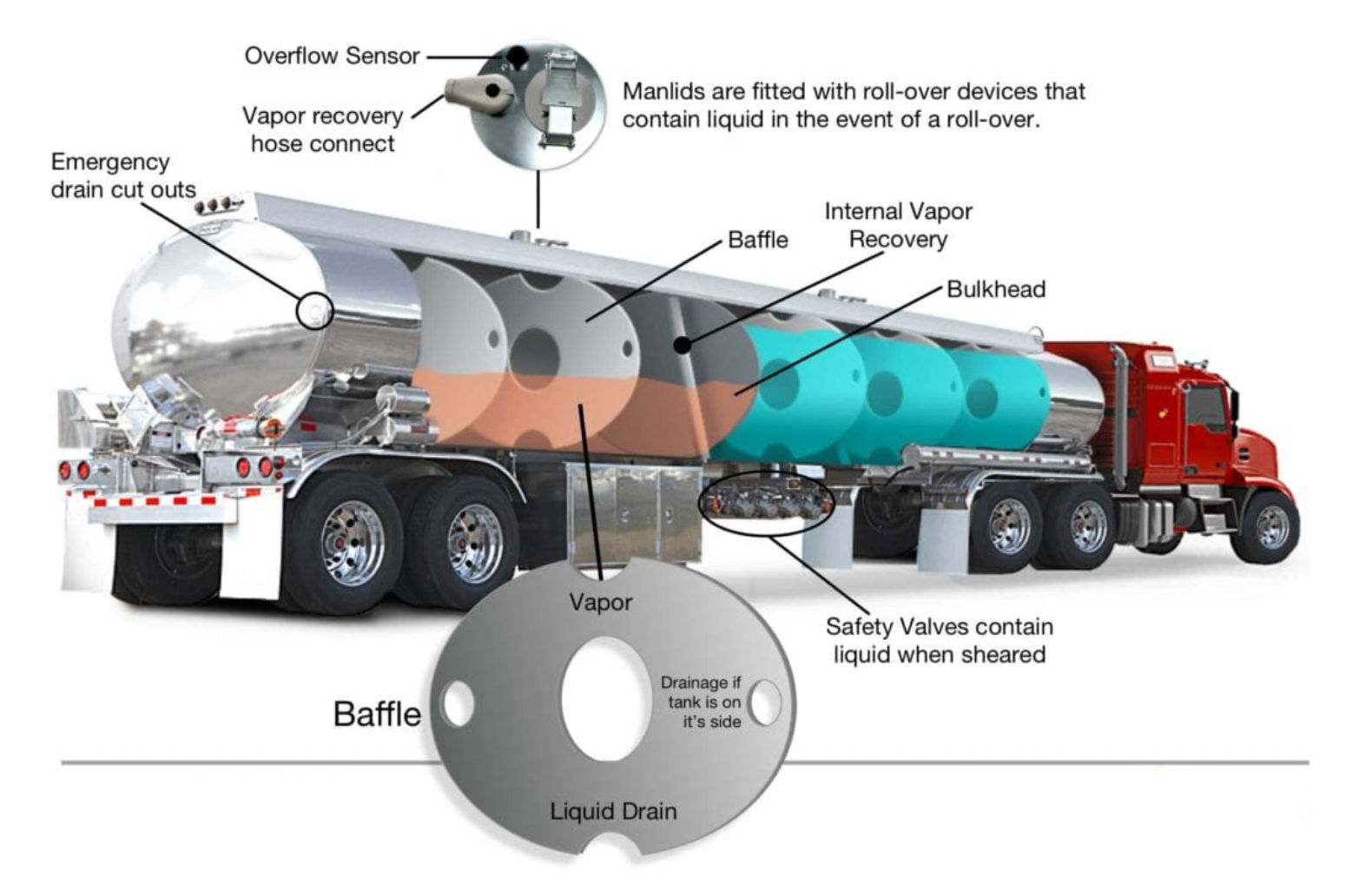

» Ⅵ. Beiben fuel truck safety features:

Beiben fuel tanker truck safety features


Baffles
Baffles are installed inside the tank to prevent maximum forward and rearward motion of the stored liquid within the tank.

Manholes
Manholes on the top of the tanker are fitted with roll-over devices that in the event of a rollover will seal the aperture.

Vapor Recovery Systems
Vapor recovery systems are installed on tankers and at loading platforms that handle cargo that should not be dispersed into the atmosphere.

Overfill Protection
Overfill system prevents overflow and ignition hazards during loading and unloading by installing high-level probes and flow monitors in each compartment.

Safety valves
Valves located at the bottom of trucks are designed to shut off and securely hold the liquid inside the tanker truck in the event of an accident or vehicle collision.

Grounding
Grounding ensures a secure, low-resistance electrical bond between a tanker and the loading rack to safely dissipate static electricity generated during product transfer.


» . Tanker Production Line:



  • Beiben fuel tanker truck factory
  • Beiben fuel tanker truck factory
  • Beiben fuel tanker truck factory
  • Beiben fuel tanker truck for sale
  • Beiben fuel tanker truck for sale
  • Beiben fuel tanker truck for sale



» . Product Applications:

  • Beiben 8×4 fuel tanker truck applications
  • Beiben 8×4 fuel delivery truck applications
  • Beiben 8×4 fuel bowser truck applications





Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option



2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks



3.Tanker body can be divided into multiple compartments for transporting different media..



4. Carbon steel, stainless steel, aluminum alloy material is optional.
