The Beiben 28,000L fuel tank truck is a hazardous chemical transport vehicle modified from a Beiben 8×4 chassis. It is powered by a Weichai 420 hp engine and features a tank with an effective volume of 28 cubic meters, divided into 4 independent compartments. The vehicle is equipped with a self-priming pump, an automatic hose reel with a fueling gun, as well as a full set of safety devices including emergency bottom valves, European standard manhole covers, and static grounding. Combining large-capacity transport with mobile refueling capabilities, it is suitable for gas station distribution, construction site and mine fuel supply, and other scenarios.
Working Capcity:
28000 litersCabin Type:
NG80B long cabin, 2 seats and one sleeperDimension ( mm ) :
11800×2500×3960Drive System:
8×4, LHDWheelbase (mm):
1950+4350+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TTyres:
12.00R20, 10+1 pcsRemark:
25000~30000 liters available★Product Introduction★

★Product Specification★
|
Basic parameter |
Model |
3142K/8×4 |
|
Length×width×height(mm) |
11800×2500×3960 |
|
|
Wheel-base(mm) |
1950+4350+1450 |
|
|
Curb weight(kg) |
13800 |
|
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1750/1200~1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch; |
|
Gearbox |
Mechanical, 12JS200T |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped; |
|
Parking brake |
Energy storage spring brake; |
|
|
Assisted brake |
Engine exhaust brake; |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm; |
|
Front axles |
7.5 T, non-driving steering axle, drum brake; |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Leaf spring, front 12/12 pcs, rear 13 pcs; |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive |
|
|
Exterior trimming: |
||
|
Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
||
|
Interior trimming: |
||
|
Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
|
Upper body specification |
||
|
Fuel Tanker |
Capacity |
28,000L |
|
Compartment |
4 |
|
|
Tank Material |
Q235 Carbon steel |
|
|
Thickness of tank material |
6mm |
|
|
Divider plate |
Q235 Carbon steel |
|
|
Anti-wave plate |
Q235 Carbon steel |
|
|
Fuel Tanker |
Ladder for inside tank |
Carbon steel |
|
Top walkway |
anti-slip sand walkway |
|
|
Tank shape |
Maximum profile design that maximizes volumetric capacity whilst achieving a low center of gravity. |
|
|
Design standard |
According to Chinese Dangerous Goods Transport standard |
|
|
Testing |
Hydrostatic and air test on each compartment |
|
|
Welding |
Gas shielded arc-welding process |
|
|

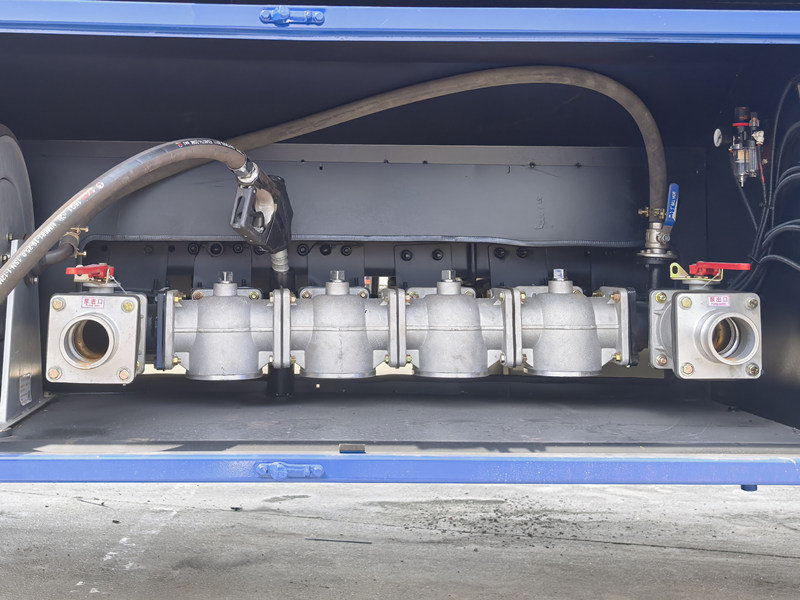

Discharge system |
Manhole Cover |
4 pieces, Europe standard aluminum manhole cover , on the top of tank |
|
Breathing valve |
4 pieces, aluminum , install on the manhole |
|
|
Sea valve |
4 pieces, aluminum pneumatic sea valve. |
|
|
Pipeline |
Carbon steel |
|
|
Discharge Valve |
4 pieces |
|
|
Discharge hosepipe |
2 pieces, Inner wire wound transparent tube |
|
|
Electrostatic prevention equipment |
Anti-static Tape, Electrostatic earthing device |
|
|
Pumping system |
Pump |
Factory standard one fuel pump, carbon steel |
|
Fuel meter |
1 set fuel meter |
|
|
Operation box |
At side of fuel tank, 1 set |
|
|
Accessories |
Ladder |
Carbon steel , 1 piece, at rear of tank |
|
Valve box |
Carbon steel , 1 piece |
|
|
Toolbox |
Carbon steel ,1 piece |
|
|
Mud guard / Mud Flap |
Mudguard and rubber mud flap, to manufacturer’s standard. |
|
|
Spare Wheel Bracket |
1piece, to manufacturer’s standard. |
|
|
Light |
Electrical system in accordance to Chinese standard, complete with Chinese’s light for tail, signal, reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck. |
|
|
Fire Extinguisher Bracket |
Manufacturer’s standard, installed on both sides of the truck. |
|
|
Fire Extinguisher |
2 pieces, dry powder fire extinguisher |
|
|
Painting |
1 Coat of anticorrosive prime, 2 coats of final paint . Colour as request |
|
|
Reflector/remark |
3M/ manufacturer's standard |
|

★Beiben 28000L Refueling Tank Truck Configuration Highlights★
1. Chassis
o Beiben 8×4 heavy duty chassis, NG80 long cab with flat roof, left-hand drive.
o Weichai WP12.420E32 inline 6-cylinder engine, max output 420 hp, peak torque 1,750 N·m.
o 12JS200T manual transmission, 430 mm single-plate dry friction clutch, ensuring smooth and reliable power delivery.
2. Tank Structure & Material
o Effective tank volume 28 m³, constructed from Q235 high-quality carbon steel with 6 mm wall thickness.
o Multiple internal anti-surge baffles to reduce liquid slosh impact on driving stability; leak-tested with high-pressure gas.
o Tank divided into 4 independent compartments, allowing simultaneous transport of different types of light oils.
3. Loading/Unloading & Refueling System
o Equipped with an 80YHCB-60 self-priming pump, offering high flow rate and efficiency, supporting "pump-in/pump-out" operations.

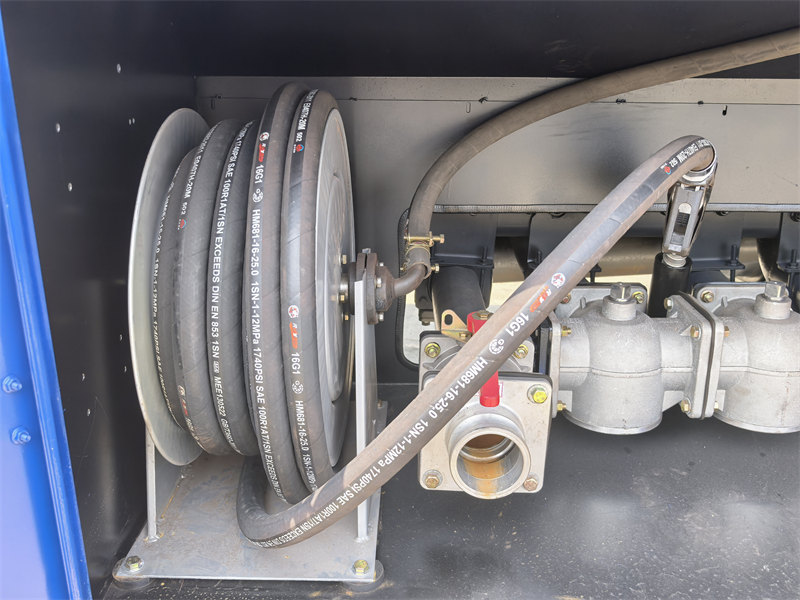

o Standard automatic retractable hose reel with fueling gun, enabling mobile refueling directly to machinery at construction sites, mines, and other locations.
4. Safety Protection Devices

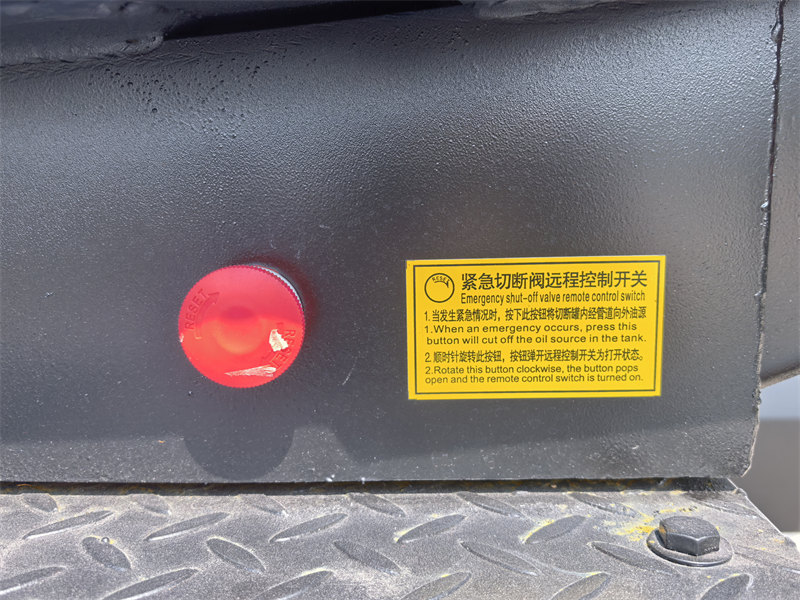

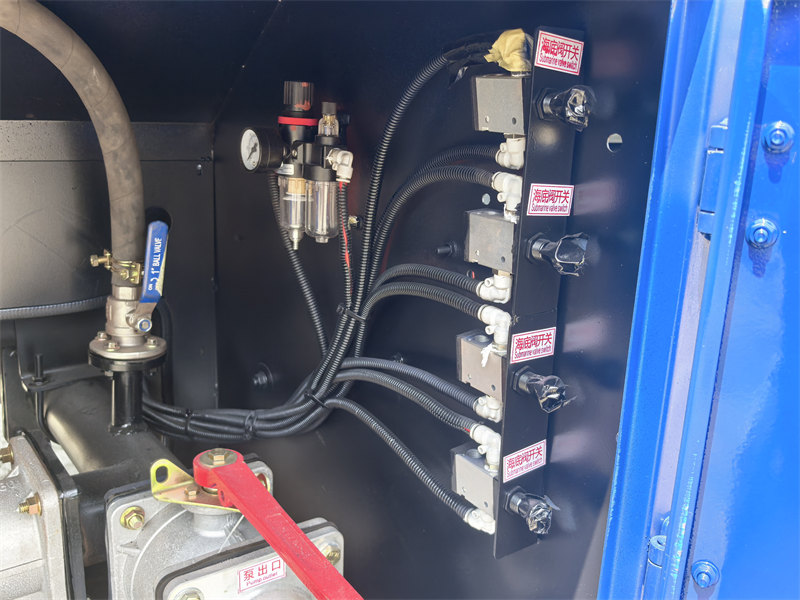

o Each compartment features a Euro-style aluminum manhole cover, breather valve, and aluminum pneumatic emergency bottom valve (remote shut-off).
o Fitted with overfill prevention probes, static grounding straps, and static-conductive dragging belts to prevent electrostatic sparking during loading and unloading.

★Beiben 8×4 Oil Tanker Truck Advantages★

1. Powerful Performance: Weichai 420 hp engine + 12-speed transmission + 13-ton rear axle, providing strong grade-climbing capability and adaptability to complex road conditions under heavy loads.
2. High Transport Efficiency: 28 m³ large capacity + 4-compartment design, maximizing single-trip volume and enabling simultaneous delivery of different fuel types, reducing logistics costs.
3. Multi-Functional: Built-in oil pump and refueling reel allow both long-distance transport and on-site mobile refueling at construction sites, mines, and other work locations.
4. Safe & Reliable: Equipped with emergency bottom valves, Euro-style manholes, static grounding, dual-circuit braking, and other comprehensive safety systems, ensuring full protection during driving and loading/unloading operations.
5. Durable & Cost-Effective: 6 mm thick Q235 carbon steel tank, robust chassis load-bearing design, long service life, and low maintenance costs.
★Beiben 28000 Liters Refueling Truck Details★

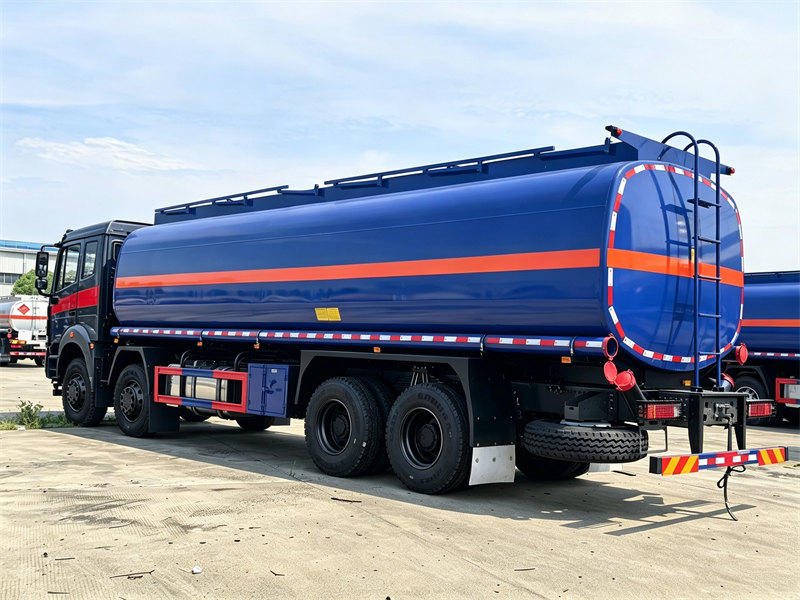

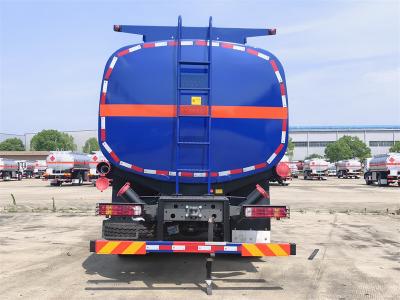

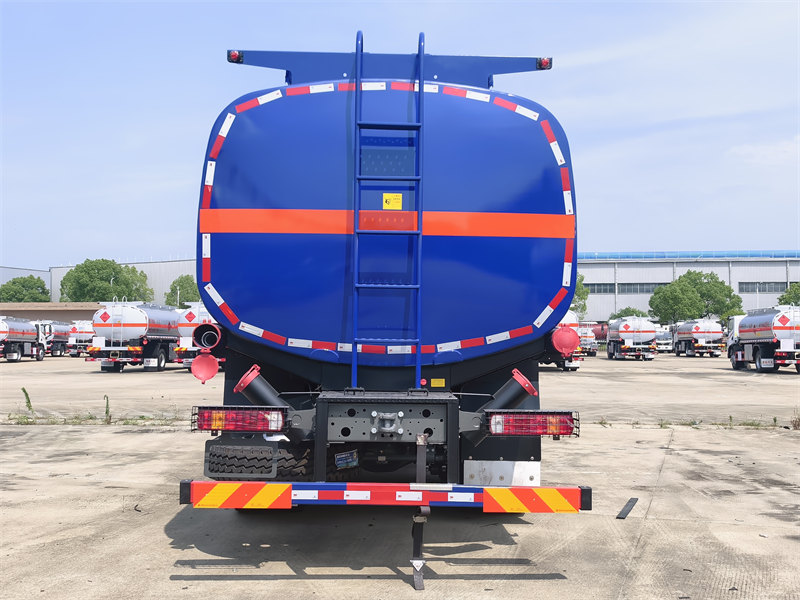

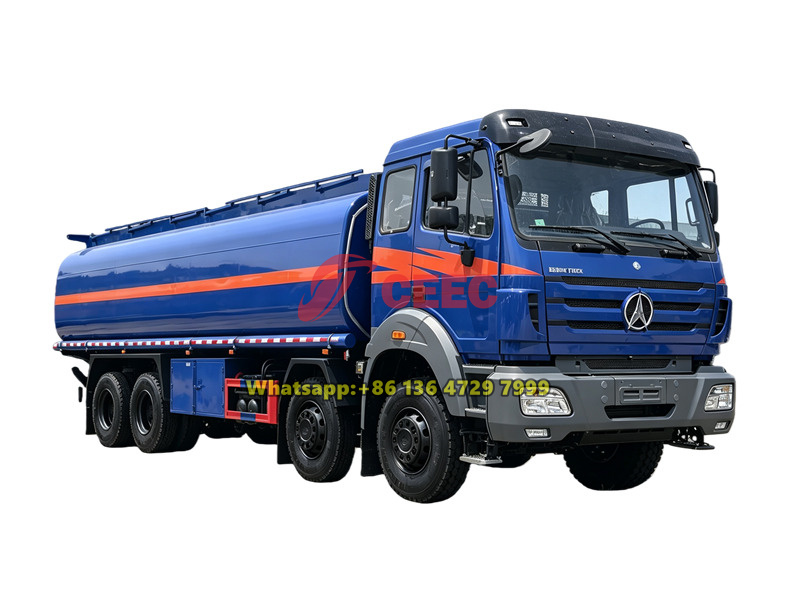

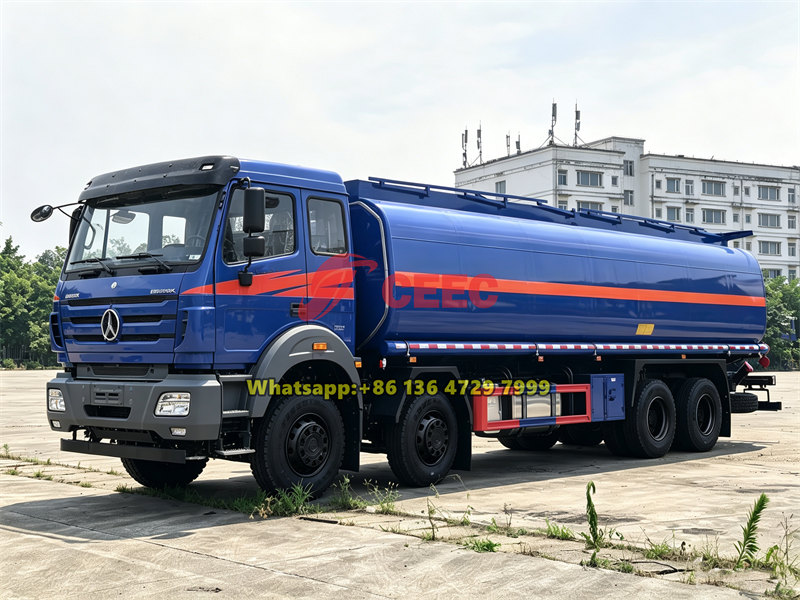

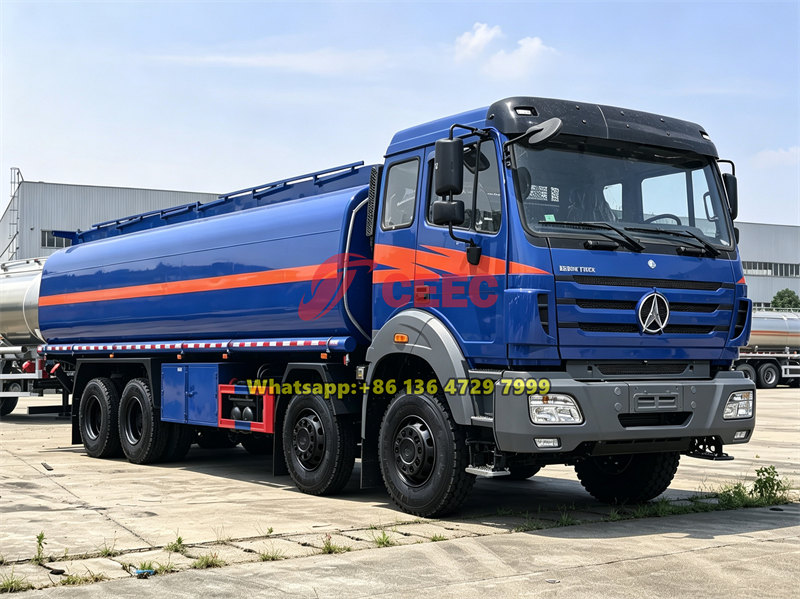

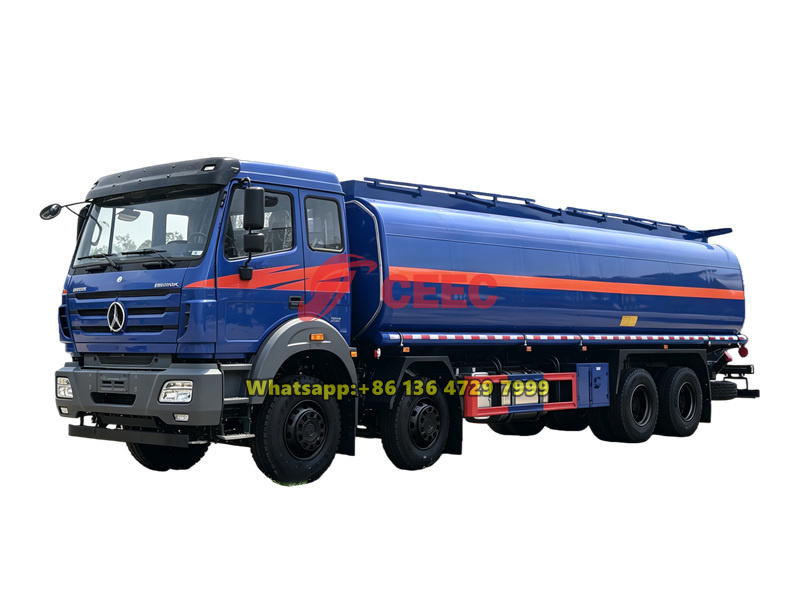

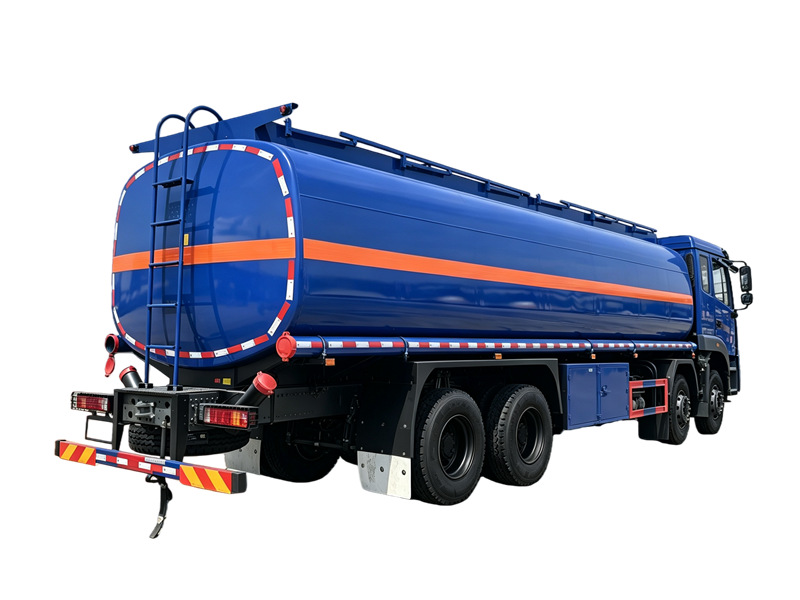

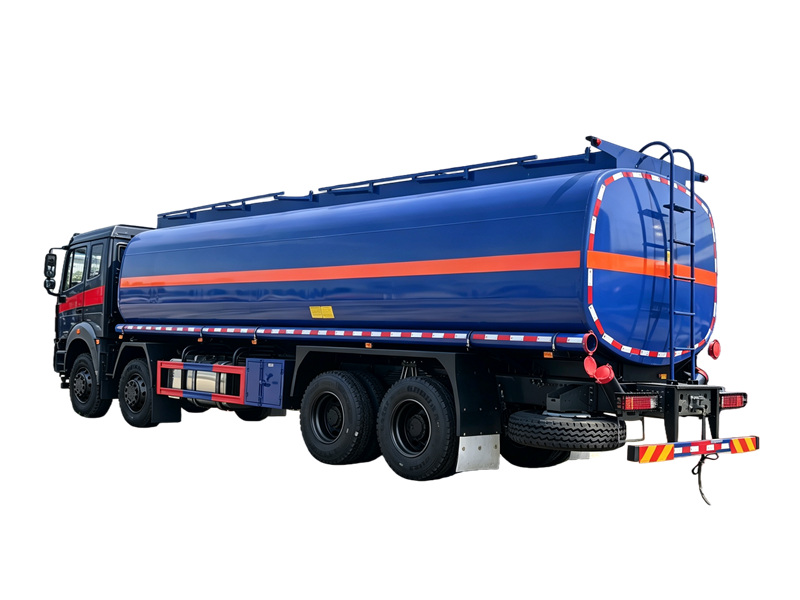

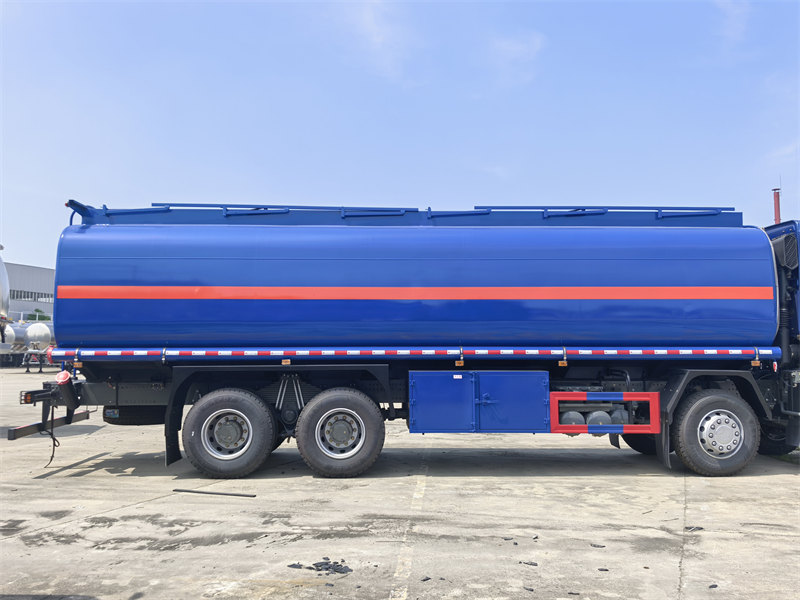

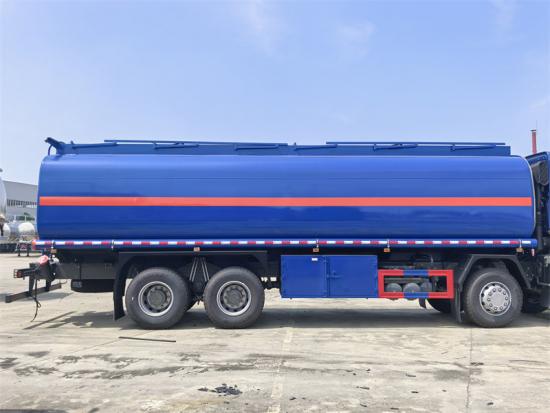

⇓Beiben 12-wheeler Oil Tanker Truck Display⇓
![]() |
![]() |
![]() |
![]() |
